Compatible: (5.7L/6.0L/6.2L/7.0L)
2004 - 2013 Cadillac CTS-V
1998 - 2002 Chevy Camaro
2010 - 2015 Chevy Camaro
1997 - 2013 Chevy Corvette
2007 - 2013 Chevy Silverado
2007 - 2013 GMC Sierra
2004 - 2006 Pontiac GTO
2008 - 2010 Pontiac G8
1997-2012 GM LS 90mm or 92mm 4-Bolt Drive-By-Wire Throttle Body. Blue system is adjustable up to 250 HP. Includes 10lb bottle, 92mm plate, and all installation items
Retains stock throttle body location and orientation using a 1/2” billet aluminum plate. Power levels up to 250 RWHP do not require injector upgrade, however, the total fuel supply system must be sized according to expected power levels. Recommend 1 step colder spark plug up to 150 RWHP, 2 steps colder spark plug on 200 and up RW

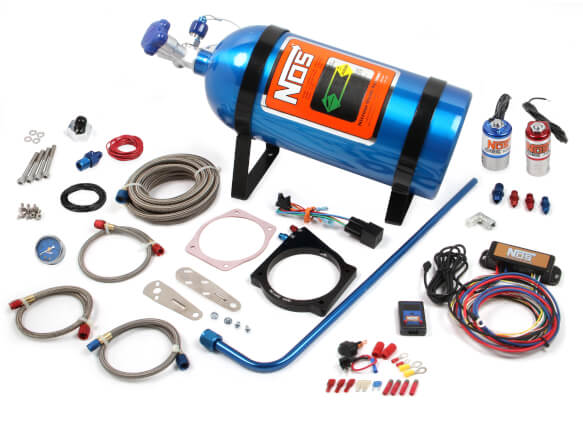

Features:
If you are running one of the many LS based engines and would like to add up to 250 additional horsepower, NOS has a complete nitrous kit option for you. These kits are ideal for adding a little more power to that stock engine or a lot more power to that custom built Hot Rod. Available for 4-bolt, drive-by-wire or cable operated throttle bodies in 90mm & 105mm plate sizes. These are “Wet” plates, meaning the additional fuel is added though the nitrous system, so there are no requirements for an injector upgrade*.
*It is important to ensure the existing fuel delivery system is adequate to support the expected power levels.
- For use with drive-by-wire or cable operated Throttle Bodies
- Single ½” plate between the throttle body and manifold
- Ideal for use with the Holley Hi-Ram & MSD Atomic LS Manifold
- Supports up to 250 RWHP (Rear Wheel Horse Power)
- Plate outlet design maximizes distribution
- Includes a 10 lb. “NOS Blue” nitrous bottle with brackets
- 6061 Billet Aluminum, CNC Machined Plate
Specs:
| Bottle Color | NOS Blue |
|---|---|
| Bottle Size | 10 lb |
| Brand | NOS |
| Fuel Solenoid | Cheater ll |
| Max Horsepower | 250 |
| Nitrous Solenoid | Cheater |
| Product Type | NOS Kit |
| Part Number | 05164NOS |
