Compatible:
FOR HOLLEY LS HI RAM INTAKE MANIFOLD
This part is legal for sale or use on Racing Use Only Vehicles
The following vehicles are considered Racing Use Only Vehicles:
- Racing Use Only Vehicles are vehicles that are used exclusively for competition that are not registered and that may never be used on the street
WARNING: It is against the law to install this part on an Emissions Controlled Vehicle
NOS sandwich-style plate systems are designed to bolt between the upper and lower intake sections on Holley Hi-Ram LS manifolds. Our dry nitrous systems give you everything you need including 2 NOS Pro-Race nitrous solenoids, brackets, hoses, jetting, and hardware, along with your choice of nitrous bottle. At the center of this system is our machined billet 6061-T6 aluminum plate laser engraved with NOS logo, then anodized for great looks and excellent corrosion protection. Our 1-piece plate features machined passages that precisely spray into the center of each cylinder. Plate includes jetting for up to 250 horsepower but is capable of supporting 1000+ horsepower. The plate is made from billet aluminum with passages machined directly into the plate so there is no need to worry about spray bars breaking or spinning.

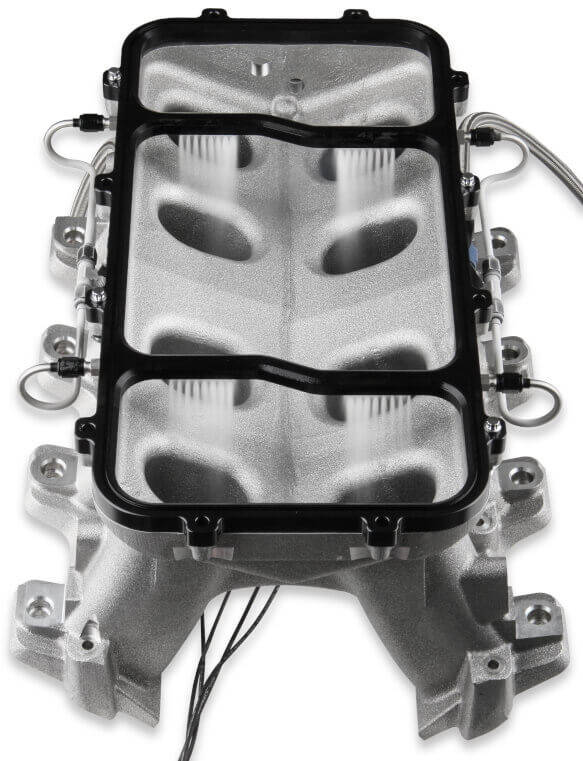

- This dry single stage plate system sandwiches between the bottom base and top plate on Holley Hi-Ram intake manifolds
- Designed specifically for optimum nitrous distribution on LS-based engines
- Sprays nitrous directly into each cylinder runner for proper nitrous distribution
- Plate features machined 0.103” passage that feeds (8) 0.040” openings per intake runner
- Plate is made from billet 6061-T6 aluminum and has laser etched NOS logo
- Plate is anodized black or clear for corrosion resistance and high quality appearance
- System utilizes two NOS Pro-Race nitrous solenoids

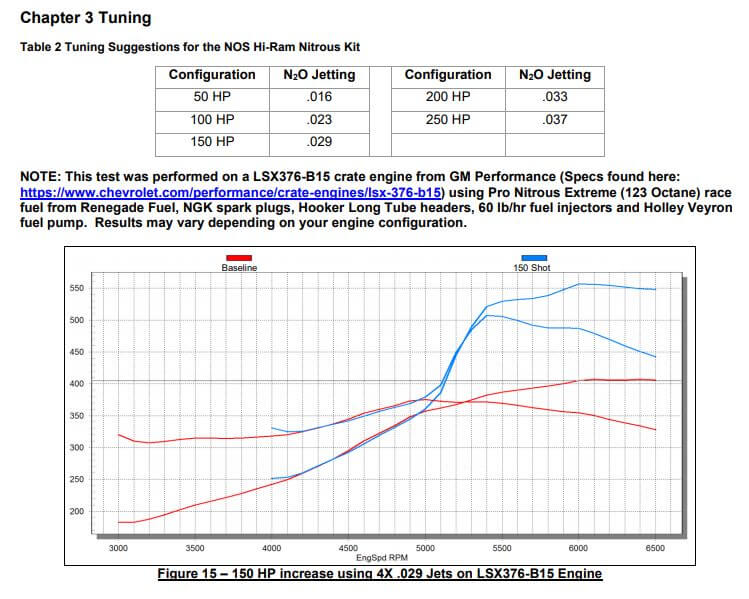

- Includes jetting for 50, 100, 150, 200, and 250 horsepower configurations
- Supports up to 1000+ horsepower (jets purchased separately)

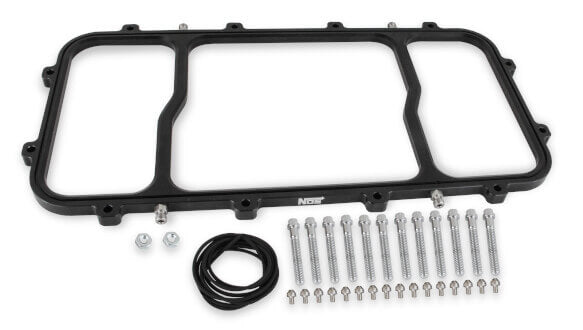

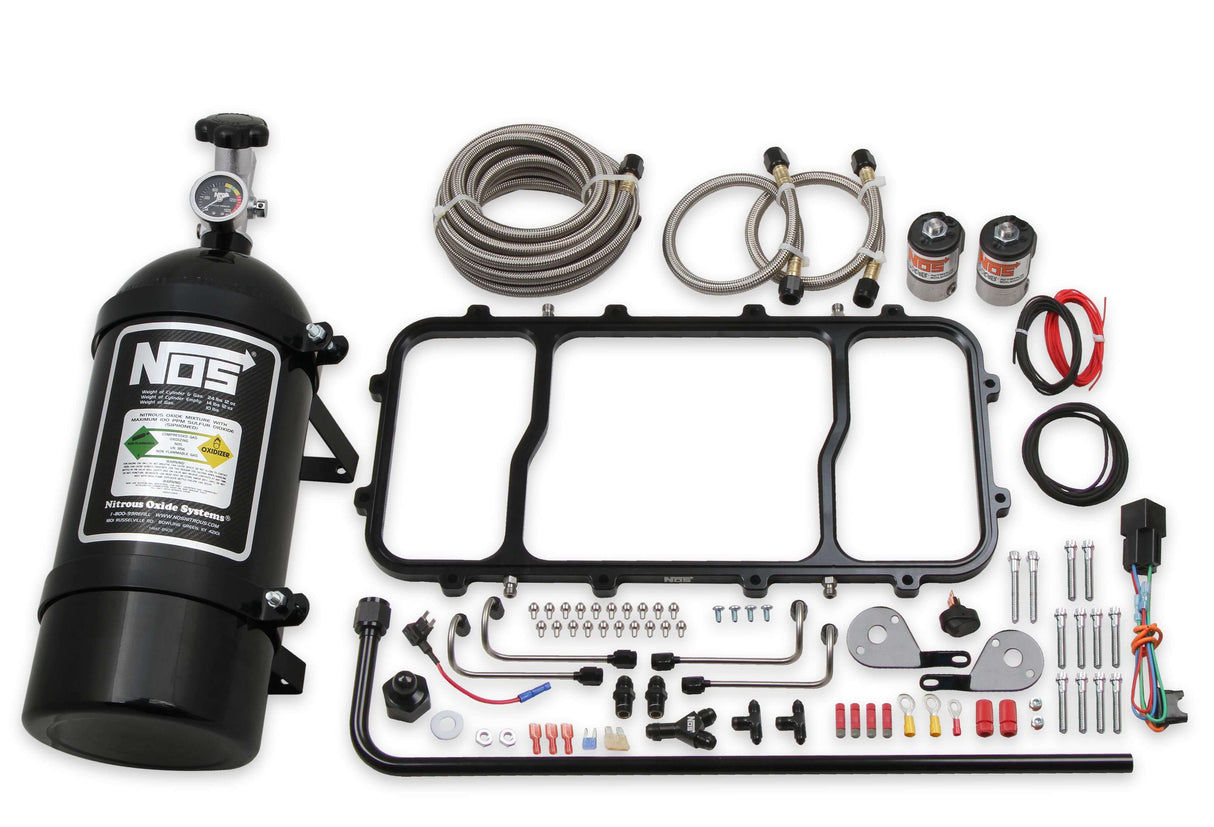

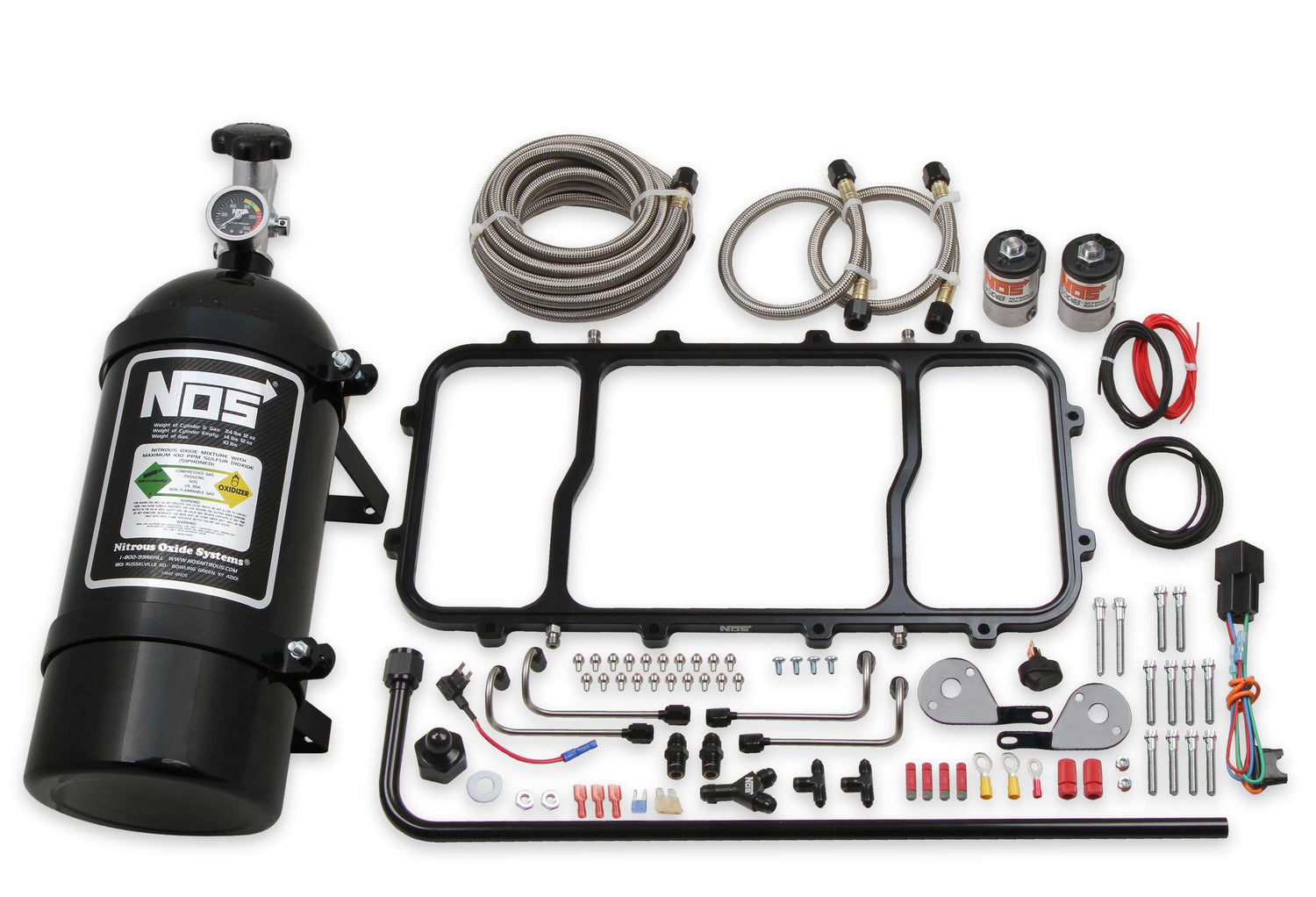

- Includes Plate, Gasket, Hardware, Jet Holders, Solenoids, Brackets, Hose, Fittings, and Jetting for up to 250 horsepower

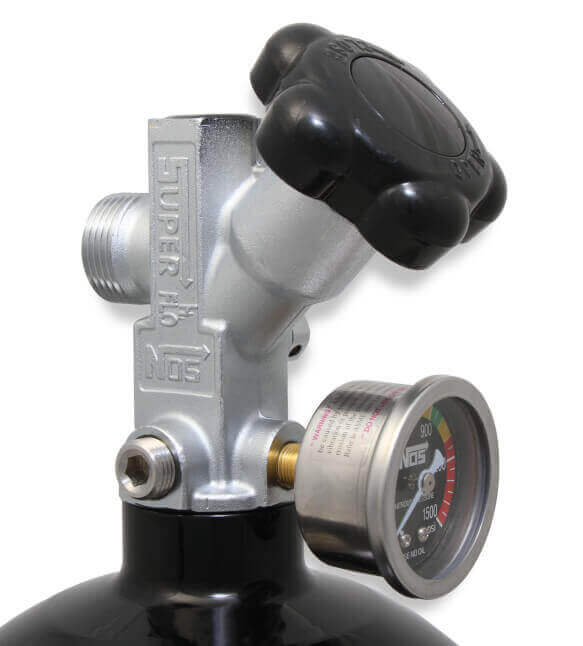

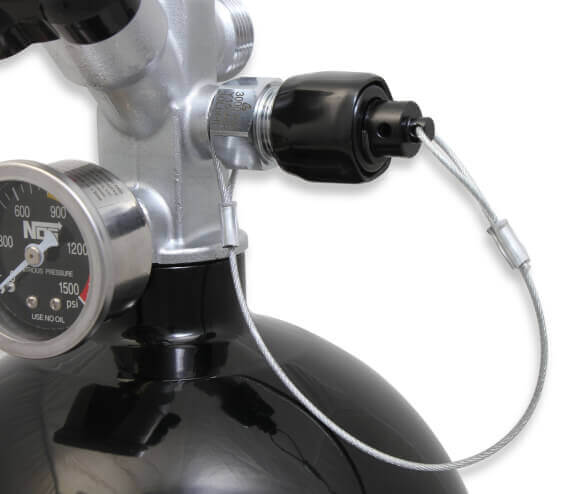

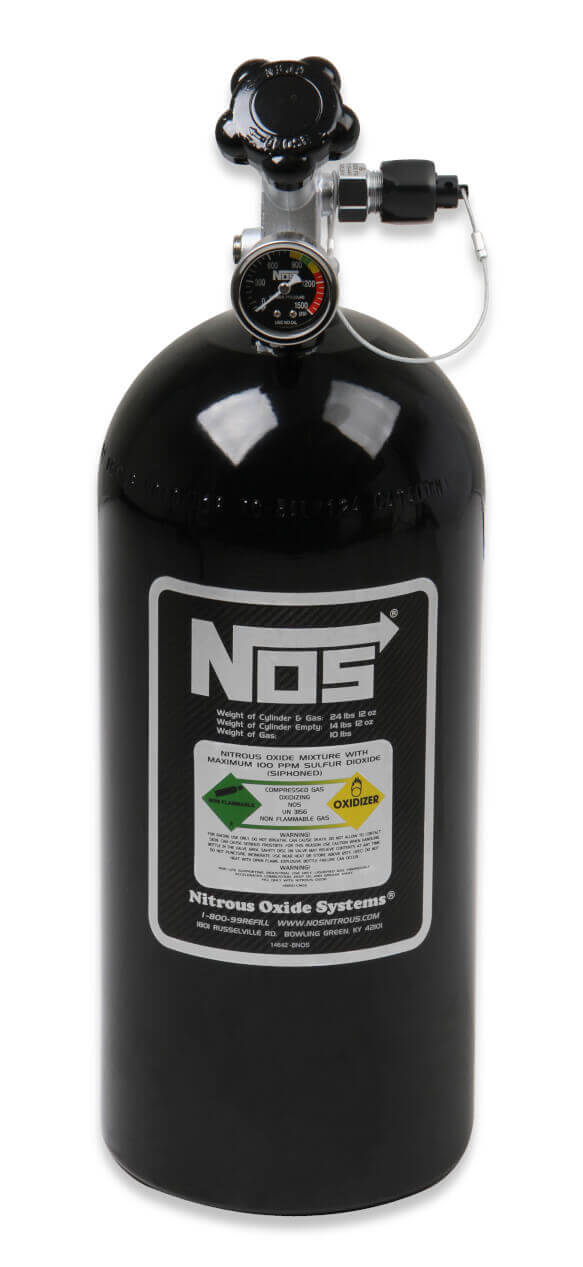

- Systems available with 10 LB, 15 LB, or 12 LB Carbon Fiber Nitrous bottle
Specs:
| Adjustable | Yes |
|---|---|
| Bottle Color | Black |
| Bottle Included | Yes |
| Bottle Size | 10 lb |
| Brackets Included | Yes |
| Brand | NOS |
| Delivery Style | Hi-Ram Plate |
| Emission Code | 4 |
| Included Jetting Horsepower | 50, 100, 150, 200, 250 |
| Jet Style | Flare |
| Material | Aluminum |
| Max Horsepower | 1000 |
| Nitrous Solenoid | Pro-Race |
| Number of Solenoids | 2 |
| Plate Color | Black |
| Plate Flange | Holley Hi-Ram |
| Plate Height | 1/2 inch |
| Plate Included | Yes |
| Product Type | NOS System |
| Solenoid Top Cover Color | Black |
| System Style | Dry |
| Part Number | 05500BNOS |
