NOS® (98-02) Camaro/Firebird V8 Big Shot™ Plate Nitrous System w/ 10 lb. Bottle - 10 Second Racing
NOS® (98-02) Camaro/Firebird V8 Big Shot™ Plate Nitrous System w/ 10 lb. Bottle - 10 Second Racing

05168NOS

NOS® (98-02) Camaro/Firebird V8 Big Shot™ Plate Nitrous System w/ 10 lb. Bottle

Regular price$1,047.95
/
Shipping calculated at checkout.
  • THIS PRODUCT IS NOT CARB CERTIFIED
MANUFACTURED ITEM! 6-8 WEEK BUILD TIME
  • Question? Call us at (888) 257-1077 🏁

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Verify fitment with your vehicle

(Change vehicle)

Compatible: (5.7L)

1998 - 2002 Chevy Camaro

1998 - 2002 Pontiac Firebird

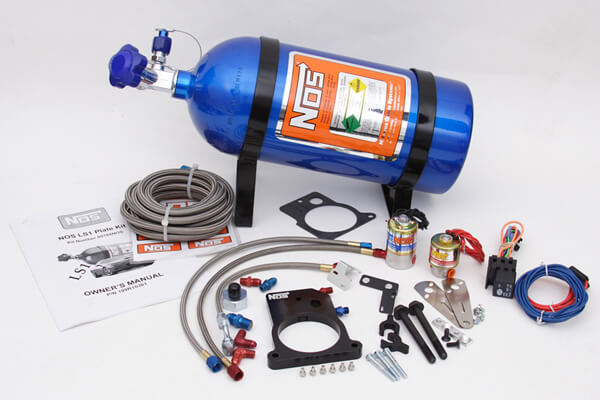

Kit includes stainless jets for 100,125 and 150 HP, -6 AN nitrous line, large nitrous and fuel solenoids, throttle body gaskets and bolts, Corvette micro-switch bracket, fuel and nitrous hoses, a 10 lb bottle and various wiring components to complete installation.



Recommend 1 - 2 steps colder spark plugs. No projected tip, fine wire or iridium spark plugs. Power levels in excess of 75 hp should use a racing/high octane rated fuel. Power levels of 200+ hp may require a fuel system upgrade



This part is legal for sale or use on Racing Use Only Vehicles

The following vehicles are considered Racing Use Only Vehicles:

  • Racing Use Only Vehicles are vehicles that are used exclusively for competition that are not registered and that may never be used on the street

WARNING: It is against the law to install this part on an Emissions Controlled Vehicle








The NOS LS1 plate system uses a billet plate with no spray bars. This unique design allows better atomization which prevents fuel puddles in your manifold and provides the best cylinder to cylinder distribution for maximum power. This is no ordinary low HP kit. The plate and solenoids supplied will easily support 200 HP.

  • Adjustable to 200 HP
  • Includes required hardware for most applications
  • On demand power doesn''t affect daily driving characteristics
  • Best "horsepower per dollar" modification available



Specs:

Adjustable Yes
Bottle Color Blue
Bottle Included Yes
Bottle Material 6061 T-6 Aluminum
Bottle Size 10 lb
Bottle Valve Super Hi-Flo
Bracket Material Steel
Brackets Included Yes
Brand NOS
Color Blue
Delivery Style EFI Spacer Plate
Emission Code 4
Feed Line Size 6AN
Fuel Solenoid Cheater
Included Jetting Horsepower 100, 125, 150
Jet Sizes Included 100, 125, 150 hp
Jet Style Flare
Material 6061 T-6 Aluminum
Max Horsepower 200
Nitrous Bottle Capacity 10 lbs
Nitrous Solenoid Super ProShot
Number of Solenoids 2
Plate Bolt Pattern 3 bolt
Plate Diameter 80 mm
Plate Flange GM 80mm LS 3 bolt
Plate Height 1/2 inch
Plate Included Yes
Plate Thickness 1/2 inch
Product Type Nitrous System
Solenoid Top Cover Color Blue/Red
Style Wet
System Style Wet
Part Number 05168NOS




Install Guide:

:







Bottle Notice:







Warranty:
