NOS® (18-20) Mustang GT Wet Plate Nitrous Oxide System w/ 10 lb. Bottle & 80mm Plate

  • Sale
  • Regular price $799.95




Compatible: (5.0L)

2018 - 2020 Ford Mustang



Recommend 1 - 2 steps colder spark plugs. No projected tip, fine wire or iridium spark plugs. Power levels in excess of 75 hp should use a racing/high octane rated fuel. Power levels of 200+ hp may require a fuel system upgrade



This part is legal for sale or use on Racing Use Only Vehicles

The following vehicles are considered Racing Use Only Vehicles:

  • Racing Use Only Vehicles are vehicles that are used exclusively for competition that are not registered and that may never be used on the street

WARNING: It is against the law to install this part on an Emissions Controlled Vehicle









    Features:

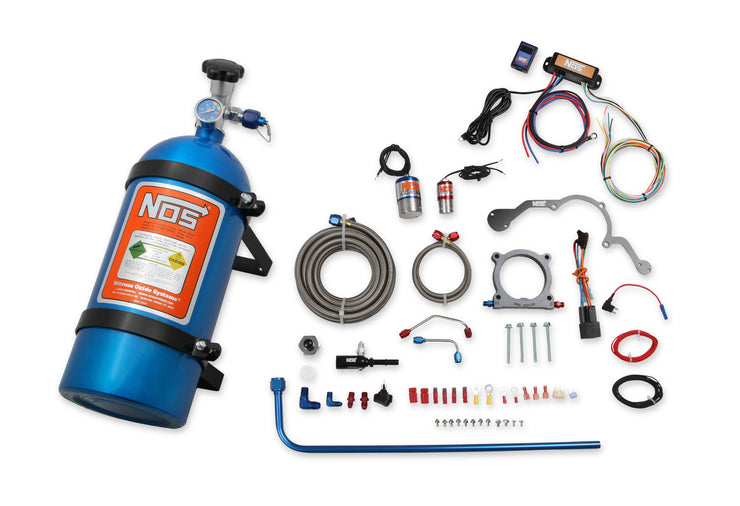

    Our NOS systems include everything needed to install that extra power over the weekend. Along with all the nitrous and fuel related hardware, an NOS Mini 2-stage progressive controller is included for exceptionally smooth power delivery. The 80mm 1/2 inch thick nitrous plate is made from billet 6061-T6 aluminum then anodized black for great looks under the hood. NOS also includes a custom designed black anodized aluminum solenoid bracket with custom bent hard lines for that professional installation look.
    • Fits 2018-19 Ford Mustang GT w/ 5.0L Coyote Engine
    • Choose from the Classic Blue or the New Black for a Stealth Appearance
    • Included Jetting for 75, 100, 125 & 150 RWHP (rear wheel horsepower)

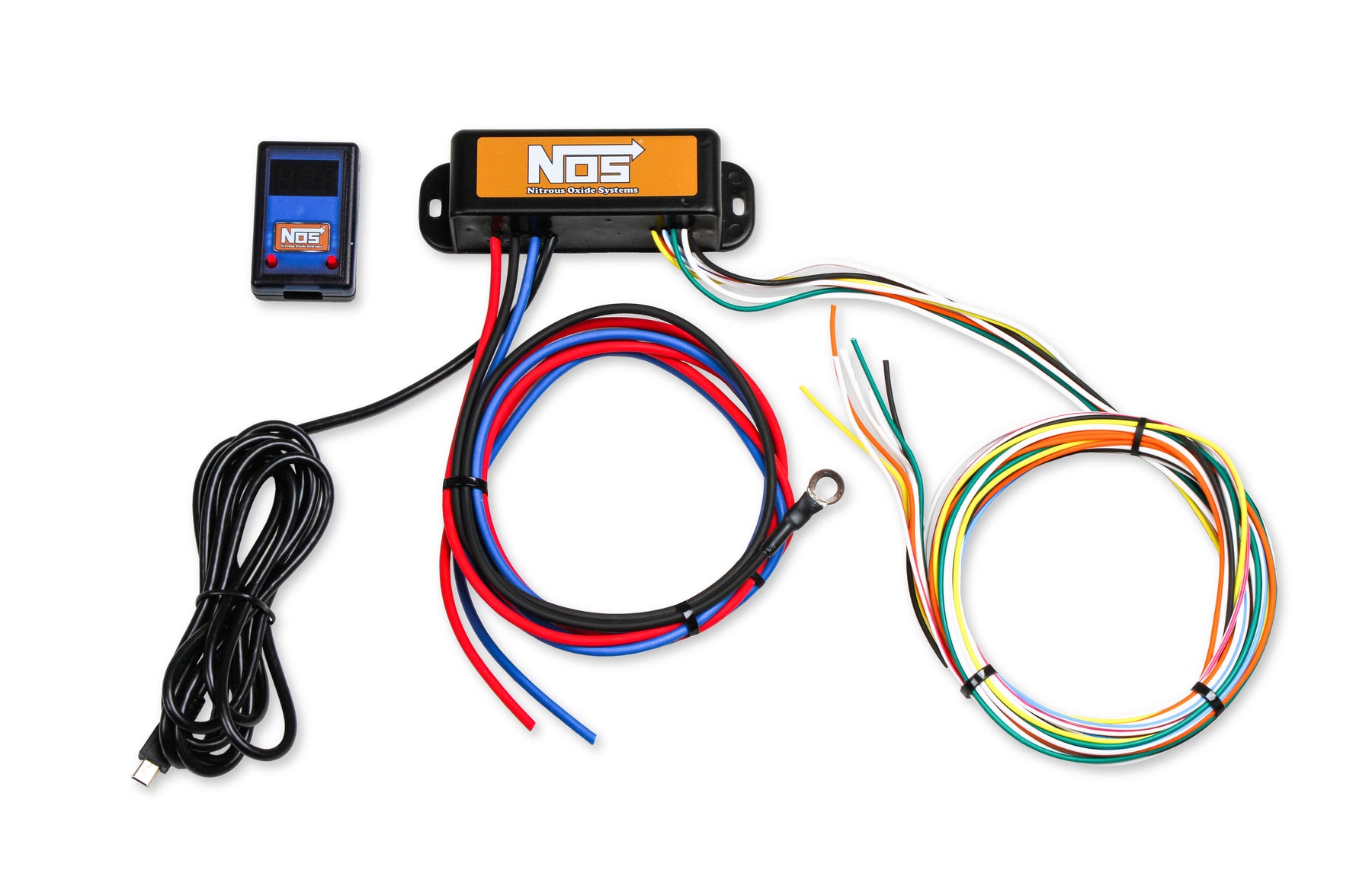

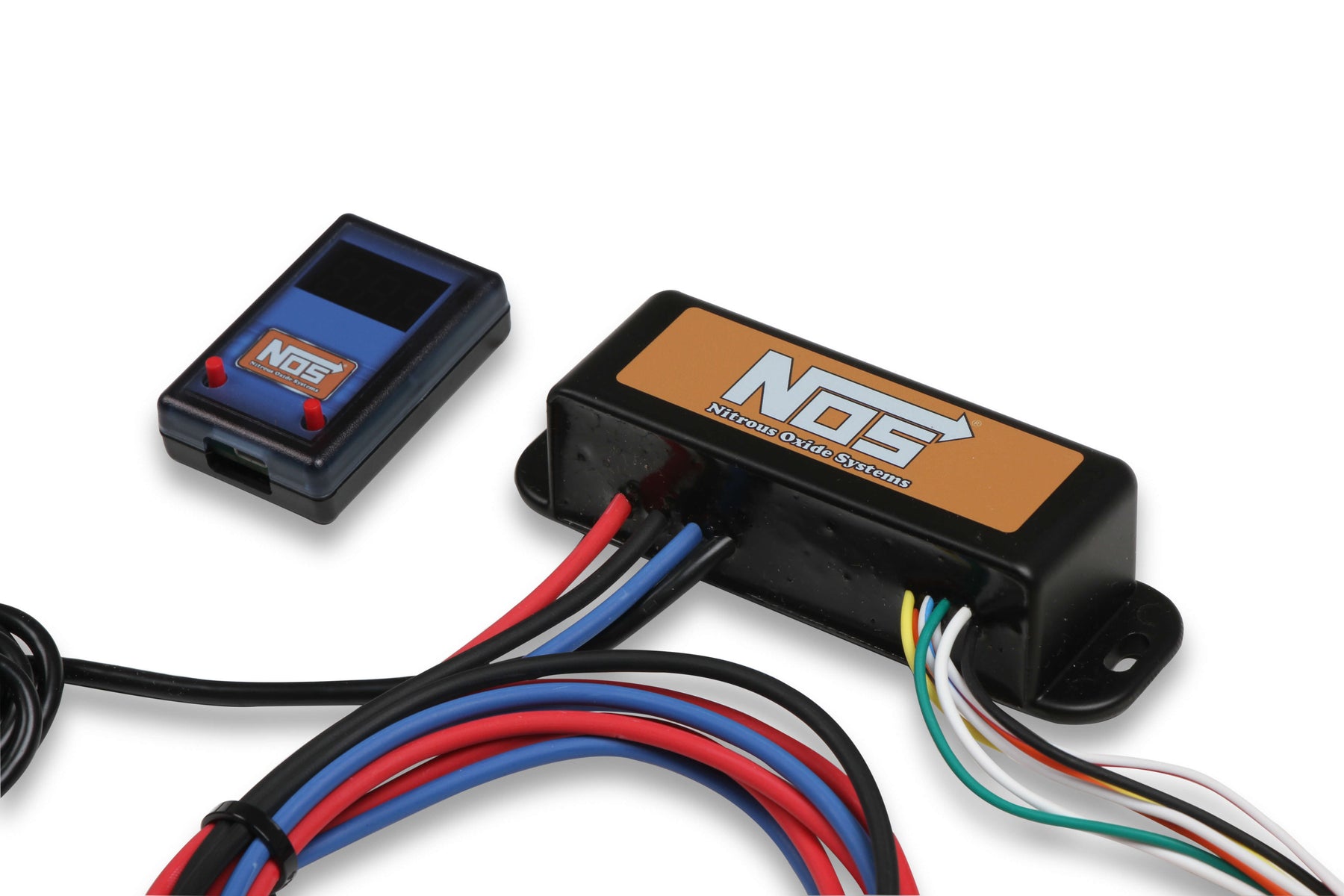

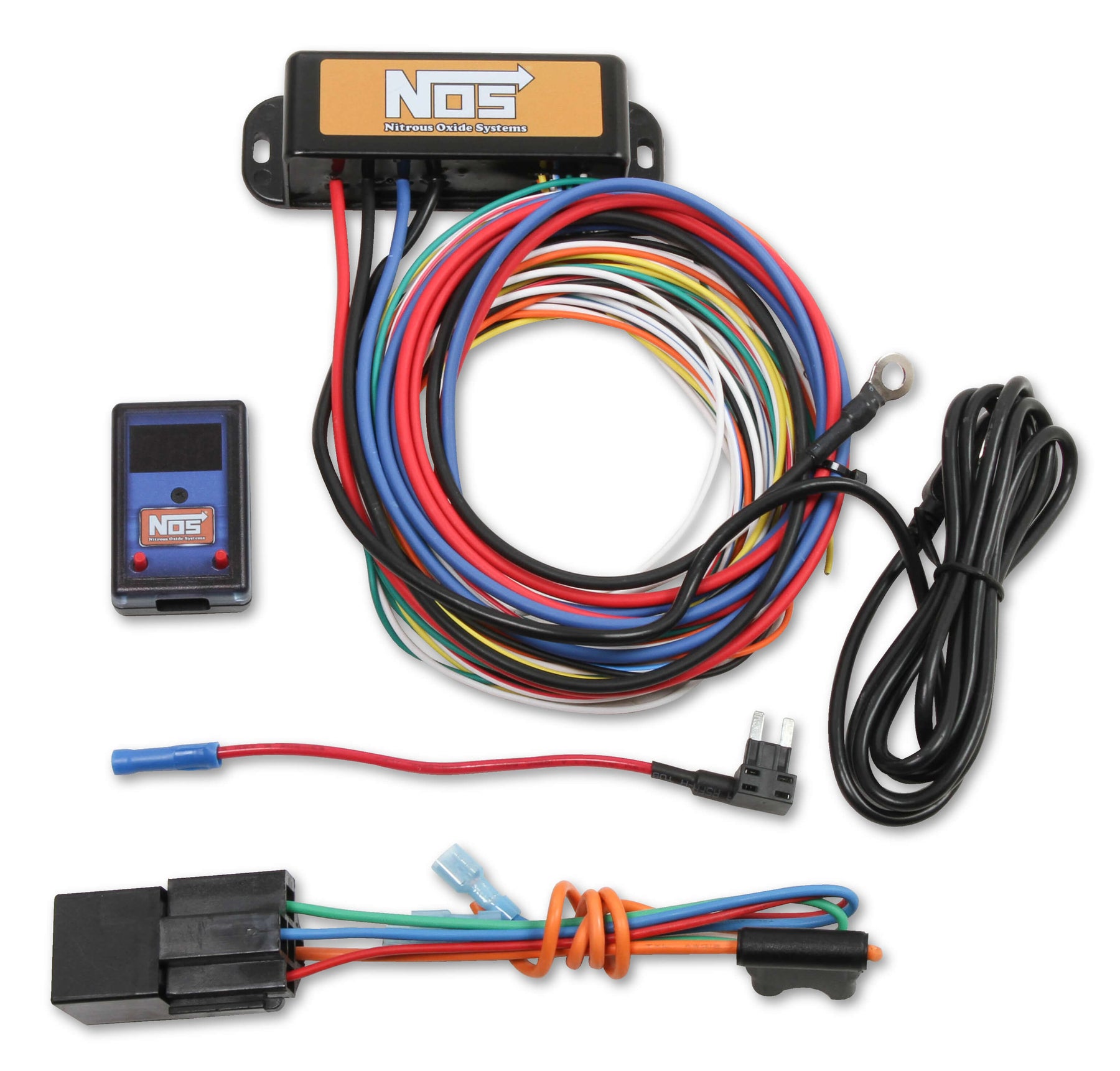

    • Includes NOS Mini 2-Stage Progressive Controller (15974NOS)
    • This Wet Kit Provides Exceptionally Smooth Power Delivery

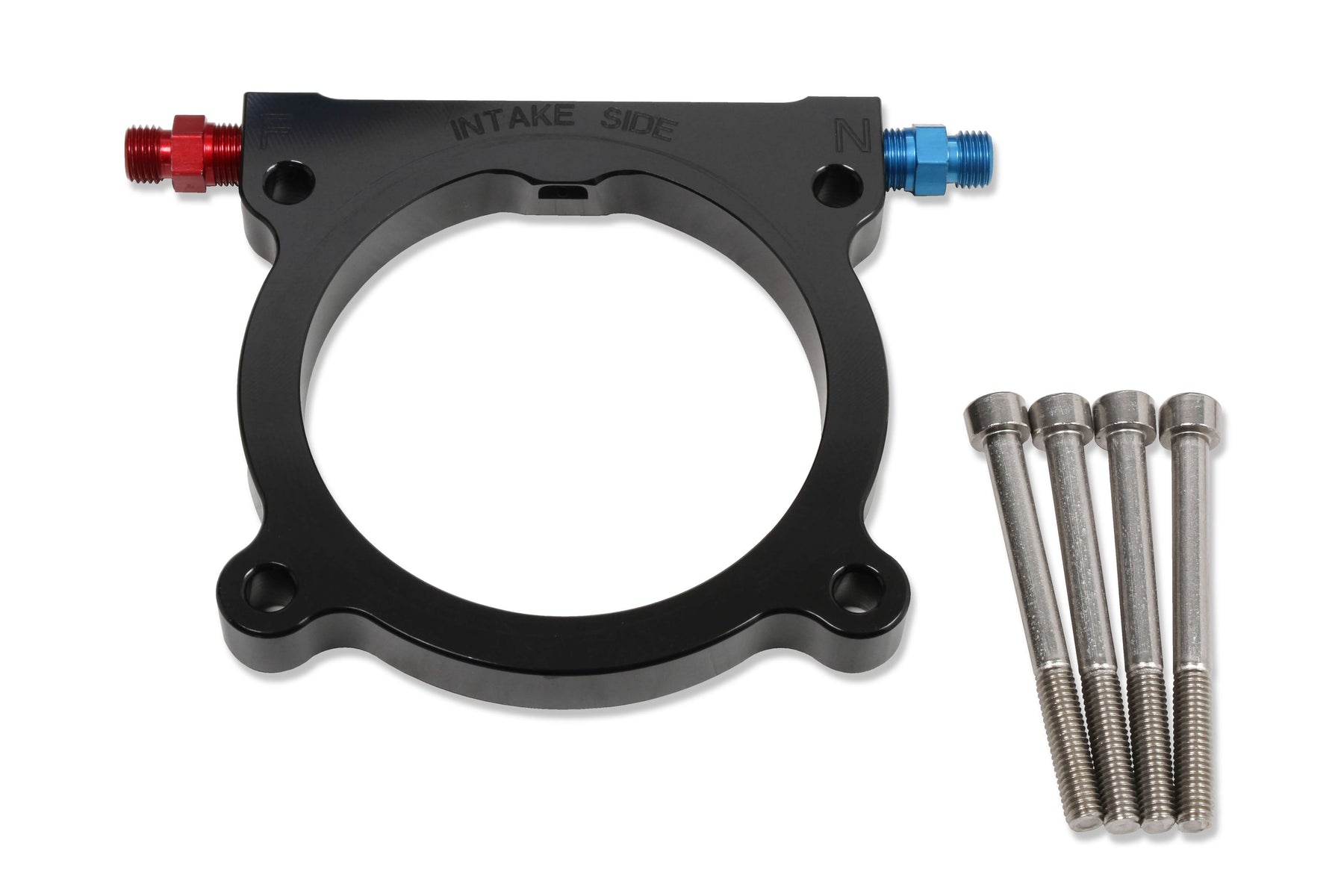

    • Single 80mm 1/2" Thick Black Anodized Plate That Fits Between the Throttle Body and Intake Manifold
    • Bottle is made from 6061-T6 Aluminum
    • Supports Up to 250 RWHP (jets purchased separately)
    • Includes 10 lb. Nitrous Bottle w/ Brackets

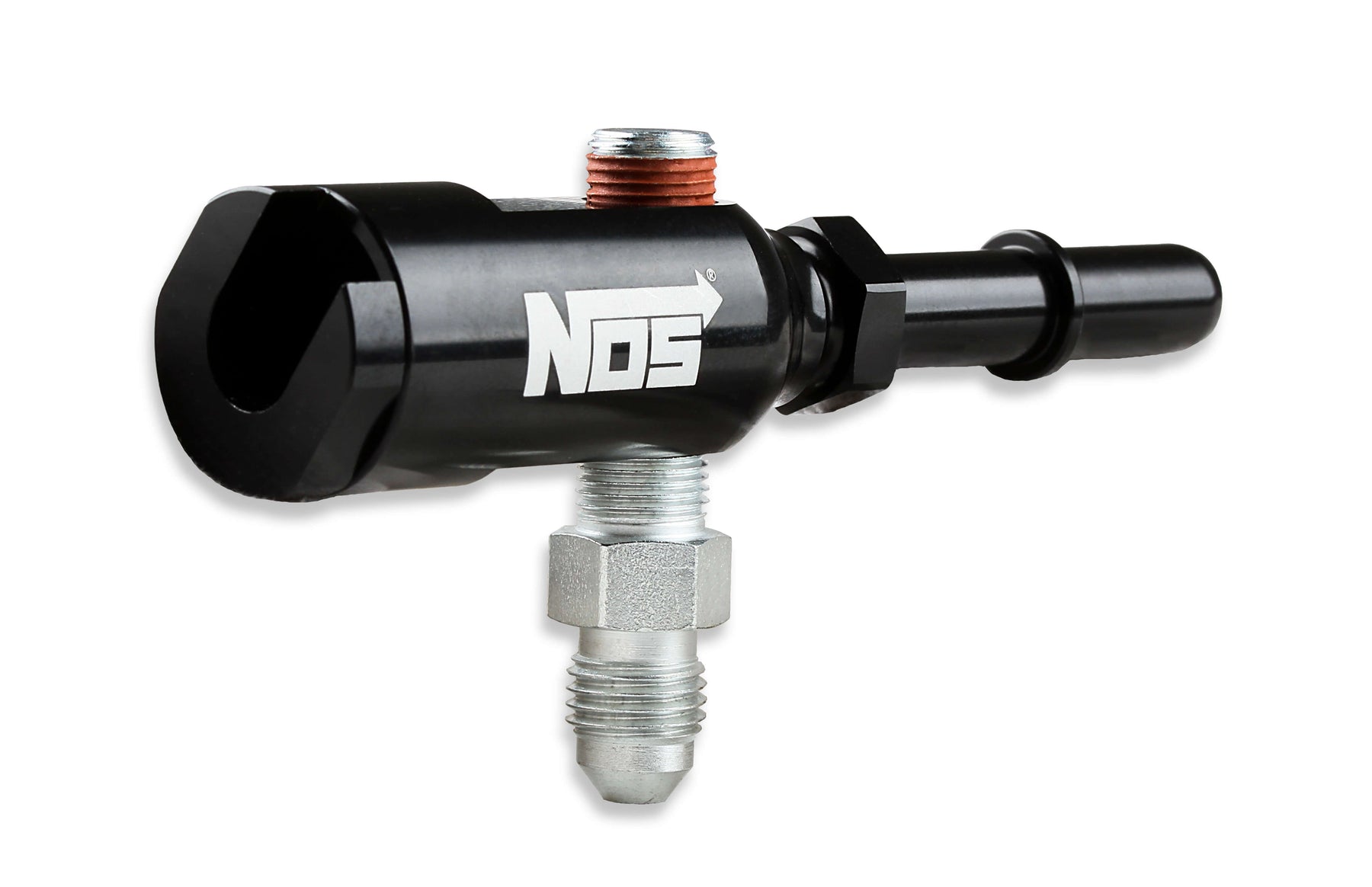

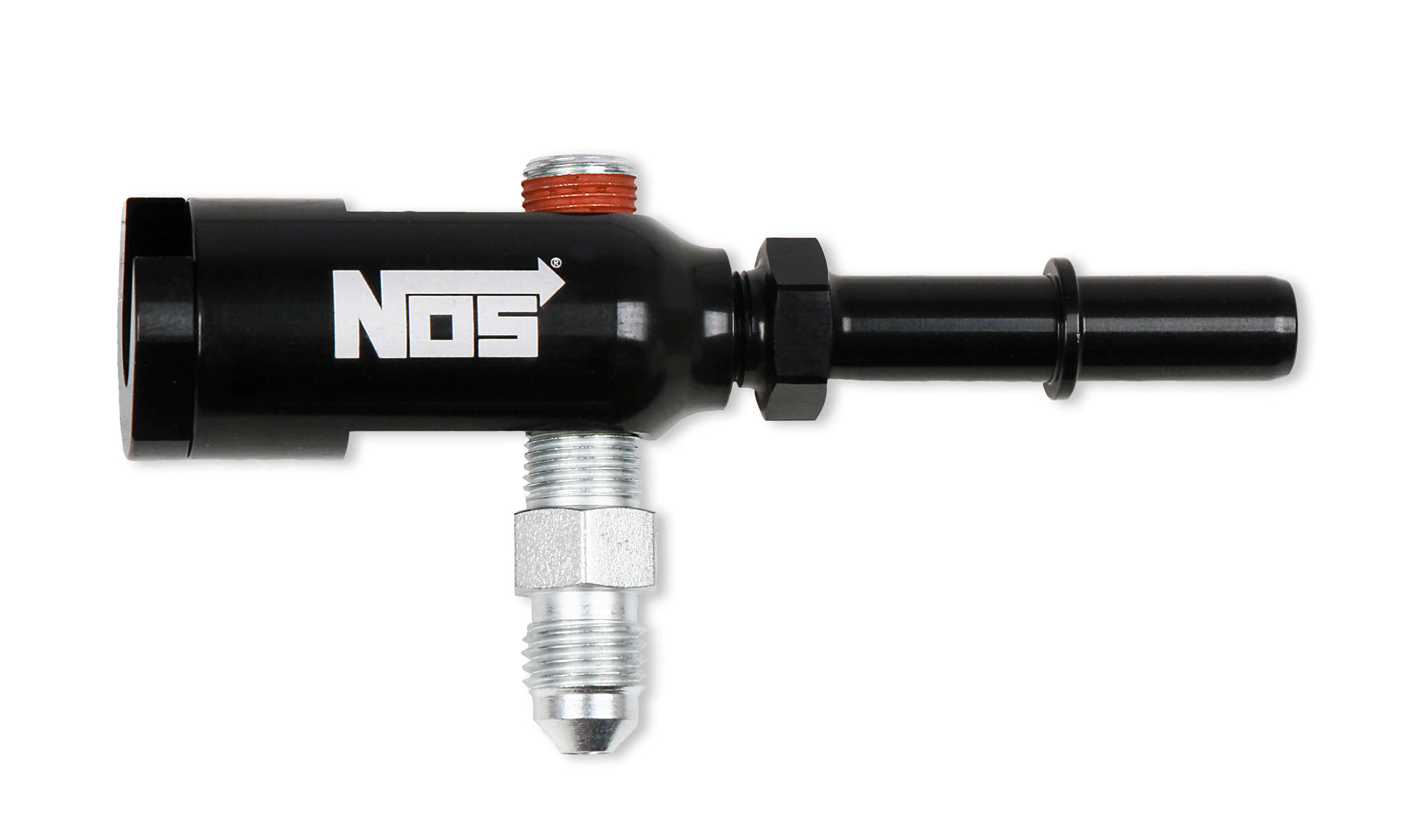

    • Easy Plumbing of Fuel to the Plate w/ Billet Fuel Rail Adapter



    Specs:

    Adjustable Yes
    Bottle Color Blue
    Bottle Included Yes
    Bottle Material 6061 T-6 Aluminum
    Bottle Size 10 lb
    Bottle Valve Super Hi-Flo
    Bracket Material Steel
    Brackets Included Yes
    Brand NOS
    Color Blue
    Delivery Style EFI Spacer Plate
    Emission Code 3

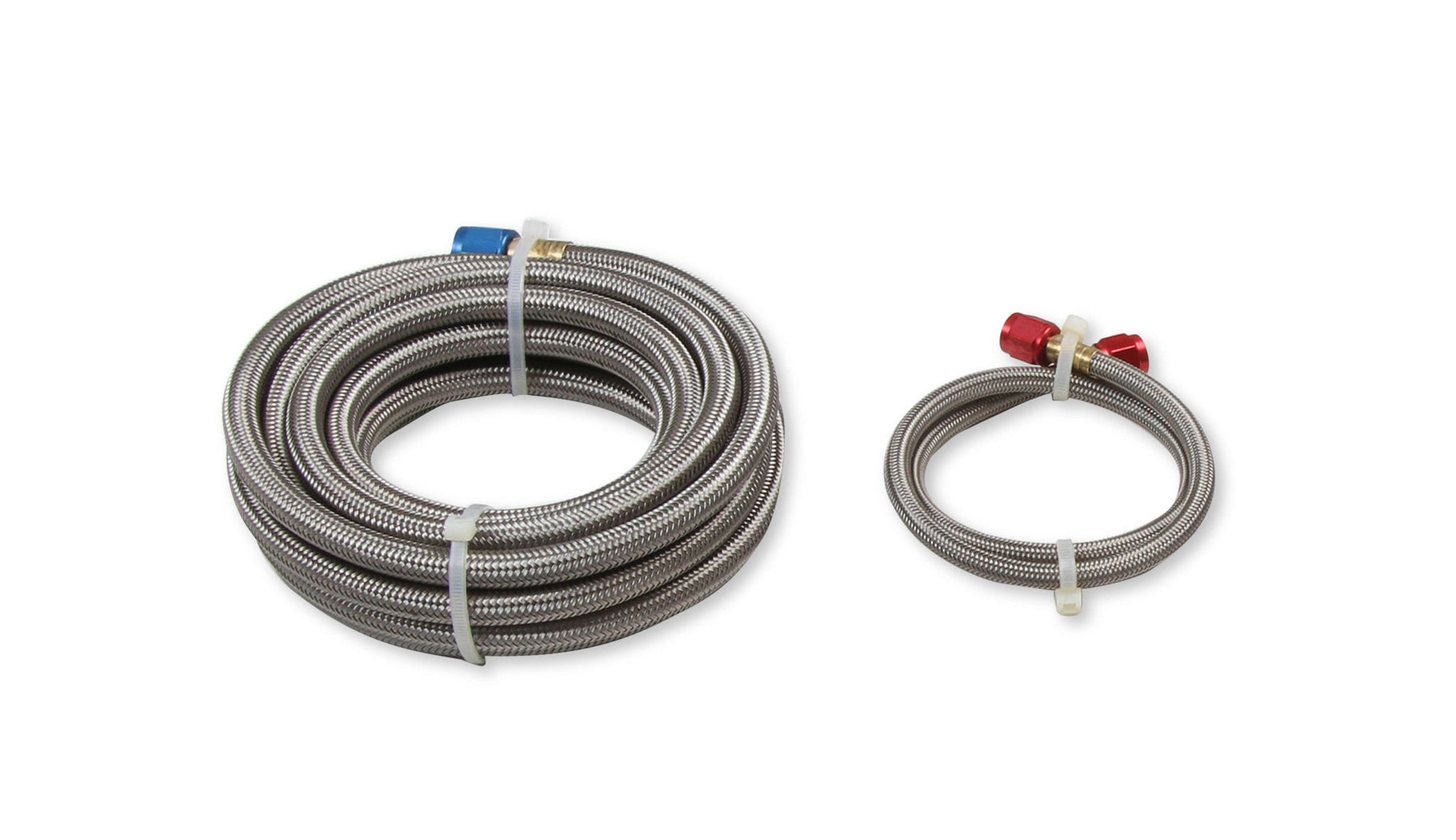

    Feed Line Size 6AN
    Fuel Solenoid Cheater
    Included Jetting Horsepower 75, 100, 125, 150
    Jet Sizes Included 75, 100, 125, 150 hp
    Jet Style Flare
    Material 6061 T-6 Aluminum
    Max Horsepower 250
    Nitrous Bottle Capacity 10 lbs

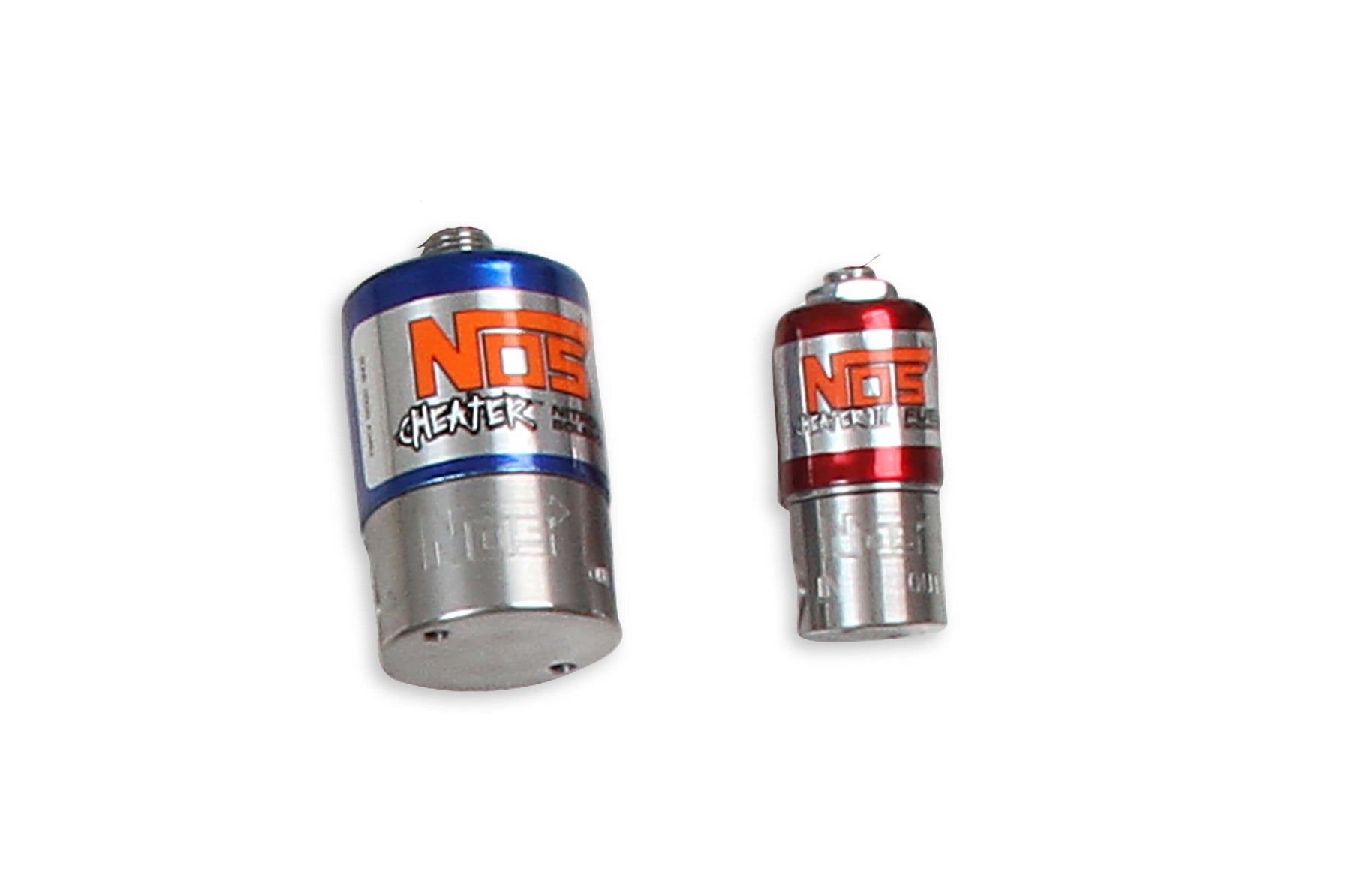

    Nitrous Solenoid Cheater
    Number of Solenoids 2
    Plate Bolt Pattern 4 bolt
    Plate Diameter 80 mm
    Plate Flange Ford Coyote 80mm
    Plate Height 1/2 inch
    Plate Included Yes
    Plate Thickness 1/2 inch
    Product Type Nitrous System
    Solenoid Top Cover Color Blue/Red
    Style Wet
    System Style Wet
    Part Number 02127NOS
