NOS® (15-17) Ford Coyote Complete Wet Plate Nitrous Oxide System w/ 10 lb. Bottle & 80mm Plate

  • Sale
  • Regular price $799.95




Compatible: (5.0L)

2015 - 2017 Ford Mustang

2015 - 2017 Ford F-150


Recommend 1 - 2 steps colder spark plugs. No projected tip, fine wire or iridium spark plugs. Power levels in excess of 75 hp should use a racing/high octane rated fuel. Power levels of 200+ hp may require a fuel system upgrade



This part is legal for sale or use on Racing Use Only Vehicles

The following vehicles are considered Racing Use Only Vehicles:

  • Racing Use Only Vehicles are vehicles that are used exclusively for competition that are not registered and that may never be used on the street

WARNING: It is against the law to install this part on an Emissions Controlled Vehicle

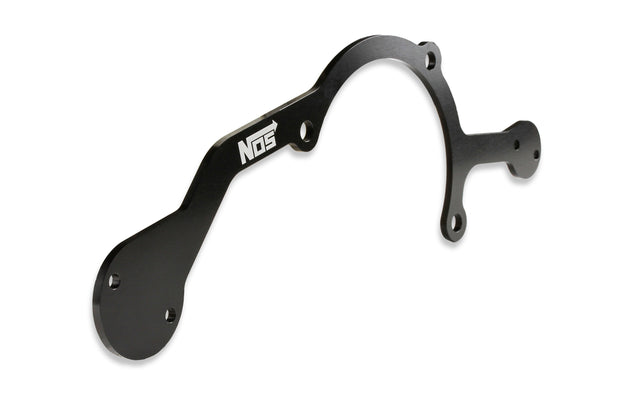

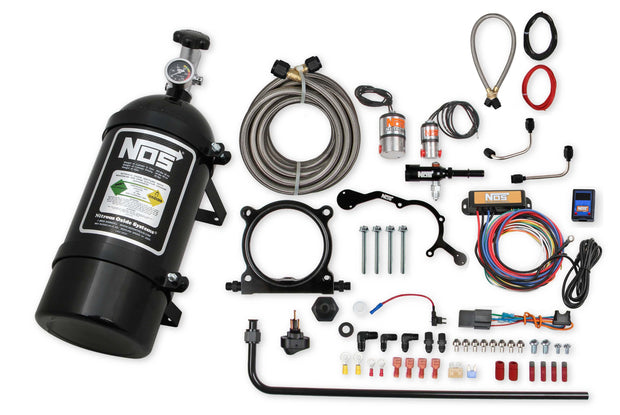

Our NOS systems include everything needed to install that extra power over the weekend. Along with all the nitrous and fuel related hardware, an NOS Mini 2-stage progressive controller is included for exceptionally smooth power delivery. The 80mm 1/2 inch thick nitrous plate is made from billet 6061-T6 aluminum then anodized black for great looks under the hood. NOS also includes a custom designed black anodized aluminum solenoid bracket with custom bent hard lines for that professional installation look.
  • Fits 2015-2017 5.0L Coyote powered Ford Mustang
  • Black system provides a stealthy appearance
  • Includes jetting for 75, 100, 125, & 150 RWHP (rear wheel horsepower)

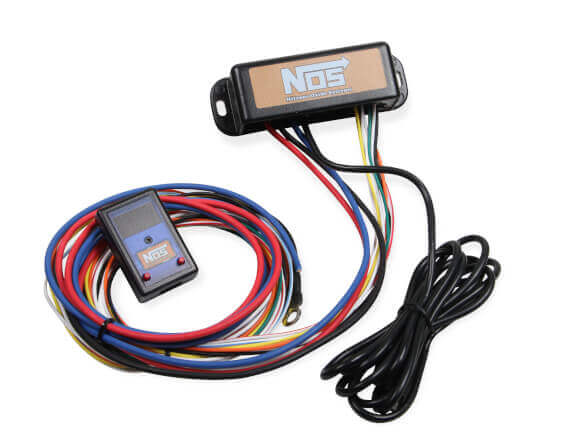

  • Includes NOS Mini 2-Stage Progressive Controller (15974NOS)
  • This wet kit provides exceptionally smooth power delivery

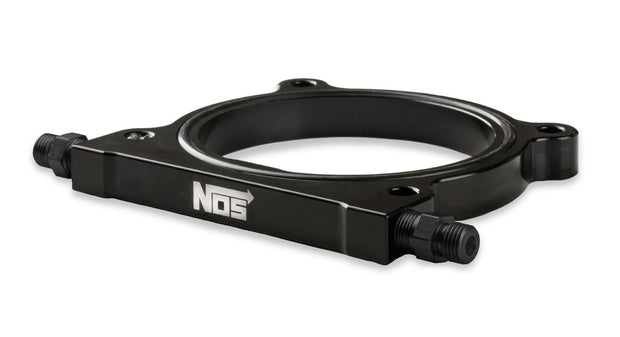

  • Single 80mm ½ inch thick black anodized plate fits between throttle body and intake manifold
  • Bottle is made from 6061-T6 Aluminum
  • Supports up to 250 RWHP (jets purchased separately)
  • Includes 10 lb. black nitrous bottle with brackets
  • Simple installation and hardware included



Adjustable Yes
Bottle Color Black
Bottle Included Yes
Bottle Material 6061 T-6 Aluminum
Bottle Size 10 lb
Bottle Valve Super Hi-Flo
Bracket Material Steel
Brackets Included Yes
Brand NOS
Color Black
Delivery Style EFI Spacer Plate
Emission Code 4
Feed Line Size 6AN

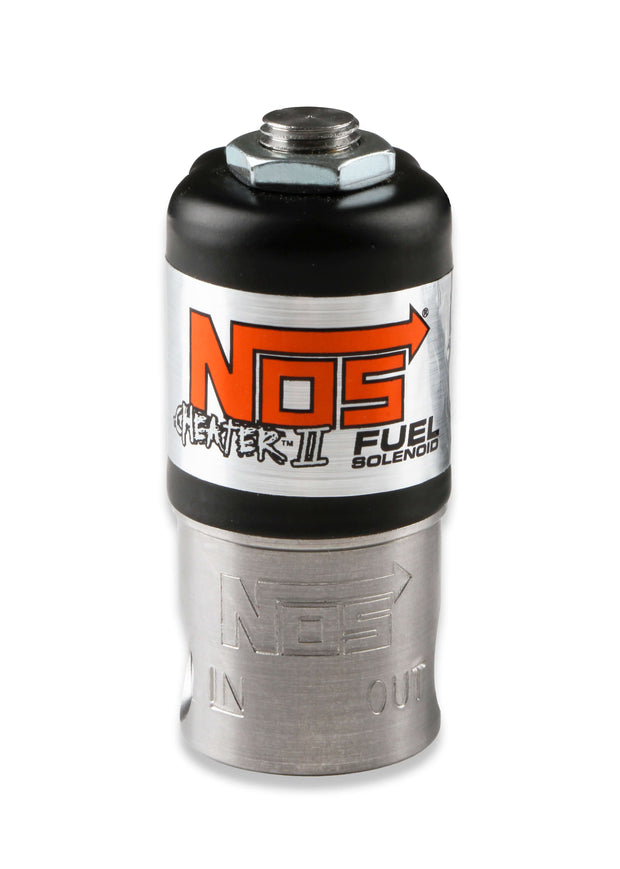

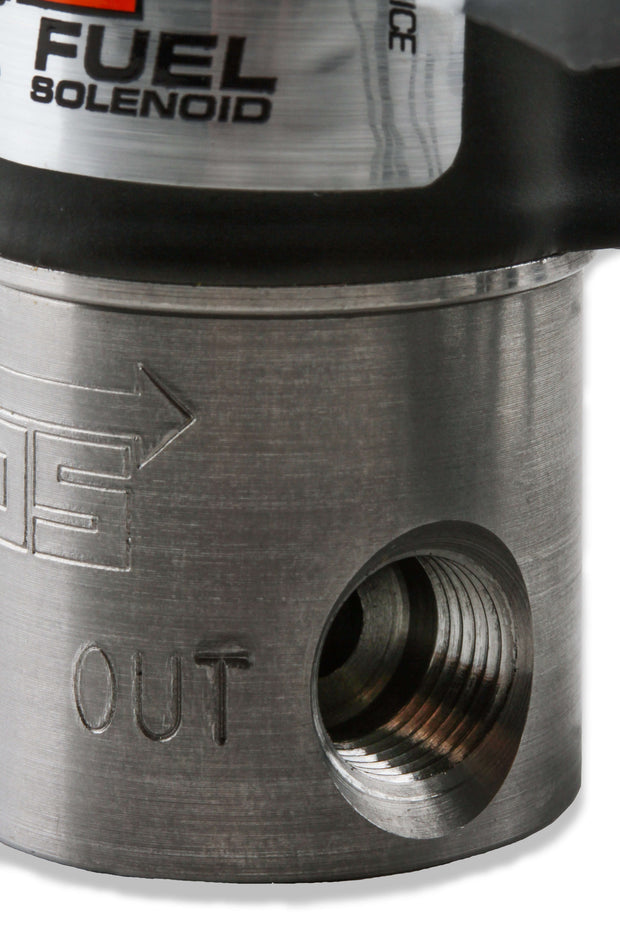

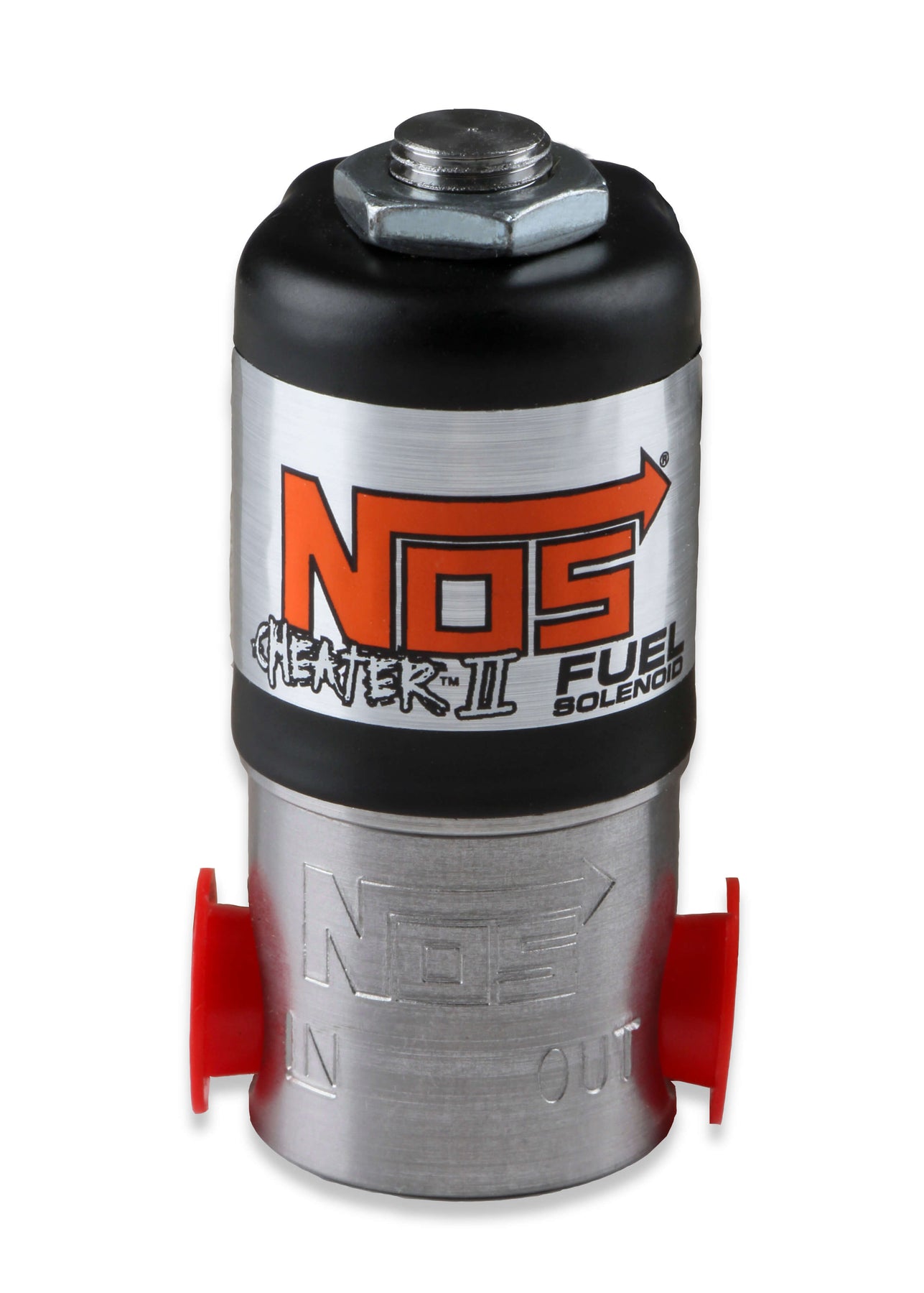

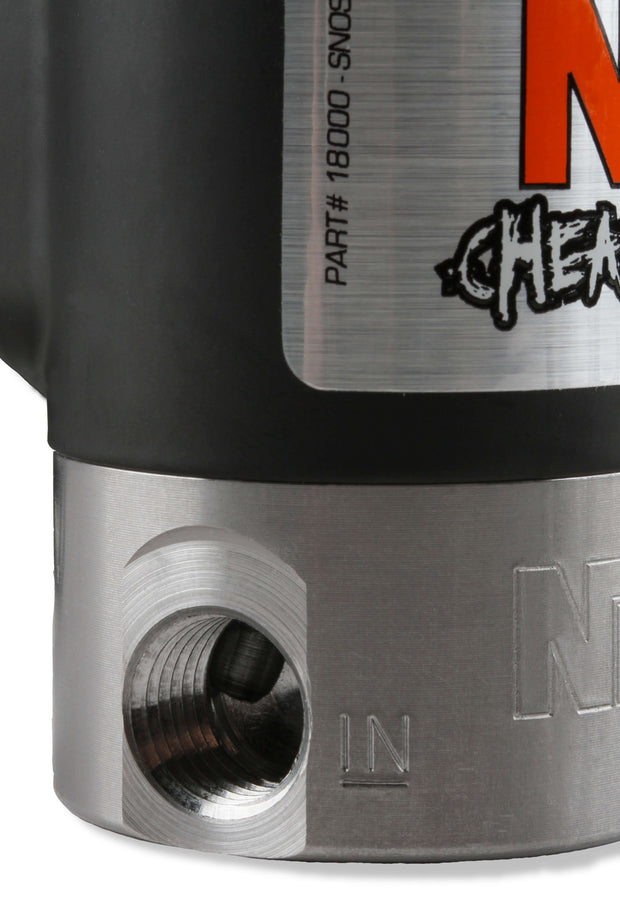

Fuel Solenoid Cheater
Included Jetting Horsepower 75, 100, 125, 150
Jet Sizes Included 75, 100, 125, 150 hp
Jet Style Flare
Material 6061 T-6 Aluminum
Max Horsepower 250
Nitrous Bottle Capacity 10 lbs

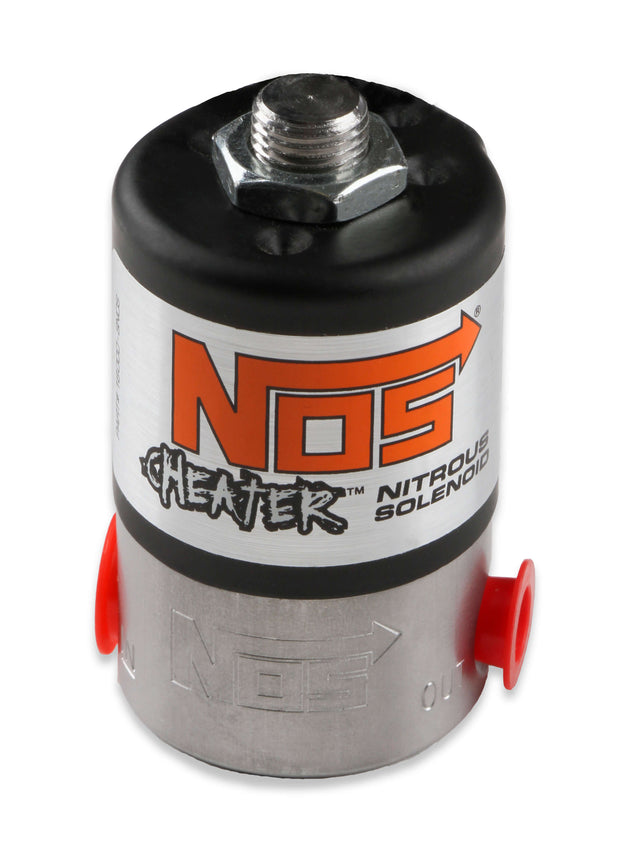

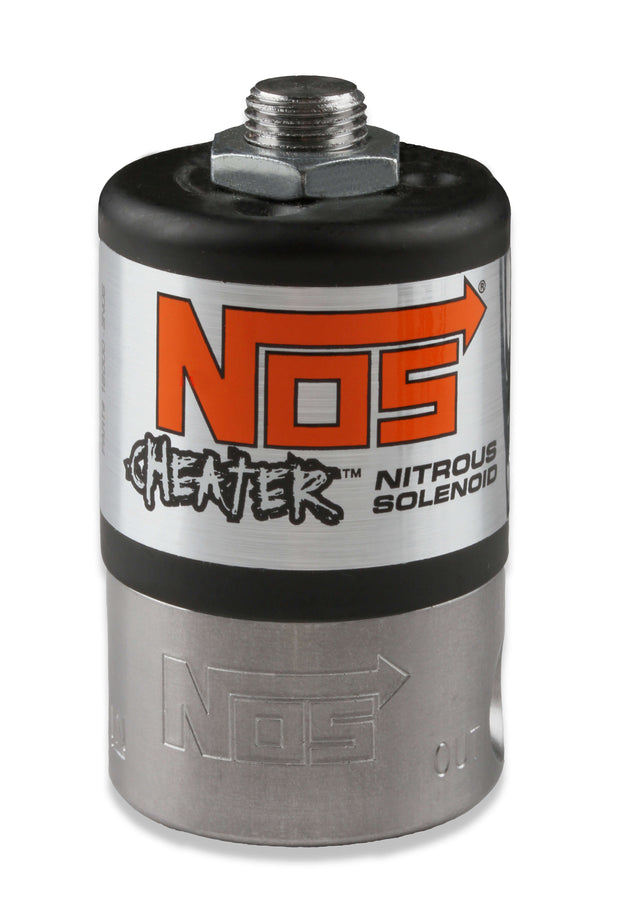

Nitrous Solenoid Cheater
Number of Solenoids 2
Plate Bolt Pattern 4 bolt
Plate Diameter 80 mm
Plate Flange Ford Coyote 80mm
Plate Height 1/2 inch
Plate Included Yes
Plate Thickness 1/2 inch
Product Type Nitrous System
Solenoid Top Cover Color Black
Style Wet
System Style Wet
Part Number 02126BNOS
