Compatible: (6.0L/6.2L/7.0L)
2009 - 2014 Cadillac CTS-V
2010 - 2015 Chevy Camaro
2005 - 2013 Chevy Corvette
2007 - 2013 Chevy Silverado
2007 - 2013 GMC Sierra
2004 - 2006 Pontiac GTO
2008 - 2010 Pontiac G8
This part is legal for sale or use on Racing Use Only Vehicles
The following vehicles are considered Racing Use Only Vehicles:
- Racing Use Only Vehicles are vehicles that are used exclusively for competition that are not registered and that may never be used on the street
WARNING: It is against the law to install this part on an Emissions Controlled Vehicle

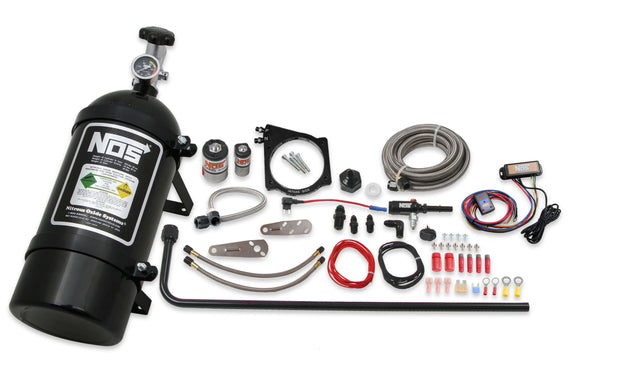

If you are running one of the many LS based engines and would like to add up to 250 additional horsepower, NOS has a complete nitrous kit option for you. These kits are ideal for adding a little more power to that stock engine or a lot more power to that custom built Hot Rod. Available for 4-bolt, drive-by-wire or cable operated throttle bodies in 90mm, 92mm, 102mm & 105mm plate sizes. These are "Wet" plates, meaning the additional fuel is added though the nitrous system, so there are no requirements for an injector upgrade*. *It is important to ensure the existing fuel delivery system is adequate to support the expected power levels.
- Fits GM LS engines with drive-by-wire style 102mm or 105mm throttle body

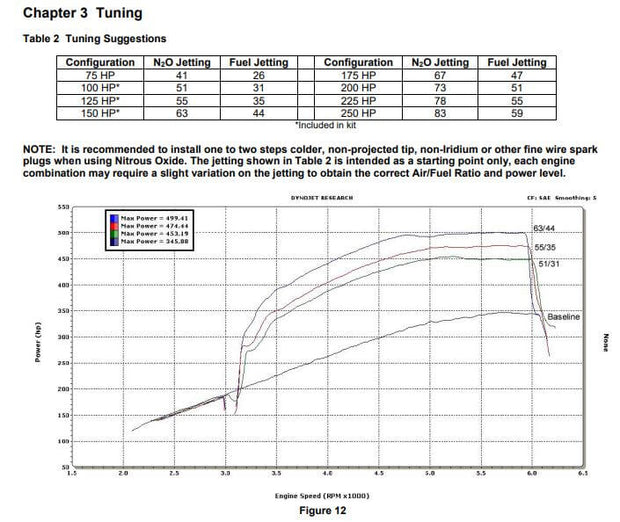

- Includes jetting for 100, 125, & 150 horsepower
- Ideal for use with the Holley Hi-Ram, Sniper EFI, or MSD Atomic LS Manifold
- This wet kit provides exceptionally smooth power delivery

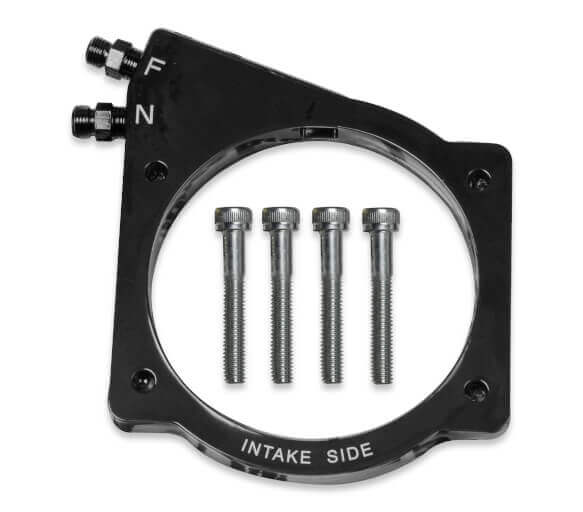

- Single 105mm ½ inch thick black plate between the throttle body and manifold
- Bottle is made from 6061-T6 Aluminum
- Supports up to 250 RWHP (jets purchased separately)
- Includes a 10 lb. black nitrous bottle with brackets
Specs:
| Adjustable | Yes |
|---|---|
| Bottle Color | Black |
| Bottle Included | Yes |
| Bottle Material | 6061 T-6 Aluminum |
| Bottle Size | 10 lb |

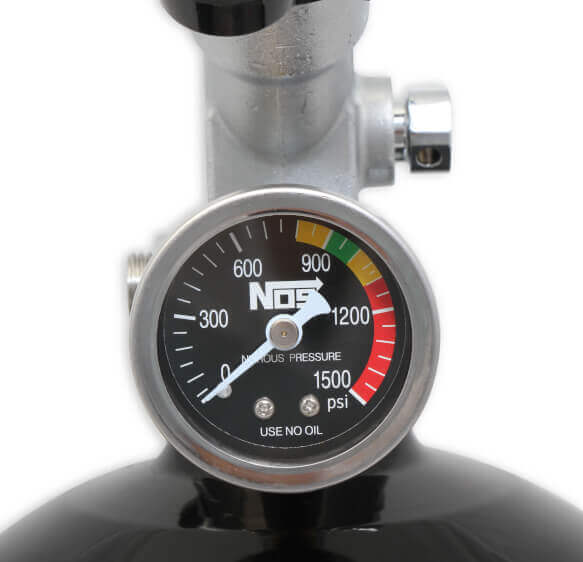

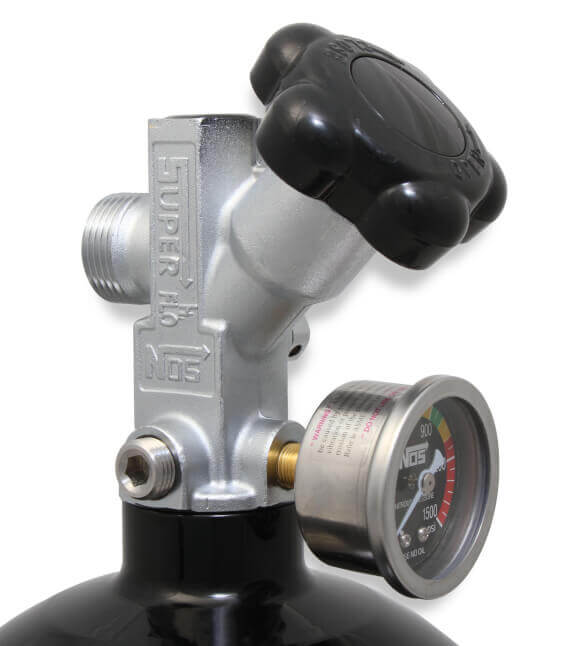

| Bottle Valve | Super Hi-Flo |
| Bracket Material | Steel |
| Brackets Included | Yes |
| Brand | NOS |
| Color | Black |
| Delivery Style | EFI Spacer Plate |
| Emission Code | 4 |
| Feed Line Size | 6AN |

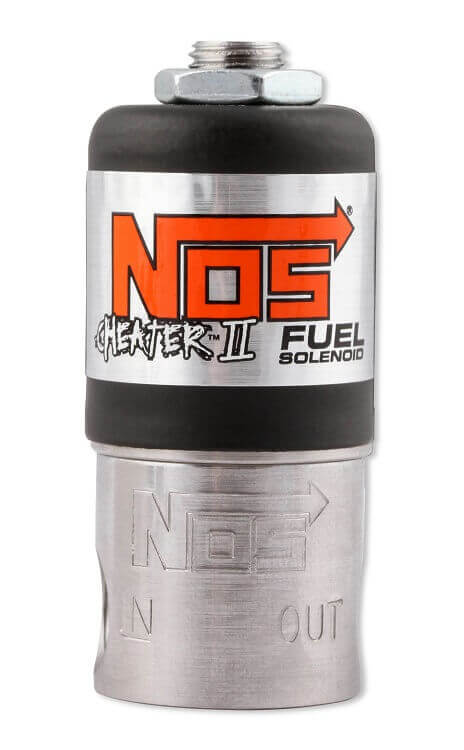

| Fuel Solenoid | Cheater |
| Included Jetting Horsepower | 100, 125, 150 |
| Jet Sizes Included | 100, 125, 150 hp |
| Jet Style | Flare |
| Material | 6061 T-6 Aluminum |
| Max Horsepower | 250 |
| Nitrous Bottle Capacity | 10 lbs |

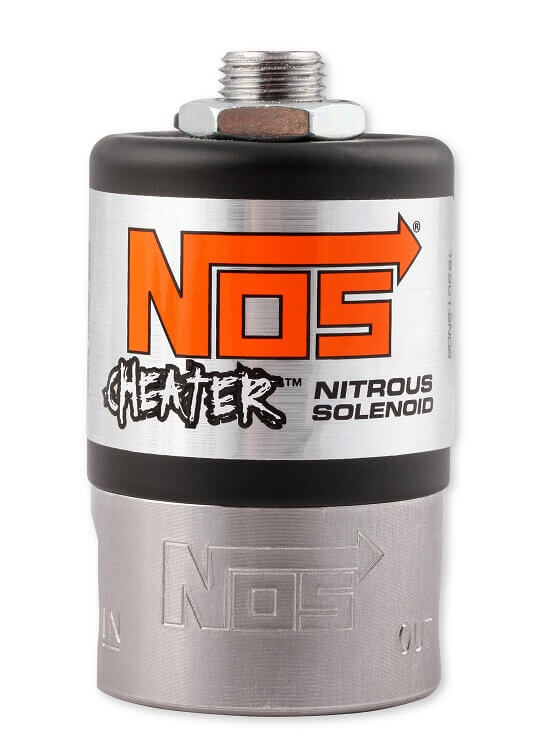

| Nitrous Solenoid | Cheater |
| Number of Solenoids | 2 |
| Plate Bolt Pattern | 4 bolt |
| Plate Diameter | 105 mm |
| Plate Flange | GM 4-Bolt LS |
| Plate Height | 1/2 inch |
| Plate Included | Yes |
| Plate Thickness | 1/2 inch |
| Product Type | Nitrous System |
| Solenoid Top Cover Color | Black |
| Style | Wet |
| System Style | Wet |
| Part Number | 05173BNOS |
