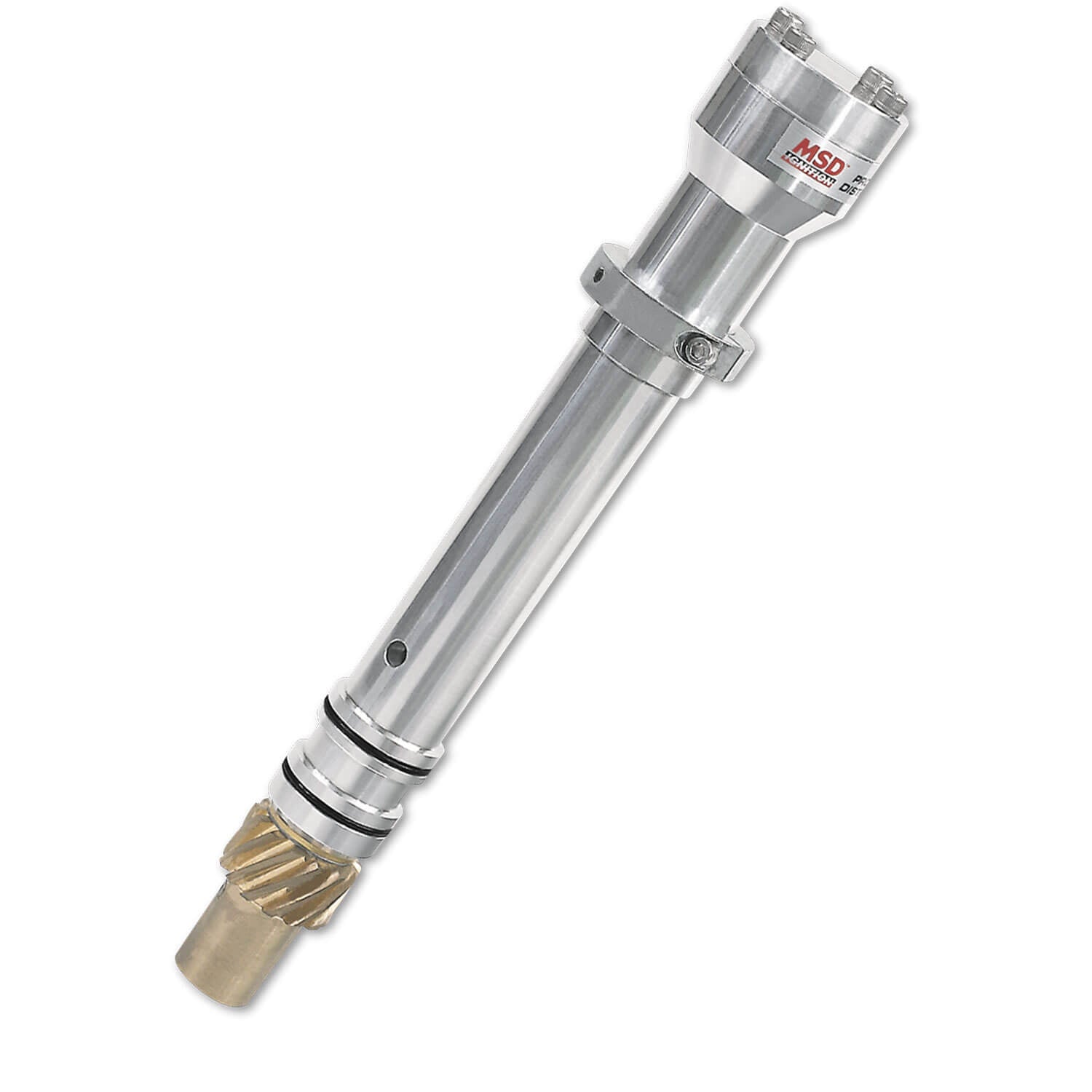

MSD® GM LS1/LS7 Oil Plug Drive
MSD® GM LS1/LS7 Oil Plug Drive
MSD® GM LS1/LS7 Oil Plug Drive
MSD® GM LS1/LS7 Oil Plug Drive

8513

MSD® GM LS1/LS7 Oil Plug Drive

$249.95
/
Shipping calculated at checkout.
  • In stock, ready to ship
  • THIS PRODUCT IS CARB CERTIFIED
  • Question? Call us at (888) 257-1077 🏁
  • Free Shipping USA (Exc. HI, AK, PR)

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Compatible: (5.0L/5.7L/7.0L)

1984 - 2002 Chevy Camaro

2014 - 2015 Chevy Camaro

1984 - 2013 Chevy Corvette

1984 - 2002 Pontiac Firebird



This part is legal for sale or use on Emissions Controlled Vehicles, Uncontrolled (Non-Emissions Controlled) Vehicles, and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations.





Our Chevrolet Front Drive Distributors brought the need for a distributor plug. Both are billet aluminum and feature a slip collar to ensure cor­rect installation depth.


Features:

  • For use on engines with a wet sump oil system and a front drive distributor
  • Supplied with bronze gear
  • Must be used with an MSD Crank Trigger
  • Adjustable slip collar mounting flange for engines with modified deck heights
  • O-ring seals can be added to modified blocks to improve oil pressure control
  • Special oil tract improves lubrication to the distributor and cam gear
  • Shaft is guided by a sealed ball bearing and an extra long sintered bushing
  • Oversized polished steel shaft with a QPQ coating
  • CNC machined billet aluminum housing



Brand MSD
Distributor Type Accessories
Emission Code 5
Product Type Distributors and Components
Warranty Limited 1 Year Warranty
Part Number 8513
