Compatible: (5.0L/5.7L/7.0L)
1984 - 2002 Chevy Camaro
2014 - 2015 Chevy Camaro
1984 - 2013 Chevy Corvette
1984 - 2002 Pontiac Firebird
DIS kit easily converts a conventional distributor and coil to a modern coil per plug system.
This part is legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles and Racing Use Only Vehicles.
The following vehicles are considered Uncontrolled (Non-Emissions Controlled) Vehicles:
- 1965 and older U.S. manufactured California Certified vehicles
- 1967 and older U.S. manufactured Federally Certified vehicles
- 1967 and older Foreign manufactured vehicle
The following vehicles are considered Racing Use Only Vehicles:
- Racing Use Only Vehicles are vehicles that are used exclusively for competition and that are not registered and that may never be used on the street
WARNING: It is against the law to install this part on an Emissions Controlled Vehicle
The following vehicles are considered Emissions Controlled Vehicles:
- 1966 and newer U.S. manufactured California Certified vehicles
- 1968 and newer U.S. manufactured Federally Certified vehicles
- 1968 and newer Foreign manufactured vehicle

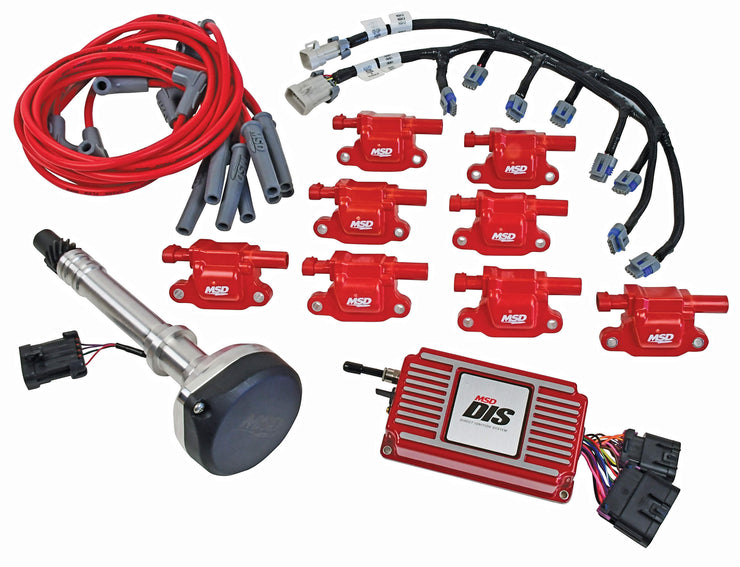

The MSD Direct Ignition System (DIS) controller greatly simplifies the conversion of conventional distributor-type engines to a Coil-Per-Plug configuration. Benefits include the elimination of distributor cap and rotor wear, reduced spark energy losses caused by long spark plug wires, and the ability to optimize your ignition tuning parameters. The integral 2.5 Bar MAP Sensor, and optional temperature sensor input, mean you get the most power and reliability out of your Naturally Aspirated or Forced Induction engine combination. Nitrous-fed engines benefit from the included Step Retard feature. Drag racers will appreciate the 2-Step Rev Limiter and Launch Retard features. Real-time DIS configuration and tune-up changes are a snap with easy-to-use MSDView software. Thanks to the real-time monitor feature of MSDView, and 8 MB of internal data storage in the DIS controller, data monitoring and logging have never been easier. The clearly labeled wiring harness, along with a full line of supporting components and accessories, take the difficulty and guesswork out of converting traditional distributor-type engines to a modern and efficient Coil-Per-Plug ignition system.
Features:
- Easily convert to a Coil-Per-Plug ignition system
- Preprogrammed timing maps
- Fully Programmable 2D and 3D Timing maps provide complete timing control
- Individual Cylinder Timing (ICT) allows precise tuning
- Built-in 2.5 bar Manifold Absolute Pressure (MAP) sensor for boosted applications
- Optional temperature sensor input to control timing based on temperature
- Fully potted electronics and sealed connectors for maximum durability
- Easily programmable through a Mini-USB communication port
- Programmable Max Rev and Launch RPM limiters provide engine protection
- Consistent holeshots thanks to a Programmable Launch Timing Retard
- Single Timing Step Retard ideal for pulling timing for nitrous applications
- On-Board Data Acquisition
- Kits available for Chevy and Ford V8 applications with more to come
| Brand | MSD |
|---|---|
| Color | Black |
| Emission Code | 3 |
| Engine | Small and Big Block Chevrolet |
| Product Type | DIS Ignition Kit |
| Warranty | Limited 1 Year Warranty |
| Part Number | 601513 |
