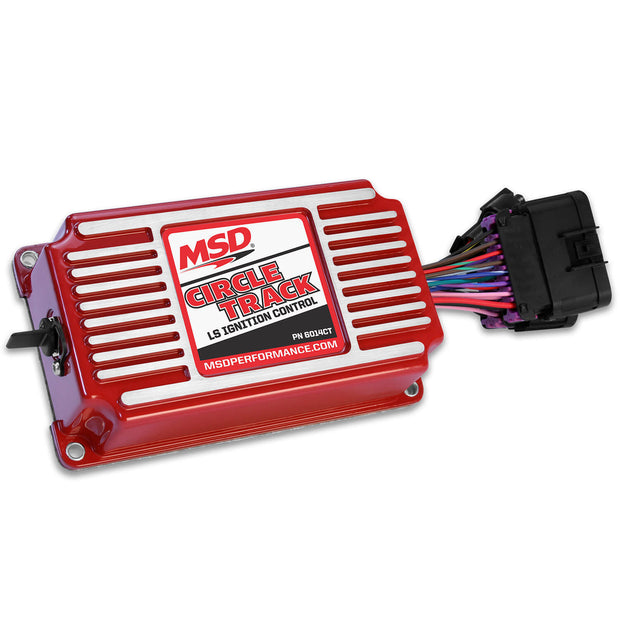

MSD® GM LS1/LS6 Circle Track Ignition Control Module
MSD® GM LS1/LS6 Circle Track Ignition Control Module

6014CT

MSD® GM LS1/LS6 Circle Track Ignition Control Module

Regular price$509.95
/
Shipping calculated at checkout.
  • In stock, ready to ship
  • THIS PRODUCT IS NOT CARB CERTIFIED
  • Question? Call us at (888) 257-1077 🏁
  • Free Shipping USA (Exc. HI, AK, PR)
  • This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

    Compatible: (5.7L)

    2004 - 2007 Cadillac CTS-V

    1998 - 2002 Chevy Camaro

    1997 - 2004 Chevy Corvette

    1998 - 2002 Pontiac Firebird


    This part is legal for sale or use on Racing Use Only Vehicles

    The following vehicles are considered Racing Use Only Vehicles:

    • Racing Use Only Vehicles are vehicles that are used exclusively for competition that are not registered and that may never be used on the street

    WARNING: It is against the law to install this part on an Emissions Controlled Vehicle










    CT525 crate engines and built LS mills alike need a way to control 8 coils, RPM and timing. The 6014CT makes this easy with factory connectors that plug directly into the LS cam sensor, crank sensor and coils. If running a CT525 a preset timing curve and rev limiter setup is preprogrammed. For built LS engines that require a little more attention, plug your laptop in to program a timing curve and rev limiter with the user friendly MSD View software. Supply the unit with power and ground and you're off to the races!

    Features:

    • Direct plug-in to factory GM LS sensors and coils
    • Preprogrammed to run the GM CT525 crate engine out of the box
    • Laptop programmable RPM limit, timing curve and coil selection for custom tuning
    • Auto detects coils, cam sensor and crank sensor
    • Will run 24x 1x, 58x 1x and 58x 4x crank / cam sensor combinations
    • Self-powered with USB for laptop programming
    • Steady, accurate timing control
    • Dedicated plug for Tech Official



    Brand MSD
    Emission Code 4
    Product Type Ignition
    Warranty Limited 1 Year Warranty
    Part Number 6014CT




    MSD View Software:






    Install Guide:






    Warranty:
