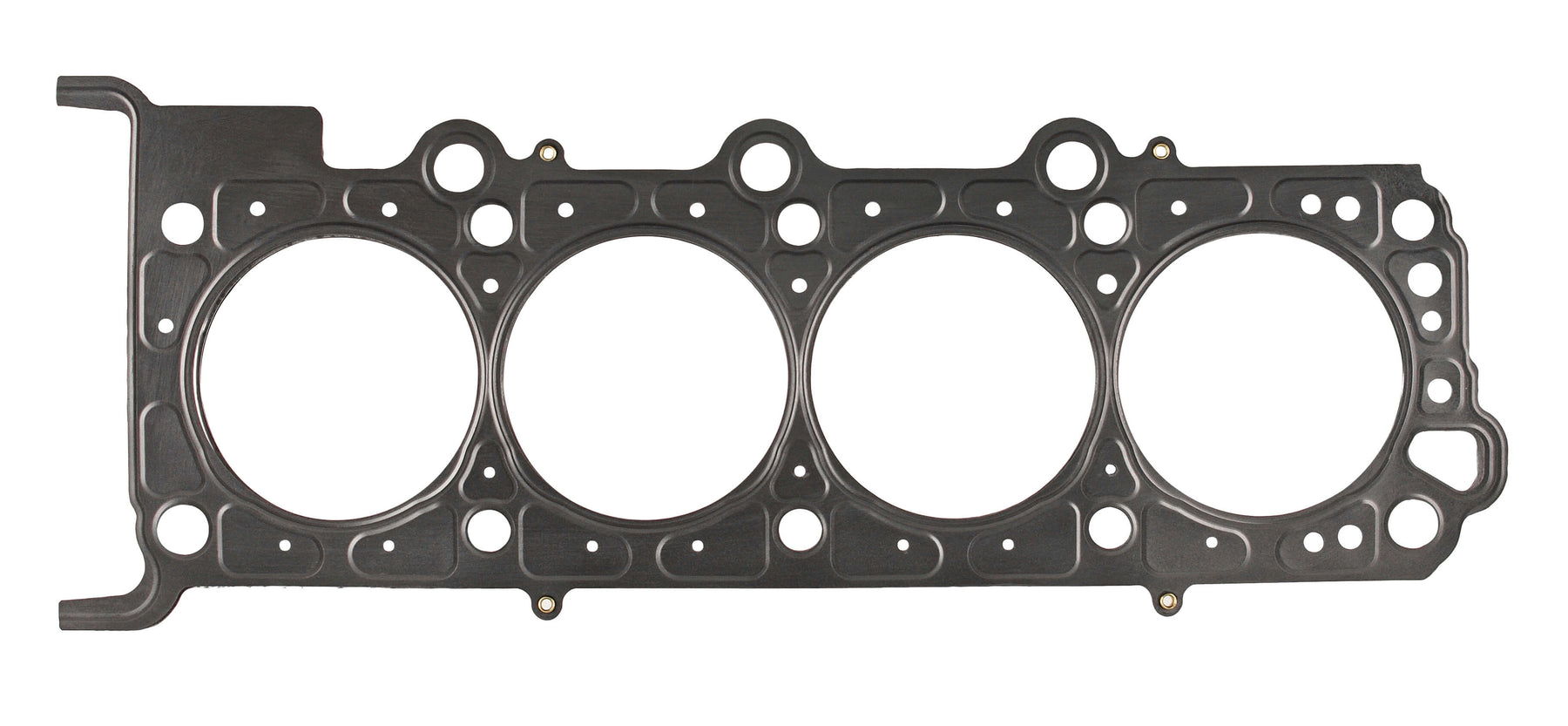

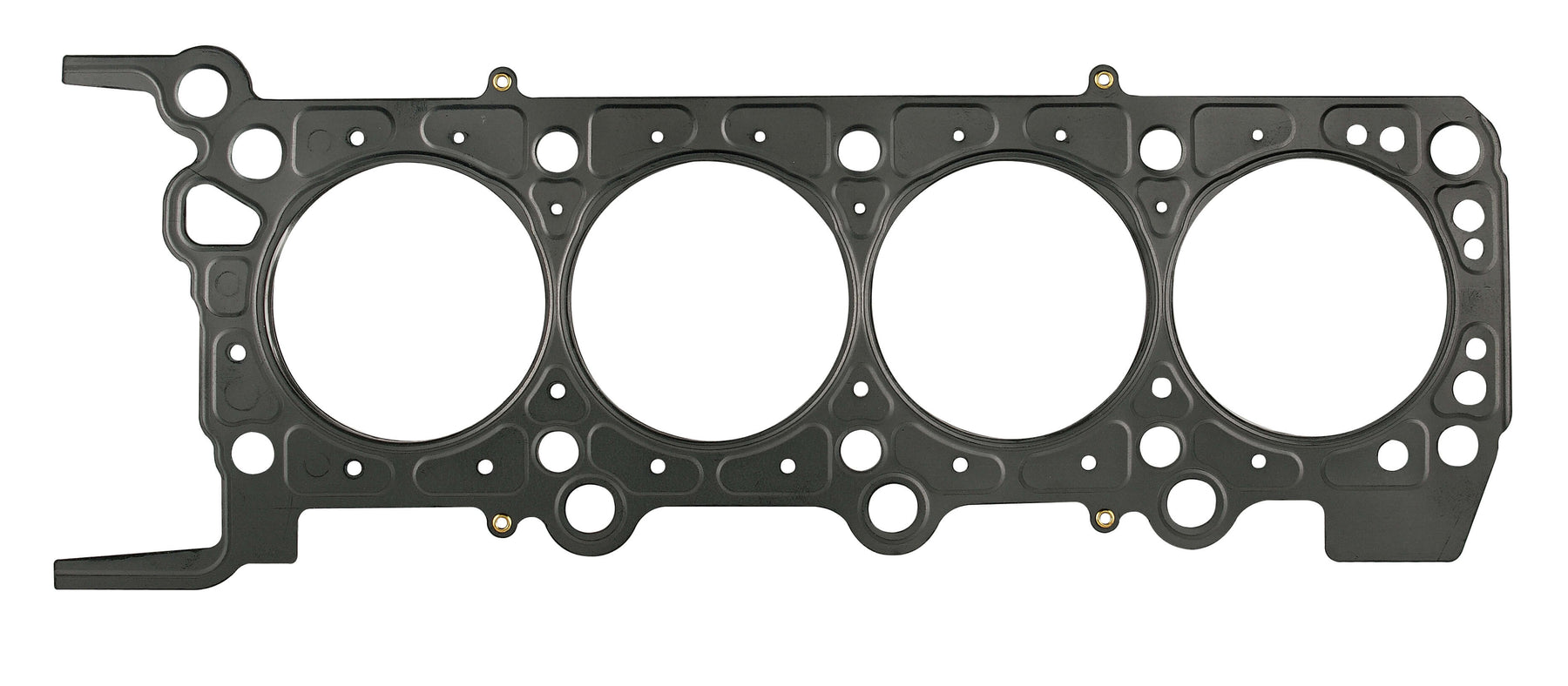

Mr. Gasket® (96-12) GT/GT500 2V/4V MLS Cylinder Head Gasket (3.630" Gasket Bore)

  • Sale
  • Regular price $102.95




Compatible: (4.6L/5.4L)

1996 - 2012 Ford Mustang GT/GT500



This part is legal for sale or use on Emissions Controlled Vehicles, Uncontrolled (Non-Emissions Controlled) Vehicles, and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations.









Our unique Multi-Layered steel head gasket embossment formation process optimizes the embossment radius, reduces stress points, enhances gasket conformability, and provides uniform clamp load distribution. This all results in superior surface contact between block and cylinder head. All head gasket layers/spacers go through an additional process to significantly reduce forming induced stress. Advantages are reduced brittleness in material, increased flexibility and deformation retention. This stabilizes the gasket, resulting in reduced cylinder bore distortion and improved combustion seal fro the extreme cylinder pressures found in high compression, supercharged and turbocharged applications. A proprietary polymer coating ensures the micro-seal of engine coolant and oil fluids.

A typical MLS head gasket requires a smoother (30Ra) surface finish than composite head gaskets. Mr. Gasket's proprietary polymer coating will seal a surface finish twice as rough (60Ra) as a typical MLS head gasket. For high performance street, drag race and oval track use. Mr. Gasket provides a Limited Lifetime Warranty for MLS cylinder head gaskets.

Features:

  • Gasket bore - 3.630 inch; Compressed thickness - .040 inch
  • Manufactured from 3-layer premium grade stainless steel and state of the art laser cutting
  • Optimized sealing embossments seals extreme cylinder pressure
  • Provides excellent stability and reduces cylinder bore distortion.
  • Proprietary polymer coating ensures the micro seal of engine coolant and oil fluids.
  • Ideal for supercharged, turbocharged, nitrous oxide and extreme compression ratio engines
  • For high-performance street, drag race and oval track use



Application Ford
Brand Mr. Gasket
Compressed Thickness .040 inch
Compression Ratio Up to 16:1
Emission Code 5
Engine Ford Modular
Gasket Bore 3.630 inch
Gasket Line MLS
Material Multi-Layered Steel
Packaging Retail
Product Type Head Gasket
Quantity Per Pkg. 1
Warranty Limited Lifetime Warranty
Weight 0.8500
Part Number 3263G
