Mr. Gasket® (07-23) GM 6L80 Transmission Pan Gasket
Mr. Gasket® (07-23) GM 6L80 Transmission Pan Gasket
Mr. Gasket® (07-23) GM 6L80 Transmission Pan Gasket
Mr. Gasket® (07-23) GM 6L80 Transmission Pan Gasket


Mr. Gasket® (07-23) GM 6L80 Transmission Pan Gasket

Regular price$39.95
Shipping calculated at checkout.
  • Question? Call us at (888) 257-1077 🏁

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Verify fitment with your vehicle

(Change vehicle)


2007 - 2015 Cadillac Escalade/ESV/EXT (6.2L)

2006 - 2009 Cadillac XLR (4.4L/4.6L)

2009 - 2013 Chevy Avalanche (5.3L/6.0L)

2010 - 2015 Chevy Camaro SS (6.2L)

2011 - 2017 Chevy Caprice (3.6L/6.0L)

2005 - 2013 Chevy Corvette (6.0L/6.2L)

2009 - 2020 Chevy Suburban (5.3L/6.2L)

2009 - 2020 Chevy Tahoe (4.8L/5.3L/6.2L)

2008 - 2010 Pontiac G8 (6.0L)

2007 - 2009 Hummer H2 (6.2L)

2007 - 2023 GMC Sierra (2.7L/3.0L/4.3L/4.8L/5.3L/6.0L/6.2L)

2007 - 2020 GMC Yukon (4.8L/5.3L/6.2L)

2007 - 2020 GMC Yukon XL (5.3L/6.0L/6.2L)

2007 - 2023 Chevy Silverado (2.7L/3.0L/4.3L/4.8L/5.3L/6.0L/6.2L)

2014 - 2017 Chevy SS (6.2L)

2006 - 2009 Cadillac STS-V (4.4L)


Note: No silicone required


This part is legal for sale or use on Emissions Controlled Vehicles, Uncontrolled (Non-Emissions Controlled) Vehicles, and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations.

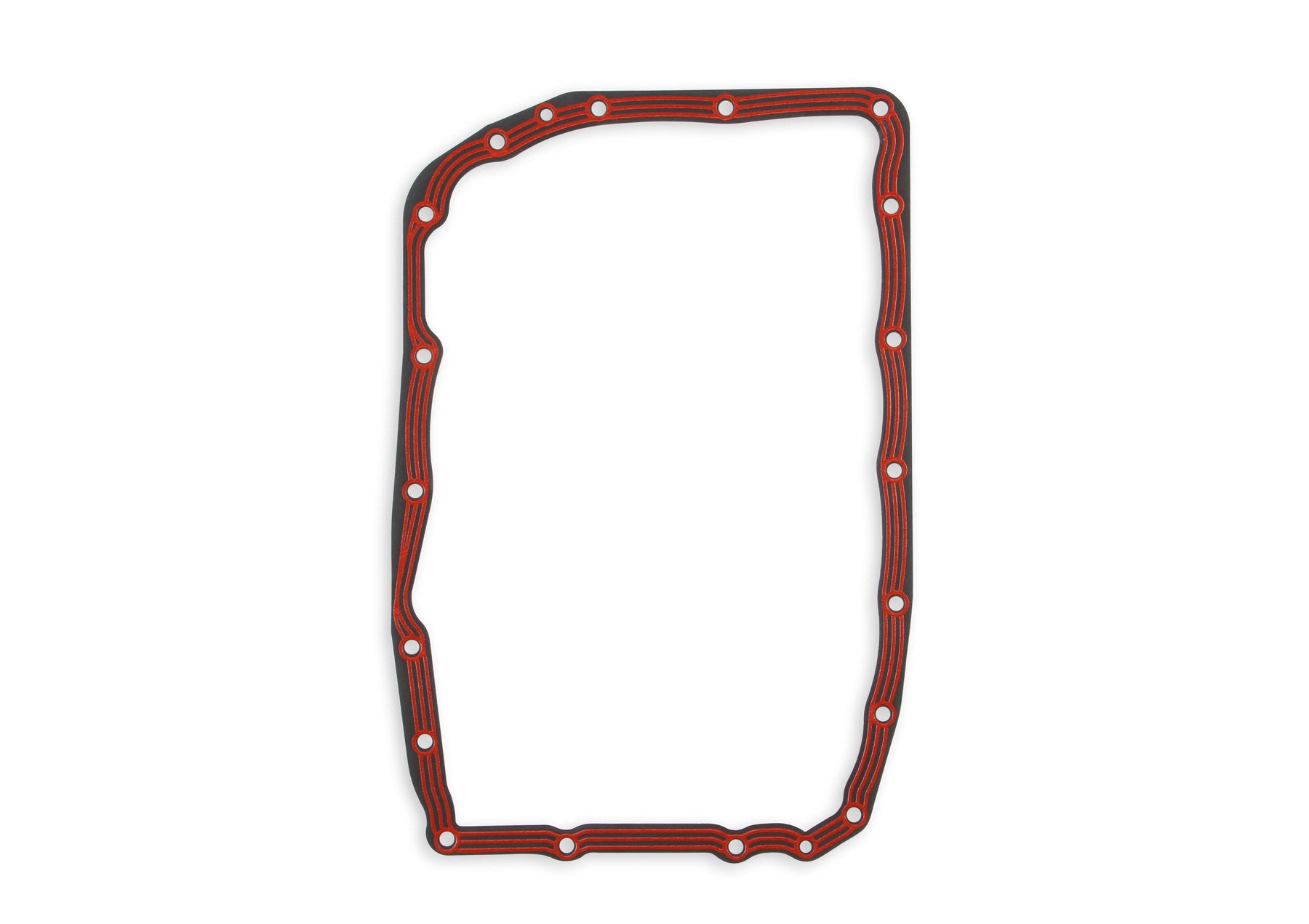

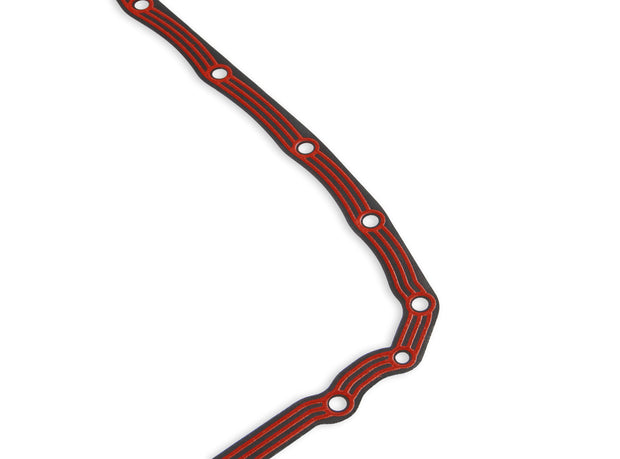

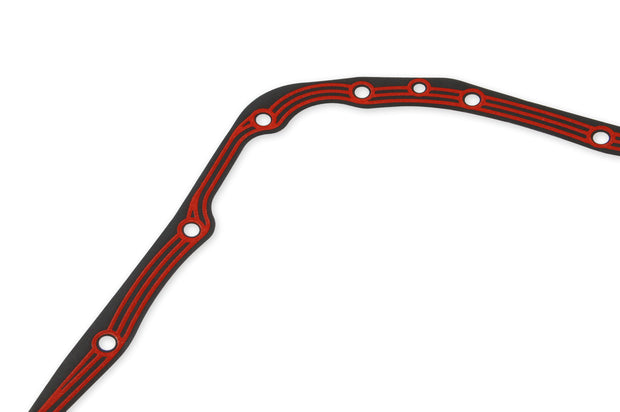

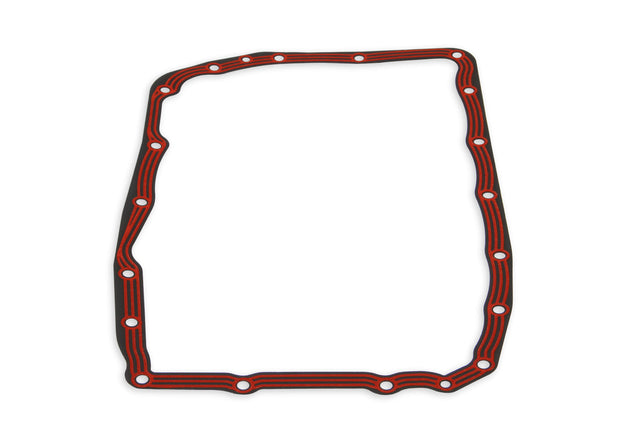

Mr. Gasket Transmission Oil Pan Gaskets offer simple, no silicone installation. They use an aluminum carrier, silicone elastomer beading and a rubber coated binder to create a strong, long lasting seal perfect for the demands of high fluid temperatures created in transmissions. Whether you are sitting in heavy traffic, racing, off-roading or just want a clean garage floor, these premium transmission pan gaskets from Mr. Gasket have you covered.


  • Requires no silicone for simple installation
  • Excellent torque retention to prevent possible leaks caused from loosened bolts
  • Aluminum carrier provides un-matched gasket strength, fit and durability
  • Silicone elastomer beading provides a positive seal under severe temperatures and conditions
  • Rubber coated sealing binder adds a third layer of protection and aids in the gaskets ability to seal even with small imperfections of mating surfaces


Bolt Count 18
Bolt Hole Size 0.310 inch
Brand Mr. Gasket
Emission Code 5
Material Silicone-Rubber w/ Aluminum carrier
Packaging Individual
Product Type Transmission Pan Gaskets
Thickness .033 inch
Transmission 6L80E
Warranty Limited 90 Day
Part Number 51G07MRG
