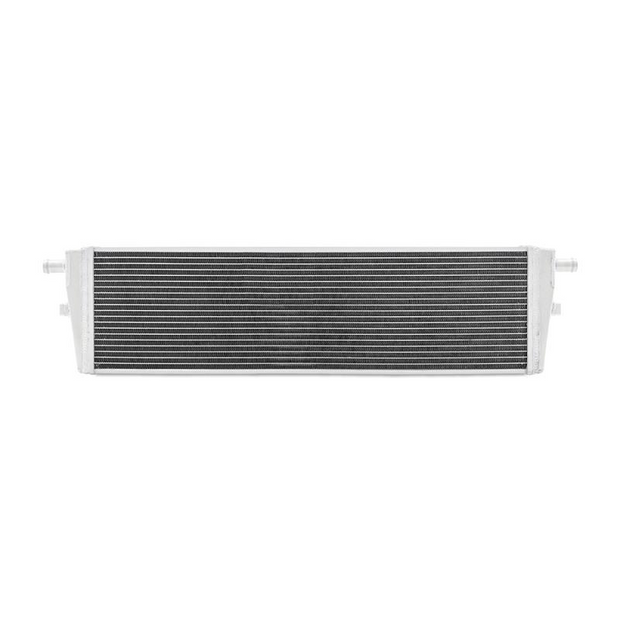

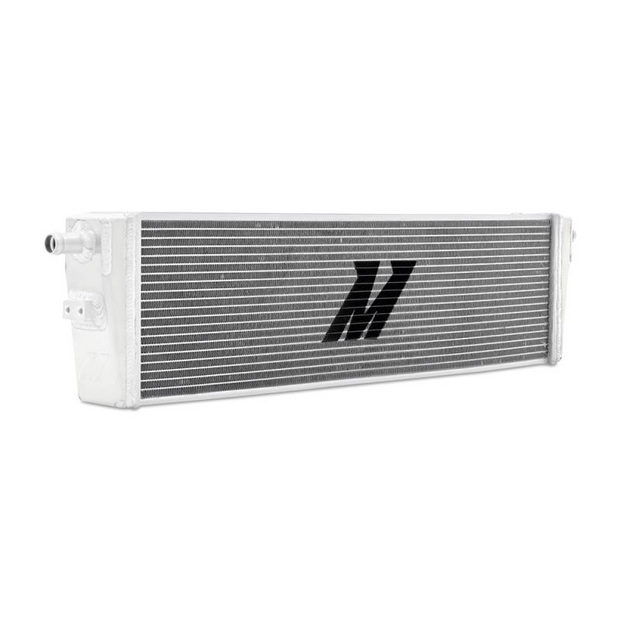

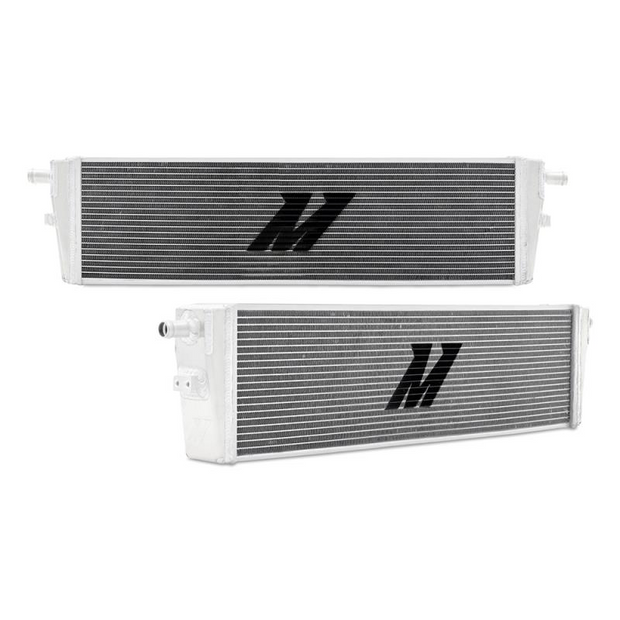

Mishimoto® Universal Air-to-Water 23.62 x 6.14 x 2.04 Single Pass Heat Exchanger

Regular price$223.95
/
Shipping calculated at checkout.
  • In stock, ready to ship
  • THIS PRODUCT IS NOT CARB CERTIFIED
  • Question? Call us at (888) 257-1077 🏁
  • Free Shipping USA (Exc. HI, AK, PR)
  • This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.



    There are some aspects of a build where corners can be cut, but your charge-air cooling system shouldn't be one of them. Big turbochargers make big power, and big power often results in high temperatures. Within the last decade, we've seen many turbocharged vehicles transitioning to liquid-to-air intercooling systems. The air-to-water heat exchanger plays a vital role in these systems by reducing coolant temperatures before entering the intercooler. If you're planning a forced induction build and need a charge-air cooling solution, Mishimoto's new air-to-water heat exchangers are an ideal choice.

    Mishimoto has designed four universal heat exchangers to support any build up to 1,500 hp, each precisely engineered for optimal flow and heat dissipation to meet your horsepower goals. Our heat exchanger options include multiple core sizes in single or dual pass configurations and your choice of two or three-row cores. In addition, the Mishimoto Universal Air-to-Water Heat Exchangers feature all-aluminum TIG-welded construction, making them extremely robust. For ease of installation, we've included half-inch thick threaded mounting bosses on each end tank.

    • Universal heat exchanger for use with air-to-water intercooler systems
    • Provides effective cooling support for charge-air cooling systems up to 500 hp
    • Strategically designed 3-row core offers maximum flow and heat dissipation
    • Core Size: 23.62 in X 6.14 in X 2.04 in
    • Overall Size: 29.48 in X 7.00 in X 2.67 in
    • All-aluminum construction yields superior strength and durability

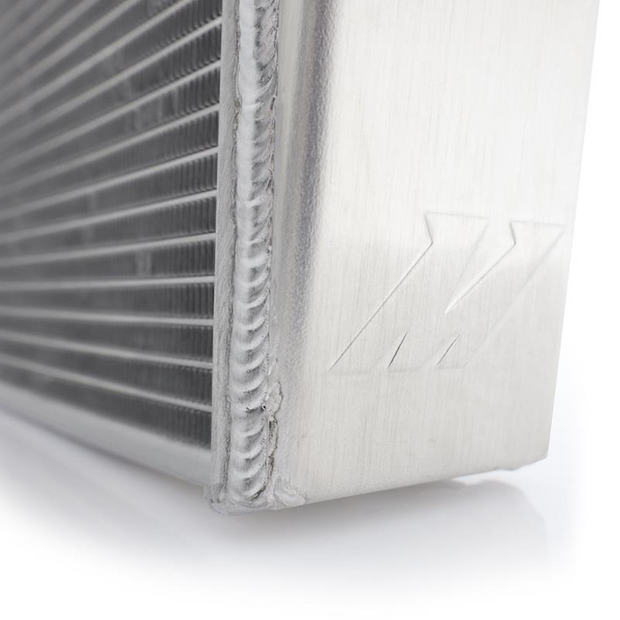

    • Precision TIG-welded end tanks for improved durability and pressure tolerance
    • Robust ½-in thick universal mounting bosses on each end tank
    • Bead rolled ¾-in inlet and outlet provide a leak-free connection





    PRODUCT SPECS

    MATERIAL Aluminum
    OVERALL HEIGHT 7.00"
    OVERALL LENGTH 29.48"
    TANK WALL THICKNESS 2mm
    OUTLET 3/4"
    ROWS 3
    INLET 3/4"
    DUAL PASS False
    OVERALL WIDTH 2.67"
    CORE LENGTH 23.62"
    CORE HEIGHT 6.14"
    CORE THICKNESS 2.04"
