Introducing Mishimoto’s lineup of Universal Race Intercooler Cores. Whether you’re looking for an intercooler to fit into a tight space or completing the build on your track toy, Mishimoto has the intercooler core for you.
The Mishimoto Universal Race Intercooler Cores feature a robust bar-and-plate construction to help you maximize charged air heat dissipation, as well as improve durability. Our cores are shipped in a raw finish so they arrive at your doorstep ready for fabrication and custom finishing.

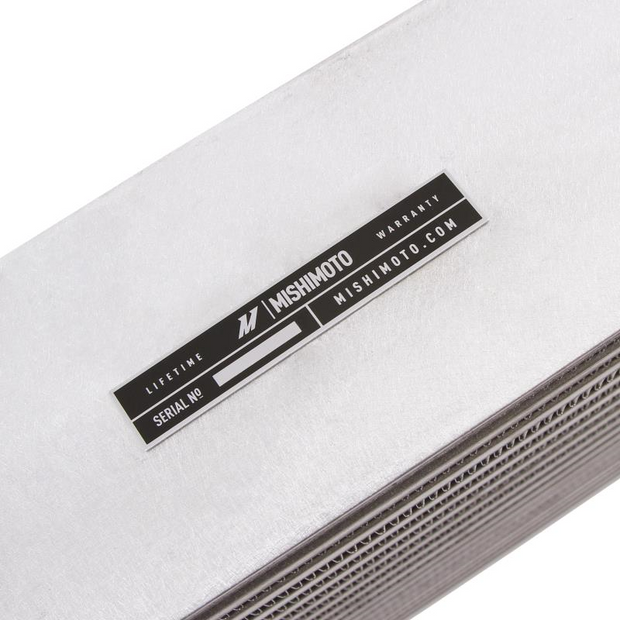

Each of our cores is quality controlled to ensure they can handle all of the boost you can throw at them. To back up our quality, our cores are covered by the Mishimoto Lifetime Warranty so that you know Mishimoto quality is being delivered straight to your door.
- Robust bar-and-plate construction
- Rated for 1200 hp
- 26" x 12" x 4" core size
- Designed for maximum flow and heat dissipation
- Arrives ready for fabrication
- Raw finish for endless finish possibilities
PRODUCT SPECS
| CORE THICKNESS | 4" |

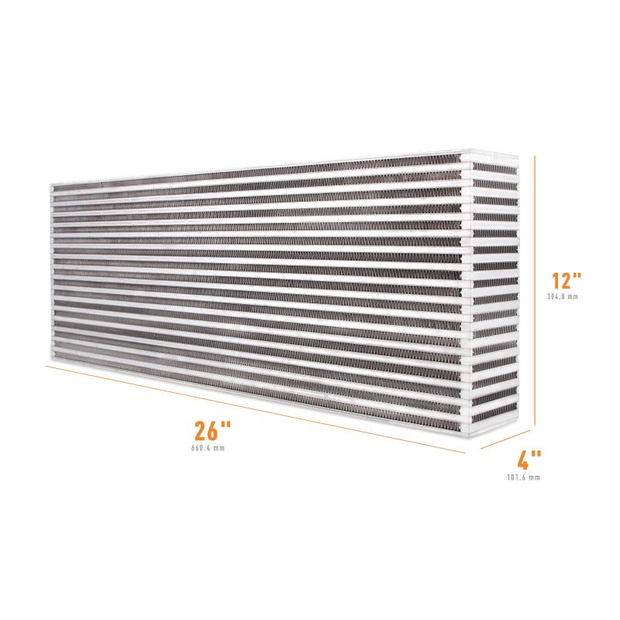

| CORE SIZE | 26" x 12" x 4" |
| CONSTRUCTION | Bar-and-Plate |
| UNIVERSAL CORE LENGTH (IN) | 660.4mm |
| UNIVERSAL CORE HEIGHT (IN) | 304.8mm |
| UNIVERSAL CORE WIDTH (IN) | 101.6mm |
| MAX REC HP | 1200 |
