MMRAD-LCR-99

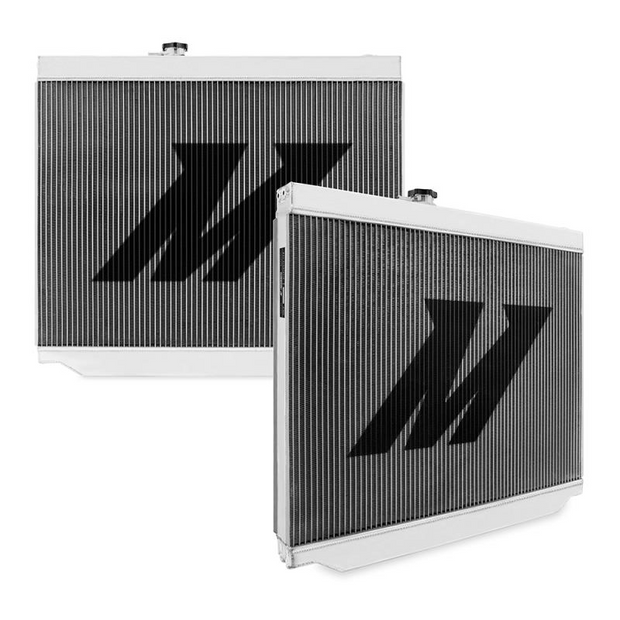

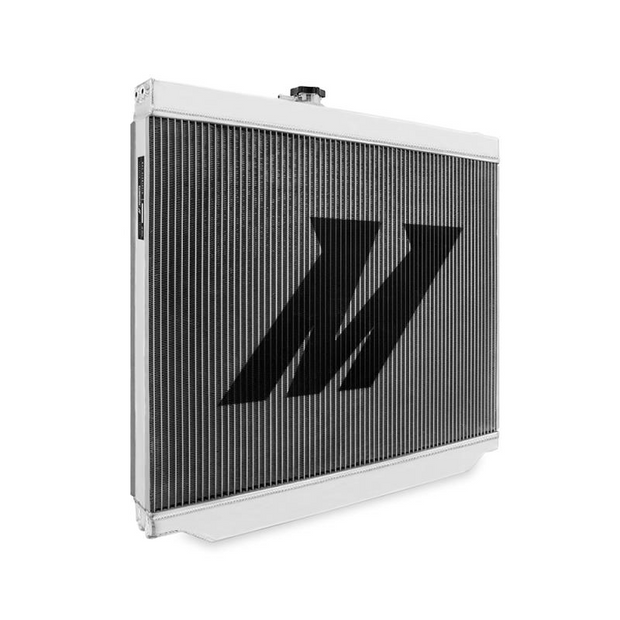

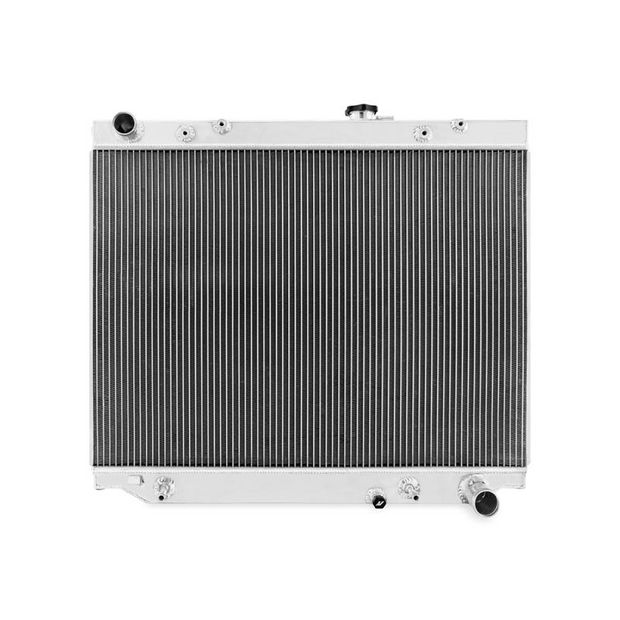

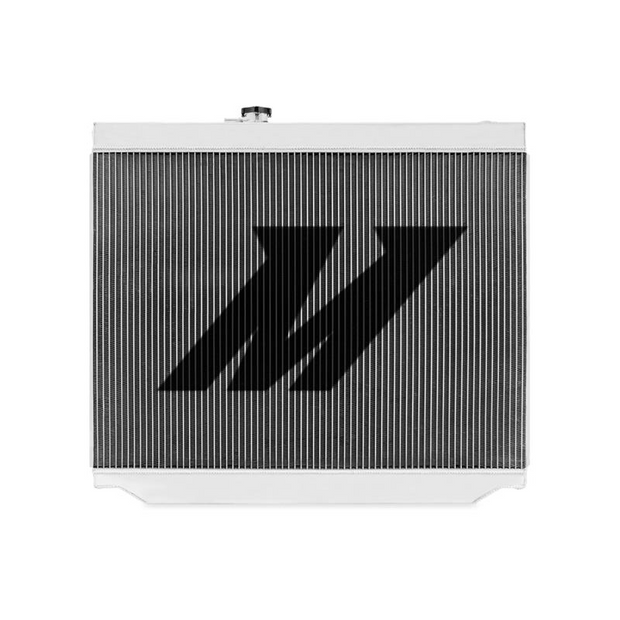

Mishimoto® (98-07) Toyota Land Cruiser 2-Row Performance Aluminum Radiator

Regular price$501.95
/
Shipping calculated at checkout.
  • In stock, ready to ship
  • THIS PRODUCT IS CARB CERTIFIED
  • Question? Call us at (888) 257-1077 🏁
  • Free Shipping USA (Exc. HI, AK, PR)
  • This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

    Compatible: (4.7L)

    1998 - 2007 Toyota Land Cruiser



    Your vehicle requires 2 bottles of full strength coolant or 4 bottles of premixed coolant



    If you’re looking to upgrade your Toyota J100 cooling, look no further!

    The Mishimoto 1998–2007 Toyota Land Cruiser J100 Performance Aluminum Radiator is an ideal upgrade for the brittle stock radiator. Our radiator boasts a 19% greater core volume and 26.5% greater coolant capacity to improve cooling efficiency. The Mishimoto Toyota Land Cruiser J100 radiator features durable, aircraft-quality, aluminum end tanks that are precision TIG-welded to the 56mm-thick core for superior durability.

    This Land Cruiser radiator also includes a Magnetic Drain Plug to capture metal debris in the cooling system, as well as a 1.3 bar high-pressure radiator cap. As with every Mishimoto aluminum radiator, this 1998–2007 Toyota Land Cruiser J100 radiator includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship for as long as you own the radiator.

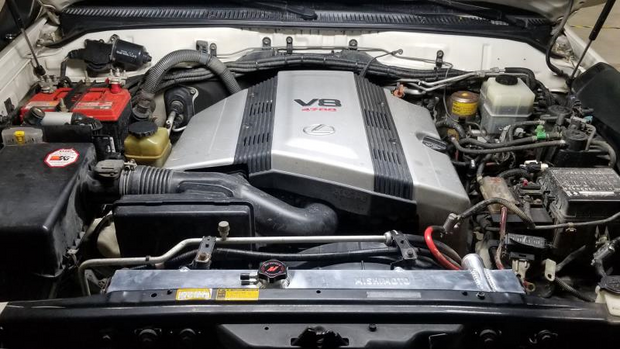

    • Direct fit for 1998–2007 Toyota Land Cruiser J100 with 2UZ-FE
    • Full aluminum construction including durable, TIG-welded end tanks
    • 56mm thick, two-row core for powerful cooling

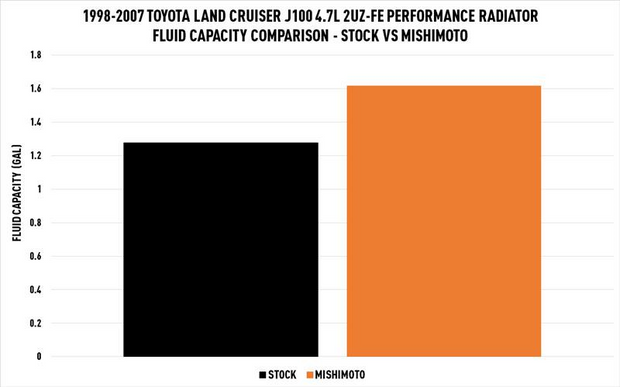

    • 26.5% increase in fluid capacity over stock radiator for greater cooling efficiency

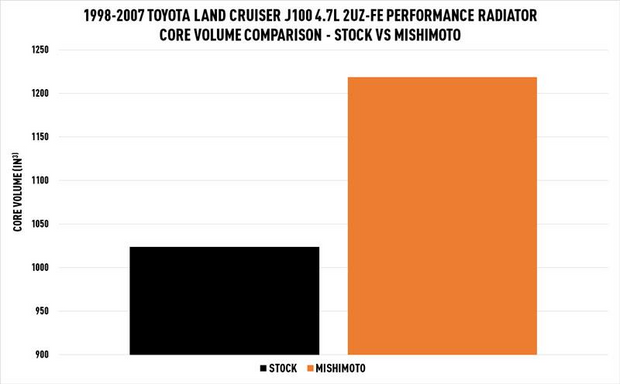

    • 19% increase in core volume over stock radiator
    • Includes internal transmission cooler to fit with either manual or automatic transmissions

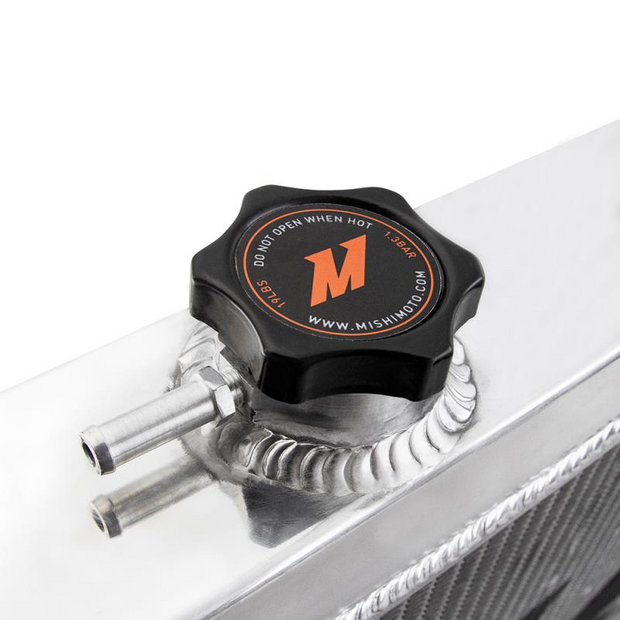

    • Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system

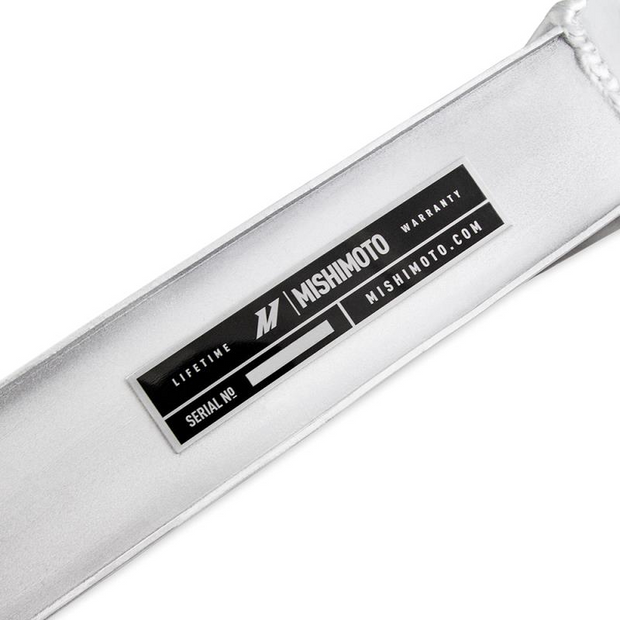

    • Mishimoto Lifetime Warranty



    PURCHASE INCLUDES

    (1) Mishimoto Aluminum Radiator
    (1) Mishimoto Radiator Cap
    (1) Foam Strip
    Mounting Hardware
    Mishimoto Lifetime Warranty



    VEHICLE SPECS

    ENGINE CODES 2UZ-FE 4.7L V8
    CHASSIS CODES J100
    FITS 1998-2007 Toyota Land Cruiser J100 (UZJ100) 4.7L 2UZ-FE



    PRODUCT SPECS

    MATERIAL Aluminum
    OVERALL HEIGHT 22.25"
    DRAIN PLUG THREAD SIZE (M12) x 1.5
    OVERALL LENGTH 28"
    ROWS 2
    COOLANT CAPACITY 3.7 gallons
    OVERALL WIDTH 6.1"
    CORE LENGTH 20"
    CORE HEIGHT 27.6"
    CORE THICKNESS 2.2"
    OVERALL LENGTH (IN) 28.00
    OVERALL HEIGHT (IN) 22.25
    OVERALL WIDTH (IN) 6.10
    ROWS 2
    WEIGHT 37 lbs
