Mishimoto  |  SKU: MMRAD-K20-EG

Mishimoto® (92-95) Honda Civic EG 2-Row Performance Aluminum Radiator (K-Series Engine Swap)

PLEASE CONTACT SUPPORT TO CONFIRM INVENTORY

$399.95
Shipping calculated at checkout.

Question? Call us at (888) 257-1077 🏁 (M-F 9-5 ET)

Email: info@10SecondRacing.com (24/7)

Free Shipping to Lower 48 US States ($100+)

Worldwide Shipping via UPS (Check Rates at Checkout)

This is a Sample Product Title
Was $200.00 Now $100.00

Description

Compatible: (2.0L)

1992 - 1995 Honda Civic EG

1993 - 1997 Honda Del Sol



INTENDED FOR USE WITH HONDA K-SERIES ENGINE SWAPS



Mishimoto is proud to release a brand new radiator for EG chassis Civics with K-Series engine swaps. Our half size radiator is designed specifically for your swapped vehicle with high performance driving in mind. This radiator is a direct drop in unit that does not require any trimming, drilling or mount alterations.The Mishimoto radiator will simplify a cooling solution for your K-swap and includes ports for the fan switch and coolant temperature sensor. This radiator, paired with our K-Series Swap Silicone Radiator Hose Kit, is the perfect cooling solution for your boosted or N/A K-Swap.This aluminum radiator, like all Mishimoto radiators, comes with a 1.3 bar high-pressure radiator cap and is backed by our unparalleled Mishimoto Lifetime Warranty.

  • Designed specifically for the 1992–1995 Honda Civic EG chassis with K-series engine swap
  • Provides a bolt-in cooling solution, simplifying the engine swap process
  • Full aluminum construction with durable, TIG-welded end tanks
  • Features a two-row, 1.57" thick, efficient brazed aluminum core
  • Substantial fluid capacity and optimal heat dissipation
  • Provides efficient heat exchange for naturally aspirated and forced induction vehicles
  • Includes threaded fan switch port to function with stock sensor

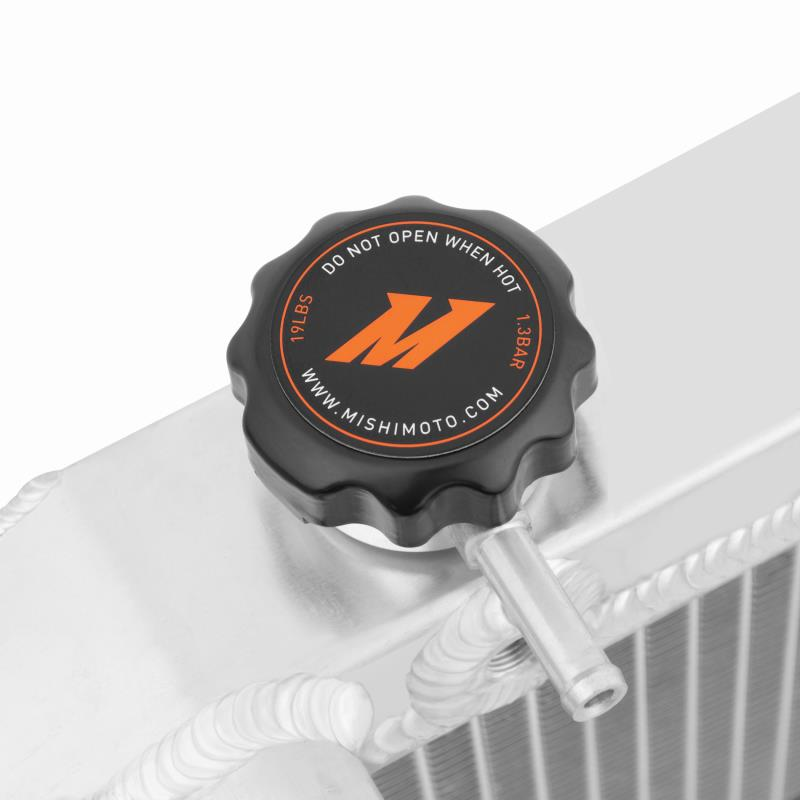

  • Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system

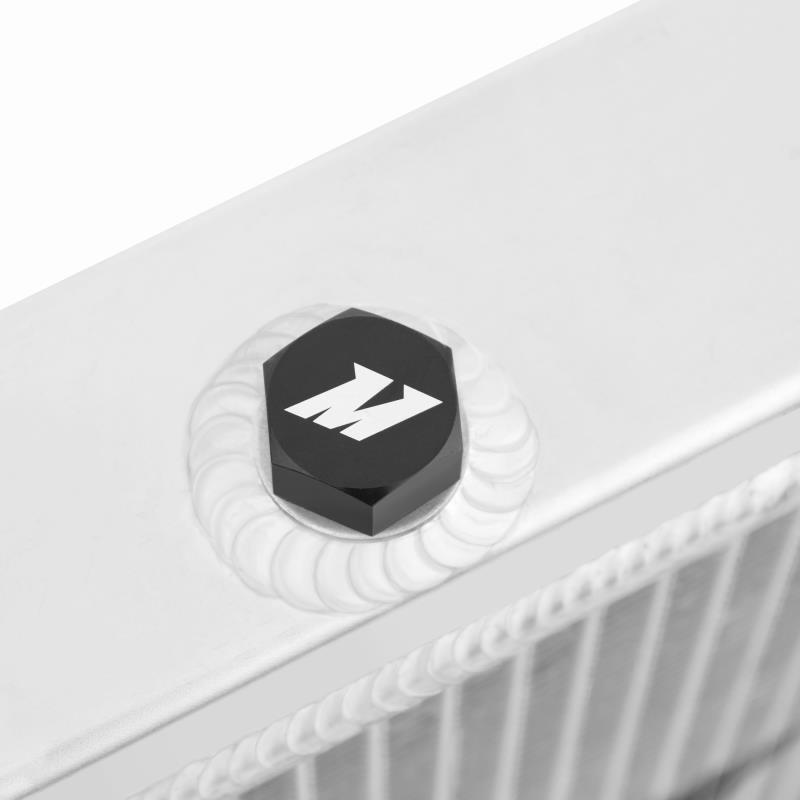

  • Includes Magnetic Drain
  • Plug to capture any metallic debris/fragments in your cooling system
  • Mishimoto Lifetime Warranty



VEHICLE SPECS

ENGINE CODES K20
FITS 1992-1995 Honda Civic EG
1993-1997 Honda Del Sol


PRODUCT SPECS

LOWER TANK THREAD SIZE M18 x 1.5
MATERIAL Aluminum
OVERALL HEIGHT 15.04"
UPPER TANK THREAD SIZE 1/8" NPT
DRAIN PLUG THREAD SIZE (M12) x 1.5
OVERALL LENGTH 16.73"
TANK WALL THICKNESS 0.08"
OUTLET 1.25"
ROWS 2
INLET 1.25"
DUAL PASS False
OVERALL WIDTH 4.02"
CORE LENGTH 14.88"
CORE HEIGHT 11.61"
CORE THICKNESS 1.57"
OVERALL LENGTH (IN) 16.73
OVERALL HEIGHT (IN) 15.04
OVERALL WIDTH (IN) 4.03
ROWS 2



PURCHASE INCLUDES

Mishimoto Radiator
Mishimoto Radiator Cap
Magnetic Drain Plug w/ Dowty Oil Seal
Mishimoto Lifetime Warranty
