MMRAD-CIV-92X

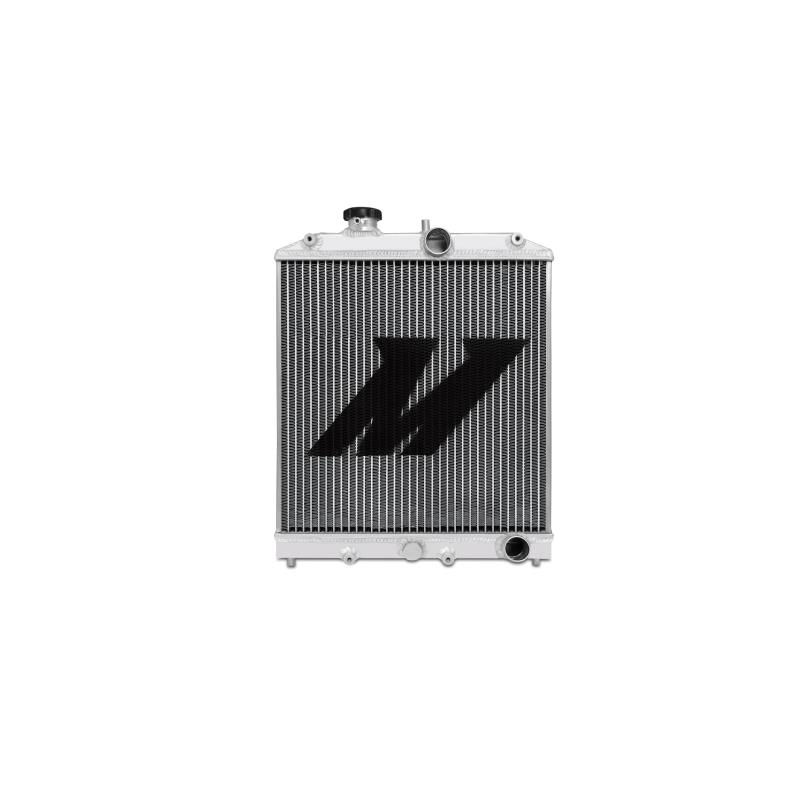

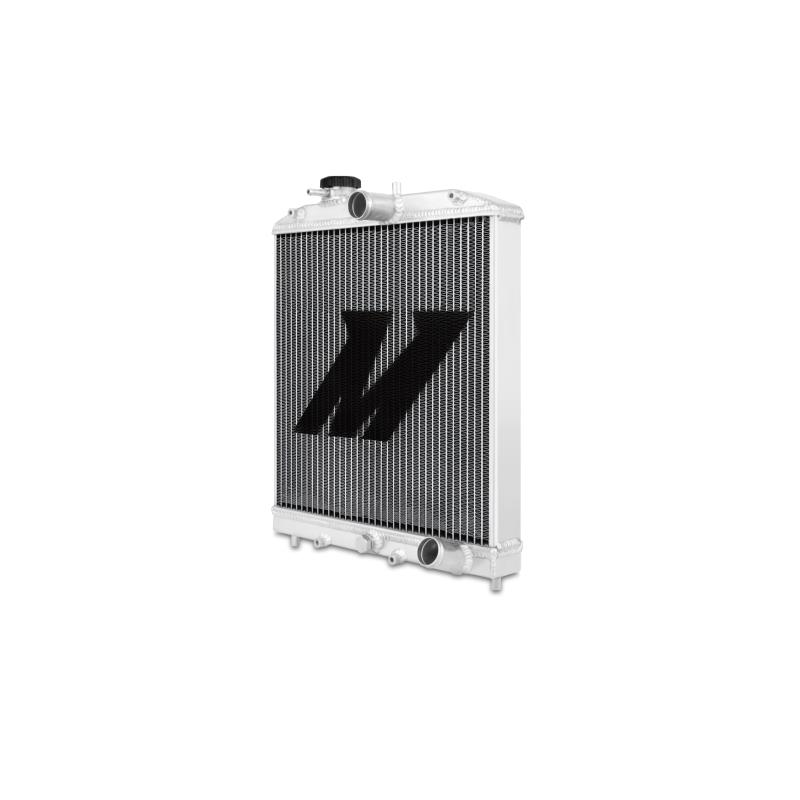

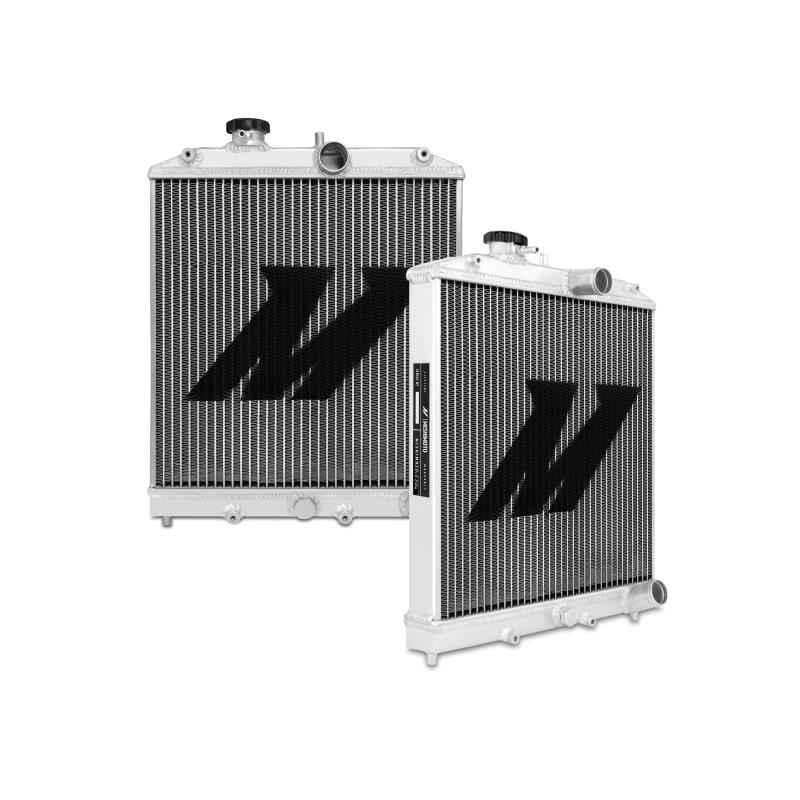

Mishimoto® (92-00) Honda Civic 3-Row X-Line Performance Aluminum Radiator
- In stock, ready to ship
Compatible: (1.3L/1.4L/1.5L/1.6L/1.8L/2.0L)
1992 - 2000 Honda Civic (All Models)
INTENDED FOR USE WITH MANUAL TRANSMISSION MODELS MUST PURCHASE
UNIVERSAL POWER & STEERING COOLER KIT TO COMPLETE INSTALL ON AUTOMATIC TRANSMISSION MODELS

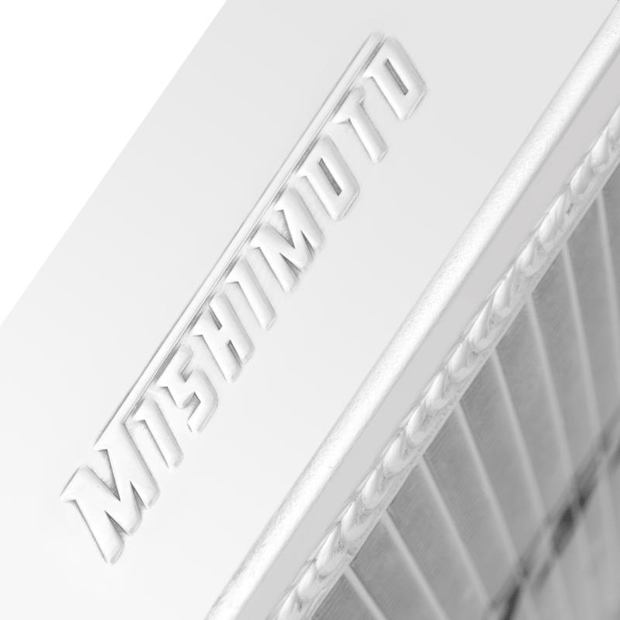

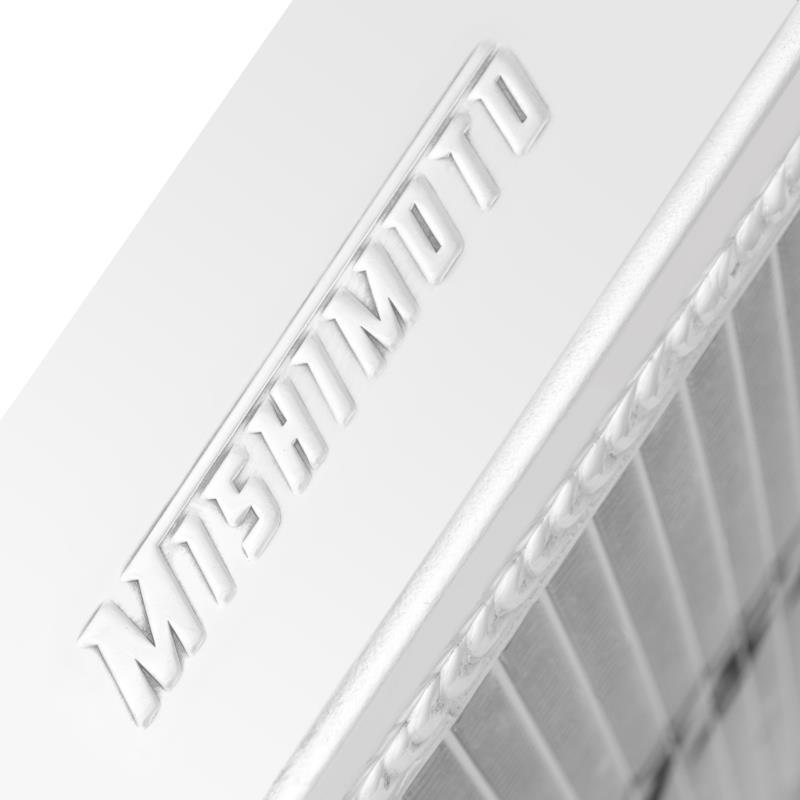

A high-performance Civic demands a cooling system that can keep up on the street and the track. For applications requiring the most efficient heat exchanger, the Mishimoto X-Line Honda Civic Performance Aluminum Radiator provides three cooling rows packaged in a massive 2-inch thick core. The three-row design provides additional surface contact points for higher efficiency and lower temperatures. To provide additional cooling performance this radiator is constructed using a 100% brazed aluminum core with TIG-welded aluminum end tanks for superior heat dissipation, reliability, and strength. This performance radiator includes a Mishimoto 1.3 Bar High-Pressure Radiator Cap that effectively raises the boiling point of coolant to create a safer and more efficient system, perfect for your time attack EG or all-motor EK. The Mishimoto Honda Civic X-line aluminum radiator features a compact yet highly efficient design, making it perfect for custom applications where space constraints limit the use of traditionally sized aluminum radiators. Despite featuring a drastic increase in core size compared to stock, this aluminum radiator is a direct fit for the 1992–2000 Honda Civic and requires no modification for installation. As with all our aluminum radiators, this product includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.
- Premium radiator has 3-row core for improved strength and reliability
- 16% thinner-than-stock tubes allow for more surface contact, increasing cooling efficiency
- Greater density of rows for higher cooling capacity.
- More contact points for additional heat transfer
- 3-row design creates more air turbulence, maximizing cooling efficiency
- Includes magnetic drain plug

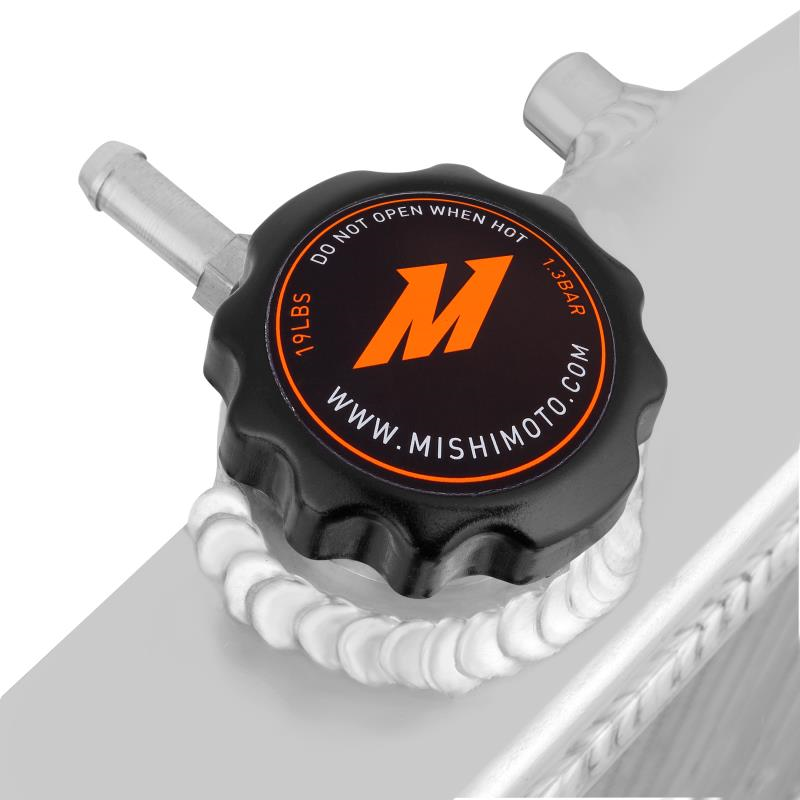

- Includes a 1.3 Bar High-Pressure Radiator Cap

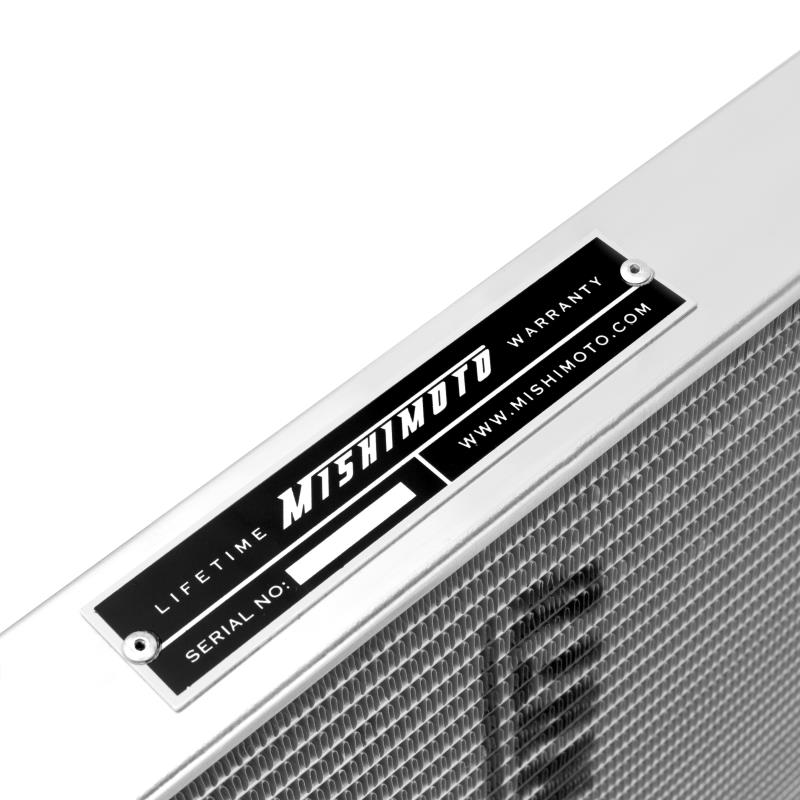

- Mishimoto Lifetime Warranty
PURCHASE INCLUDES
Mishimoto Radiator
Mishimoto Radiator Cap
Magnetic Drain Plug
Mishimoto Lifetime Warranty
VEHICLE SPECS
| ENGINE CODES | D15b1D15b7D15b8D15z1D16z6D16y5D16y7D16y8B16a2B16a3 |
| CHASSIS CODES | EG1EH6EG2EH2EH3EH9EJ1EJ2EJ6EJ7EJ8EM1 |
| FITS | 1992-2000 Honda Civic (All) 1993-1997 Honda Civic Del Sol |
PRODUCT SPECS
| MATERIAL | Aluminum |
| OVERALL HEIGHT | 18.5" |
| DPI | 1290 |
| DRAIN PLUG LENGTH | 0.047" |
| DRAIN PLUG THREAD SIZE | (M12) x 1.5 |
| OVERALL LENGTH | 14.6" |
| FILL NECK THICKNESS | 0.12" |
| TANK WALL THICKNESS | 0.08" |
| OUTLET | 1.26" |
| ROWS | 3 |
| INLET | 1.26" |
| DUAL PASS | False |
| OVERALL WIDTH | 2.5" |
| CORE LENGTH | 13.78" |
| CORE HEIGHT | 14.09" |
| CORE THICKNESS | 2" |
| FILL NECK | 1.22" |
| OVERALL LENGTH (IN) | 14.60 |
| OVERALL HEIGHT (IN) | 18.50 |
| OVERALL WIDTH (IN) | 2.50 |
| ROWS | 3 |
