Mishimoto® (17-20) Ford Raptor EcoBoost Hot-Side Intercooler Pipe kIT

Regular price$430.95
Shipping calculated at checkout.
  • In stock, ready to ship
  • Pipe Finish
  • Question? Call us at (888) 257-1077 🏁
  • Free Shipping USA (Exc. HI, AK, PR)
  • This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

    Compatible: (3.5L)

    2017 - 2020 Ford Raptor EcoBoost


    Mishimoto has developed a direct-fit 2017-2020 Ford Raptor Hot-Side Intercooler Pipe kit that allows owners to maximize the performance potential of their second-gen Raptor.

    Our kit replaces the weak and unattractive plastic piping with free-flowing, durable aluminum piping and silicone boots with DuraCore™ technology. The larger volume of our hot-side pipes allows your 2017-2020 Raptor to breathe freely and make the most of the its two turbochargers. DuraCore™ boots coupled with constant-tension worm gear clamps provide superior strength and blowout resistance, ensuring boost always makes it to its destination. Available with a sleek polished finish or powder-coated in stealthy wrinkle black, these pipes are a great addition to every 2017-2020 second-gen Raptor from the show to the track.

    Combine this kit with the Mishimoto 2017-2020 3.5L Cold-Side Pipe and Mishimoto 2015+ Raptor Intercooler to unleash everything the twin-turbo 3.5L EcoBoost engine is capable of. As with all Mishimoto products, this 2017-2020 Ford Raptor Hot-Side Intercooler Pipe kit is backed by our Lifetime Warranty.

    • Direct fit for 2017-2020 Ford Raptor 3.5L EcoBoost
    • Increased volume for better flow
    • Multiple pipes make installation fast and easy, no more snaking long pipes around your engine bay
    • Includes Mishimoto Silicone Boots with DuraCore™ technology for superior resistance to heat, pressure, fuel, and oil
    • Constant-tension worm gear clamps keep a strong grip as pipes and boots expand and contract

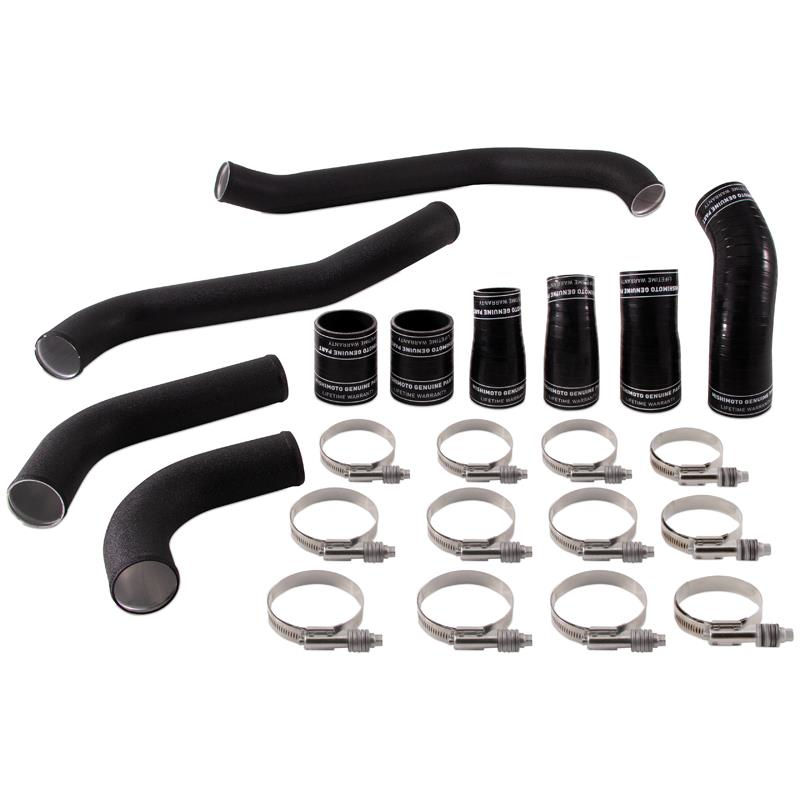

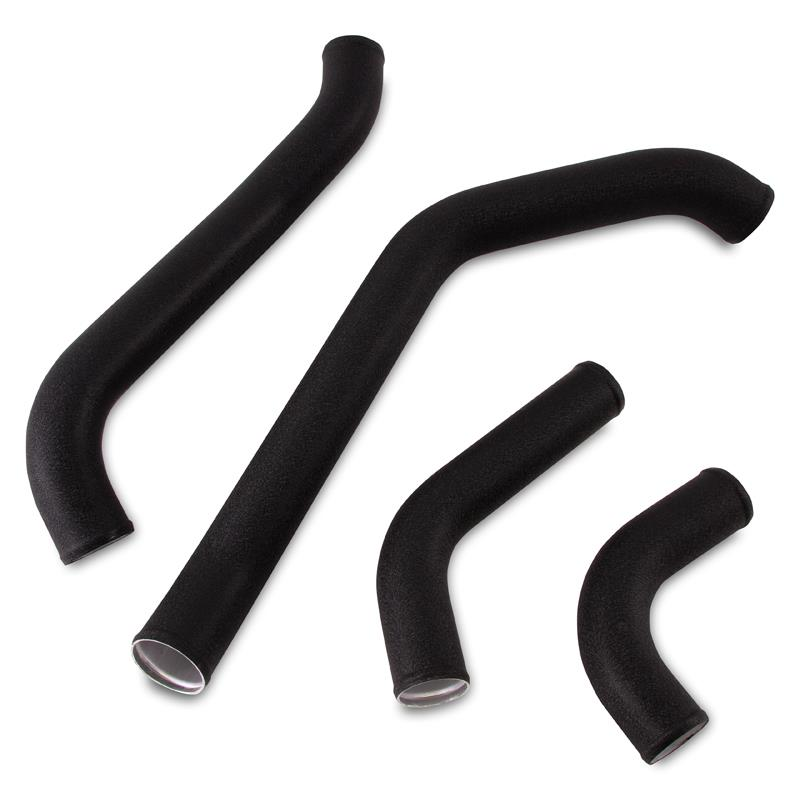

    • Available in polished or wrinkle black powder-coated finish
    • Mishimoto Lifetime Warranty



    MAKE Ford
    ENGINE CODES 3.5L V6 EcoBoost
    FITS 2017-2020 Ford Raptor 3.5L EcoBoost


    INSTALLATION TORQUE SPECS 27 in-lbs (3N*M) recommended for all t-bolt and constant tension t-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4N*M). Do not exceed the maximum torque rating of 35 in-lbs (4N*M).

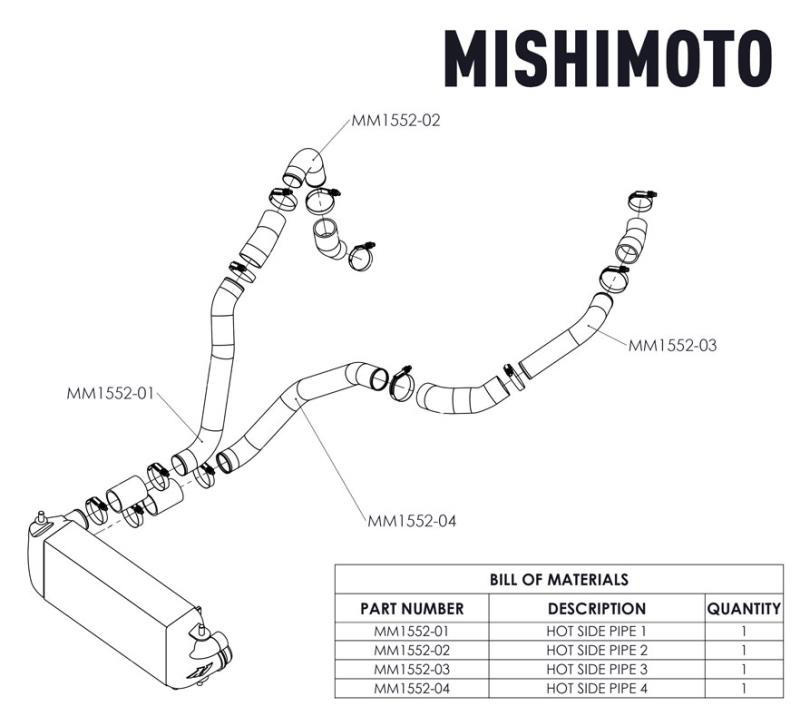

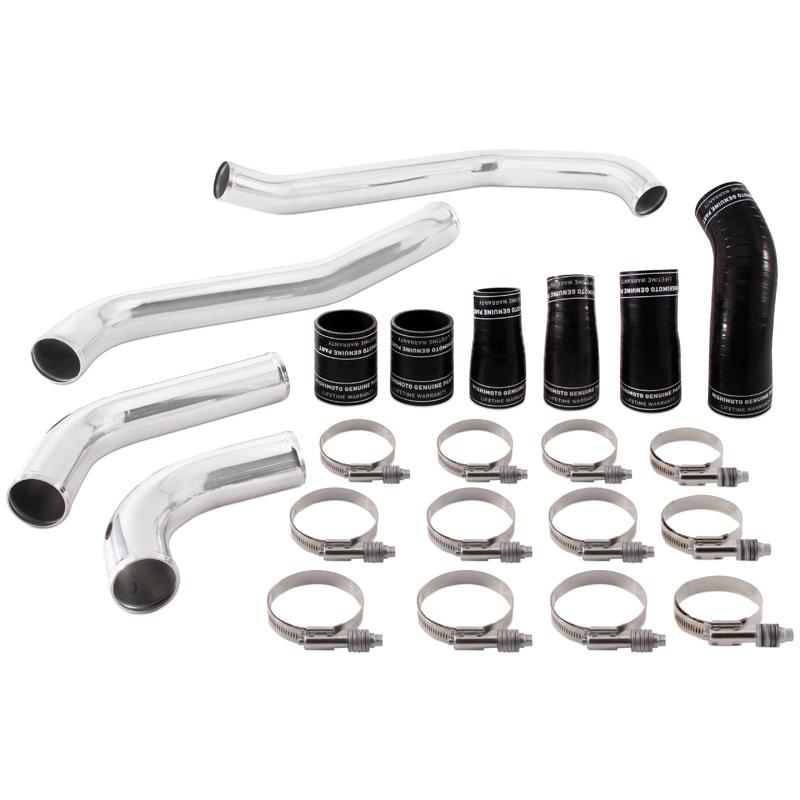

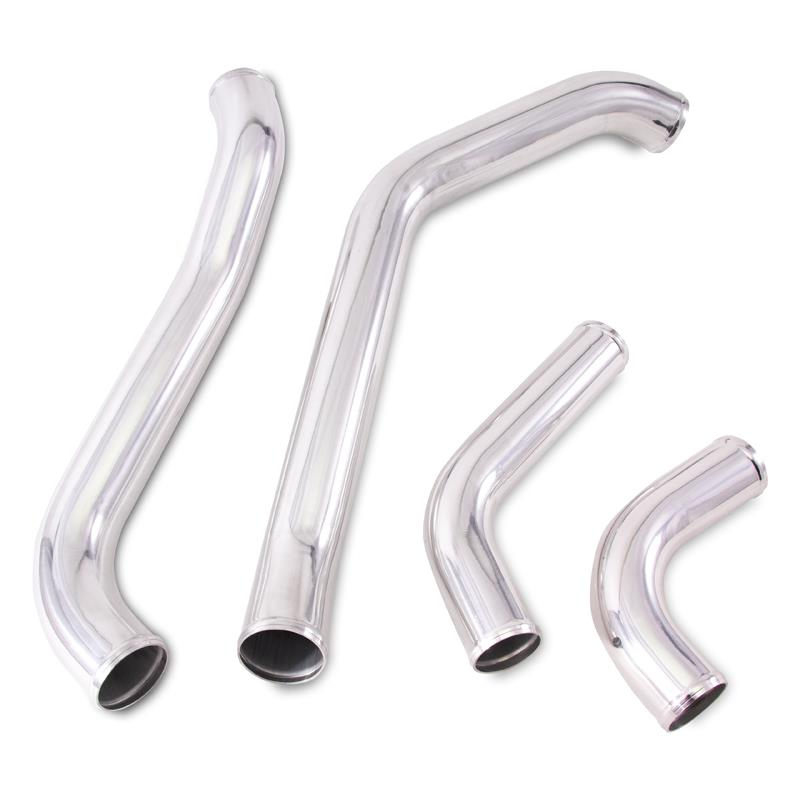

    (5) Aluminum Intercooler Pipes

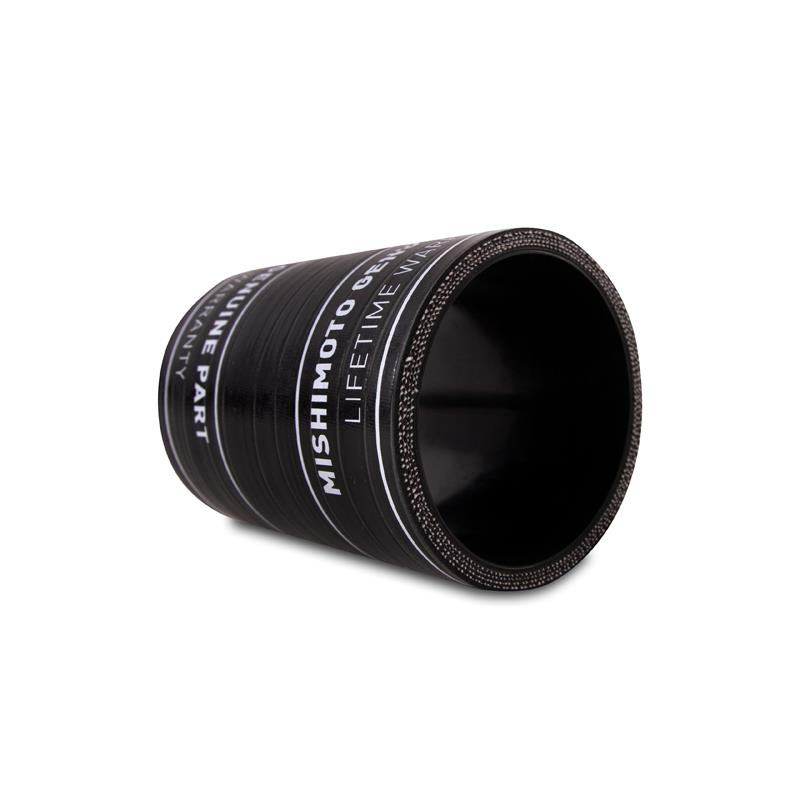

    (7) Silicone Boots with DuraCore™ Technology
    (14) Constant-Tension Worm Gear Clamps
    (1) Boost Control Solenoid Tube
    Mounting Hardware
    Mishimoto Lifetime Warranty


    If you’re an auto-enthusiast, you don’t think too much about those first two facts, but you’re always thinking about that last one. After all, an engine in its simplest form is an air pump. That means the amount of power an engine makes is largely determined by how much air it can pull in and push out. There’s a reason that intakes and exhaust are often the first modifications on cars and trucks.

    Intakes and exhausts aren’t the only way to increase the power and efficiency of an engine. If your vehicle has forced induction, you know there are a lot of components between the outside air and the engine’s cylinders that can have major effects on power. If there are two turbos in that equation, like the 3.5L EcoBoost found in the 2017+ F-150, those components are even more critical to your engine’s respiration.


    Getting the pipes that carry all that compressed atmosphere to your engine right is one of the most important aspects of tuning a turbocharged engine. Without intercooler piping, all that power your turbochargers make would be released into the atmosphere as nothing more than hot air. You can also lose a lot of that power potential if your intercooler pipes are incorrectly sized. Intercooler pipes that are too small or have hard bends can restrict flow, making your turbochargers work harder and become less effective. Too large and the turbos won’t be able to flow enough air to fill them and you’ll lose boost pressure.

    Plastic has overtaken the engine bays of most modern vehicles.
    Plastic has overtaken the engine bays of most modern vehicles.

    Strength is also an important factor in intercooler pipes. When your turbos are exerting 18+ pounds of pressure against every square inch of material, a single crack or chip could prove disastrous. This is especially true for pipes equipped on vehicles like the 2017+ F-150, and even more so on the F-150’s Raptor variant. Every wide-open throttle pull at the drag strip. Every pothole on the highway. Every dune jump in the desert. They all put stress on your truck’s components, including the intercooler pipes. Adding more boost to the mix just adds that much more stress to the intercooler pipes.

    It’s for these reasons that many F-150 EcoBoost owners choose to upgrade their plastic intercooler pipes to higher-flowing, more durable aluminum pipes.


    At Mishimoto, we’ve drawn on our knowledge of the EcoBoost platform to develop just that for the 2017+ F-150/Raptor 3.5L EcoBoost. Like all our products, we’ve spent countless hours making sure our intercooler pipes fit like stock, while allowing your 3.5L’s twin-turbo induction system to breathe easier. Our aircraft-grade aluminum pipes are more durable than the stock plastic pipes and include our DuraCore™ boots to ensure all the boost your turbos produce makes its way into the cylinders and no power is wasted.


    Your 2017+ F-150/Raptor 3.5L EcoBoost is a tough truck that’s capable of tackling anything from the jobsite to the dunes. Shouldn’t you be able to say the same about the intercooler pipes under your hood?
