MMAI-CAM4-16BK

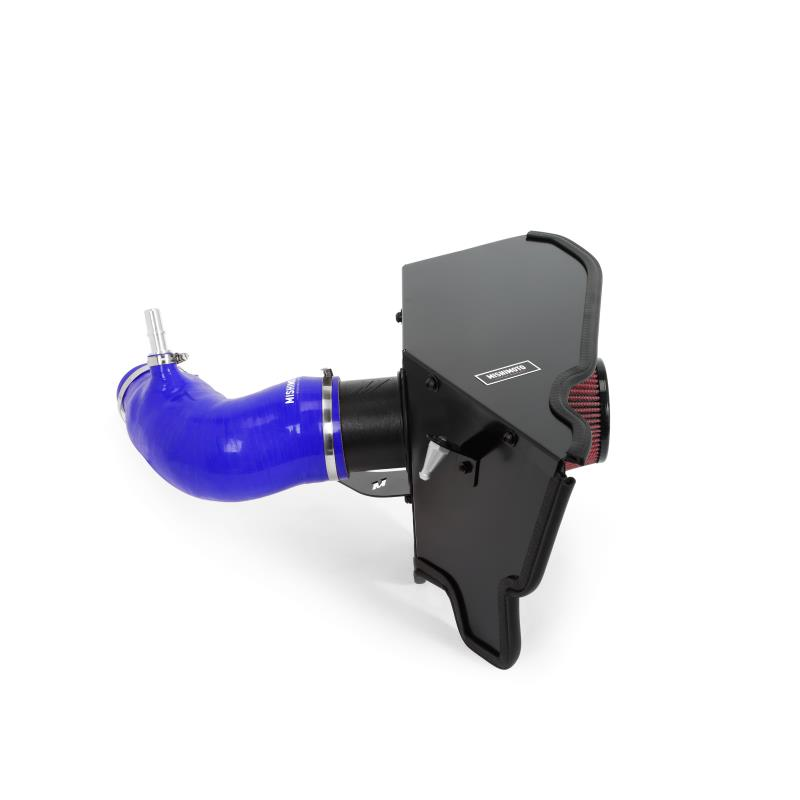

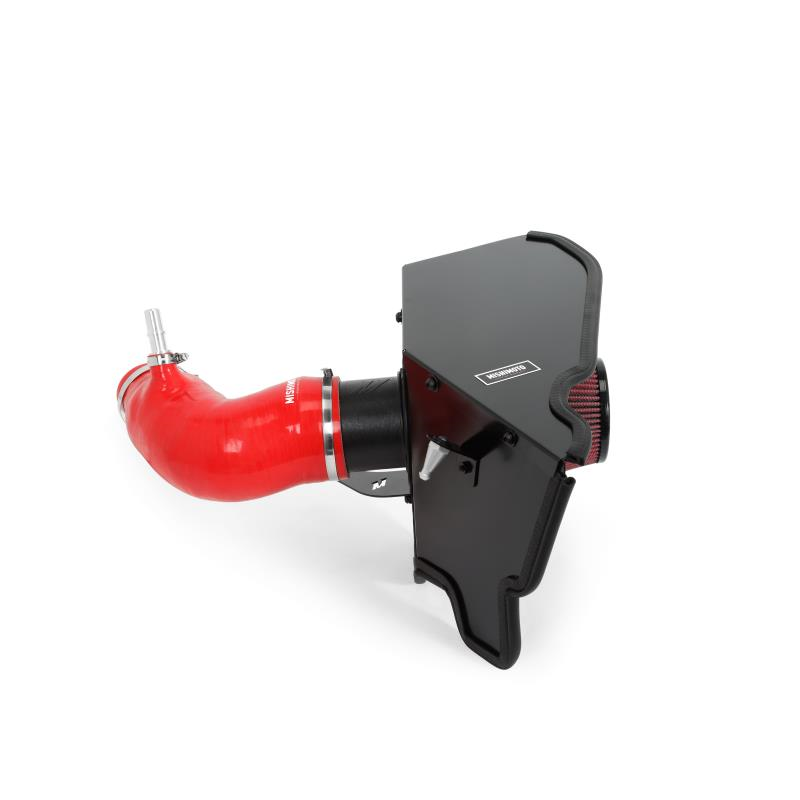

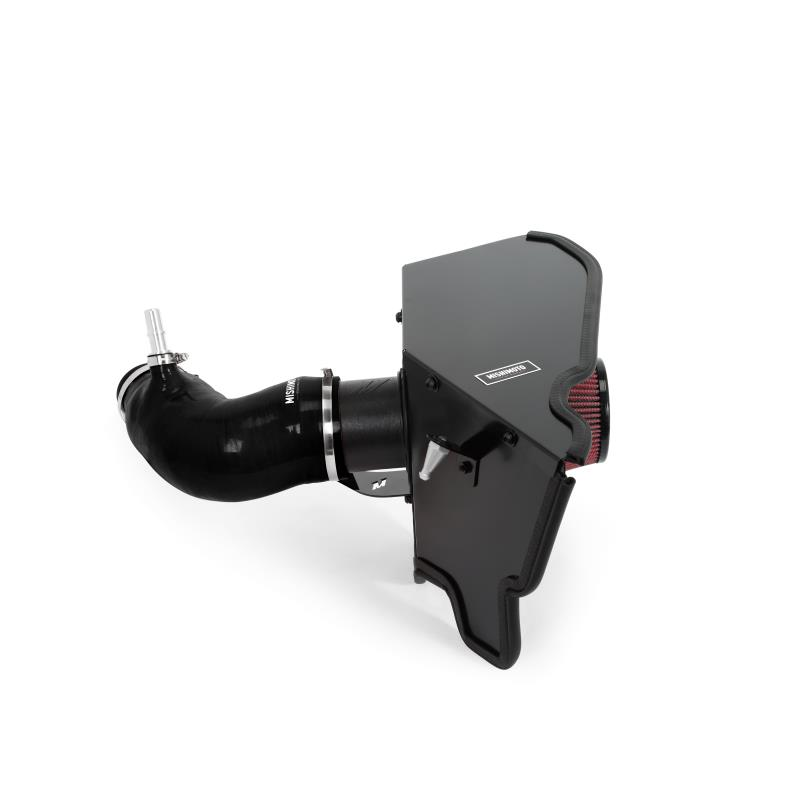

Mishimoto® (16-23) Camaro 2.0T Cold Air Intake System with Heat Shield

Regular price$383.95
/
Shipping calculated at checkout.
  • In stock, ready to ship
  • THIS PRODUCT IS NOT CARB CERTIFIED
  • Hose Color
  • Question? Call us at (888) 257-1077 🏁
  • Free Shipping USA (Exc. HI, AK, PR)
  • This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

    Compatible: (2.0L)

    2016 - 2023 Chevy Camaro LS

    2016 - 2023 Chevy Camaro LT

    2016 - 2023 Chevy Camaro RS


    Install Torque Specs 22 in-lbs (2.5N*M) recommended for all worm-gear clamps. These clamps have an operating range of 18-27 in-lbs 2-3N*M. Do not exceed the maximum torque rating of 27 in-lbs (3N*M).




    Our engineers have put a lot of R&D hours into the Mishimoto Performance Intake for the 2016+ Chevy Camaro 2.0T. We went through several designs to get where we are now, and this will truly wake up your LGT motor with the help of extra air surging through your system.

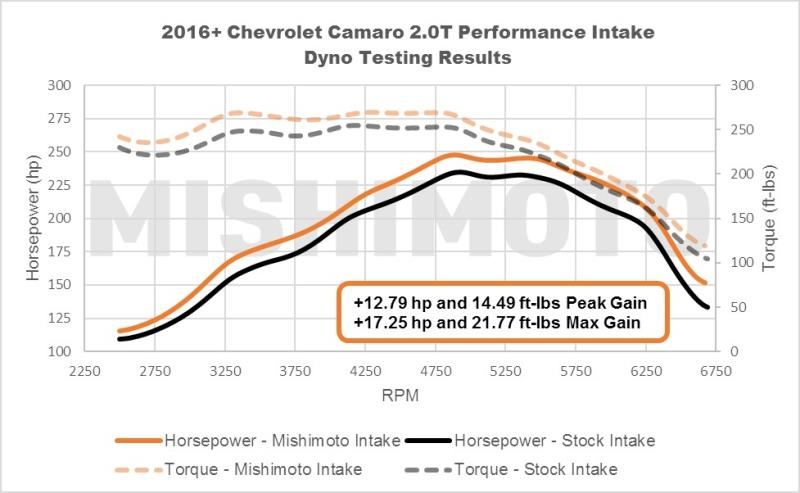

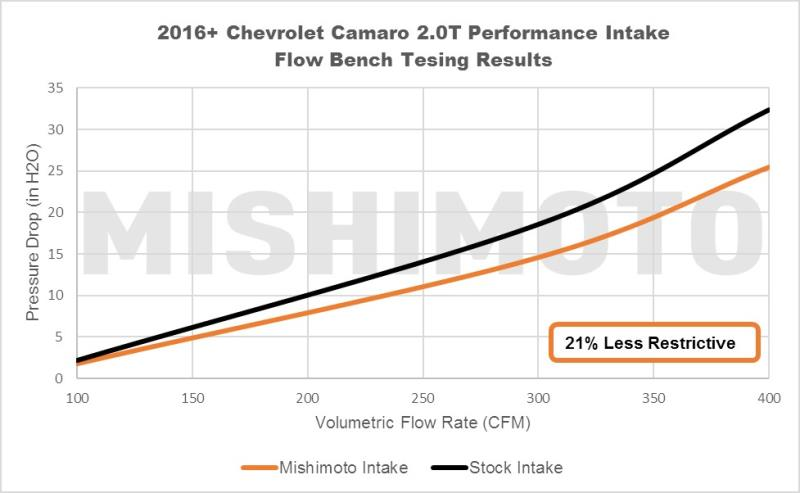

    This kit fits all two-liter 2016 Camaros and will provide dyno proven performance gains of 18 hp and 22 ft-lbs of torque. We also improved pressure drop by 21%, giving you increased airflow over stock. The airbox is made of steel and powder-coated black to help fight air intake temperatures, while our MAF housing is made of a glass-reinforced, plastic-injected mold with a built-in air straightener. The intake elbow is made of a five-ply silicone with steel wire reinforcement to prevent misshaping under vacuum and keep the engine heat at bay.

    The silicone design is an improvement over the bulky plastic intake elbow, replacing the stock sound suppression chamber attached to the turbo and giving you smoother airflow throughout. We performed hundreds of miles of road testing to ensure the safety of running it on a completely stock motor, so no tune is required!

    This kit comes with everything required for installation, along with a pre-oiled Mishimoto Performance Air Filter, the necessary hardware and our Mishimoto Lifetime Warranty. Check out our engineering blog for in-depth details on the design!

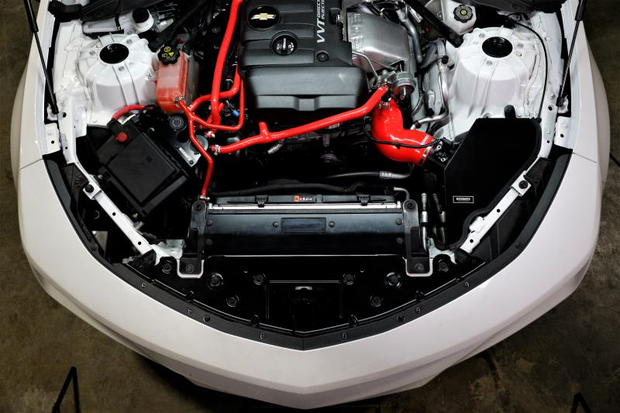

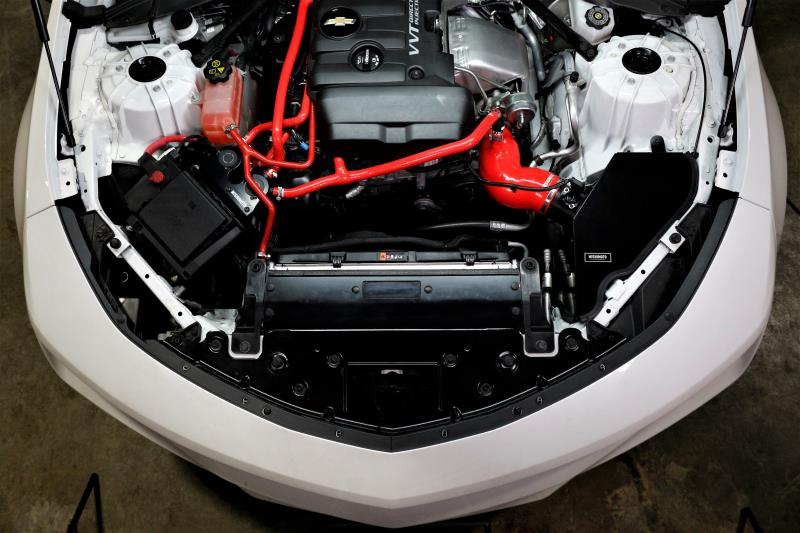

    • Direct fit for the 2016+ Chevrolet Camaro 2.0T
    • Provides max gains of 18 whp / 22 wtq while maintaining safe A/F ratios
    • No tune required

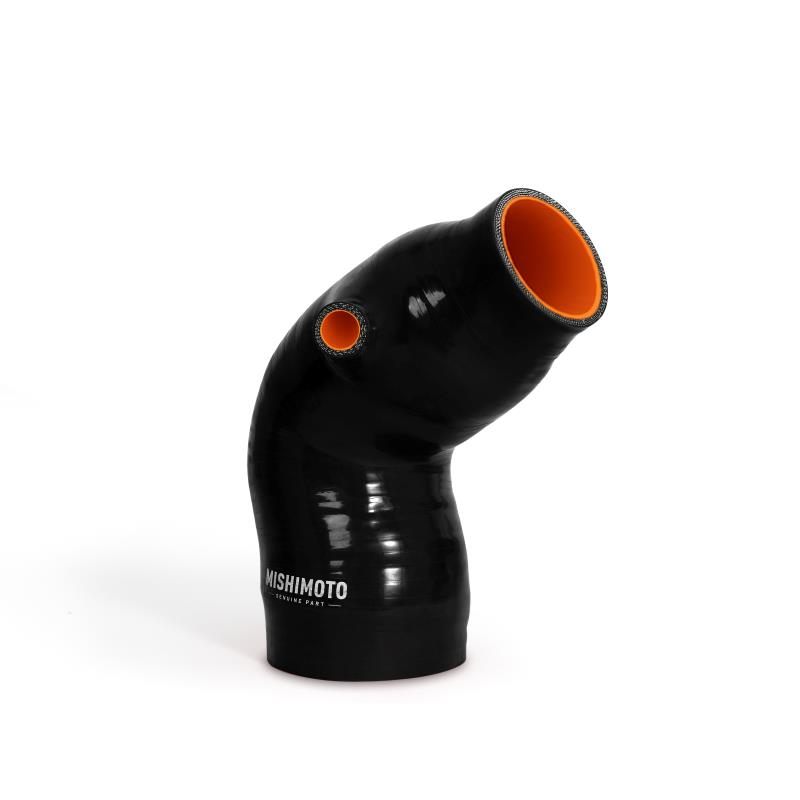

    • Wire-reinforced silicone elbow with CNC billet fittings eliminates restrictions and improves and increases airflow capacity
    • Extremely aggressive intake tone under acceleration
    • Heat-resistant, glass-reinforced nylon MAF sensor housing and integrated air straightener molded by plastic injection

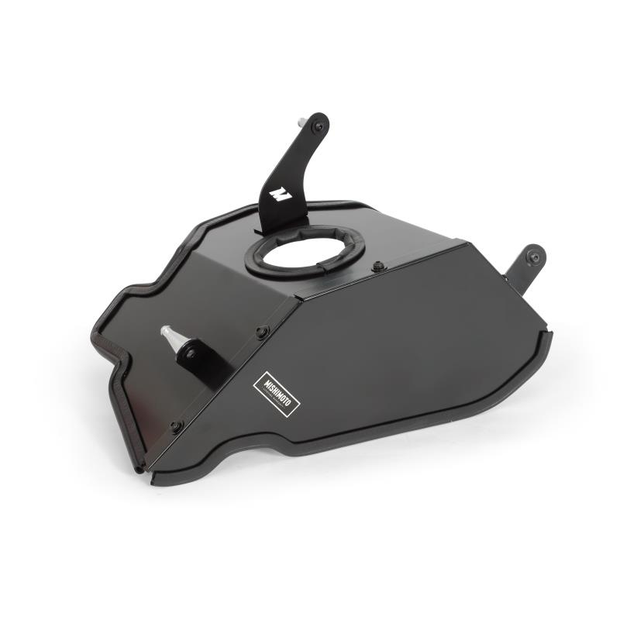

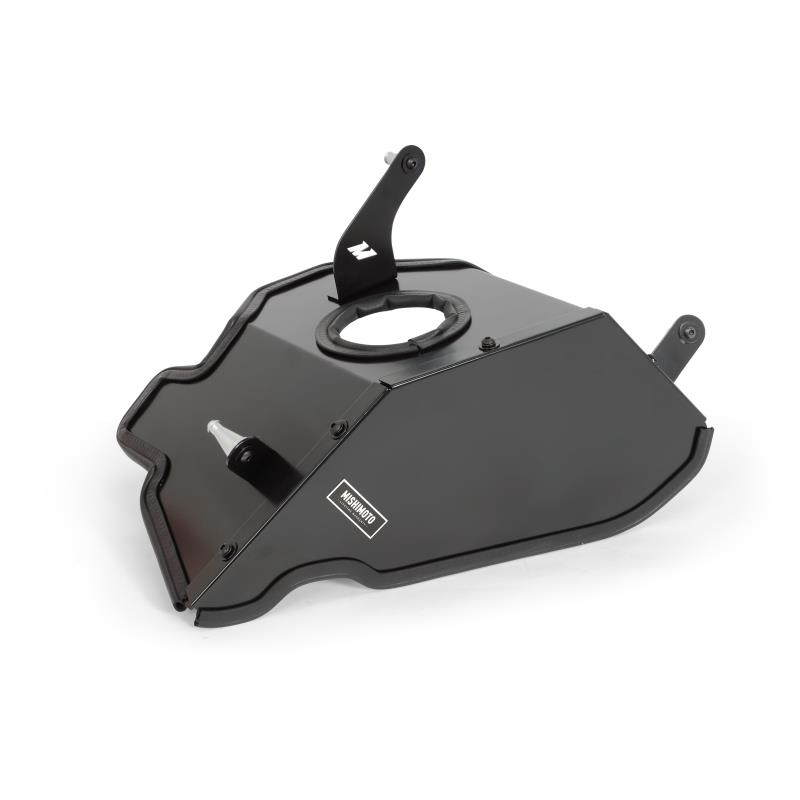

    • Powder-coated black airbox keeps unwanted hot air from entering the air filter
    • Mishimoto high-flow oiled air filter receives maximum airflow from the front of the vehicle

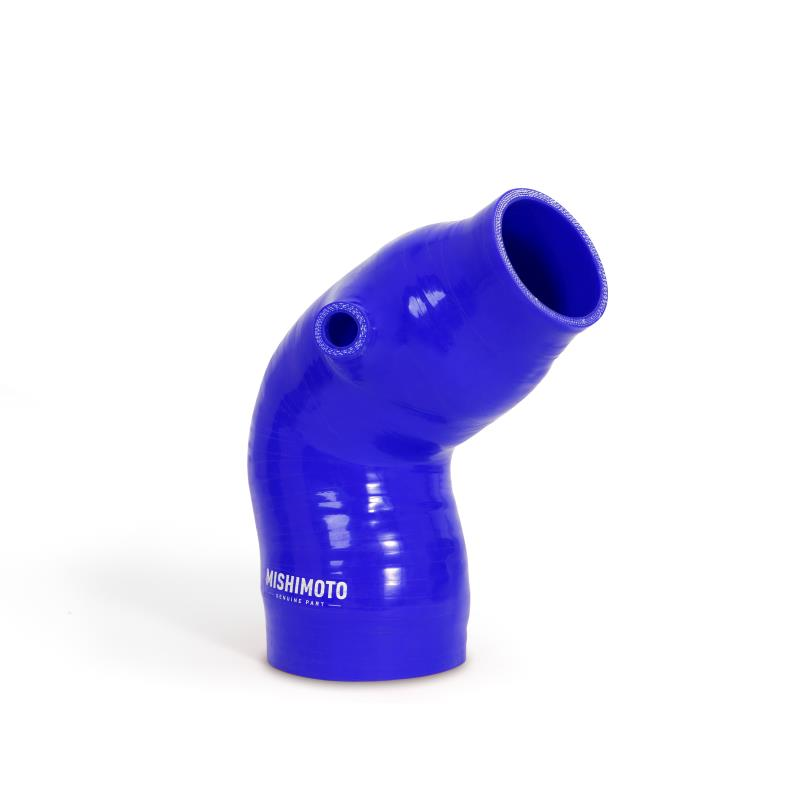

    • Silicone elbow available in black, red, or blue
    • Mishimoto Lifetime Warranty



    VEHICLE SPECS

    ENGINE CODES LTG
    CHASSIS CODES Alpha
    FITS 2016+ Chevrolet Camaro 2.0T


    PRODUCT SPECS

    AIRBOX MATERIAL Steel
    PIPE MATERIAL Steel Reinforced Silicone
    HEAT SHIELD MATERIAL Steel
    AIR FILTER PART NUMBER MMAF-3562

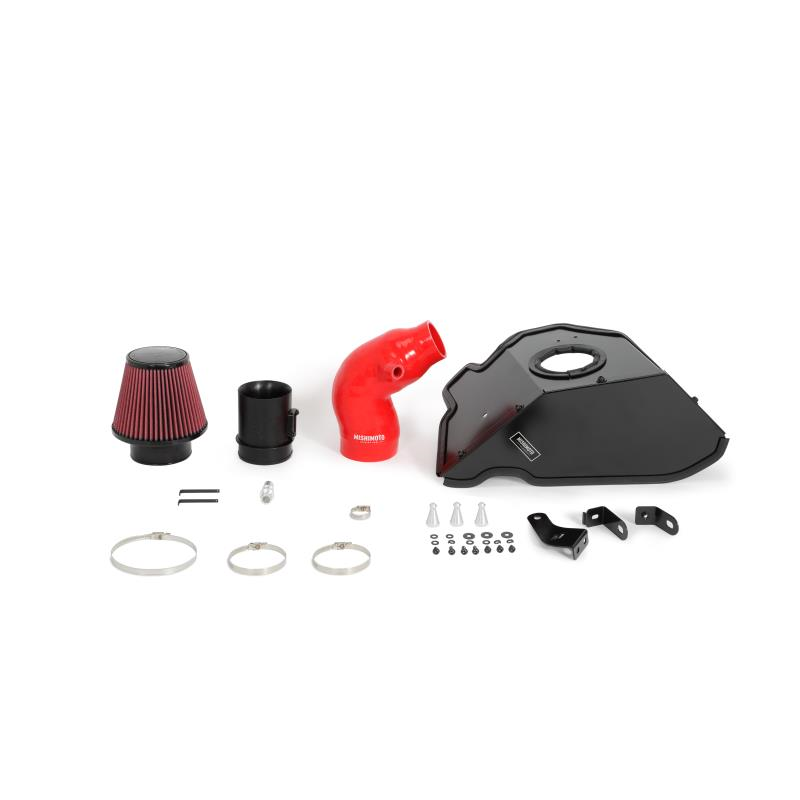

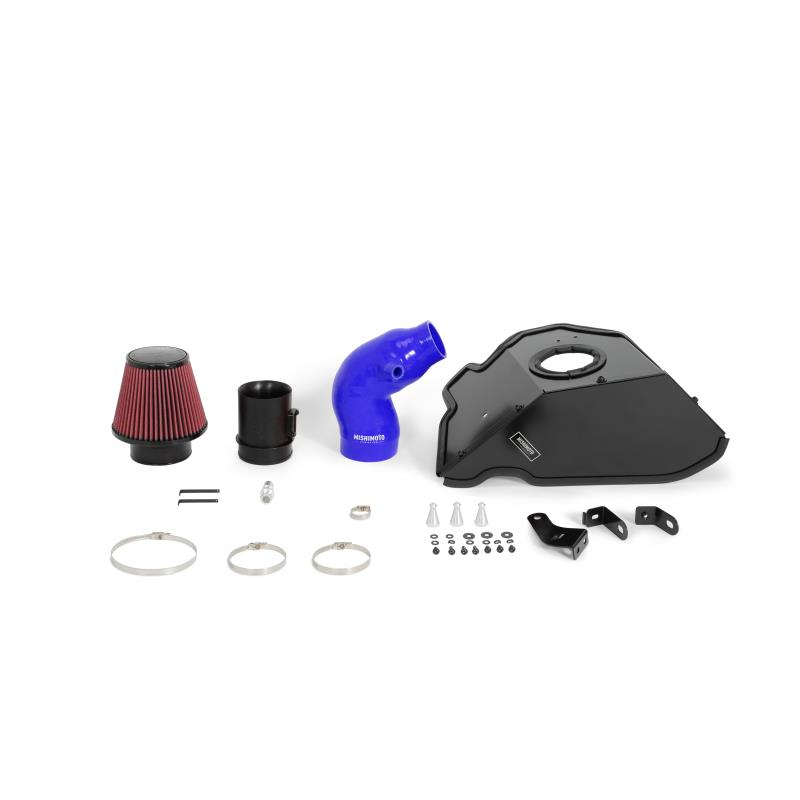

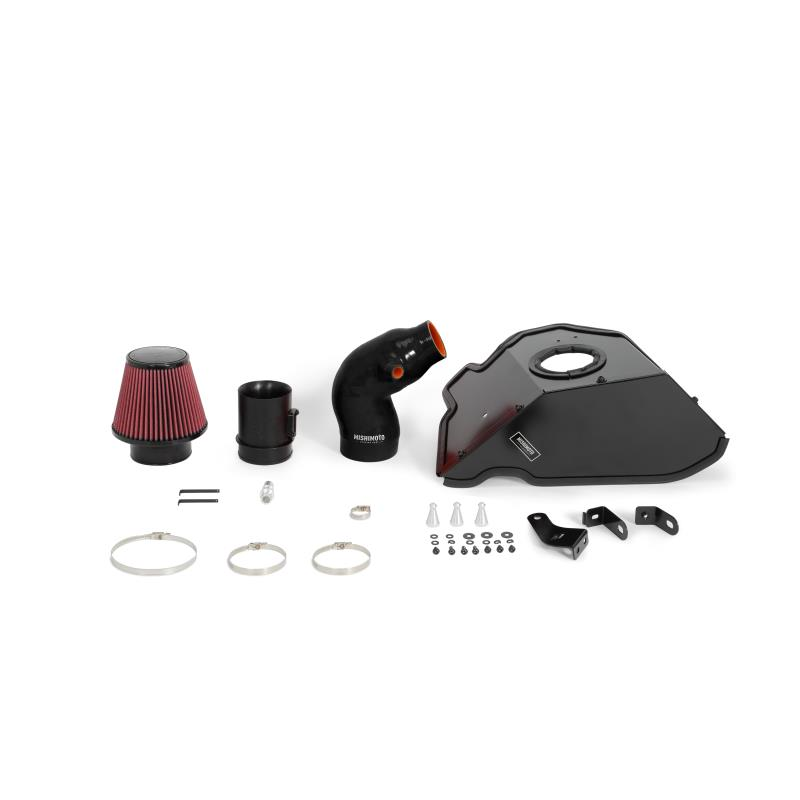

    PURCHASE INCLUDES

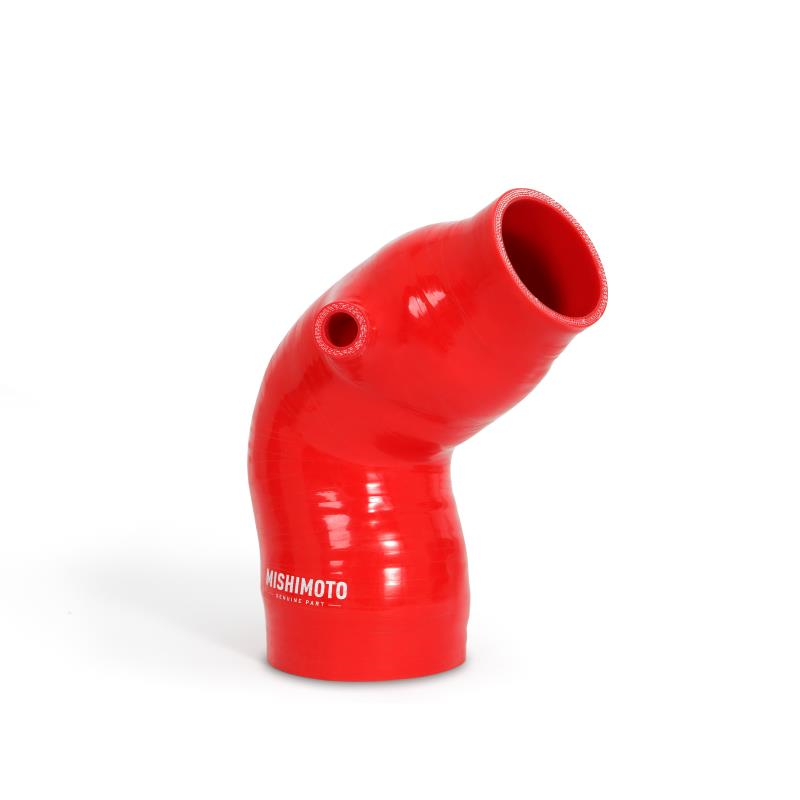

    (1) Silicone Intake Elbow

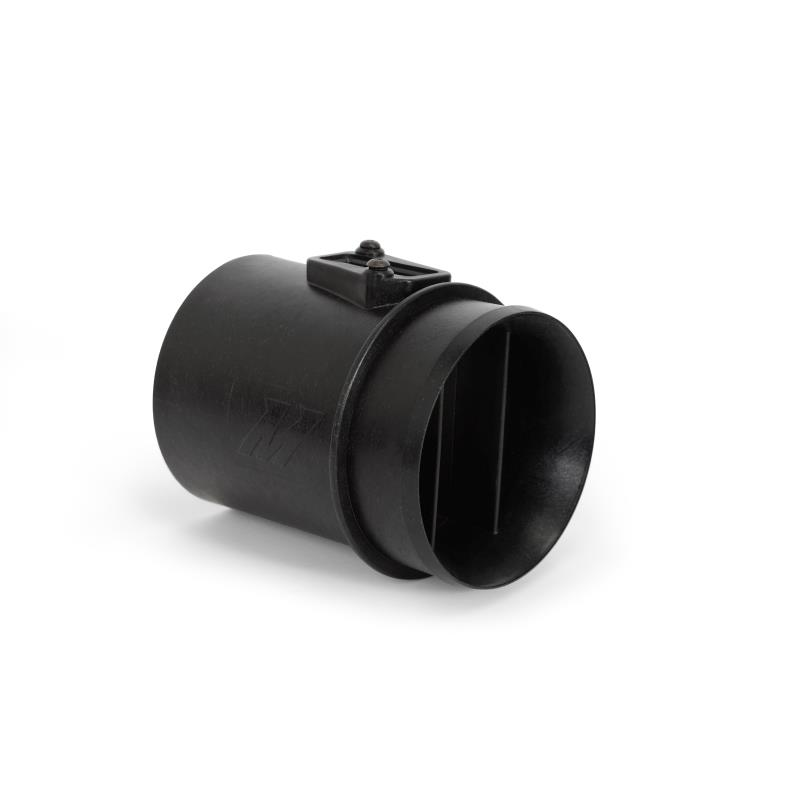

    (1) Plastic Injection Molded MAF Sensor Housing

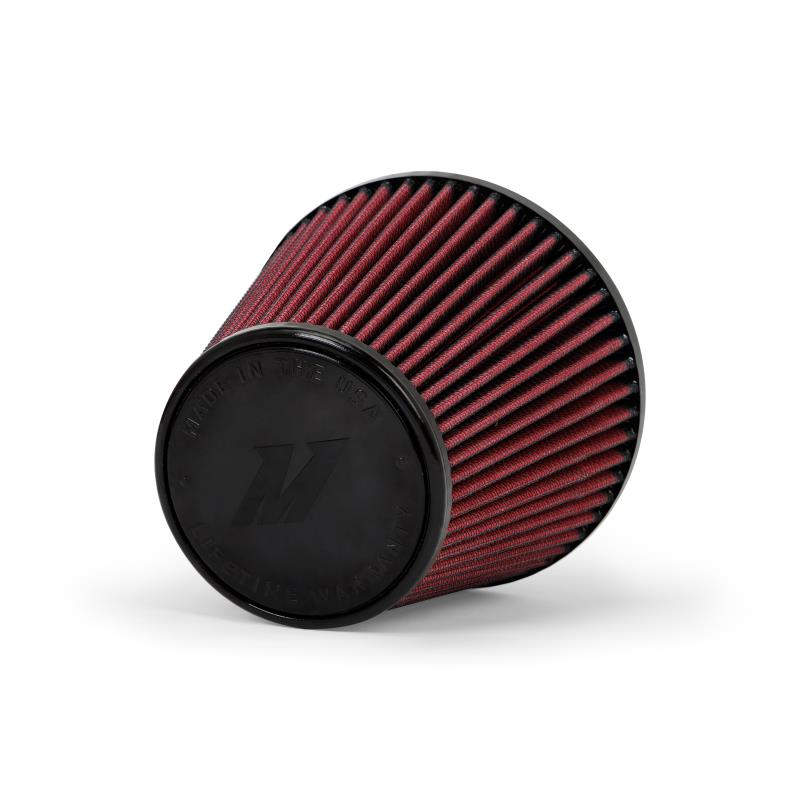

    (1) High-Flow, Oiled Filter
    (1) Steel Airbox
    (3) Worm Gear Clamps
    Mounting Hardware
    Mishimoto Lifetime Warranty



    Install Guide:



    Engineering Report:



    Warranty:
