2014 - 2018 Subaru Forester XT
2015 - 2021 Subaru WRX
This charge pipe will only work with stock turbo or turbos with a standard two-bolt outlet flange.Tuning is not required after installing this 2015 WRX charge-pipe kit.
Looking for a way to improve spool-up, increase power potential, and improve engine bay aesthetics on your 2015 WRX? Mishimoto has you covered as we expand our line of 2015 WRX parts to include a new charge pipe designed specifically for the 2015+ Subaru WRX. Utilizing a one-piece construction with a cast aluminum pipe outlet, this 2015 WRX charge pipe provides a smooth transition in size from the turbocharger compressor outlet to the interooler end tank. Installation is simple, requires no modification to any parts in the engine bay, and can be completed in under one hour.
This 2015 WRX kit also includes a new charge pipe to intercooler hose and new bypass valve hoses. These components negate the need to gather supplies for installation, and their high-quality construction ensures years of reliable service. This innovative charge pipe is available in polished, wrinkle black, or wrinkle red finish and like our entire line of 2015 WRX parts, includes the signature Mishimoto Lifetime Warranty.
If you're looking for a way to reduce high intake temperatures on your stock or modified 2015 WRX, purchase the 2015 WRX charge pipe with the Mishimoto 2015 WRX Top-Mount Intercooler Kit, engineered specifically for the 2015+ Subaru WRX.
- Direct fit for the 2015+ Subaru WRX
- Compatible with the stock top-mount intercooler or Mishimoto top-mount intercooler
- Maximum airflow results from the Mishimoto charge pipe's larger diameter compared to the smaller plastic stock pipe
- Replaces the weak, plastic stock charge pipe for maximum durability
- Available in a polished, wrinkle black, or wrinkle red finish
- Includes silicone bypass valve hoses and reinforced hose for charge pipe to intercooler
- Mishimoto Lifetime Warranty
- CARB EO #: D-759

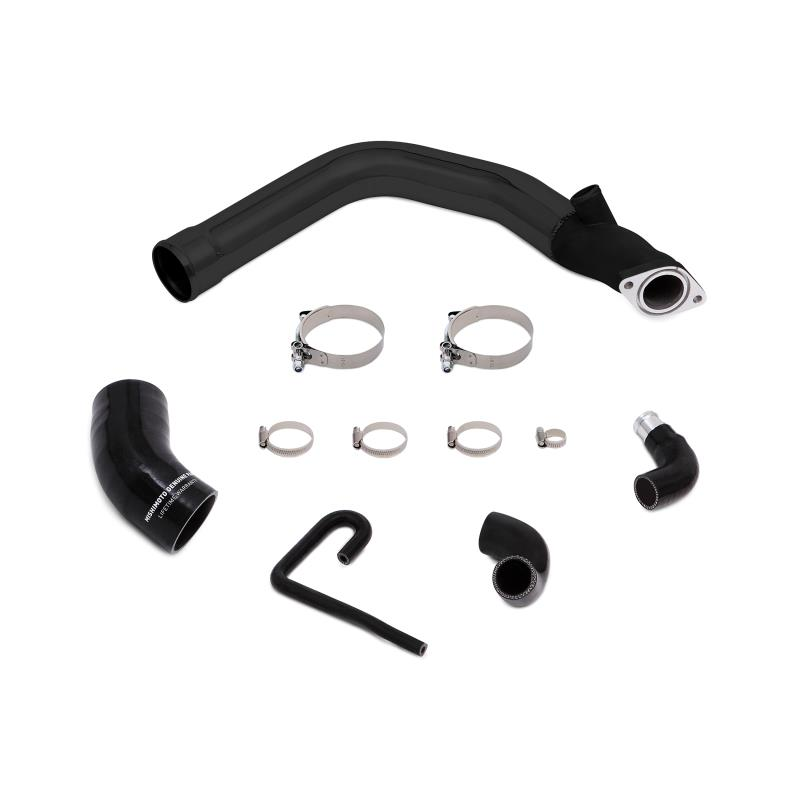

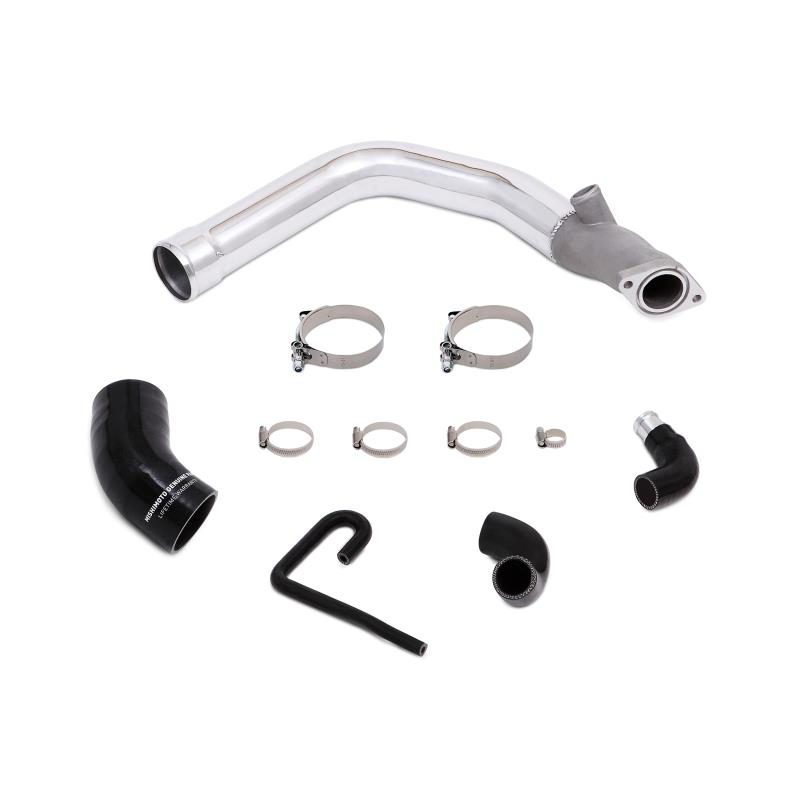

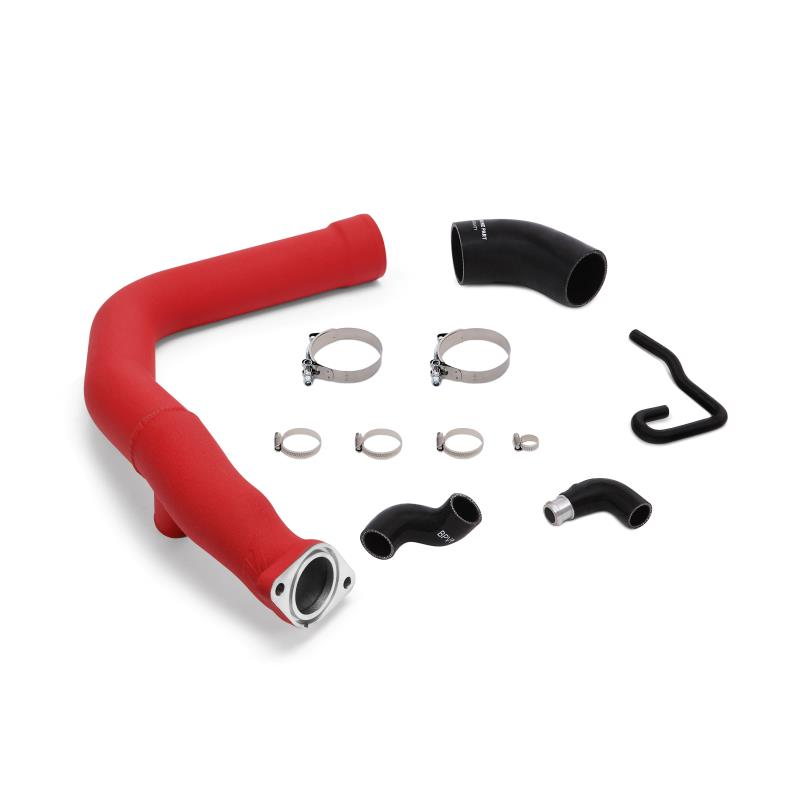

(1) Charge Pipe Assembly
(1) Charge Pipe to Intercooler Hose
(3) Bypass Valve Hoses
(2) 3" T-Bolt Clamps
(4) Worm Gear Clamps
Mishimoto Lifetime Warranty
2014–2018 Forester XT
|INSTALLATION TORQUE SPECS||22 in-lbs (2.5N*M) recommended for all worm-gear clamps. These clamps have an operating range of 18-27 in-lbs 2-3N*M. Do not exceed the maximum torque rating of 27 in-lbs (3N*M).
27 in-lbs (3N*M) recommended for all t-bolt and constant-tension t-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4N*M). Do not exceed the maximum torque rating of 35 in-lbs (4N*M).
|PIPE DIAMETER||2.19" at the turbo, transitioning to 2.60" and 2.75" at the intercooler hose
|CONSTANT TENSION T-BOLT CLAMPS SPECS||(2) 3" T-Bolt Clamps
(4) Worm Gear Clamps
