MMAI-FOST-13P

Mishimoto® (13-18) Ford Focus ST Cold Air Intake System with AirBox

Regular price$413.95
/
Shipping calculated at checkout.
Intake Pipe Finish
  • In stock, ready to ship
  • THIS PRODUCT IS CARB CERTIFIED
  • Question? Call us at (888) 257-1077 🏁
  • Free Shipping USA (Exc. HI, AK, PR)

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Verify fitment with your vehicle

(Change vehicle)

Compatible: (2.0L)

2013 - 2018 Ford Focus ST



2013-2015 vehicles under D-759-1

2016 vehicles under D-759-2





Do want power, styling, and durability? The Mishimoto Focus ST intake has them all. With dyno proven maximum gains of 6 whp and 5 wtq, this Focus ST intake offers a respectable boost in power for running only the stock tune. The 3" mandrel-bent aluminum pipe offers superior airflow and styling, as it’s available with a polished or wrinkle black powder-coat finish. We like to keep things cool here at Mishimoto, so the black powder-coated airbox keeps that unwanted hot air from entering the air filter. The airbox also utilizes the stock cool air duct, to help drop air intake temperatures even more. This Focus ST intake kit includes everything that you need for a direct-fit installation, even a IAT adapter to fit the 2016 model. The Mishimoto Lifetime Warranty will make sure all your Mishimoto Focus ST parts are performing perfectly!

  • Direct fit for 2013–2018 Ford Focus ST
  • Dyno-proven maximum gains of up to 6 whp and 5 wtq on the stock tune
  • Designed to work with stock tune with no additional tuning required
  • Includes silicone hose adapter for 2016+ models
  • Air filter placed to receive maximum airflow from the front of the vehicle

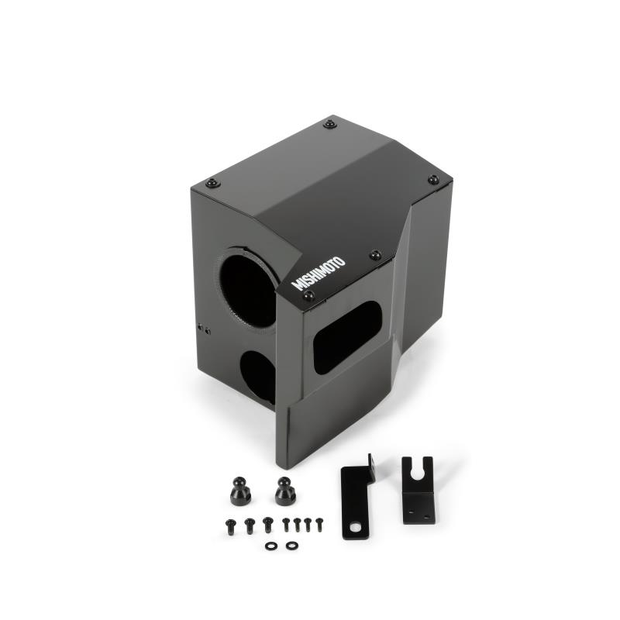

  • Black powder-coated airbox keeps unwanted hot air from entering the air filter
  • Highly aggressive intake tone under acceleration

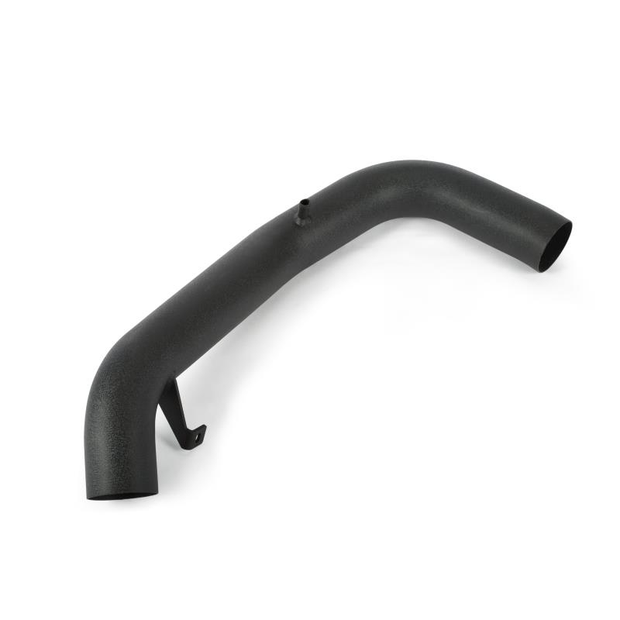

  • Available with a polished or wrinkle black pipe
  • CARB EO #: D-759-1 / D-759-2
  • Mishimoto Lifetime Warranty



VEHICLE SPECS

ENGINE CODES 2.0L EcoBoost
CHASSIS CODES C-Car Platform
FITS 2013-2018 Ford Focus ST


PRODUCT SPECS

PIPE DIAMETER 3"
AIRBOX MATERIAL Steel
OILED FILTER 38 g of oil on filter
PIPE MATERIAL Mandrel-Bent Aluminum
AIR FILTER PART NUMBER MMAF-3006

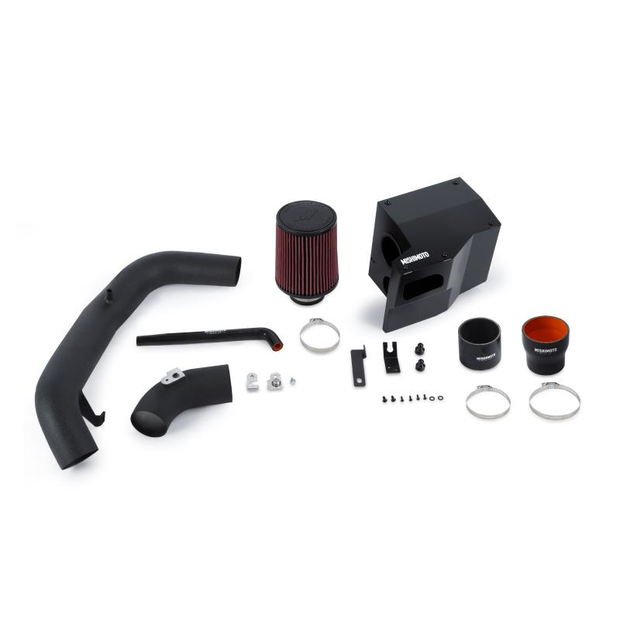

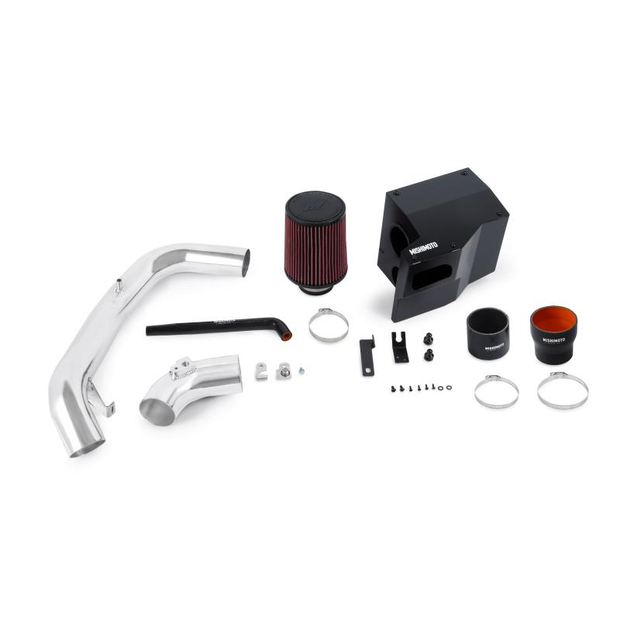

PURCHASE INCLUDES

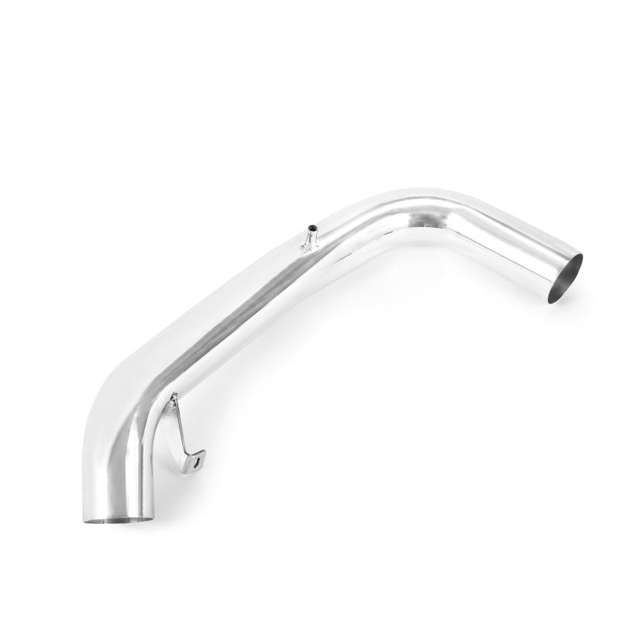

(1) Aluminum Intake Pipe
(1) Silicone Turbo Inlet Hose
(1) High-Flow, Oiled Filter
(1) Airbox w/ Protective Edging

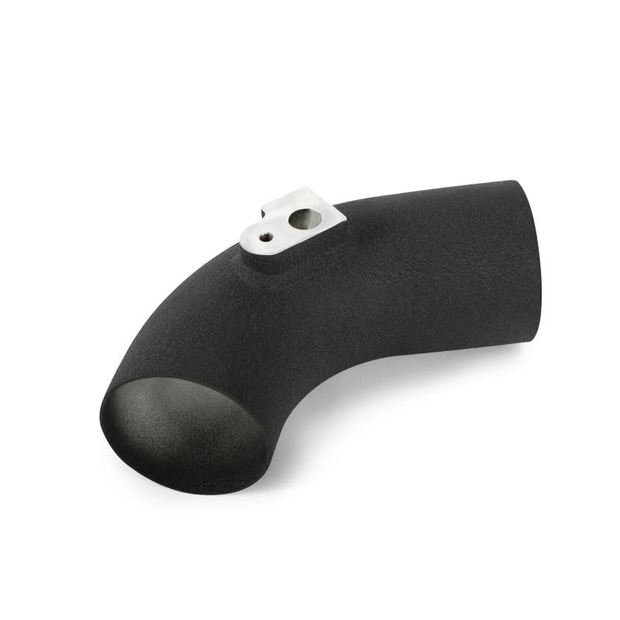

(1) Silicone adaption piece for 2016+ models
Hardware
Mishimoto Lifetime Warranty

FABRICATING THE PROTOTYPE – FOCUS ST INTAKE R&D, PART 2

Fabricating the Prototype

With the removal of the stock Focus ST intake leaving a good amount of space, we wanted to design an airbox that uses that space effectively. After the space was carefully and thoroughly surveyed, we got to work fabricating and welding together a working prototype!

IMG_5883r
Prototype Focus ST parts fabrication
IMG_5874r
Welding the inlet tube collar for the Focus ST intake fabrication
IMG_5865r
A look at the finished Focus ST intake prototype

Extra Bracing

Now that it’s time to test fitment, we want to be sure this system will stay secured. In order to protect this box from any vibration, we added a small mounting bracket that will bolt to the battery tray.

IMG_5994r
Mounting the bracket for the Focus ST intake prototype
IMG_5998r
Bracket tack-welded onto the Focus ST parts prototype
bracket shot 2
Bracket tack-welded onto the Focus ST parts prototype

Here is the Focus ST intake mocked up!

IMG_6030r
Mocked up for install

Accommodating Ford’s Unique Features

Here are a few shots showing our prototype intake box fitting the inlet tubes into the filter space.

IMG_6119r
Aerial view of our airbox using the stock inlet tubes
IMG_6120r
Up-close shot of fitment
IMG_6118r
All three inlets in one shot!
IMG_6113r
Ford Focus ST Intake up and ready for testing



DYNO TESTING AND RESULTS – FOCUS ST INTAKE, PART 3

Our test vehicle is bone stock, with no aftermarket Focus ST parts, allowing us to provide a nice baseline for performance gains against the stock intake.

Results

In addition to using a fully enclosed airbox, the full 3 inch diameter piping extending all the way to the turbo ensured smooth, clean, and ample airflow. The stock system, while well designed, has proven to be restrictive even in a vehicle producing factory output. Below we show some of the data we gathered for our runs. Check it out!

Dyno Pull
Focus ST intake dyno results

Our Focus ST intake definitely made some improvements. We had a max gain of 6.29 hp at 5.55 ft-lbs. The most prevalent gains are shown after 4,500 rpm. These gains appeared run after run, making it clear that our power gains are repeatable.

Coming Up!

We have a special treat for you. Check out a full system 3D rendering of Focus ST parts!

Focus Intake 001 (002)
Focus ST parts 3D rendering

The final box will be powder coated black to help prevent heat from entering the system.  Pretty cool, right?! Let us know your thoughts below and stay tuned for our next update!



THE FINAL PRODUCT – FOCUS ST INTAKE, PART 4


We have an update for our Focus ST intake project! Our first production sample has finally reached our R&D facility, and we have been able to test fit it onto a 2013 Ford Focus ST. Fitment was spot on, and we were able to get all the components properly snug into the car. We made some minor adjustments from our initial design and we included an awesome new feature that will help accommodate more Focus ST’s on the road, so let’s check it out!

It’s the Little Things

During the time we were updating our design, we discovered small differences between the stock 2013—2015 and the 2016+ Focus ST intakes. The 2013—2015 Focus ST’s have a screw type mass airflow (MAF) sensor that goes into the stock pipe. In the 2016+ model, however, the MAF sensor is replaced with an IAT sensor in the same location and it fits into a push-type clip housing. Many aftermarket intakes retain use of the stock accordion style boot that holds the sensor in place, — especially in for the 2016+ model. We were able to accommodate for that, which makes our kit more comprehensive. Let’s look at how we accomplished this.

Prototype Focus ST parts
Prototype Focus ST parts

As you can see, the adapters are different for each version of the stock Focus ST intake. In the above image, the adapter on the bottom right fits the 2013–2015 Focus STs, while the other adapter fits the 2016+ models. This adapter allows us to replace that stock accordion–style boot that many of our competitors neglect to replace because of the differences in fitment. See below for fitment on our pipe!

MAF adapter fitment for the 2016+ Focus ST
MAF adapter fitment for the 2016+ Focus ST

The image above shows how the adapter accommodates the IAT sensor in the 2016+ Focus ST. The image below shows the adapter for the sensors in the 2013—2015 Focus ST MAF. Both sensors are attached to our pipe using the same Allen bolt.

MAF adapter fitment for the 2013–2015 Focus ST
MAF adapter fitment for the 2013–2015 Focus ST

Let’s see how this fits on our prototype kit!

MAF adapter fitment for the 2013-2015 Focus ST
MAF adapter fitment for the 2013-2015 Focus ST

Since we were test fitting our kit onto a 2013 Focus ST, we had to use the corresponding adapter that fits for that model year. You can see in the image above that the fresh air inlets are the only stock Focus ST intake pieces in our kit. Let’s look at other components of the kit!

Prototype Focus ST parts
Prototype Focus ST parts
Prototype Focus ST parts
Prototype Focus ST parts
IMG_5204r
Prototype Focus ST parts

Here is a great shot of the entire kit!

Prototype Focus ST parts
Prototype kit all together!

What’s Next?

Now that we know everything fits nicely, we can get the wheels rolling on full scale production. This means we are ready to kick off our presale! During the live pre-sale, you can get this intake at a discounted price before it officially hits the market, so check back here for it!

In the meantime, enjoy this teaser of the kit fitted onto the car and stay tuned for more updates on Focus ST parts.

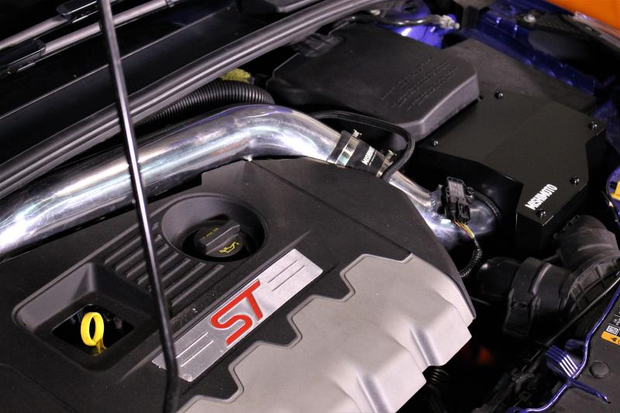

Prototype installed on the car
Prototype installed on the car
