Compatible: (2.0L)
2012 - 2020 Subaru BRZ
2012 - 2016 Scion FR-S
2017 - 2020 Toyota 86
Mishimoto proudly announces the all-new direct-fit oil cooler kit specifically designed for the Subaru BRZ and Scion FR-S. This direct-fit kit positions a large cooler in the front bumper for ample airflow and optimal cooling–perfect for your street or track BRZ/FR-S. Properly regulated oil temperatures ensure improved durability and longevity for your stock or modified 2.0L.
This kit features all components for seamless bolt-on fitment, including application-specific mounting brackets, stainless steel braided oil lines, a Mishimoto billet aluminum oil sandwich plate, and CNC-machined aluminum spacers for the oil sandwich plate. This oil cooler kit substantially decreases oil temperatures, making it ideal for a hot day at the track or a spirited drive in the mountains.
This oil cooler kit is available with our standard Oil Sandwich Plate or Oil Sandwich Plate with Rear-Mounted Thermostat for additional oil temperature control. It is also a perfect complement to the Mishimoto Subaru BRZ/Scion FR-S Performance Aluminum Radiator and the Mishimoto Silicone Radiator Hose Kit for the ultimate cooling solution for your vehicle.

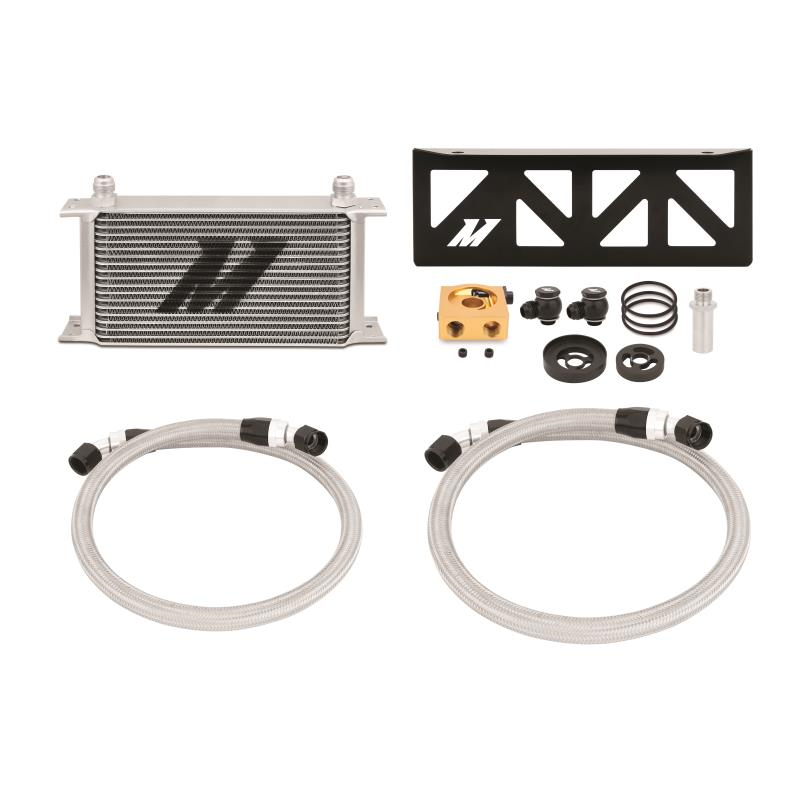

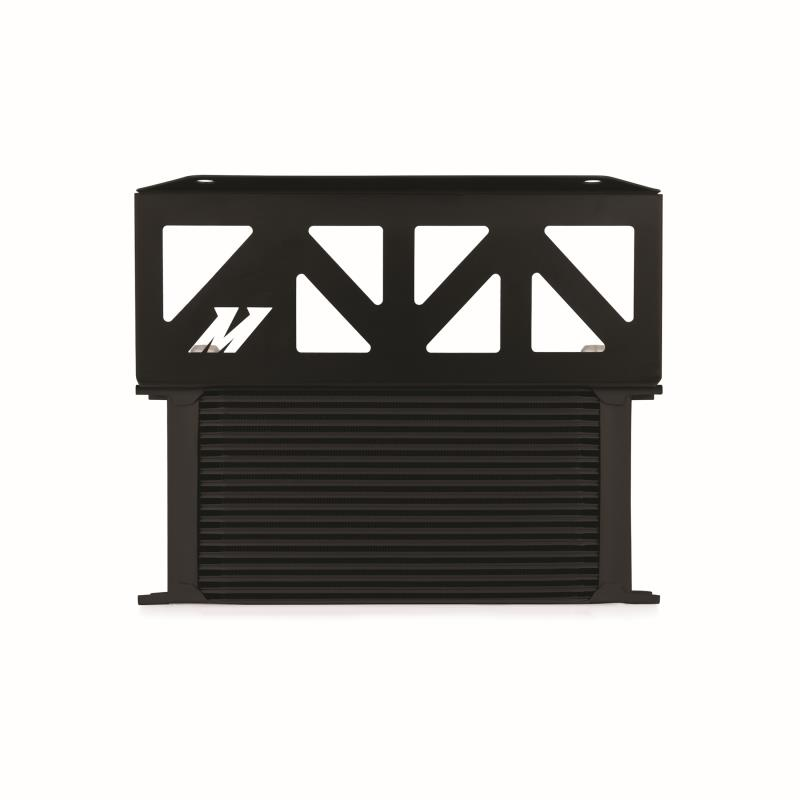

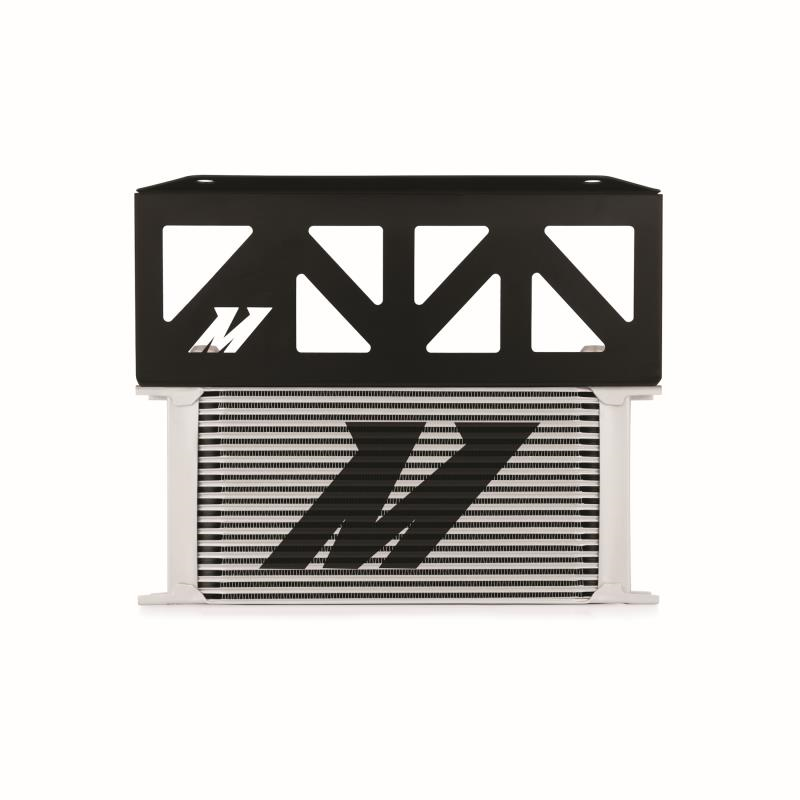

The Mishimoto Subaru BRZ/Scion FR-S Direct-Fit Oil Cooler Kit is offered with your choice of Stealth Black or Sleek Silver coolers and includes the Mishimoto Lifetime Warranty
- Direct fit for the 2013+ Scion FR-S and Subaru BRZ
- Application-specific mounting brackets

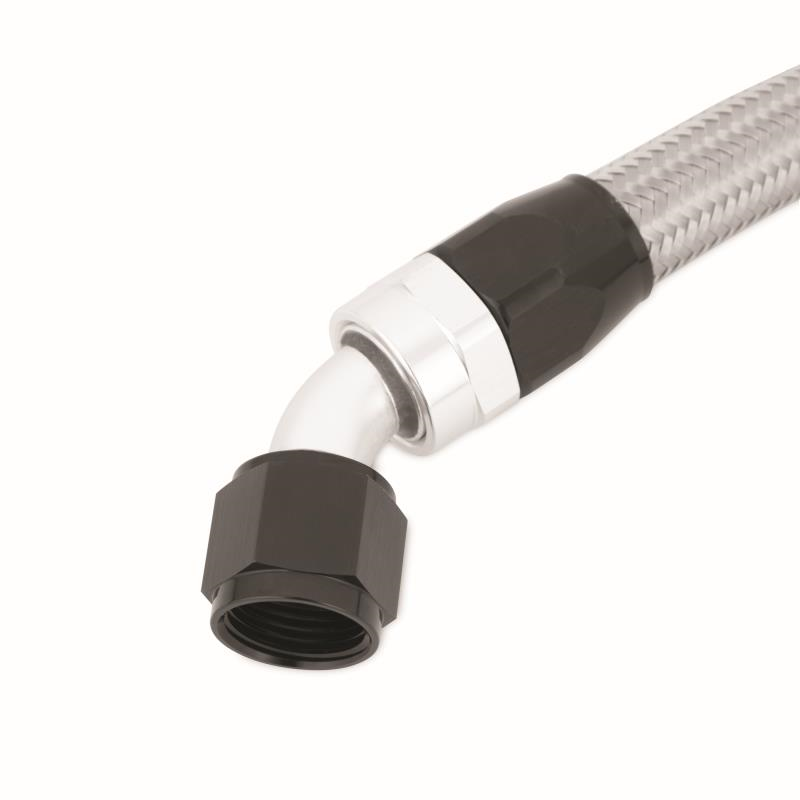

- Premade braided stainless steel oil lines with durable –AN fittings
- Billet aluminum oil sandwich plate in standard or thermostatic form
- 19-row stacked-plate oil cooler for optimal fluid temperature reduction
- CNC-machined aluminum spacers for the oil sandwich plate
- Increases oil capacity by .65 qt
- Mishimoto Lifetime Warranty

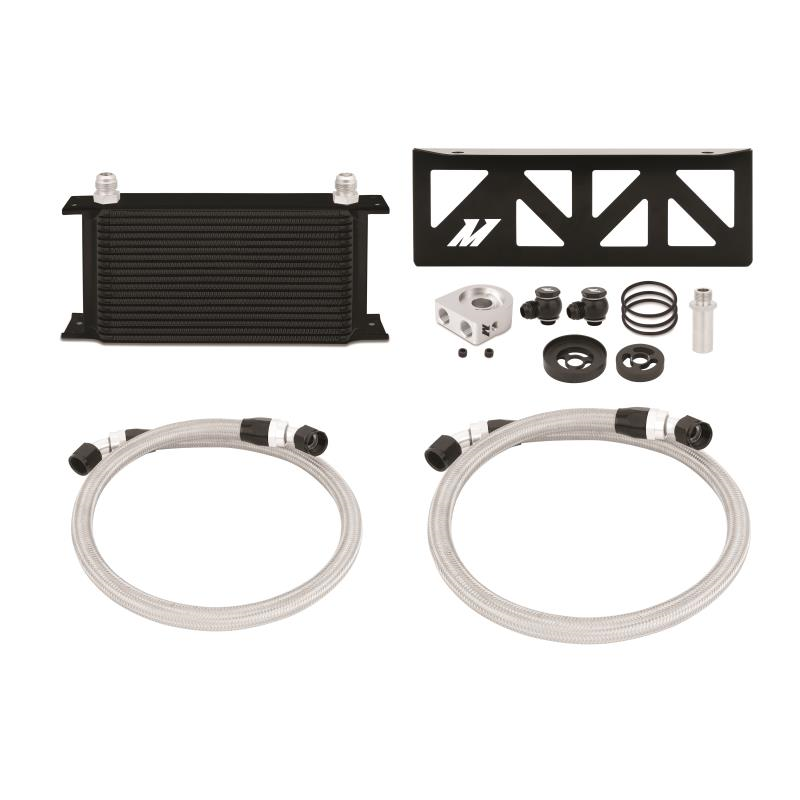

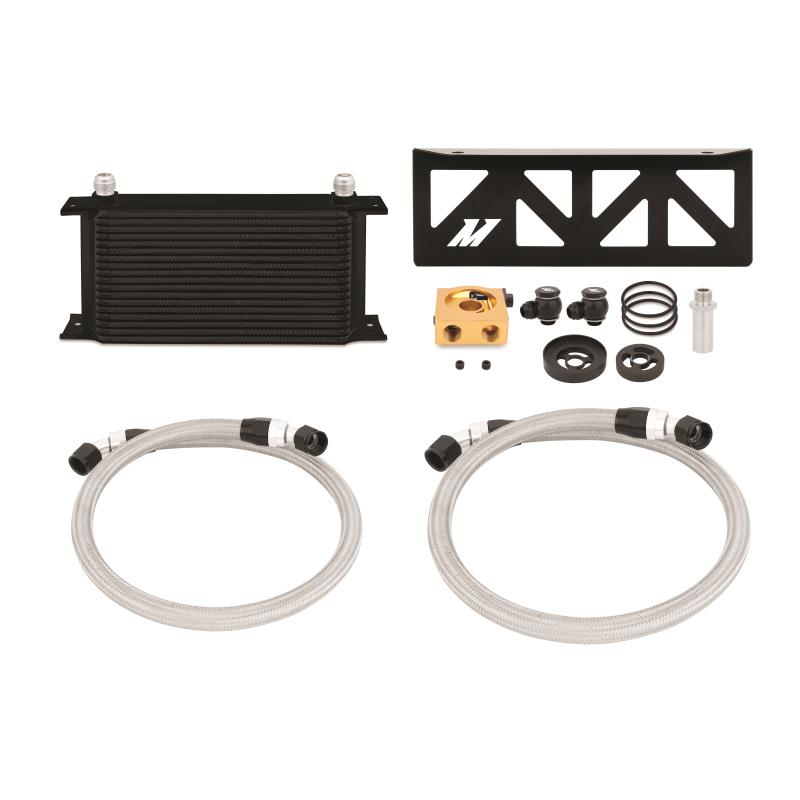

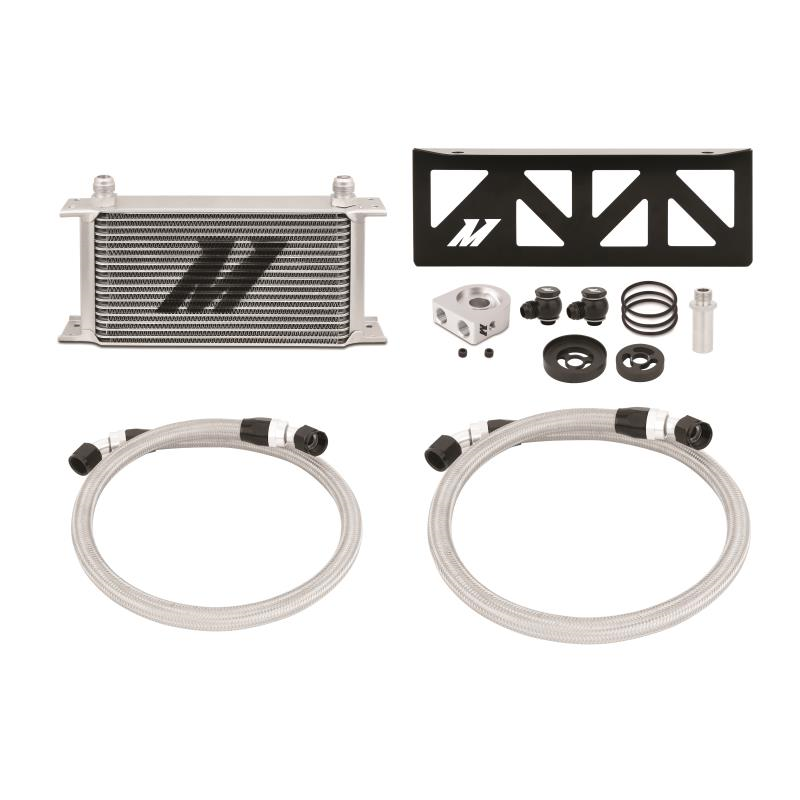

PURCHASE INCLUDES

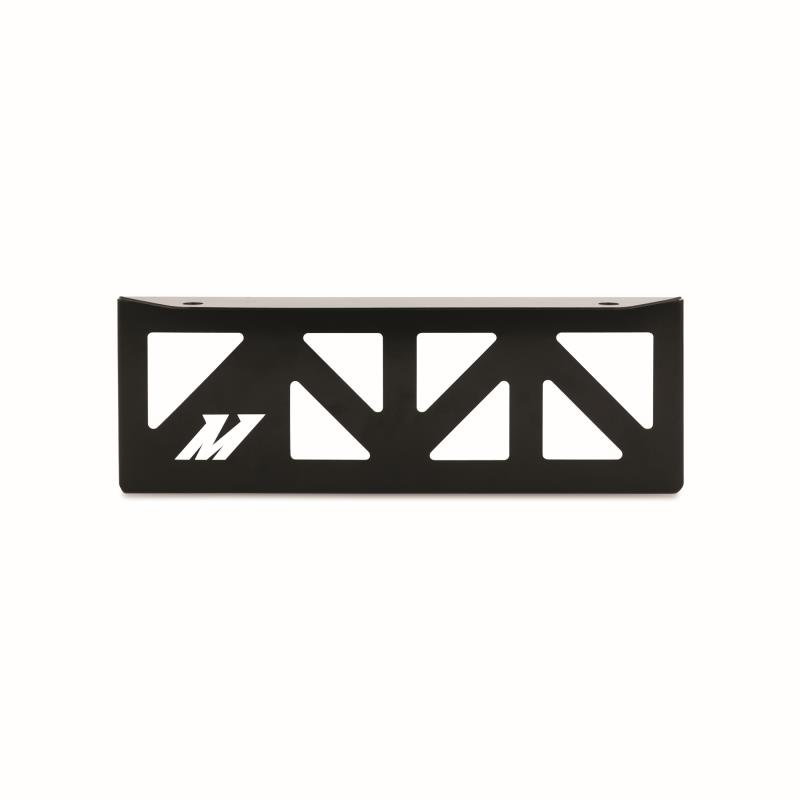

(1) Application-Specific Mounting Bracket
(1) 19-Row Oil Cooler
(1) 3' Stainless Steel Braided Hose w/ -10AN Fittings
(1) 4' 2" Stainless Steel Braided Hose w/ -10AN Fittings

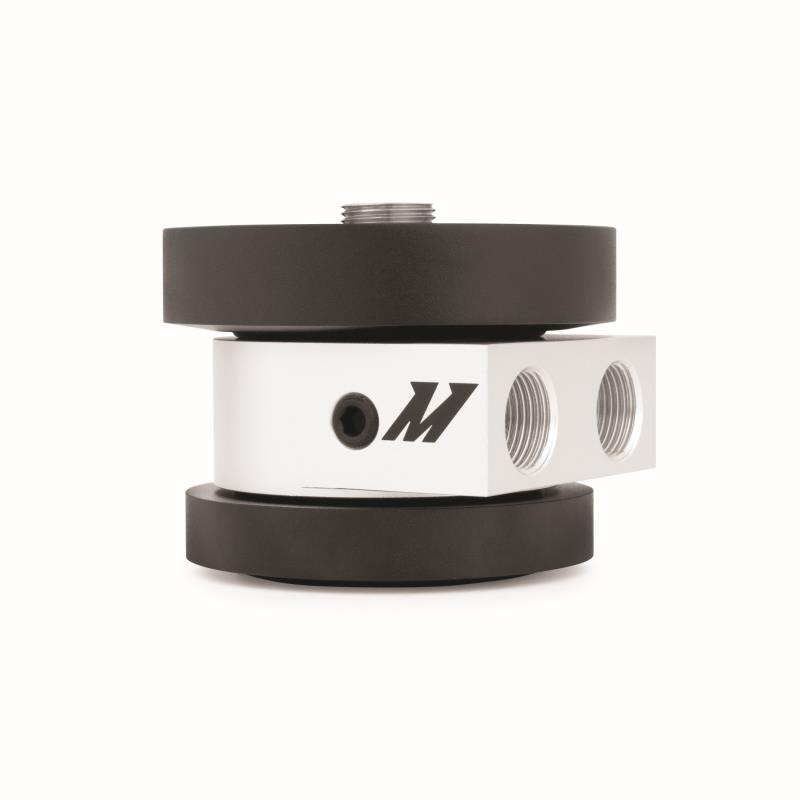

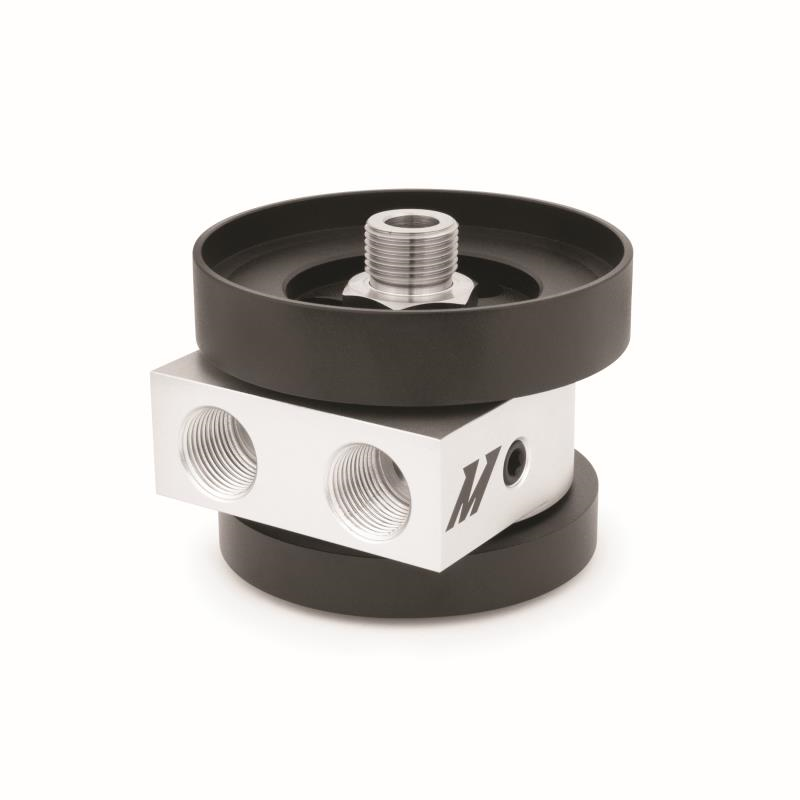

(1) Oil Sandwich Plate
(2) 6061 Aluminum CNC Sandwich Plate Spacers, Black
(1) Stainless Steel Sandwich Plate Adapter, M20
(2) Banjo Fitting w/ Bolt M20 x -10AN, Black
(2) 1/8" NPT Plugs
(3) O-rings
(1) Mounting Hardware Set
Mishimoto Lifetime Warranty
VEHICLE SPECS
| ENGINE CODES | FA20 |
| CHASSIS CODES | ZN6 ZC6 |
PRODUCT SPECS
| MATERIAL | 6061 Aluminum |
| CORE HEIGHT | 5.43" |
| ROWS | 19 |
| COOLER CONSTRUCTION | Stacked-plate |
| CORE THICKNESS | 1.97" |
| CORE LENGTH | 11" |
| FITTING SIZE | -10AN |
| INSTALL TORQUE SPECS | Recommended torque specification for all straight fittings and banjo bolts: 15-25 ft/lbs (operating range). Do not exceed the maximum torque rating of 35 ft/lbs. |
| CAUTION | It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. |
| INCREASE IN OIL CAPACITY | 0.65 qt |
| ALSO FITS | 2013+ Subaru BRZ 2013+ Scion FR-S 2013+ Toyota GT86 |
