2011 - 2023 Chrysler 300
2011 - 2023 Dodge Challenger
2011 - 2023 Dodge Charger
This performance thermostatic bypass valve only fits vehicles with 8-speed automatic transmissions
Mishimoto does not recommend customers in cold climates install the thermostat bypass to avoid overcooling of the transmission fluid

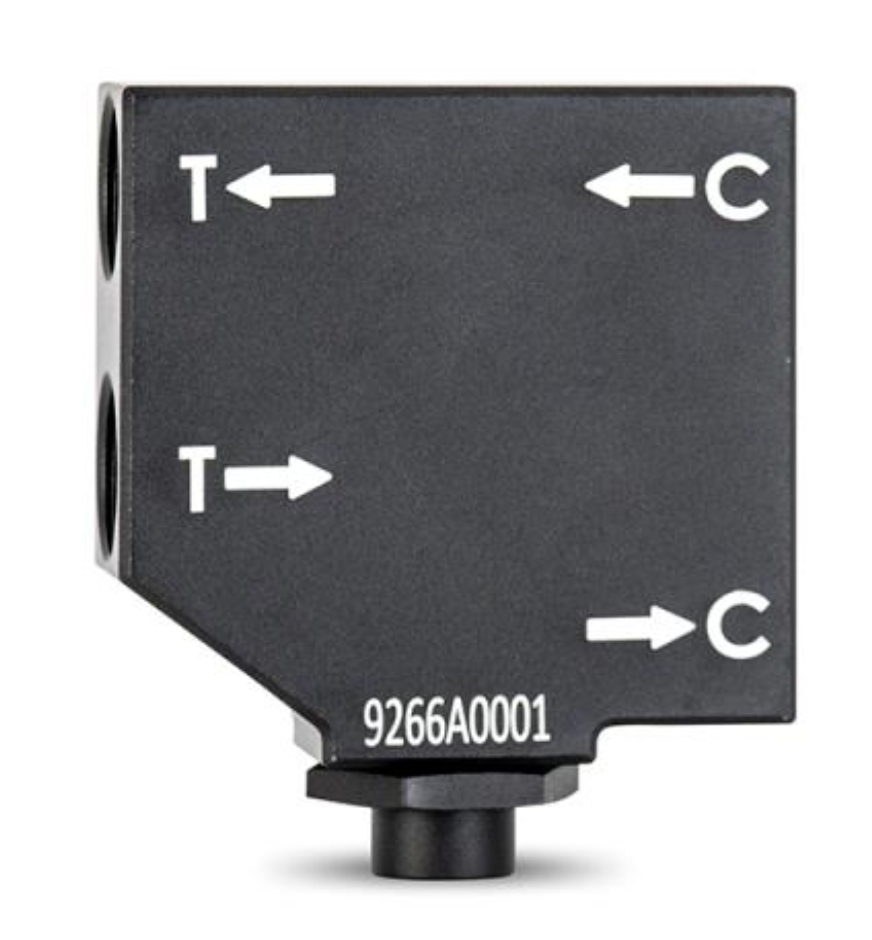

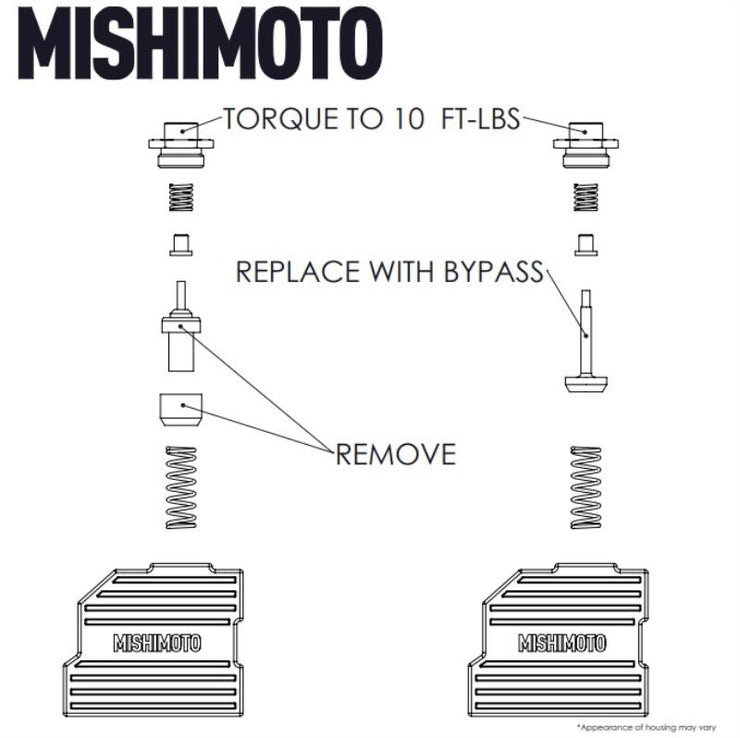

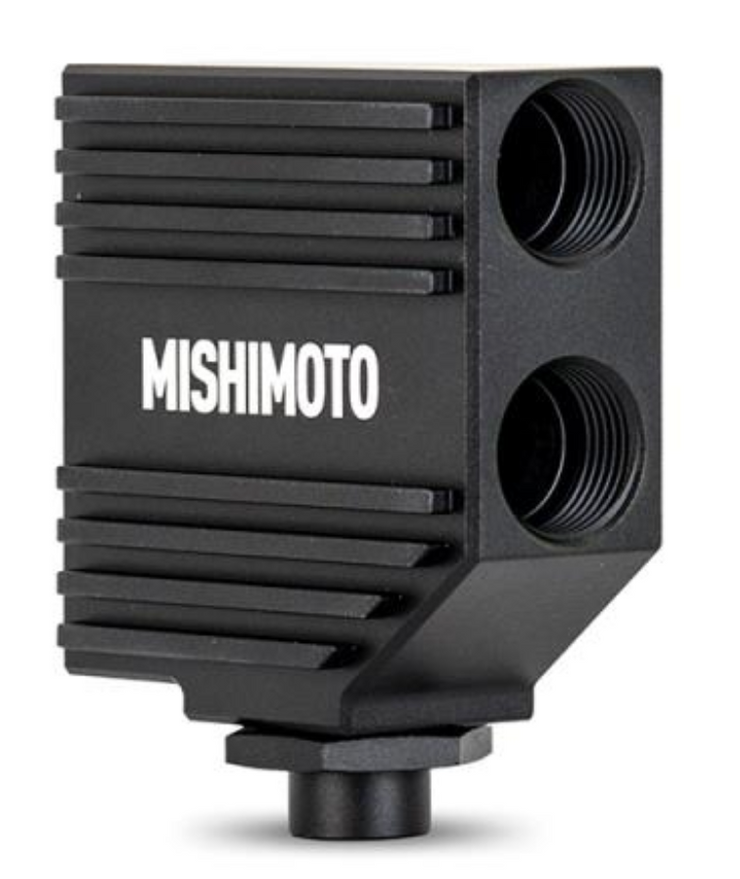

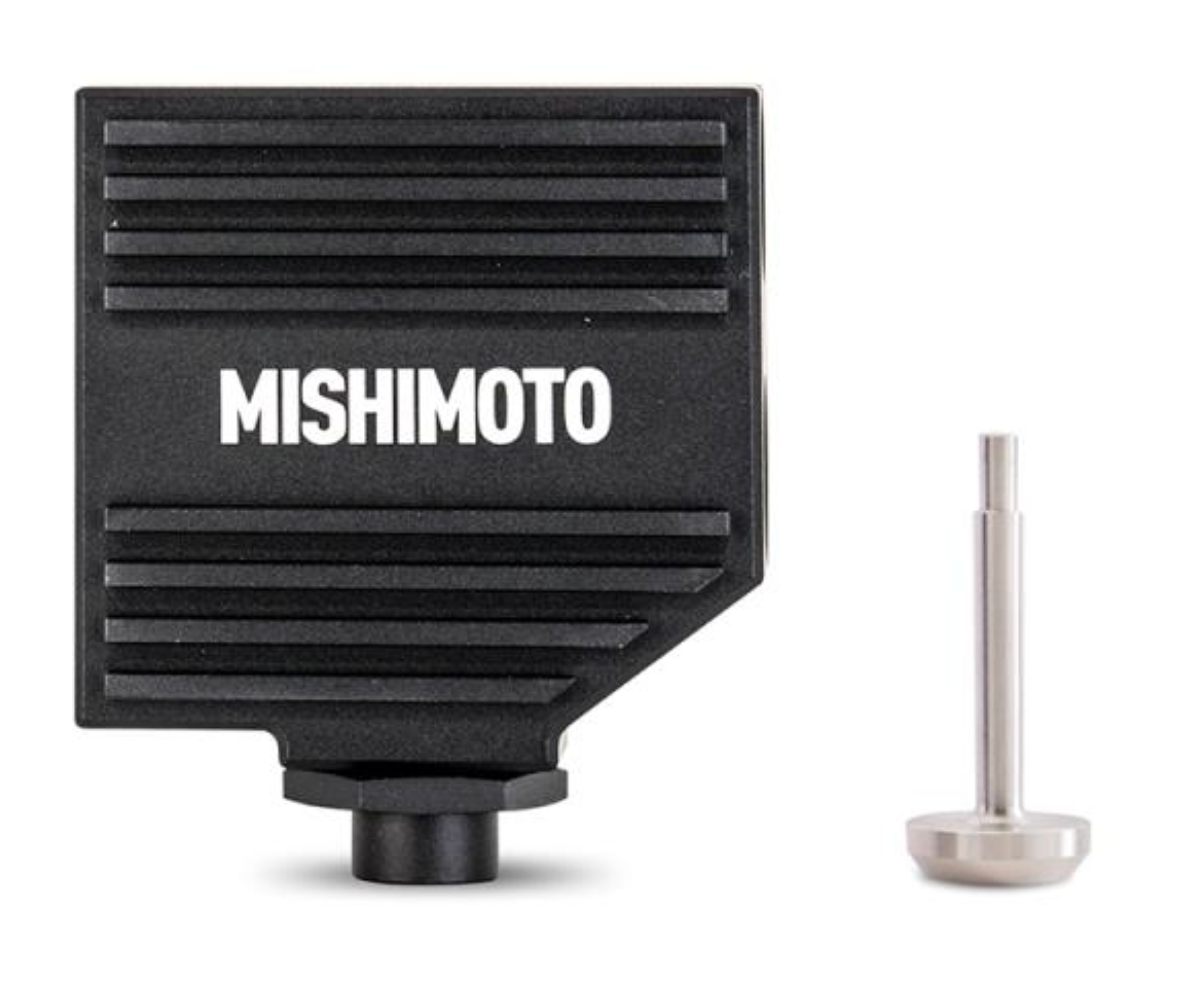

Mishimoto has identified a common failure point in the transmission cooling system of your 2012-2021 Mopar: the thermal bypass valve. This component acts as a thermostat, restricting fluid flow to the external transmission cooler based on temperature. Unfortunately, many vehicle owners have found these factory units are prone to failure, often sticking in the closed position resulting in an overheating transmission. The engineering team at Mishimoto has created a high-quality thermal bypass replacement with numerous additional features to ensure consistent performance and long transmission life. This unit is constructed from durable CNC-machined billet aluminum, featuring a heat sink design that provides improved heat dissipation and unique styling. The included thermostat opens at the stock temperature of 160°F (71°C) but can be customized to suit your needs with any available Mishimoto thermostat. The Mishimoto thermal bypass kit also includes a bypass that can replace the thermostat, allowing constant fluid flow to the transmission cooler. The bypass is ideal for vehicles requiring maximum cooling while operating in extreme driving conditions or hot climates. This kit easily installs within one hour and connects directly to all factory cooler piping. This 2012-2021 Charger/Challenger/Chrysler 300 Thermal Bypass Full Flow Valve Kit is built to last a lifetime with a durable black anodized finish and our Mishimoto Lifetime Warranty.
