MMTMIC-STI-08

Mishimoto® (08-21) WRX STI Performance Top Mount Intercooler Kit

Regular price$710.95
/
Shipping calculated at checkout.
Intercooler Finish
Hose Color
  • In stock, ready to ship
  • THIS PRODUCT IS CARB CERTIFIED
  • Question? Call us at (888) 257-1077 🏁
  • Free Shipping USA (Exc. HI, AK, PR)
  • This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

    Compatible: (2.5L)

    2008 - 2021 Subaru Impreza WRX STI

    2008 - 2021 Subaru WRX STI



    This kit is rated for 250–450 whp with maximum limits of approximately 500 whp, or 30 psi of turbo boost. Exceeding that horsepower or pressure limit may require a larger front-mount intercooler.

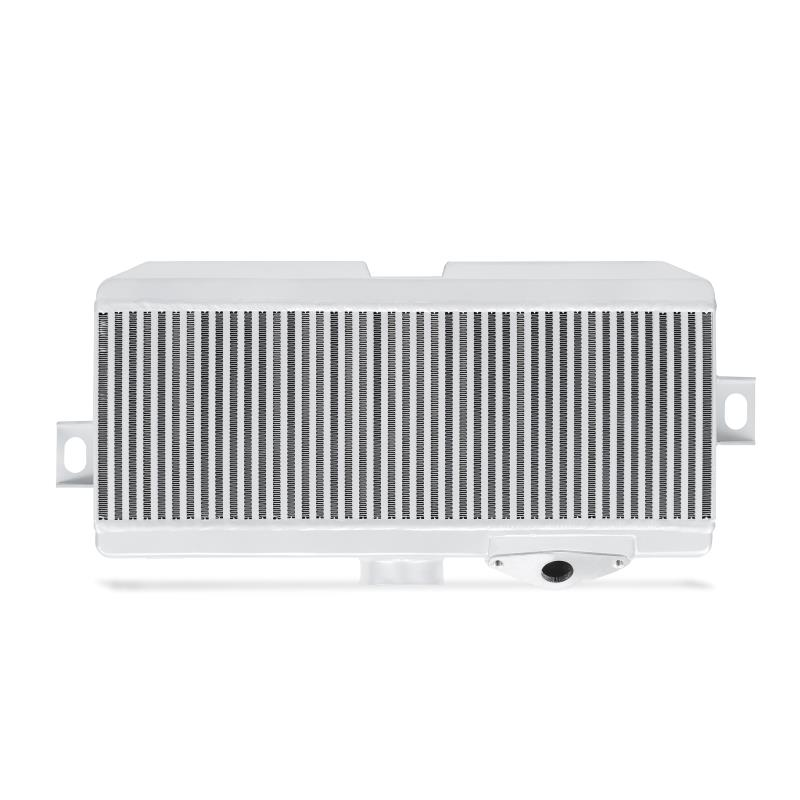

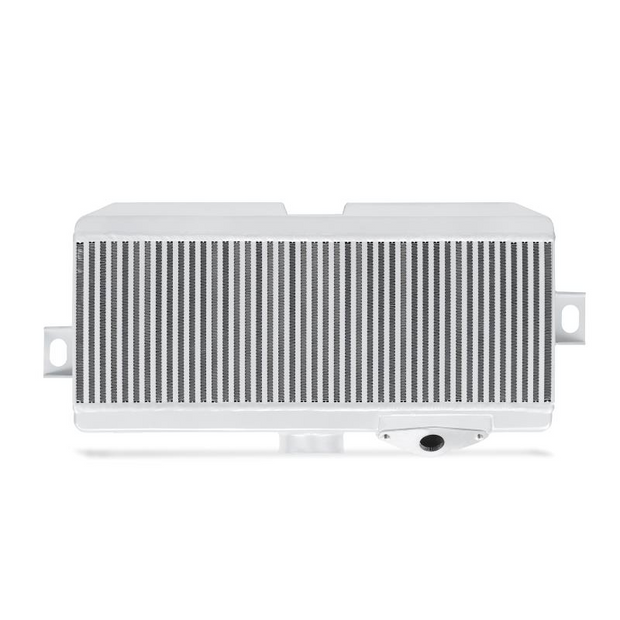

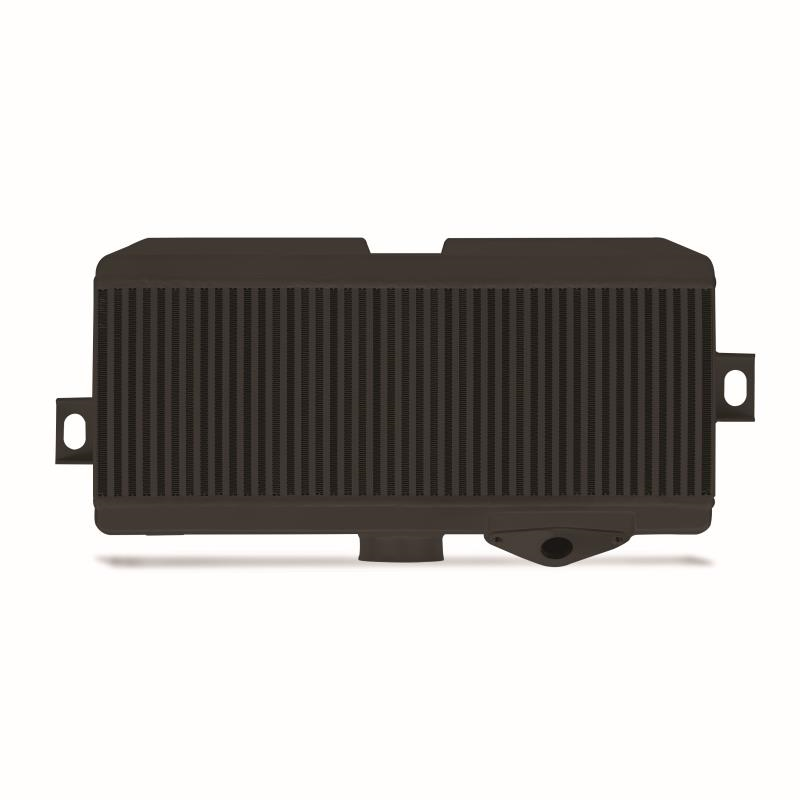

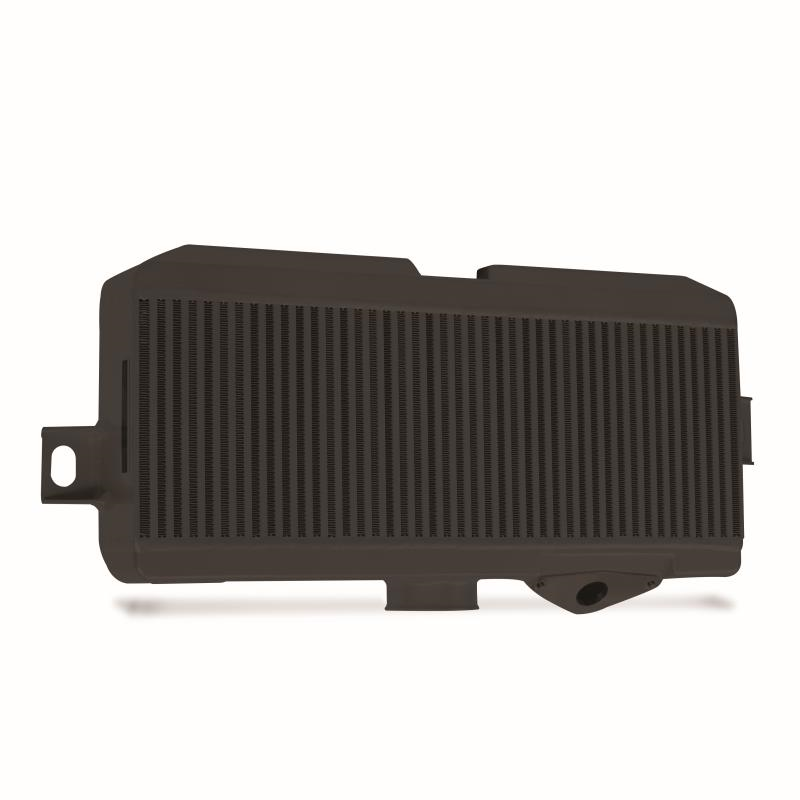

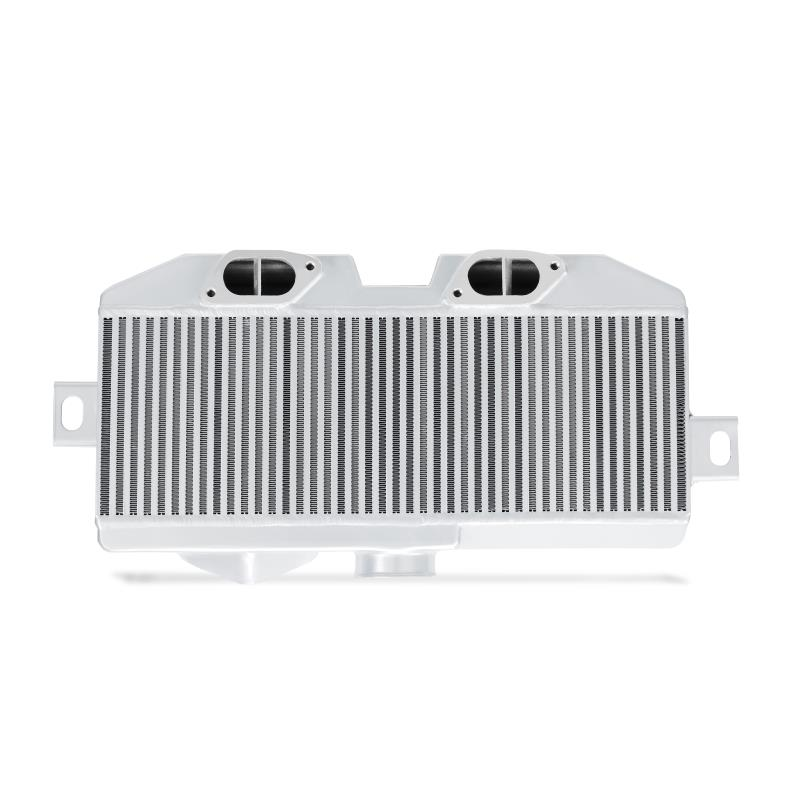

    Looking for a way to reduce high intake temperatures on your stock or modified STI? The solution is the Mishimoto direct-fit top-mount intercooler engineered specifically for the 2008–2019 Subaru WRX STI. Mishimoto engineers spent months designing and testing this new STI TMIC to ensure optimum performance on both the street and track. This STI intercooler utilizes durable cast aluminum end tanks TIG-welded to a highly efficient, dense bar-and-plate core. The Mishimoto intercooler has a 3.75" thick core and a total volume of 584 in3. Thanks to this volume and a very dense offset fin pitch, we are able to optimize heat transfer and support vehicles from stock up to 400 whp.


    This STI intercooler endured rigorous testing, showing a 10°F temperature drop as well as a +5 whp and +7 wtq bolt-on power increase for our stock test vehicle. Installation of this top-mount intercooler is simple, requires no modification to the stock A/C line, and can be completed in under 30 minutes. Included with this top-mount intercooler are new Y-pipe gaskets, a new BPV gasket, a silicone PCV hose, and a silicone throttle body coupler. These components negate the need to gather supplies for installation, and they ensure years of reliable service. This top-mount intercooler is available in a durable powder-coated finish of Stealth Black or Sleek Silver and like all of our WRX performance parts, it includes the Mishimoto Lifetime Warranty.

    • Direct fit for the 2008+ Subaru WRX STI
    • Provides 10°F temperature drop compared to stock intercooler
    • Proven +5 whp and +7 wtq bolt-on power increase for stock vehicle
    • 3.75" thick core with 584 in3 of volume produces optimal heat transfer for vehicles from stock to 400 whp
    • 100% aluminum construction with durable cast end tanks
    • TIG-welded to a highly efficient bar-and-plate core
    • Easily installs in under 30 minutes
    • Does not require modification to the stock A/C line and functions with the stock intercooler Y-pipe
    • Includes new Y-pipe gaskets, BPV gasket, silicone PCV hose, and silicone throttle body coupler

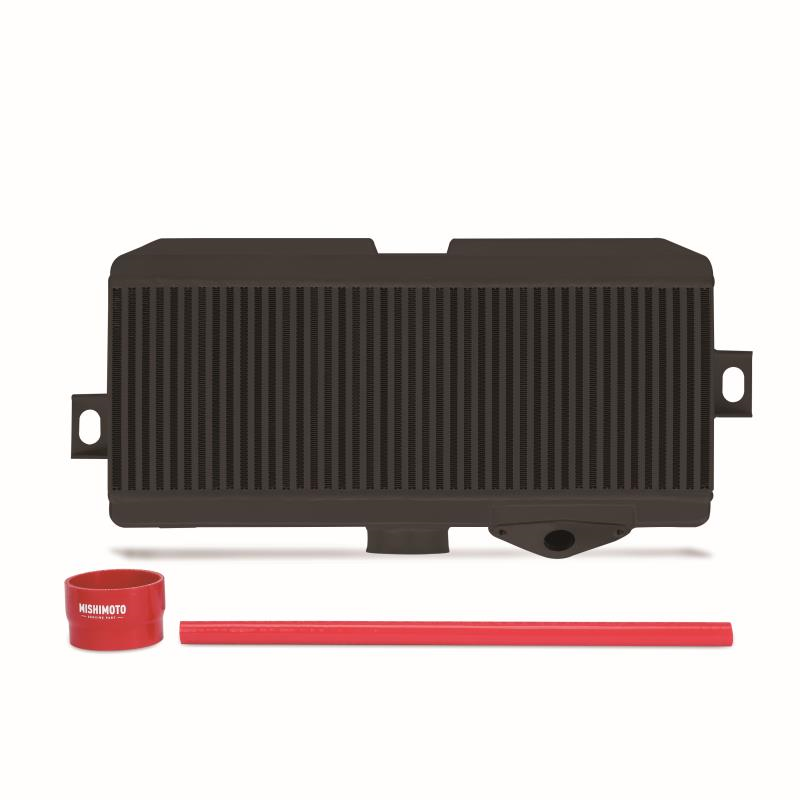

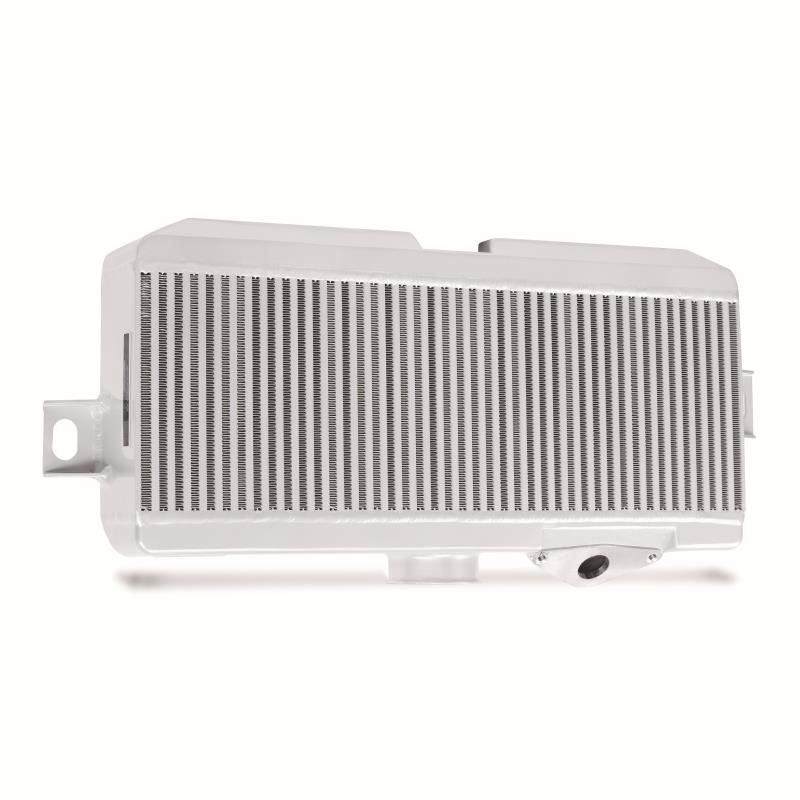

    • Available in durable powder-coated Stealth Black or Sleek Silver finish
    • Mishimoto Lifetime Warranty

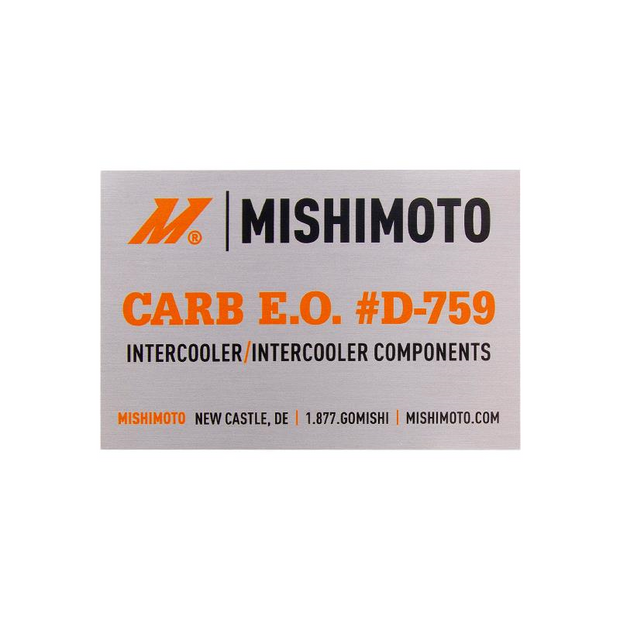

    • CARB EO #: D-759

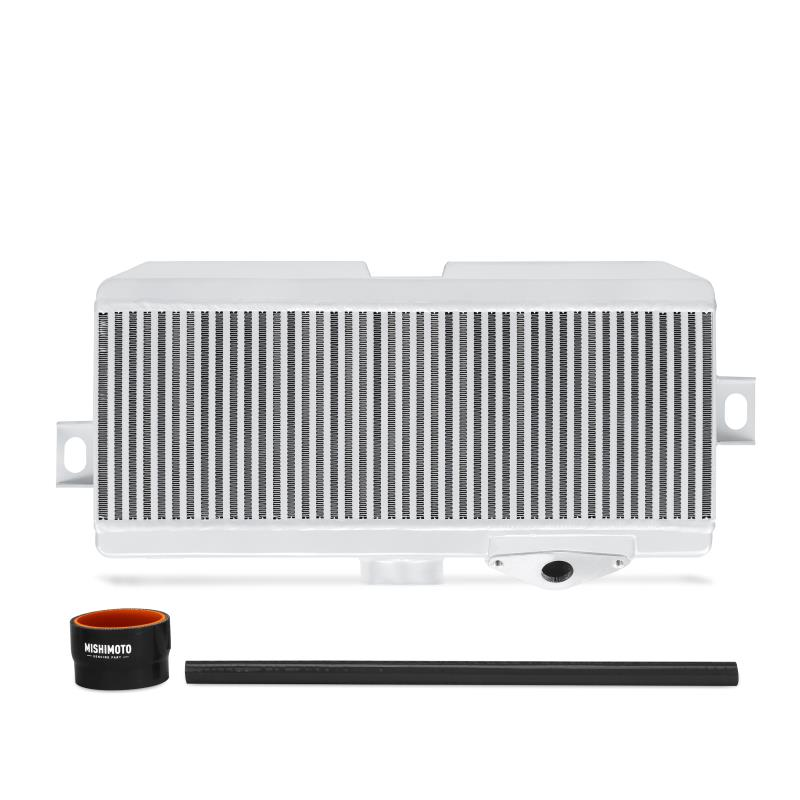

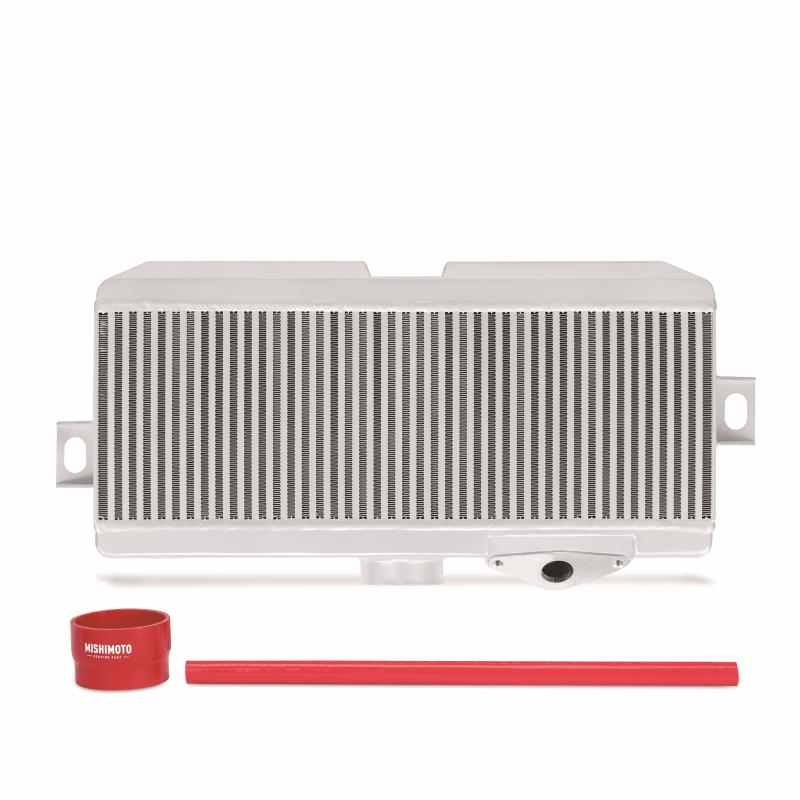

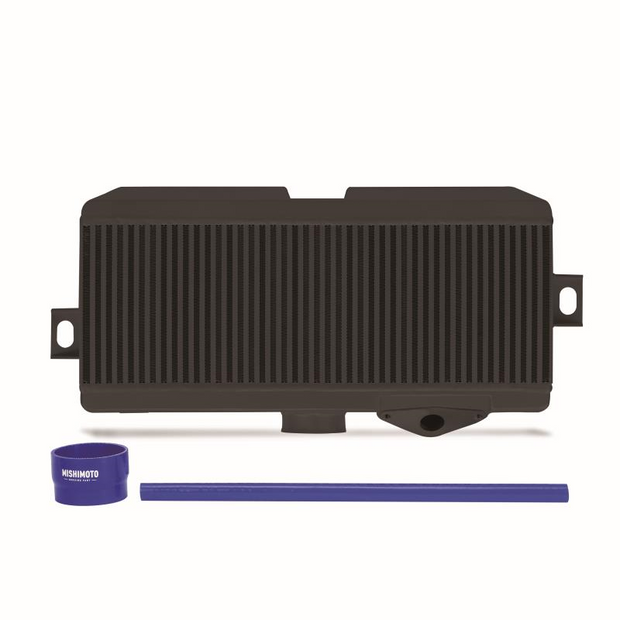

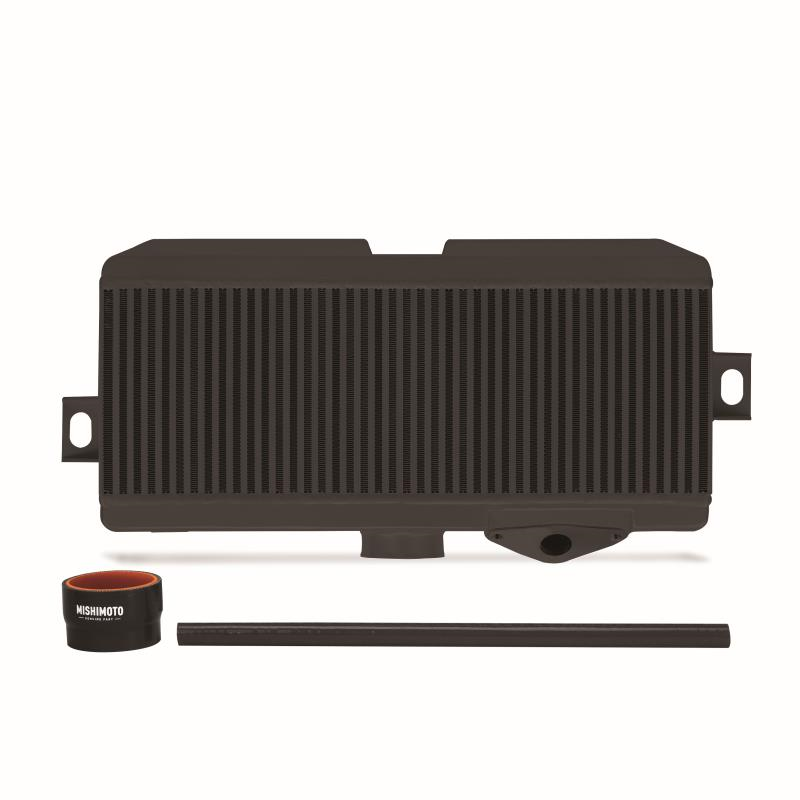

    PURCHASE INCLUDES

    (1) Bar-and-Plate Intercooler
    (1) Intercooler to Throttle Body Transition Coupler
    (1) PCV Hose
    (1) Bypass Valve Gasket
    (2) Y-pipe to Intercooler Gaskets
    (1) Black Nylon Hose Fitting, 3/4" I.D.
    (1) Black Nylon Tee Hose Fitting, 3/4" I.D



    VEHICLE SPECS

    MAKE Subaru
    ENGINE CODES EJ257
    EJ255
    CHASSIS CODES GR
    GV
    FITS 2008-2019 Subaru WRX STI

    PRODUCT SPECS

    CORE THICKNESS 3.75"
    PCV HOSE SPECS 17.5" length
    0.45" I.D.
    0.75" O.D.
    4mm thick
    INTERCOOLER/THROTTLE BODY COUPLER SPECS 2.125" length
    2.75" I.D.
    3.00" O.D.
    4mm thick
    WEIGHT 21 lbs
    TANK WALL THICKNESS 3.5 mm
    FIN PITCH Internal: 4.7 mm fin height, 2.8 mm fin pitch
    External: 6.5 mm fin height, 1.7 mm fin pitch

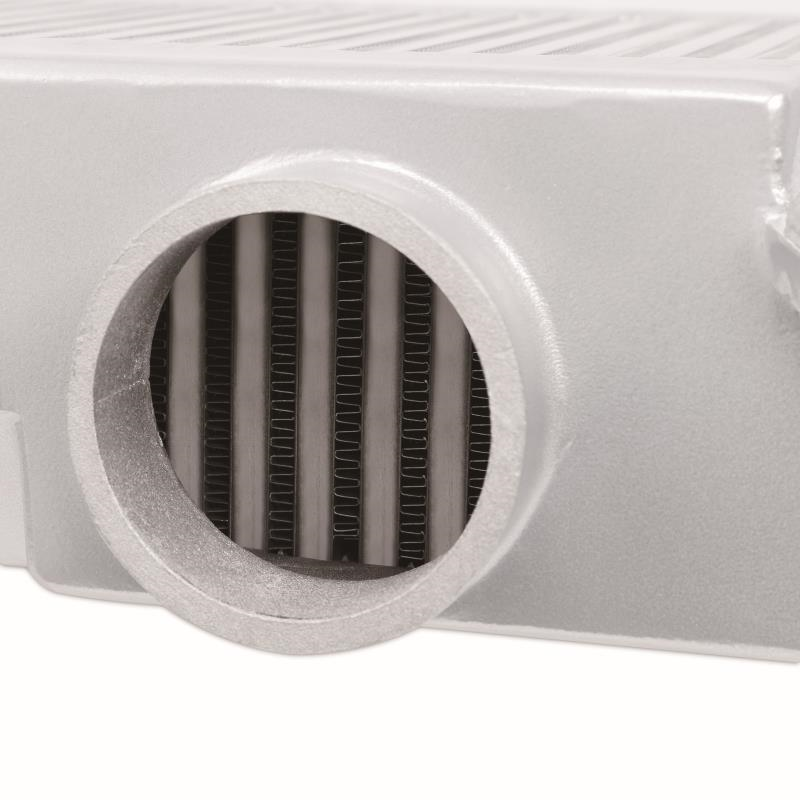

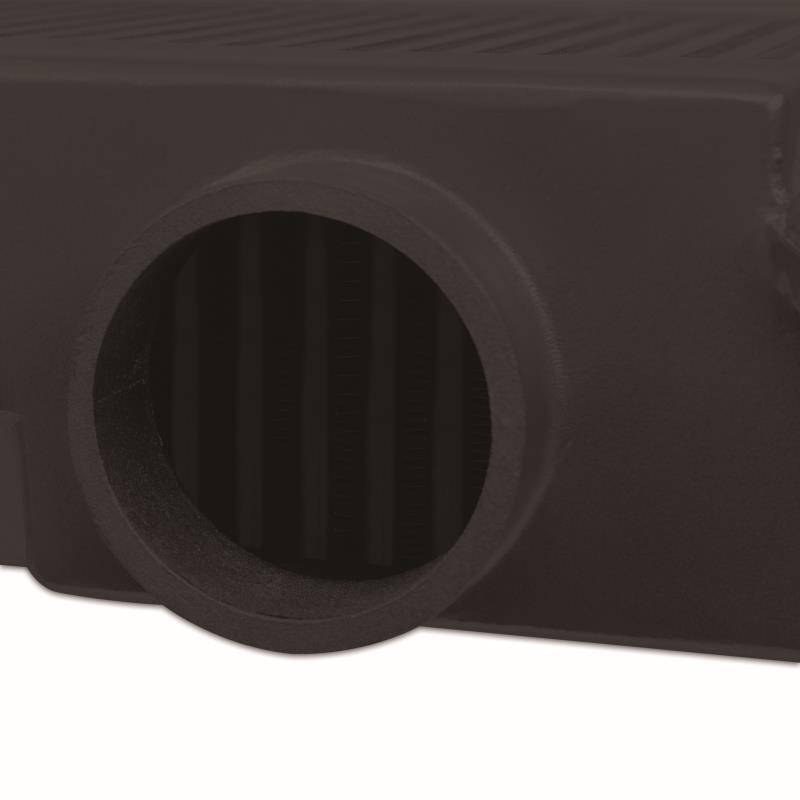

    OUTLET 2.56" I.D. / 3.00" O.D.
    CORE LENGTH 21"
    CORE HEIGHT 7.25"
    CORE WIDTH 3.75"

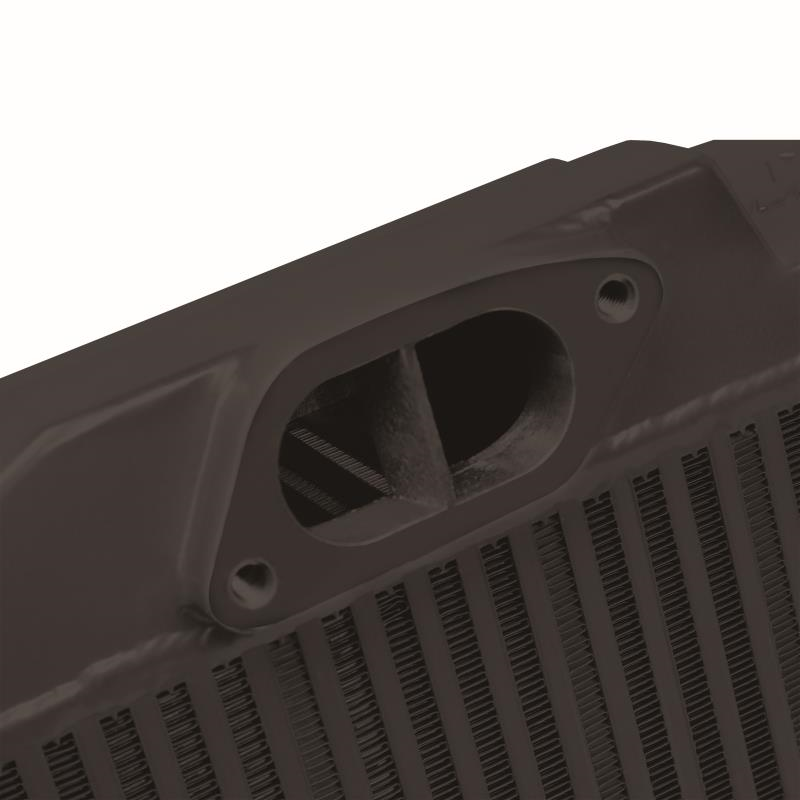

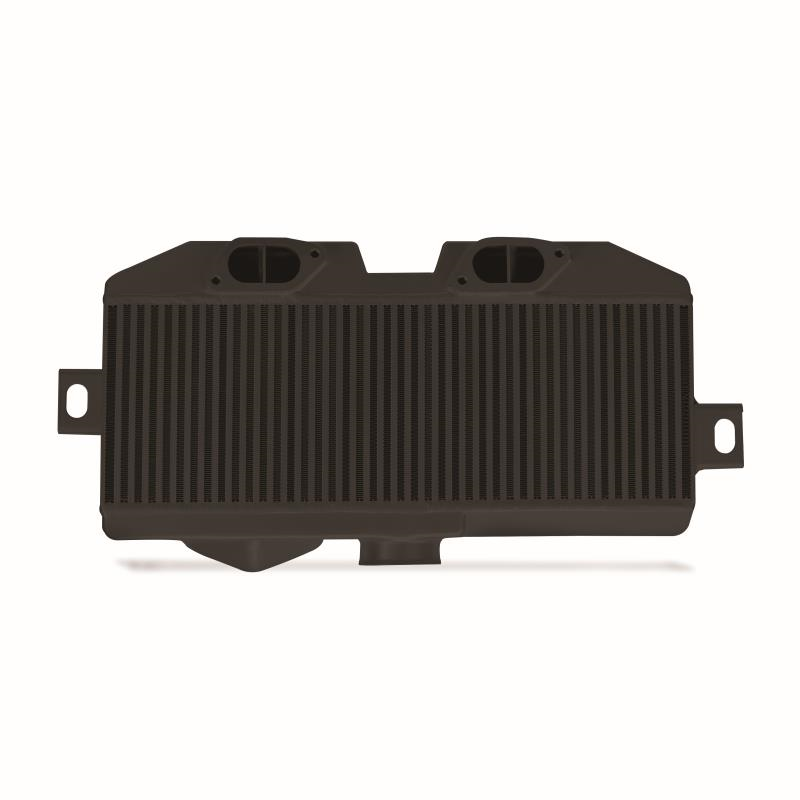

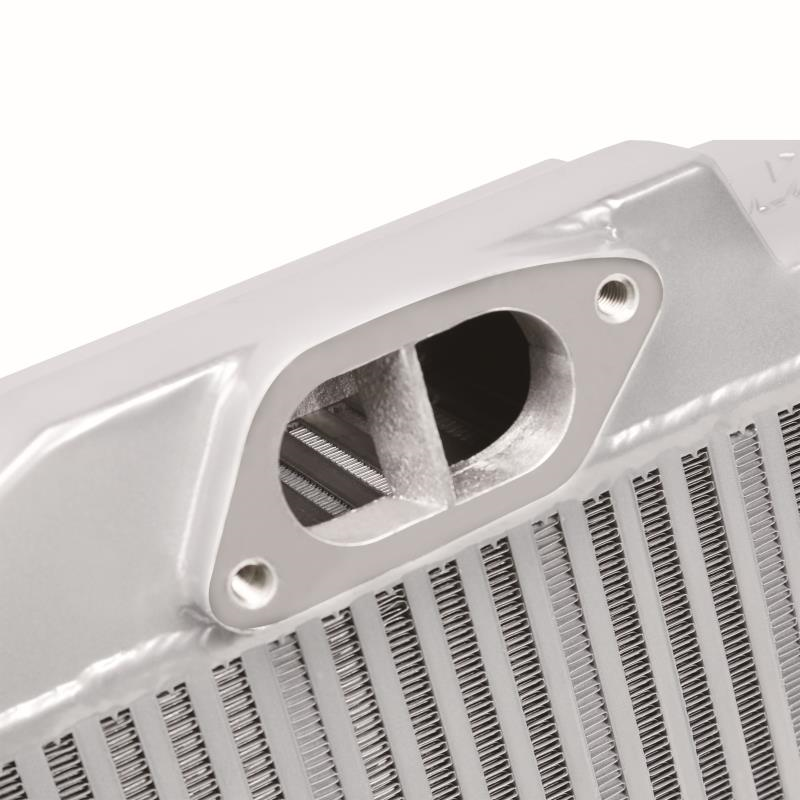

    INLET 2.5" x 1.313" (x2)
    CORE SIZE 21" x 7.25" x 3.75"
    OVERALL WIDTH 4.25"
    OVERALL HEIGHT 11.5"
    OVERALL LENGTH 24.5"
    CONSTRUCTION Bar-and-Plate



    Engineering Report:

    Install Guide:






    Warranty:
