Mishimoto® (08-14) WRX STI Front-Mount Intercooler & Crash Beam

Regular price$904.95
/
Shipping calculated at checkout.
  • In stock, ready to ship
  • THIS PRODUCT IS NOT CARB CERTIFIED
  • Finish
  • Question? Call us at (888) 257-1077 🏁
  • Free Shipping USA (Exc. HI, AK, PR)
  • This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

    Compatible: (2.0L/2.5L)

    2008 - 2014 Subaru WRX STI



    Mishimoto recommends that this intercooler kit not be used with the stock ECU programming. It is highly recommended that the customer be able to retune the vehicle’s ECU after installing the intercooler kit. Power gains will vary depending on the size of the turbo, exhaust system, fuel system, and type of ECU tune that is applied to the vehicle. This kit is rated for approximately 700 whp, or 30 psi of turbo boost. Exceeding these horsepower or pressure limits could require a custom-size front-mount intercooler.





    Designed for applications that demand the greatest airflow and cooling capabilities, the Mishimoto STI Front-Mount Intercooler Kit will provide your Subaru with the ability to make the most horsepower and torque possible. The Mishimoto STI intercooler was designed with a robust bar-and-plate intercooler core that provides the maximum cooling capability without excessive pressure drops that will wear out any turbocharger over time. The Mishimoto STI intercooler features smooth cast end tanks that are CFD tested for maximum airflow with no sharp walls or bends from cut-and-weld end tanks that disrupt airflow. The intercooler provides the best airflow and heat-exchange properties for those time-attack laps or a 10-second blast down the quarter-mile.


    The kit contains everything needed for a worry-free installation, including an application-specific crash bar that both supports the intercooler and mounts to existing points on the vehicle. No cutting or drilling is required to install the crash bar and intercooler. The 2008–2014 Subaru STI Front-Mount Intercooler and Crash Beam kit also includes all of the necessary hardware for a simple installation and is ready for custom piping. This kit is available in silver, black, or gold and is covered under the Mishimoto Lifetime Warranty.

    • Fits the 2008–2014 Subaru STI
    • Optimal core design for maximum cooling efficiency with minimal pressure drop
    • Rated to 600 whp
    • Smooth cast end tanks allow the best possible airflow in and out of the intercooler

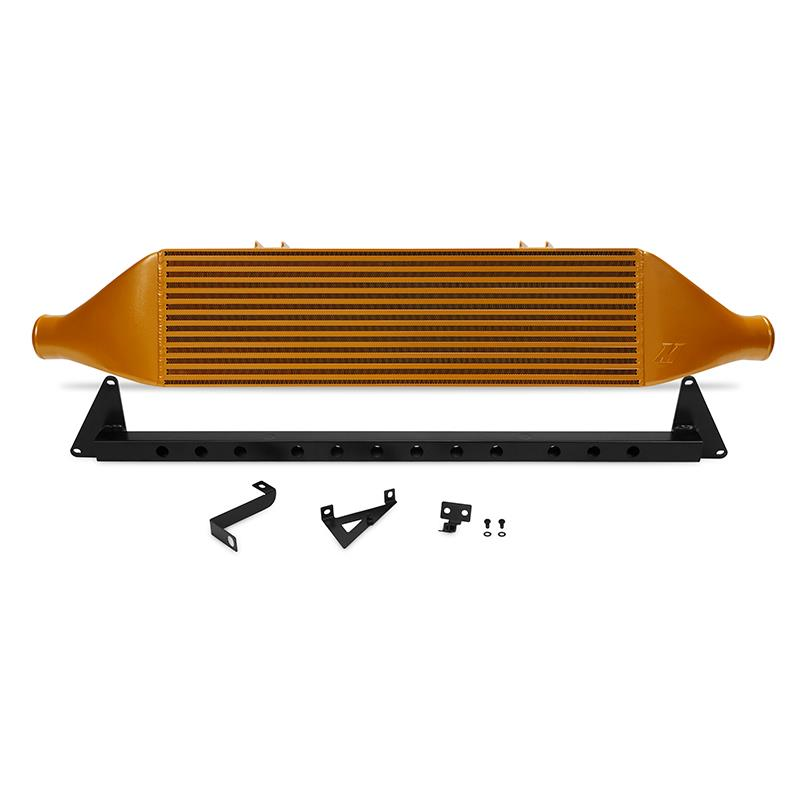

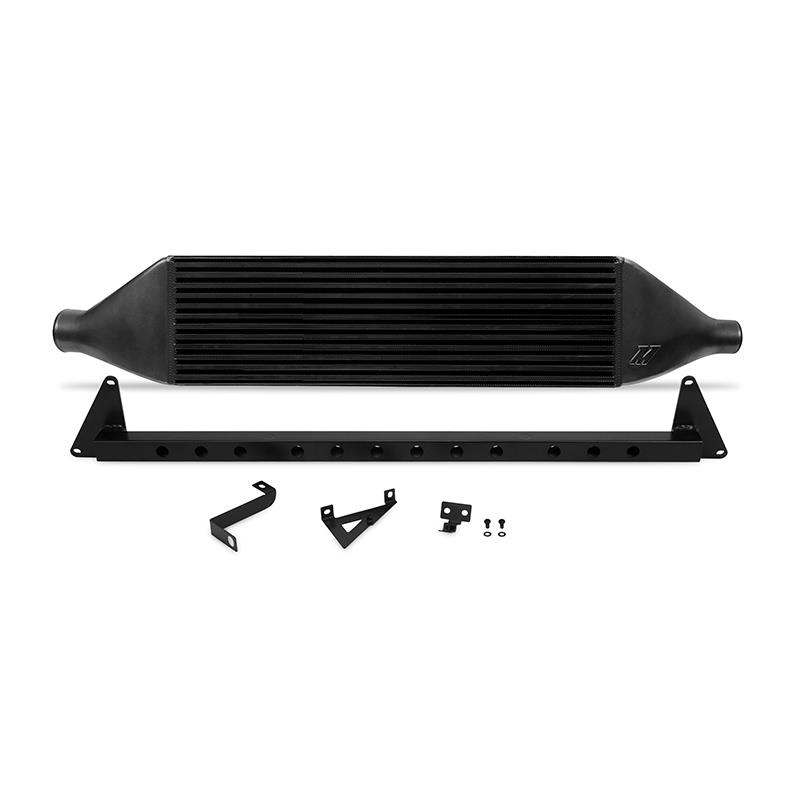

    • Intercooler available in silver, black, or gold
    • Mishimoto Lifetime Warranty



    VEHICLE SPECS

    ENGINE CODES EJ205
    EJ255
    CHASSIS CODES GH
    GE
    GR
    GV
    FITS 2008–2014 Subaru STI


    PRODUCT SPECS

    CORE THICKNESS 2.76"
    CRASH BAR SPECS – Steel Construction with Black Powder Coat
    – Application-Specific Mounting Holes
    – 6.5 lb (2.9 kg)
    WEIGHT 25.5 lbs
    COATING Powder Coated
    TANK WALL THICKNESS 3.5 mm
    MAX REC. PSI 30 psi
    OUTLET 3"
    INLET 2.75"
    CORE SIZE 28" x 8.25" x 3.5"
    OVERALL WIDTH 5.5"
    OVERALL HEIGHT 9"
    OVERALL LENGTH 44"
    CONSTRUCTION Bar-and-plate
    MAX REC HP 600



    PURCHASE INCLUDES

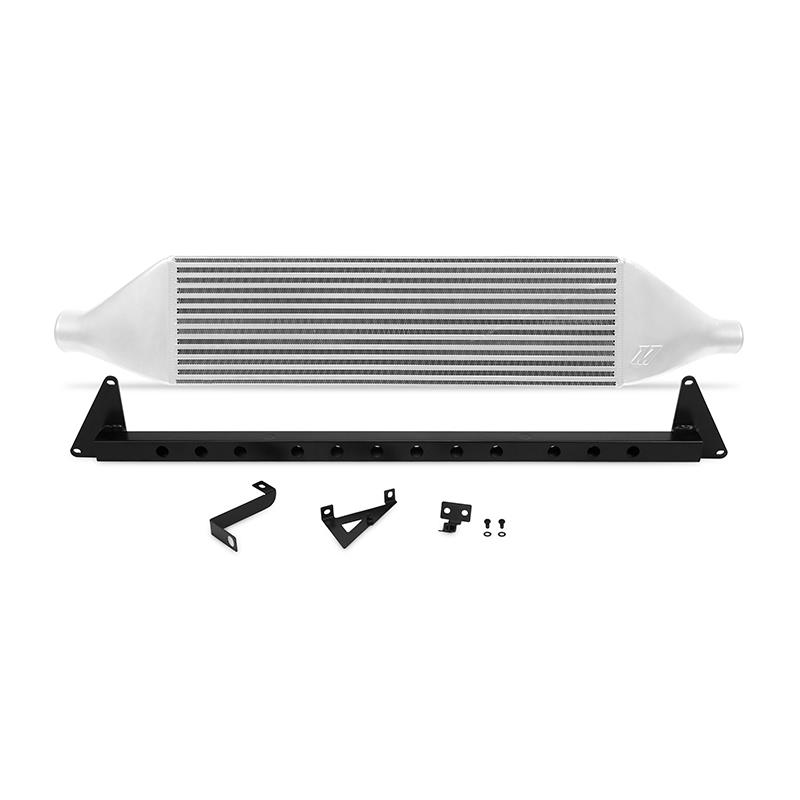

    (1) Bar-and-Plate Intercooler

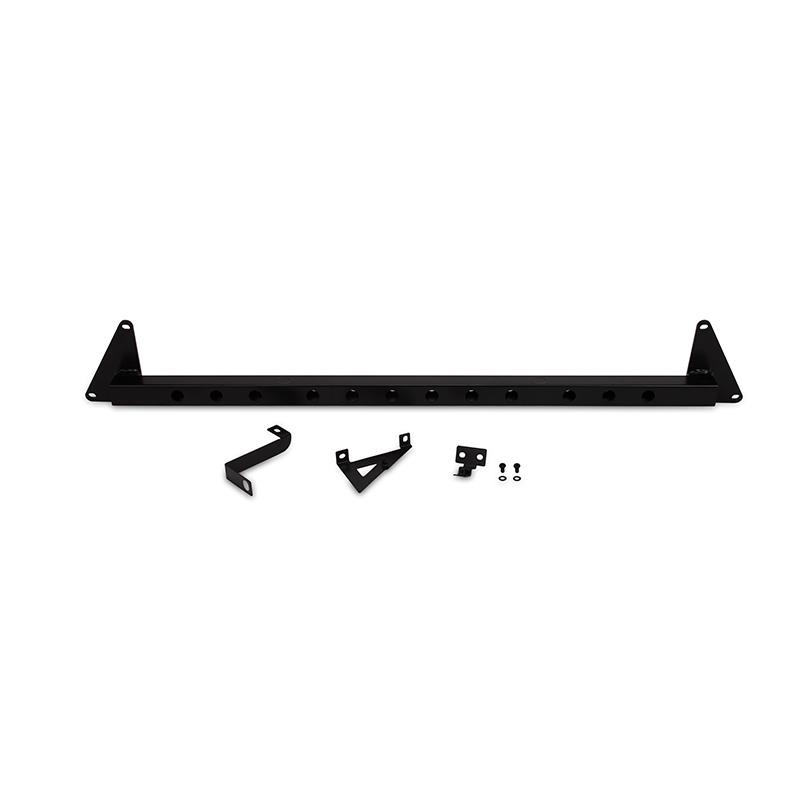

    (1) Steel Crash Bar
    Mounting Hardware
    Mishimoto Lifetime Warranty



    MISHIMOTO SUBARU WRX/STI FRONT-MOUNT INTERCOOLER KIT, PART 6: FINAL PROTOTYPE INSTALLATION SHOTS

    As promised, we have a couple cool images showing these kits fully installed on our test vehicles. Check them out below!

    First, our full kit installed on our shop 2003 WRX Bugeye wagon!

    Bugeye wagon with Mishimoto kit fully installed
    Bugeye wagon with Mishimoto kit fully installed

    This intercooler fills out the bumper completely and looks fantastic. Next up, a look at this kit fully installed on the Hawkeye.

    Hawkeye with Mishimoto kit fully installed
    Hawkeye with Mishimoto kit fully installed

    And a couple shots of our finalized GR STi kit!

    GR STi with Mishimoto kit fully installed
    GR STi with Mishimoto kit fully installed
    GR STi with Mishimoto kit fully installed
    GR STi with Mishimoto kit fully installed

    Now that we had all of our kits developed, the project is complete, right? Wrong! We haven’t tested this intercooler out yet! Now, we have conducted a ton of CFD and core research which has provided us with a very high probability of success. However, we believe in testing all of our products to provide real-world data that our customers can use to base their purchasing decisions on. This product is going to present some challenges for data presentation. Enthusiasts upgrading to a front-mount intercooler have such a variance in modifications and power output that it is very difficult to provide data that will apply to everyone. Our plan is to evaluate the efficiency of the cooler on a mildly built vehicle. This efficiency can then be used to analyze the results of this cooler on a variety of vehicles running different boost pressures, turbochargers, engine internal modifications and tunes.



    MISHIMOTO SUBARU WRX/STI FMIC KIT, PART 7: COOLER EFFICIENCY TESTING

    We are nearing the end of this build. As mentioned in the last post, we wanted to put our core to the test and provide some cooling efficiency data that our customers could use. We decided to modify our 2010 STi to add some heat and power to the CAC system for testing. Information regarding our vehicle is listed below.

    2010 Subaru WRX STI

    • 6-Speed Manual
    • Mishimoto Intake
    • Mishimoto Front-Mount Intercooler
    • Fuel Line Modification
    • 3” Downpipe
    • Tune

    Check out a few shots of the car on the dyno!

    Mishimoto GR STI on the dyno
    Mishimoto GR STI on the dyno
    Mishimoto GR STI on the dyno
    Mishimoto GR STI on the dyno

    As you can see, we have sensors installed on the piping, both the cold- and hot-side of the intercooler. We have pressure and temperature sensors hooked up for logging. We are hoping to capture data on any pressure losses across the core, as well as any temperature reduction we see through the cooler. Check out a close-up shot of the sensors.

    Temperature and pressure sensors for testing
    Temperature and pressure sensors for testing
    Temperature and pressure sensors for testing
    Temperature and pressure sensors for testing



    MISHIMOTO SUBARU WRX/STI FMIC KIT, PART 8: TESTING DATA PRESENTATION AND PROJECT RECAP

    Time to review our data so we can finally put a close on this project. The product development process for this front-mount intercooler has taken months and has also helped refine several of our processes. Before we move into the testing data, our first portion of this post will cover the physical benefits of our intercooler. By providing a more efficient heat exchanger, we can ensure that higher-powered vehicles are not being hindered by debilitating heat-soak and/or inefficiencies with the use of a top-mount intercooler setup.

    Our first comparison point is internal flow area. This graph shows the volume of the actual air passages through the intercooler.

    Comparison of internal flow area
    Comparison of internal flow area

    Internal flow area has a direct effect on both heat transfer and power support: Greater volume results in more heat transfer, which results in lower intake temperatures and a much “happier” engine.

    The chart above shows the comparison of the area of three coolers: the stock 2010 STI top-mount intercooler, the Mishimoto 2008–2014 top-mount intercooler, and the Mishimoto front-mount intercooler. As you can see from the chart, the front-mount intercooler is much larger than essentially any top-mount cooler on the market. Our front-mount cooler provides a 73% increase in internal flow area compared to the stock intercooler. This increase in area will be invaluable to those who are modifying their engines, running high boost pressures, and/or subjecting their vehicles to repeated high-rpm pulls.

    Next up is a comparison of actual core volume. Core volume is a measure of the entirety of the core, which includes the air passages, bars, tubes, fins, etc. As with Internal flow area, this chart shows benefits which have a similar effect on heat transfer. Once again, a higher volume is going to provide huge benefits for those folks with modified vehicles.

    Comparison of core volume
    Comparison of core volume

    Once again, the Mishimoto front-mount intercooler provided huge gains over the top-mount setup. This time, we saw increases of 124% compared to the stock top-mount cooler.

    You may be thinking that these two products are for completely different customers, so why compare them? Great point! This data is being provided for those enthusiasts making enough power to necessitate/consider upgrading to a front-mount setup. If you are on the fence about converting, these graphs provide information regarding the benefits you can expect from the upgrade.

    Our final physical attribute the fins on the intercooler. As mentioned earlier in this post, fins are connected to the air passages and work to transfer heat from the internal air to the air passing through the core. The greater the fin area, the more heat transfer is possible. Our team has positioned this cooler in the front of the bumper to obtain optimal airflow for maximum temperature reduction. Check out the comparison of air surface areas in the chart below.

    Comparison of air surface area
    Comparison of air surface area

    Once again, we saw impressive gains compared to the stock intercooler; this time the magic number is 91%!

    Now that these comparisons are complete, we can move to our actual testing and data collection. Check out the testing conditions shown below.

    Vehicle Information

    • 2010 Subaru WRX STI
    • 6-Speed Manual Transmission
    • Mishimoto Intake
    • Mishimoto Front-Mount Intercooler
    • Fuel Line Modification
    • 3” Downpipe
    • Tune

    Testing Conditions

    Ambient Temperature: 66°F–68°F

    Humidity: 30%

    Sensors: PLX Sensor modules, temperature and pressure sensors

    Data: Data was averaged once three consistent pulls were obtained.

    Our team then finalized the tune we had on the vehicle, strapped it to the dyno, and began making pulls!

    2010 STI tuning
    2010 STI tuning
    2010 STI on the dyno
    2010 STI on the dyno

    After a day of dyno pulls, we finally had the Iwe needed to evaluate the intercooler we designed for our front-mount kits! First, take a look at the power our STi is putting to the ground!

    Mishimoto 2010 STI dyno plot
    Mishimoto 2010 STI dyno plot

    With just the basic modifications listed above, we are making huge power gains (especially in torque) compared to the vehicle when it was stock. The increased boost pressure should also have an impact on our intake temperature testing.

    Now, check out the chart showing inlet and outlet temperature data recorded during our dyno pulls!

    Mishimoto 2010 STI intake temperature results
    Mishimoto 2010 STI intake temperature results

    So this is the data we have been waiting for since the inception of this project, and we are very pleased with the results. This data is graphed to show the increases in temperature (inlet and outlet) relative to boost pressure during our pulls. This is graphed over a full pull through the rpm range with boost peaking around 19 psi and tapering to 15 psi. At the start of the pull, we see drops around 40°F from the inlet to the outlet, placing temperatures within 15 degrees of ambient air. As the pull progresses, our drops increase to over 130°F. So what does this mean for you? Check out our efficiency chart for a better look at the benefits of this cooler.

    Mishimoto 2010 STI intercooler efficiency
    Mishimoto 2010 STI intercooler efficiency

    Efficiency is where our intercooler data really shows its worth. We obtained 70%–85% efficiency throughout our pull! These are fantastic numbers for a front-mount setup. As a comparison, from our previous tests, we have shown that the stock intercooler provides around 60% efficiency on our completely stock 2010 STI. Unfortunately we did not collect efficiency information on the stock TMIC on our STI after we installed the modifications used for this test. We can assume that it will be far less than the 60% shown on the testing of the stock vehicle.

    So, that makes this project a complete success. We have developed a direct-fit front-mount intercooler setup that provides extremely efficient drops in intake temperatures and is designed to support vehicles with substantial horsepower and boost pressures.

    Now that we were finished with development and testing, it was time to review our goals and ensure our final product meets or exceeds them.

    Project Goals

    1. Develop a bolt-on kit for fitment on all generations of the WRX/STi. This includes vehicles from 2002­–2014. Our 2015 kits will be different, and we will have a build thread for those at a later date.

    Our engineering team has successfully designed a completely bolt-on front-mount intercooler kit for the 2002–2014 WRX and STI. Each kit we offer is designed specifically for that particular year-range and includes all piping, couplers, hardware, etc. for installation.

    1. Attempt to use one intercooler design for all chassis.

    As shown in the posts above, we designed and fully test fit our intercooler unit on each of the chassis from 2002 to 2014. Although minor trimming is required to the rear of the bumper, this unit fits very well and looks fantastic!

    1. Provide all piping necessary for installation.

    As mentioned above, these kits are all-inclusive and completely direct fit. We include all piping necessary for installation as well as couplers, mounting hardware, intercooler, and our replacement bumper beam.

    1. Test product to ensure intercooler efficiency.

    Our team fully tested the efficiency of this intercooler core and proved an efficiency average of 80% on a 318 whp/340 wtq running 19 psi of boost pressure. We anticipate huge gains for vehicles up to 600 whp.
