MMINT-EVO-10KSL

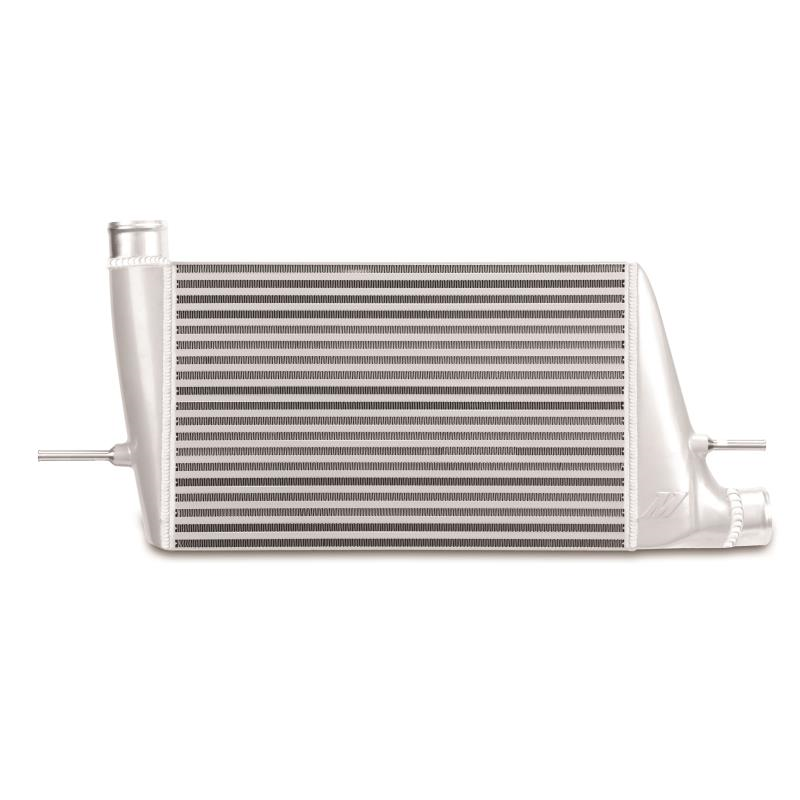

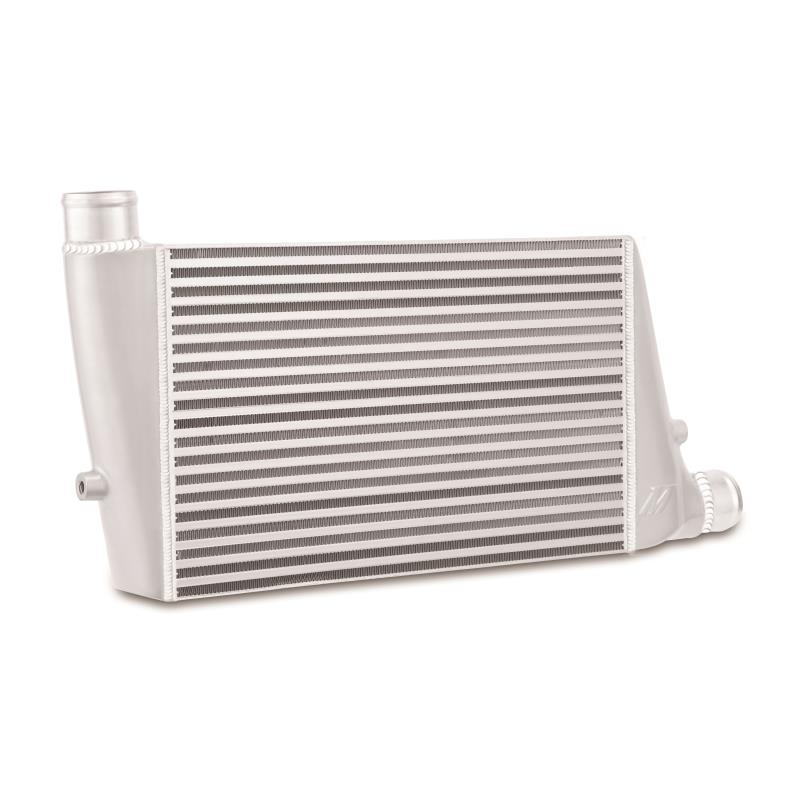

Mishimoto® (07-16) Lancer Evolution X Performance Intercooler System

Regular price$1,134.95
/
Shipping calculated at checkout.
Intercooler Finish
  • In stock, ready to ship
  • THIS PRODUCT IS CARB CERTIFIED
  • Question? Call us at (888) 257-1077 🏁
  • Free Shipping USA (Exc. HI, AK, PR)

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Verify fitment with your vehicle

(Change vehicle)

Compatible: (2.0L)

2007 - 2016 Mitsubishi Lancer Evolution X

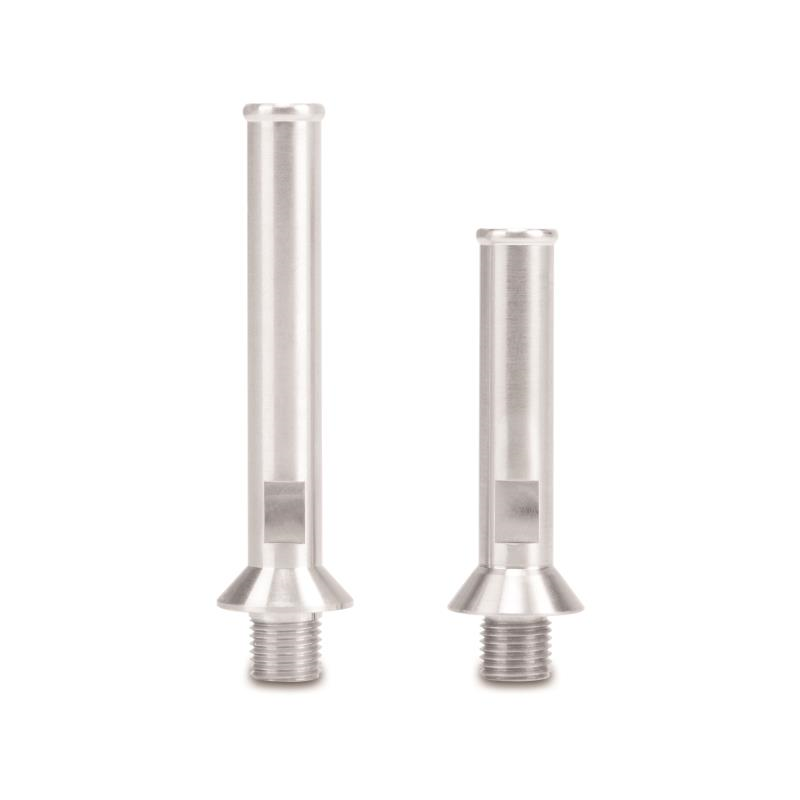

This intercooler can be used with stock or aftermarket intercooler pipes. The CNC mounting pegs must be installed by the customer.


A high-horsepower Evo demands an intercooler that provides optimal airflow and a cool, dense charge of air. Modified vehicles running high-boost pressures often suffer from increased air intake temperatures (AITs) and heat soak, which can result in diminished performance. Keep your intake temperatures under control with the Mishimoto Mitsubishi Lancer Evolution X Performance Intercooler.

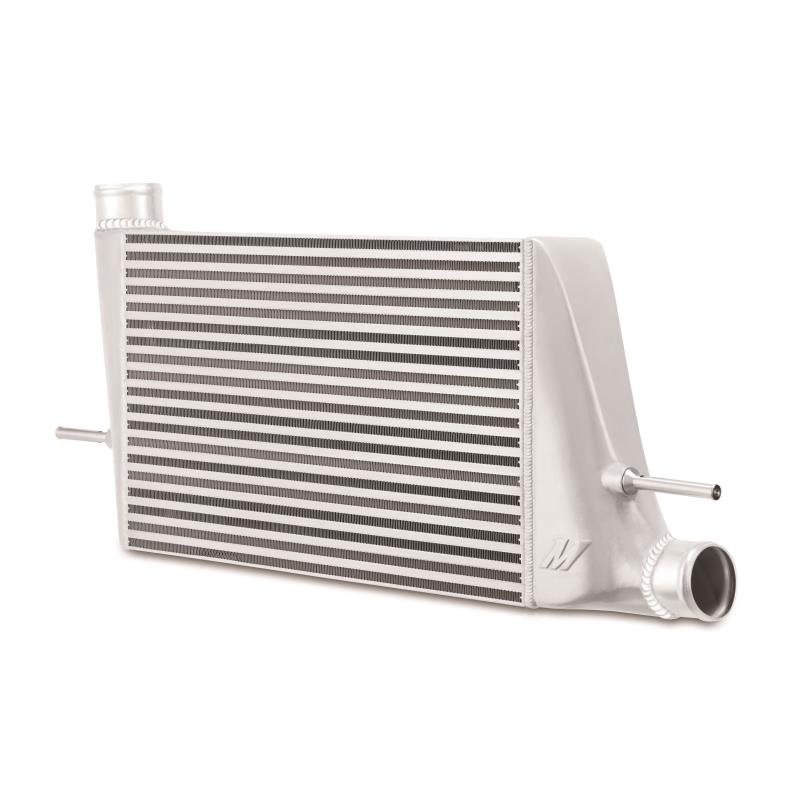

This intercooler is a direct bolt-on unit engineered specifically for the Evo X. Thanks to an efficient 3.5" thick bar-and-plate core, this intercooler provides optimal heat dissipation and low AITs. The robust cast aluminum end tanks provide superior durability and smooth, uninterrupted airflow. The Mishimoto Mitsubishi Lancer Evolution X Performance Intercooler provides a dyno-proven increase of 10 whp and 10 tq, and it will support modified vehicles up to 600 whp! This Evo intercooler core is equipped with a strategic fin design that promotes substantial heat exchange while providing minimal pressure loss across the core. Whether you are making a pass at the drag strip or sliding around a rally stage, this intercooler will provide the cooling that your engine needs to perform at its best.

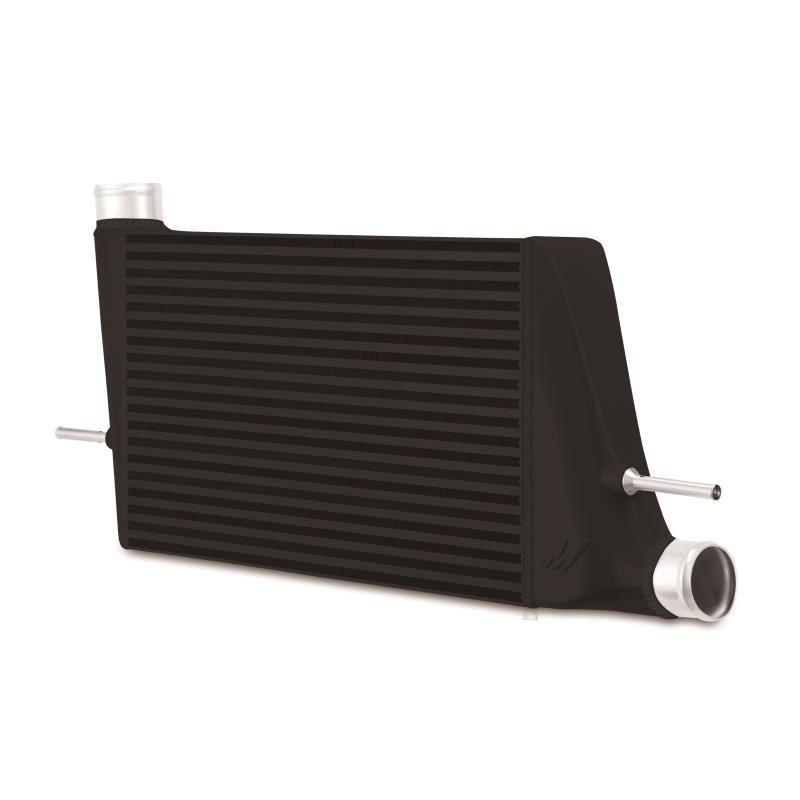

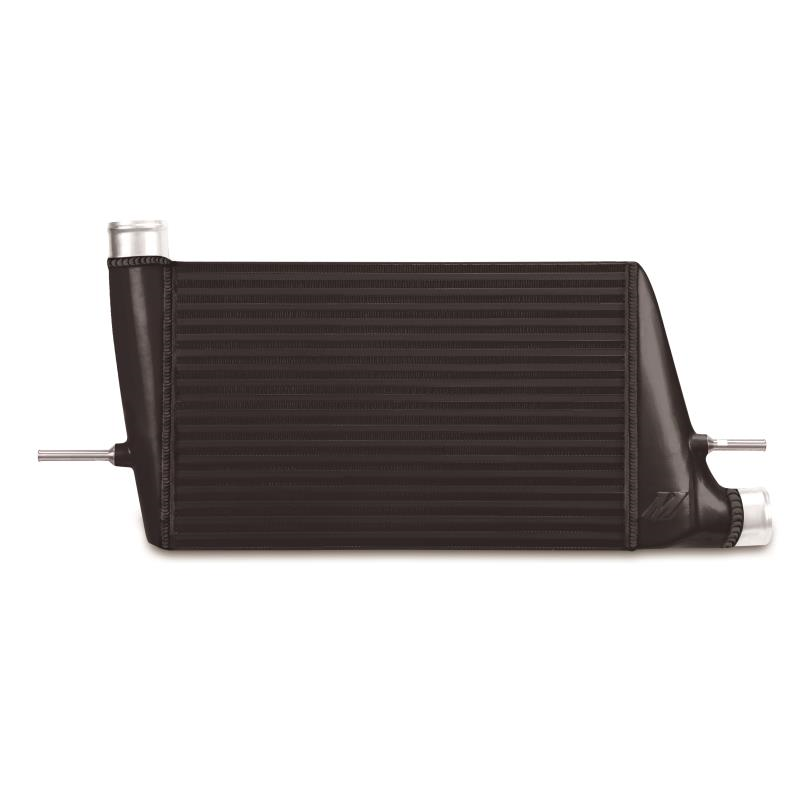

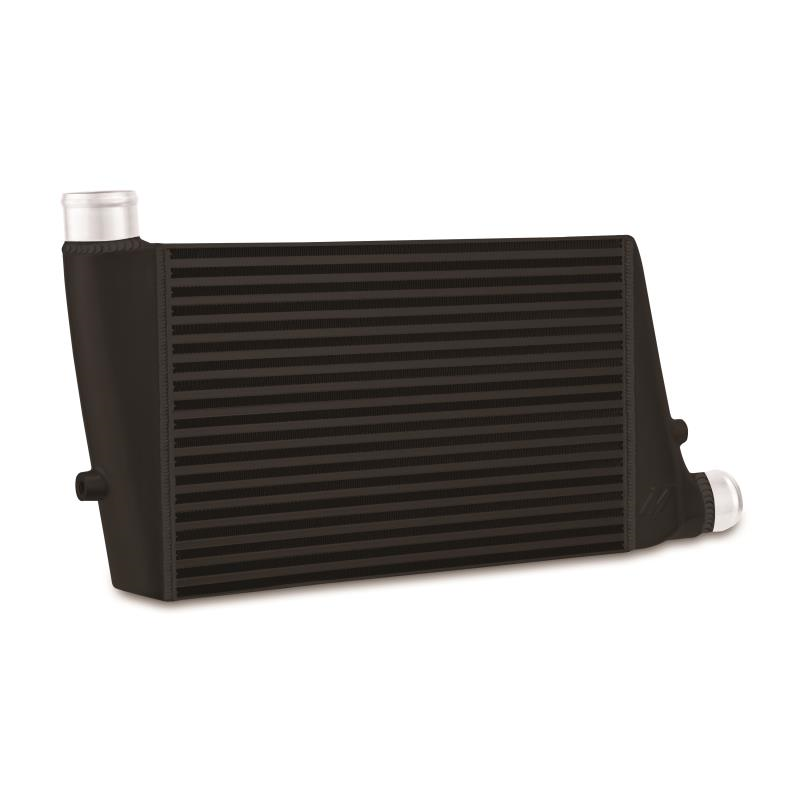

This Evo intercooler is available with a powder-coated finish in either Sleek Silver or Stealth Black. As with all our products, this intercooler includes the Mishimoto Lifetime Warranty.

  • Direct fit for the 2008-2015 Mitsubishi Lancer Evolution X
  • 10 whp and 10 tq bolt-on power increase
  • Efficient 3.5" thick bar-and-plate core provides optimal heat dissipation and low AITs
  • Full aluminum cast end tanks provide increased durability and smooth, uninterrupted airflow
  • Strategically designed fins for minimal pressure loss
  • Substantial core volume will support vehicles up to 600 whp
  • Available with a powder-coated finish in Sleek Silver or Stealth Black
  • Mishimoto Lifetime Warranty
  • CARB EO #: D-759



VEHICLE SPECS

MAKE Mitsubishi
ENGINE CODES 4B11T
CHASSIS CODES CZ4A


PRODUCT SPECS

INSTALLATION TORQUE SPECS 27 in-lbs (3N*M) recommended for all t-bolt and constant tension t-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4N*M). Do not exceed the maximum torque rating of 35 in-lbs (4N*M).

22 in-lbs (2.5N*M) recommended for all worm-gear clamps. These clamps have an operating range of 18-27 in-lbs 2-3N*M. Do not exceed the maximum torque rating of 27 in-lbs (3N*M).

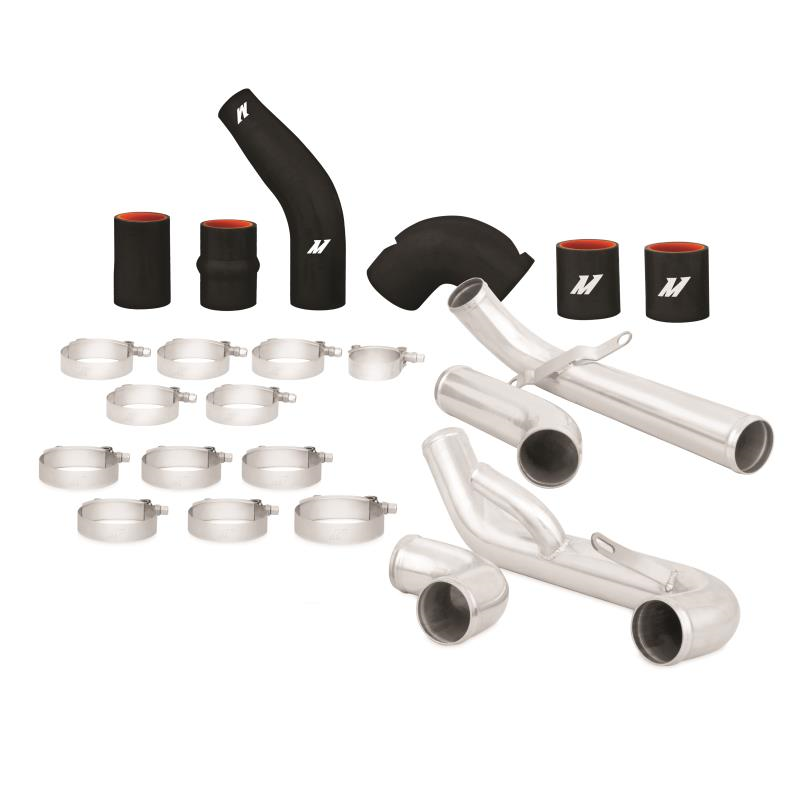

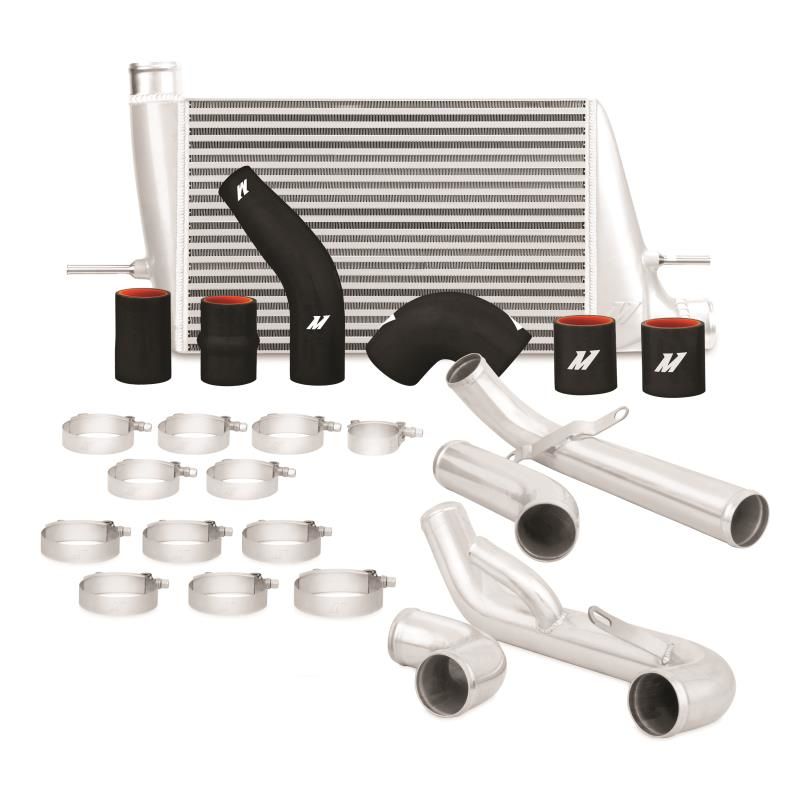

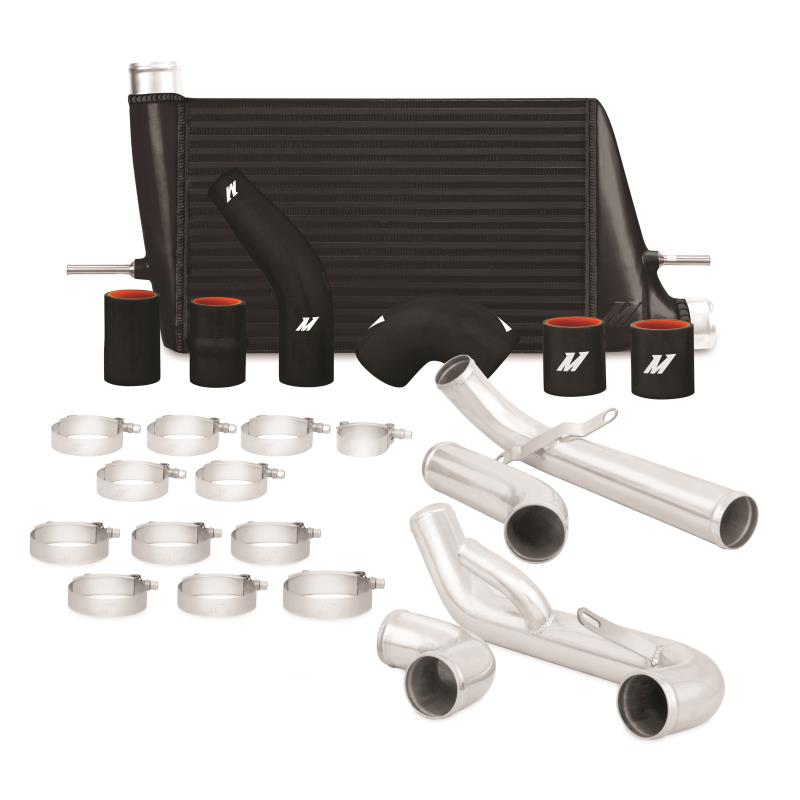

SILICONE COUPLERS (6) Silicone Couplers, Black
PIPE DIAMETER Inner Diameter–2.375"
Outer Diameter–2.50"
CONSTANT TENSION T-BOLT CLAMPS SPECS (10) 2.75" T-Bolt Clamps
(1) 2" T-Bolt Clamp
(1) 3" T-Bolt Clamp
WEIGHT 23 lbs
TANK WALL THICKNESS 3.5mm
FIN PITCH External: 6.35 fins per inch
Internal: 7.5 fins per inch
OUTLET 2.5"
CORE LENGTH 19.5"
CORE HEIGHT 12"
CORE WIDTH 3.5"
INLET 2.375"
CORE SIZE 19.5" x 12" x 3.5"
OVERALL WIDTH 4.5"
OVERALL HEIGHT 13.7"
OVERALL LENGTH 28.3"
CONSTRUCTION Bar-and-Plate



PURCHASE INCLUDES

(1) Mishimoto Intercooler
CNC Mounting Pegs
Mishimoto Lifetime Warranty
