MMOC-EVO-01

Mishimoto® (00-07) Lancer Evolution 25-Row Performance Oil Cooler System

Regular price$540.95
/
Shipping calculated at checkout.
Cooler Finish
  • In stock, ready to ship
  • THIS PRODUCT IS CARB CERTIFIED
  • Question? Call us at (888) 257-1077 🏁
  • Free Shipping USA (Exc. HI, AK, PR)
  • This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

    Compatible: (2.0L)

    2000 - 2007 Mitsubishi Lancer Evolution



    Recommended torque specification for all straight fittings and banjo bolts: 15-25 ft/lbs (operating range). Do not exceed the maximum torque rating of 35 ft/lbs.





    The Lancer Evolution is a great vehicle for sliding around back roads, plowing through the straightaway at a road course, or just picking up the kids from school. The turbocharged four-cylinder demands an effective and reliable cooling system to perform at its best. The Mitsubishi Lancer Evolution 7/8/9 Oil Cooler Kit is ideal for reducing temperatures in your street or track Evo. This kit places a large 25-row cooler in the front bumper for optimum airflow and cooling efficiency.

    This oil cooler kit includes direct-fit, application-specific brackets and durable preassembled stainless steel oil lines with -10AN fittings for a bolt-on installation that completely replaces your stock oil-cooling unit. The large and efficient Mishimoto 25-row, stacked-plate oil cooler will decrease oil temperatures by up to 30 degrees and reduce oil degradation, resulting in proper lubrication of engine and turbocharger components even under the stress of competitive driving.

    • Direct fit for the 2001-2007 Lancer Evolution 7/8/9
    • Minimal pressure loss
    • 10% greater cooling efficiency than stock

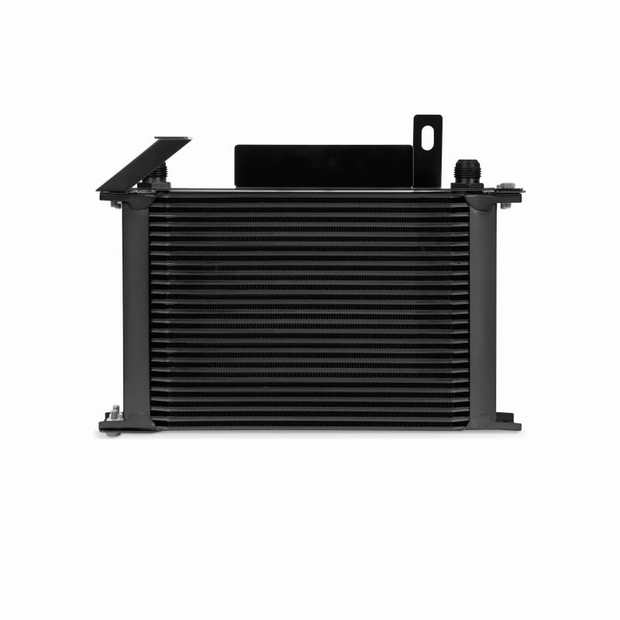

    • Stealth Black or Sleek Silver color options for the cooler
    • Includes braided stainless steel lines
    • Mishimoto Lifetime Warranty



    VEHICLE SPECS

    ENGINE CODES 4G63
    CHASSIS CODES CT9A


    PRODUCT SPECS

    MATERIAL 6061 Aluminum
    CORE HEIGHT 7.32"
    ROWS 25
    COOLER CONSTRUCTION Stacked-plate
    CORE THICKNESS 1.97"
    CORE LENGTH 11"
    FITTING SIZE -10AN
    PRESSURE DROP 2-3 psi
    INSTALL TORQUE SPECS Recommended torque specification for all straight fittings and banjo bolts: 15-25 ft/lbs (operating range). Do not exceed the maximum torque rating of 35 ft/lbs.
    CAUTION It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation.
    INCREASE IN OIL CAPACITY No increase
    TEMP DIFFERENCE 20-30°F

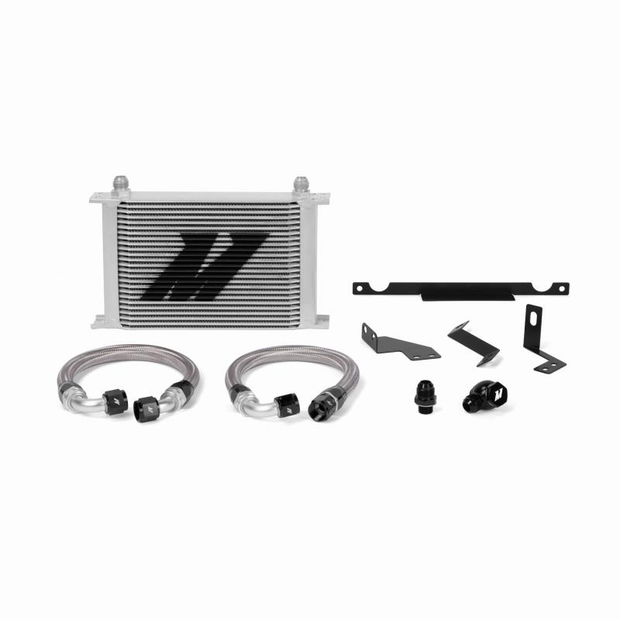

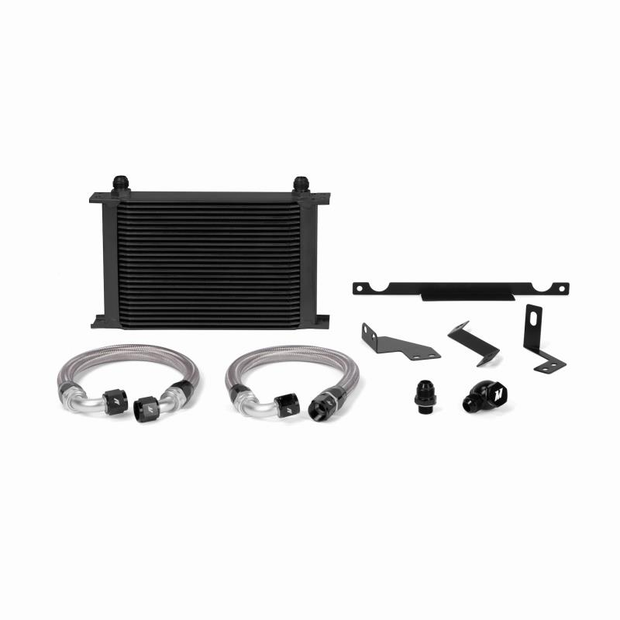

    PURCHASE INCLUDES

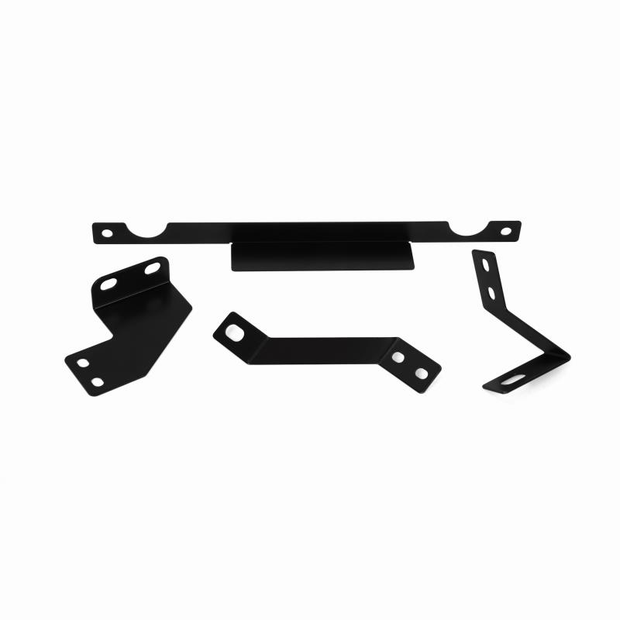

    (4) Application-Specific Mounting Brackets

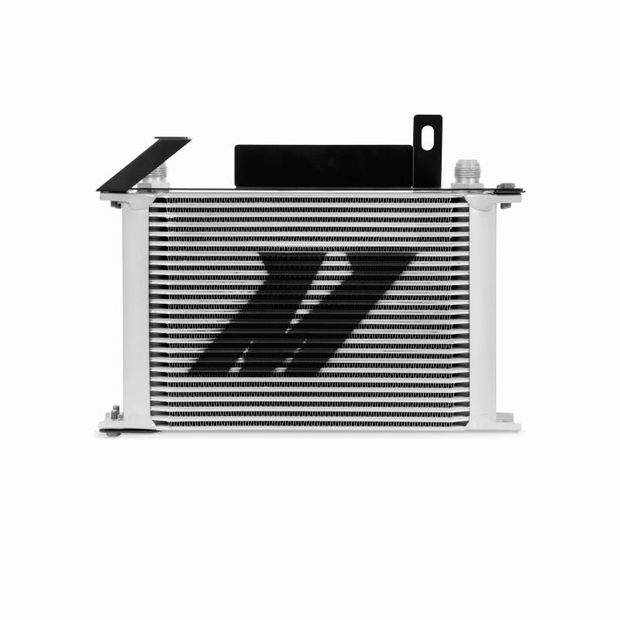

    (1) 25-Row Oil Cooler (Silver or Black)
    (1) 1ft, 4.5in Stainless Steel Braided Hose with 90 Degree and Straight-10AN Fittings

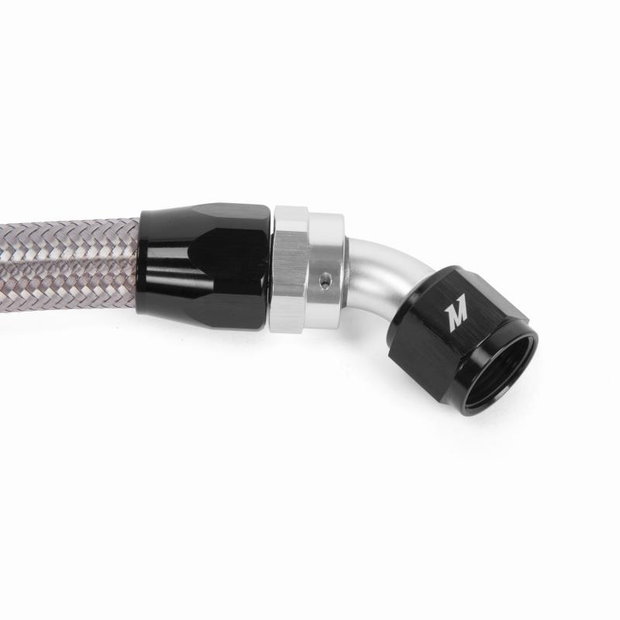

    (1) 1ft, 3in Stainless Steel Braided Hose with 45 Degree and 90 Degree -10AN Fittings
    (1) M18 x -10AN Straight Fitting

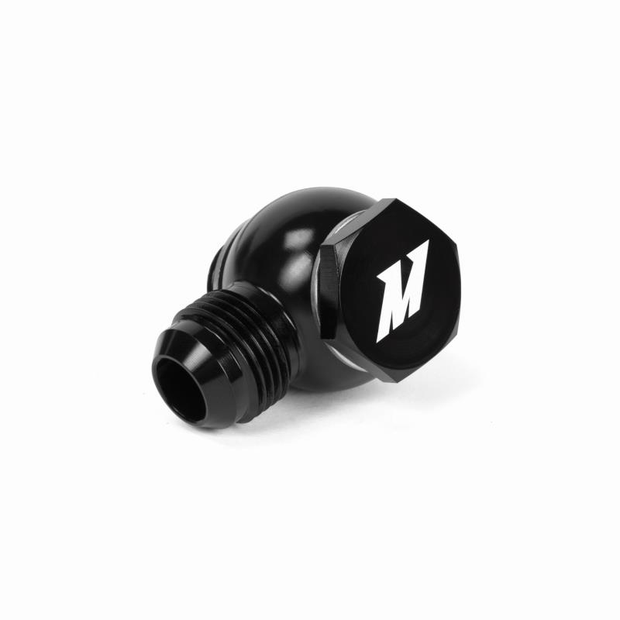

    (1) Banjo Fitting w/ Bolt M18 x -10AN, Black
    (1) Mounting Hardware Set
    Mishimoto Lifetime Warranty
