Kingman Speed®  |  SKU: KING-12633904
New arrival

Kingman Speed® GM LS1/LS2/LS3/LT1/LT4/L84/L86/LQ4 Timing Cover/Water Pump Gasket/Crankshaft Seal

$29.99
Shipping calculated at checkout.

Question? Call us at (888) 257-1077 🏁 (M-F 9-5 ET)

Email: info@10SecondRacing.com (24/7)

Free Shipping to Lower 48 US States ($100+)

Worldwide Shipping via UPS (Check Rates at Checkout)

Description

COMPATIBLE: (4.8L/5.3L/6.0L/6.2L)

1999 - 2020 CADILLAC ESCALADE

2004 - 2007 CADILLAC CTS-V

2016 - 2019 CADILLAC CTS-V

2022 - 2024 CADILLAC CT5-V

1998 - 2002 CHEVROLET CAMARO

2016 - 2024 CHEVROLET CAMARO

2014 - 2027 CHEVROLET CORVETTE

1999 - 2019 CHEVROLET SILVERADO 1500

1999 - 2020 CHEVROLET SUBURBAN 1500

1999 - 2020 CHEVROLET TAHOE

1999 - 2019 GMC SIERRA 1500

1999 - 2020 GMC YUKON

    1999 - 2020 GMC YUKON XL

    1998 - 2002 PONTIAC FIREBIRD

    2004 - 2006 PONTIAC GTO

    2008 - 2010 PONTIAC G8

    This is an all-in-one engine seal and hardware kit designed for General Motors Gen III, IV, and V small-block V8 engines (including LS1, LS2, LS3, LT1, LQ4, and L86 platforms ranging from 4.8L to 6.2L). It bundles the crucial soft parts and fasteners needed when servicing the front of the engine or doing a camshaft swap.

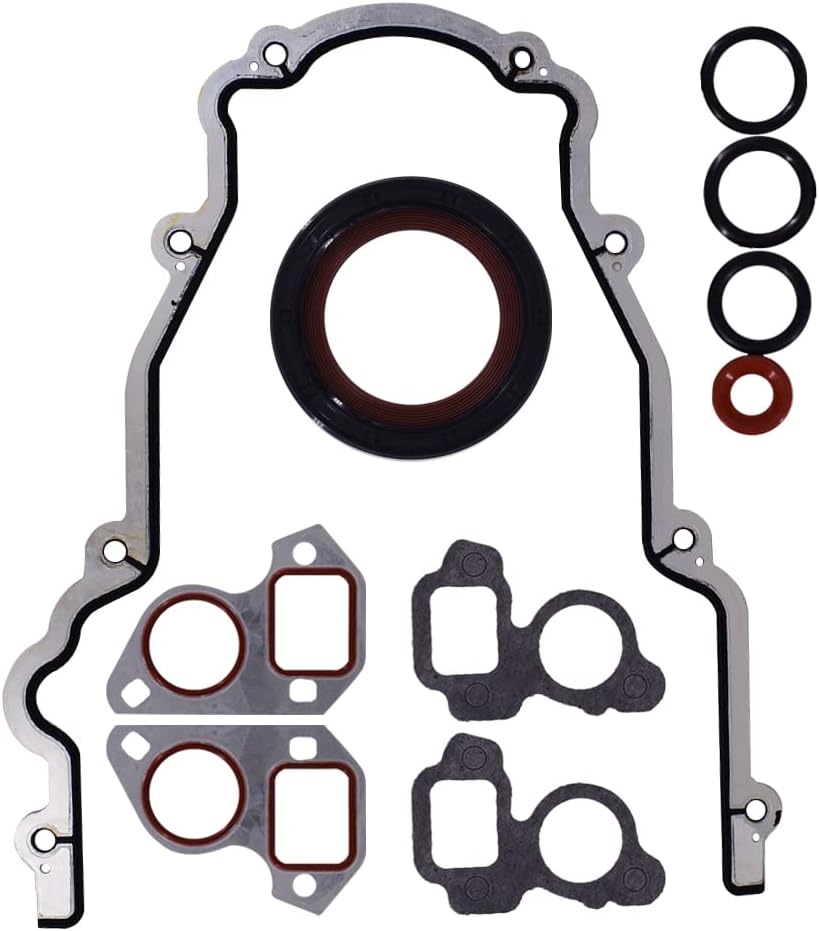

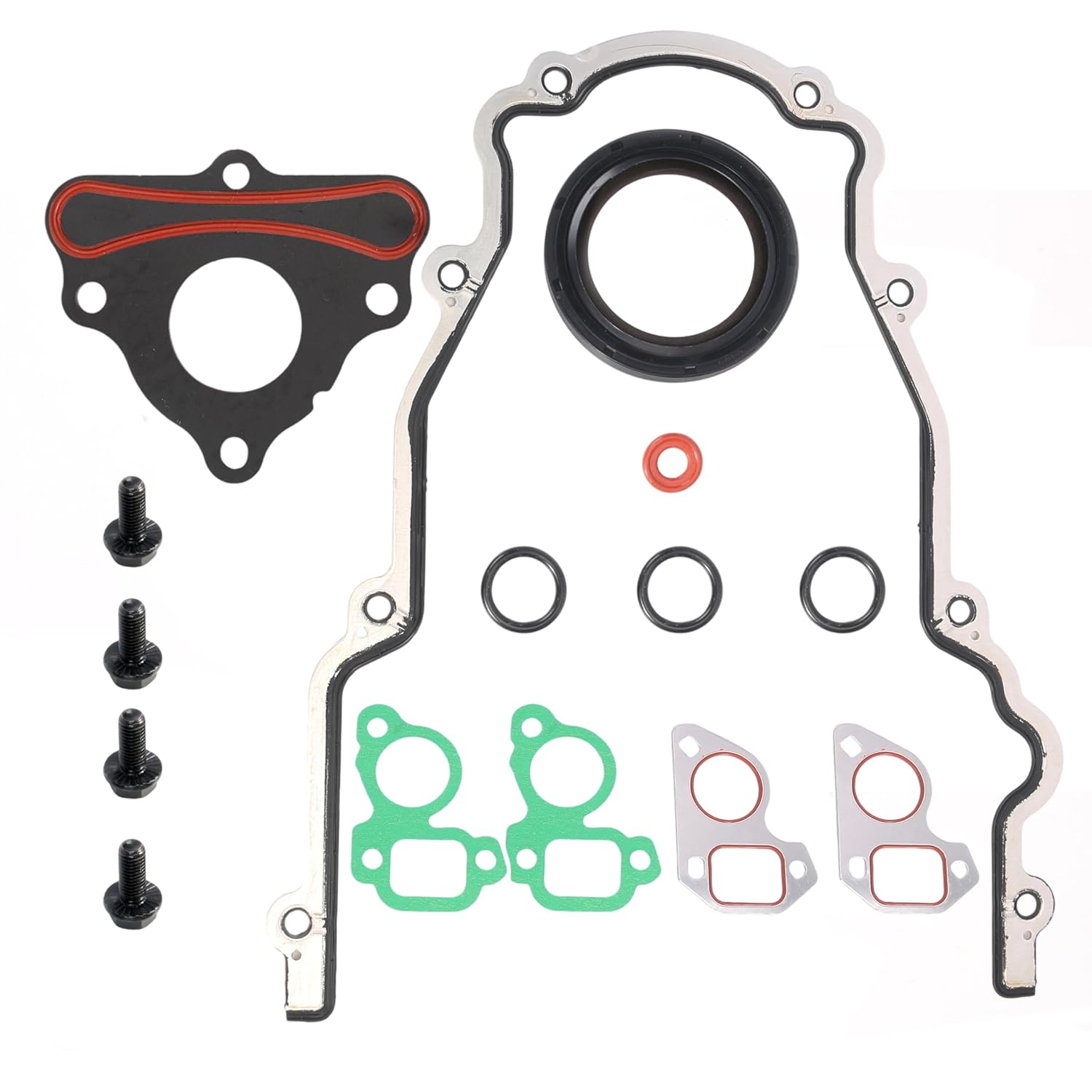

    Kit Components

    Front timing cover gasket: Seals the main timing chain cover against the engine block.

    Water pump gaskets: Includes replacement gaskets to reseal the water pump upon reassembly.

    Crankshaft front seal: Press-fit oil seal that fits inside the timing cover around the harmonic balancer/crankshaft snout.

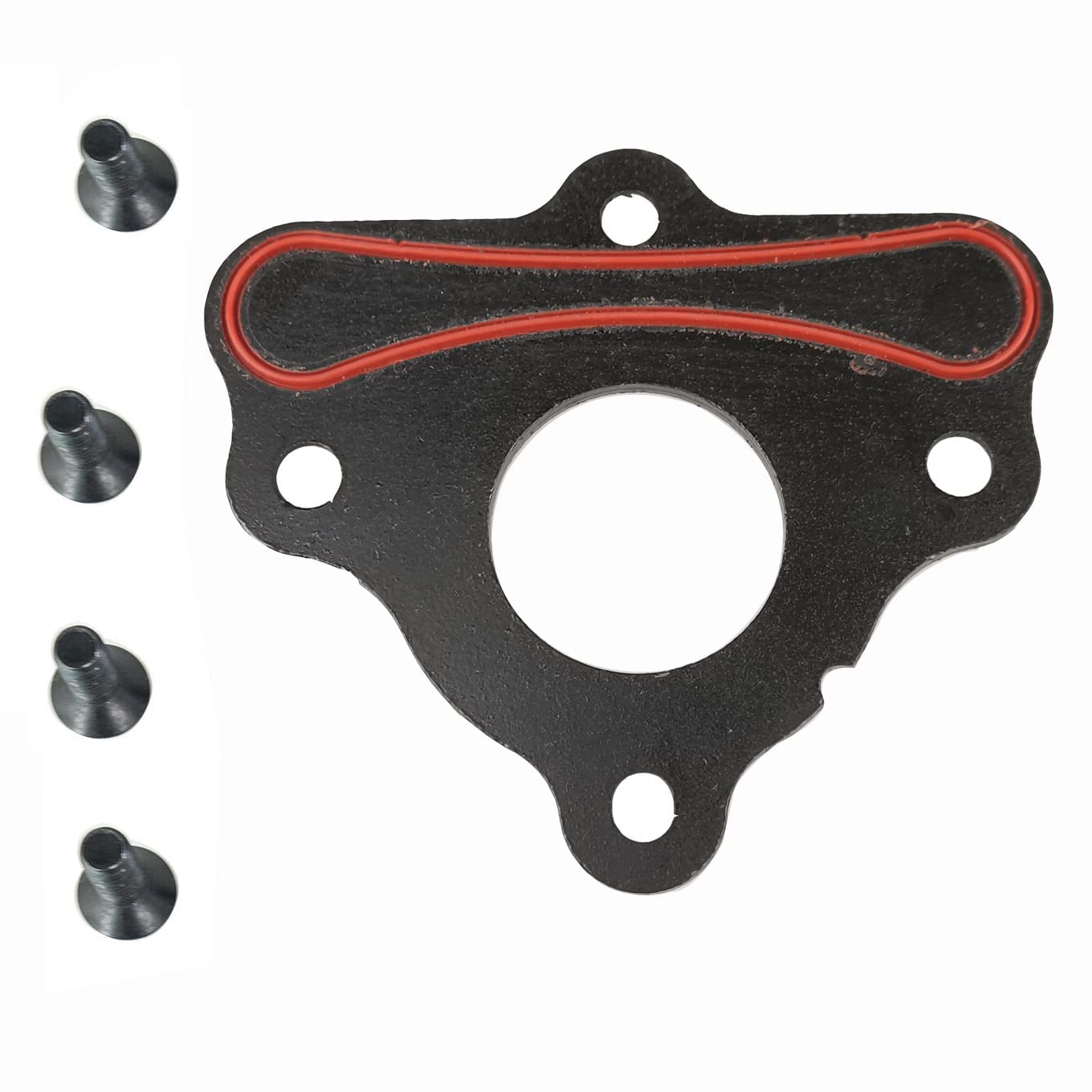

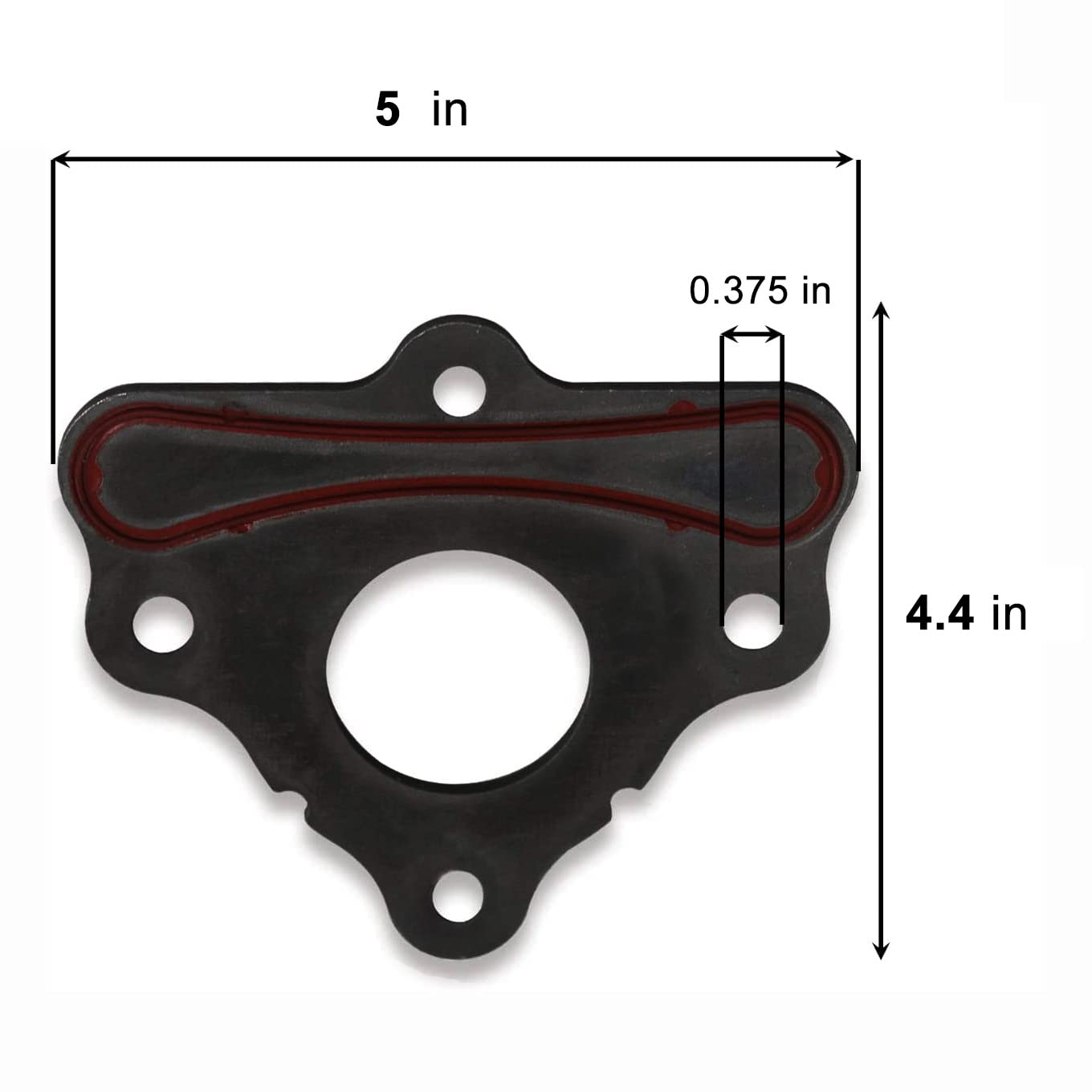

    Camshaft thrust retainer plate & seal: The plate behind the timing gear that manages camshaft end-play, complete with its built-in rear rubber seal.

    Fasteners: Specialty flush or countersunk bolts (often black-oxide alloy steel) used to secure the retainer plate.
    Primary Uses

    Camshaft swaps: Provides the mandatory gaskets and retainer plate hardware that must be disturbed or replaced during a cam upgrade.

    Front-end oil leak repairs: Fixes common oil leaks stemming from a degraded front crank seal or warped timing cover gasket.

    Engine rebuilds: Serves as a convenient, consolidated package for refreshing external seals on Vortec and LS/LT car and truck engines
