COMPATIBLE:
2004 - 2005 CADILLAC CTS-V (5.7L-LS6)
1998 - 2002 CHEVROLET CAMARO (5.7L-LS1)
1997 - 2004 CHEVROLET CORVETTE (5.7L-LS1)
2001 - 2004 CHEVROLET CORVETTE Z06 (5.7L-LS6)
2005 - 2008 CHEVROLET CORVETTE (6.0L-LS2)
1998 - 2002 PONTIAC FIREBIRD (5.7L-LS1)

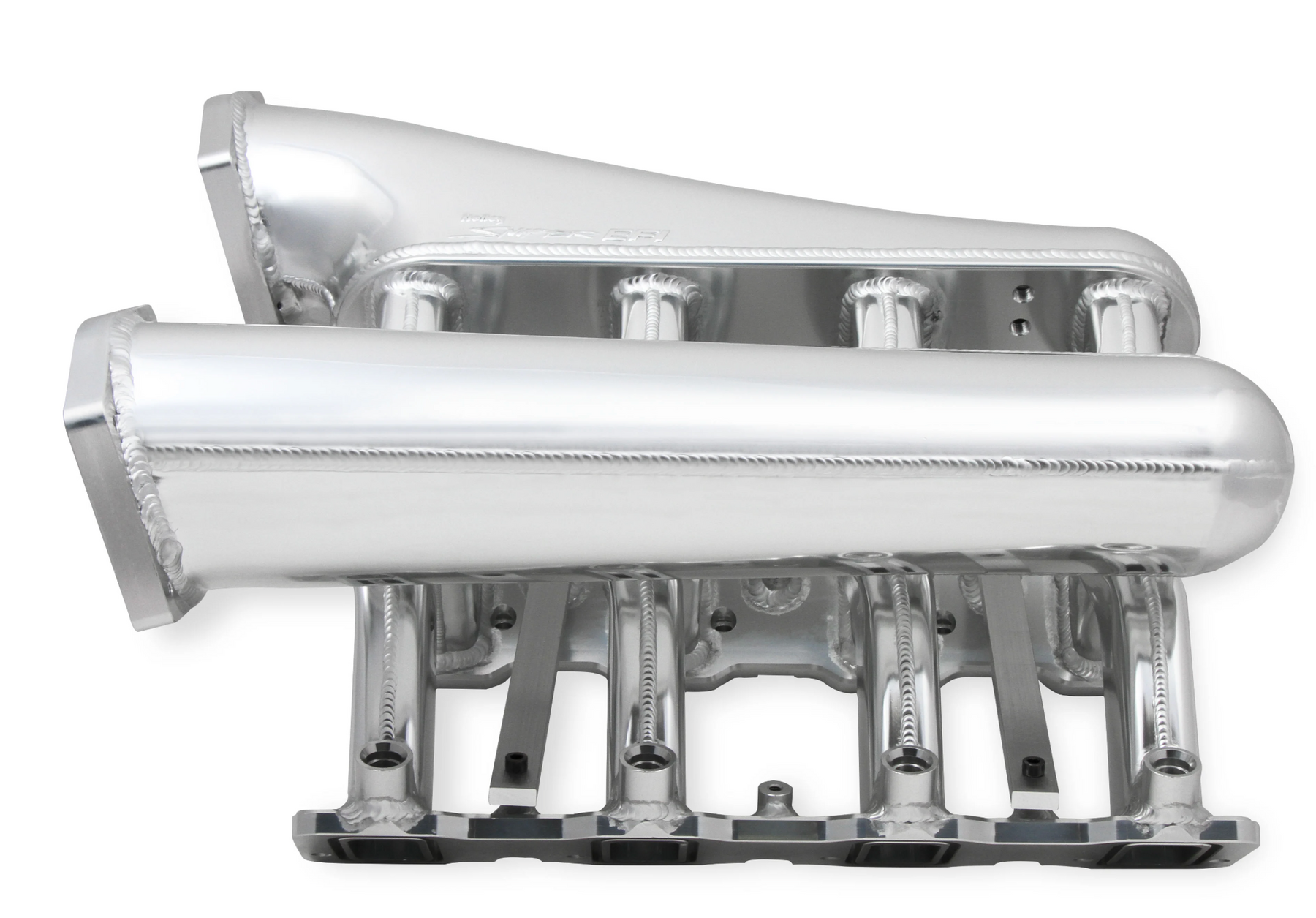

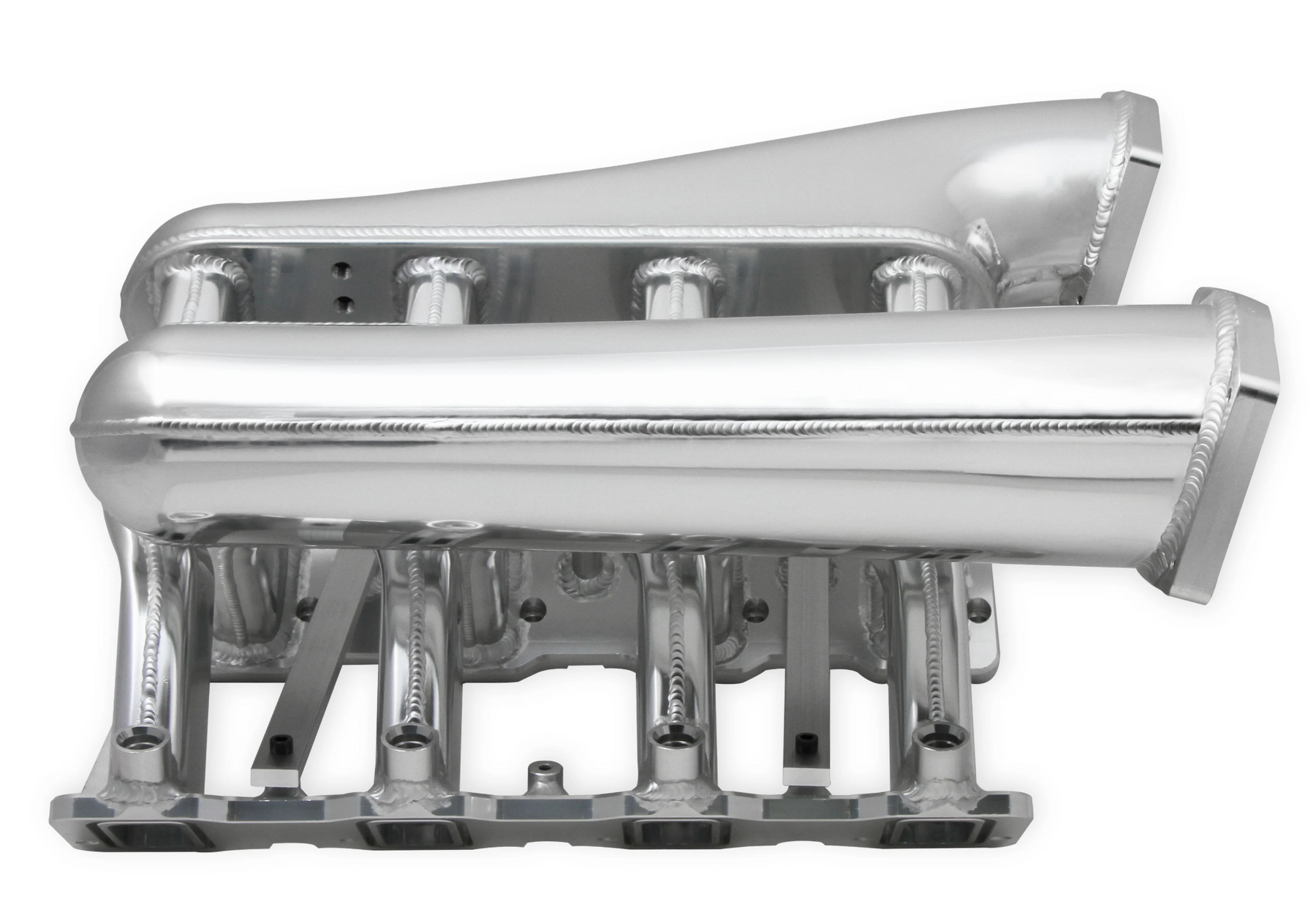

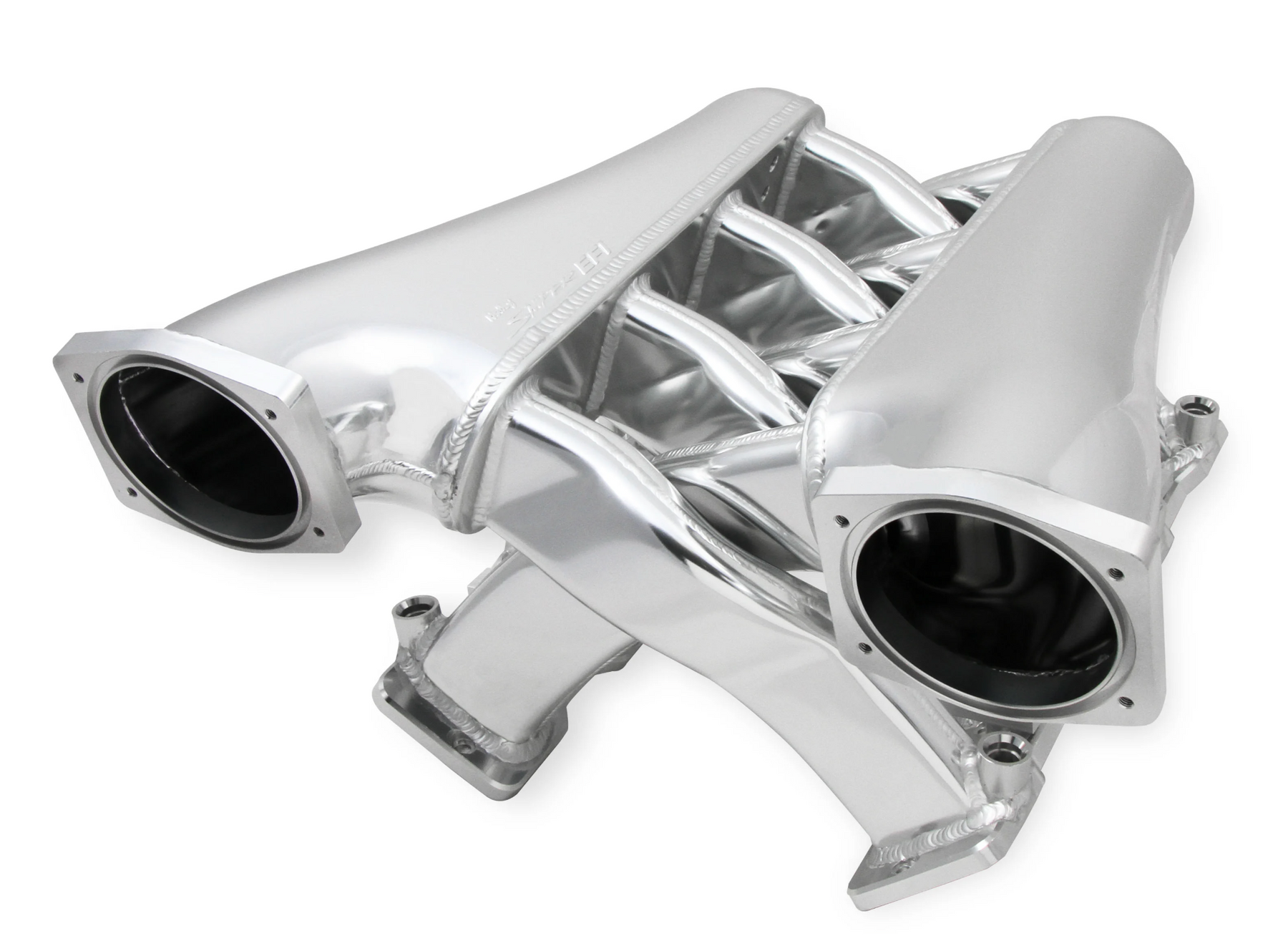

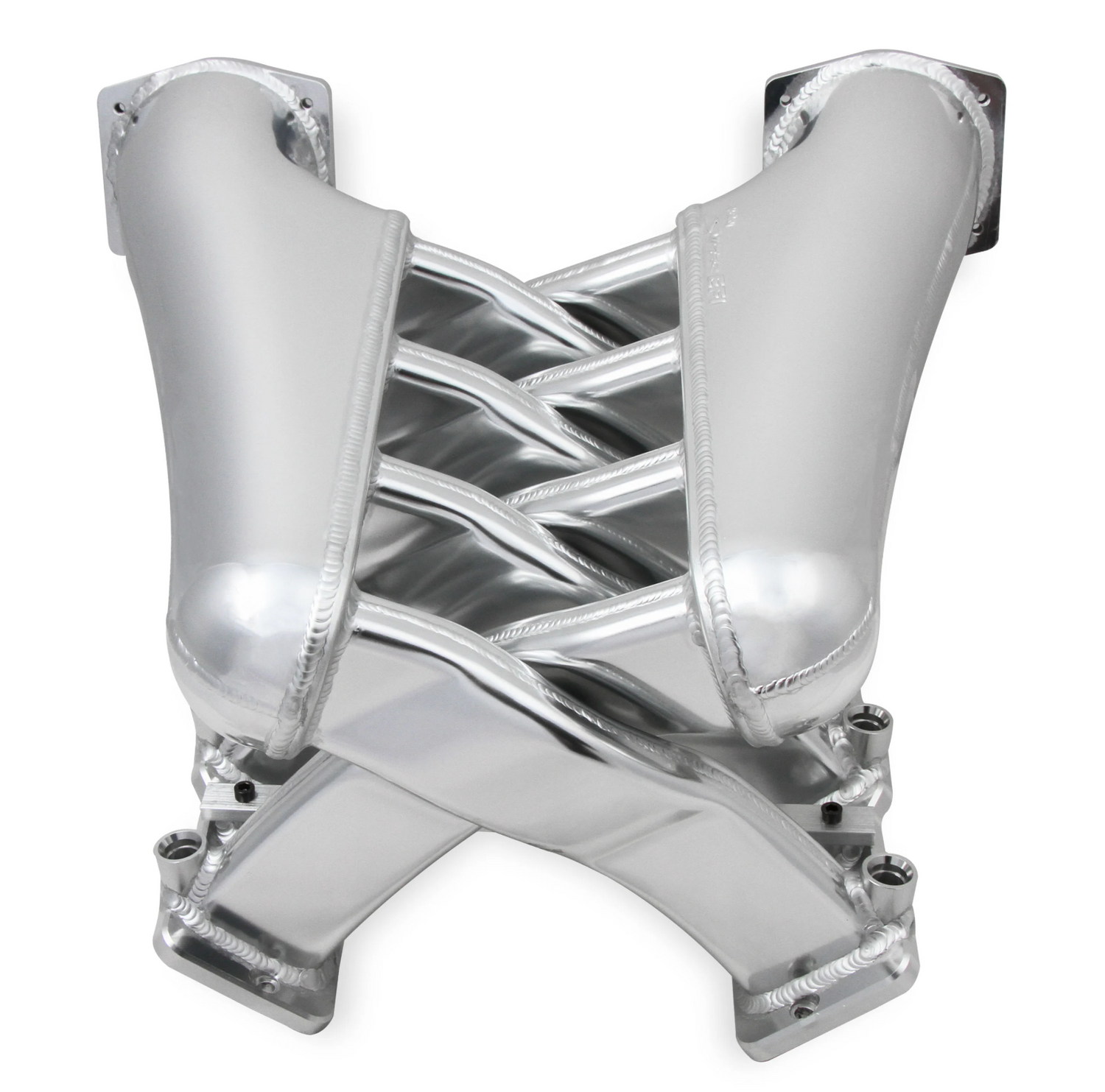

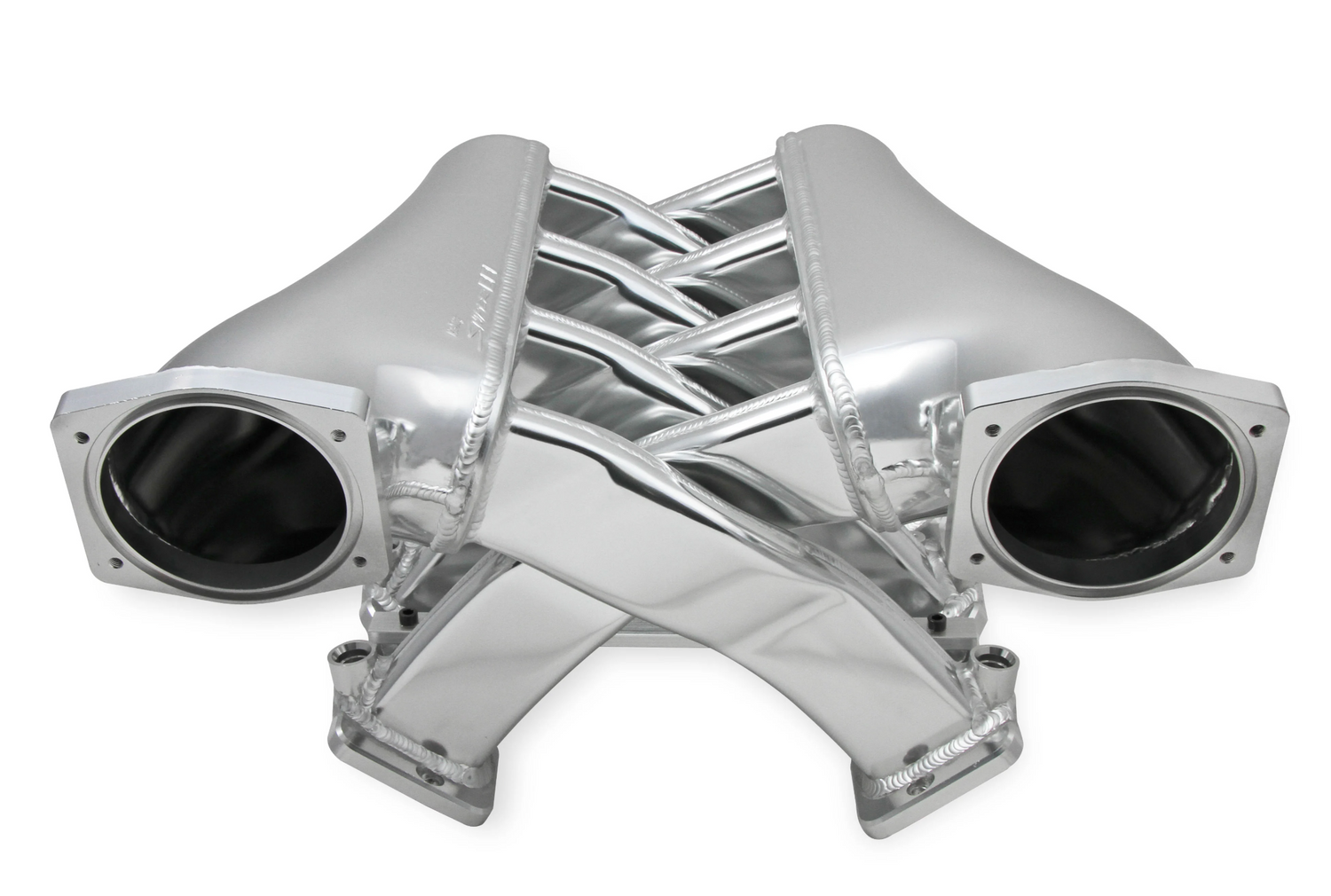

Holley continues to push the envelope of intake design with its latest offering. The unique look of this intake will surely stand out from the crowd! Our latest release of fabricated "Dual Plenum" intake manifolds for GM LS1/2/6 and LS3/L92 engines. This unique design of utilizing two plenums solves two common problems experienced with many intakes increased airflow and even dispersion of air to intake ports. The use of one tapered plenum to accommodate one bank of cylinders accomplishes both problems. The entire volume of incoming air is distributed to only four cylinders and the tapered shape of the plenum help increased air velocity directed to each of the intake runner ports. Our dual plenum design features extremely long 12-3/4" runners to develop low-end torque making this intake an ideal "street" intake. These intake are finished in our familiar silver and black anodized finishes for durability and good looks. Our 3/8" fuel rail kit include a laser engrave Sniper logo and are capable of supporting 750+ horsepower.
-
Silver finish creates high impact under-hood styling
-
3mm (1/8") thick T6061 sheet aluminum construction for maximum durability
-

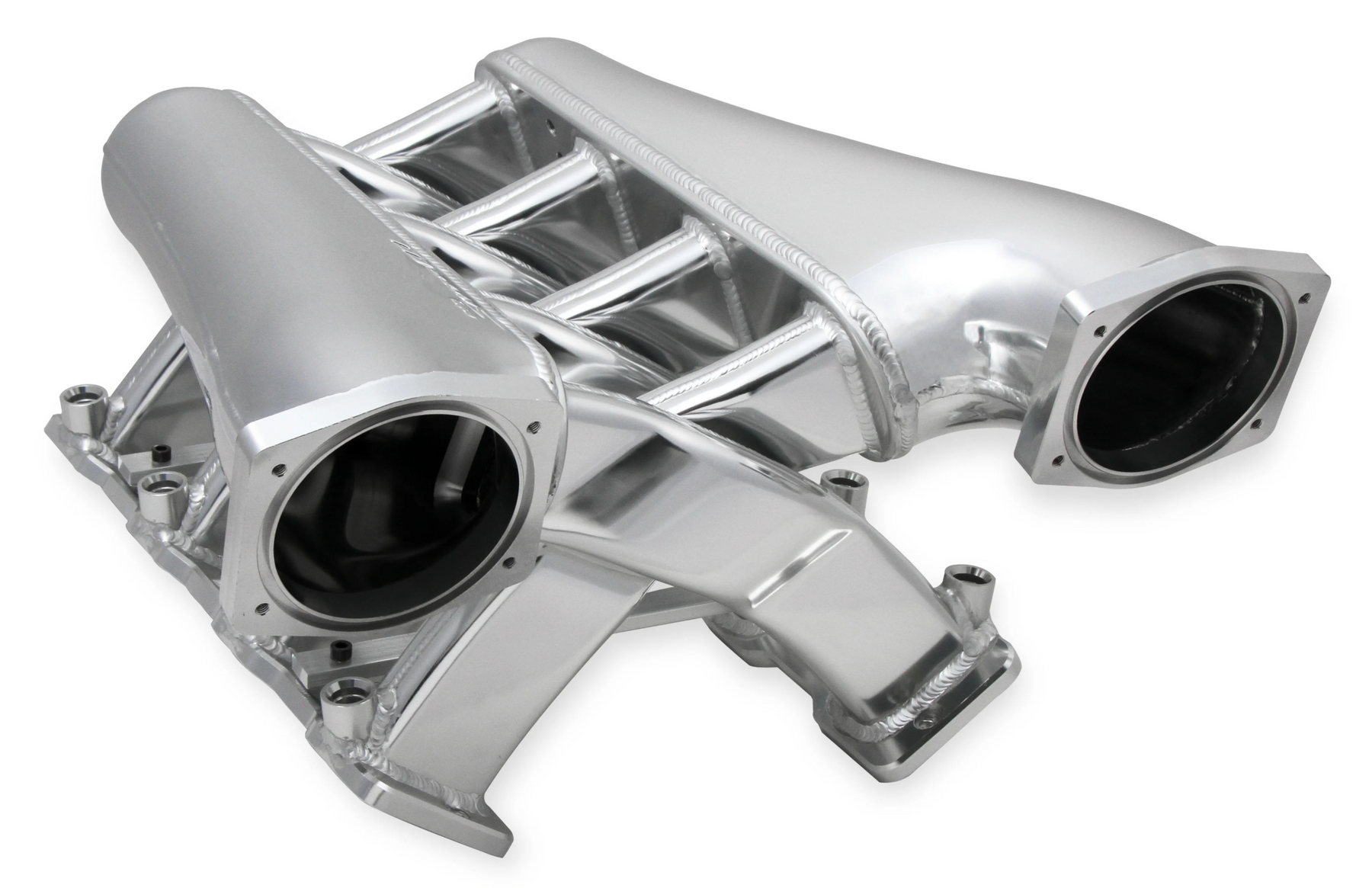

Twin 102mm throttle bore openings for increased air flow
-

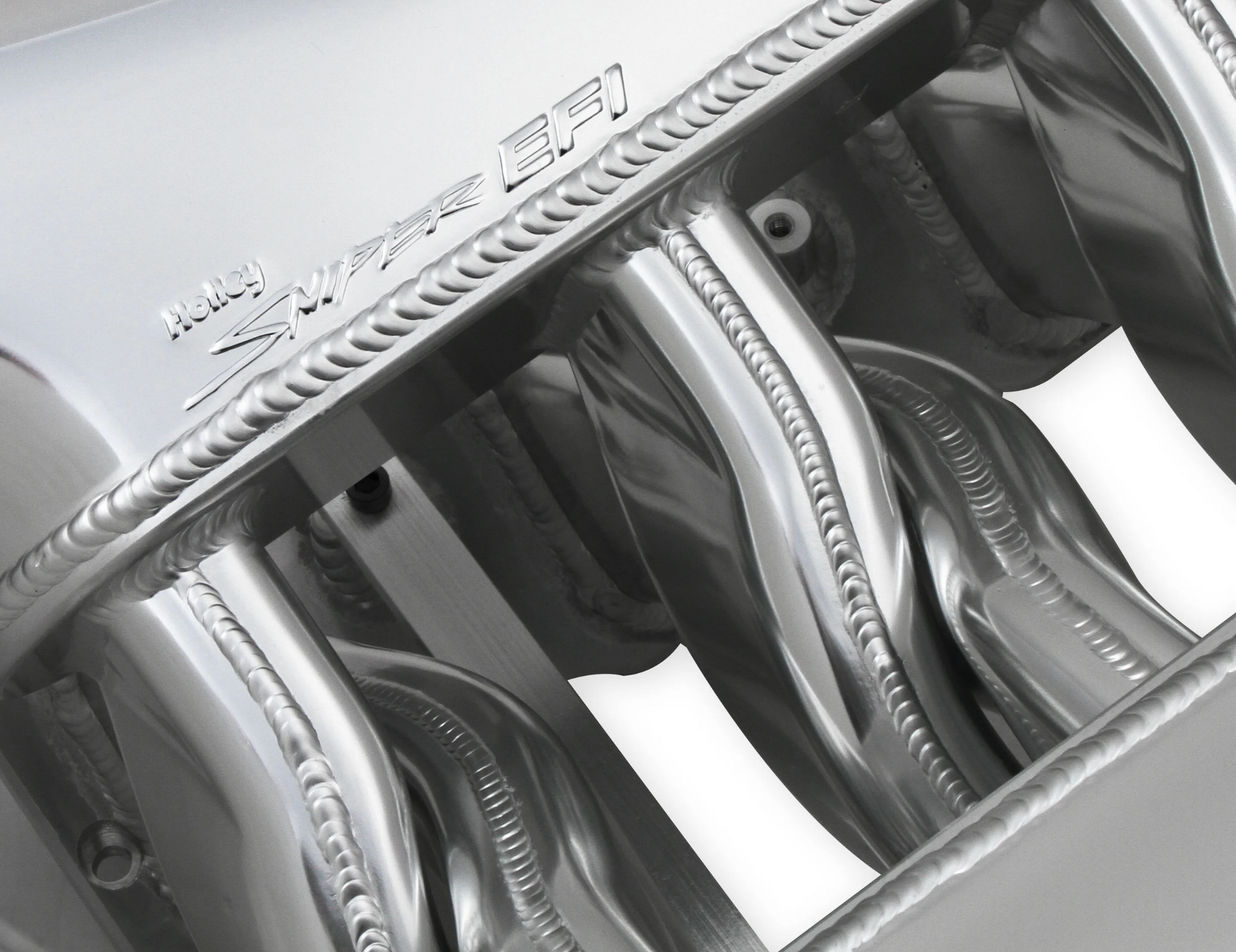

100% TIG welded for strength and durability
-

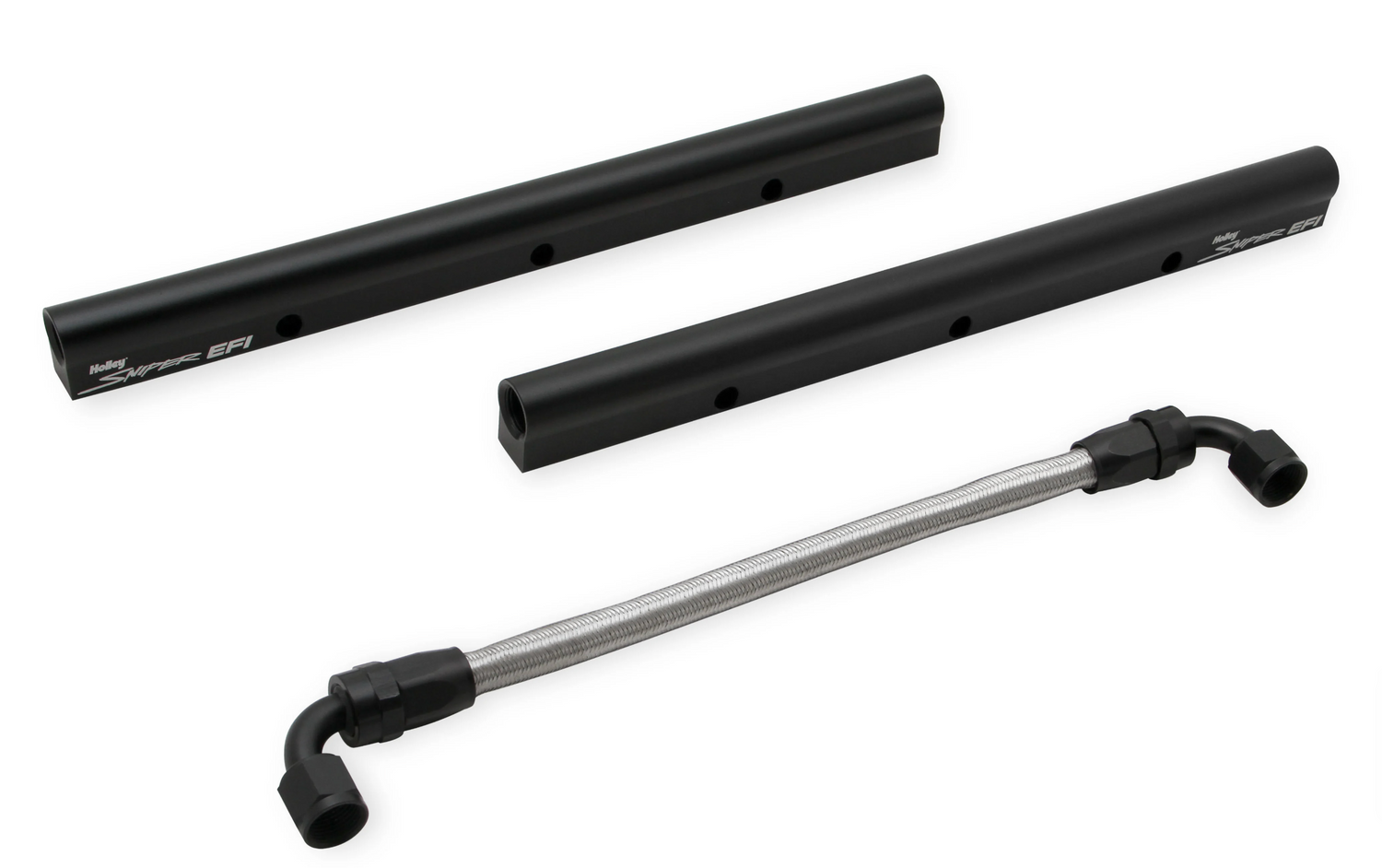

Includes 3/8" Fuel rail kits (Sniper logo laser engraved)
-

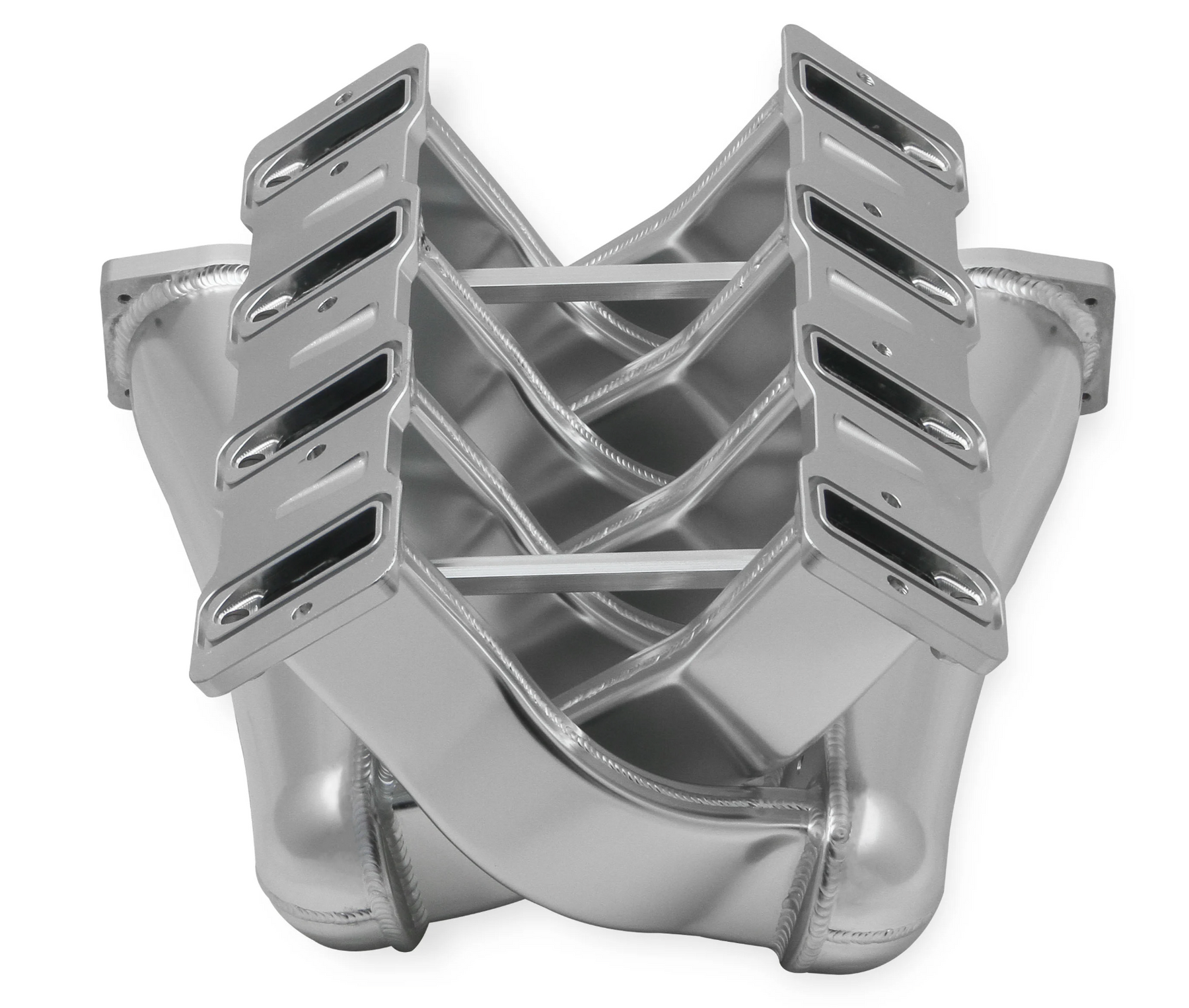

Long Intake runner lengths (12.75 inches ) offering low end torque and operating range of 1600-6800 RPM
-
Intake runners with tapered top is designed to increase air velocity and more evenly distribute airflow to all 8 cylinders improving performance and throttle response
-
Dual plenum design ideal for street max effort engines and boosted applications
-
Long Intake runner lengths (12.75 inches) offering low end torque and operating range of 1600-6800 RPM
-

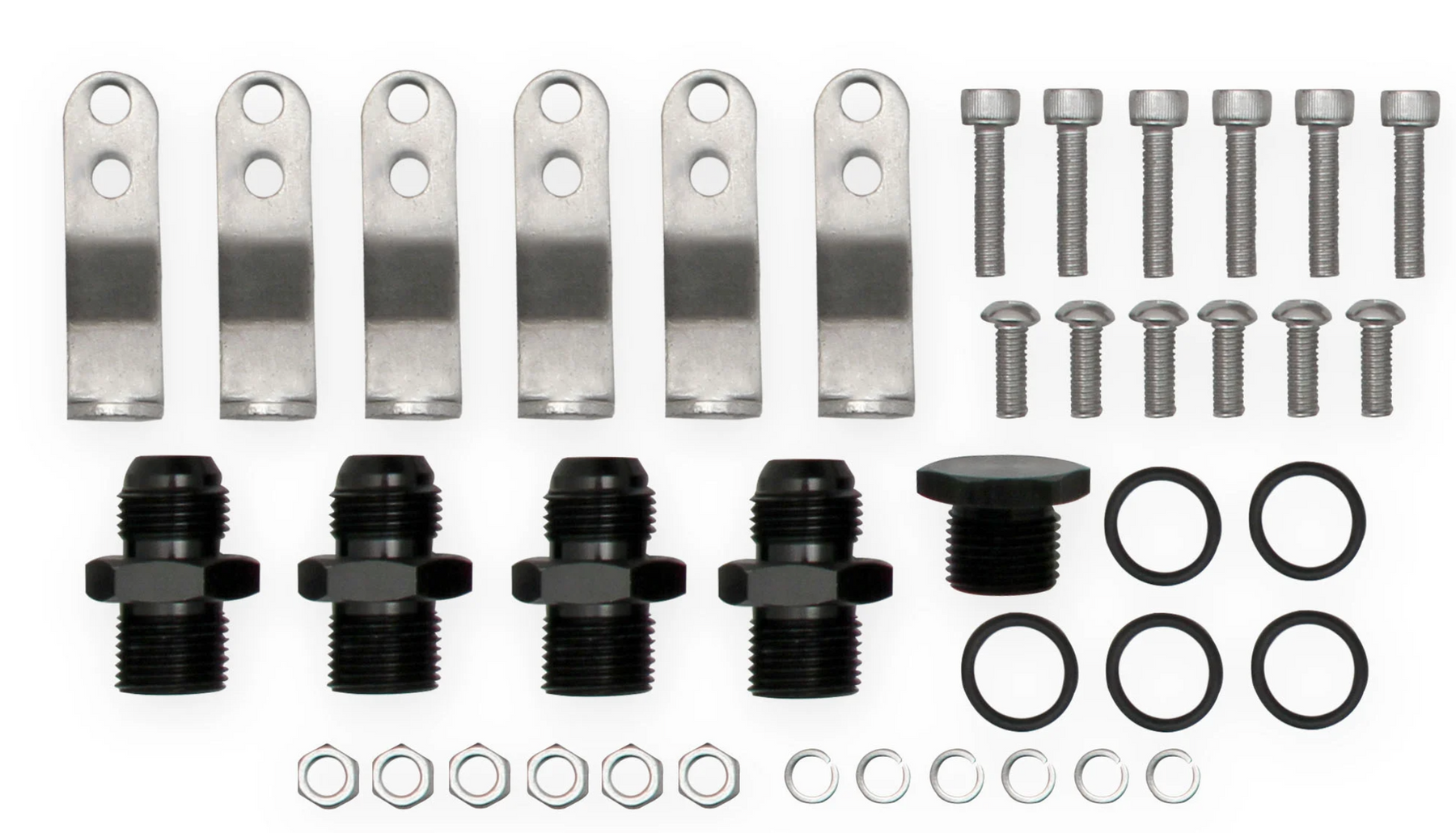

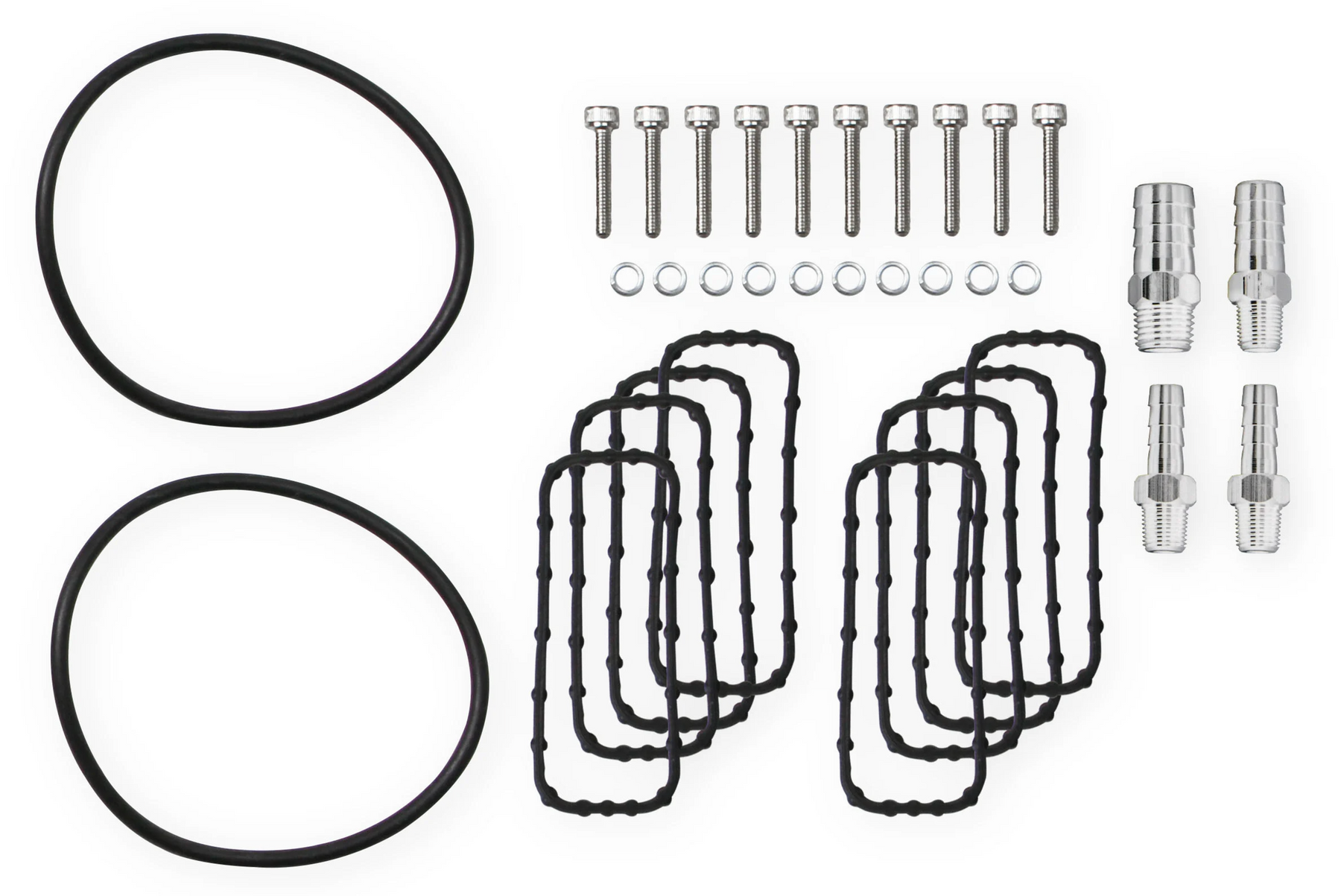

Product includes all gaskets and hardware for a hassle-free installation
Basic Operating RPM Range |
1500-6500 RPM |
|---|---|
Brand |
Holley Sniper EFI |
Category Filter |
Intake Manifolds |
Clearance Category |
Intake Manifolds |
Color |
Polished |
Construction |
Fabricated |
EGR Port |
No |
Emission Code |
4 |
Engine |
GM LS1/LS2/LS6 |
Finish |
Silver |

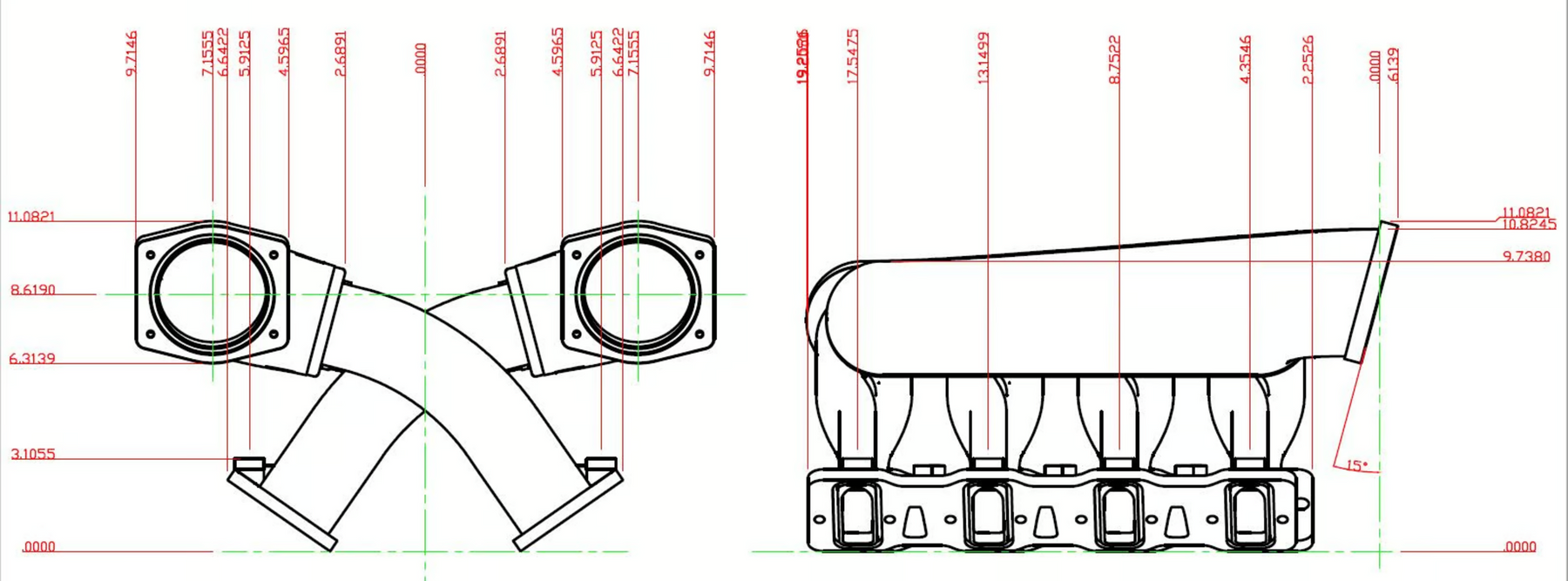

Front Height |
11.082 inch |
Front Maximum Height |
11.802 IN |
Front Width |
19.4292 inch |
Fuel Injectors Included |
No |
Fuel System Type |
EFI |
Injector Style Provision |
LS1/LS6 EV1 Jetronic, LS2 EV6 USCAR |
Manifold Type |
Fabricated |
Material |
Aluminum |
Nitrous Bung(s) Included |
No |
Plenum Finish |
Polished |
Product Type |
Intake Manifold |
Rear Height |
9.738 inch |
Rear Maximum Height |
9.738 IN |
Rear Width |
13.2844 inch |
Recommended Use |
Forced Induction |
Removable Runners |
No |
Removable Top/Lid |
No |
RPM Power Band |
1500-6500 RPM |
Runner Length |
4.921" (125mm) |
Sale Category |
Air and Fuel Delivery |
Single Or Dual Plane Type |
Single Plane |
Style |
EFI |
Throttle Body Bore Diameter |
102 MM |
Throttle Body Included |
No |
Throttle Bore |
102mm |
Vacuum Ports |
(3) 1/8"-28BSPT & (1) 1/4"-19BSPT |
Warranty |
Limited 90 Day |
UPC |
090127038451 |
Part Number |
820241 |
