This model of carburetor has the square bore flange bolt pattern. It can replace Holley, Edelbrock, Carter AFB, and Autolite style carburetors with 5 3/16" x 5 5/8" bolt pattern. If you have a spreadbore style intake manifold, you will need an adapter to install this carburetor. Similar to the Mr. Gasket #1932.

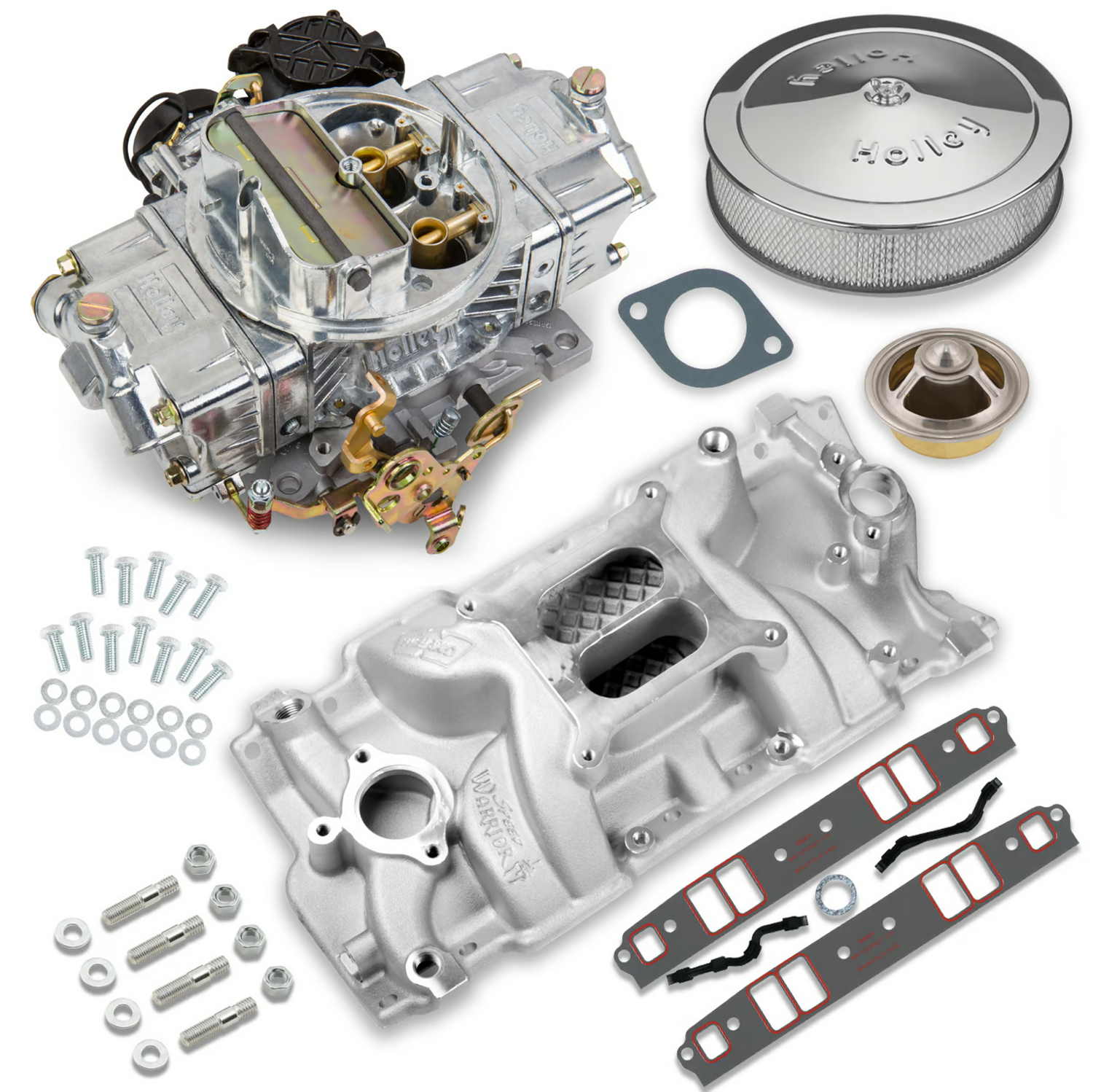

We have combined the Street Avenger carburetor and intake manifold into a kit form that includes all of the gaskets, bolts, and an air cleaner for a complete installation. Street Avenger carburetors are known to bolt on right out of the box and have great features such as a quick change vacuum secondary for easy fine tuning; optimized street calibrations; four vacuum ports for all necessary vacuum accessories; factory preset electric choke for easy start ups; built-in fuel filters; and an included fuel line kit so there are no unnecessary trips back to the parts store. The Avenger series are the first carburetors to have a limited lifetime warranty. With a great warranty like that and the included comprehensive instruction manual, you can count on years of worry free service.
-
Vibratory polished for good looks
-
Optimized street calibration that works-out-of-the-box
-
Factory preset electric choke for easy startups
-
Vacuum secondaries allow use on a wide variety of vehicles. Quick Change vacuum housing cap allows you to tune for performance or fuel economy (springs included)
-
Compatible with GM, Chrysler, and Ford A/T kickdown linkage. Additional parts may be required.
-
Fuel line kit included so there are no unnecessary trips back to the parts store
-
Limited lifetime warranty - Guaranteed to be free from defects in material and workmanship for the life of the product!
-
100% wet-flow tested by Holley technicians to assure it arrives ready to run!
Application |
Small Block Chevy |
|---|---|
Barrels |
4 |
Booster |
Straight |
Brand |
Holley |
Carburetor Use |
Street |
CFM |
770 |
Choke |
Electric |
Emission Code |
3 |
Finish |
Shiny |
Fuel |
Gasoline |
Fuel Inlet |
Dual |
Material |
Zinc |
Model |
4150 |
Primary Main Jet |
72 |
Primary Power Valve |
6.5 |
Primary Pump Nozzle Size |
25 |
Product Type |
Carburetor |
Secondaries |
Vacuum |
Secondary Main Jet |
75 |
Supercharged Application |
No |
Throttle Bore |
1.688 inch |
Vacuum Ports |
1 timed (spark) port, 2 full, and 1 PCV port |
Part Number |
VK060054 |
