Compatible: (5.7L/6.1L/6.4L)
2005 - 2023 Chrysler 300
2008 - 2023 Dodge Challenger
2006 - 2023 Dodge Charger
2005 - 2023 Dodge Durango
2005 - 2008 Dodge Magnum
2003 - 2010 Dodge Ram 1500/2500/3500
2011 - 2023 RAM 1500
2011 - 2023 RAM 2500
2011 - 2023 RAM 3500
2005 - 2023 Jeep Grand Cherokee
Gauge ports can be used as fuel feed connection with NOS P/N 17015NOS
Rail feed from factory line can also be accomplished with P/N 534-211

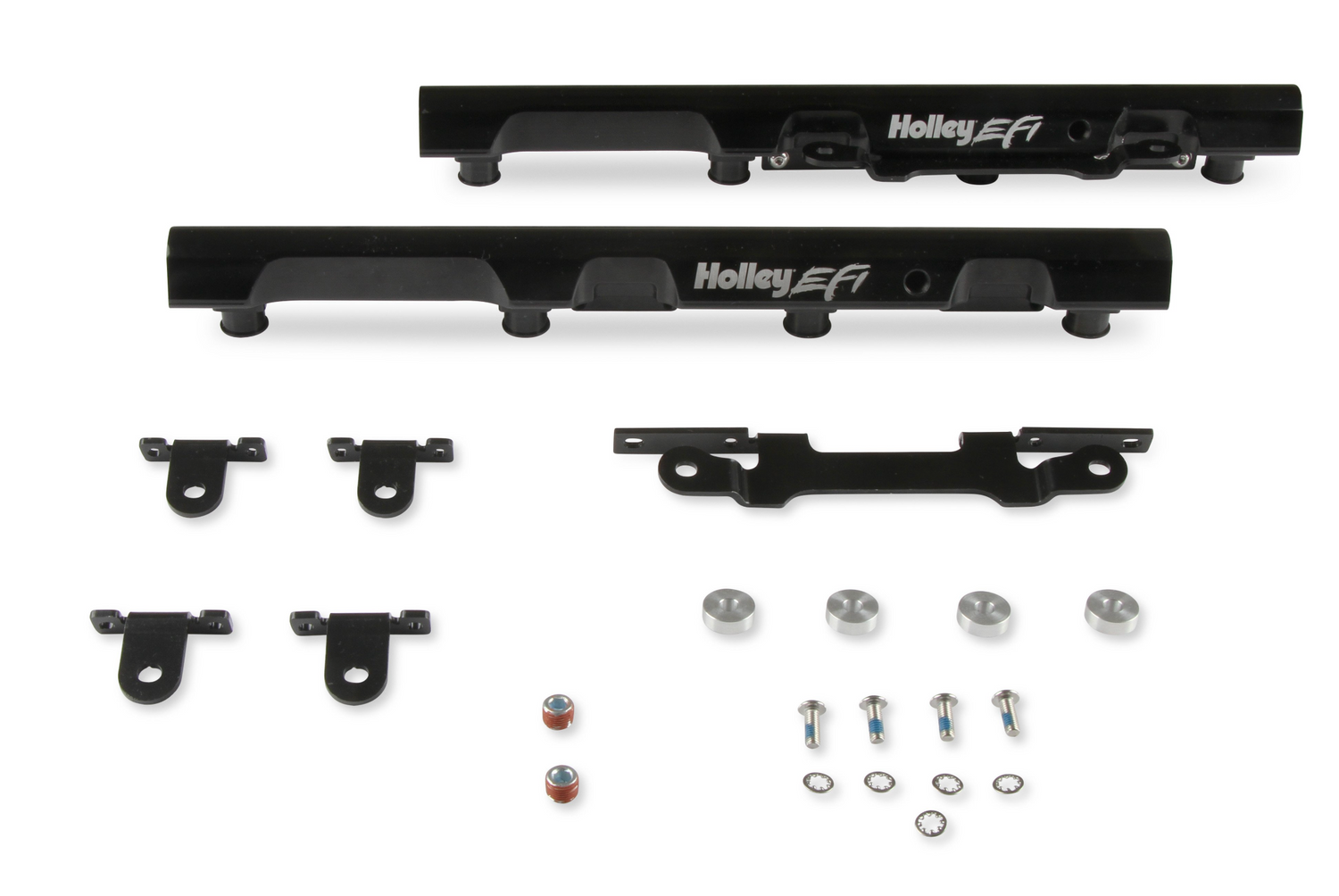

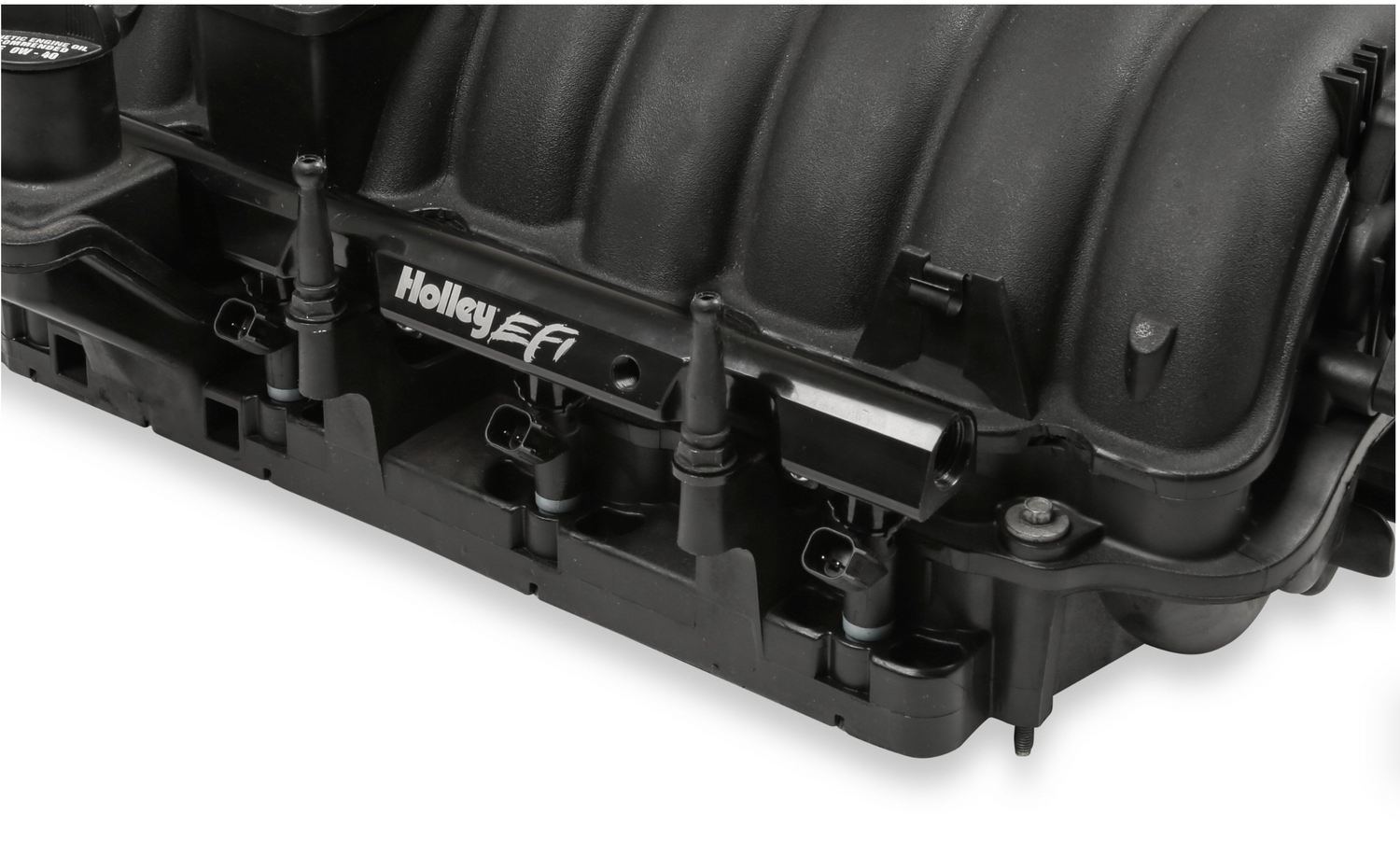

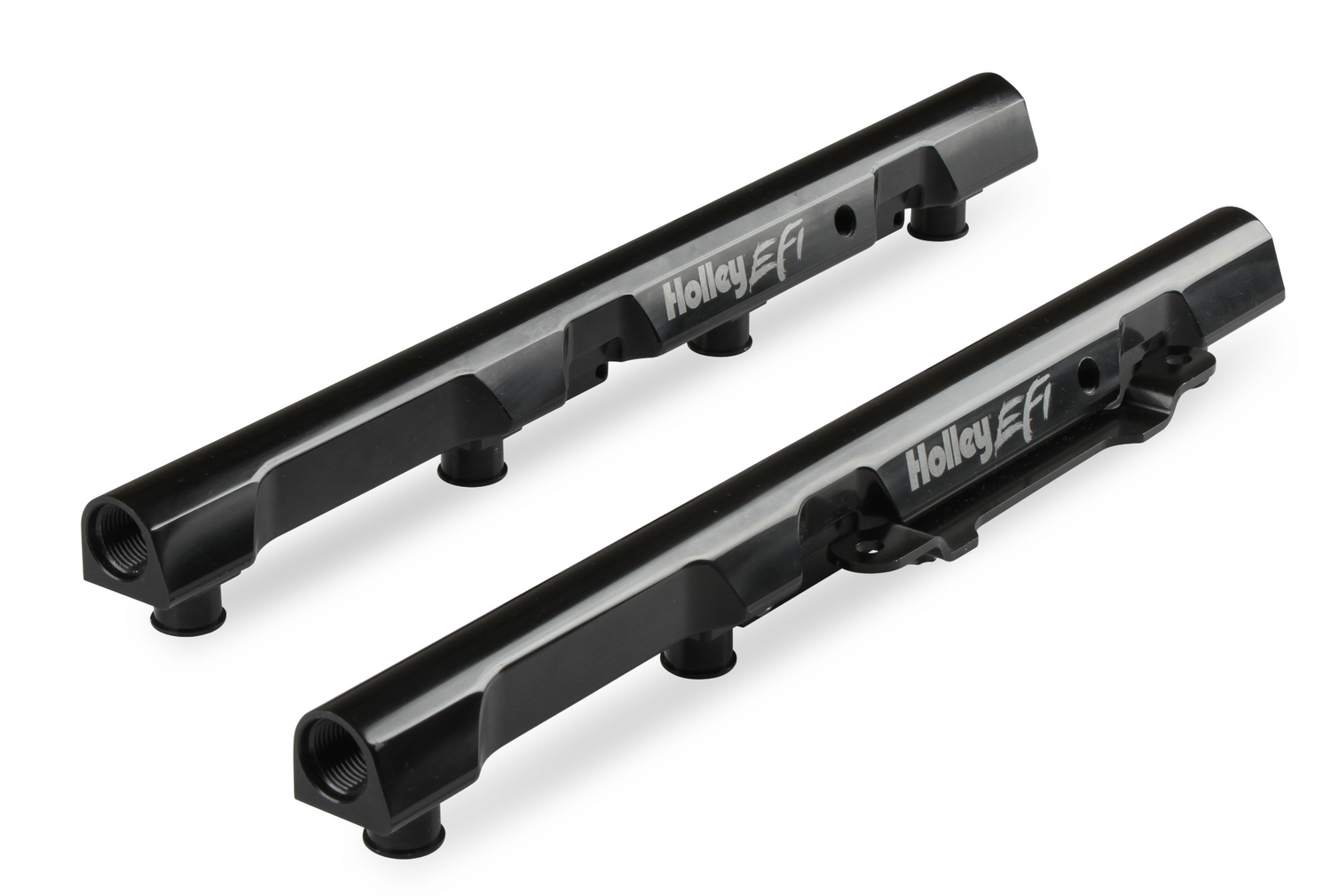

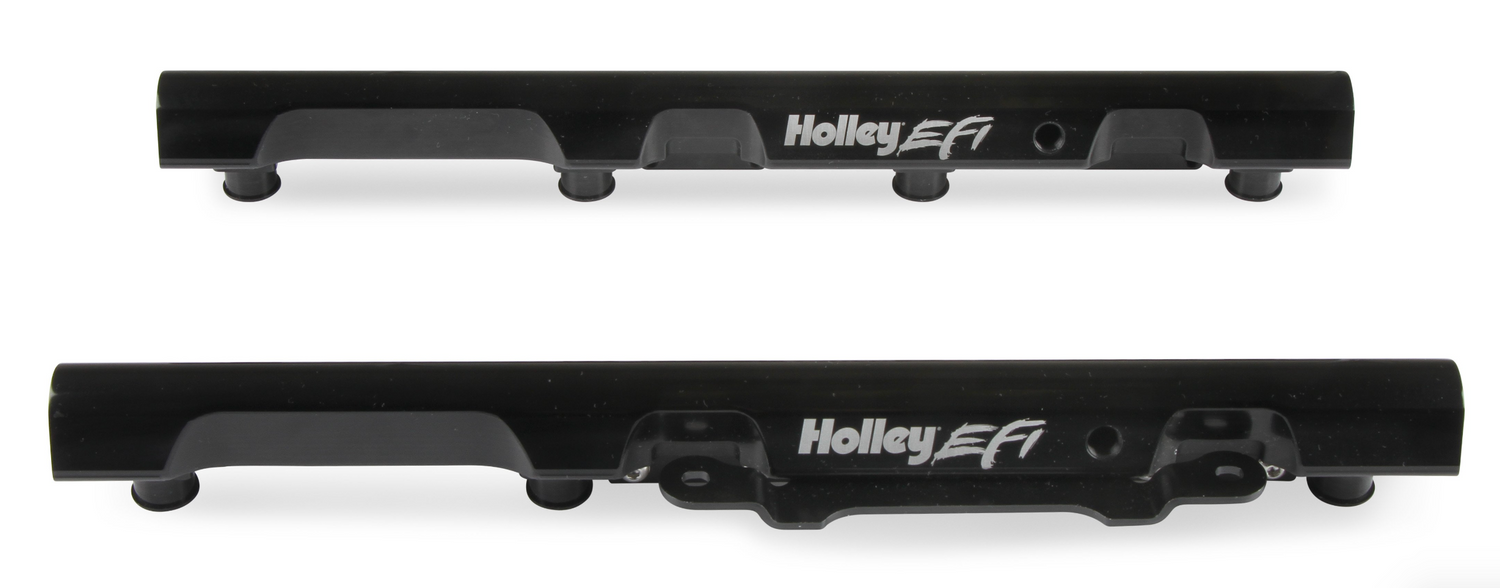

The new Hi-Flow billet fuel rails are a direct fit for naturally aspirated Gen III Hemi engines including the 5.7L, 6.1L, and the 6.4L from 2003-2021. The fuel rails feature a 5/8" diameter fuel passage that provides more flow capacity for high horsepower applications over the stock rails. The black anodized rails have -8 ORB ports on each end and an 1/8" NPT port for a fuel gauge installation if you choose to do so. The rails are designed with the factory injector clip reliefs so that your factory injectors and retaining clips can be reused. The kit includes fuel rails, mounting brackets and required mounting hardware.
-

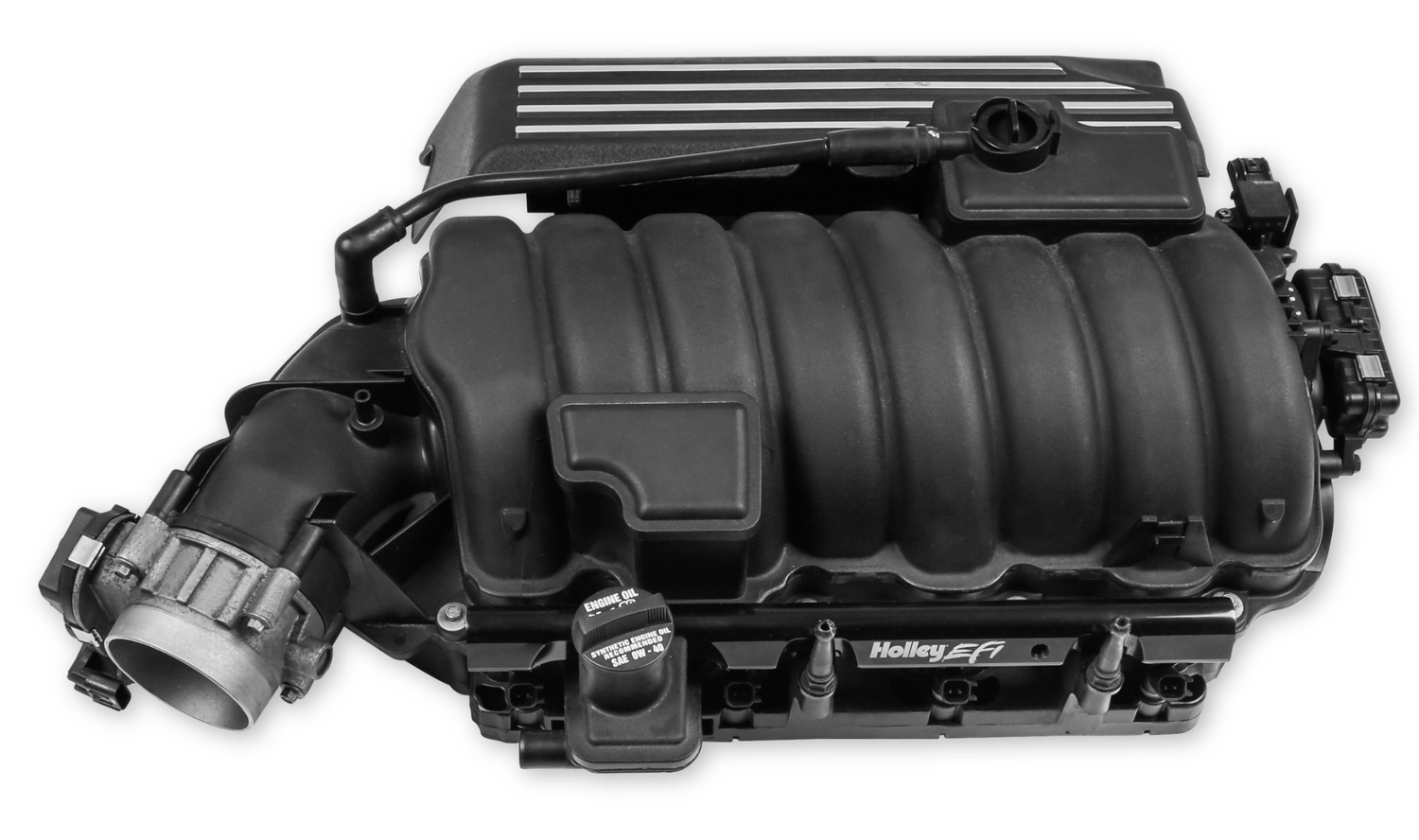

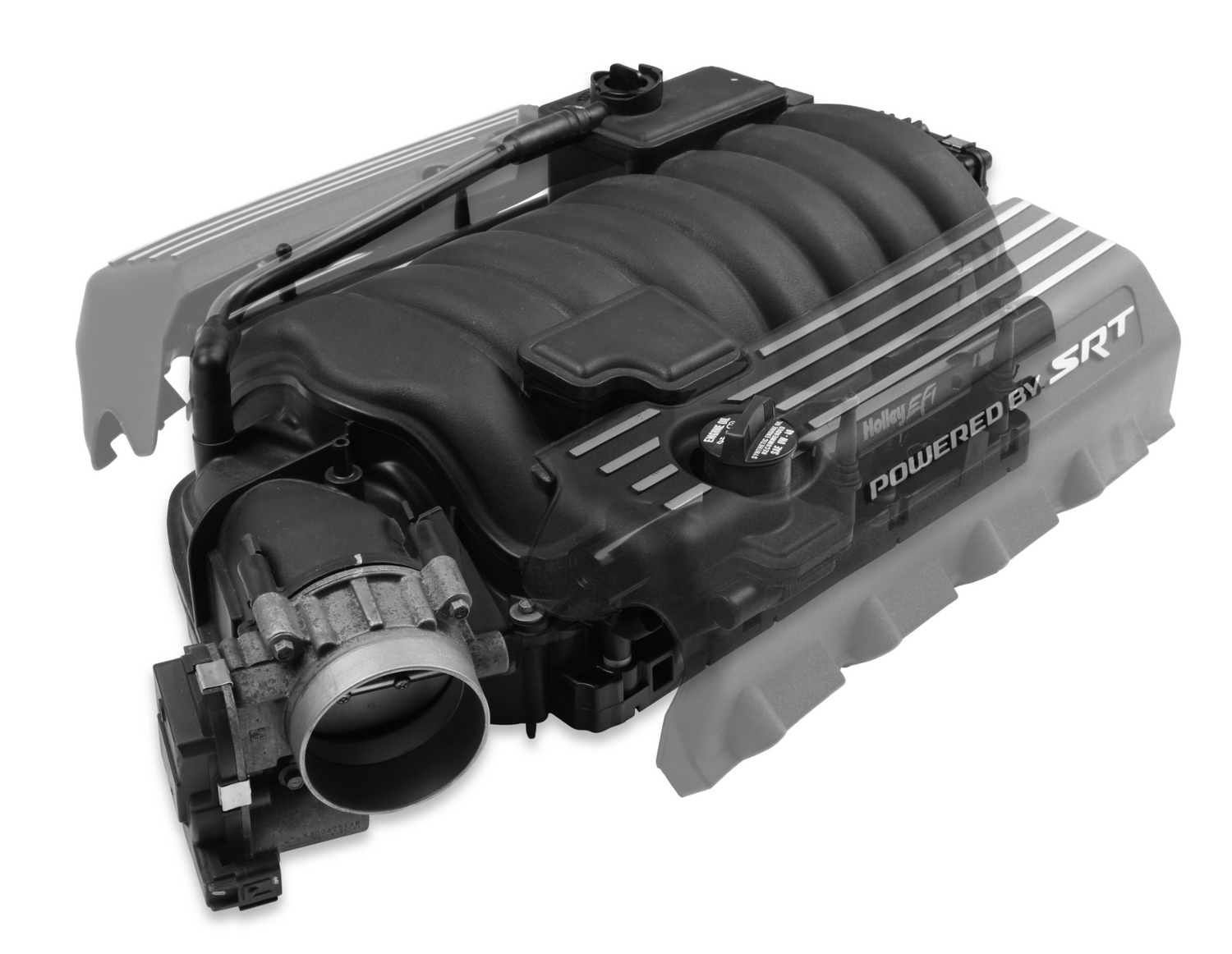

Direct fit for naturally aspirated Gen III Hemi engines including the 5.7L, 6.1L, and the 6.4L engines
-
Machined Billet extrusions with laser etched “Holley EFI” Logo
-
Injector Clip feature retained so factory injector clips can be re-used. This is important as the clips locate the injector radially for proper injector spray pattern onto valves.
-
-8 ORB ports front and back
-
1/8 NPT gauge ports machined directly into rail
-
Mounting brackets and hardware included
Brand | Holley EFI |
---|---|
Emission Code | 5 |
Engine | GEN 3 HEMI |
Material | Aluminium |
Product Type | Fuel Rail |
UPC | 090127108536 |
Part Number | 534-284 |
Install Guide:
Warranty:
