Holley®  |  SKU: 860010

Holley® #860010 Ford Coyote Sniper EFI 90mm Throttle Body

PLEASE CONTACT SUPPORT TO CONFIRM INVENTORY

$368.95
Shipping calculated at checkout.

Question? Call us at (888) 257-1077 🏁 (M-F 9-5 ET)

Email: info@10SecondRacing.com (24/7)

Free Shipping to Lower 48 US States ($100+)

Worldwide Shipping via UPS (Check Rates at Checkout)

Description

COMPATIBLE: (5.0L - COYOTE)

2011 - 2024 FORD MUSTANG GT

2011 - 2024 FORD F-150



Will need to use 543-105 for IAC sensor and 870001 for TPS sensor listed under Parts & Kits tab. IAC motor attaching hardware : requires (2) 8-32 UNC screws TPS sensor attaching hardware: requires (2) M4 x 0.7 screws

Sniper EFI's new 90mm billet aluminum throttle bodies are designed as a direct fit for the Fabricated Race intake manifolds. Don't let the low price fool you, these are feature packed throttle bodies available in both bright silver or black anodized finishes. The enlarged bore sizes allow for increased airflow to support your higher horsepower needs, a progressive throttle pulley enhances low speed drivability and a double return spring provides solid and secure throttle control feel.

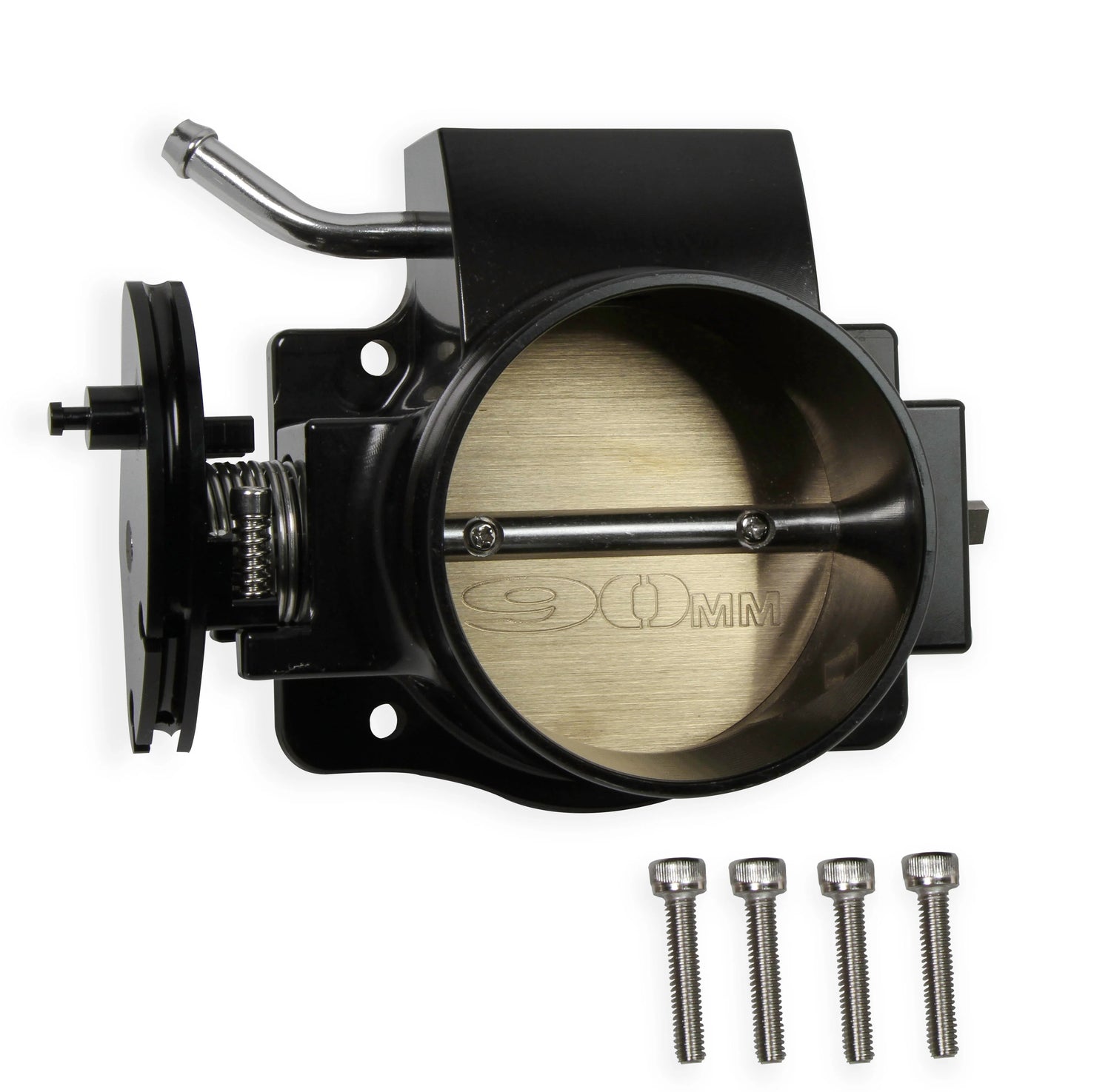

  • Cable operated throttle body available in 90mm opening

  • Adjustable throttle stop

  • High quality billet aluminum construction

  • Available in two finishes Silver or Black anodized

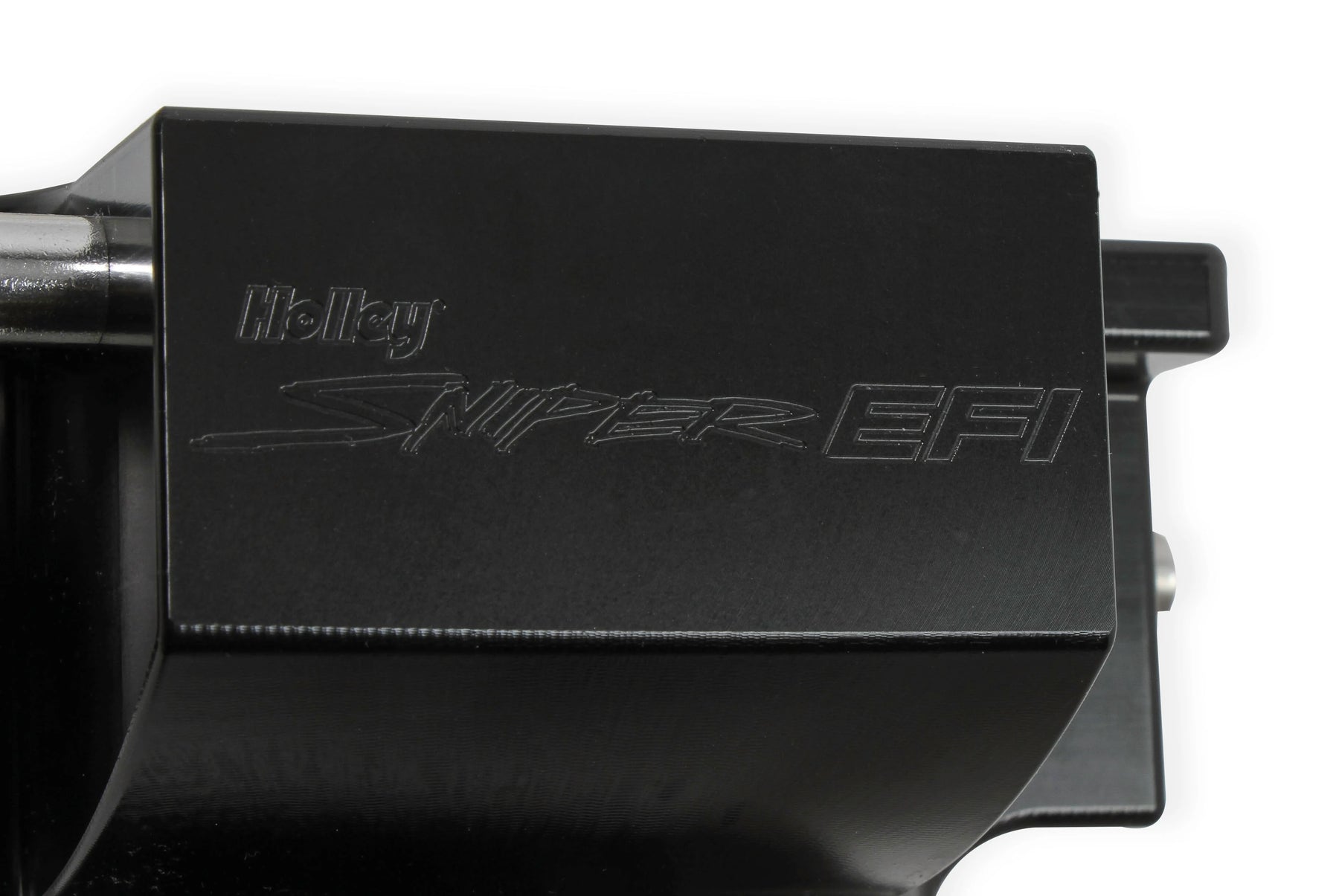

  • Laser engraved Sniper EFI logo

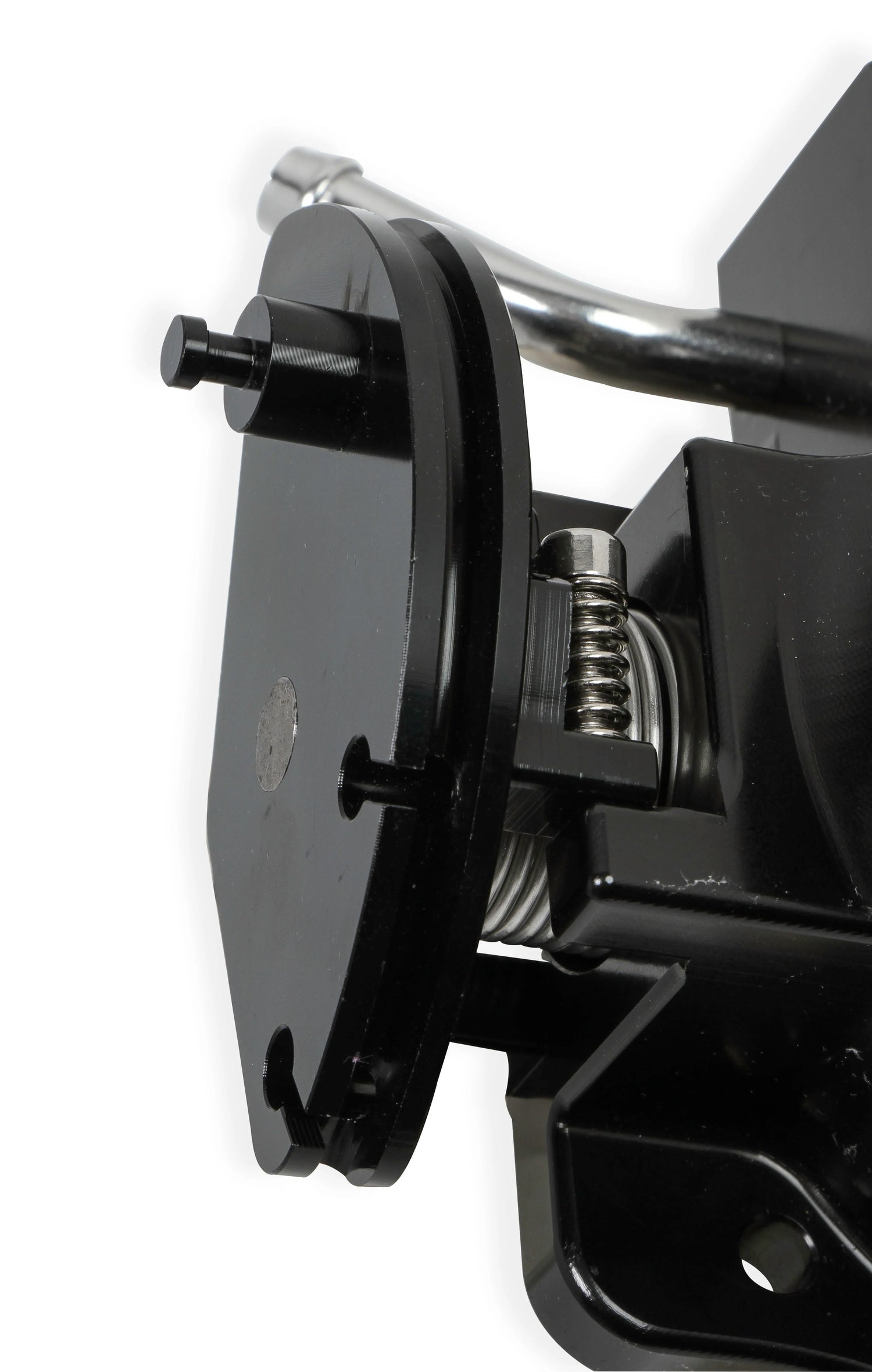

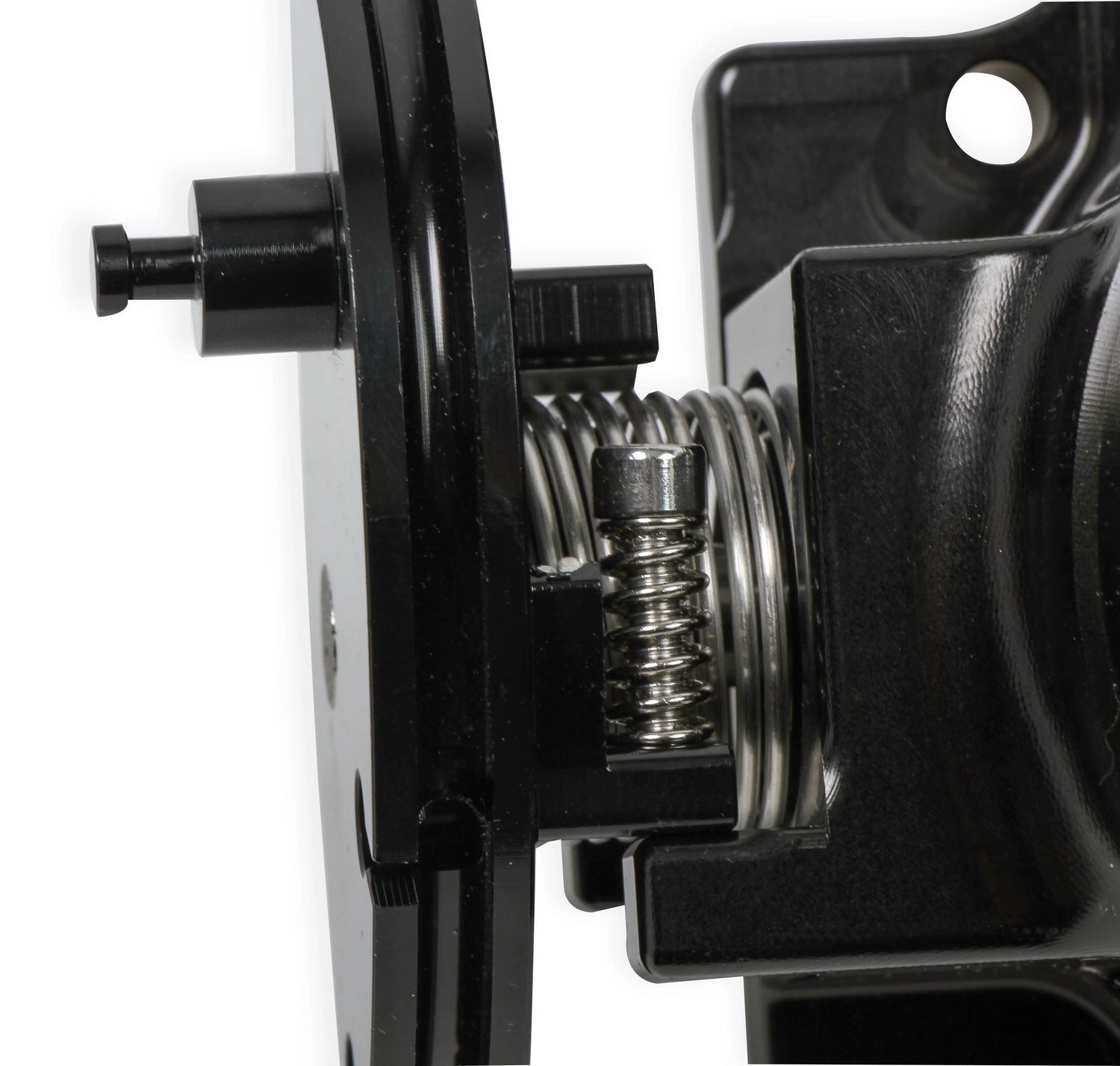

  • Progressive throttle pulley and double return spring

  • Mounting bolts included

  • Enlarged bore allows increased airflow to support higher horsepower requirements

  • Designed for us when installing an OEM throttle body for motor housing clearance or can be used as spacer on Sniper EFI intakes for increased horsepower and throttle response



Billet Color

Silver

Brand

Sniper

Category Filter

Intake Manifolds

Clearance Category

Intake Manifolds

Emission Code

8

IAC hardware specs

(2) 8-32 UNC

Material

Billet Aluminum

Product Type

Throttle Body

Throttle Bore

90mm

Throttle Diameter (mm)

90mm

TPS hardware specs

(2) M4 x 0.7

Transmission

N/A

Warranty

Limited 90 Day

UPC

090127001462

Part Number

860010
