Holley® #860007-1 GM LSx 90MM Throttle Body with GM IAC provision
Holley® #860007-1 GM LSx 90MM Throttle Body with GM IAC provision
Holley® #860007-1 GM LSx 90MM Throttle Body with GM IAC provision

860007-1

Holley® #860007-1 GM LSx 90MM Throttle Body with GM IAC provision

$349.95
/
Shipping calculated at checkout.
  • Question? Call us at (888) 257-1077 🏁
  • info@10SecondRacing.com
  • Free Shipping to Lower 48 US States ($100+)
  • Worldwide Shipping via UPS (Check Rates at Checkout)

    • This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

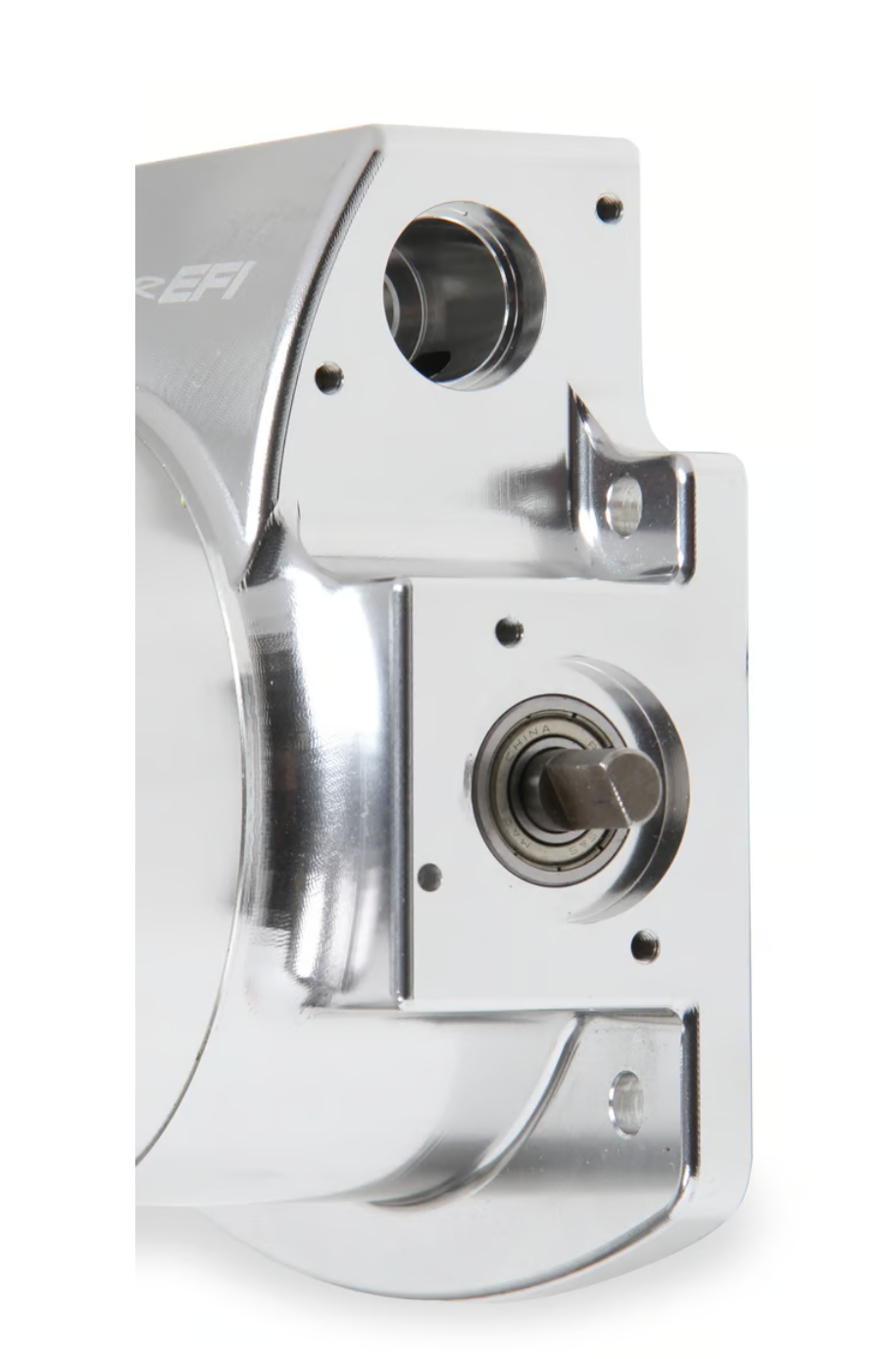

    Will need to use 543-34 for IAC sensor and 870001 for TPS sensor listed under Parts & Kits tab. IAC motor attaching hardware : requires (2) 8-32 UNC screws TPS sensor attaching hardware: requires (2) M4 x 0.7 screws

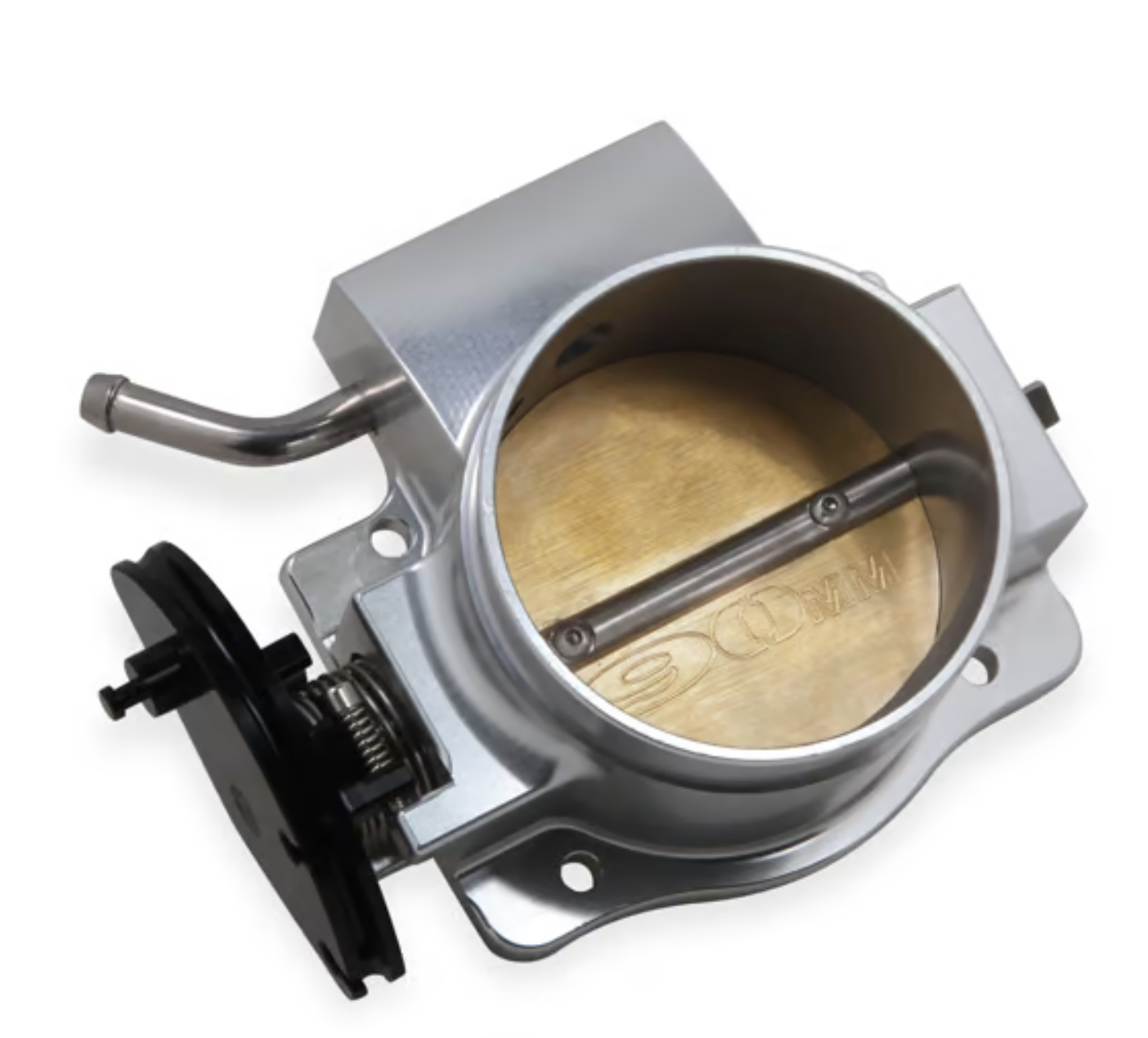

    Sniper EFI's new 90mm billet aluminum throttle bodies are designed as a direct fit for the Fabricated Race intake manifolds. Don't let the low price fool you, these are feature packed throttle bodies available in both bright silver or black anodized finishes. The enlarged bore sizes allow for increased airflow to support your higher horsepower needs, a progressive throttle pulley enhances low speed drivability and a double return spring provides solid and secure throttle control feel.

    • Cable operated throttle body available in 90mm opening

    • Enlarged bore allows increased airflow to support higher horsepower requirements

    • Built specifically for Sniper EFI Race intake manifolds

    • High quality billet aluminum construction

    • Choice of bright silver or black anodized finish

    • Laser engraved Sniper EFI logo

    • Progressive throttle pulley and double return spring

    • Adjustable throttle stop

    • 4-bolt style mounting pattern, bolts included

    Billet Color

    Silver

    Brand

    Sniper

    Clearance Category

    Air and Fuel Delivery

    Emission Code

    8

    IAC hardware specs

    (2) 8-32 UNC

    Material

    Billet Aluminum

    Product Type

    Throttle Body

    Sale Category

    Air and Fuel Delivery

    Throttle Bore

    90mm

    Throttle Diameter (mm)

    90mm

    TPS hardware specs

    (2) M4 x 0.7

    Transmission

    N/A

    Warranty

    Limited 90 Day

    UPC

    090127022689

    Part Number

    860007-1
