COMPATIBLE: (7.0L - LS7)
2014 - 2015 CHEVROLET CAMARO Z/28
2006 - 2013 CHEVROLET CORVETTE Z06

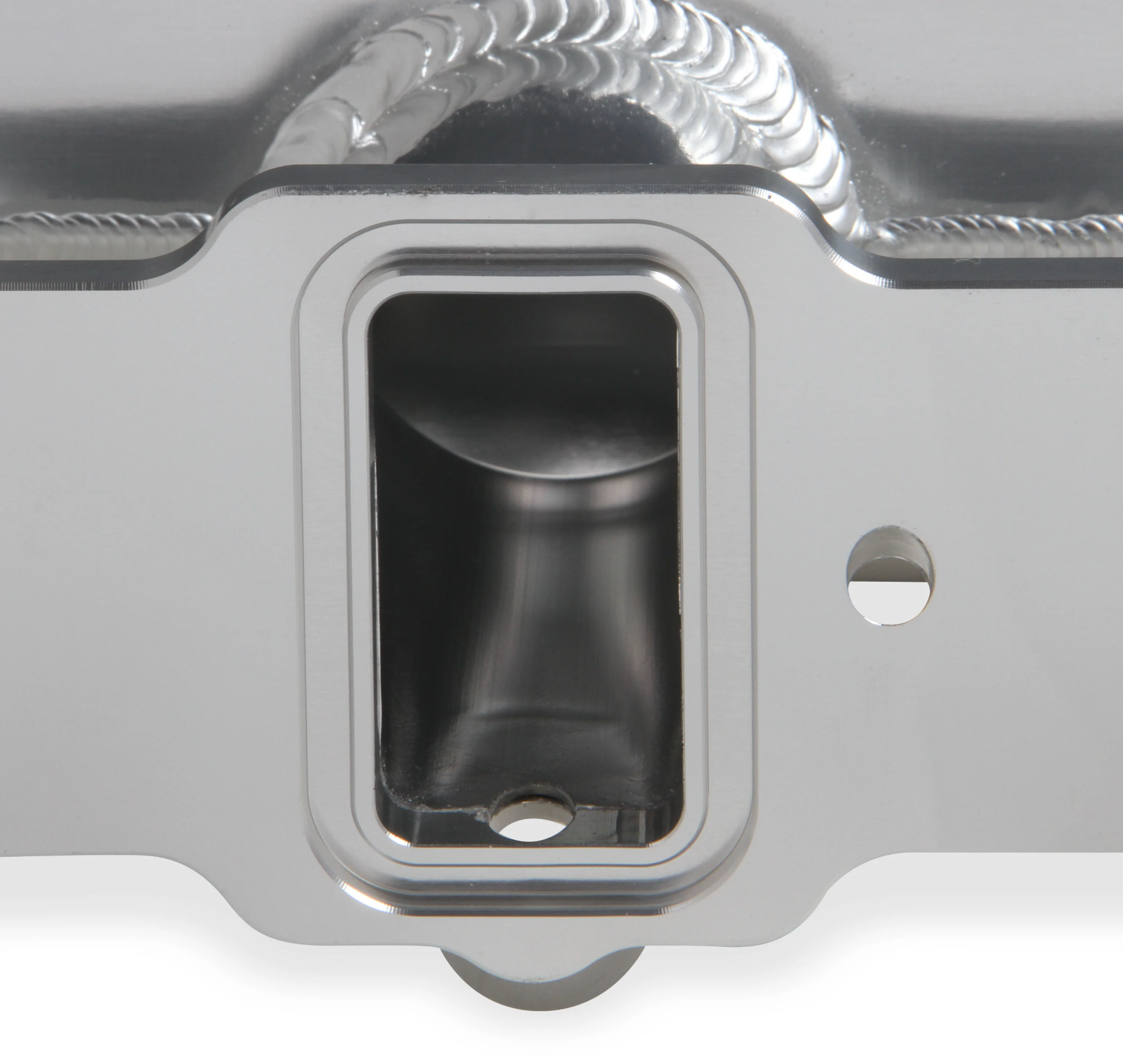

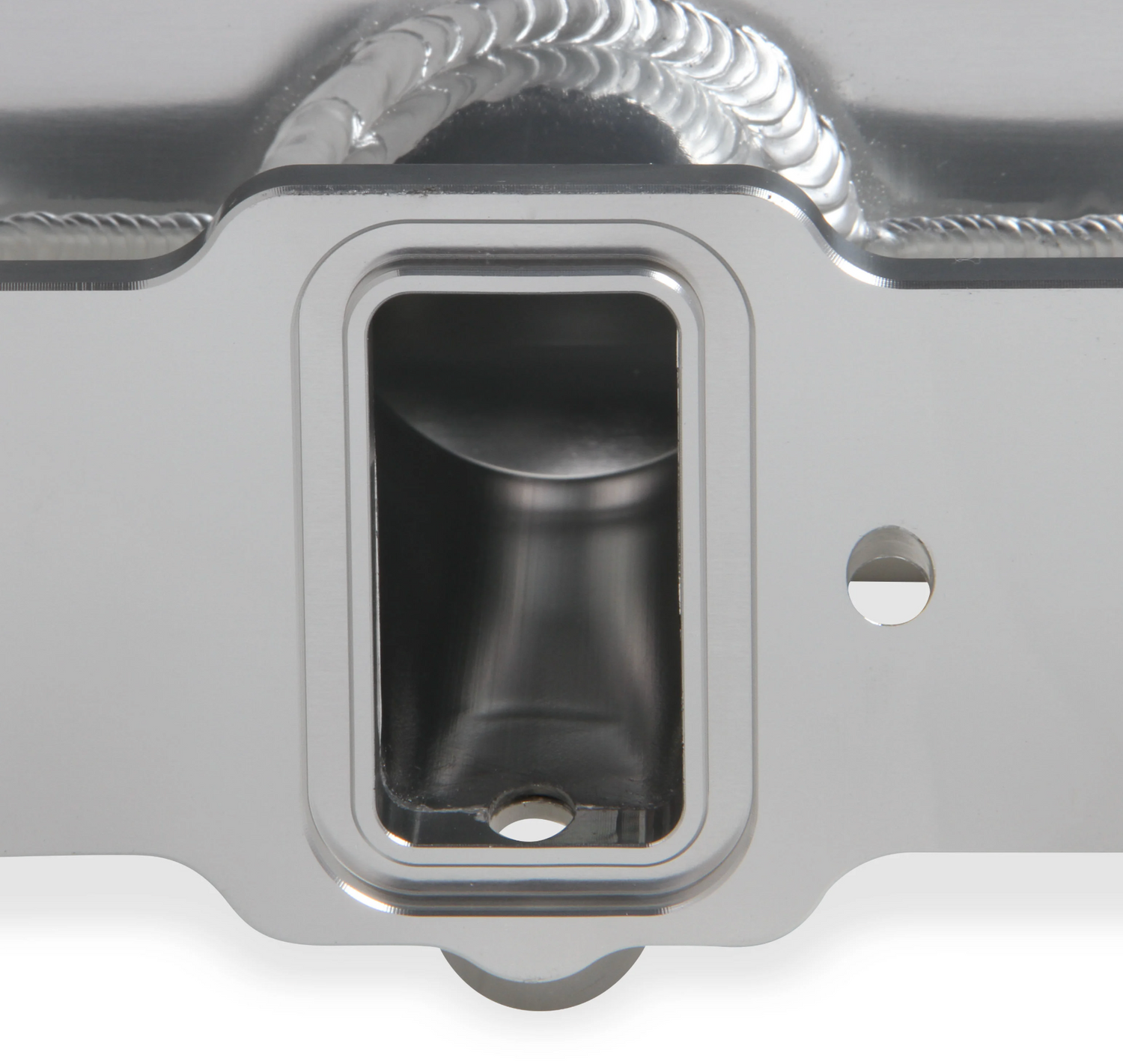

This intake is designed to work with stock LS heads. The use of some aftermarket cylinder heads may result in port misalignment

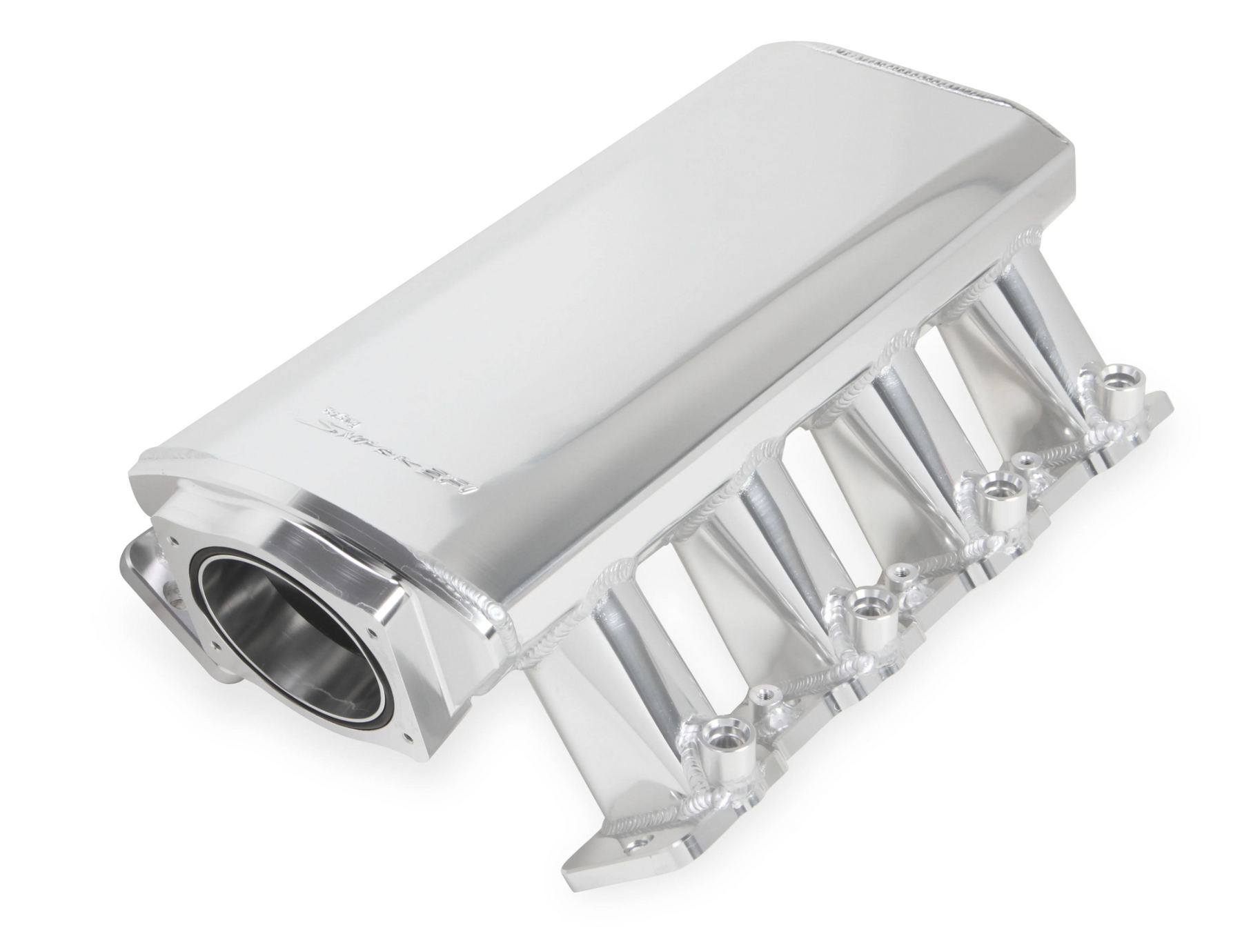

Holley is now offering budget friendly fabricated intake manifolds for LS, Small Block Chevy and Small Block Ford engines in carbureted and EFI versions!
-
Silver finish creates high impact under-hood styling
-
3mm (1/8") thick T6061 sheet aluminum construction for maximum durability
-

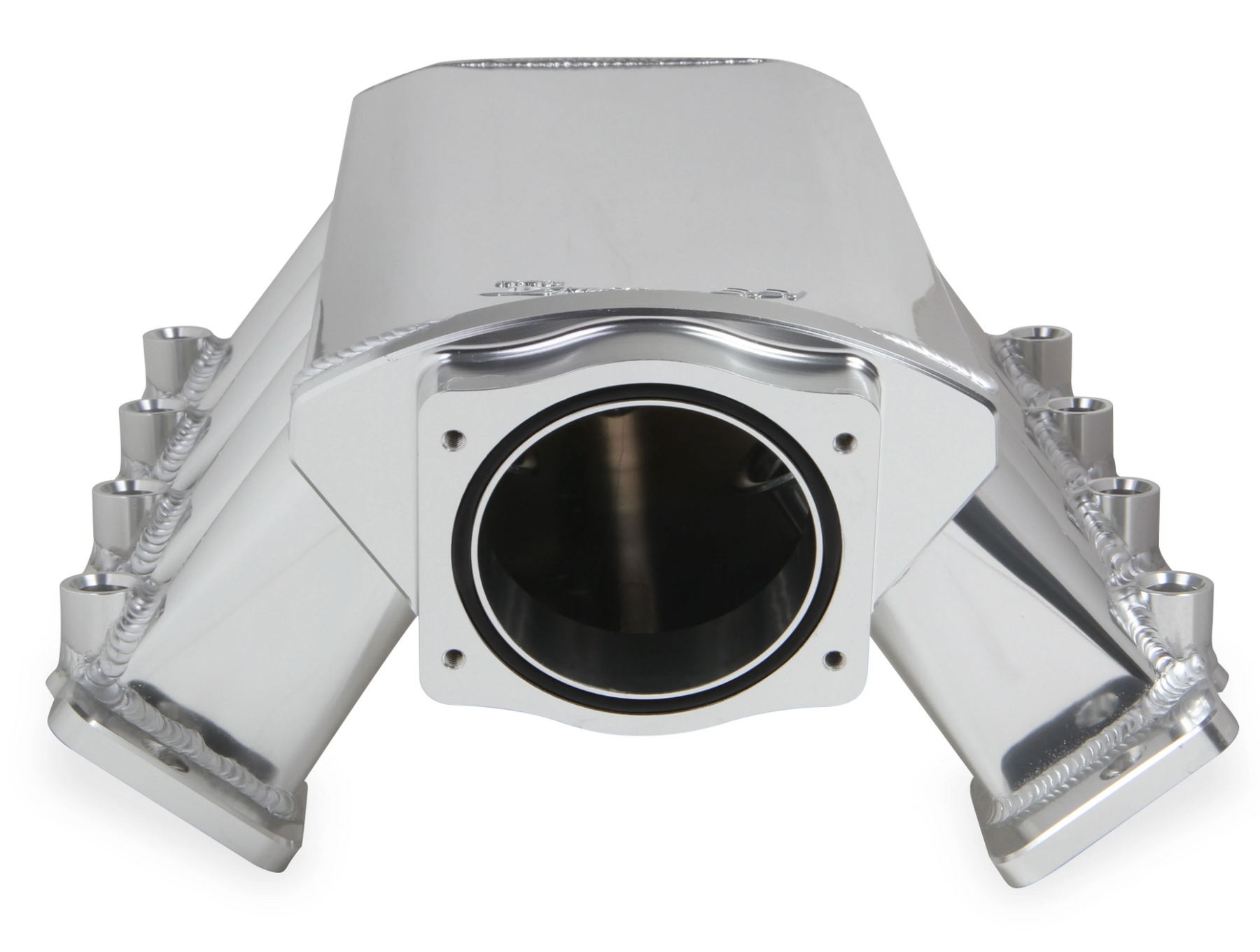

102mm throttle bore opening for increased air flow
-

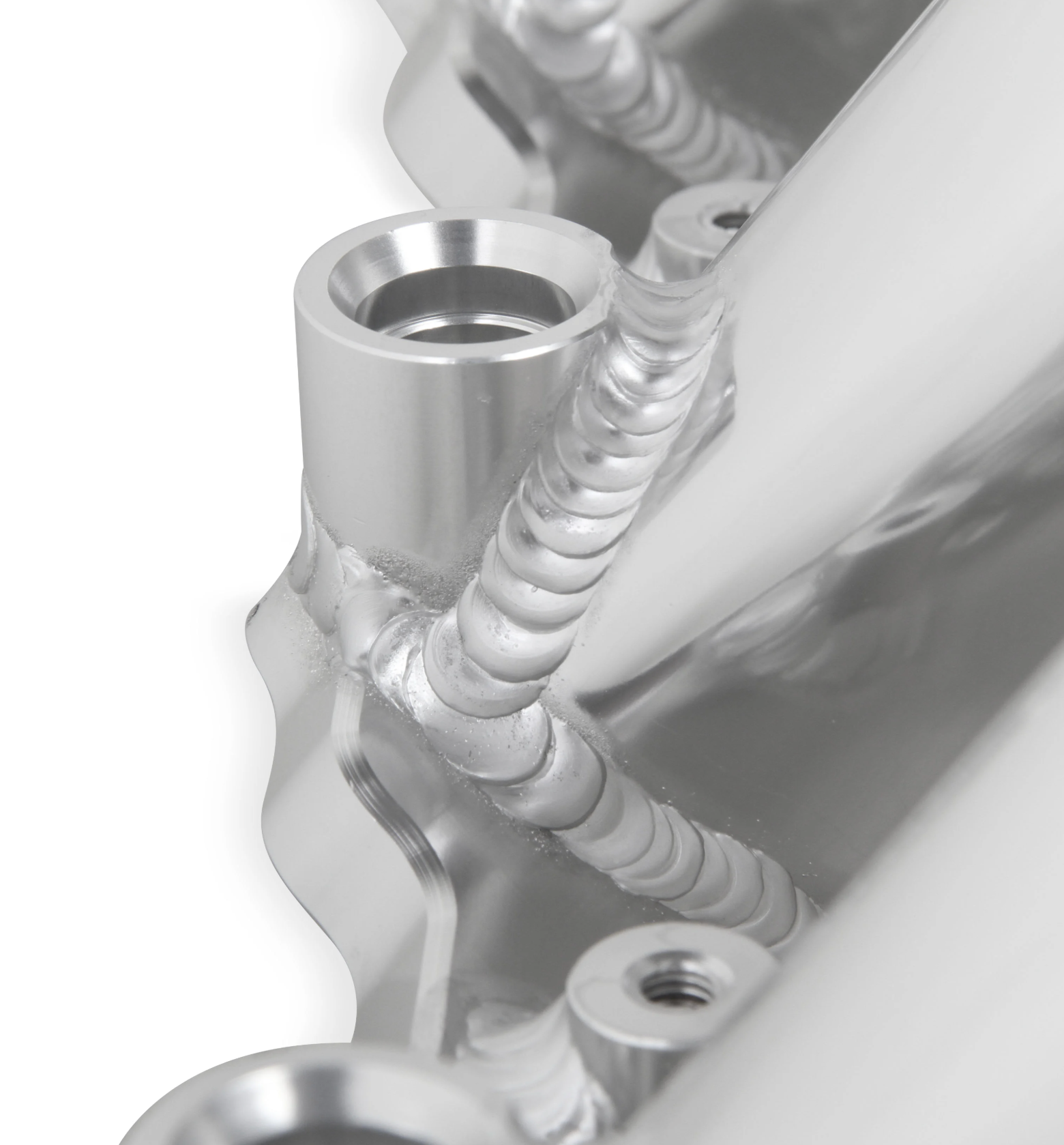

100% TIG welded for strength and durability
-

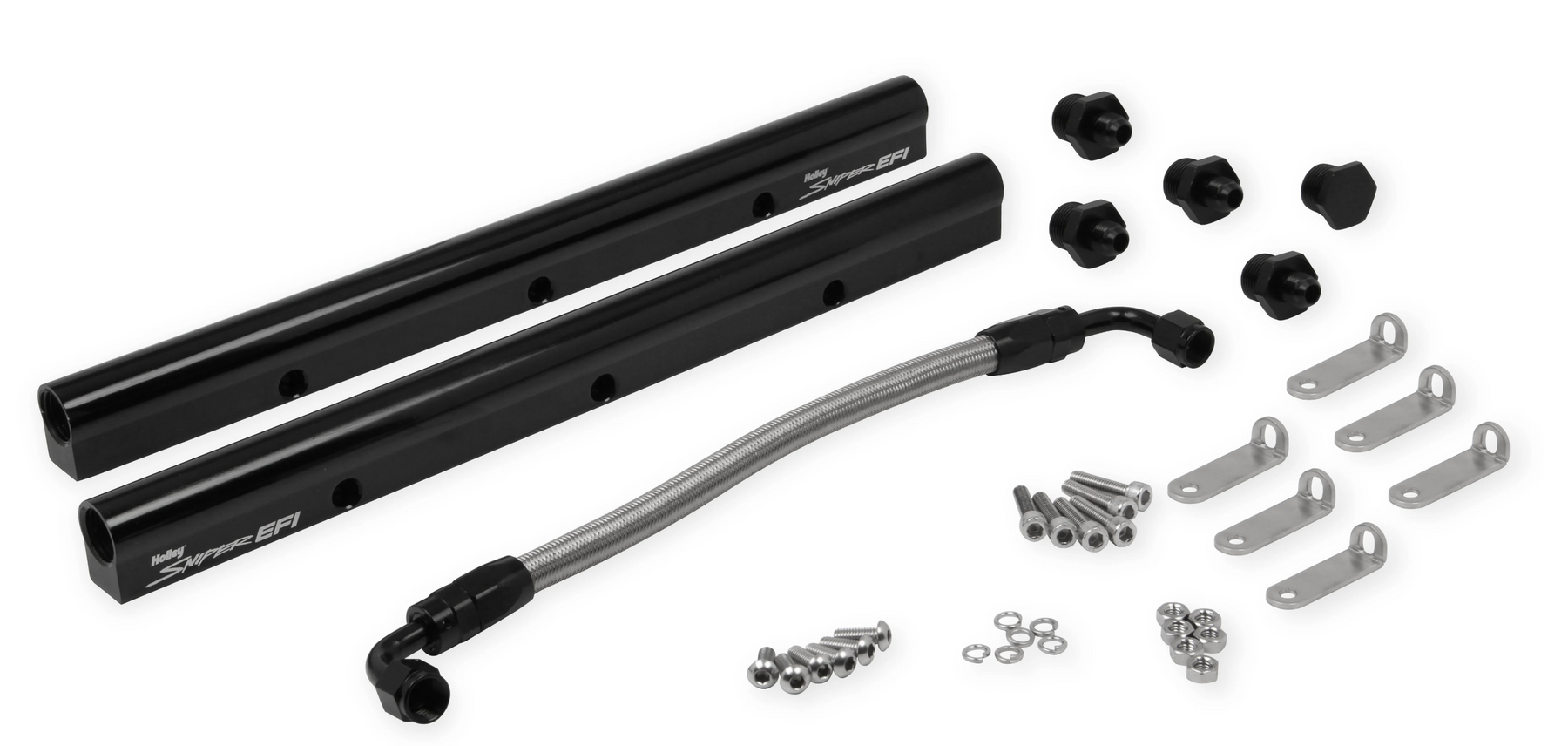

Includes 3/8" Fuel rail kits (Sniper logo laser engraved)
-

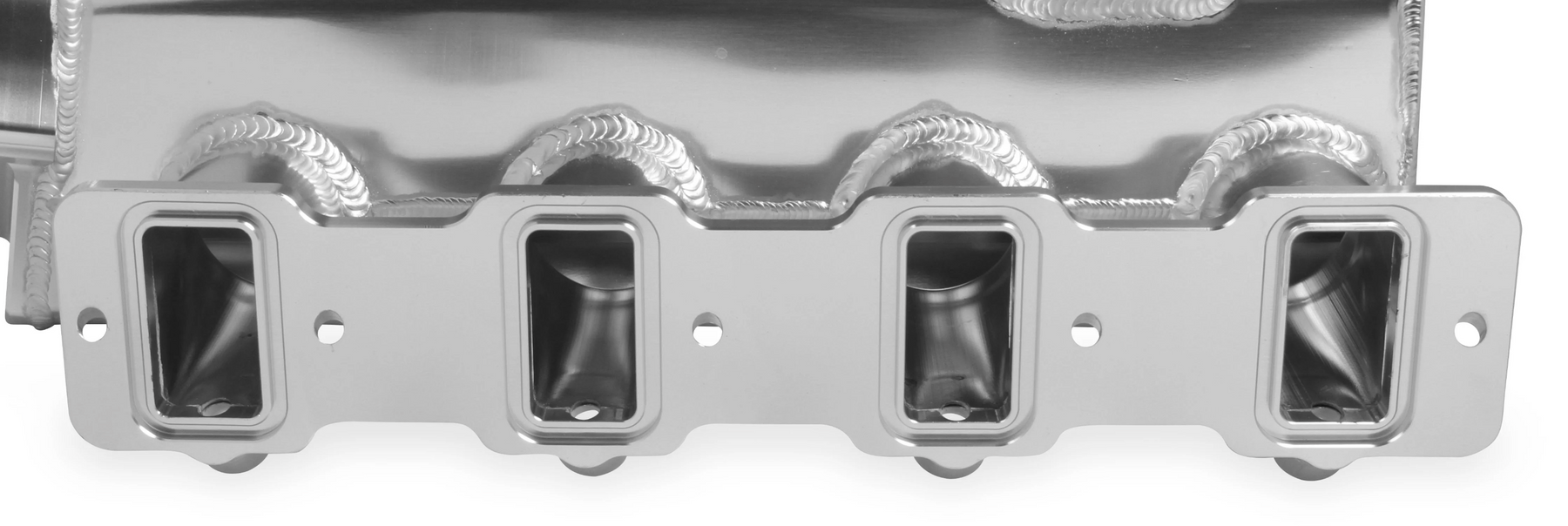

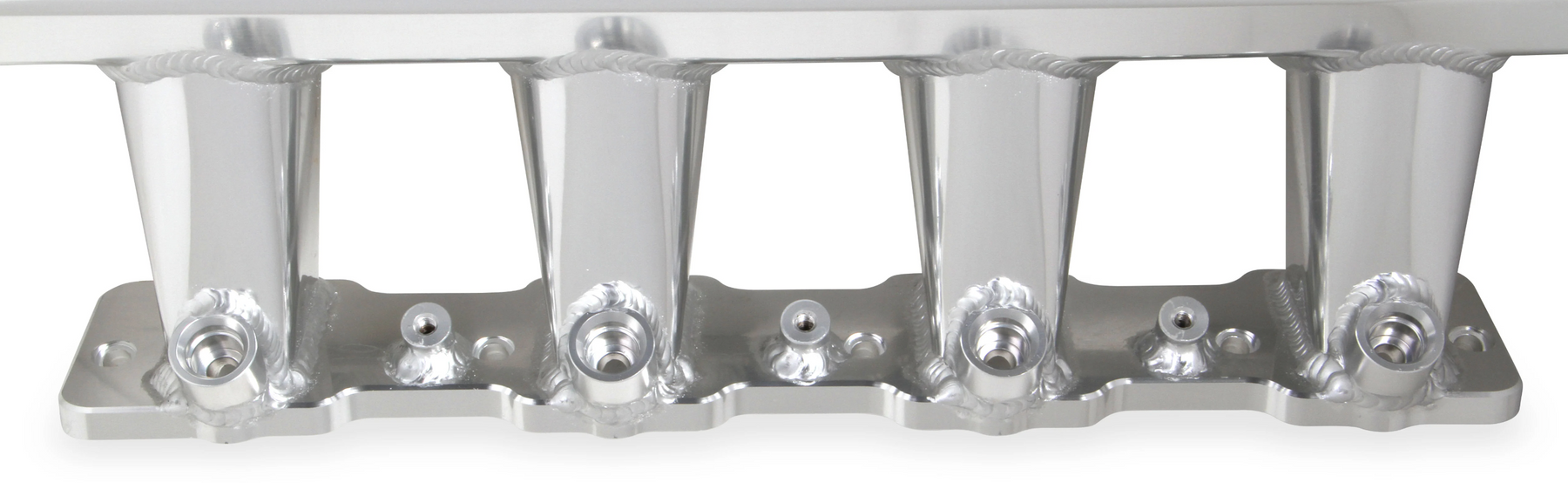

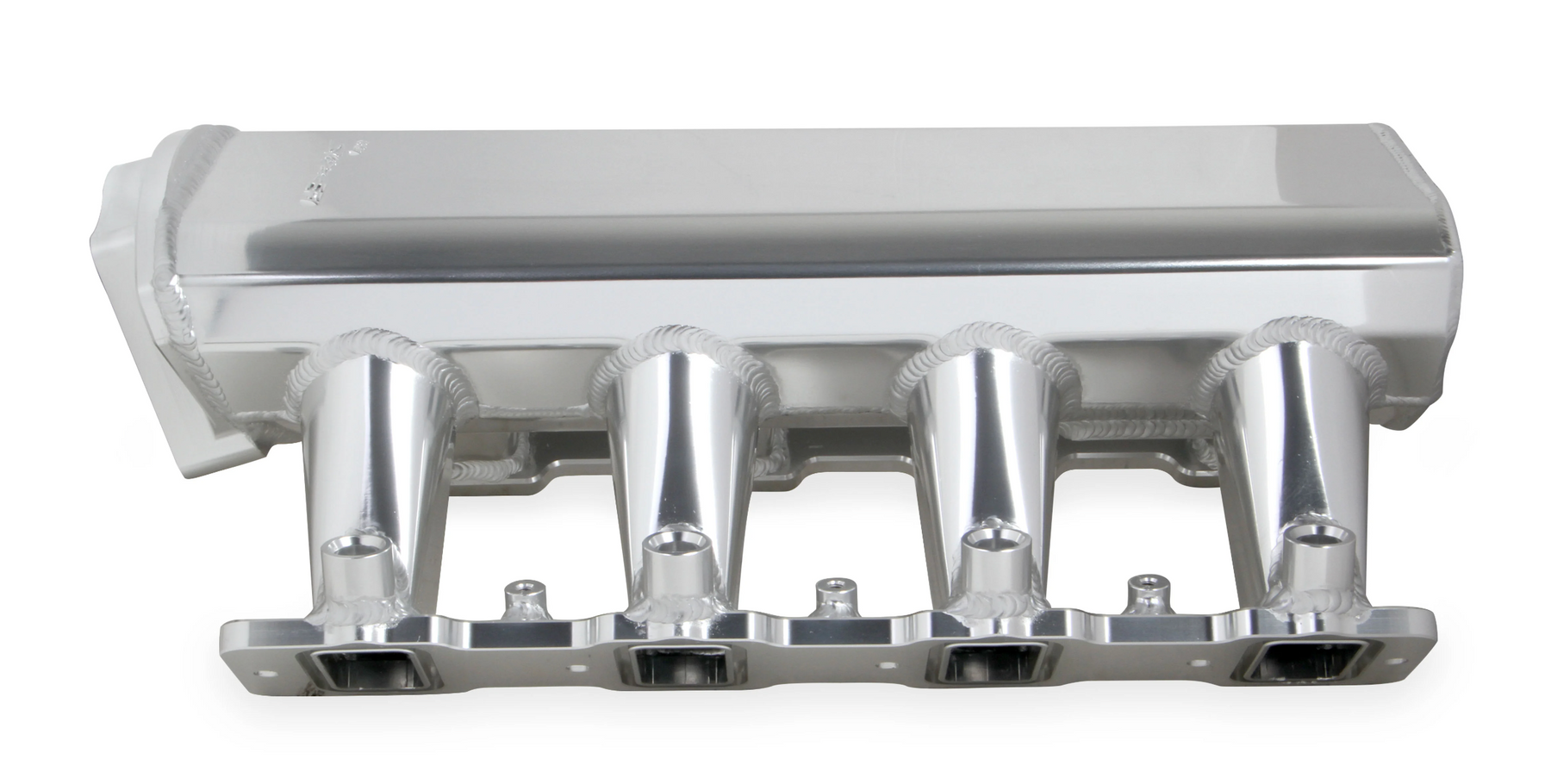

Intake runners with tapered top is designed to increase air velocity and more evenly distribute airflow to all 8 cylinders improving performance and throttle response
-
Provision for MAP sensor located on rear of plenum
-

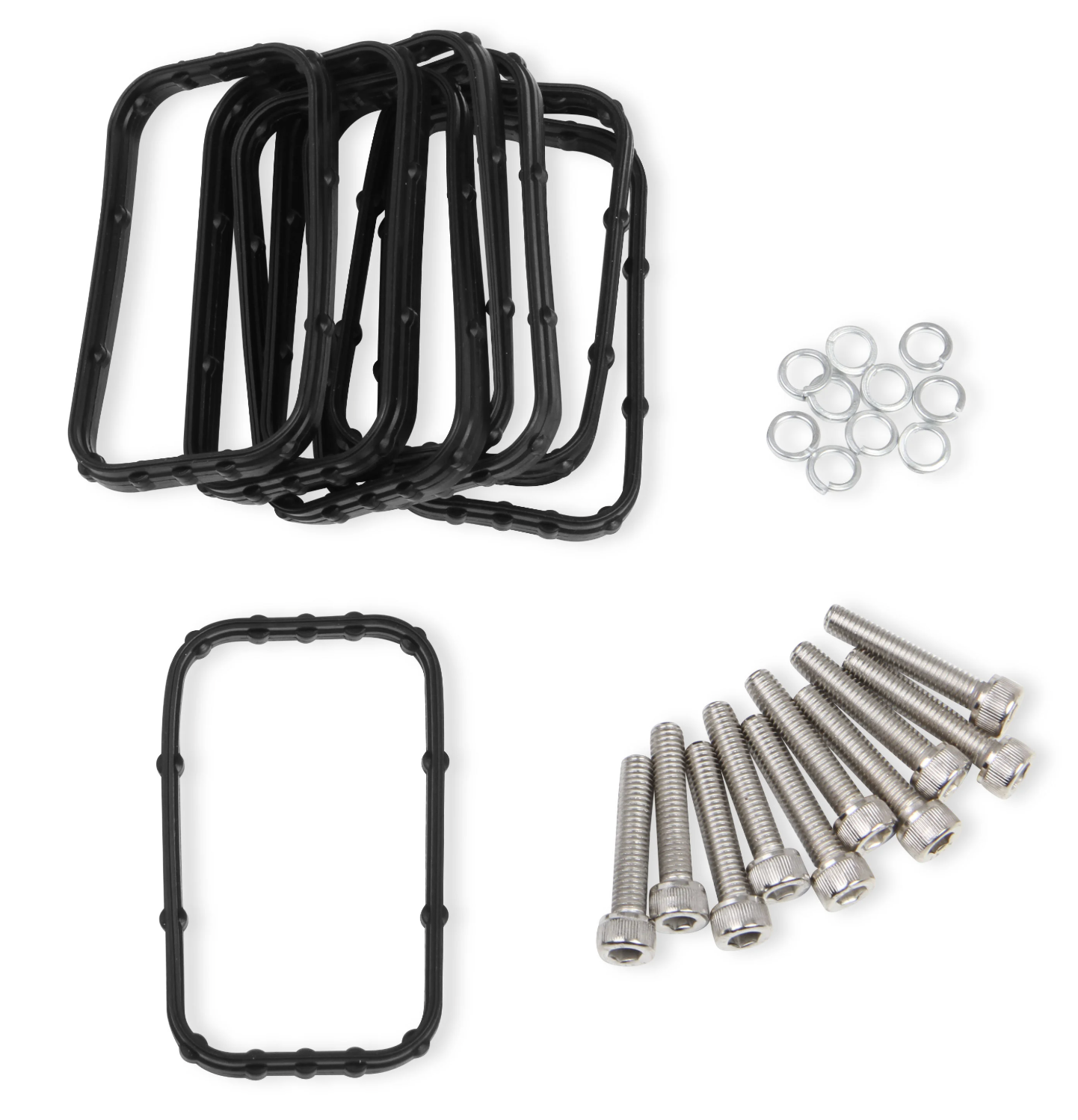

Product includes all gaskets and hardware for a hassle-free installation
-
The Sniper intake will only accept EV1 style injectors.
Basic Operating RPM Range |
2500-7000 RPM |
|---|---|
Brand |
Holley Sniper EFI |
Category Filter |
Intake Manifolds |
Clearance Category |
Intake Manifolds |
Color |
Silver |
Construction |
Fabricated |
EGR Port |
No |
Emission Code |
4 |
Engine |
GM LS7 |
Finish |
Silver |
Front Height |
7.362 inch |
Front Maximum Height |
7.362 IN |
Fuel Injectors Included |
No |
Fuel System Type |
EFI |
Injector Style Provision |
EV1 |
Manifold Type |
Fabricated |
Material |
Aluminum |
Nitrous Bung(s) Included |
No |
Plenum Finish |
Polished |
Product Type |
Intake Manifold |
Rear Height |
6.850 inch |
Rear Maximum Height |
6.85 IN |
Recommended Use |
Forced Induction |
Removable Runners |
No |
Removable Top/Lid |
No |
RPM Power Band |
2500-7000 RPM |
Runner Length |
4.921" (125mm) |
Single Or Dual Plane Type |
Single Plane |
Style |
EFI |
Throttle Body Bore Diameter |
102 MM |
Throttle Body Included |
No |
Throttle Bore |
102mm |
Vacuum Ports |
(3) 1/8"-28BSPT & (1) 1/4"-19BSPT |
Warranty |
Limited 90 Day |
UPC |
090127045336 |
Part Number |
830041-1 |
