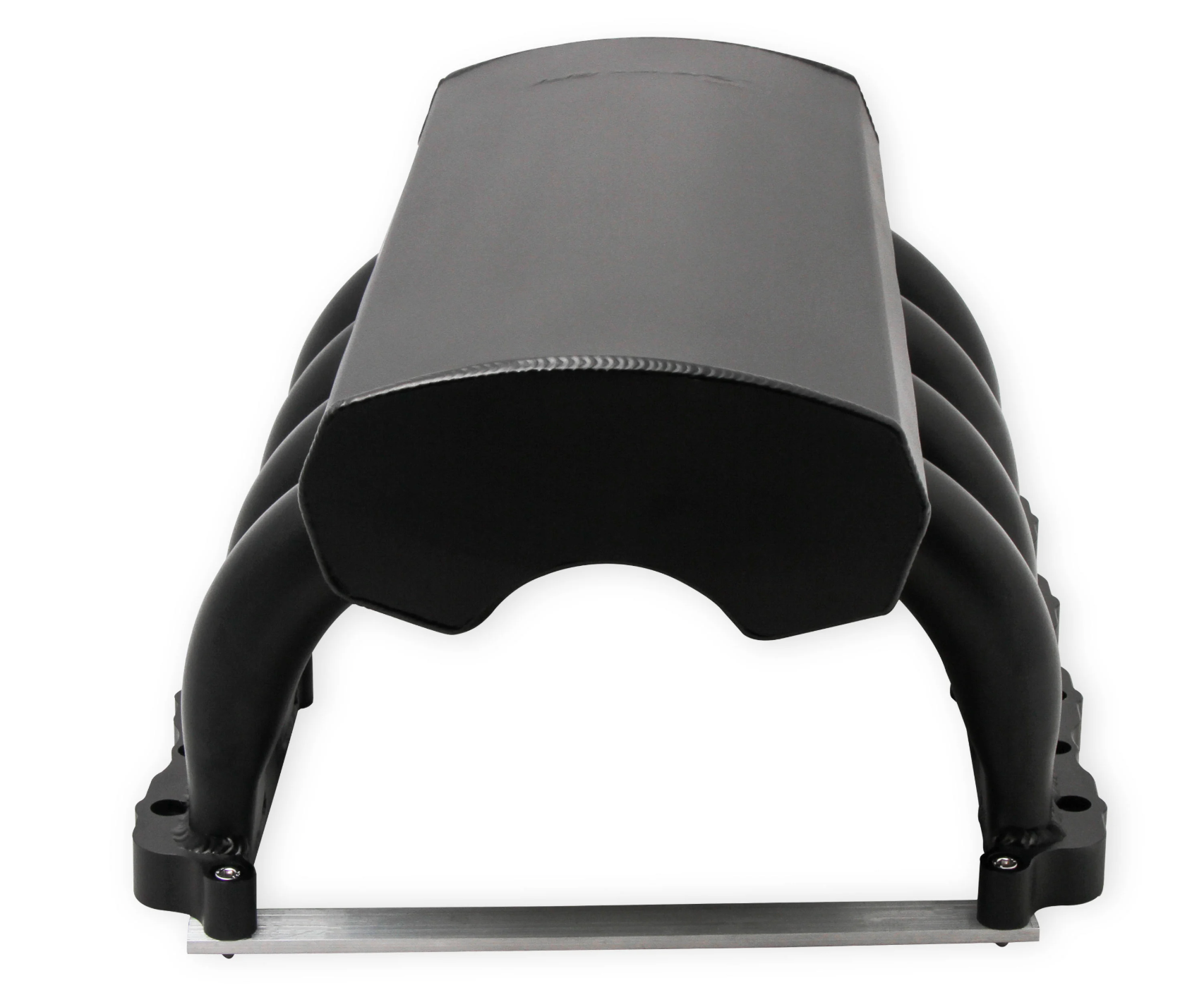

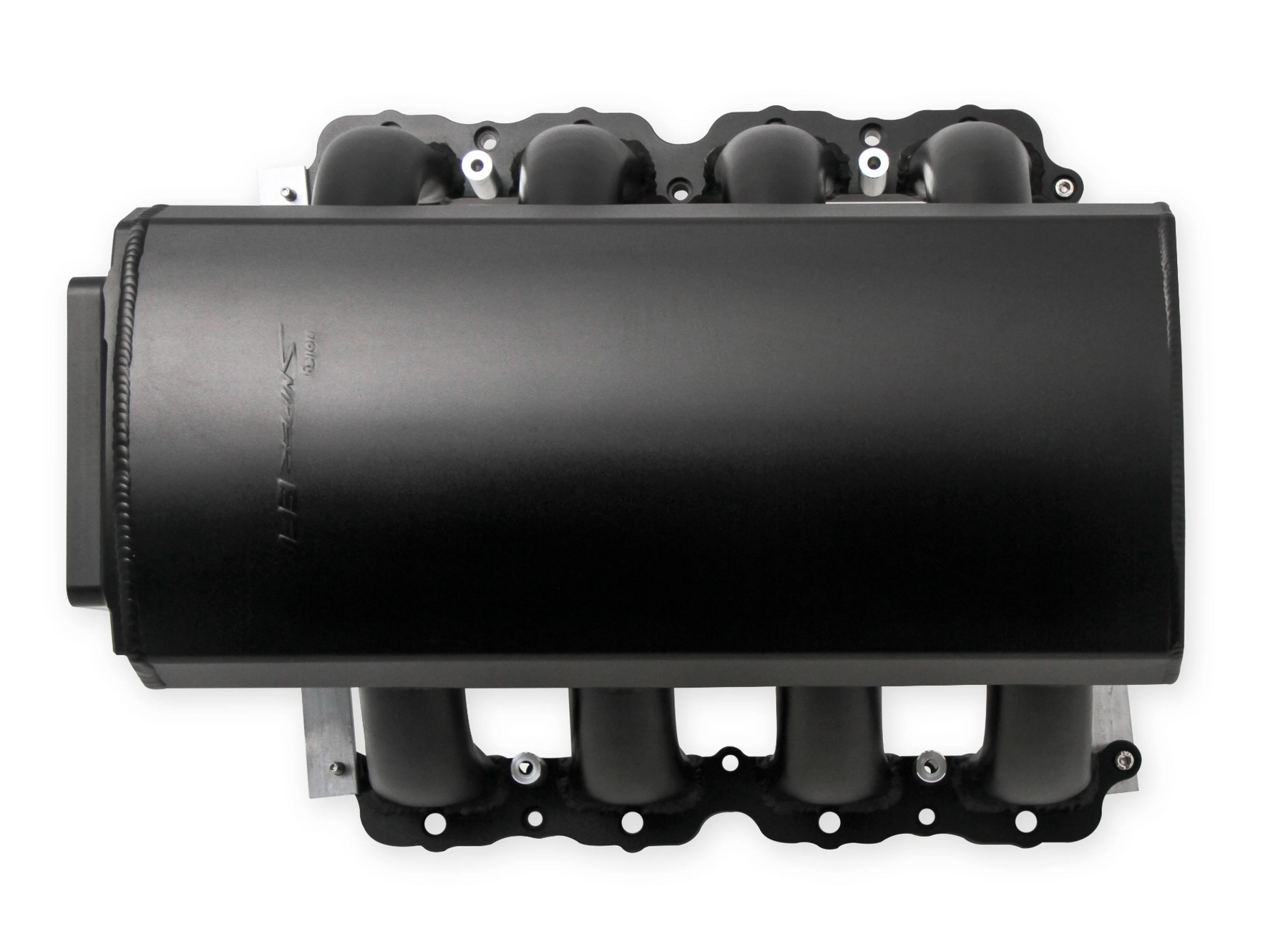

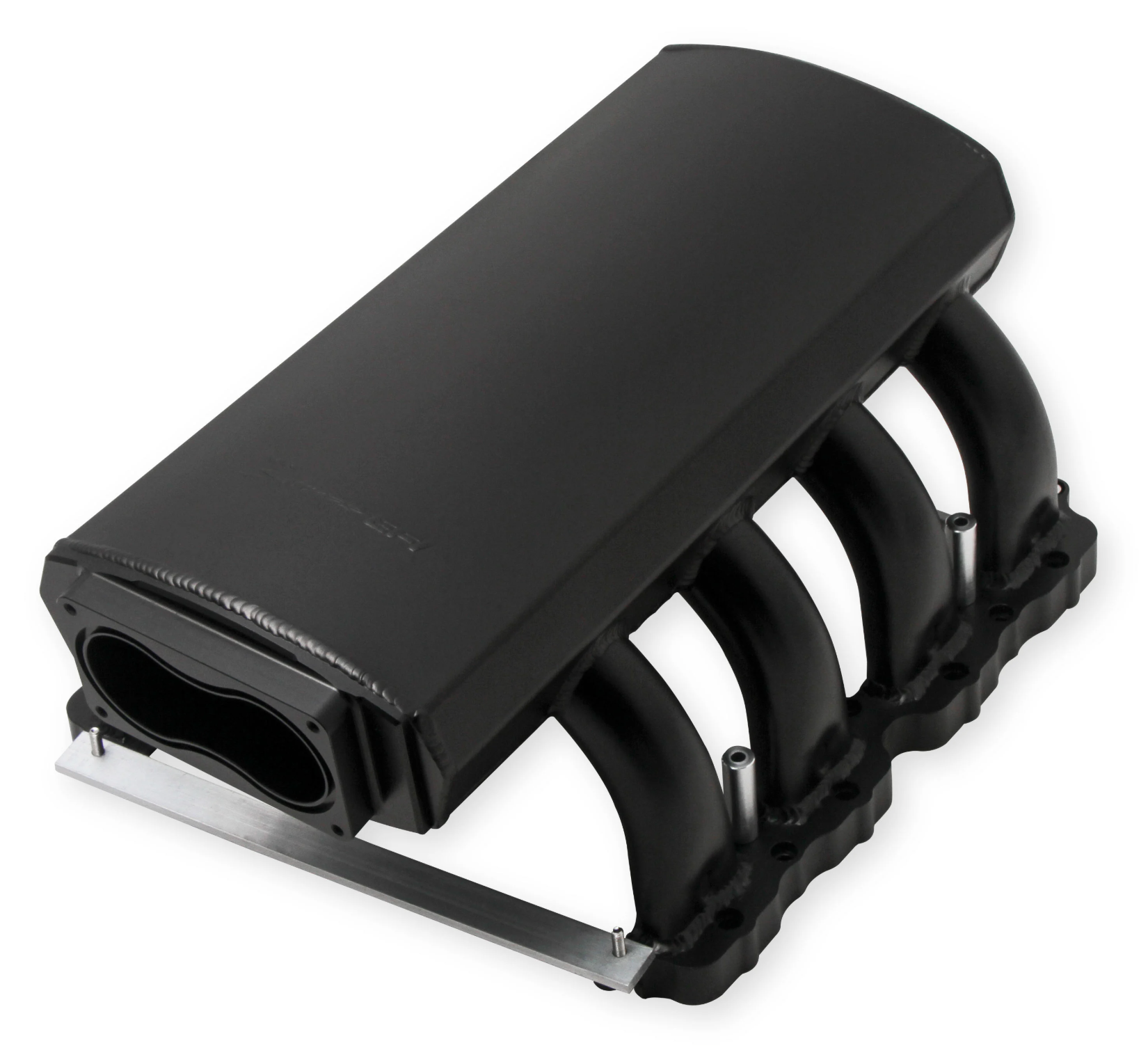

These Hi-Ram style intake manifolds are designed for high performance engine applications with maximum engine speeds of 7000-7500rpm (Carbureted) and 6800-7400rpm (Fuel Injected), depending on the engine combination. These manifolds are intended for maximum performance applications and will not accept stock components and hardware. A modified hood will be required for most vehicle applications.This intake is designed to be used with the Ford factory style twin bore throttle bodies.Please use the following Part numbers for reference. M-9926-MGT, M-9926-3V, 9R3Z-9E926-A ,7R3Z-9E926-AA, 9R3E-9F991-CB, 9R3Z-9E926-A
Holley is now offering budget friendly fabricated intake manifolds for the popular Ford 4.6L 3v engine in carbureted and EFI versions!
-
Black Finish creates stealthy under-hood styling
-
3mm (1/8") thick T6061 sheet aluminum construction for maximum durability
-
Twin 65mm throttle bore opening for increased air flow
-

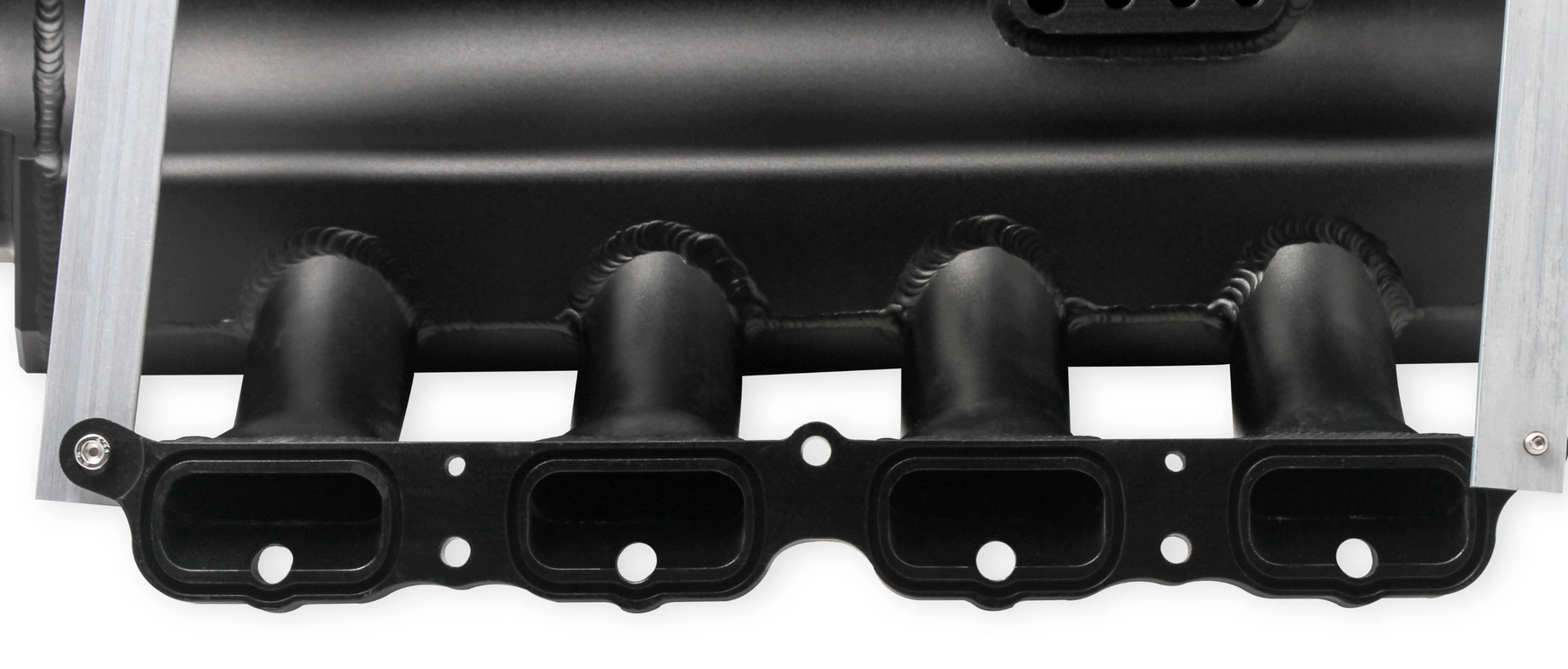

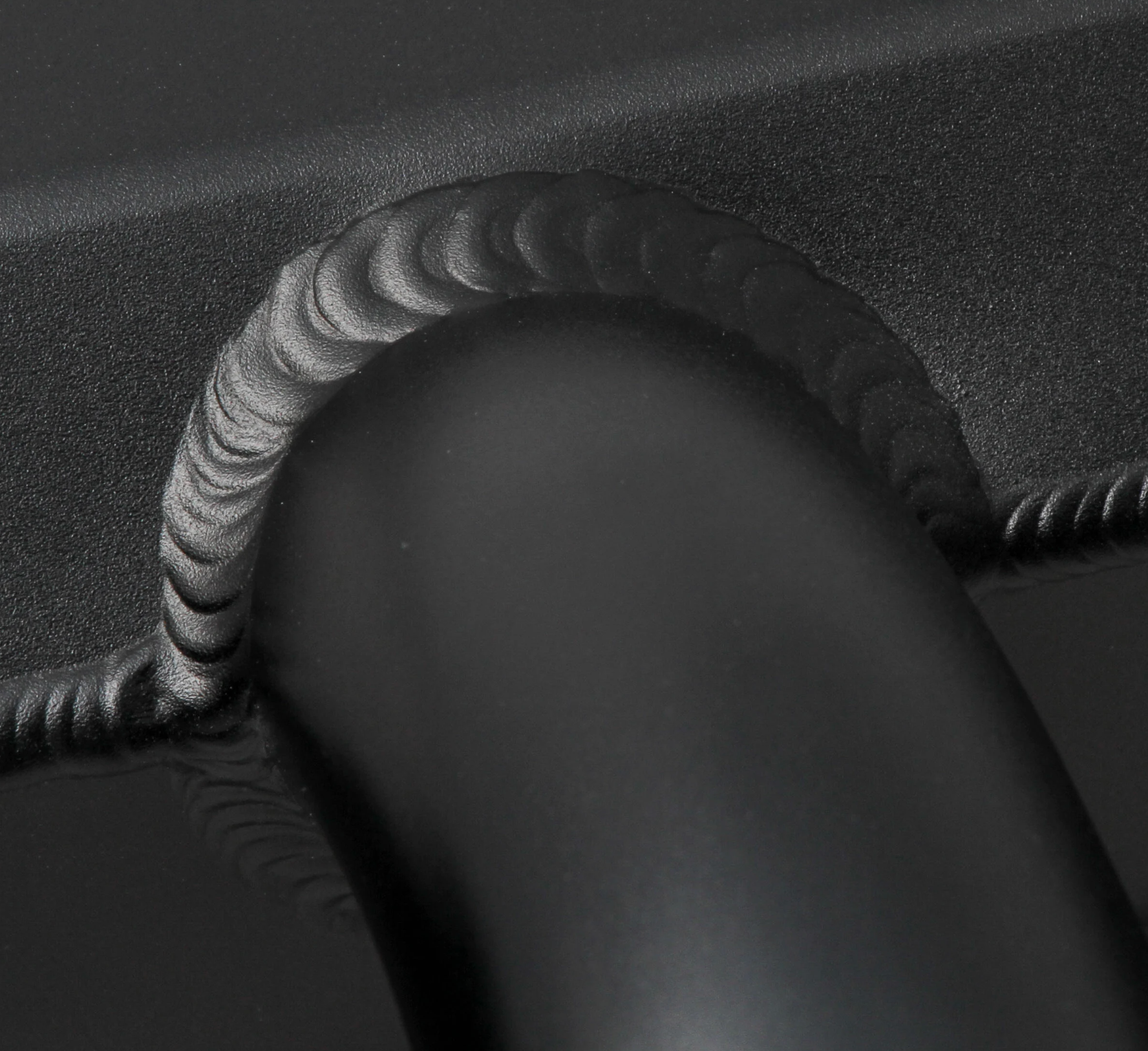

100% TIG welded for strength and durability
-

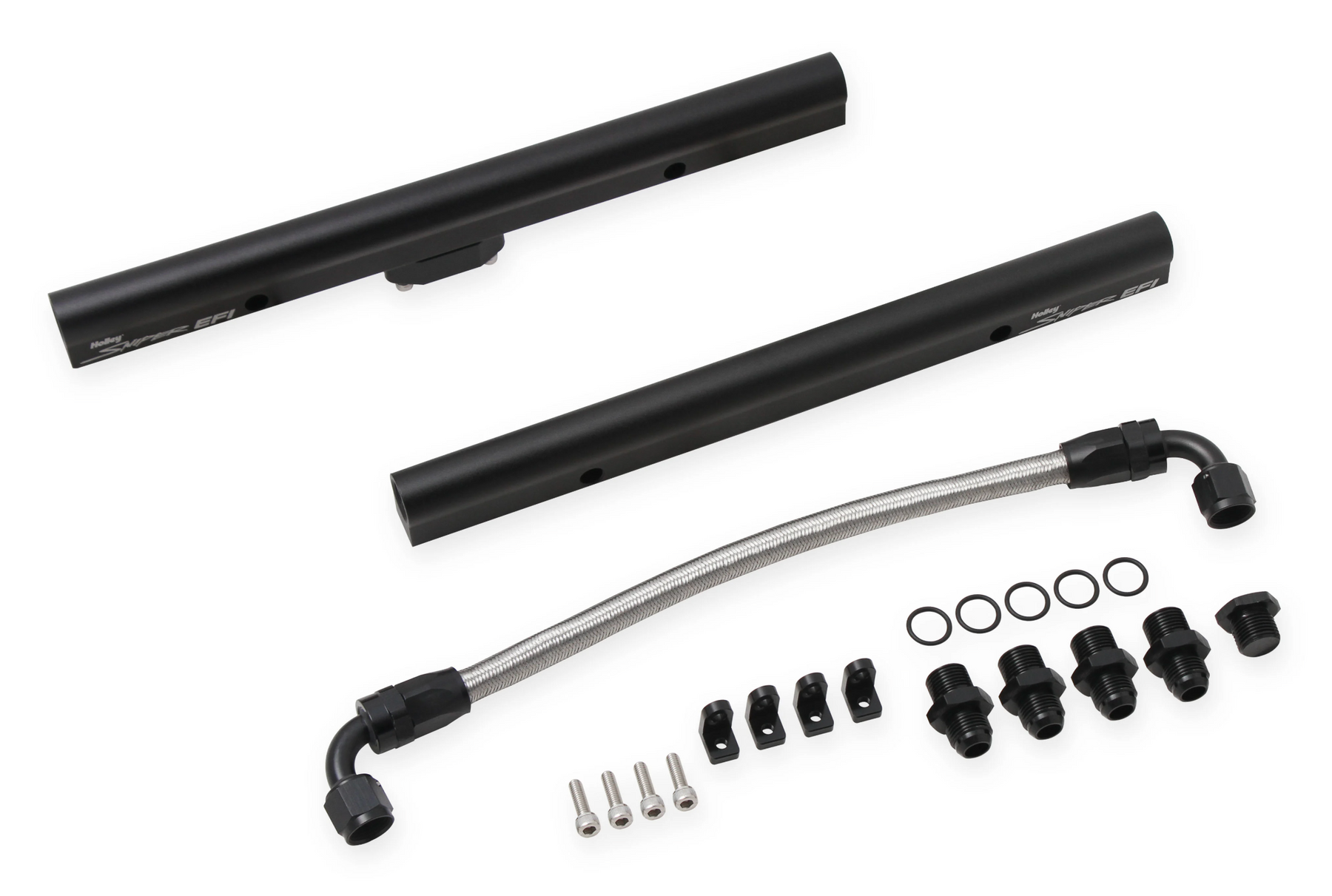

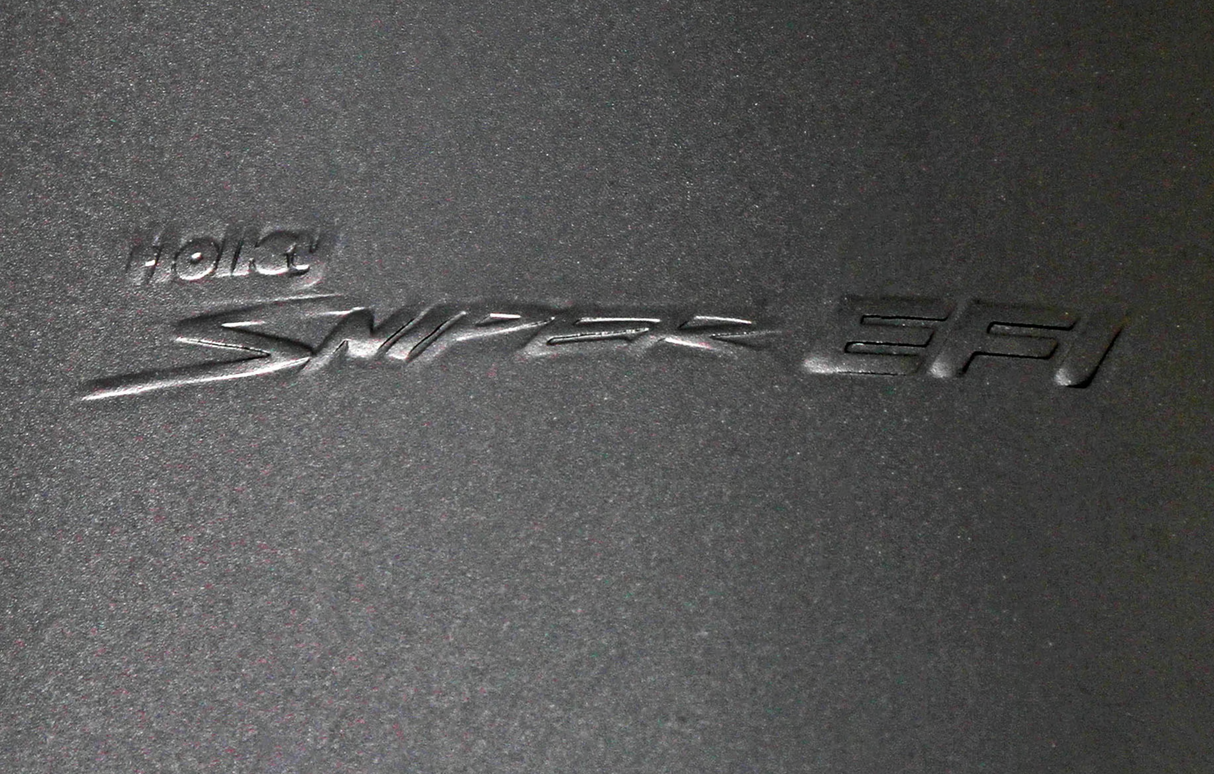

Includes 3/8" Fuel rail kits (Sniper logo laser engraved)
-

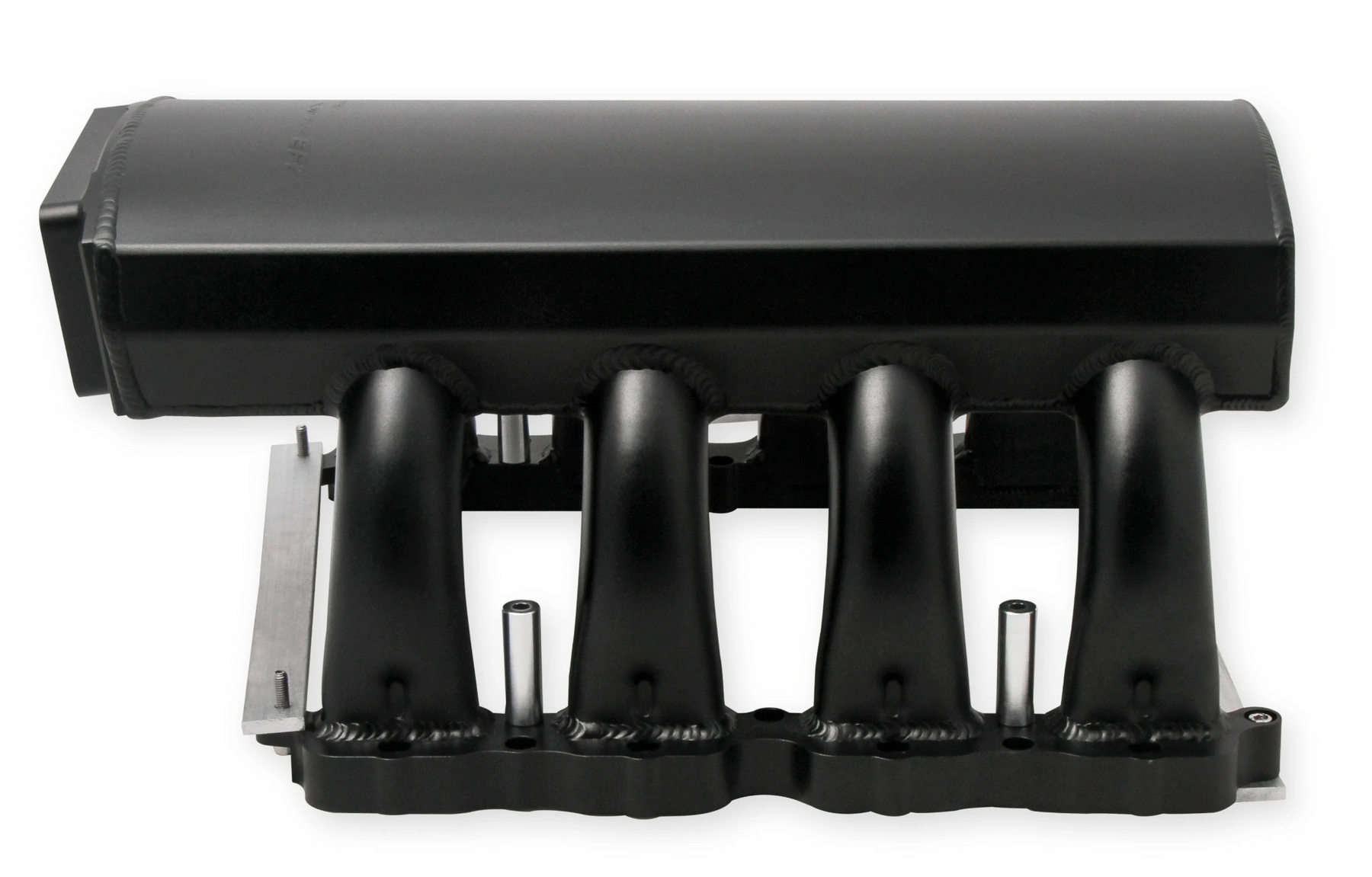

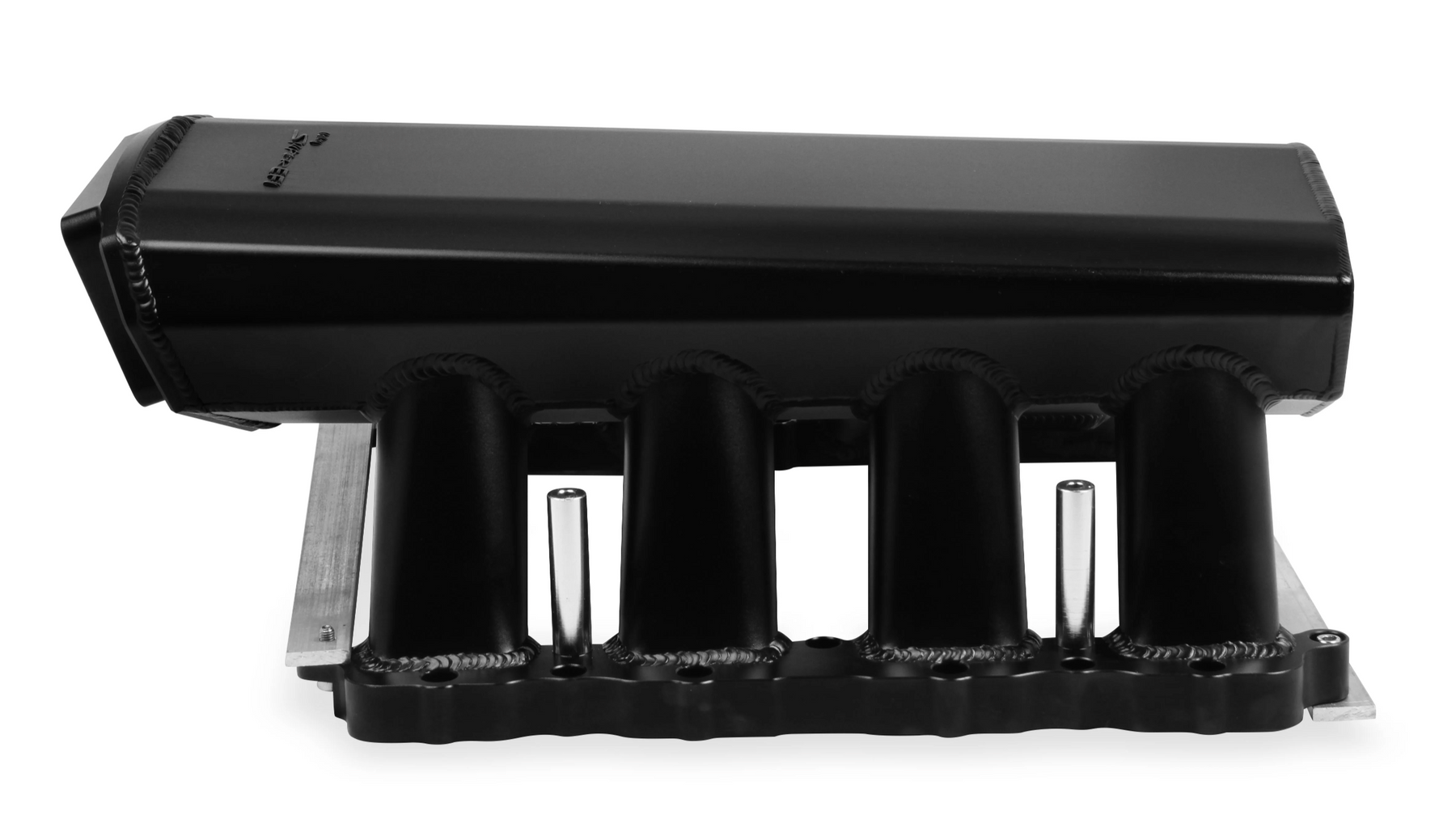

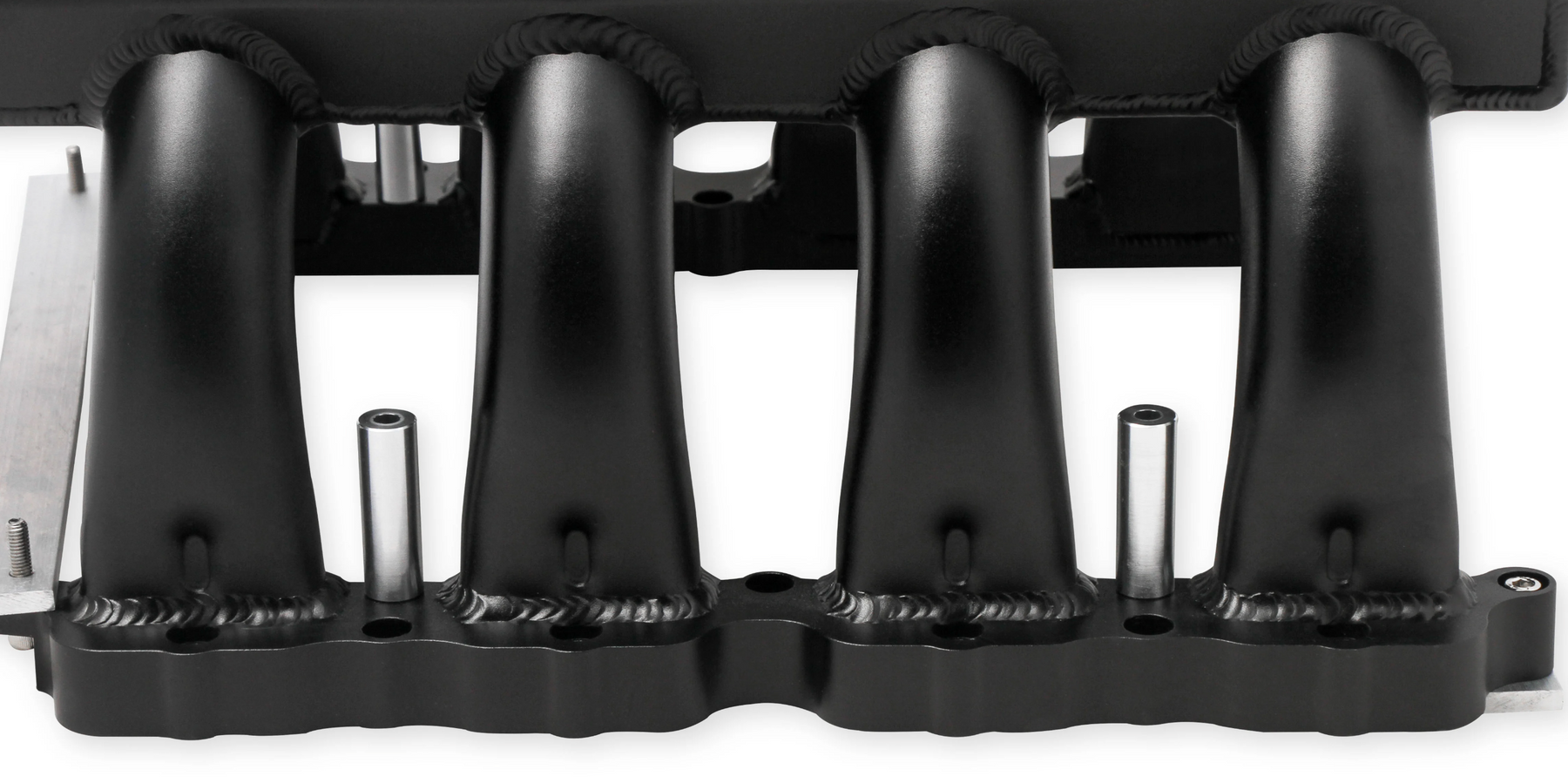

Intake runners with tapered top is designed to increase air velocity and more evenly distribute airflow to all 8 cylinders improving performance and throttle response
-

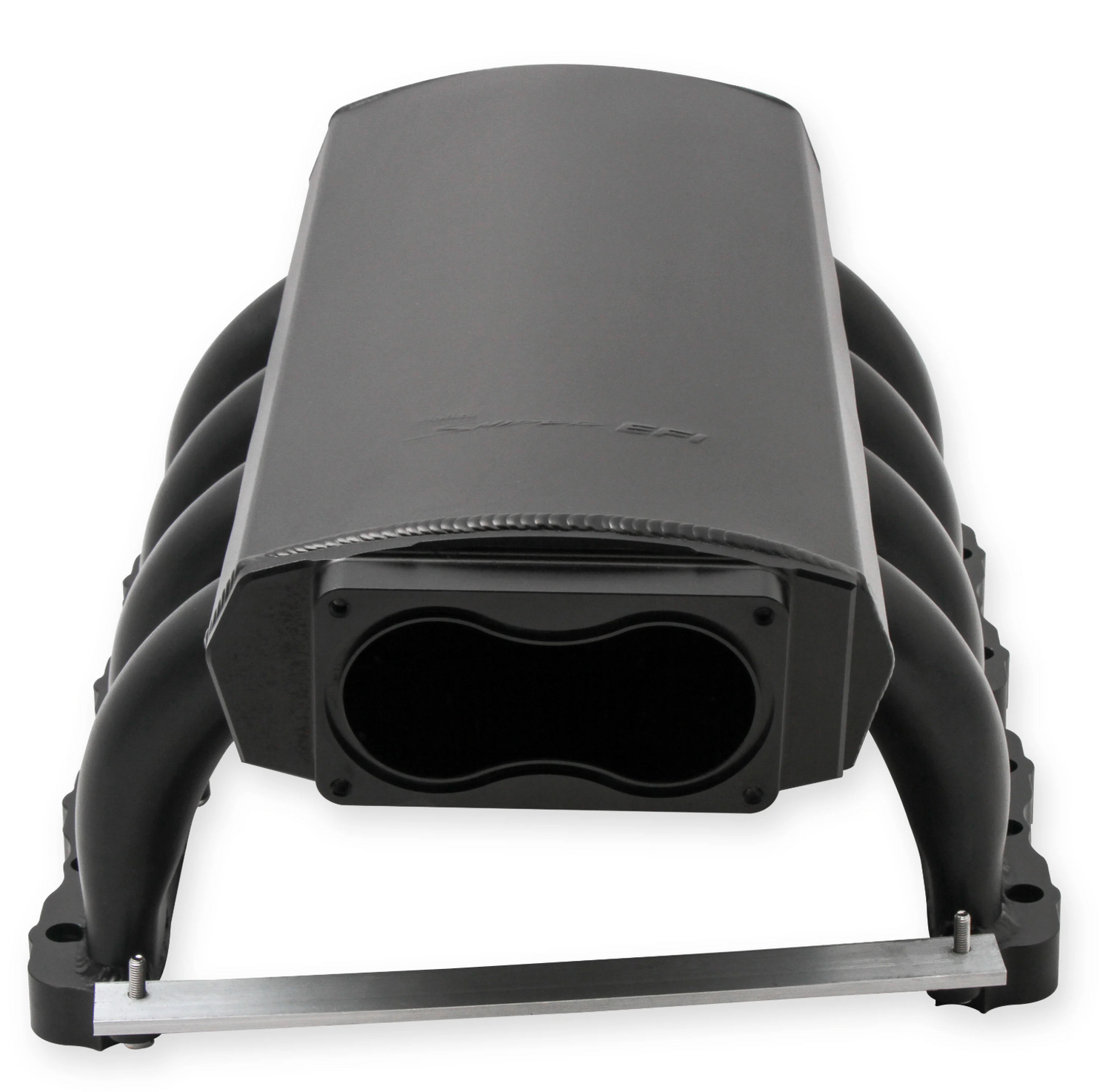

Designed to use Ford Factory style twin 65mm Throttle Body
-
Product includes all gaskets and hardware for a hassle-free installation
-
The Sniper intake will only accept EV1 style injectors.
Basic Operating RPM Range |
2200-6800 RPM |
|---|---|
Brand |
Holley Sniper EFI |
Color |
Black |
Construction |
Fabricated |
EGR Port |
No |
Emission Code |
4 |
Finish |
Black |
Front Height |
8.070 inch |
Front Maximum Height |
8.07 IN |
Fuel Injectors Included |
No |
Injector Style Provision |
EV-1 |
Material |
Aluminum |
Nitrous Bung(s) Included |
No |
Plenum Finish |
Black |
Product Type |
Intake Manifold |
Rear Height |
7.007 inch |
Rear Maximum Height |
7.007 IN |
Removable Runners |
No |
Removable Top/Lid |
No |
RPM Power Band |
2200-6800 RPM |
Runner Length |
5.709" (145mm) |
Single Or Dual Plane Type |
Single Plane |
Style |
EFI |
Throttle Body Bore Diameter |
130 MM |
Throttle Body Included |
No |
Throttle Bore |
130mm |
Vacuum Ports |
(3) 1/8"-28BSPT & (1) 1/4"-19BSPT |
Warranty |
Limited 90 Day |
UPC |
847875006764 |
Part Number |
829082 |
