Not Compatible with Large Cap HEI Distributors

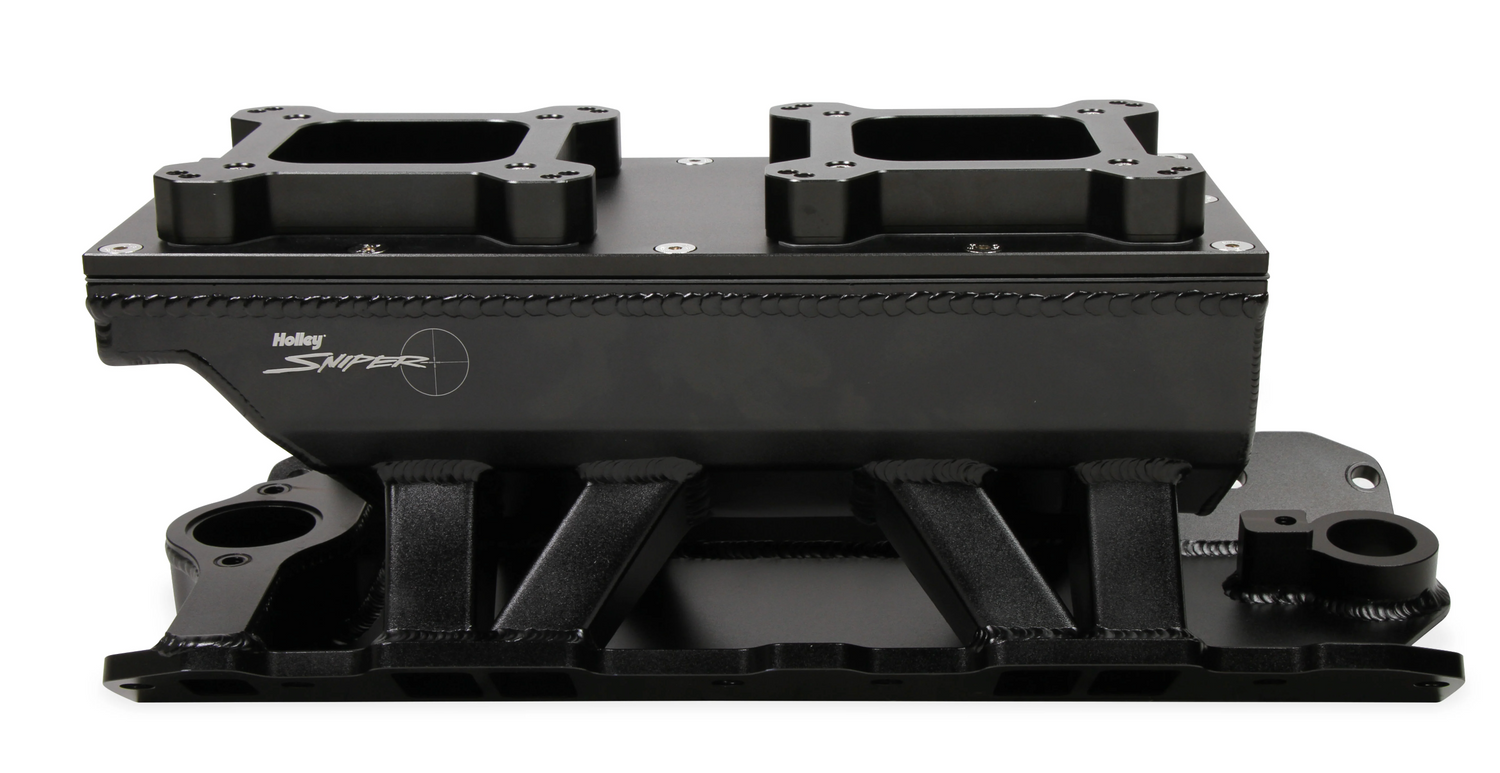

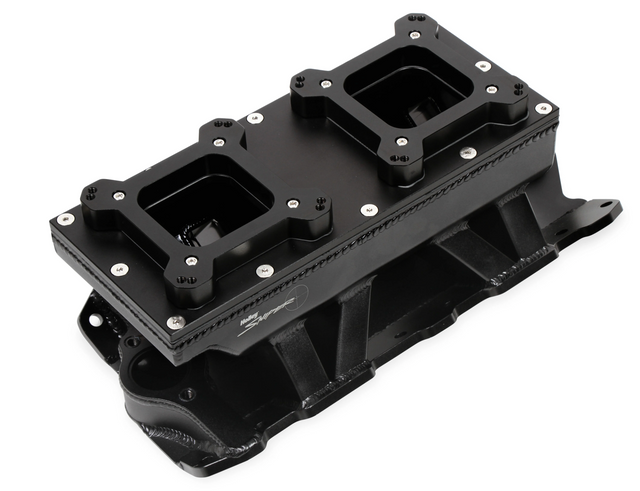

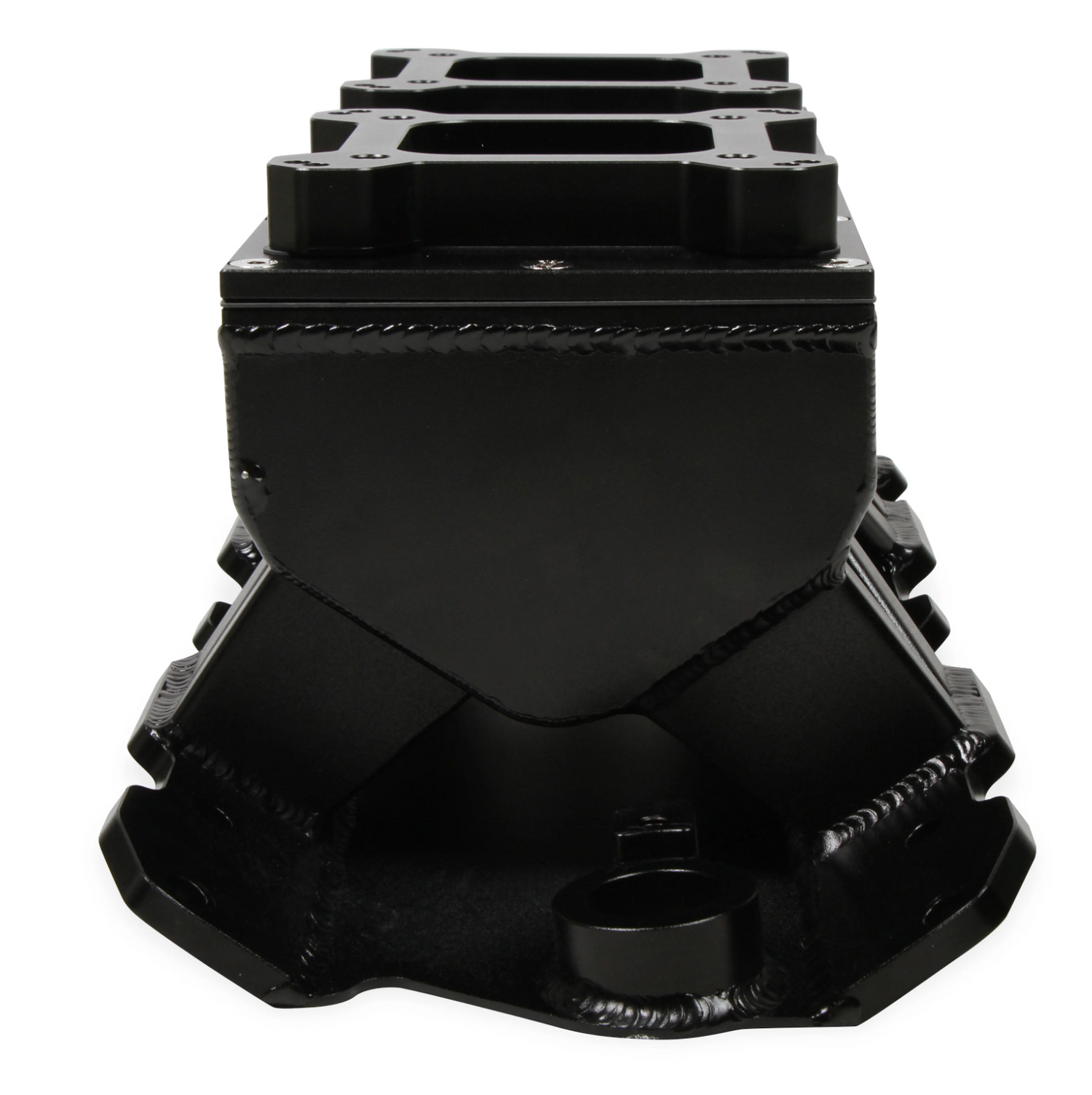

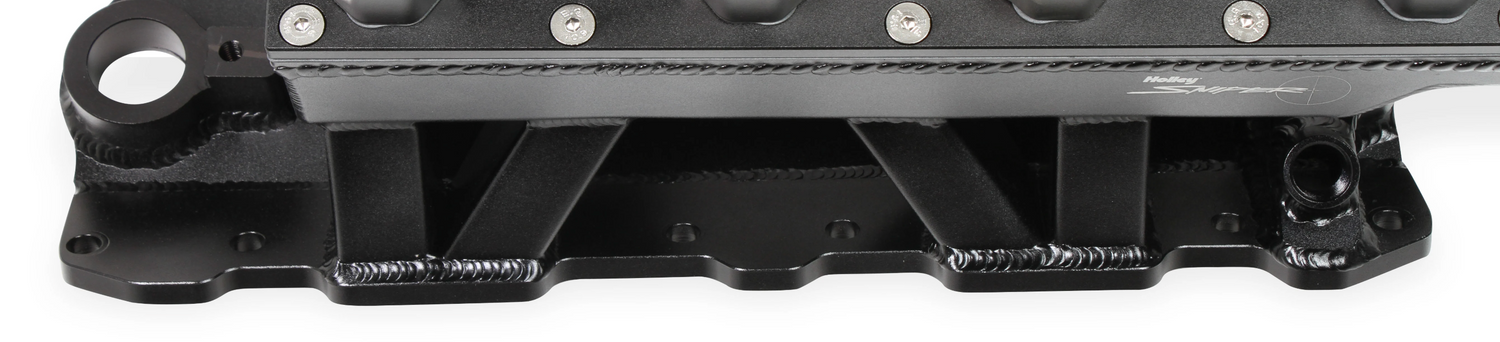

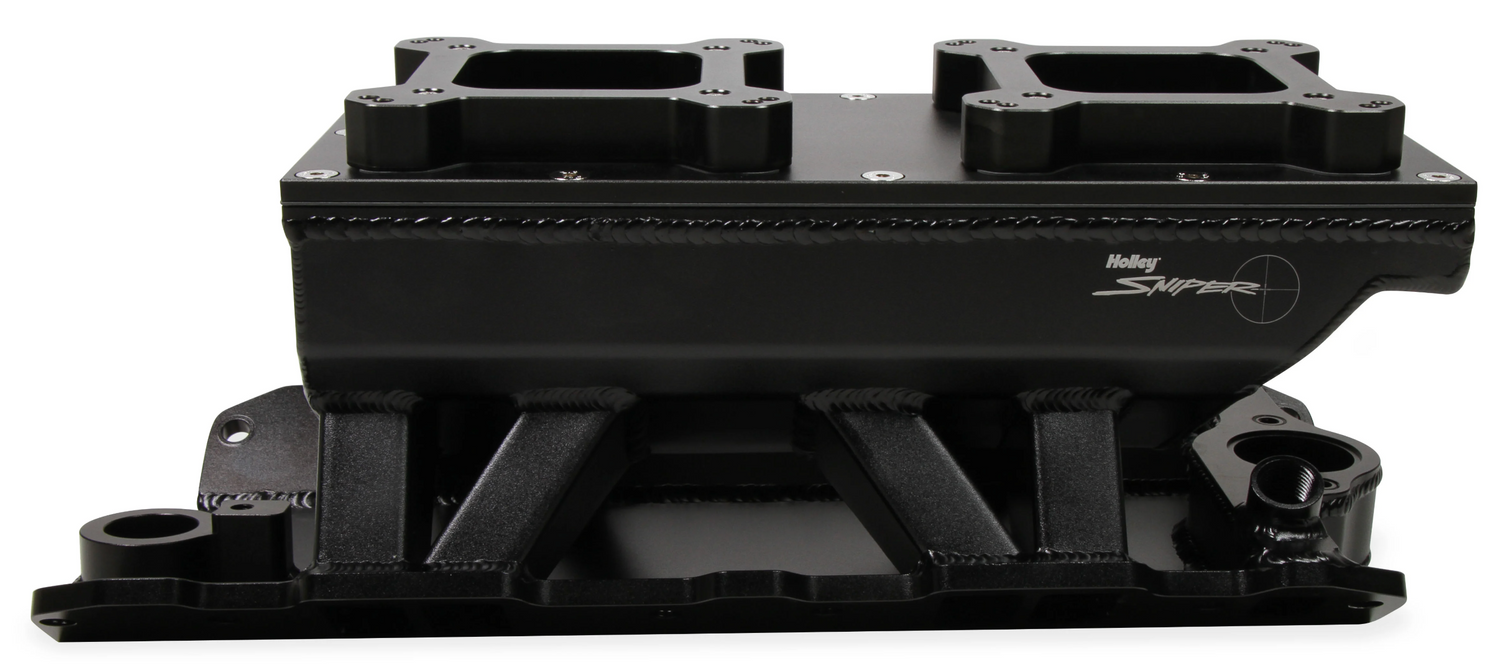

Holley Sniper continues to push the aftermarket by introducing fabricated carbureted and EFI intake manifolds for GM Small Block and LS along with Ford 4.6 Modular 3-valve and 5.0L Coyote engines. These performance sheet metal intakes are great looking and an excellent value compared to other fabricated intake manifolds. Each manifold is ready to bolt-on out of the box (including a high-flow fuel rail kit for EFI versions). These manifolds are precision fixtured and welded for a perfect fit and maximum structural integrity.
-
Expanded Designs to accommodate (1 x 4150) & (2 x 4150) carbureted applications for GM LS7, Ford 4.6L 3-valve Mod-Motor, and Ford 5.0L Coyote platforms
-

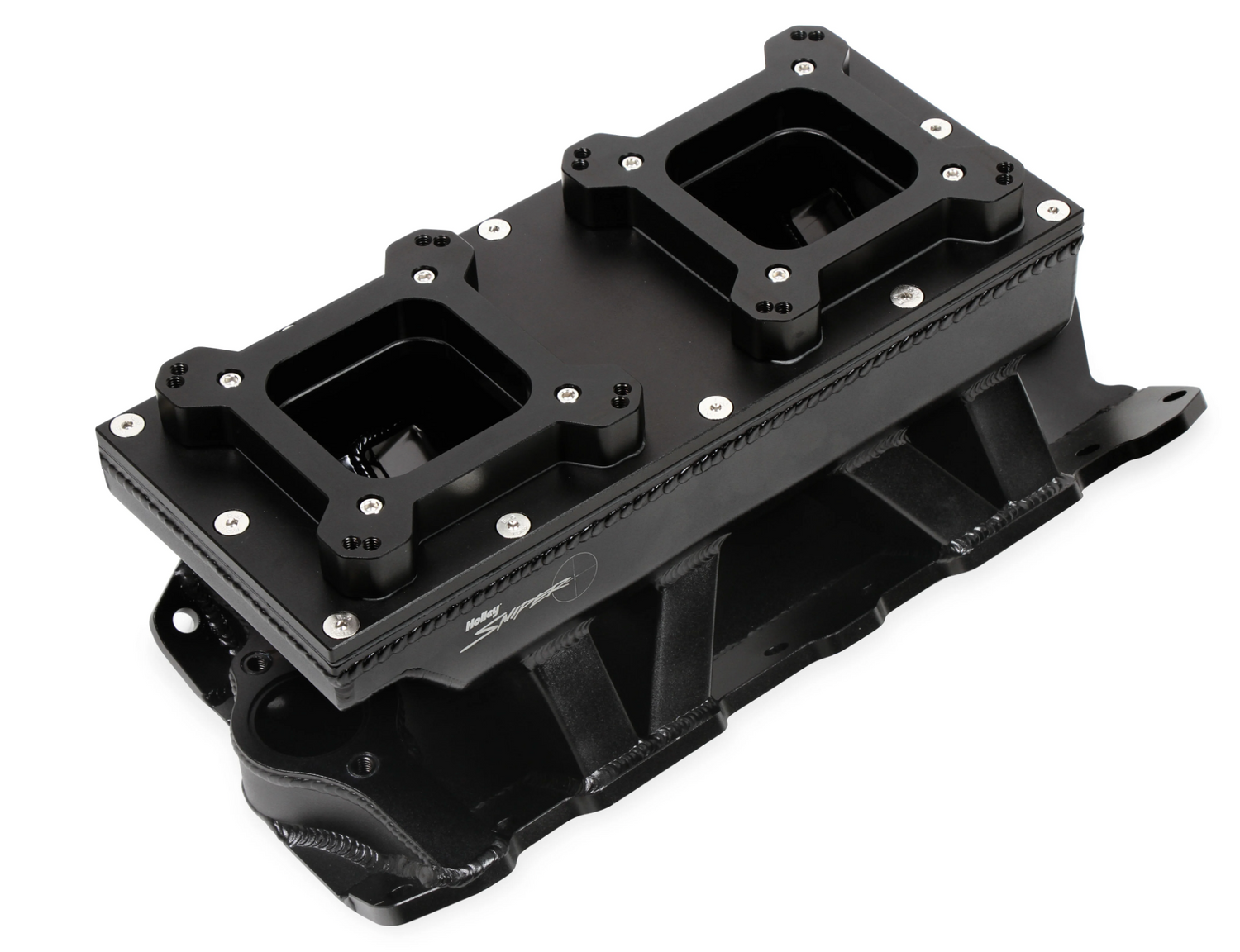

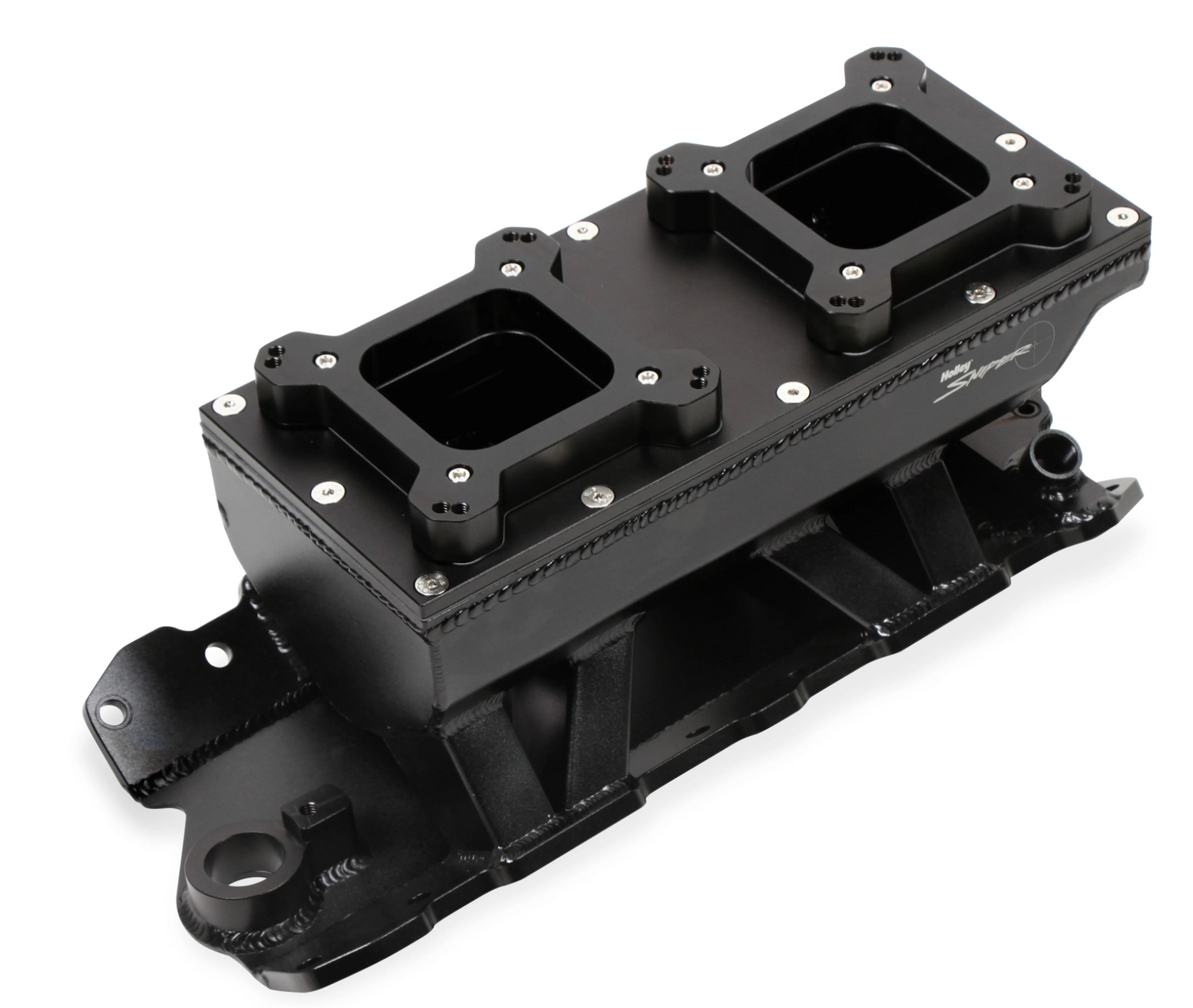

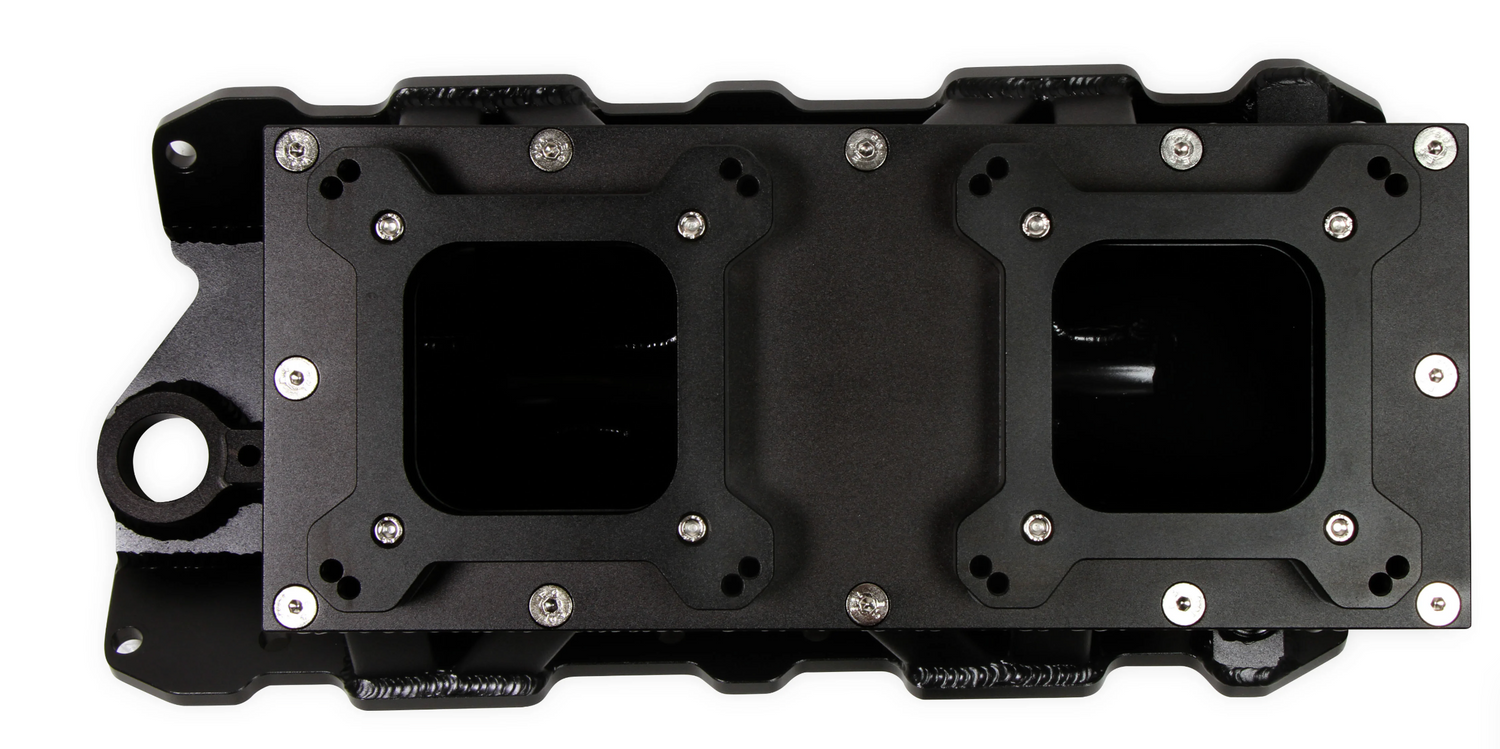

NEW “Modular” Removable Top Plates options for Small Block Chevy now available (1 x 4150, 2 x 4150, and 1 x 4500 flange options)
-
3mm (1/8") thick T6061 Sheet Aluminum construction, strong and durable even under high horsepower and boosted conditions
-

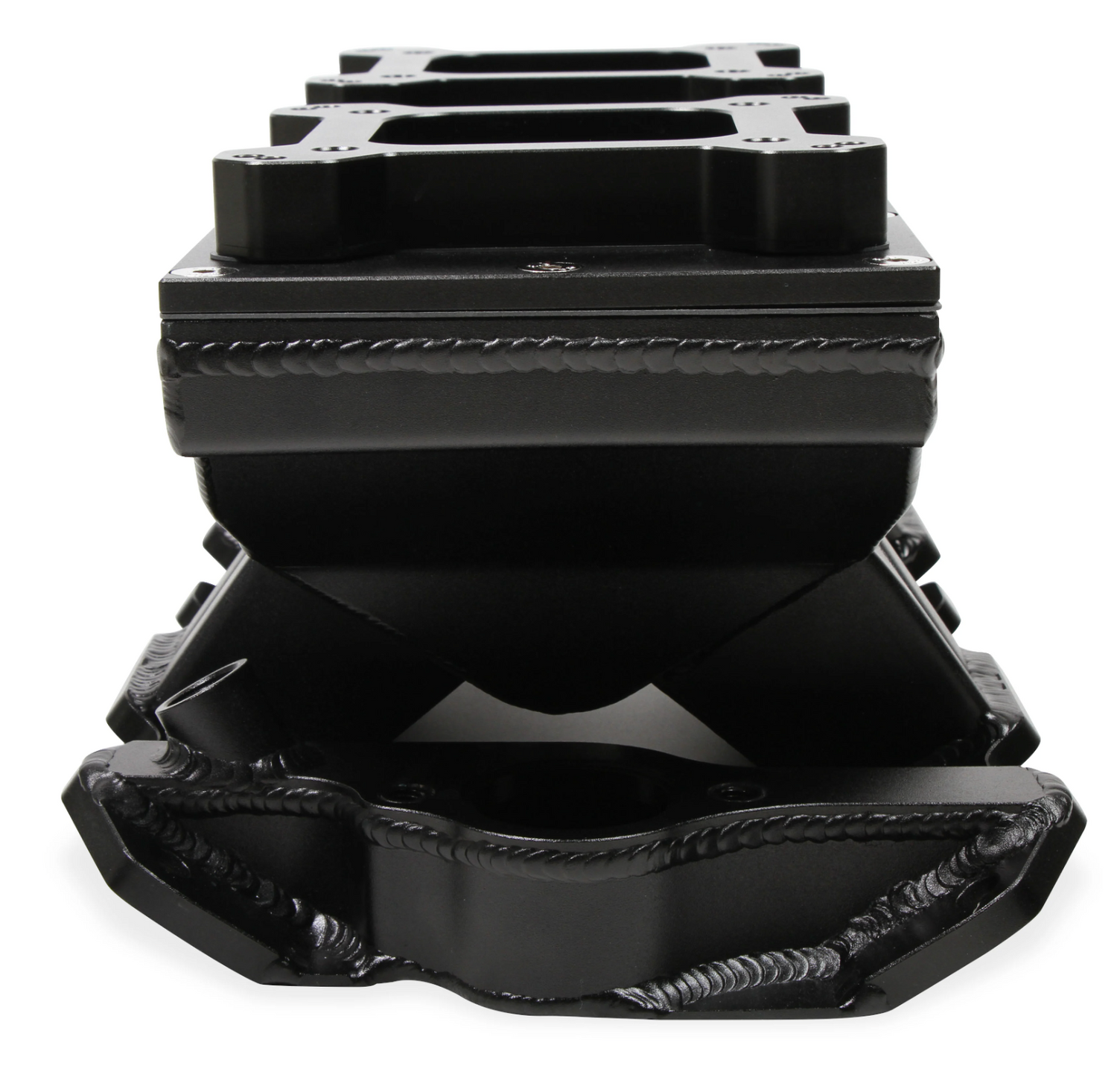

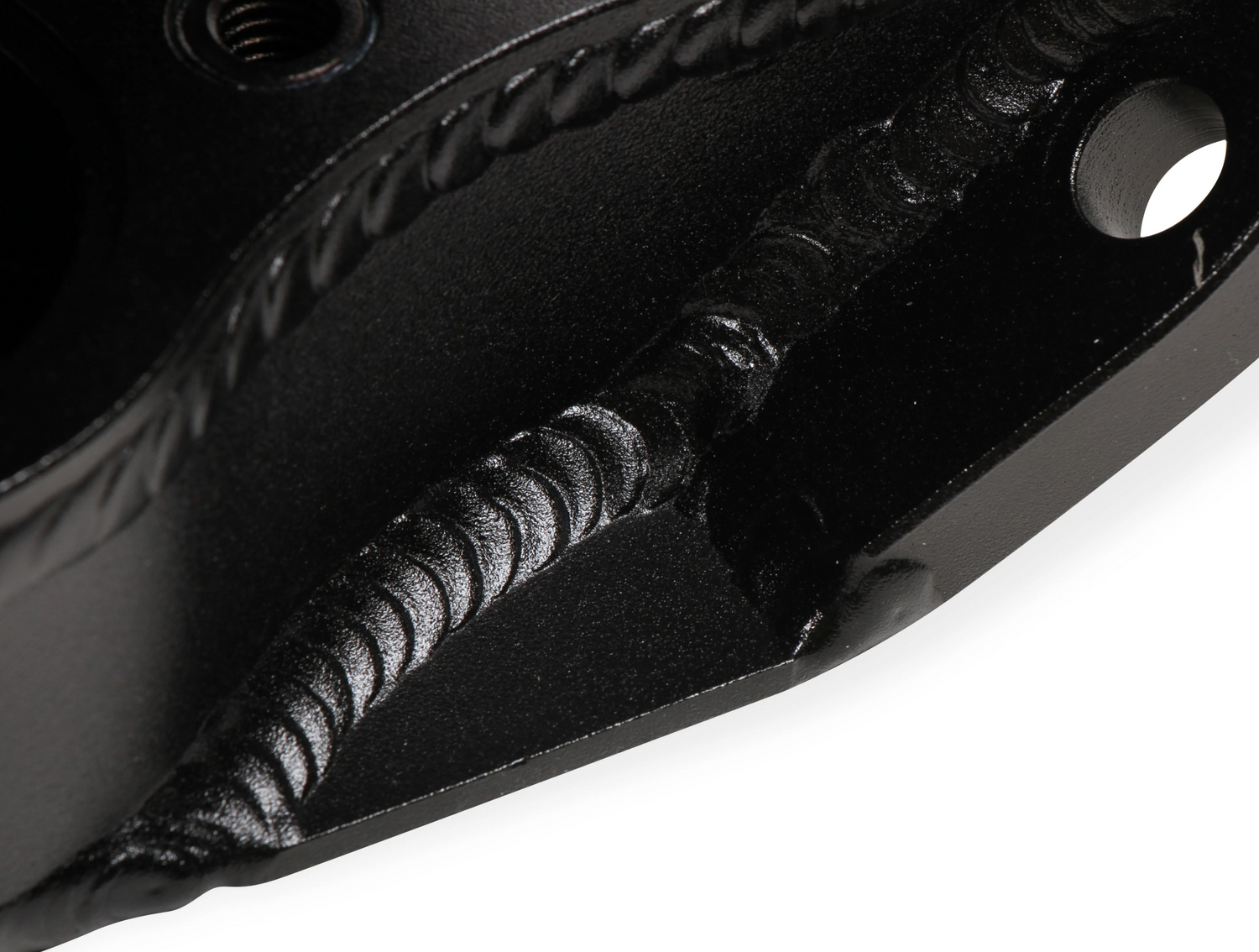

100% TIG welded
-
EFI Intakes include 3/8" Fuel rail kits with -8A fittings and crossover braided line capable of supporting 750+ horsepower (w/ laser engraved Sniper EFI logo)
-
Runner lengths with tapered top on EFI intakes designed to increase velocity and more evenly distribute airflow to all 8 cylinders
-
Available in Silver and Black Finishes
Basic Operating RPM Range |
1800-7000 RPM |
|---|---|
Brand |
Holley Sniper |
Carb Flange Center-to-Center |
8.50" |
Carburetor Flange |
Dominator/4500 |
Clearance Category |
Air and Fuel Delivery |
Color |
Black |
Construction |
Fabricated |
Discount Percentage |
26-50% |
EGR Port |
No |
Emission Code |
4 |
Engine |
Chevrolet Small Block Gen I |
Finish |
Black |
Flange Size |
4150 |
Front Height |
8.503 inch IN |
Front Maximum Height |
8.503 IN |
Fuel Injectors Included |
No |
Fuel Rail(s) Included |
No |
Material |
Aluminum |
Nitrous Bung(s) Included |
No |
Plenum Finish |
Black |
Port Size |

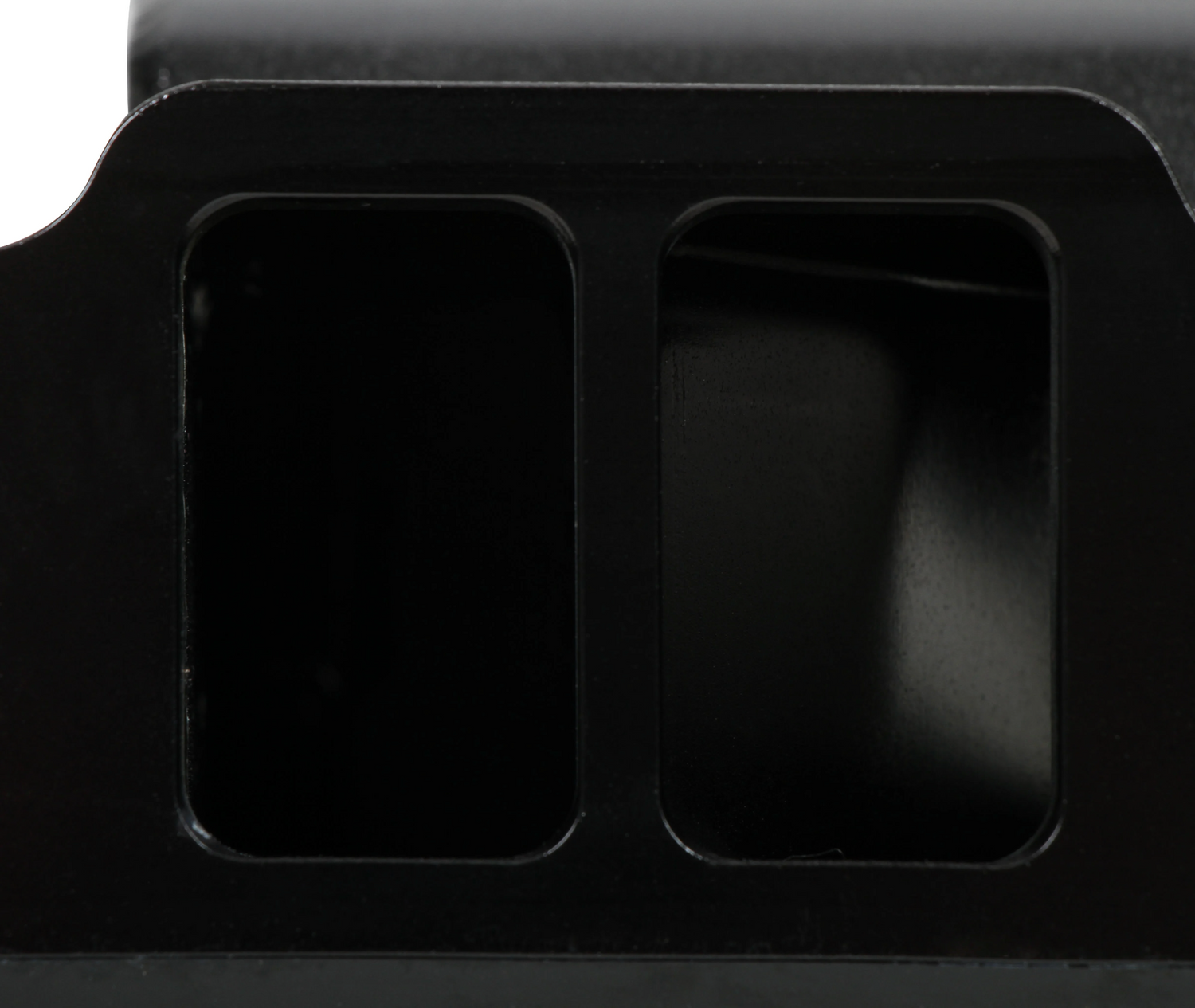

1.90" x 1.15" |
Product Type |
Intake Manifold |
Rear Height |
8.503 inch IN |
Rear Maximum Height |
8.503 IN |
Removable Runners |
No |
Removable Top/Lid |
Yes |
RPM Power Band |
1800-7000 RPM RPM |
Sale Category |
Air and Fuel Delivery |
Single Or Dual Plane Type |
Single Plane |
Style |
Carbureted |
Throttle Body Included |
No |
Vacuum Ports |
None |
Warranty |
Limited 90 Day |
UPC |
847875006931 |
Part Number |
825124 |
