Holley®  |  SKU: 822241

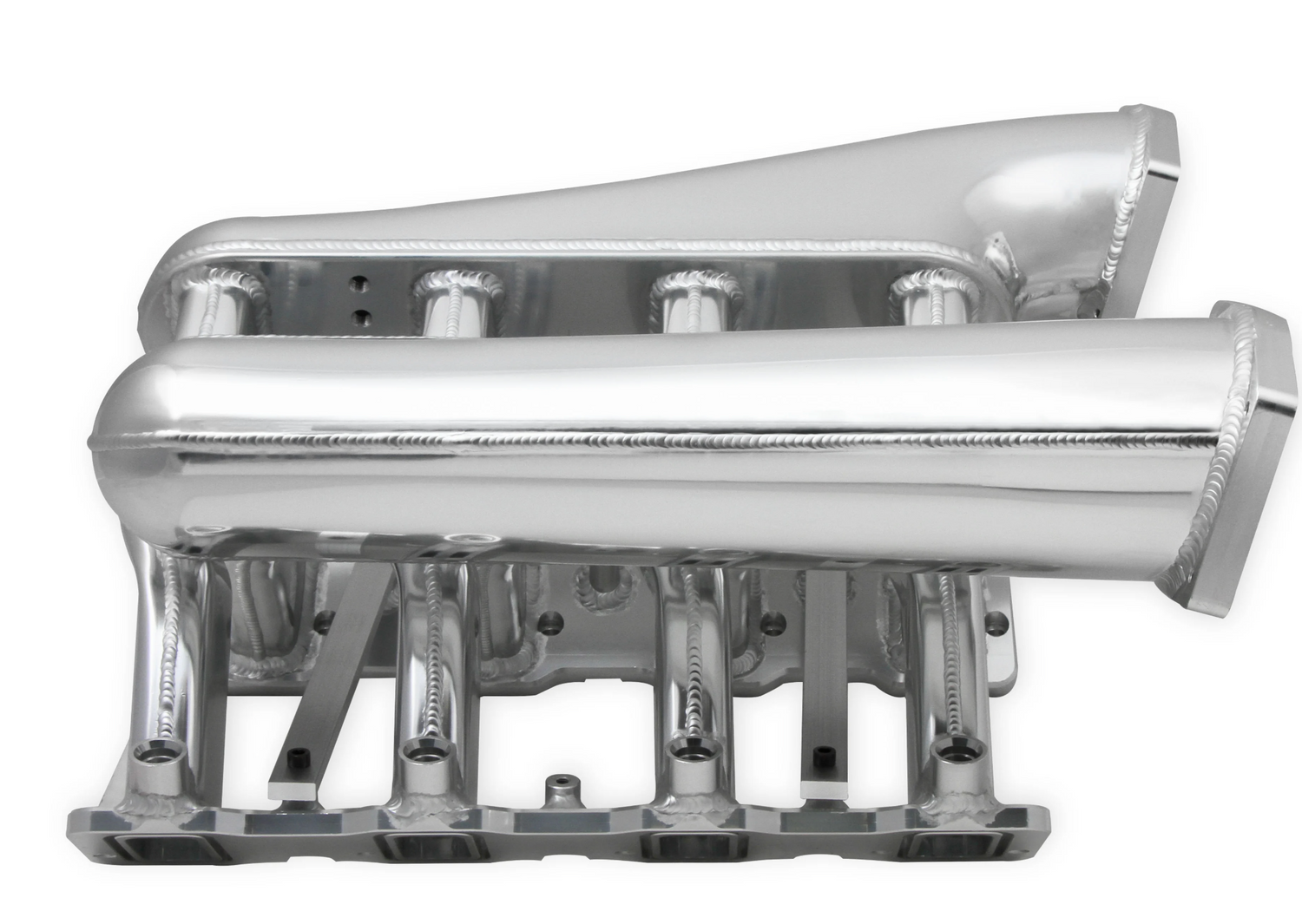

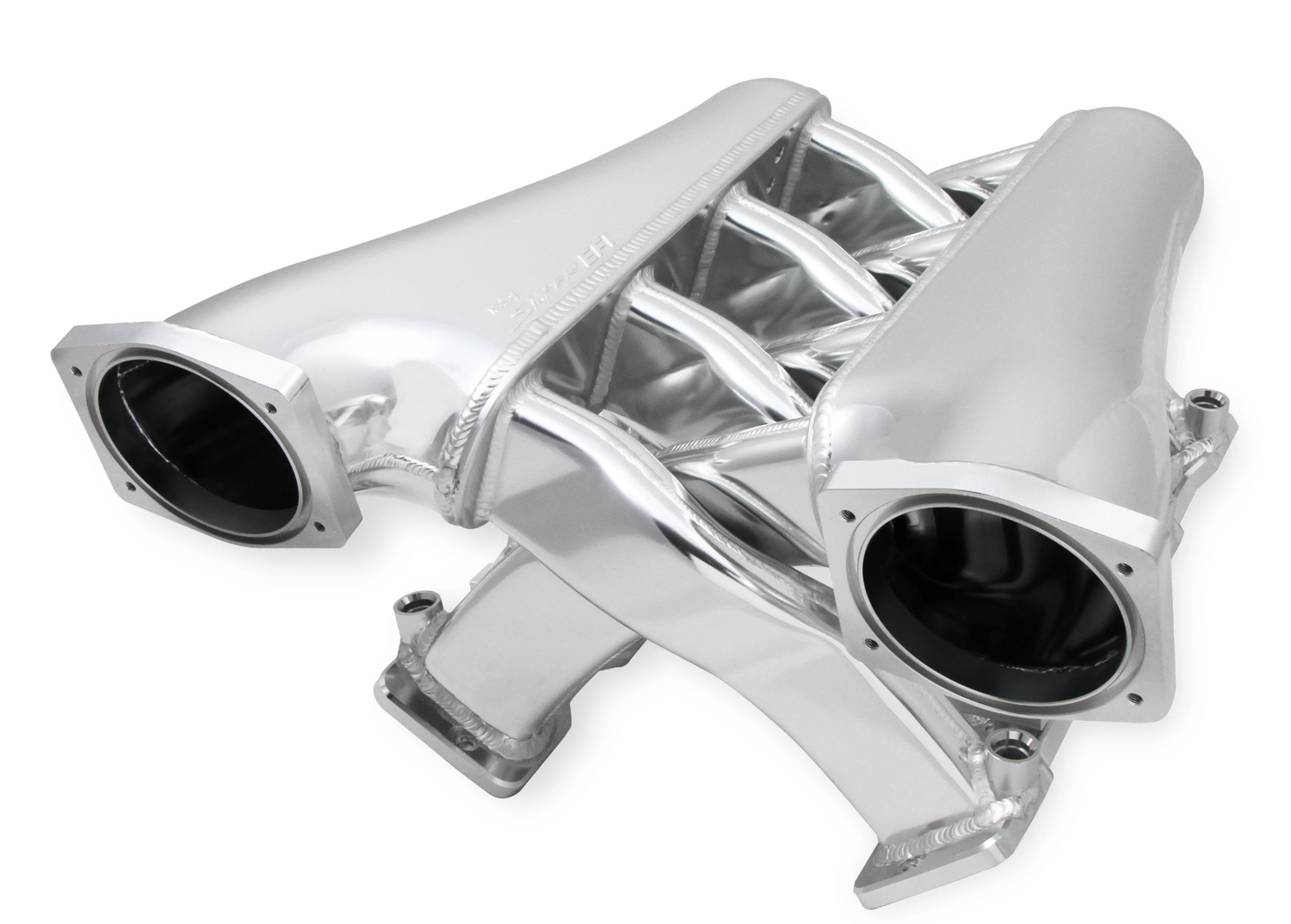

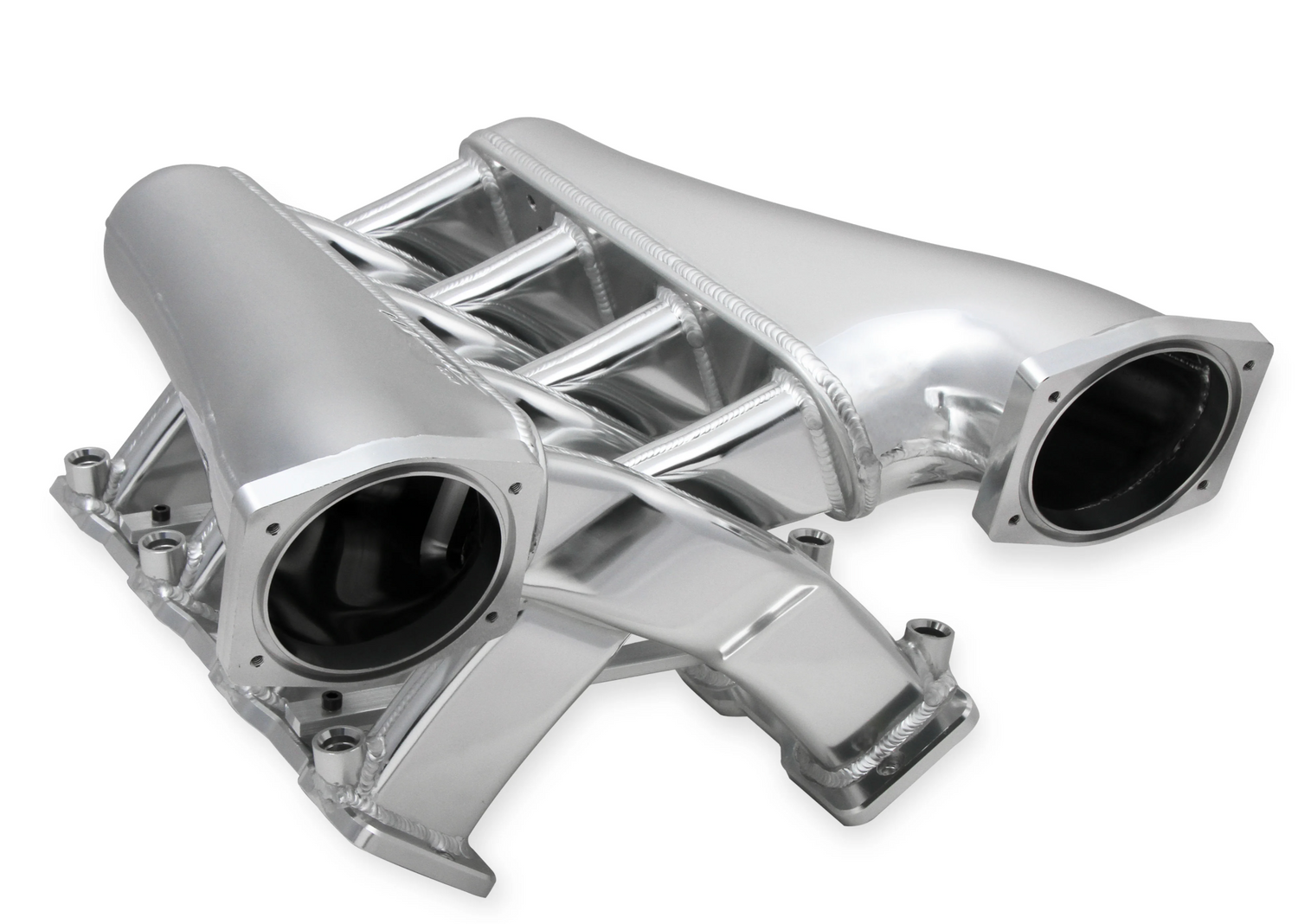

Holley® #822241 GM LS3/L92 102MM Silver Sniper EFI Fabricated Intake Manifold Dual Plenum

PLEASE CONTACT SUPPORT TO CONFIRM INVENTORY

$1,499.95
Shipping calculated at checkout.

Question? Call us at (888) 257-1077 🏁 (M-F 9-5 ET)

Email: info@10SecondRacing.com (24/7)

Free Shipping to Lower 48 US States ($100+)

Worldwide Shipping via UPS (Check Rates at Checkout)

Description

COMPATIBLE:

2007 - 2009 CADILLAC ESCALADE (6.2L-L92)

2008 - 2009 CHEVROLET TAHOE LTZ (6.2L-L92)

2010 - 2015 CHEVROLET CAMARO SS (6.2L-LS3)

2014 - 2017 CHEVY SS (6.2L-LS3)

2008 - 2013 CHEVROLET CORVETTE (6.2L-LS3)

2009 - 2013 CHEVROLET SILVERADO 1500 (6.2L-L92)

2008 - 2009 HUMMER H2 (6.2L-L92)

2007 - 2013 GMC SIERRA 1500 (6.2L-L92)

2007 - 2013 GMC YUKON DENALI (6.2L-L92)

2007 - 2013 GMC YUKON XL DENALI (6.2L-L92)

2009 - 2010 PONTIAC G8 GXP (6.2L-LS3)

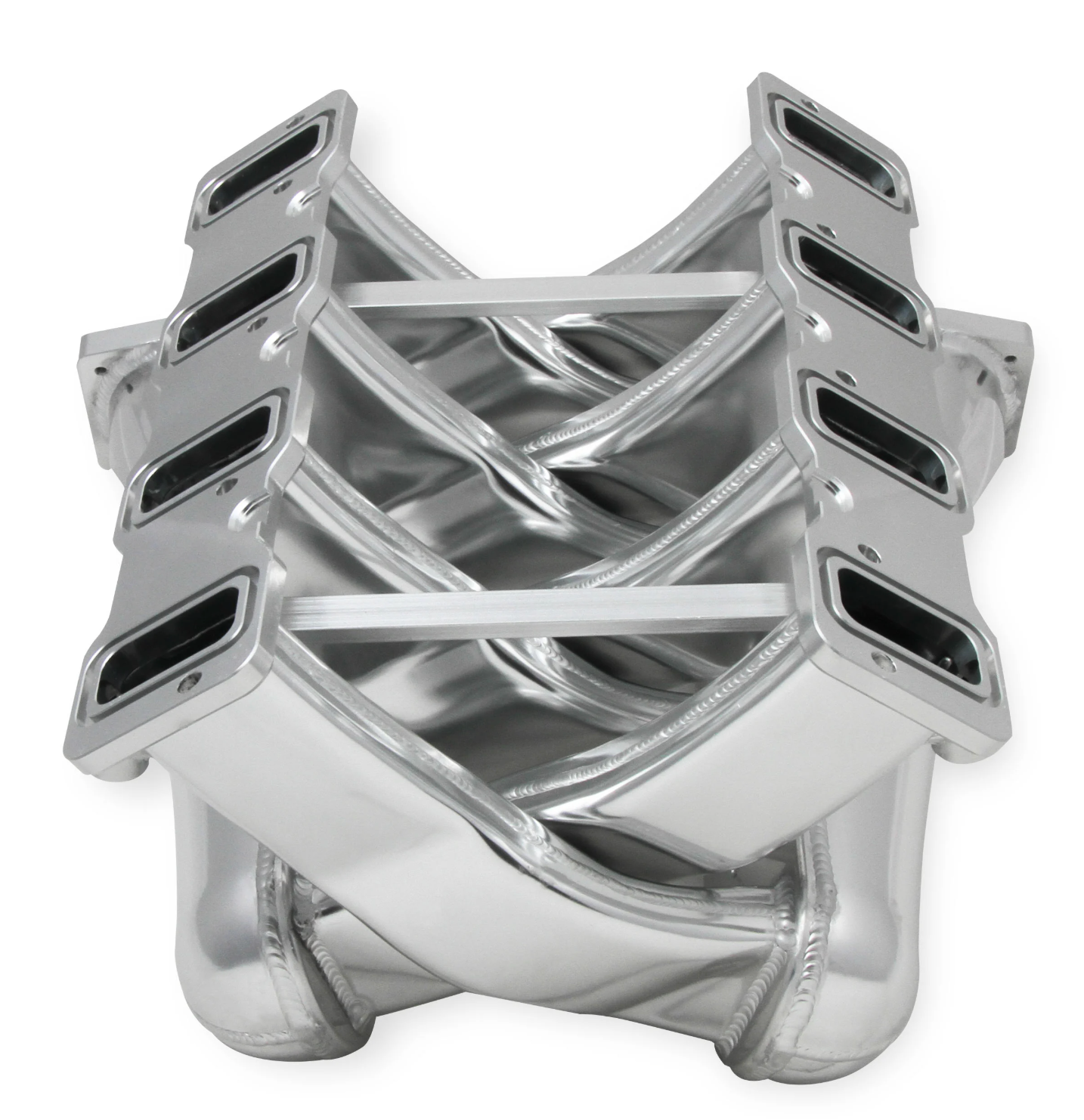

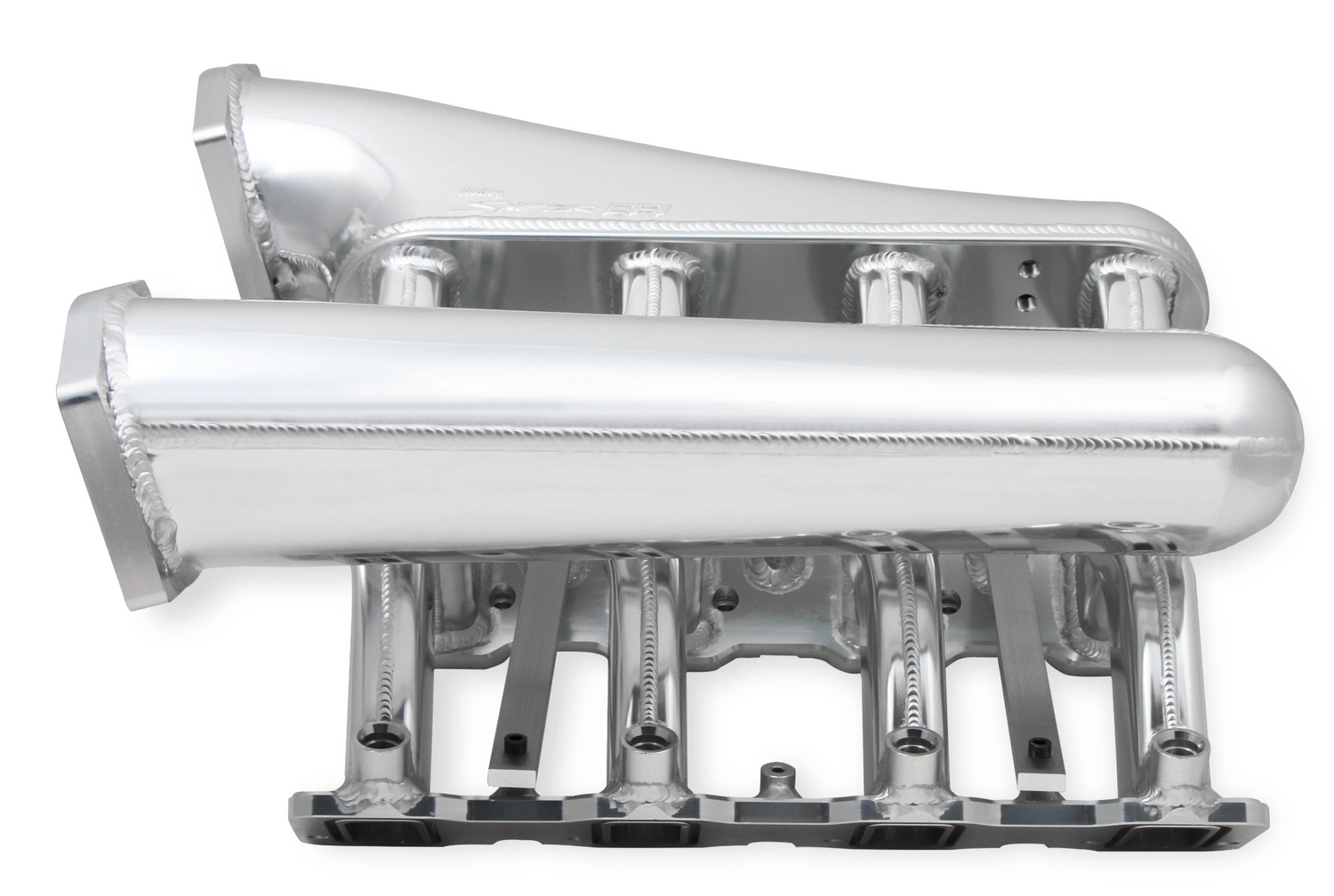

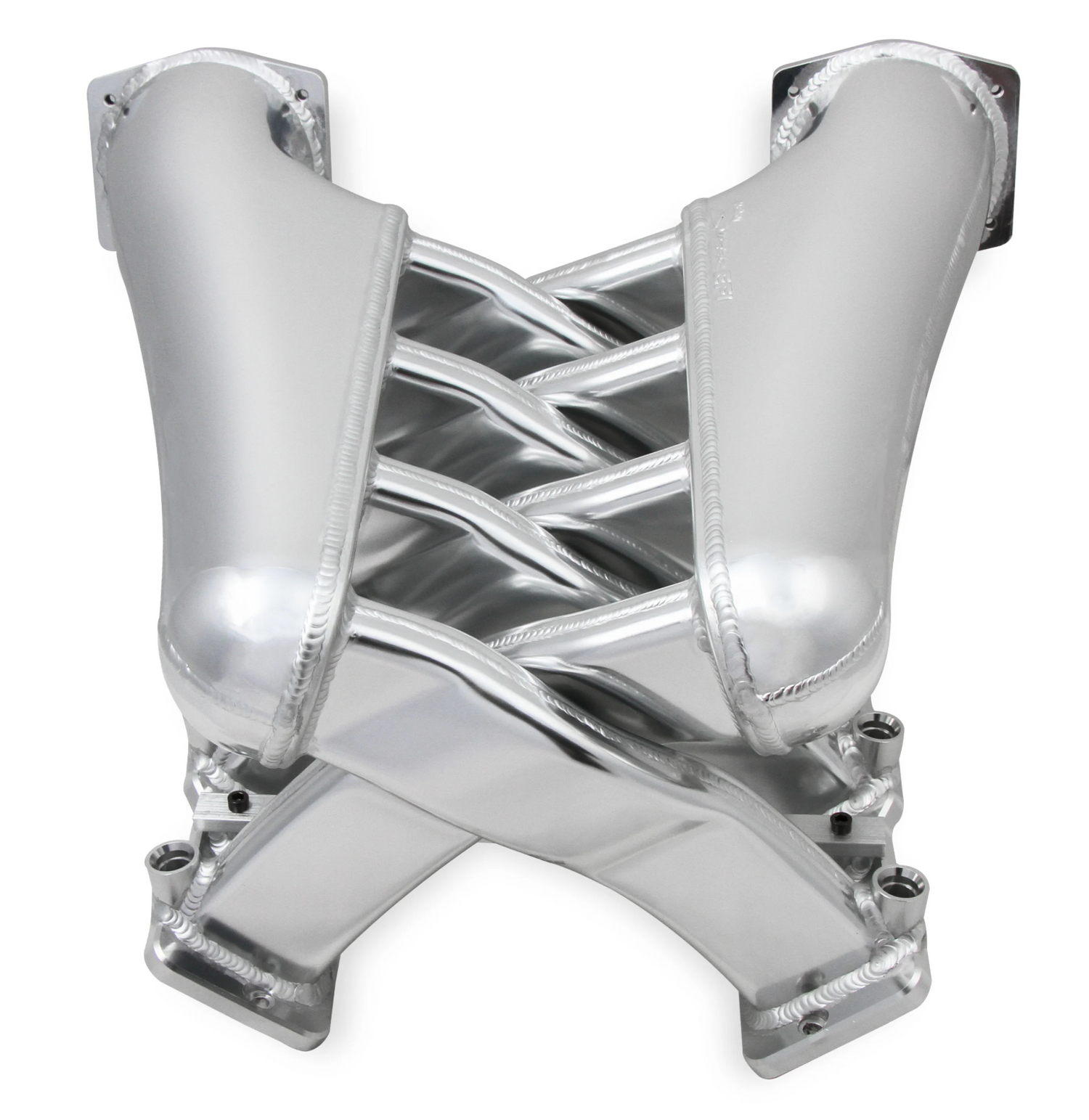

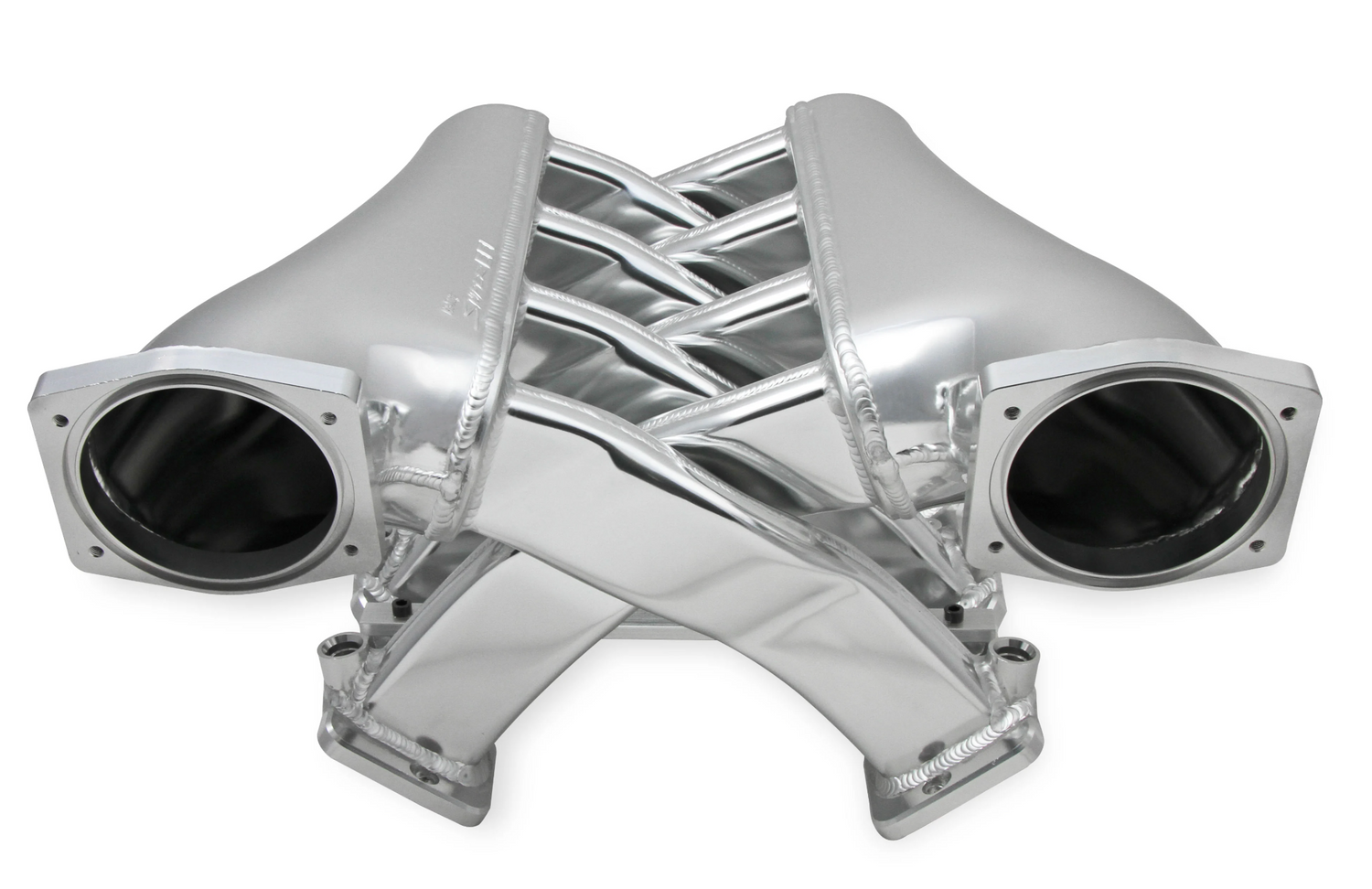

Holley continues to push the envelope of intake design with its latest offering. The unique look of this intake will surely stand out from the crowd! Our latest release of fabricated "Dual Plenum" intake manifolds for GM LS1/2/6 and LS3/L92 engines. This unique design of utilizing two plenums solves two common problems experienced with many intakes increased airflow and even dispersion of air to intake ports. The use of one tapered plenum to accommodate one bank of cylinders accomplishes both problems. The entire volume of incoming air is distributed to only four cylinders and the tapered shape of the plenum help increased air velocity directed to each of the intake runner ports. Our dual plenum design features extremely long 12-3/4" runners to develop low-end torque making this intake an ideal "street" intake. These intake are finished in our familiar silver and black anodized finishes for durability and good looks. Our 3/8" fuel rail kit include a laser engrave Sniper logo and are capable of supporting 750+ horsepower.

  • Black Finish creates stealthy under-hood styling

  • 3mm (1/8") thick T6061 sheet aluminum construction for maximum durability

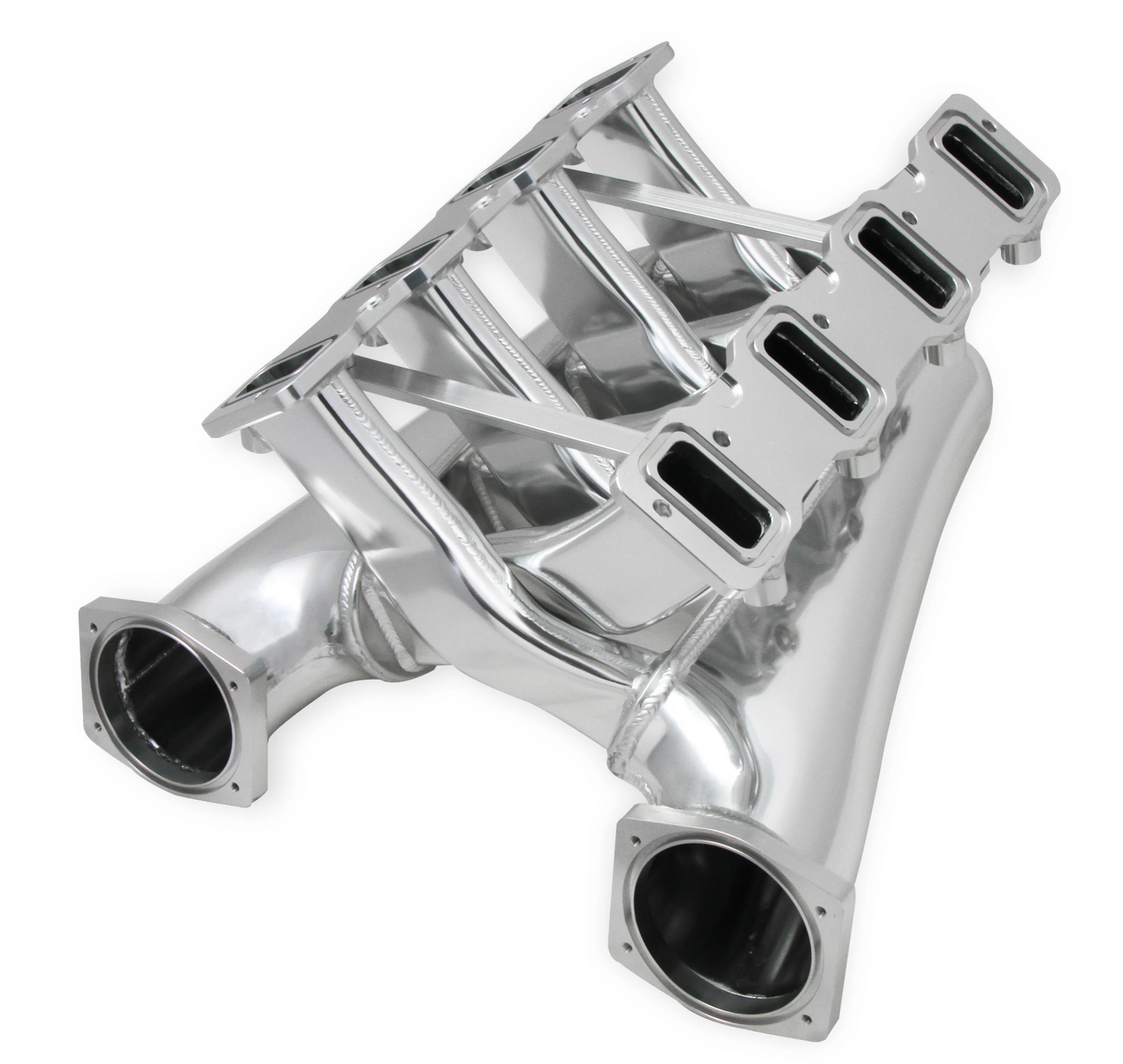

  • Twin 102mm throttle bore openings for increased air flow

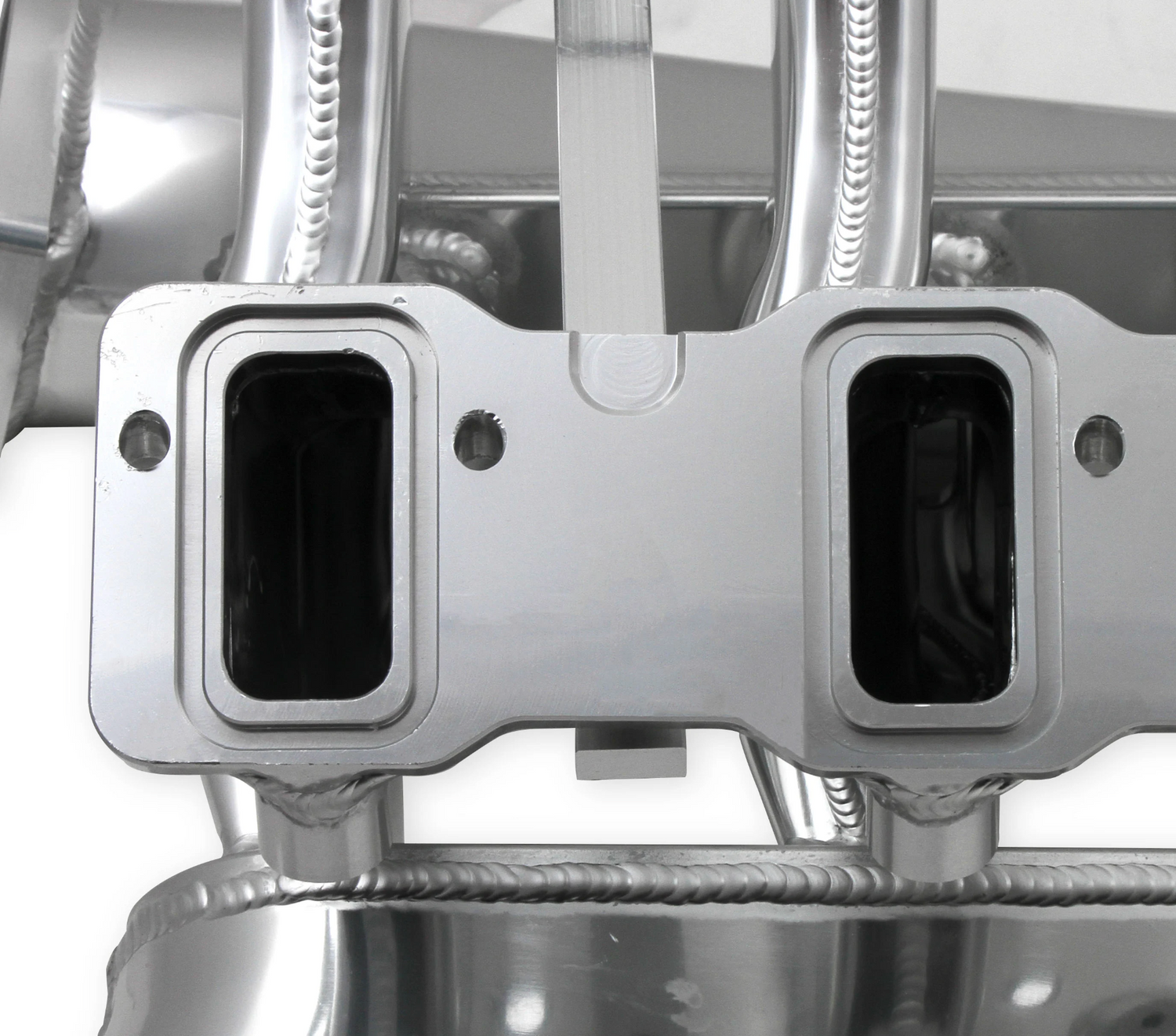

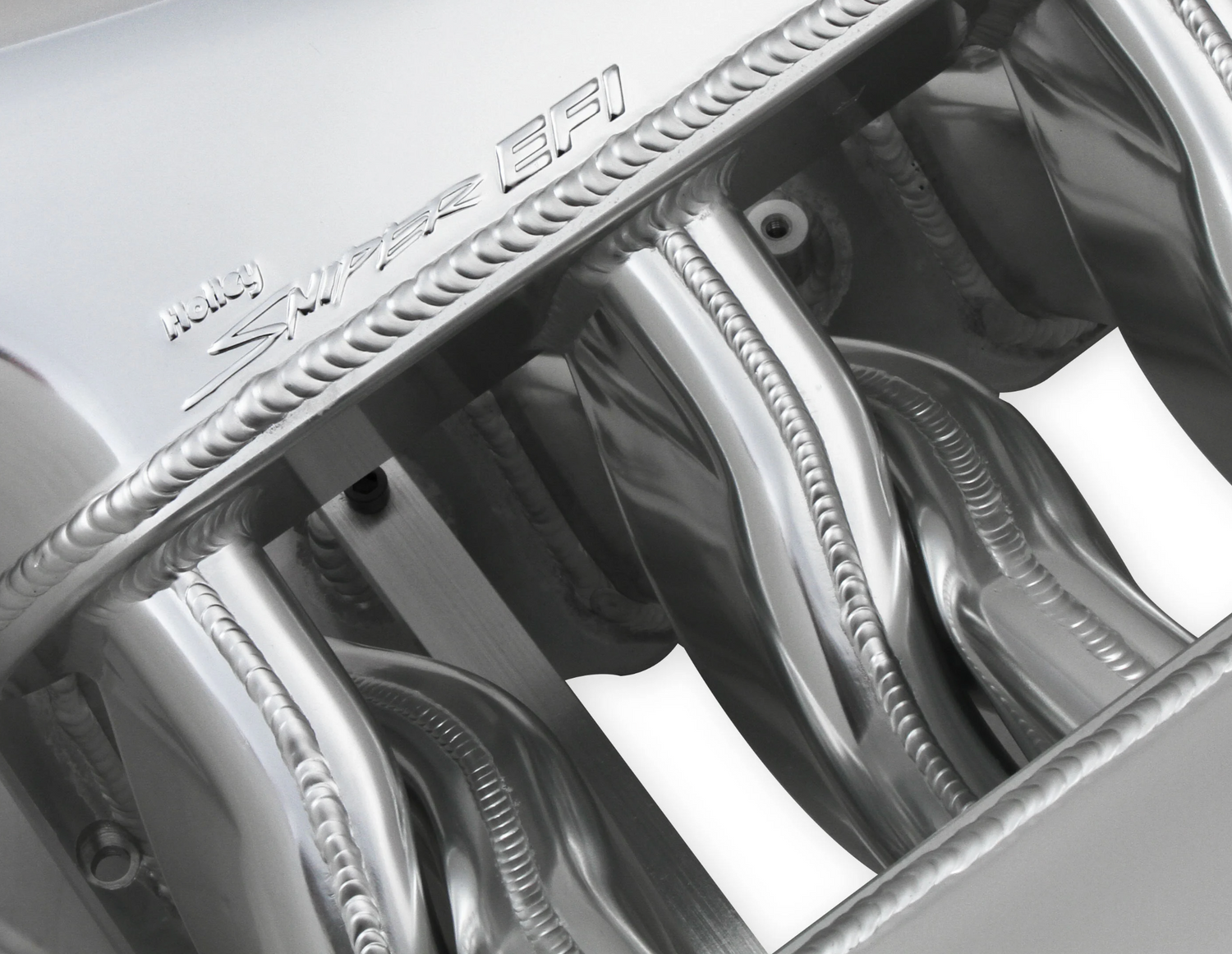

  • 100% TIG welded for strength and durability

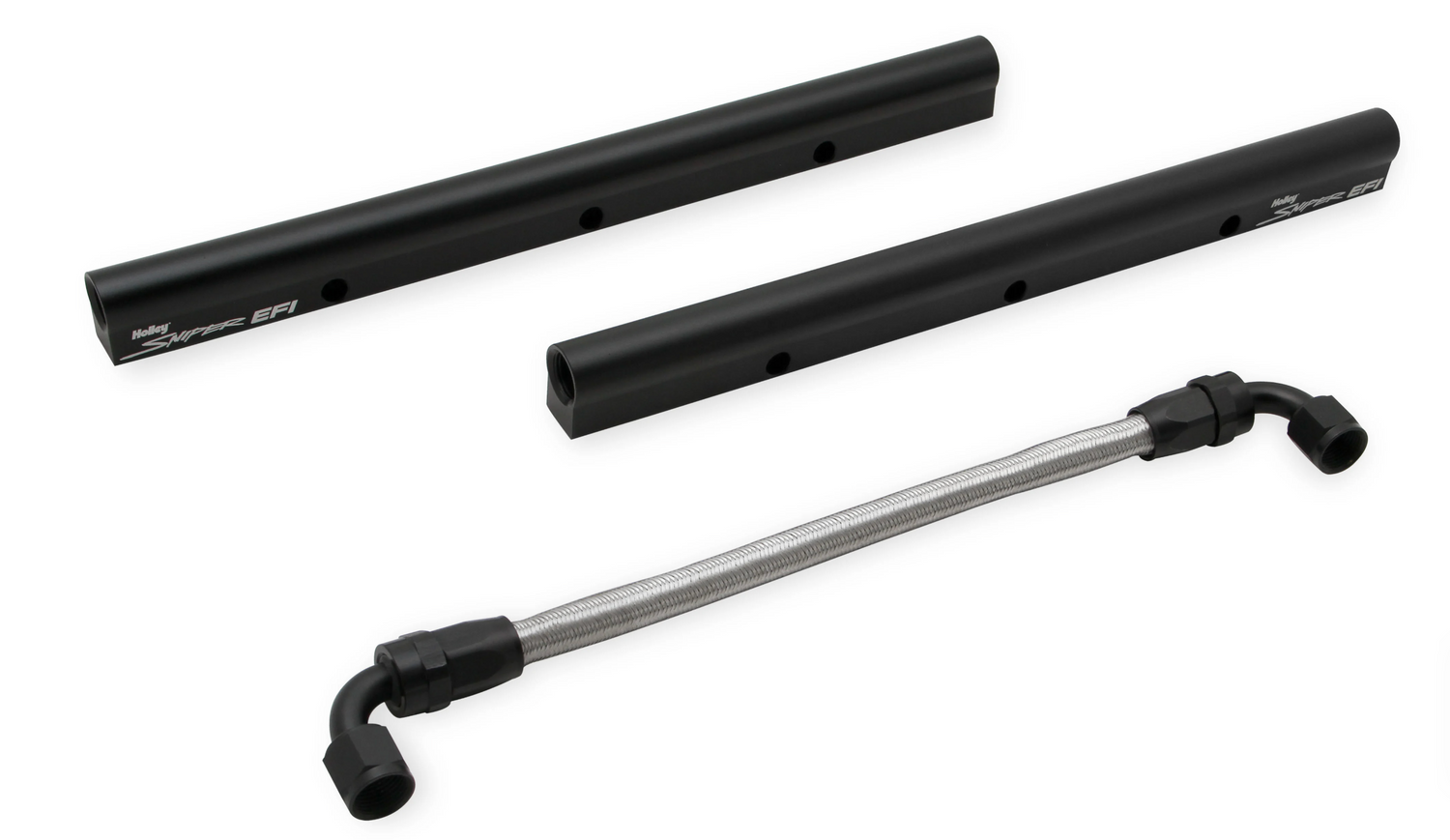

  • Includes 3/8" Fuel rail kits (Sniper logo laser engraved)

  • Intake runners with tapered top is designed to increase air velocity and more evenly distribute airflow to all 8 cylinders improving performance and throttle response

  • Dual plenum design ideal for street max effort engines and boosted applications

  • Long Intake runner lengths (12.75 inches ) offering low end torque and operating range of 1600-6800 RPM

  • Long Intake runner lengths (12.75 inches) offering low end torque and operating range of 1600-6800 RPM

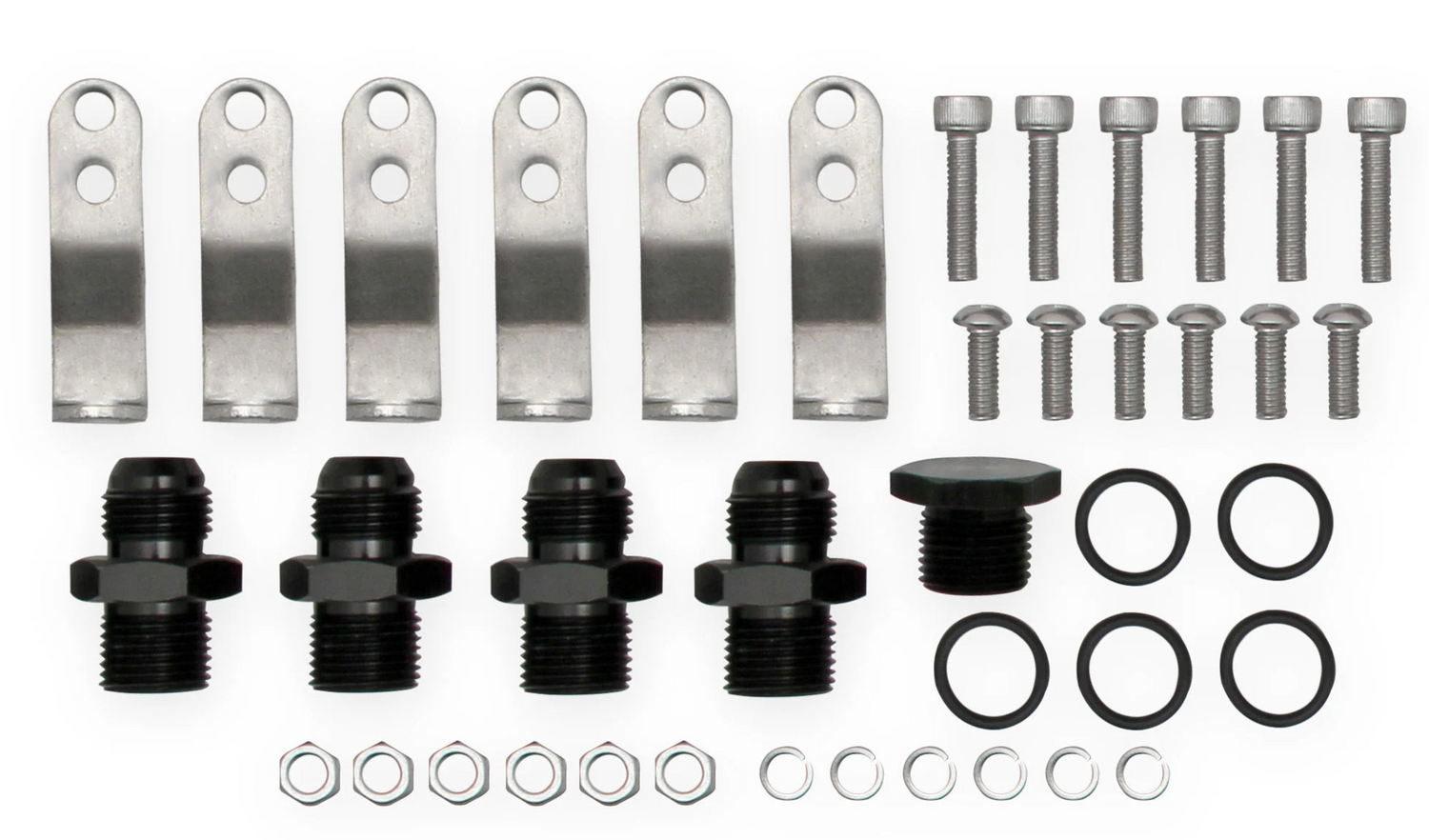

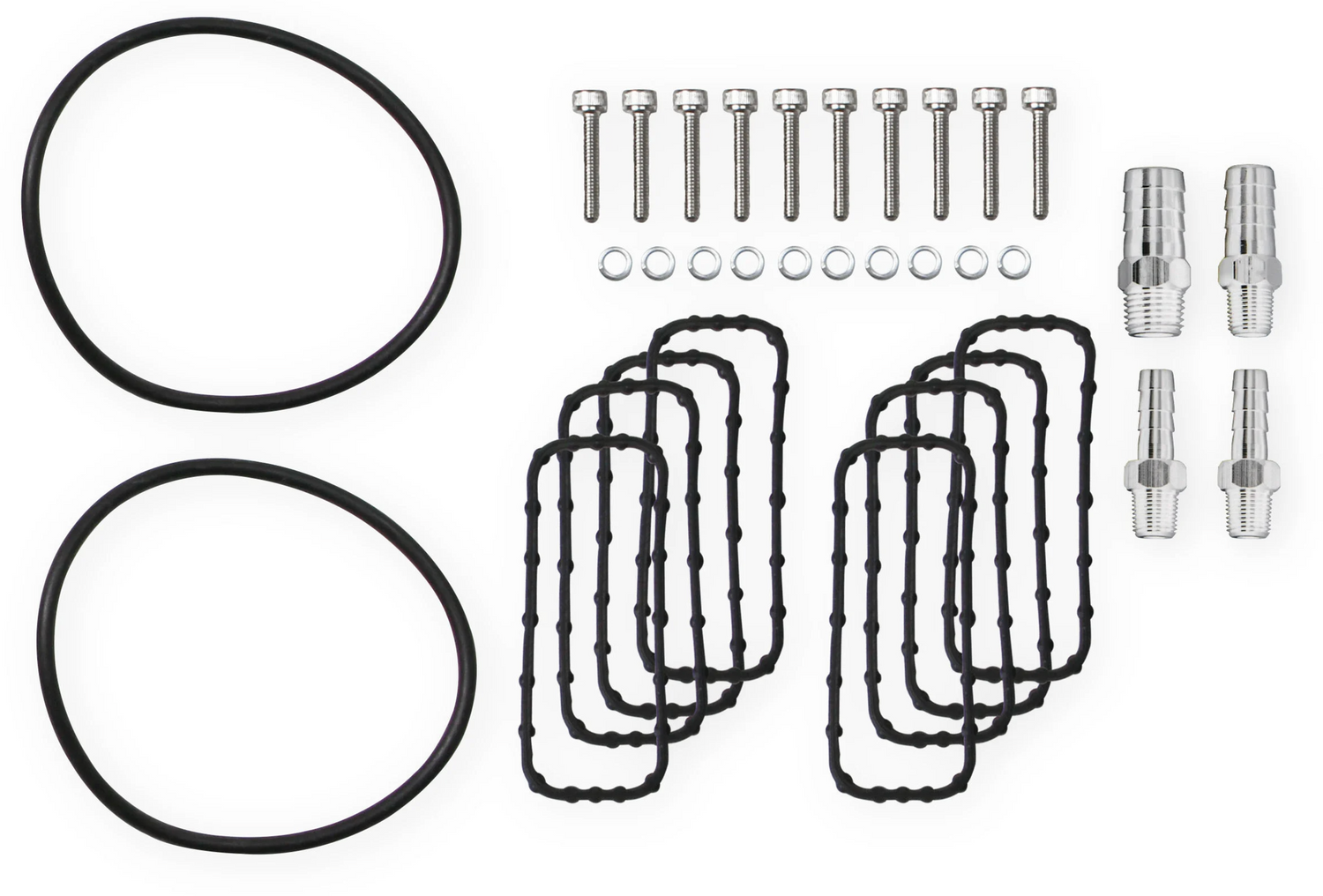

  • Product includes all gaskets and hardware for a hassle-free installation

  • The Sniper intake will only accept EV1 style injectors.

Basic Operating RPM Range

1500-6500 RPM

Brand

Holley Sniper EFI

Category Filter

Intake Manifolds

Clearance Category

Intake Manifolds

Color

Black

Construction

Fabricated

EGR Port

No

Emission Code

4

Engine

GM LS3/L92

Finish

Black

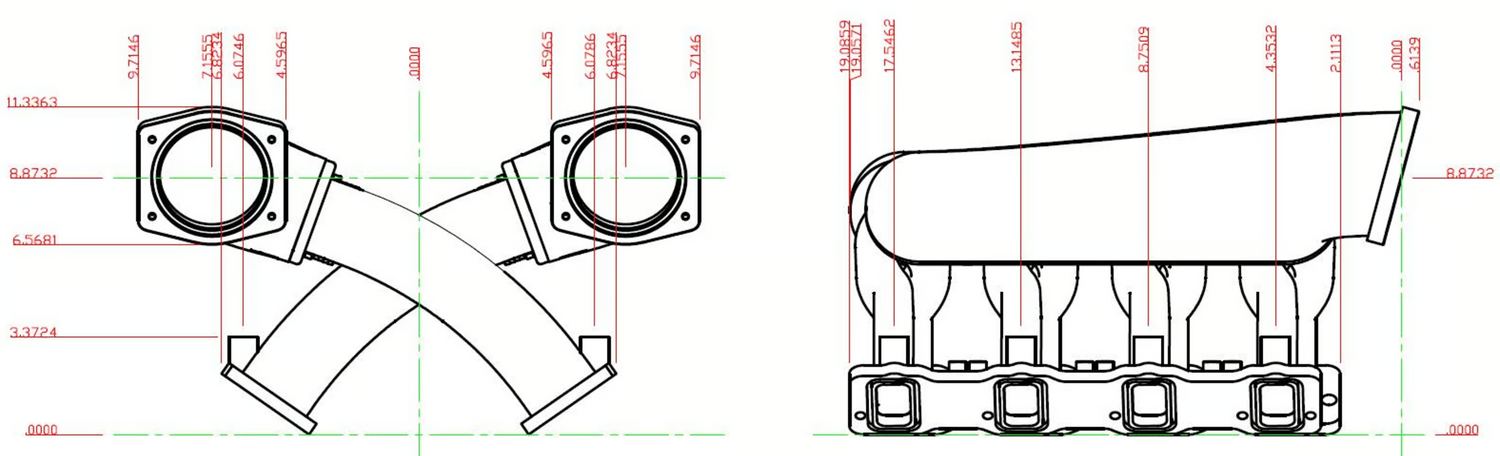

Front Height

11.336 inch

Front Maximum Height

11.336 IN

Front Width

19.4292 inch

Fuel Injectors Included

No

Fuel System Type

EFI

Injector Style Provision

EV14 USCAR

Manifold Type

Fabricated

Material

Aluminum

Nitrous Bung(s) Included

No

Plenum Finish

Black

Product Type

Intake Manifold

Rear Height

9.992 inch

Rear Maximum Height

9.992 IN

Rear Width

13.6468 inch

Recommended Use

Forced Induction

Removable Runners

No

Removable Top/Lid

No

RPM Power Band

1500-6500 RPM

Runner Length

5.512" (140mm)

Single Or Dual Plane Type

Single Plane

Style

EFI

Throttle Body Bore Diameter

102 MM

Throttle Body Included

No

Throttle Bore

102mm

Vacuum Ports

(3) 1/8"-28BSPT & (1) 1/4"-19BSPT

Warranty

Limited 90 Day

UPC

090127038505

Part Number

822242
