Holley® | SKU:
822041-1

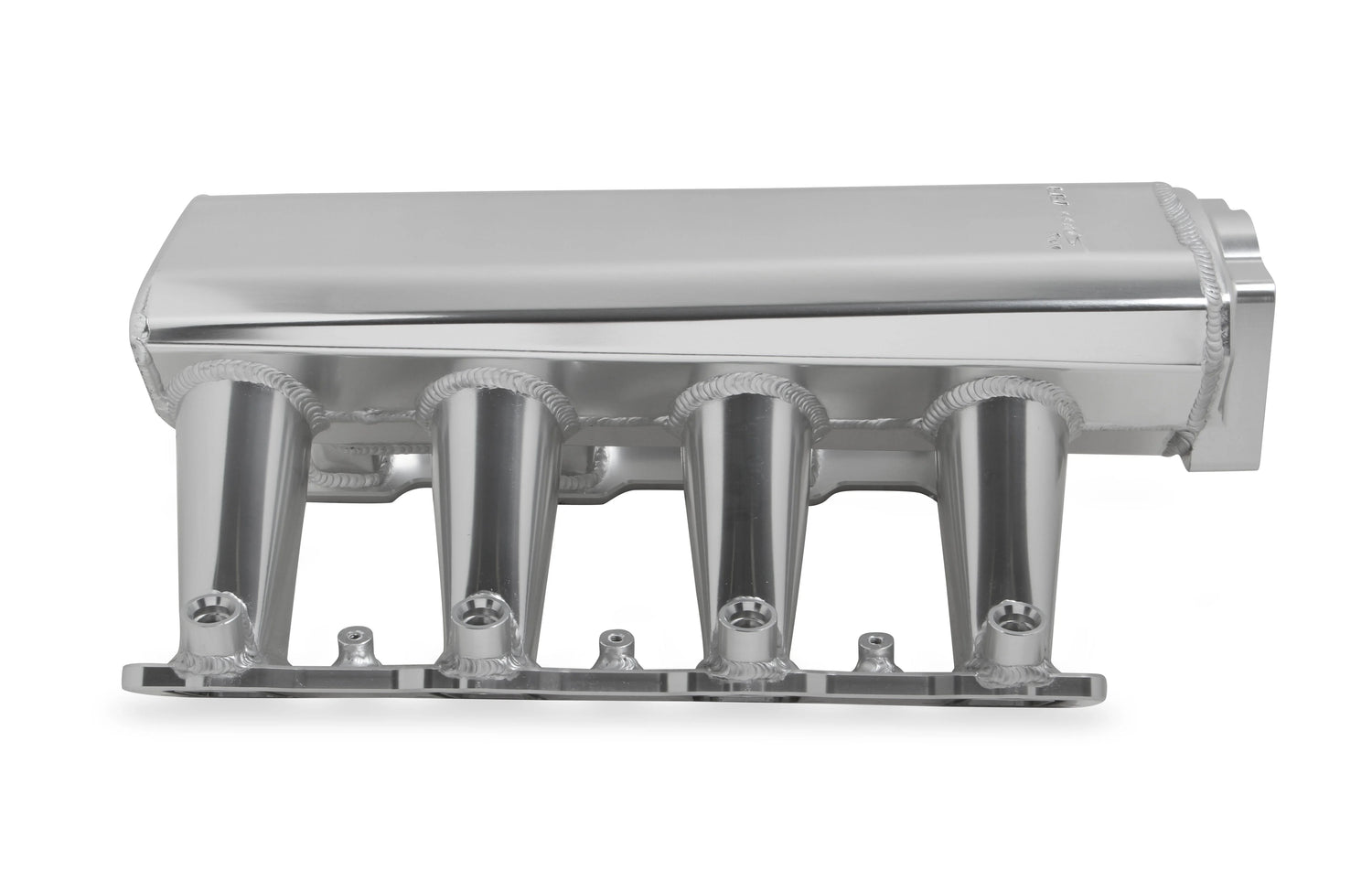

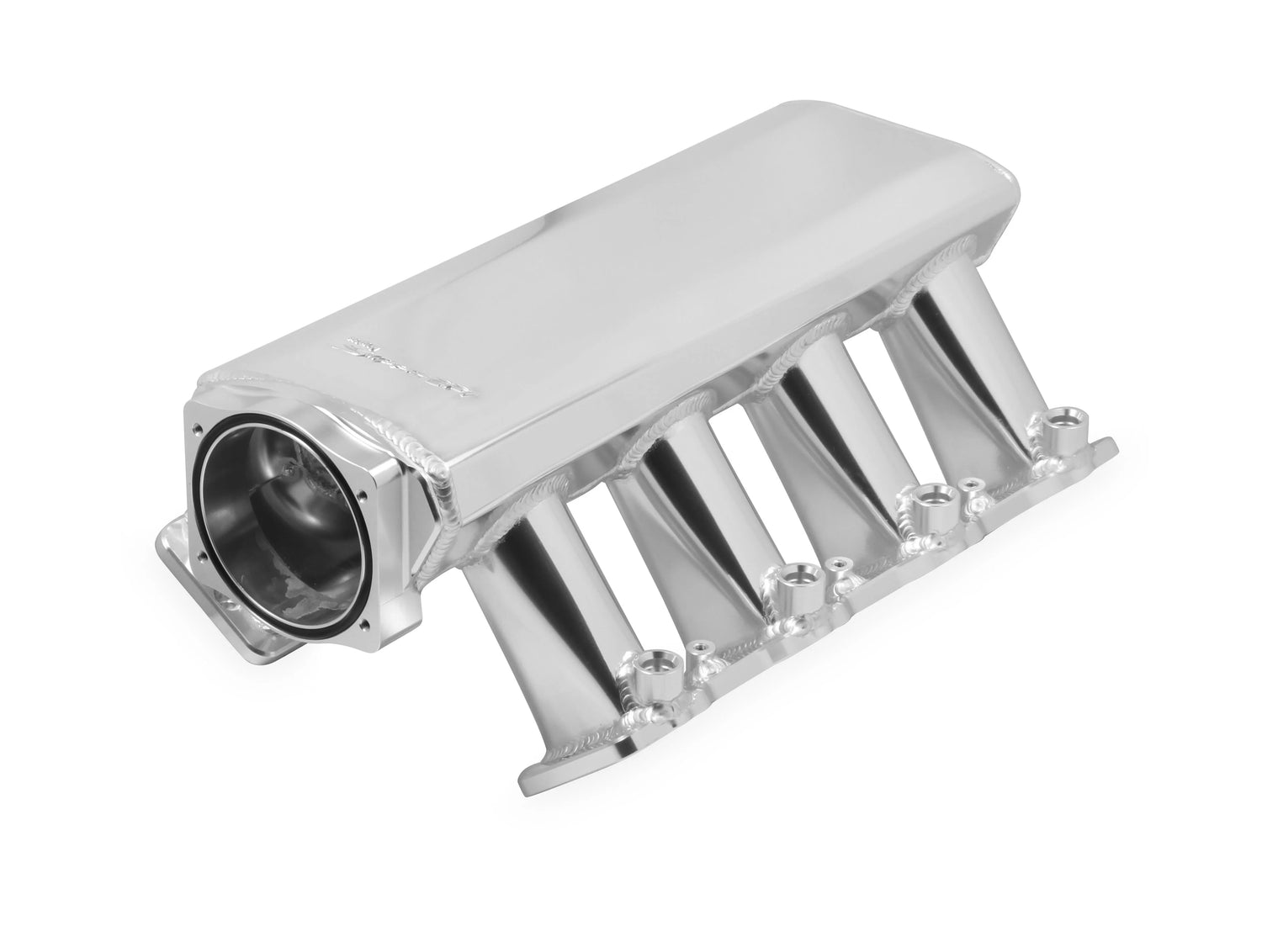

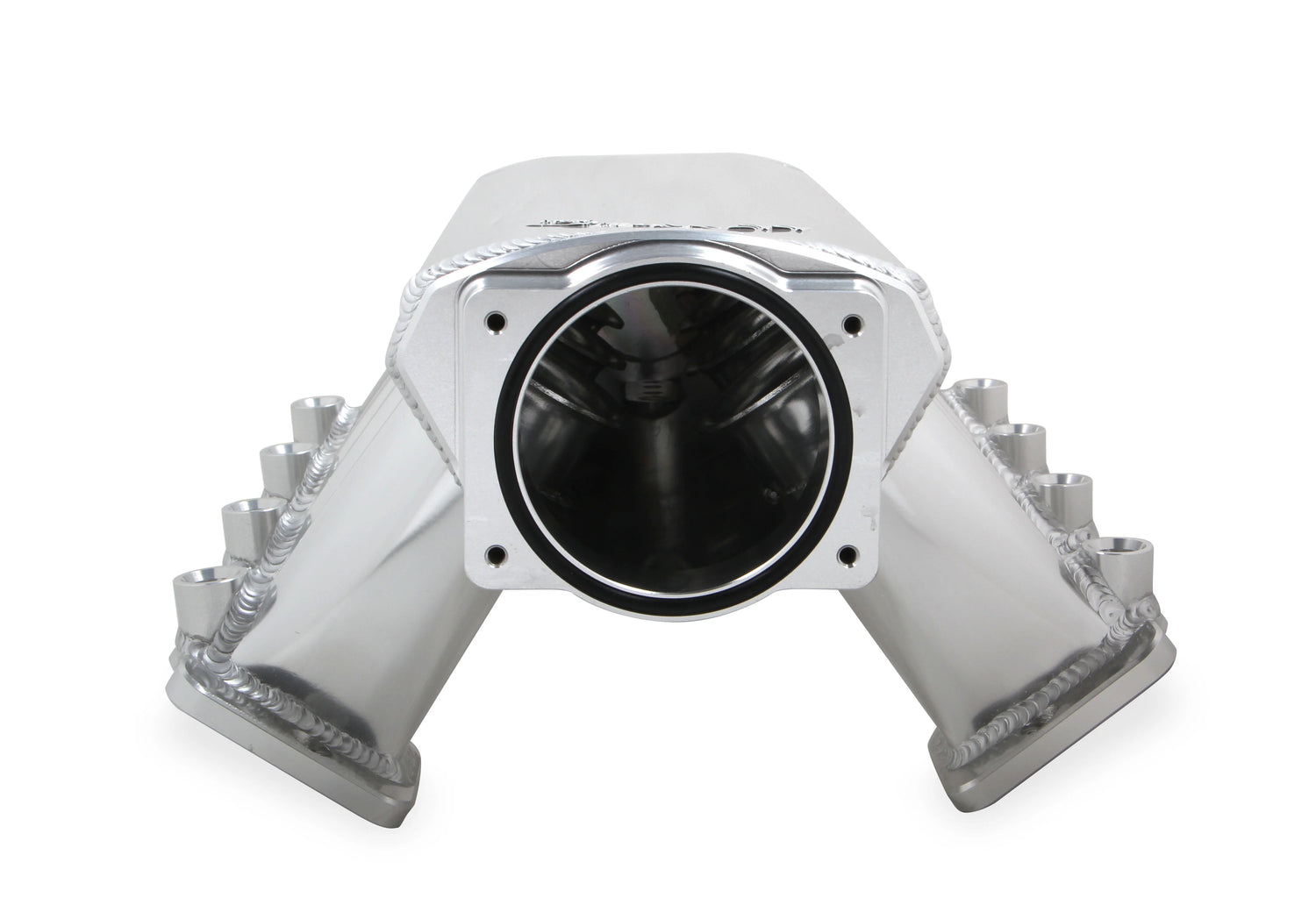

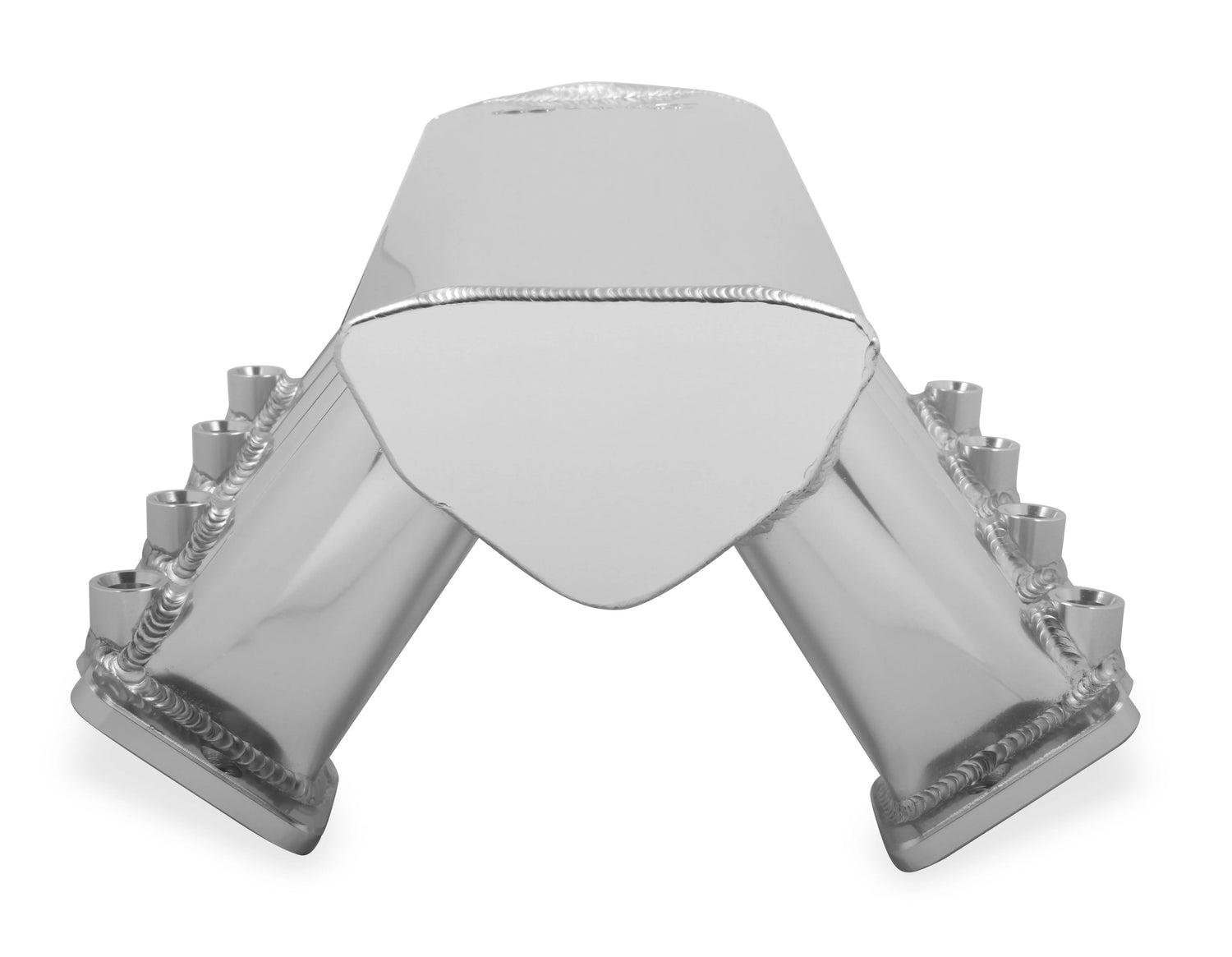

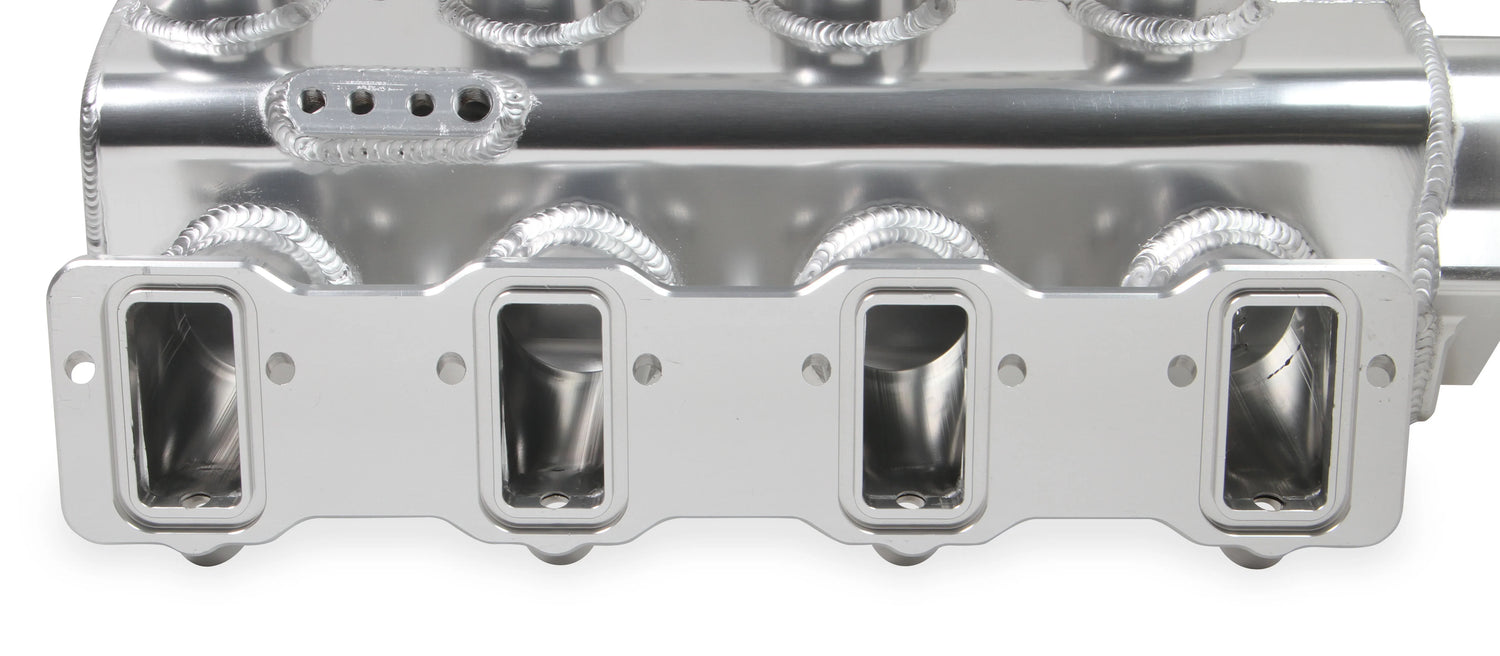

Holley® #822041-1 GM LS3/L92 Sniper EFI Sheet Metal Fabricated Intake Manifold for 102mm Throttle Body
PLEASE CONTACT SUPPORT TO CONFIRM INVENTORY
Regular price
$870.95
Unit price
Shipping calculated at checkout.
Holley® #822041-1 GM LS3/L92 Sniper EFI Sheet Metal Fabricated Intake Manifold for 102mm Throttle Body is backordered and will ship as soon as it is back in stock.
Question? Call us at (888) 257-1077 🏁 (M-F 9-5 ET)
Email: info@10SecondRacing.com (24/7)
Free Shipping to Lower 48 US States ($100+)
Worldwide Shipping via UPS (Check Rates at Checkout)
Holley® #822041-1 GM LS3/L92 Sniper EFI Sheet Metal Fabricated Inta...
Regular price
$870.95
Unit price
Description
Description
COMPATIBLE:
2007 - 2009 CADILLAC ESCALADE (6.2L-L92)
2008 - 2009 CHEVROLET TAHOE LTZ (6.2L-L92)
2010 - 2015 CHEVROLET CAMARO SS (6.2L-LS3)
2014 - 2017 CHEVY SS (6.2L-LS3)
2008 - 2013 CHEVROLET CORVETTE (6.2L-LS3)
2009 - 2013 CHEVROLET SILVERADO 1500 (6.2L-L92)
2008 - 2009 HUMMER H2 (6.2L-L92)
2007 - 2013 GMC SIERRA 1500 (6.2L-L92)
2007 - 2013 GMC YUKON DENALI (6.2L-L92)
2007 - 2013 GMC YUKON XL DENALI (6.2L-L92)
2009 - 2010 PONTIAC G8 GXP (6.2L-LS3)
The Holley GM LS3/L92 Modular Hi-Ram Intake Manifold is introduced as a cost effective alternative to fabricated sheet-metal for high-performance applications where induction system height is not limited. Coupling this Hi-Ram intake with the high flowing LS3/L92 style cylinder heads has outstanding potential for N/A and forced induction applications at a budget-minded cost. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more! • The base is designed to be modular in configuration to accept a wide range of carbureted and EFI tops and to be attractive to builders and fabricators as the foundation for custom induction systems. • Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations • EFI fuel rails are machined for -8AN O-ring fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits. • Cast aluminum construction. • Intended for use on N/A or forced induction engines in the 6.0 to 7.0+ liter range, max power at 7000-8000+RPM.
-
Height (Carbureted or EFI, 2x4V Top Mount & Blank) – 11.08” to the lifter valley cover flange on engine block.
-
Base Plenum Top Mounting Flange Height – 8.42” to the lifter valley cover flange on engine block.
-

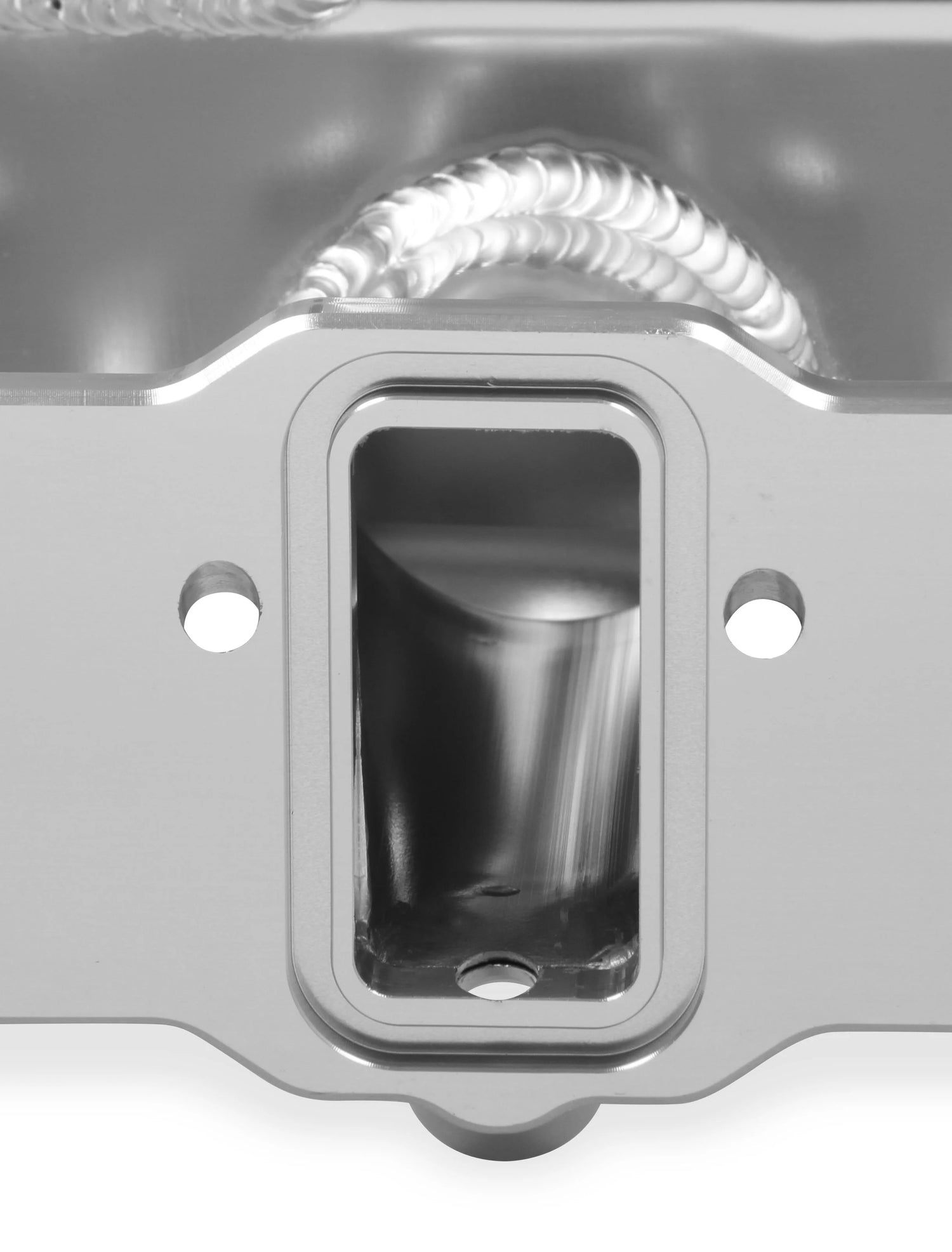

Port Size – 2.49” Height x 1.21” Wide
-

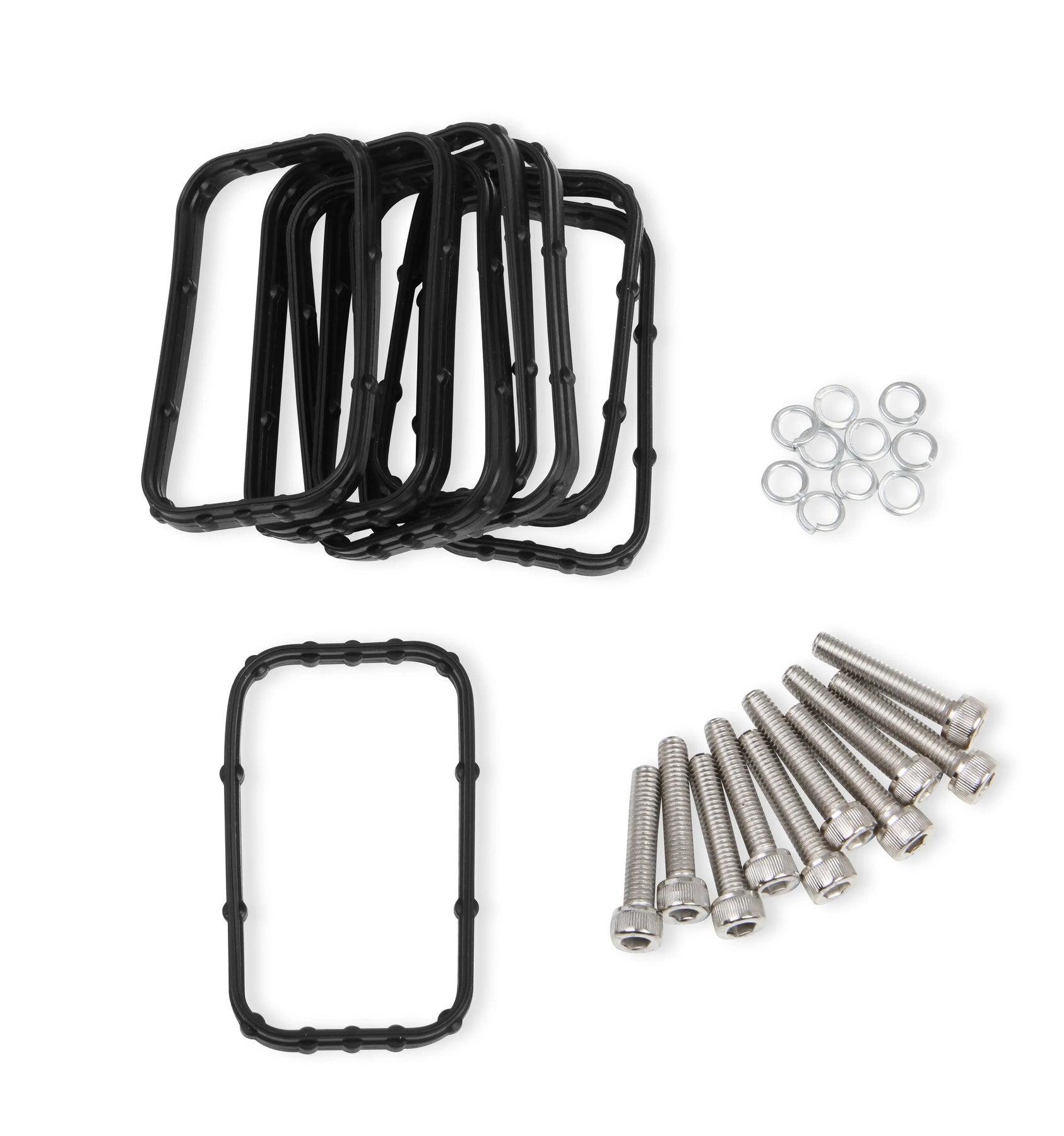

Mounting Flange Gasket Type – Standard LS3 Molded O-Ring
-
Plenum Top Gasket Type – 3/32” Round O-ring Cord
-
Runner Length – 6.50”, As-Cast Runner Cross-Sectional Area – Tapered 4.25 in² to 2.77 in²
Basic Operating RPM Range |
3500-8000 RPM |
|---|---|
Brand |
Holley EFI |
Carburetor Flange |
Square/4150 |
Category Filter |
Intake Manifolds |
Clearance Category |
Intake Manifolds |
Color |
Natural |
Construction |
Cast |
EGR Port |
No |
Emission Code |
4 |
Engine |
GM LS3/L92 |
Finish |
Silver |
Flange Style |
4150 Square Bore |
Front Height |
11.08 inch |
Front Maximum Height |
11.08 IN |
Fuel Injectors Included |
No |
Fuel Rail(s) Included |
Yes |
Fuel System Type |
EFI |
Grade Type |
Performance |
Intake Port Gasket(s) Included |
No |
Manifold Type |
Hi-Ram |
Material |
Aluminum |
Nitrous Bung(s) Included |
No |
Plenum Finish |
Natural |
Product Type |
Intake Manifold |
Rear Height |
11.08 inch |
Rear Maximum Height |
11.08 IN |
Removable Runners |
No |
Removable Top/Lid |
Yes |
RPM Power Band |
3500-8000 RPM |
Single Or Dual Plane Type |
Single Plane |
Throttle Body Included |
No |
Warranty |
Limited 90 Day |
UPC |
090127670712 |
Part Number |
300-115 |
