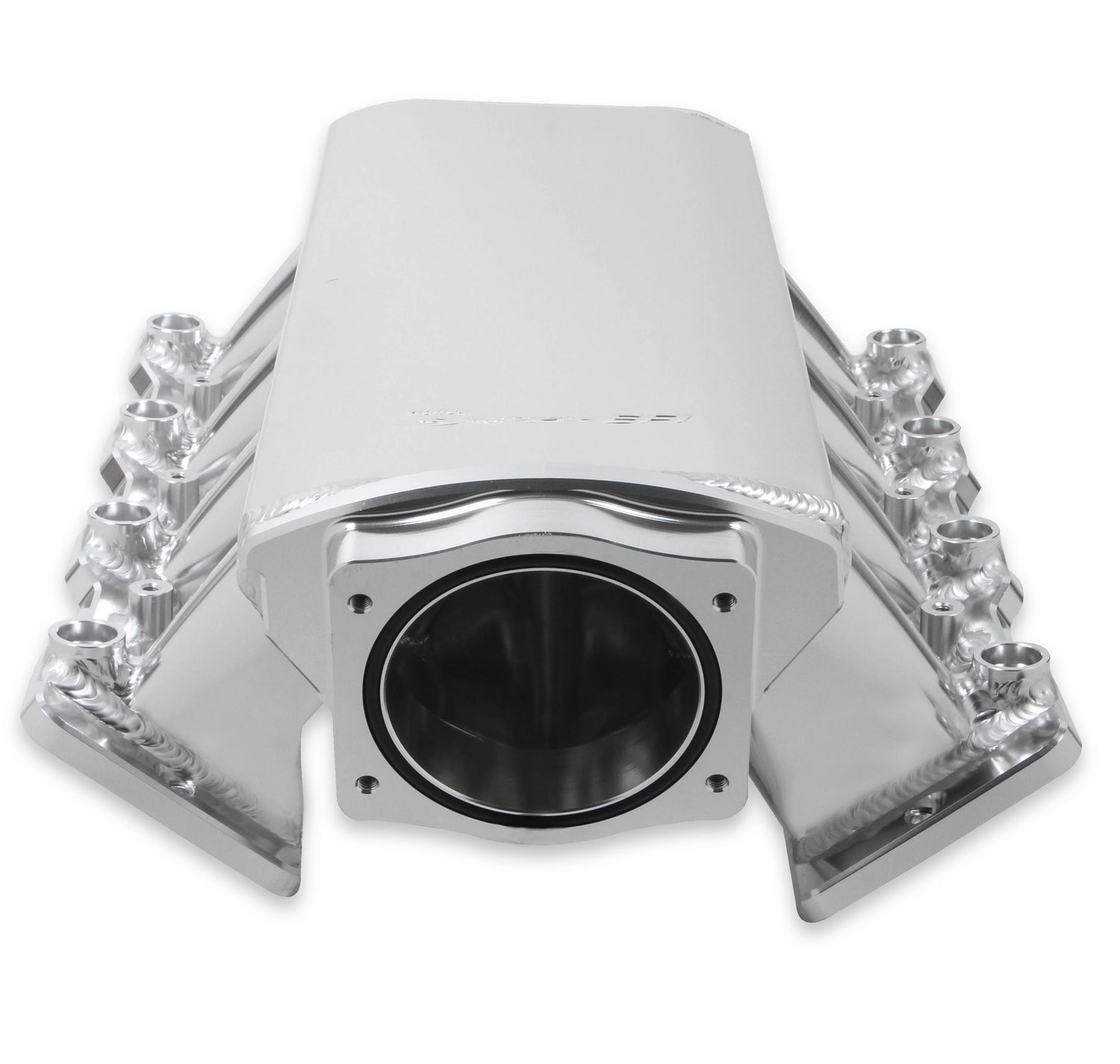

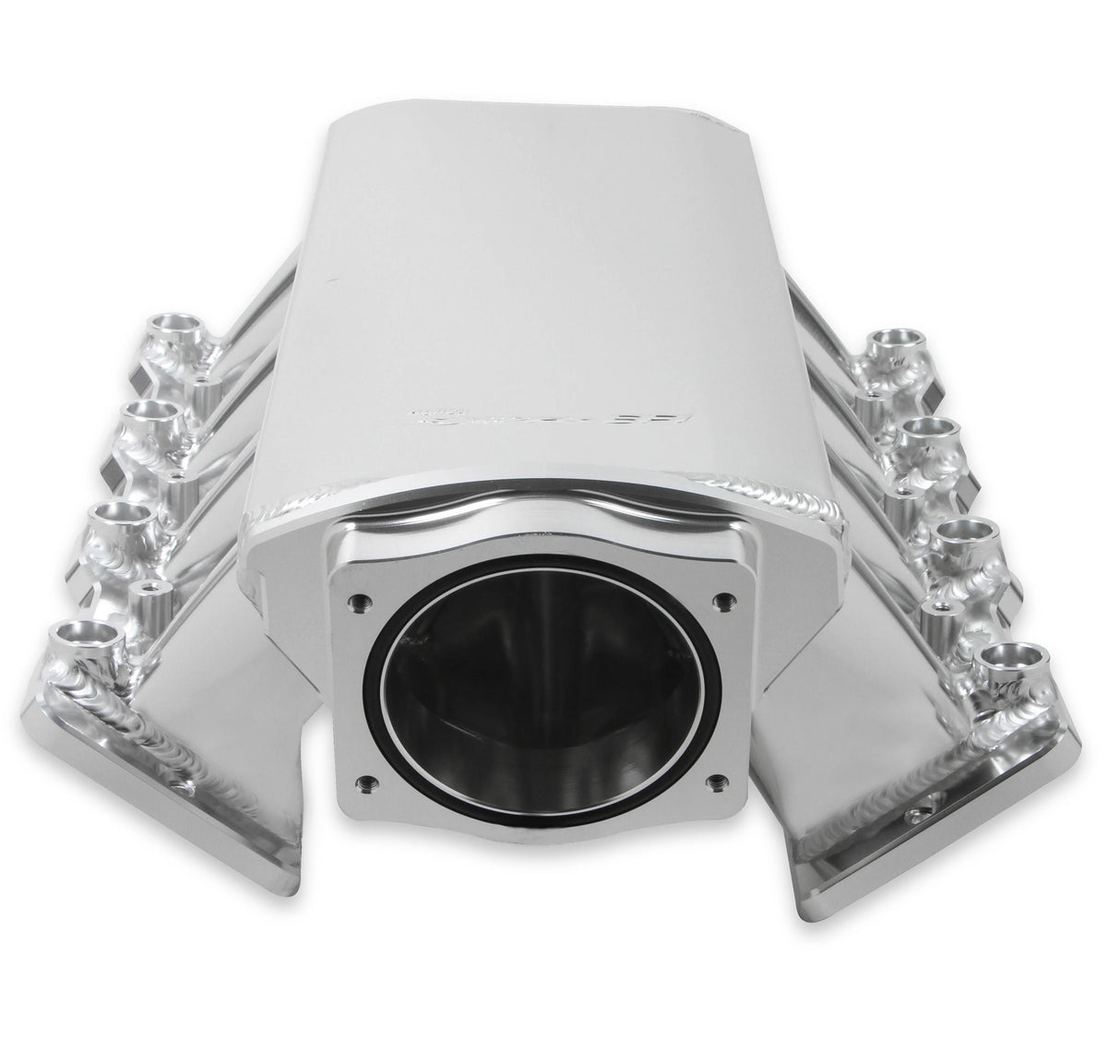

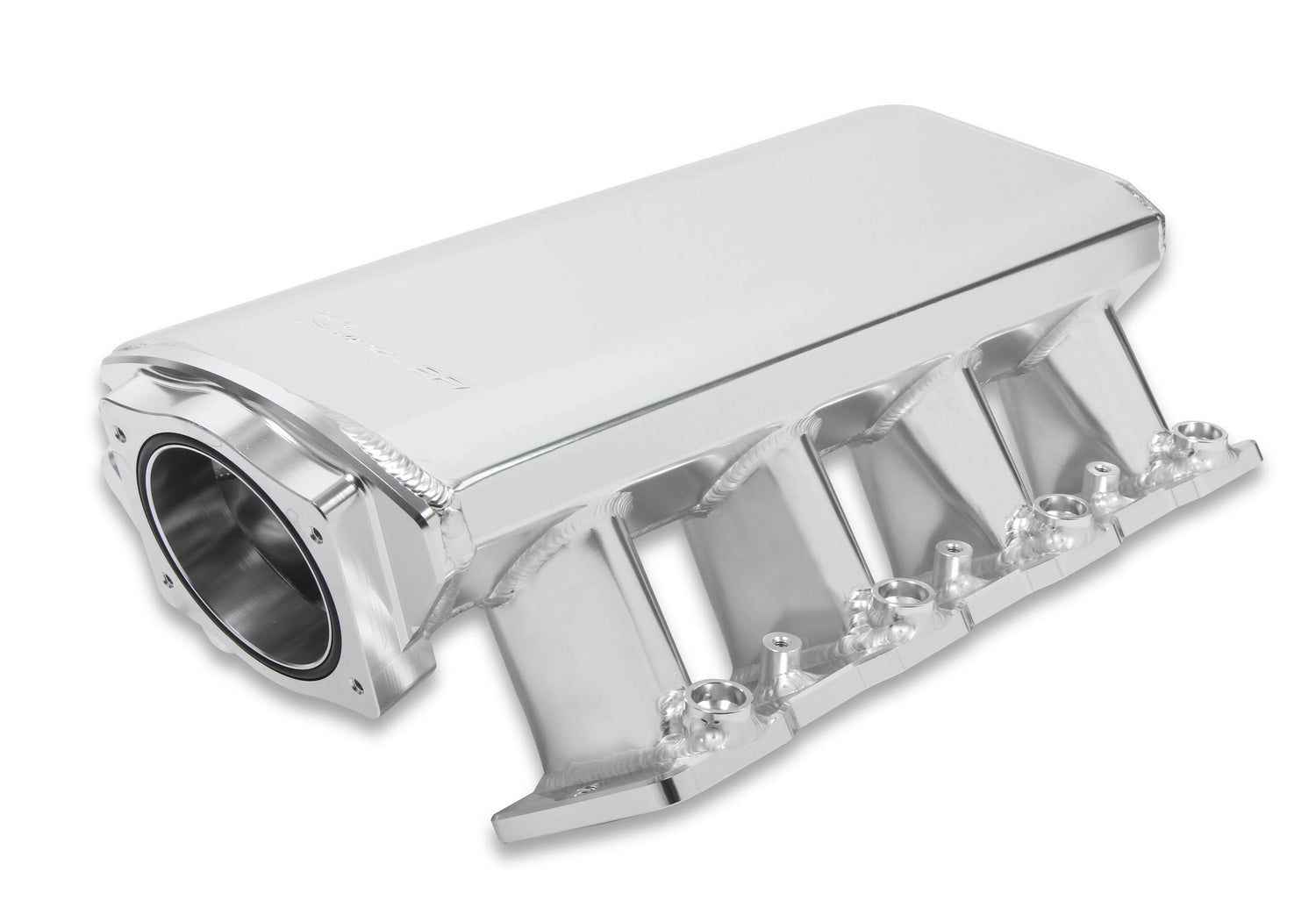

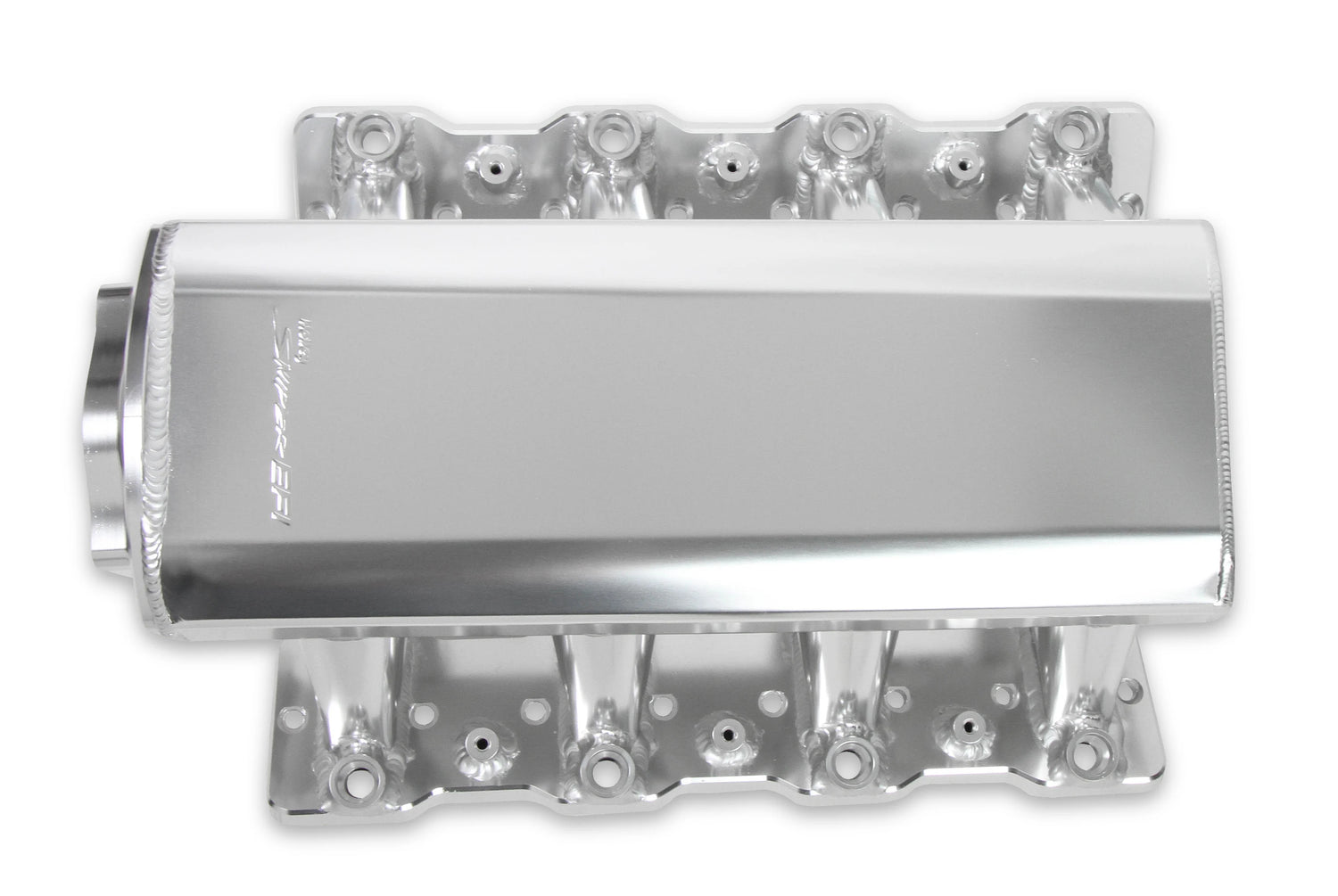

Holley® #820101-1 GM LS1/LS2/LS6 Sniper EFI Low-Profile Sheet Metal Intake Manifold for 92mm Throttle Body

PLEASE CONTACT SUPPORT TO CONFIRM INVENTORY

Regular price $921.95
Shipping calculated at checkout.


Question? Call us at (888) 257-1077 🏁 (M-F 9-5 ET)

Email: info@10SecondRacing.com (24/7)

Free Shipping to Lower 48 US States ($100+)

Worldwide Shipping via UPS (Check Rates at Checkout)

Description

COMPATIBLE:

2004 - 2005 CADILLAC CTS-V (5.7L-LS6)

1998 - 2002 CHEVROLET CAMARO (5.7L-LS1)

1997 - 2004 CHEVROLET CORVETTE (5.7L-LS1)

2001 - 2004 CHEVROLET CORVETTE Z06 (5.7L-LS6)

2005 - 2008 CHEVROLET CORVETTE (6.0L-LS2)

1998 - 2002 PONTIAC FIREBIRD (5.7L-LS1)

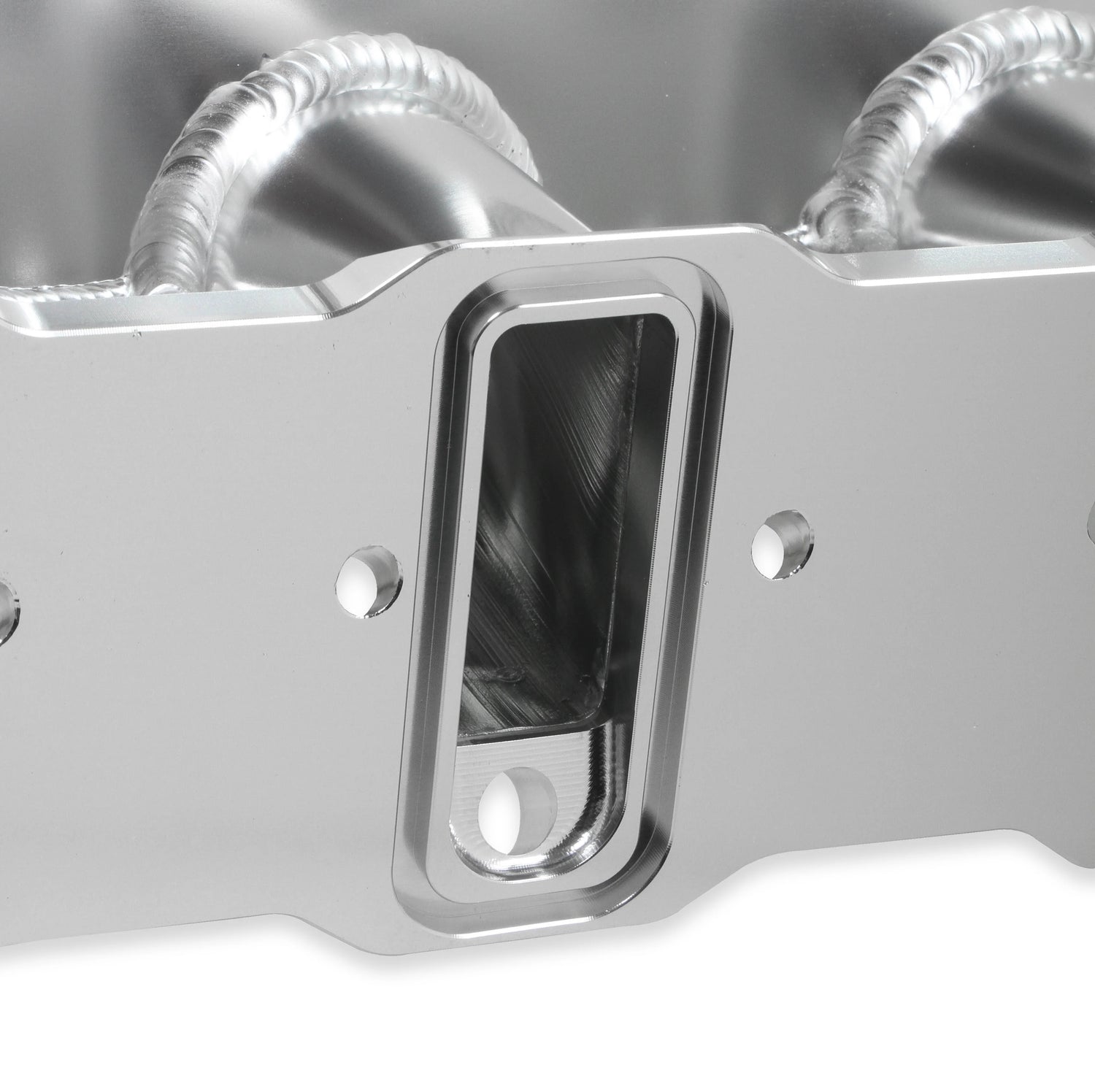

This intake is designed to work with stock LS heads. The use of some aftermarket cylinder heads may result in port misalignment

Holley Sniper Fabricated Manifolds continues to push the aftermarket by introducing Low Profile intakes for GM LS Engines. These Intakes are a good looking, perform well, and offer an extremely good value for a performance sheet metal style intake manifold for the very popular GM LS engine family. Each manifold is ready to bolt on out of the box and are designed to accept our Sniper high-flow throttle bodies and include high flow fuel rail kit. This updated design was developed to allow the end user to fit under a stock hood. Each manifold is precision fixtured and welded for a perfect fit and maximum structural integrity. Choice of Throttle Body opening sizes of 92mm & 102mm are available

  • Silver finish creates high impact under-hood styling

  • 3mm (1/8") thick T6061 sheet aluminum construction for maximum durability

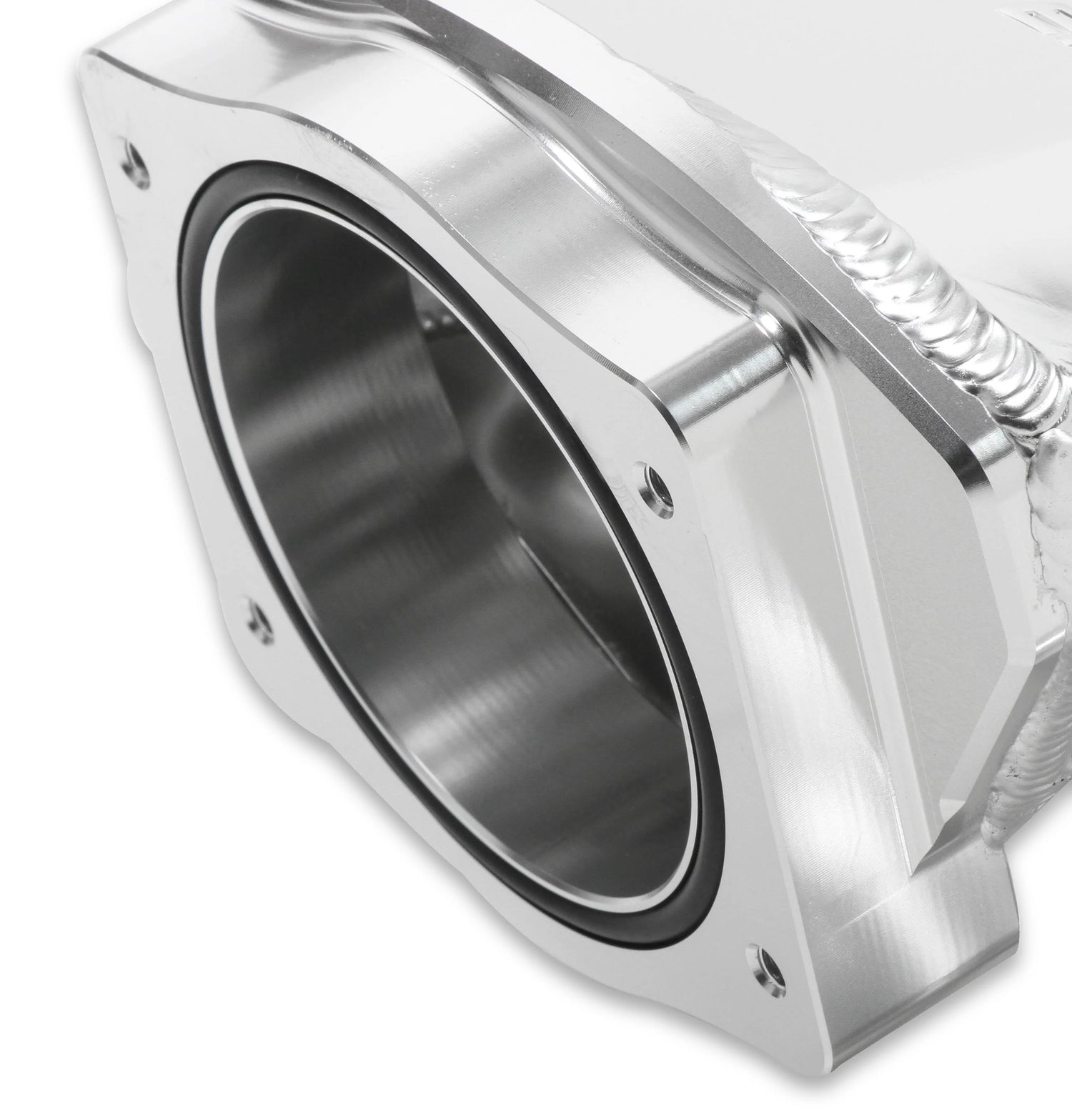

  • 92mm throttle bore opening for increased air flow

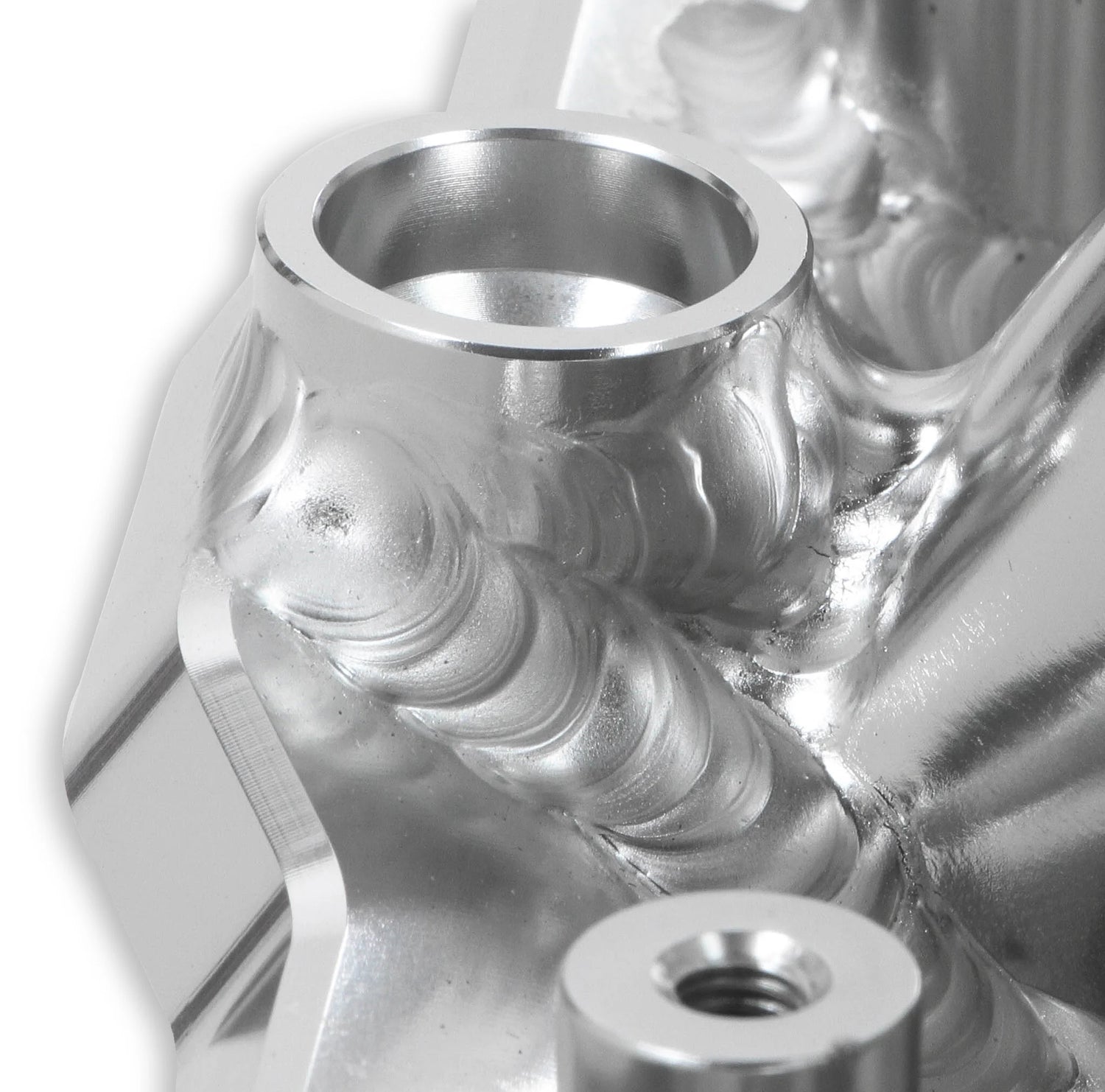

  • 100% TIG welded for strength and durability

  • Includes 3/8" Fuel rail kits (Sniper logo laser engraved)

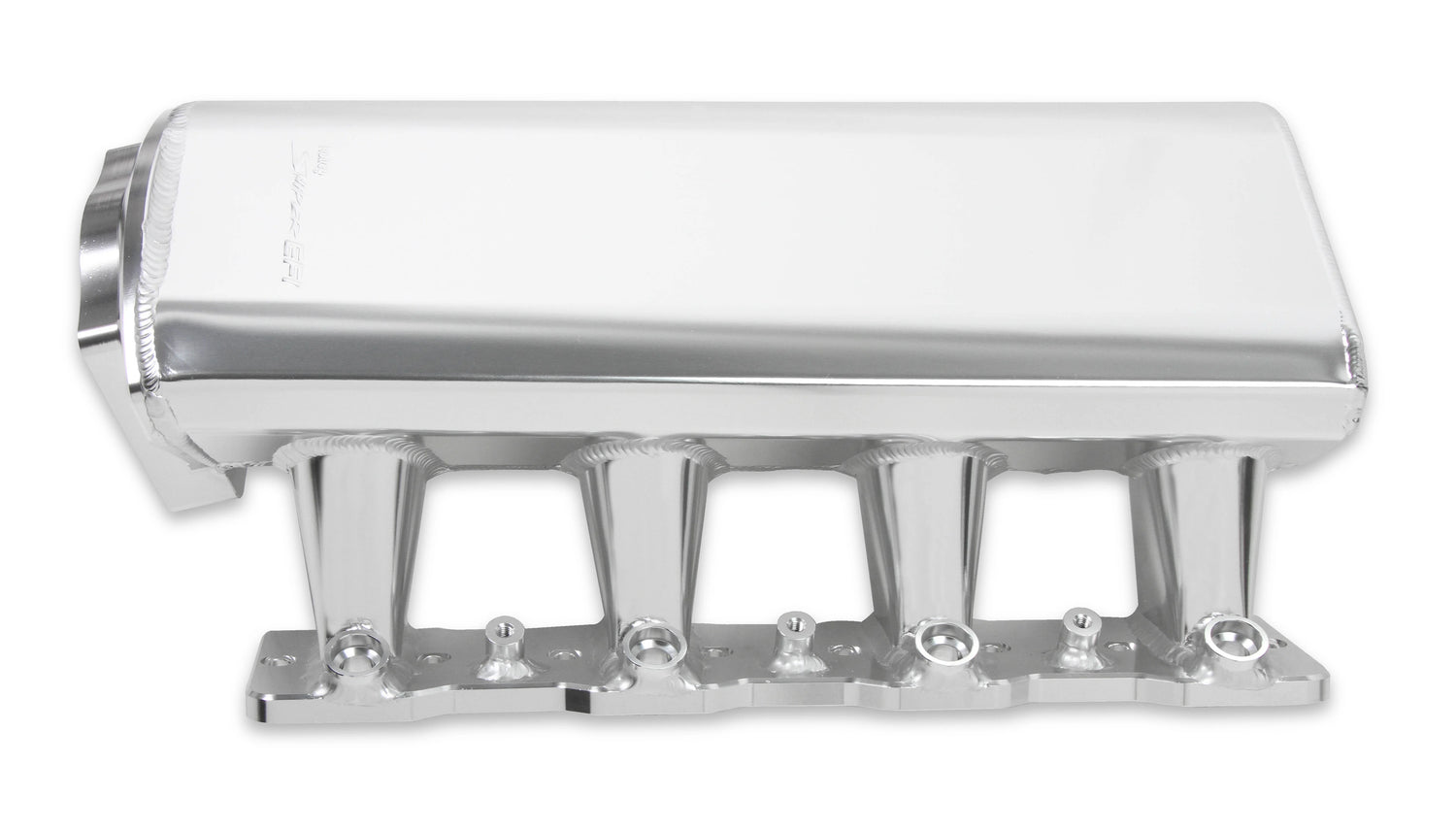

  • Low Profile, Compact Design (overall 1.875 inches shorter) allows fitment under stock hoods on Corvette, Camaro, Firebird, GTO, and others where hood clearance is at a minimum

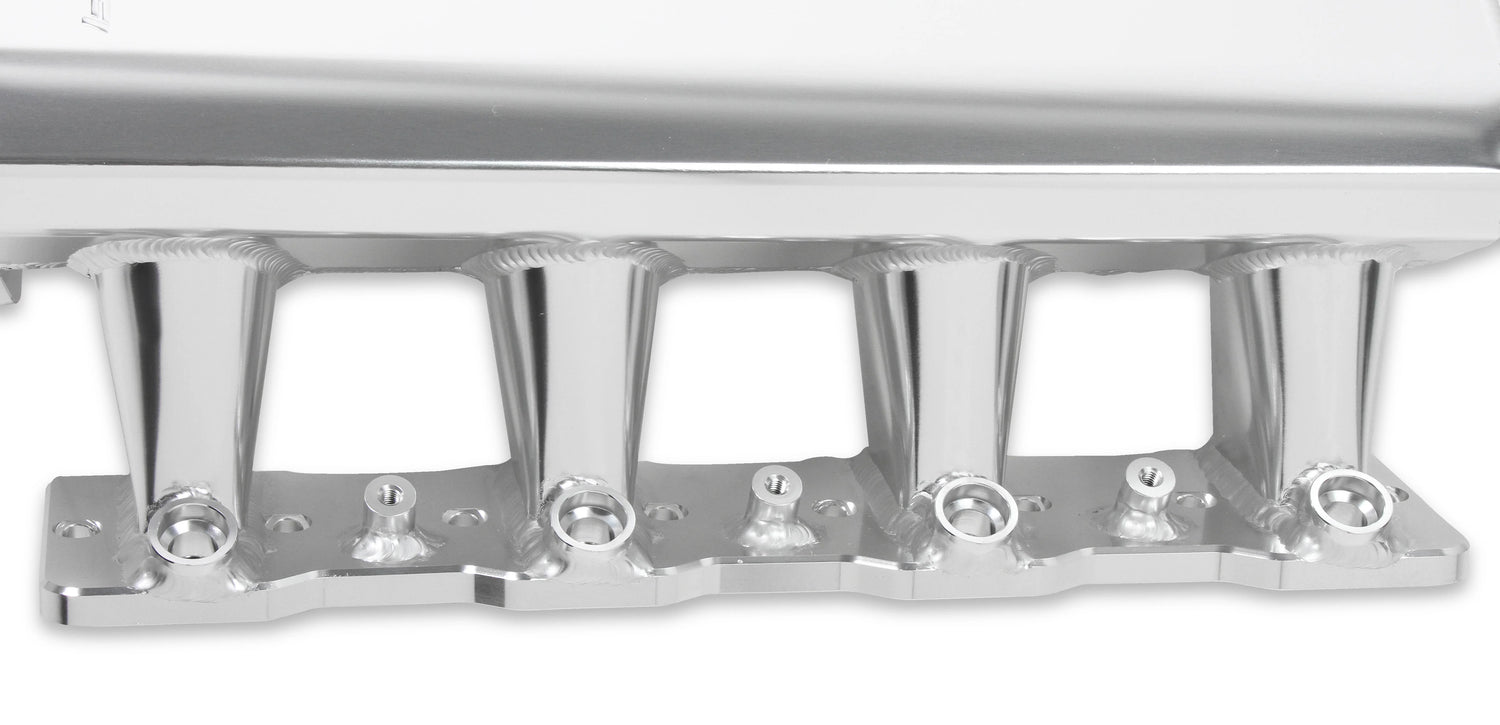

  • Intake runners with tapered top is designed to increase air velocity and more evenly distribute airflow to all 8 cylinders improving performance and throttle response

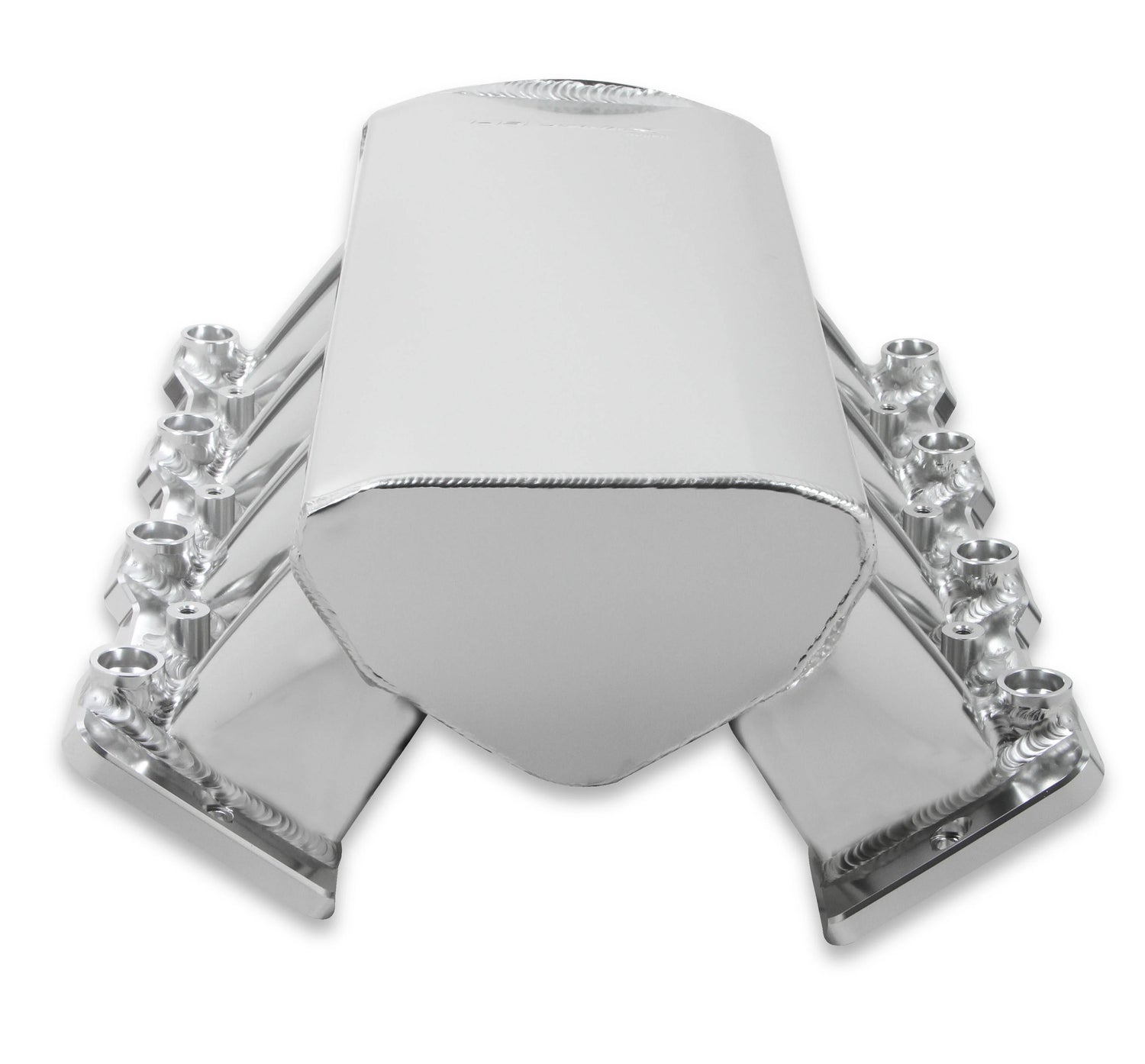

  • Provision for MAP sensor located on rear of plenum

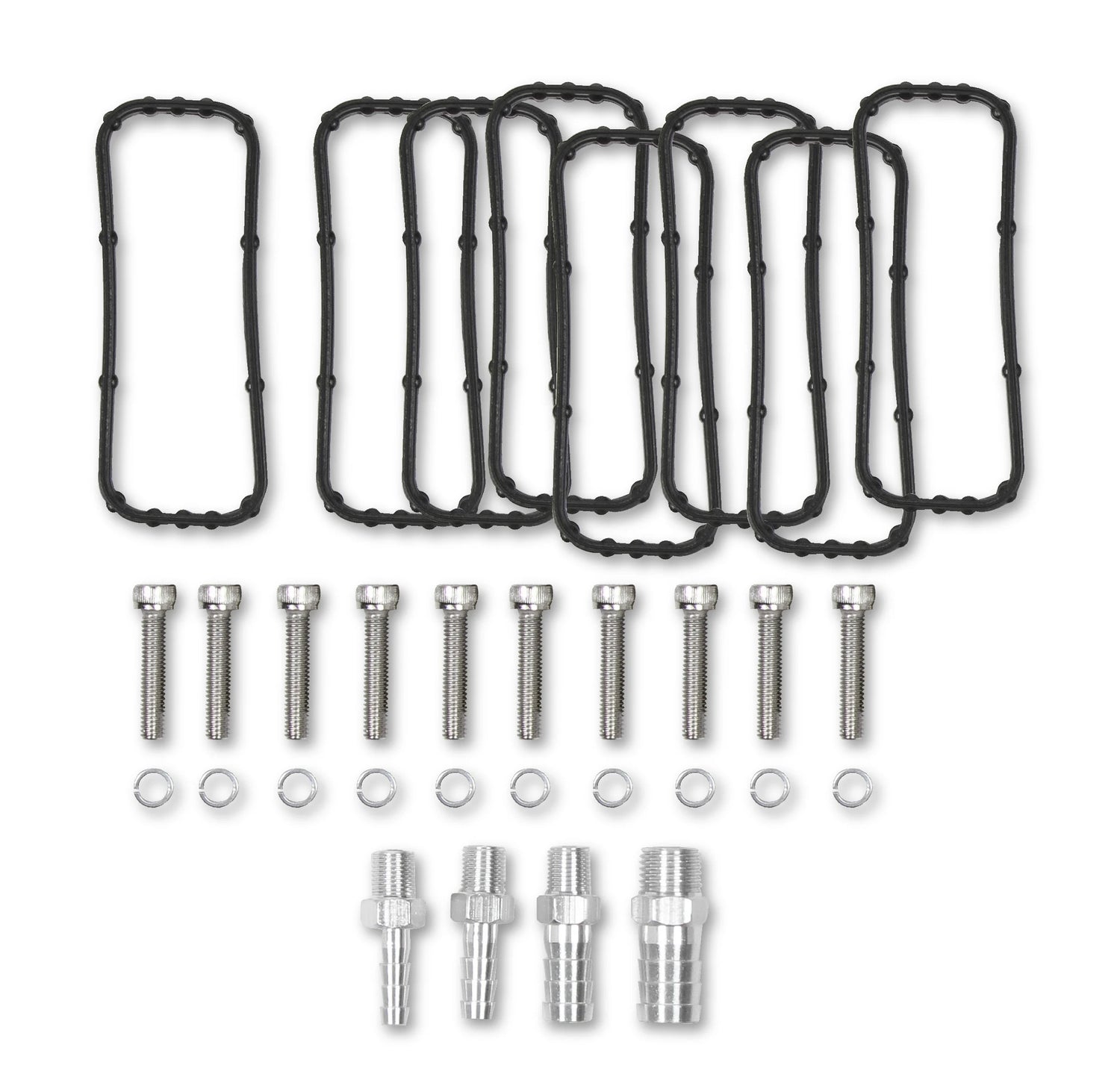

  • Product includes all gaskets and hardware for a hassle-free installation

  • The Sniper intake will only accept EV1 style injectors.

Brand

Sniper

Category Filter

Intake Manifolds

Clearance Category

Intake Manifolds

Color

Silver

Construction

Fabricated

Emission Code

4

Engine

GM LS1/LS2/LS6

Finish

Silver

Front Height

6.392 inch

Fuel System Type

EFI

Injector Style Provision

EV1

Product Type

Intake Manifold

Rear Height

5.684 inch

Recommended Use

Forced Induction

RPM Power Band

1500-6500 RPM

Runner Length

4.527" (115mm)

Sale Category

Air and Fuel Delivery

Style

EFI

Throttle Bore

92mm

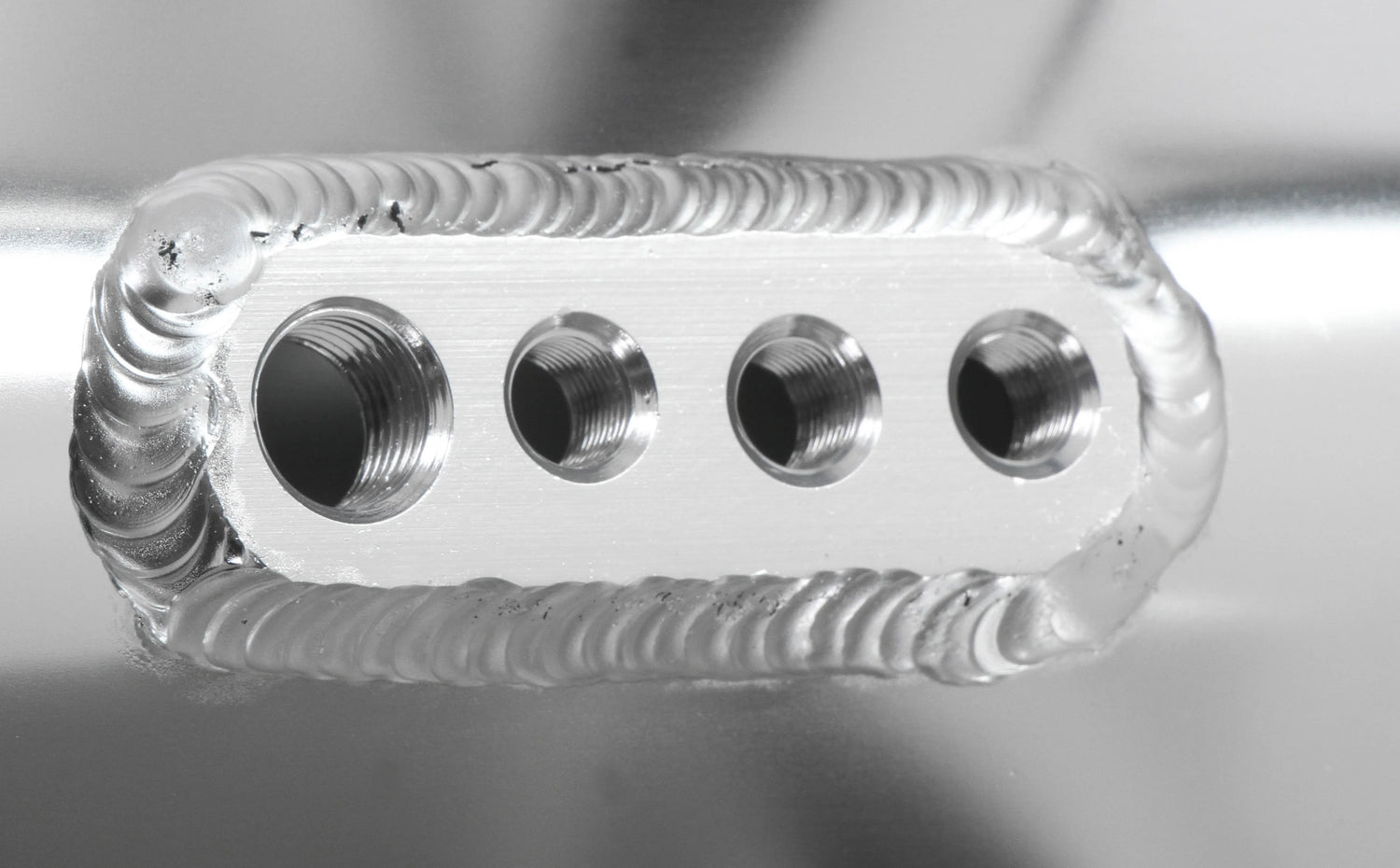

Vacuum Ports

(3) 1/8"-28BSPT & (1) 1/4"-19BSPT

Warranty

Limited 90 Day

UPC

090127045008

Part Number

820101-1
