Holley®  |  SKU: 300-274BK

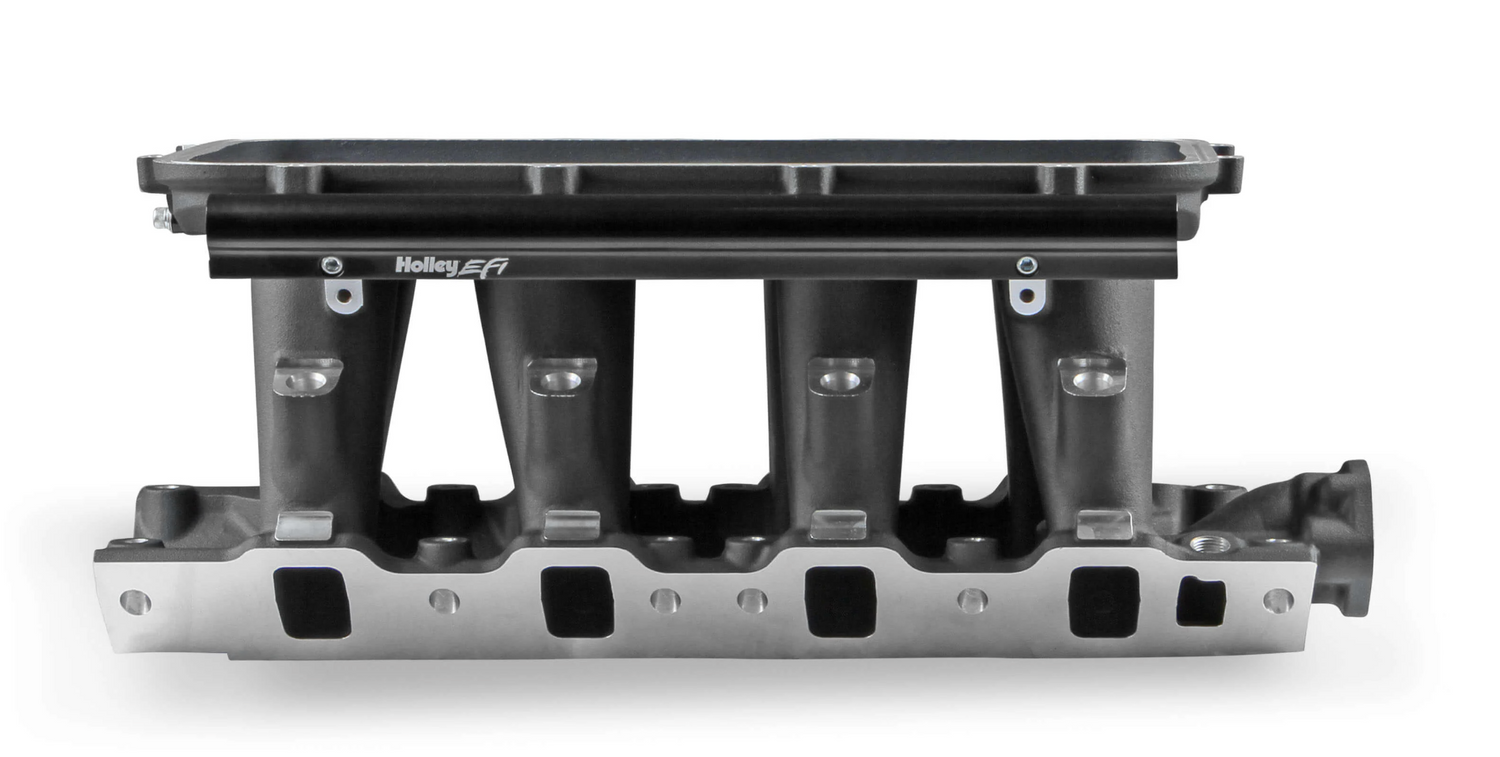

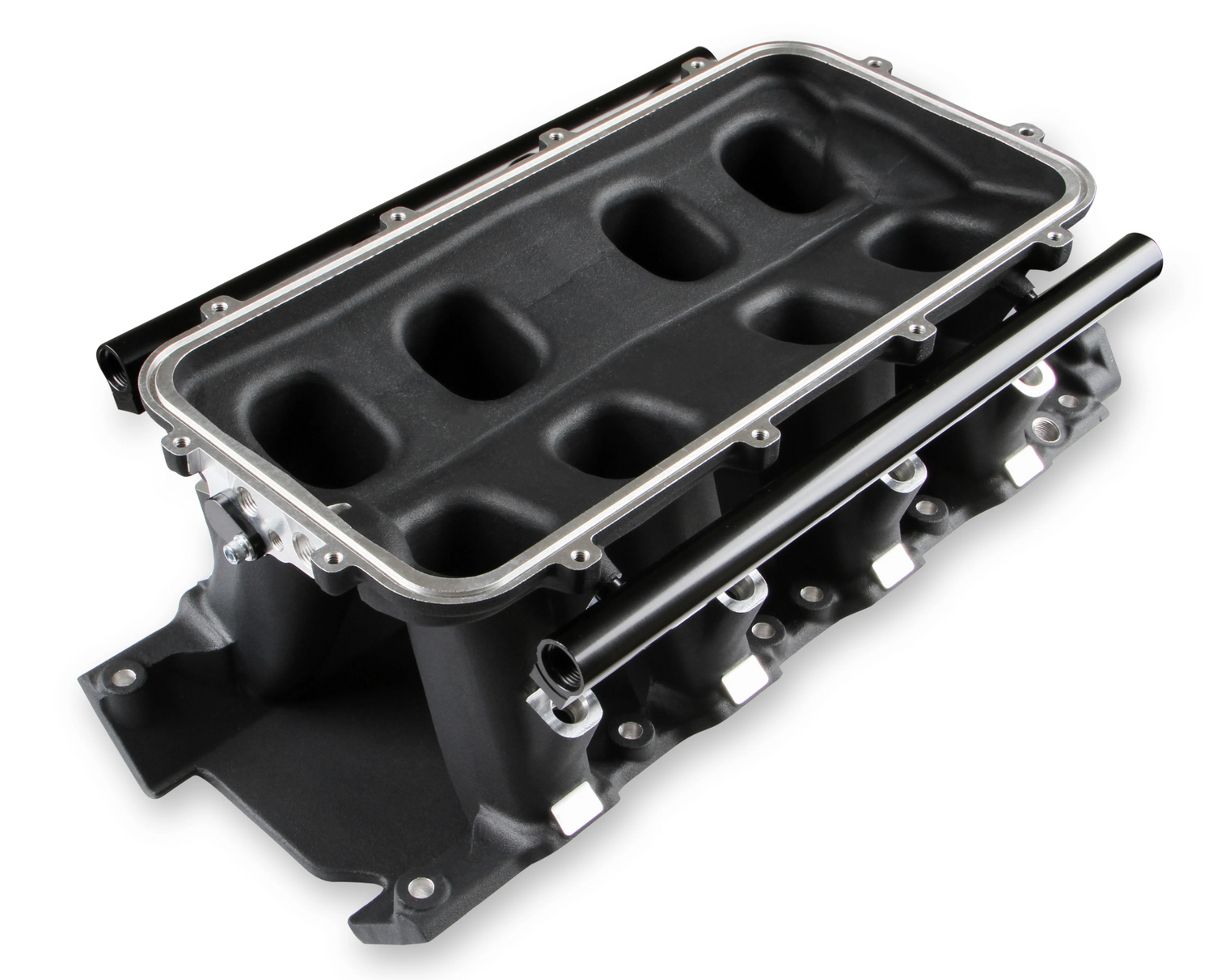

Holley® 300-274BK 8.2" SBF Ford Hi-Ram Intake Manifold Base

PLEASE CONTACT SUPPORT TO CONFIRM INVENTORY

$1,029.95
Shipping calculated at checkout.

Question? Call us at (888) 257-1077 🏁 (M-F 9-5 ET)

Email: info@10SecondRacing.com (24/7)

Free Shipping to Lower 48 US States ($100+)

Worldwide Shipping via UPS (Check Rates at Checkout)

Description

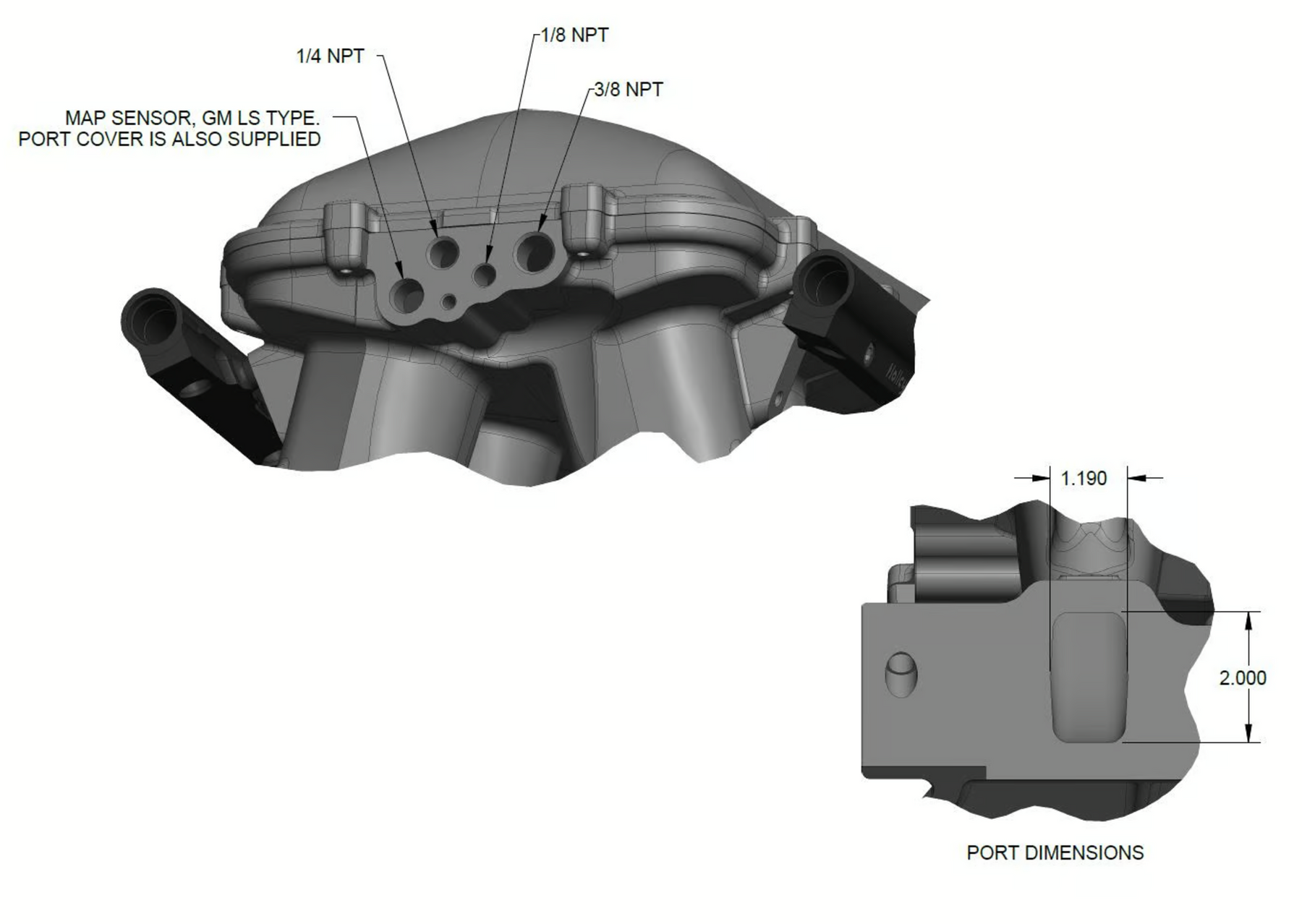

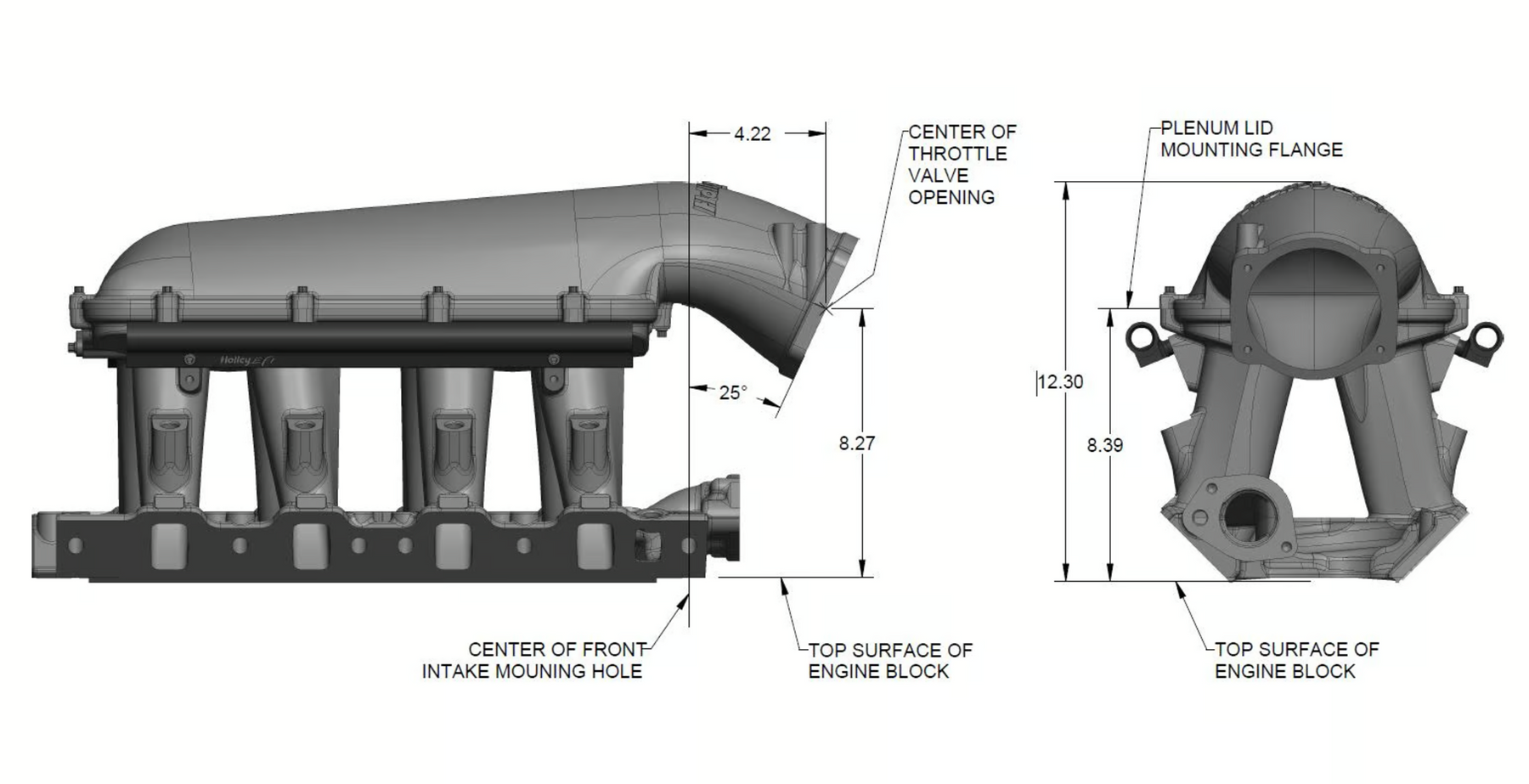

Please see the diagrams in the product images for other dimensions. A low profile distributor will be needed when using this manifold. We have a Sniper Hyperspark version #565-322 and a Holley EFI Dual Sync #565-211 available. Warning: Many Ford vehicle models were originally equipped with a heater core flow restrictor located at either the original heater hose fitting in the factory intake or inline in the inlet heater hose which protects the heater core from damage. If you are replacing the hoses between the engine and heater core or changing the factory fitting check to see if your application requires a flow restrictor. Failure to use the proper flow restrictor will likely result in a damaged or leaking heater core.

The EFI Hi-Ram manifold line has a new addition for the 8.2" SBF Ford application. The runner length and tapered cross section design will perform well for a wide range of engine combinations. The engineering team also redesigned the water crossover passage to allow room for distributor phasing. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more! Manifold is designed for a 8.2" deck height. • Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations • EFI fuel rails are machined for -8AN O-ring Fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits. • Cast aluminum construction. ***EFI Base Manifold only-Manifold tops available seperately. *** A low profile distributor will be needed when using this manifold. We have a Sniper Hyperspark version #565-322 and a Holley EFI Dual Sync #565-211 available.

  • EFI fuel rails are machined for -8AN o-ring fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.

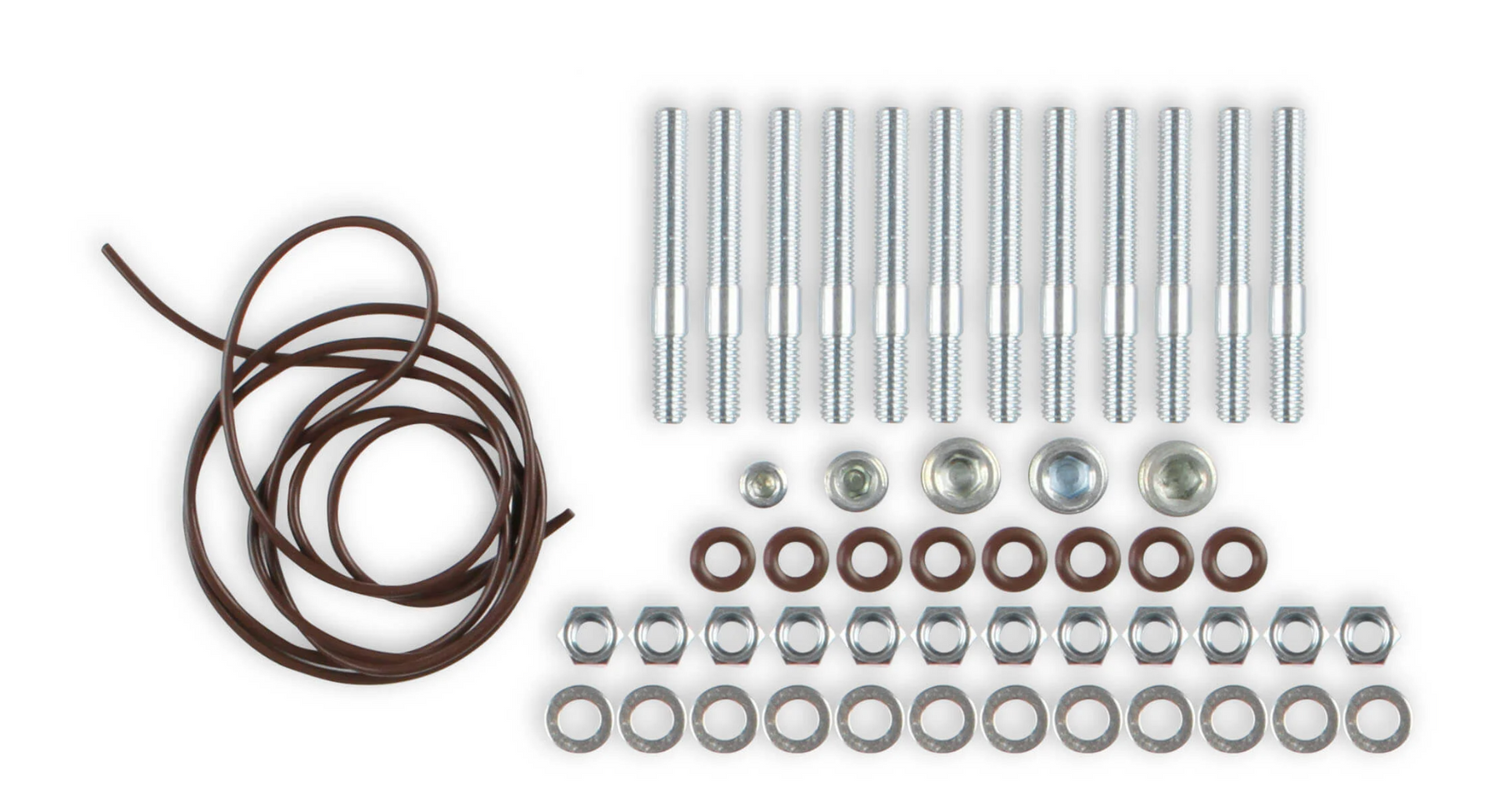

  • Plenum Top Gasket Type – 3/32” Round O-ring Cord

  • Manifold is designed for a 8.2" SBF deck height.

  • EFI Base Manifold only. Black

Basic Operating RPM Range

1500-7000 RPM

Brand

Holley EFI

Category Filter

Intake Manifolds

Clearance Category

Intake Manifolds

Color

Black

Construction

Cast

EGR Port

No

Emission Code

3

Engine

Ford Small Block

Finish

Black

Flange Style

EFI

Fuel System Type

EFI

Grade Type

Performance

Intake Port Gasket(s) Included

No

Manifold Type

Hi-Ram

Material

Aluminum

Nitrous Bung(s) Included

No

Plenum Finish

Black

Port Size

2.00" x 1.190"

Product Type

Intake Manifold

Removable Runners

No

RPM Power Band

1500-7000

Sale Category

Air and Fuel Delivery

Single Or Dual Plane Type

Single Plane

Throttle Body Included

No

Warranty

Limited 90 Day

UPC

090127068366

Part Number

300-274BK
