Holley®  |  SKU: 300-236

Holley® #300-236 GM GEN V LT1 Hi-Ram Lower Manifold with Port EFI Provisions & Fuel Rails

PLEASE CONTACT SUPPORT TO CONFIRM INVENTORY

$899.95
Shipping calculated at checkout.

Question? Call us at (888) 257-1077 🏁 (M-F 9-5 ET)

Email: info@10SecondRacing.com (24/7)

Free Shipping to Lower 48 US States ($100+)

Worldwide Shipping via UPS (Check Rates at Checkout)

Description

COMPATIBLE: (6.2L - LT1)

2014 - 2017 CHEVY SS

2016 - 2024 CHEVROLET CAMARO SS

2020 - 2024 CHEVROLET CAMARO LT1

2014 - 2019 CHEVROLET CORVETTE STINGRAY

2017 - 2019 CHEVROLET CORVETTE GRAND SPORT

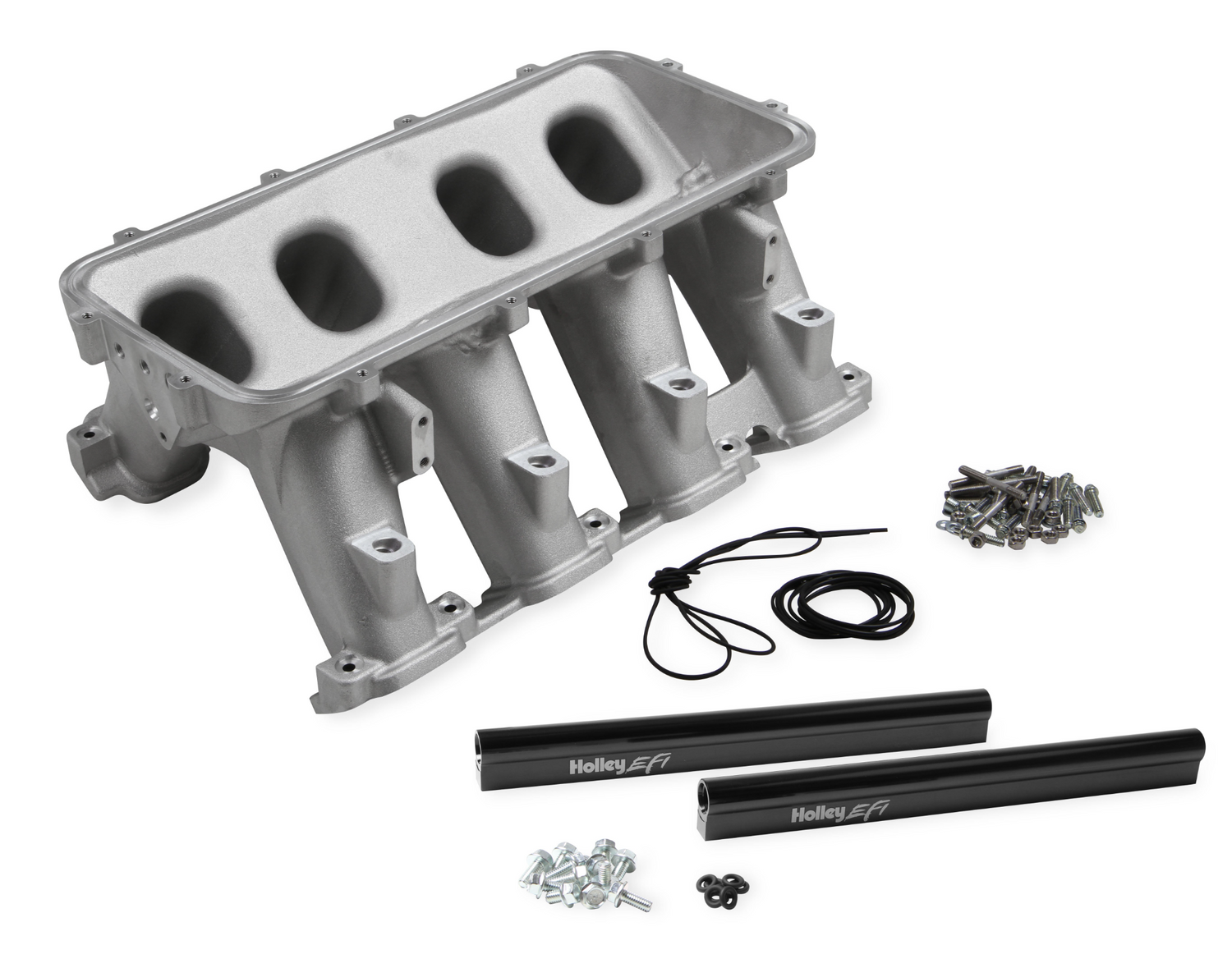

The versions of the LT1 Hi-Ram intake manifold with port EFI provisions and fuel rails are designed to accept Bosch Style EV-1 or GM LS7 fuel injectors


The new Holley EFI Hi-Ram intake provides the ultimate performance with the new GM direct-injected Gen V 6.2L LT1 engine. The modular design of this manifold allows easy disassembly for custom porting, multiple tops, or custom induction systems. Each runner has a large radius where it meets the plenum, and optimized taper & cross-sectional area to perform in a wide variety of engine configurations. The optional injector bosses on the intake runners allow increased performance potential by using additional injectors along with the factory direct injection. When you look for the pinnacle of performance, price, and quality, look to Holley EFI.

  • Modular Design w/ Removable Top

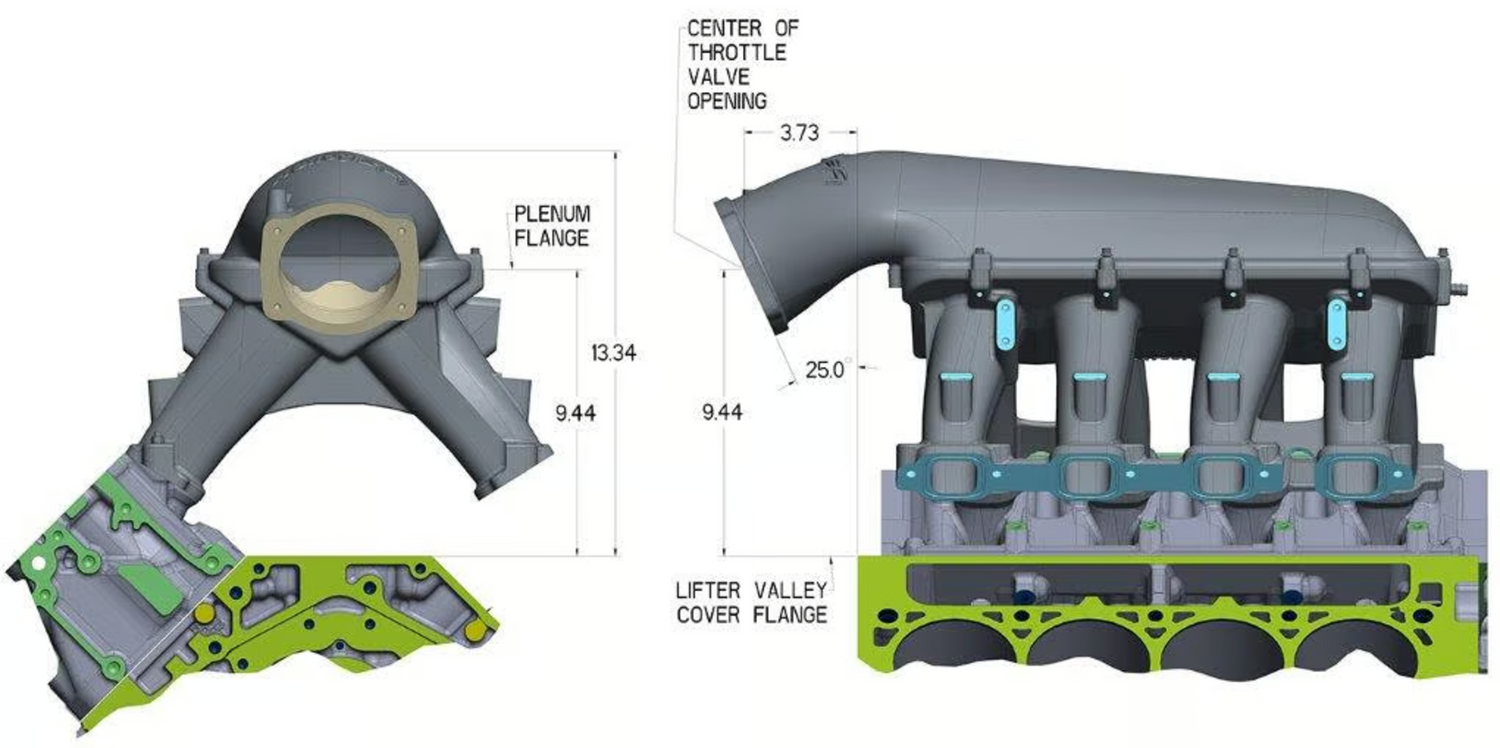

  • Overall Height: 13.34” (w/ EFI Top - 95mm or 105mm) – See Drawing

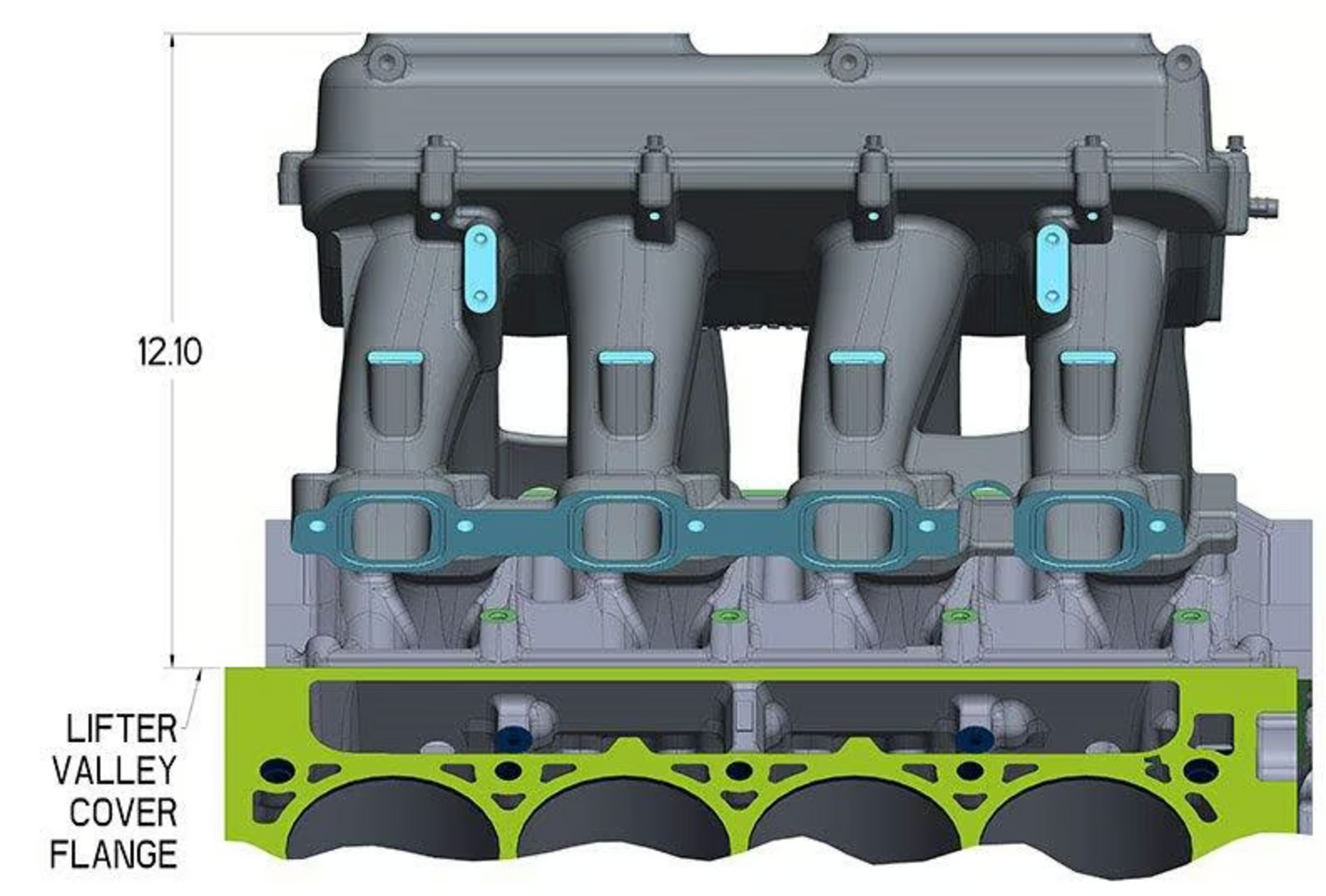

  • A-B Height: 12.10” (w/ Carb Style Top - 2 x 4150 or 2 x 4500) – See Drawing

  • Height at Plenum Flange: 9.44”

  • Port Size: 2.06” High x 1.53” Wide

  • Runner Length: Approx. 6.5”

  • Large Plenum Volume of 549 Cubic Inches (w/ 1 x 95mm or 1 x 105mm Throttle Body Top)

  • Available With or Without Injector Ports in the Runners

  • Intakes w/ Injector Ports Include Fuel Rails w/ Dual Mounting (1.48” or 2.56” O-ring to O-ring injector length)

  • Fuel Rails are Anodized, Laser Etched, and Machined for 8AN O-Ring Fittings at Each End

  • Rear of Plenum Machined for MAP & 3 Vacuum Ports

  • Head Flange has Clearance for Fuel Supply to High Pressure Pump

  • Increased Runner Wall Thickness for Custom Porting at the Plenum to Runner Entry on Each Runner

  • O-Ring Seals at Cylinder Heads & Plenum Top

  • Easy Assembly w/ Top Mounted Screws on Plenum Top (all except front 2 screws)

  • Several Top Options: 1 x 95mm, 1 x 105mm, 2 x 4150, 2 x 4500, or Blank Flange for Custom Throttle Bodies

  • 3500-8000+ RPM Power Band

Basic Operating RPM Range

3500-8000+ RPM

Brand

Holley EFI

Category Filter

Intake Manifolds

Clearance Category

Intake Manifolds

Color

Natural

Construction

Cast

EGR Port

No

Emission Code

4

Engine

GM Gen V LT1

Finish

Satin

Grade Type

Performance

Intake Port Gasket(s) Included

No

Manifold Type

Hi-Ram

Material

Aluminum

Nitrous Bung(s) Included

No

Plenum Finish

Natural

Product Type

Intake Manifold Base

Removable Runners

No

RPM Power Band

3500-8000+

Single Or Dual Plane Type

Single Plane

Throttle Body Included

No

Type of Component

Lower Manifold

Warranty

Limited 90 Day

UPC

090127730591

Part Number

300-236
