Holley® #300-123BK GM LS1/LS2/LS6 Black Cathedral Port EFI Intake Manifold for 105MM LS Throttle Body
PLEASE CONTACT SUPPORT TO CONFIRM INVENTORY
Sale price
$1,299.95
Regular price
$1,316.95
Unit price
Shipping calculated at checkout.
Holley® #300-123BK GM LS1/LS2/LS6 Black Cathedral Port EFI Intake Manifold for 105MM LS Throttle Body is backordered and will ship as soon as it is back in stock.
Question? Call us at (888) 257-1077 🏁 (M-F 9-5 ET)
Email: info@10SecondRacing.com (24/7)
Free Shipping to Lower 48 US States ($100+)
Worldwide Shipping via UPS (Check Rates at Checkout)
Holley® #300-123BK GM LS1/LS2/LS6 Black Cathedral Port EFI Intake M...
Sale price
$1,299.95
Regular price
$1,316.95
Unit price
Description
Description
COMPATIBLE:
2004 - 2005 CADILLAC CTS-V (5.7L-LS6)
1998 - 2002 CHEVROLET CAMARO (5.7L-LS1)
1997 - 2004 CHEVROLET CORVETTE (5.7L-LS1)
2001 - 2004 CHEVROLET CORVETTE Z06 (5.7L-LS6)
2005 - 2008 CHEVROLET CORVETTE (6.0L-LS2)
1998 - 2002 PONTIAC FIREBIRD (5.7L-LS1)

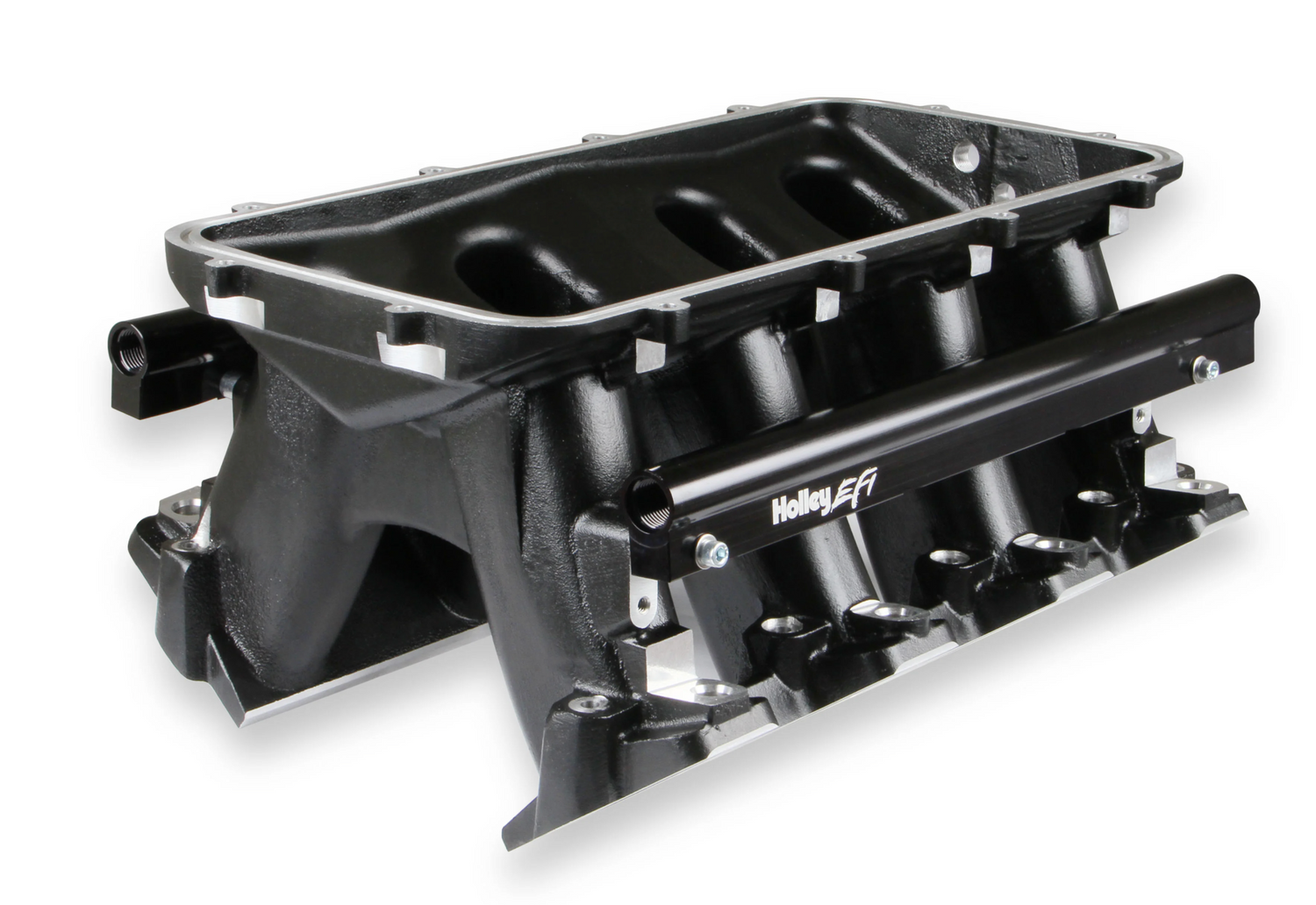

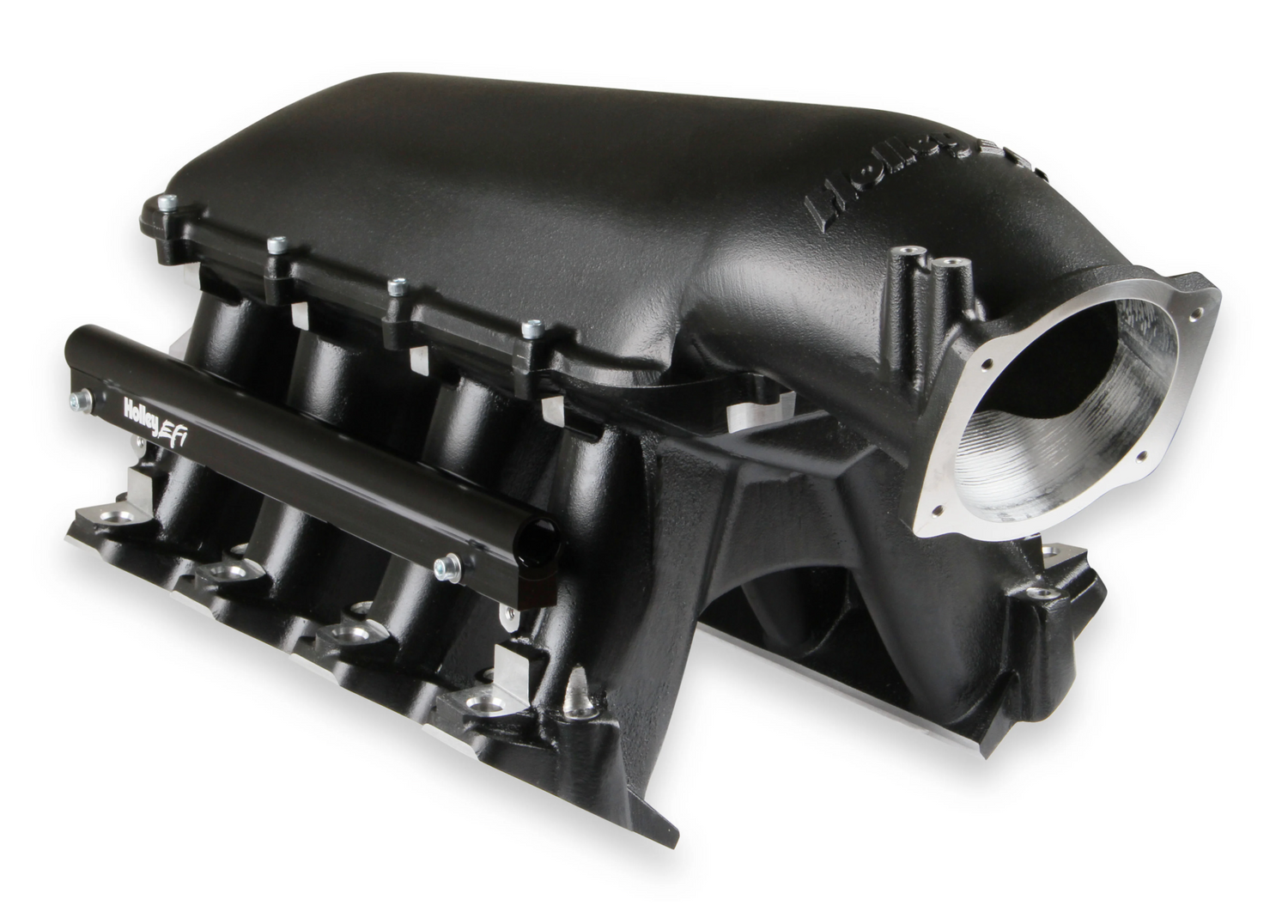

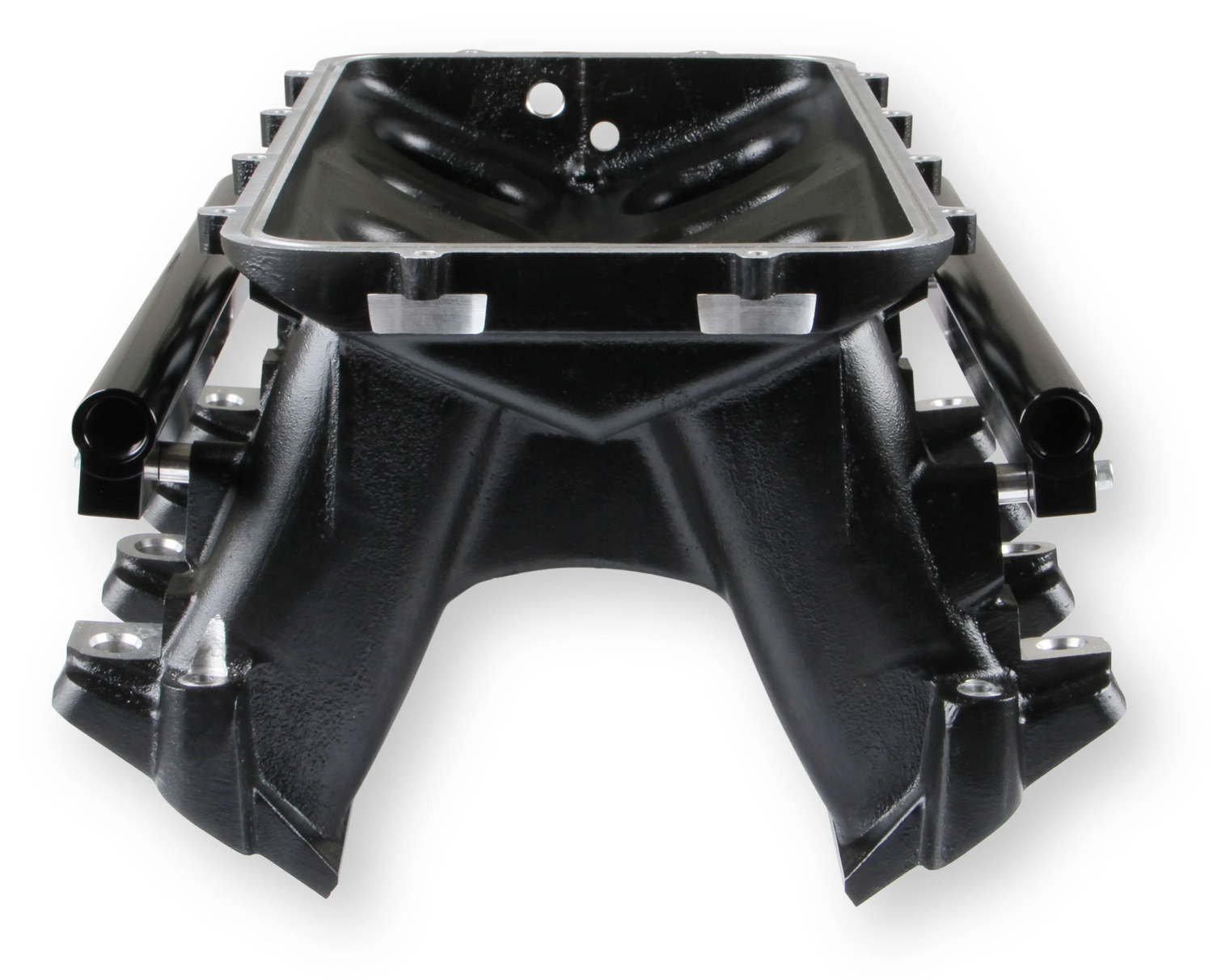

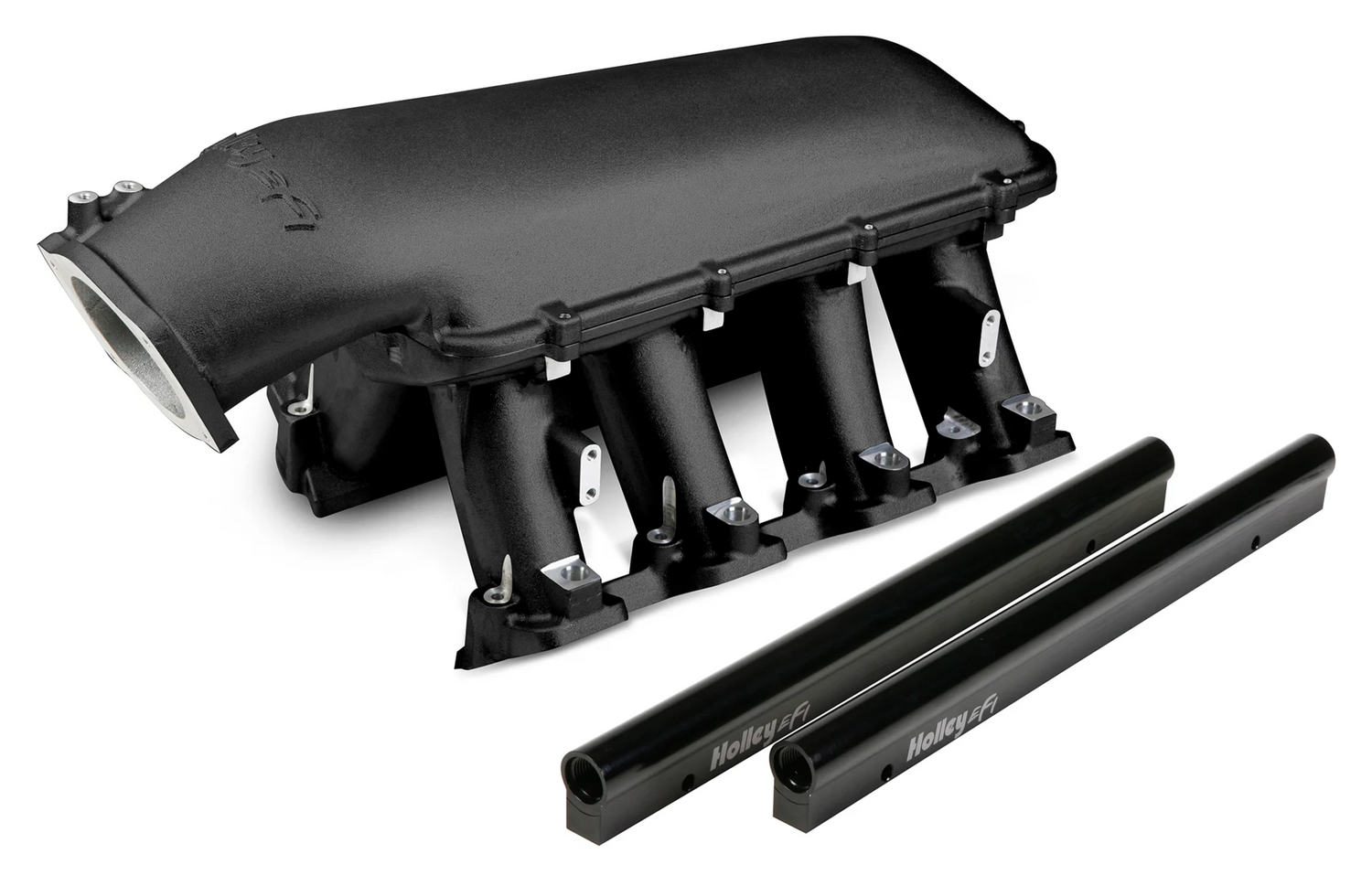

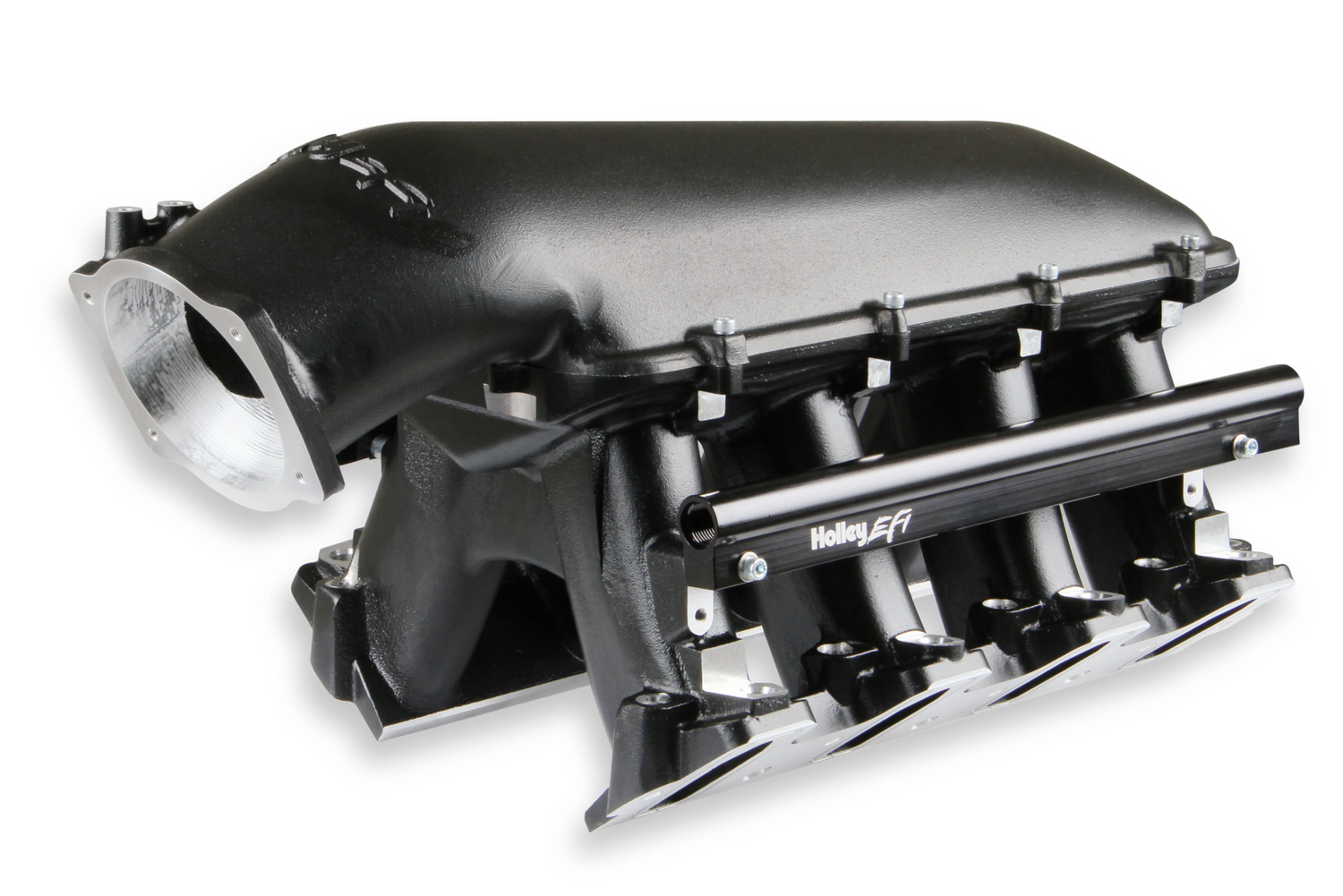

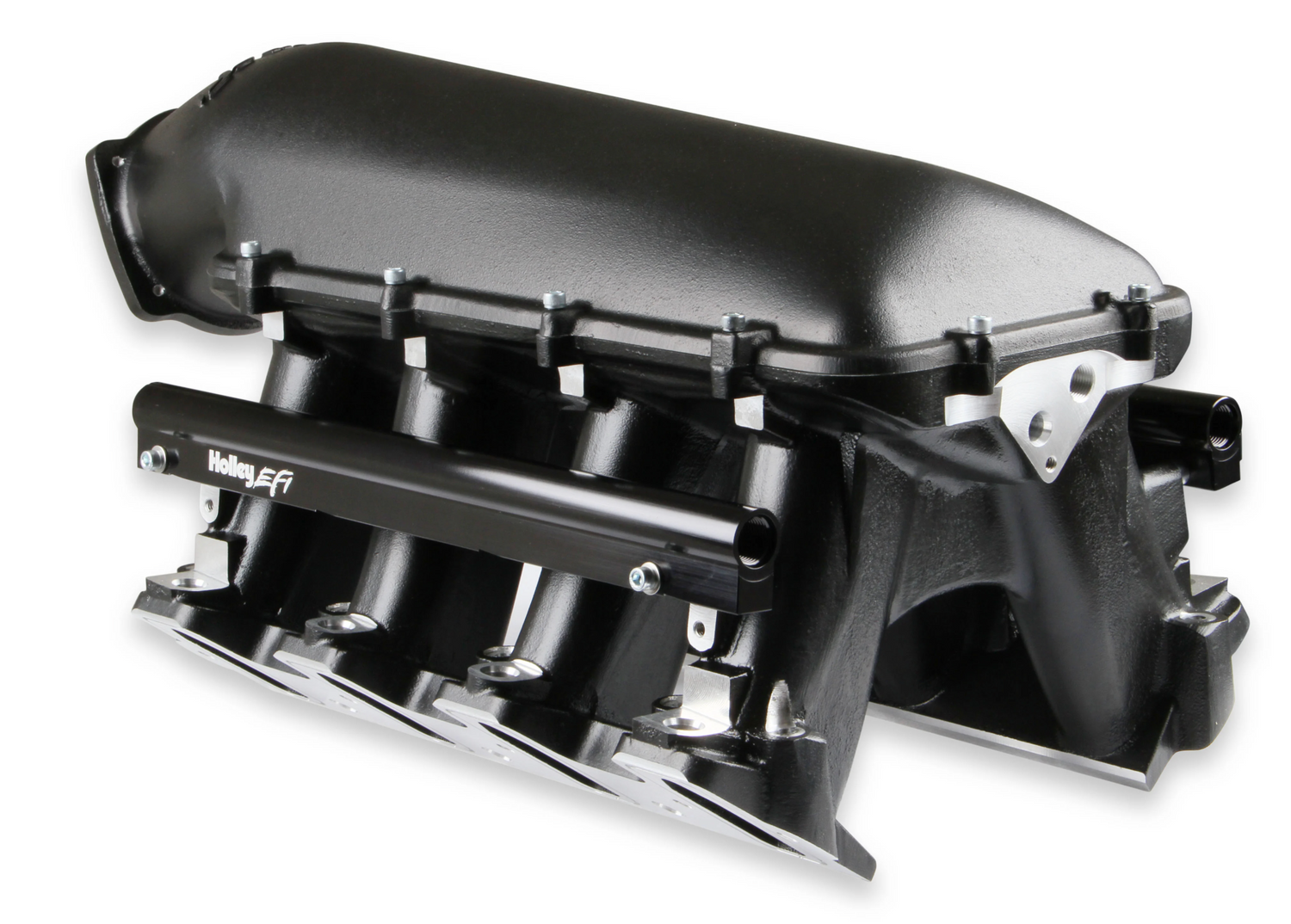

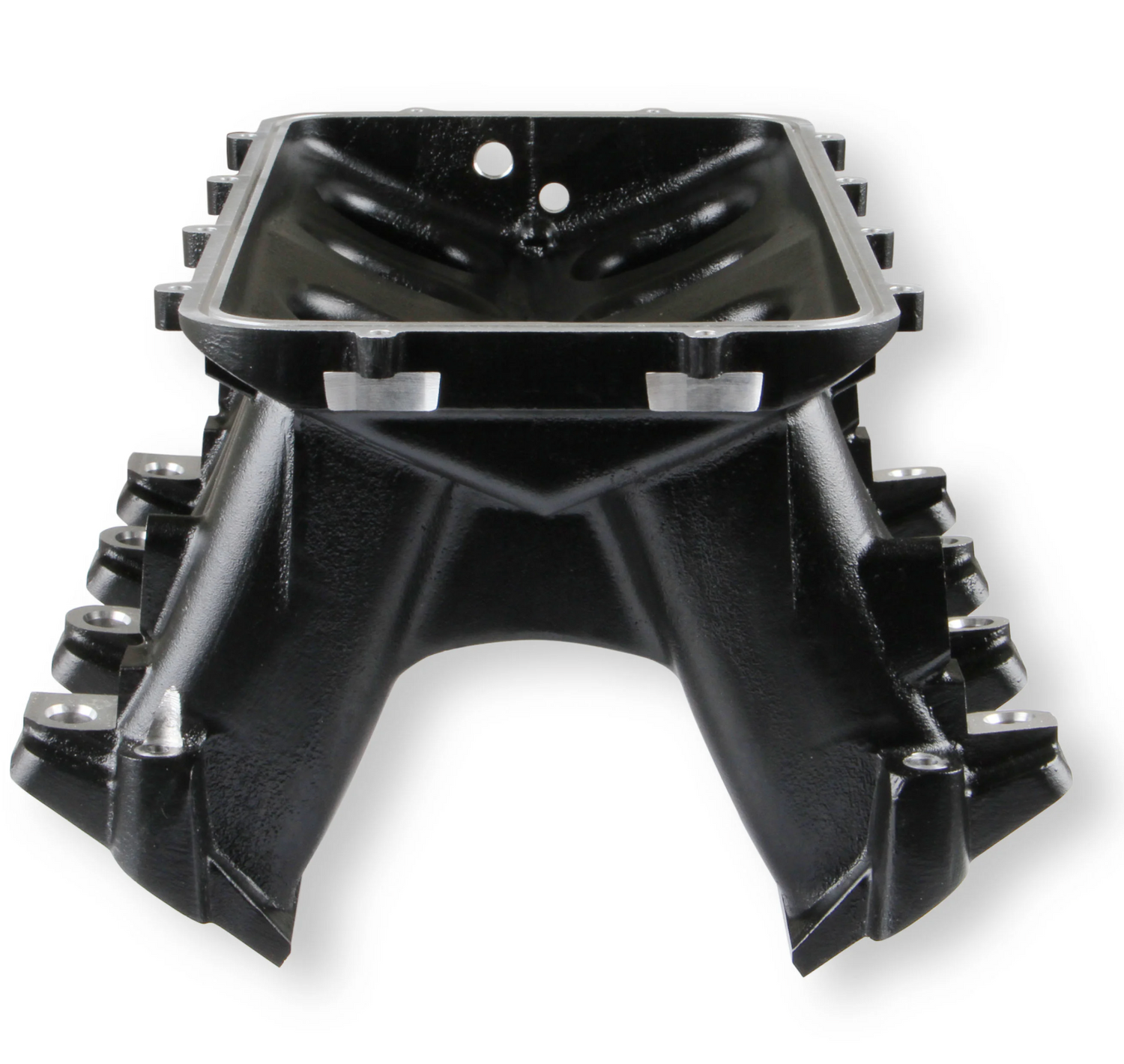

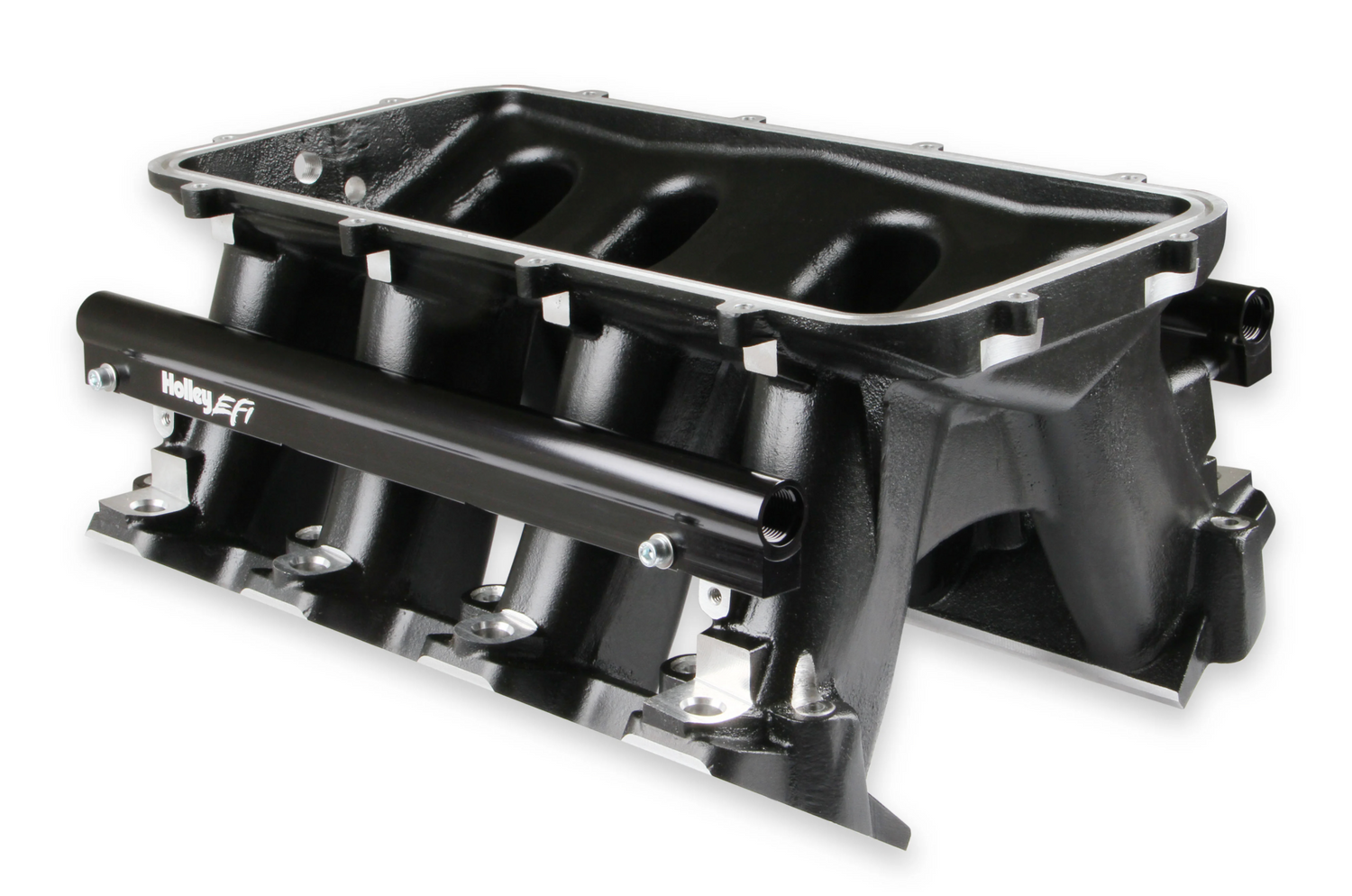

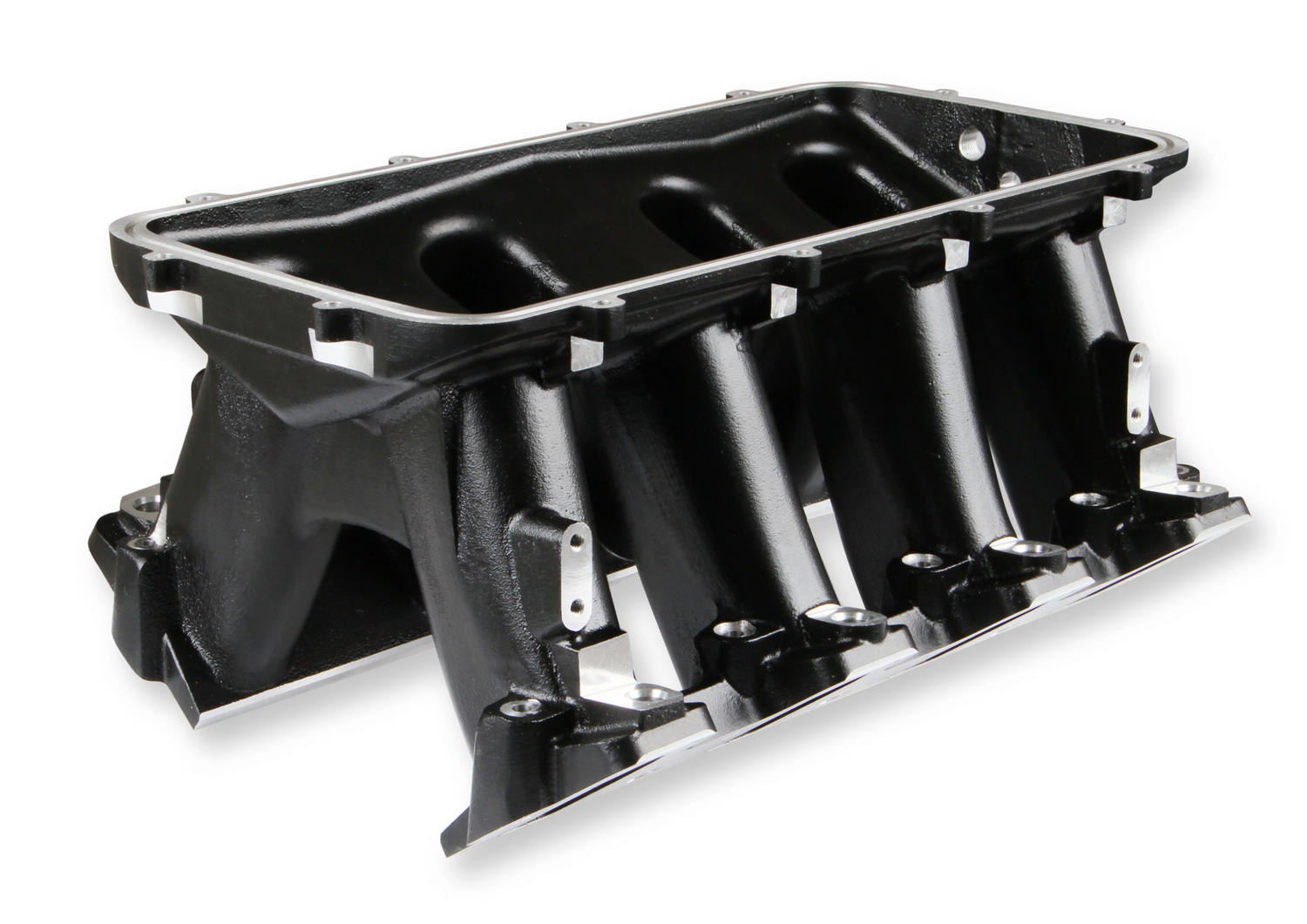

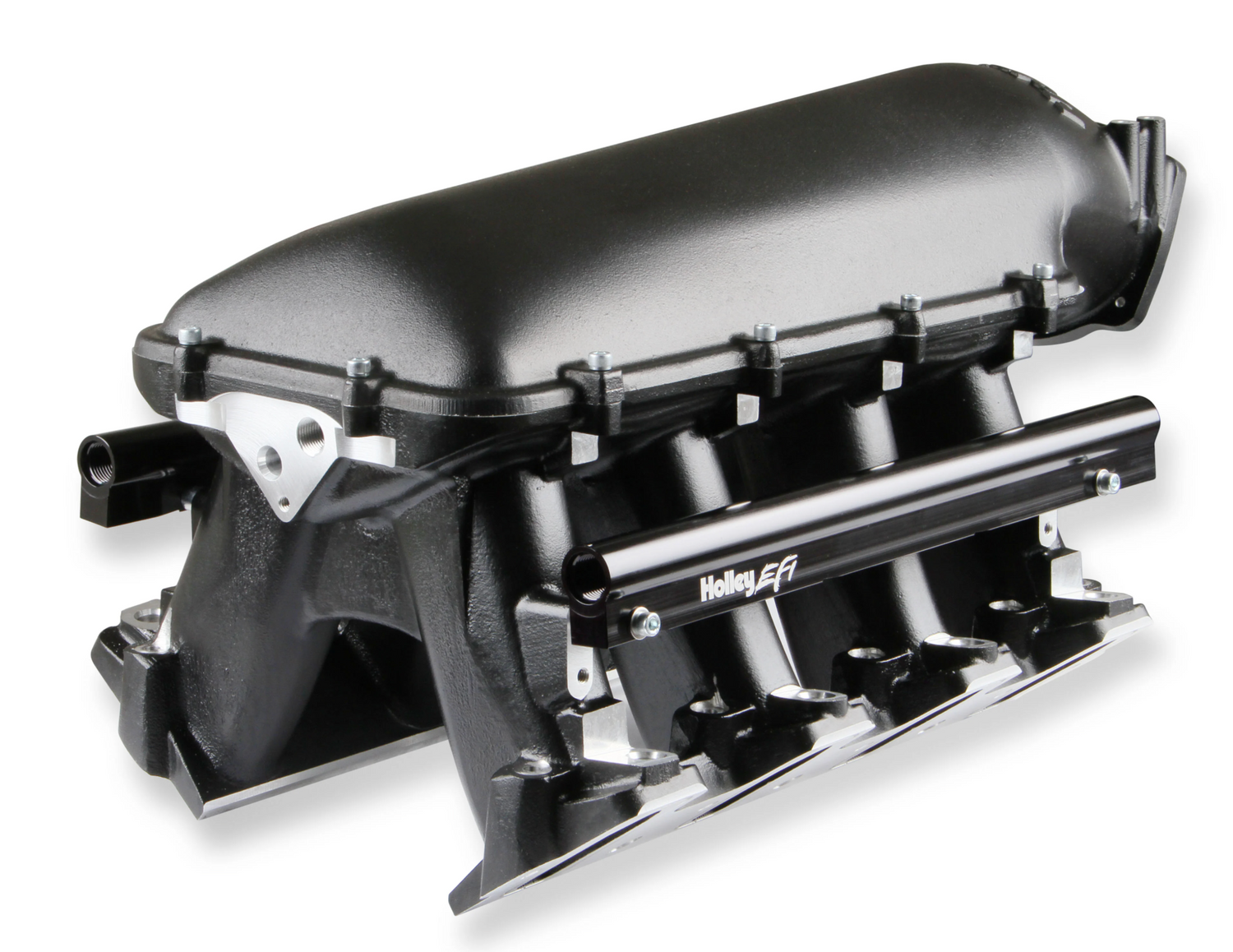

The Holley GM LS1/LS2/LS6 Modular Hi-Ram Intake Manifold is introduced as a cost effective alternative to fabricated sheet-metal for high-performance applications where induction system height is not limited. Coupling this Hi-Ram intake with the high flowing LS1/LS2/LS6 style cylinder heads has outstanding potential for N/A and forced induction applications at a budget-minded cost. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more! • The base is designed to be modular in configuration to accept a wide range of carbureted and EFI tops and to be attractive to builders and fabricators as the foundation for custom induction systems. • Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations • EFI fuel rails are machined for -8AN O-ring Fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits. • Cast aluminum construction. • Intended for use on N/A or forced induction engines in the 6.0 to 7.0+ liter range, max power at 7000-8000+RPM.
-
Base Plenum Top Mounting Flange Height – 8.42” to the lifter valley cover flange on engine block.
-

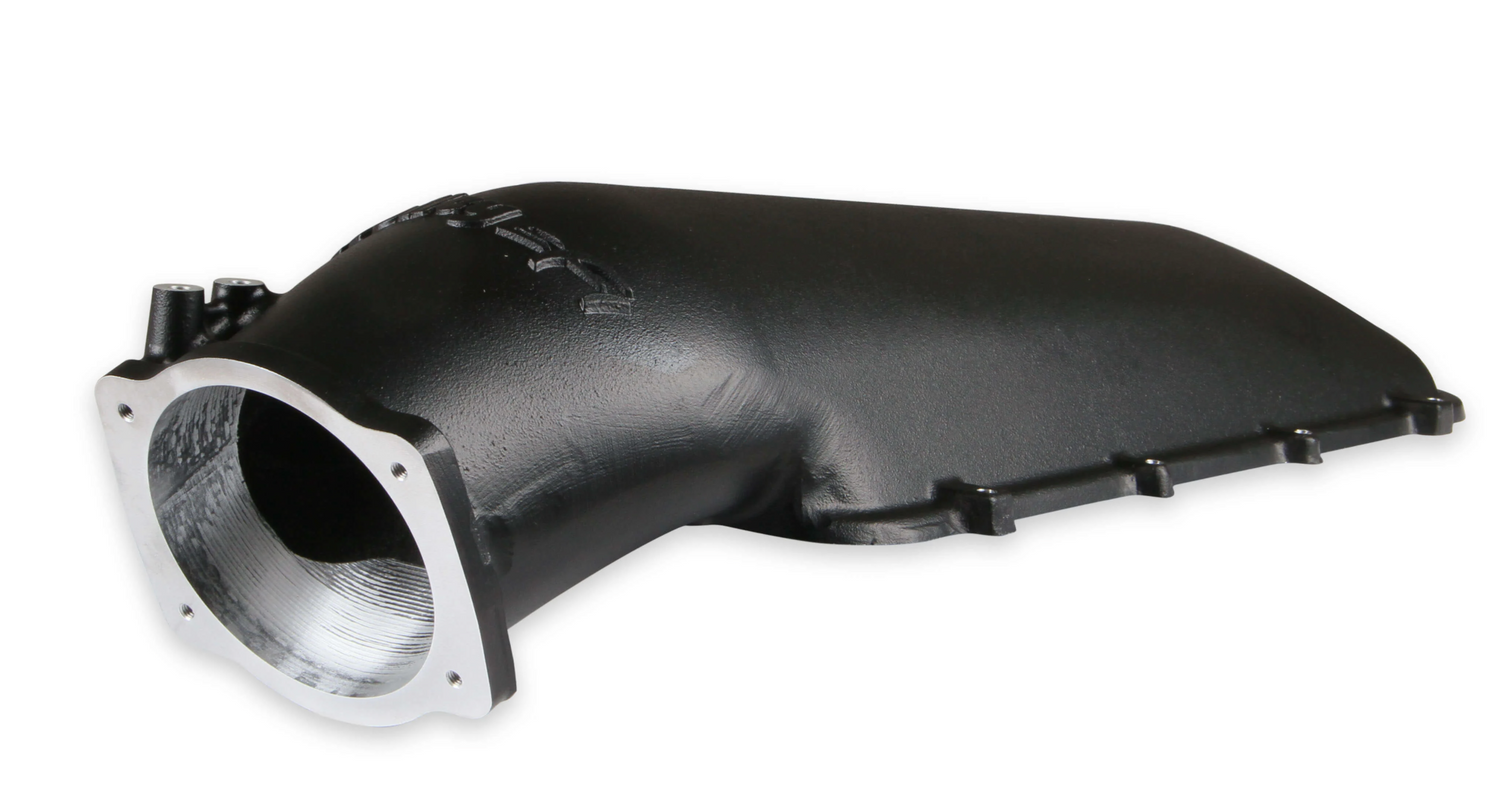

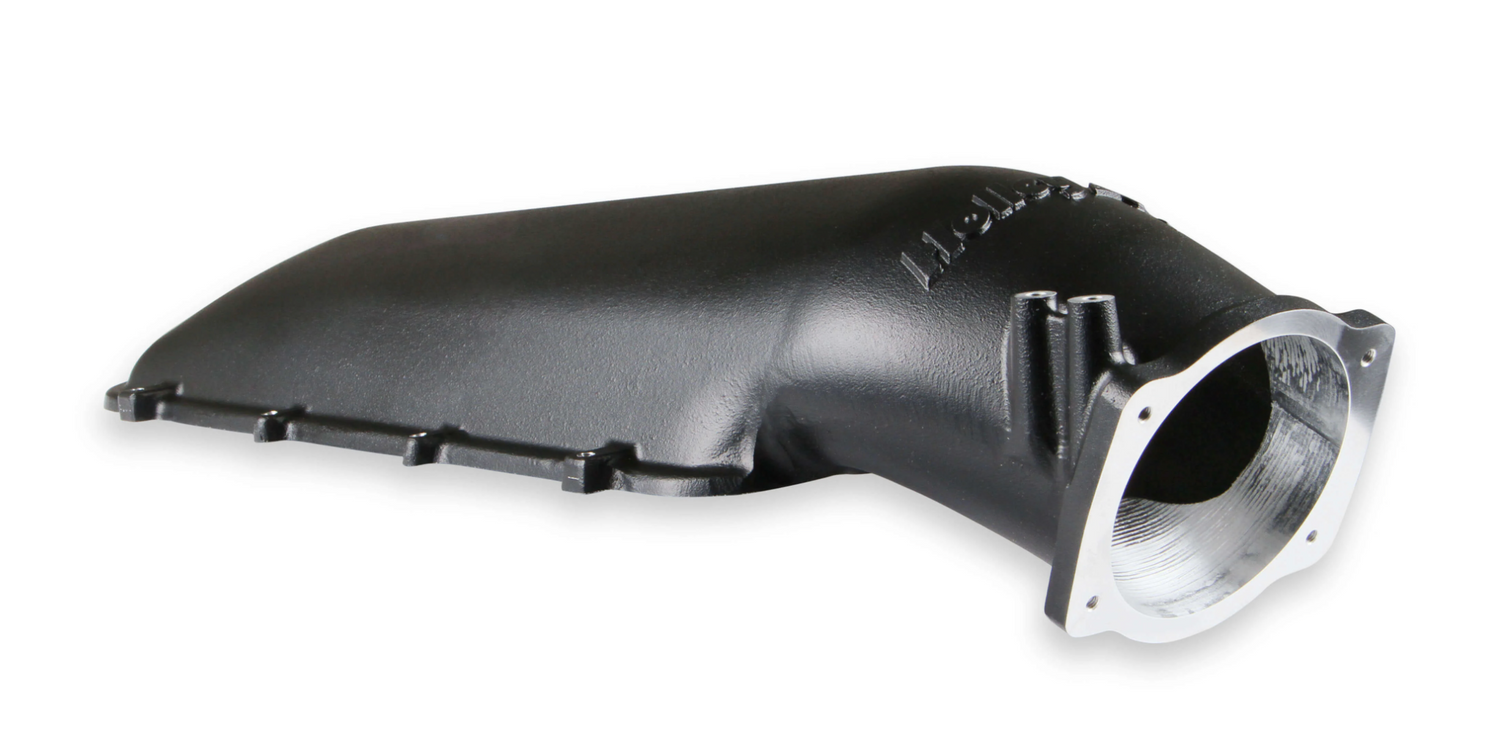

Total Height with 92/105mm EFI Plenum Top – 12.32” to the lifter valley cover flange on engine block.
-
Runner Length – 6.58”, As-Cast Runner Cross-Sectional Area – Tapered 4.25 in² to 2.53 in²
-

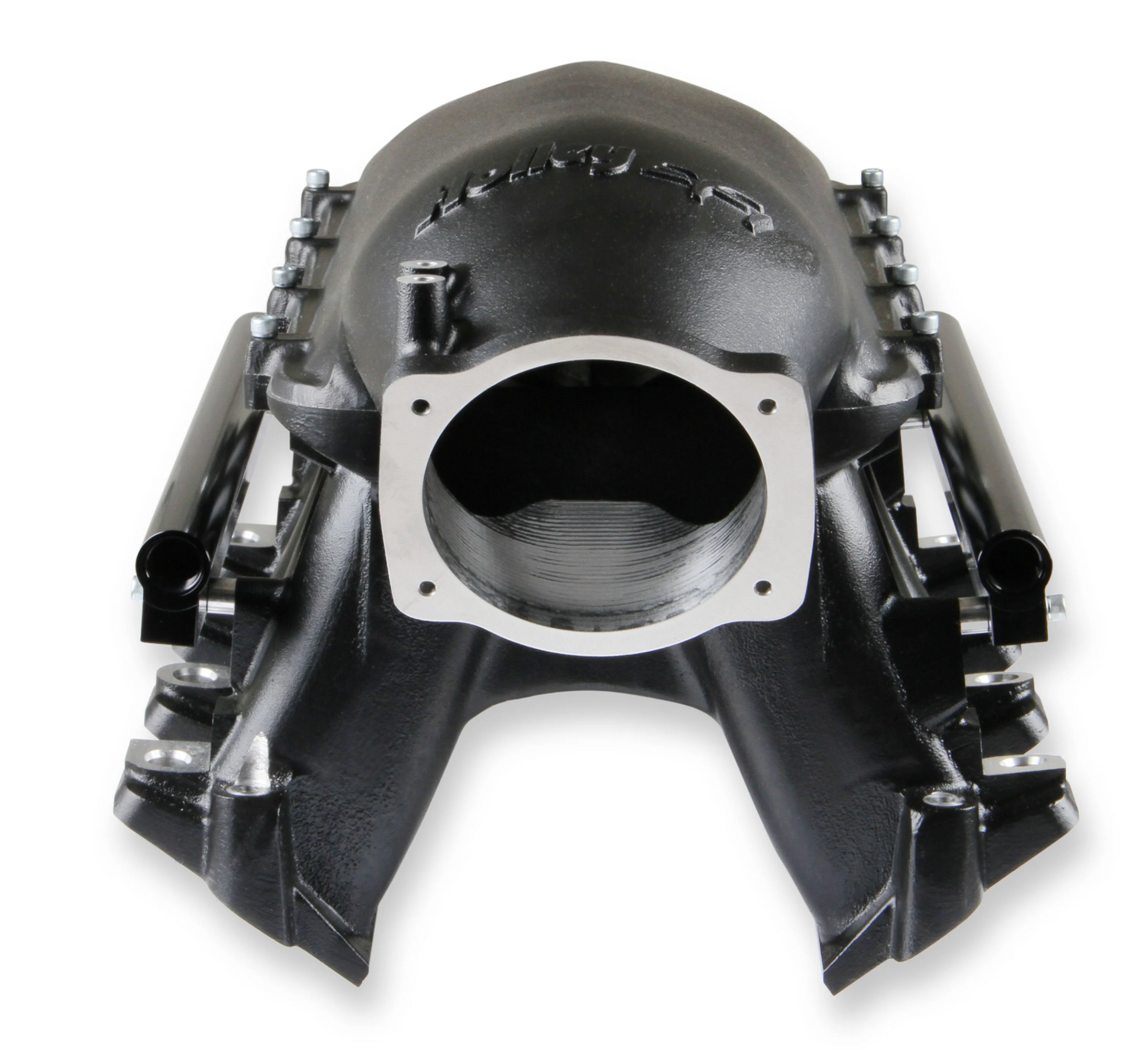

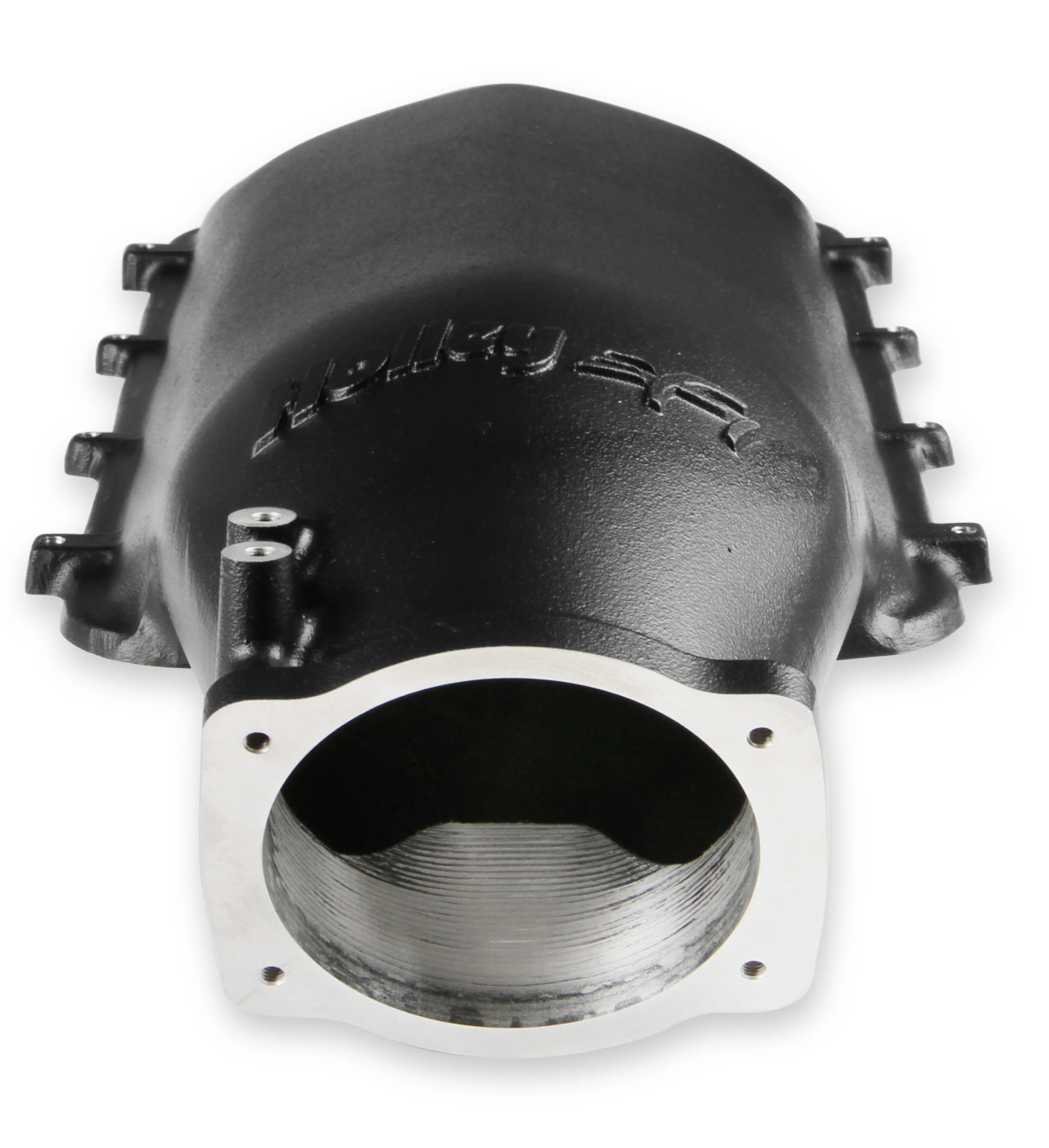

Throttle Body Flange Location, with 102mm EFI Plenum Top : Height – 8.42” (from engine block lifter valley cover flange), Longitudinal Location – 3.84” (forward from engine block front flange), Angle – 25 deg. (down from vertical)
-
Plenum Top Gasket Type – 3/32” Round O-ring Cord
-
Mounting Flange Gasket Type – Standard LS3 Molded O-Ring
-
Port Size – 2.49” Height x 1.21” Wide
Basic Operating RPM Range |
3500-8000 RPM |
|---|---|
Brand |
Holley EFI |
Category Filter |
Intake Manifolds |
Clearance Category |
Intake Manifolds |
Color |
Black |
Construction |
Cast |
EGR Port |
No |
Emission Code |
4 |
Engine |
GM LS1/LS2/LS6 |
Finish |
Black |
Front Height |
12.32 inch |
Front Maximum Height |
12.32 IN |
Fuel System Type |
EFI |
Grade Type |
Performance |
Intake Port Gasket(s) Included |
No |
Manifold Type |
Hi-Ram |
Material |
Aluminum |
Nitrous Bung(s) Included |
No |
Plenum Finish |
Black |
Product Type |
Intake Manifold |
Rear Height |
11.00 inch |
Rear Maximum Height |
11 IN |
Recommended Use |
Forced Induction |
Removable Runners |
No |
RPM Power Band |
3500-8000 RPM |
Sale Category |
Air and Fuel Delivery |
Single Or Dual Plane Type |
Single Plane |
Throttle Body Bore Diameter |
105 MM |
Throttle Body Included |
No |
Warranty |
Limited 90 Day |
UPC |
090127688915 |
Part Number |
300-123BK |
