COMPATIBLE:
2004 - 2005 CADILLAC CTS-V (5.7L-LS6)
1998 - 2002 CHEVROLET CAMARO (5.7L-LS1)
1997 - 2004 CHEVROLET CORVETTE (5.7L-LS1)
2001 - 2004 CHEVROLET CORVETTE Z06 (5.7L-LS6)
2005 - 2008 CHEVROLET CORVETTE (6.0L-LS2)
1998 - 2002 PONTIAC FIREBIRD (5.7L-LS1)

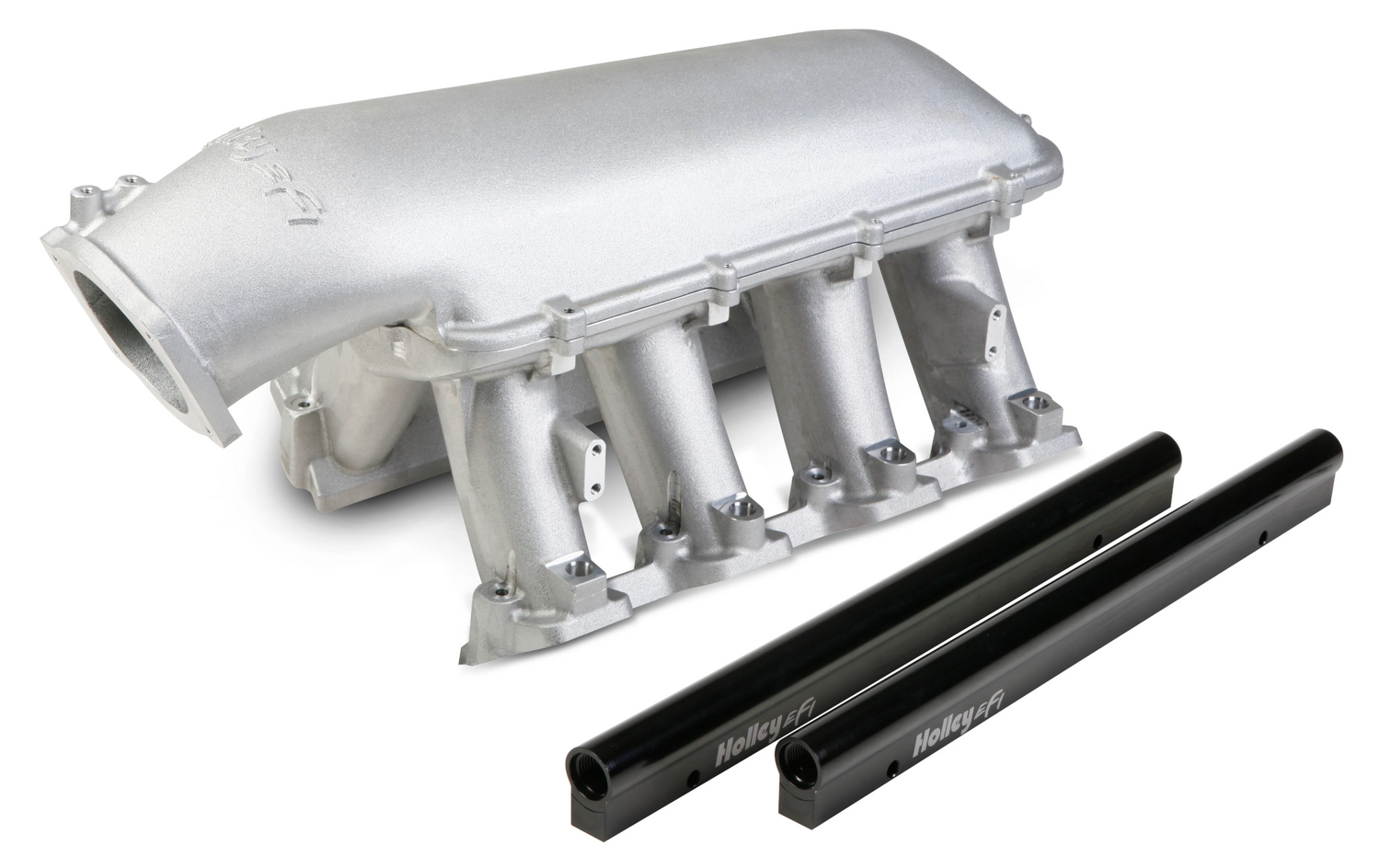

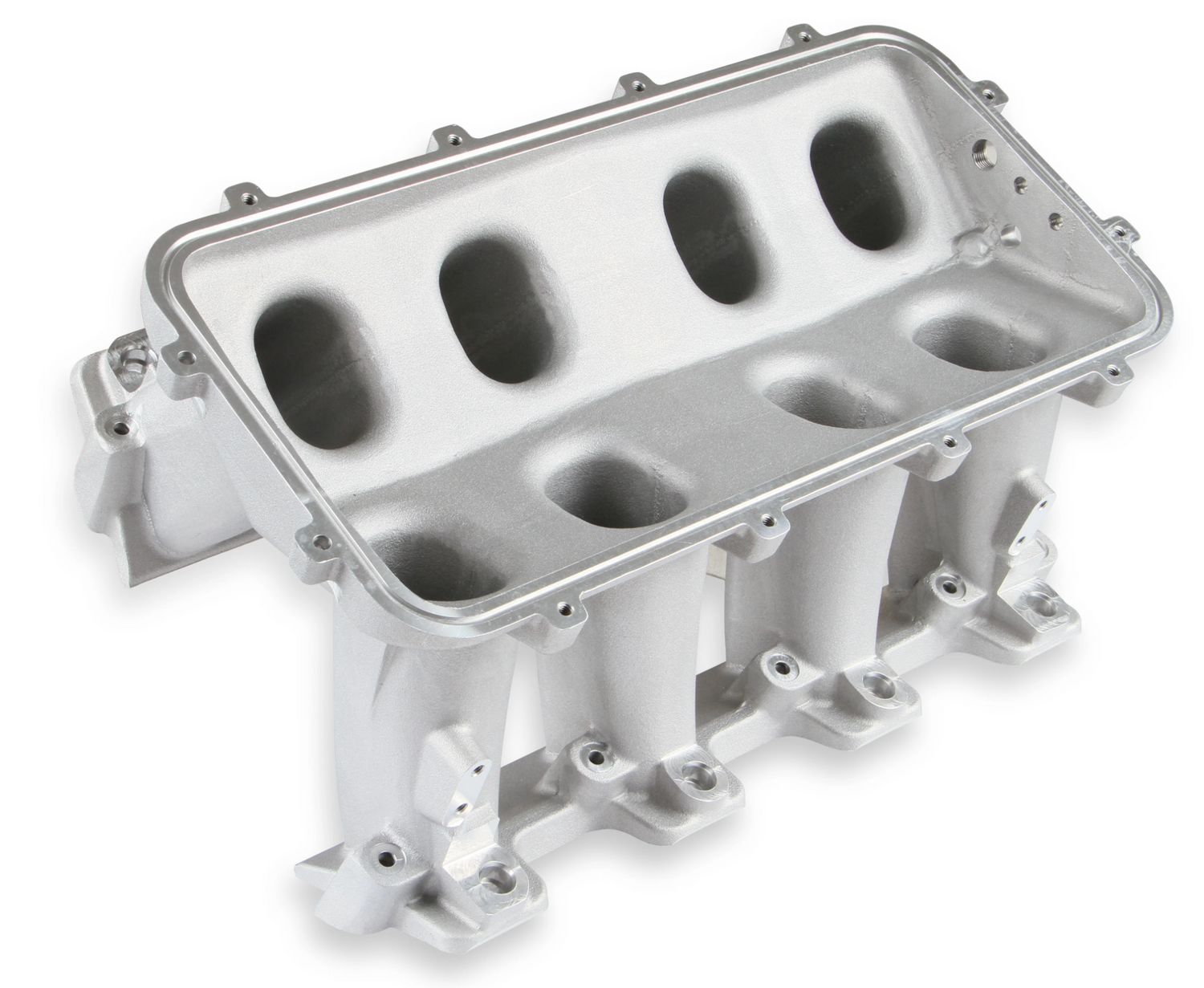

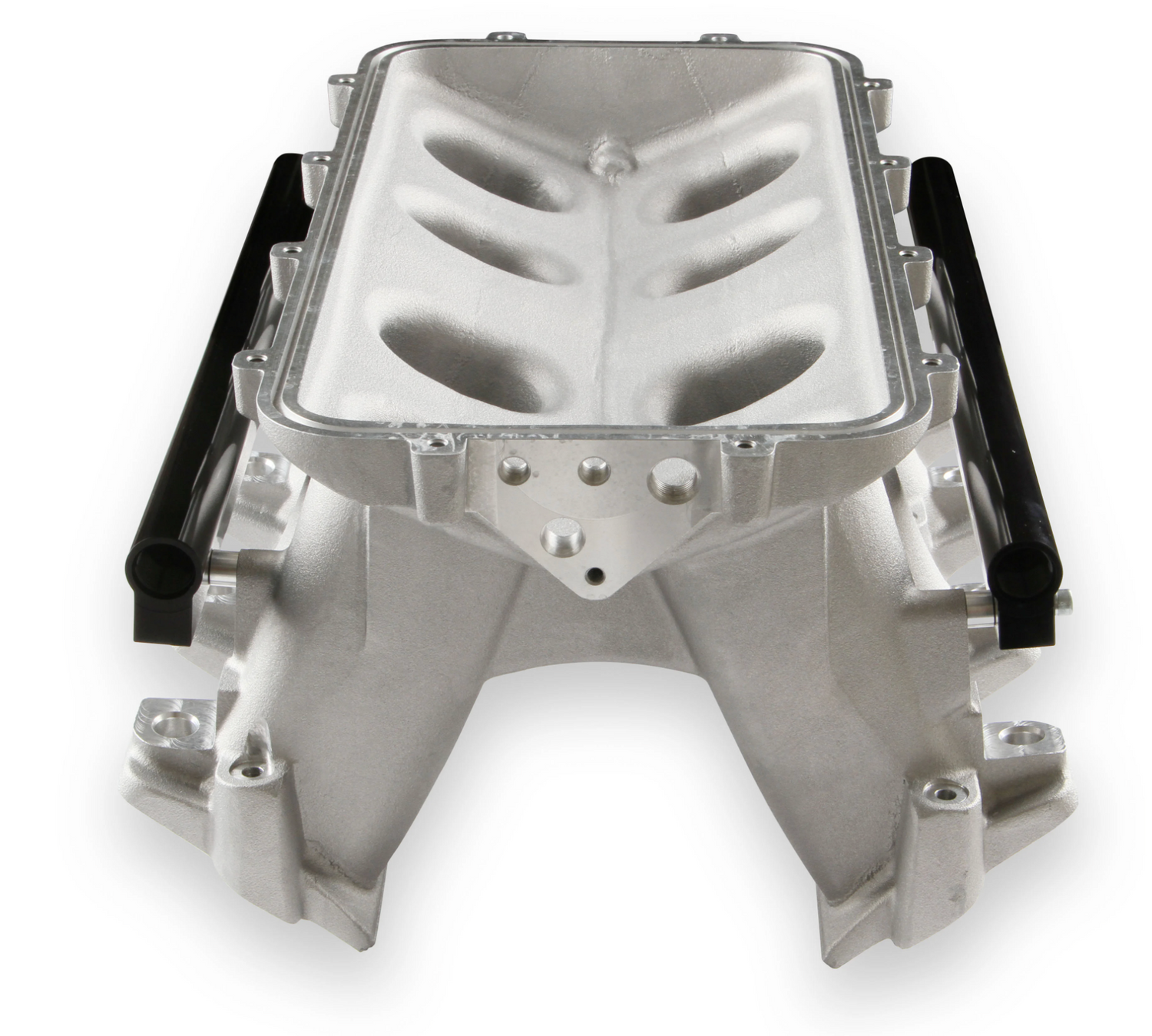

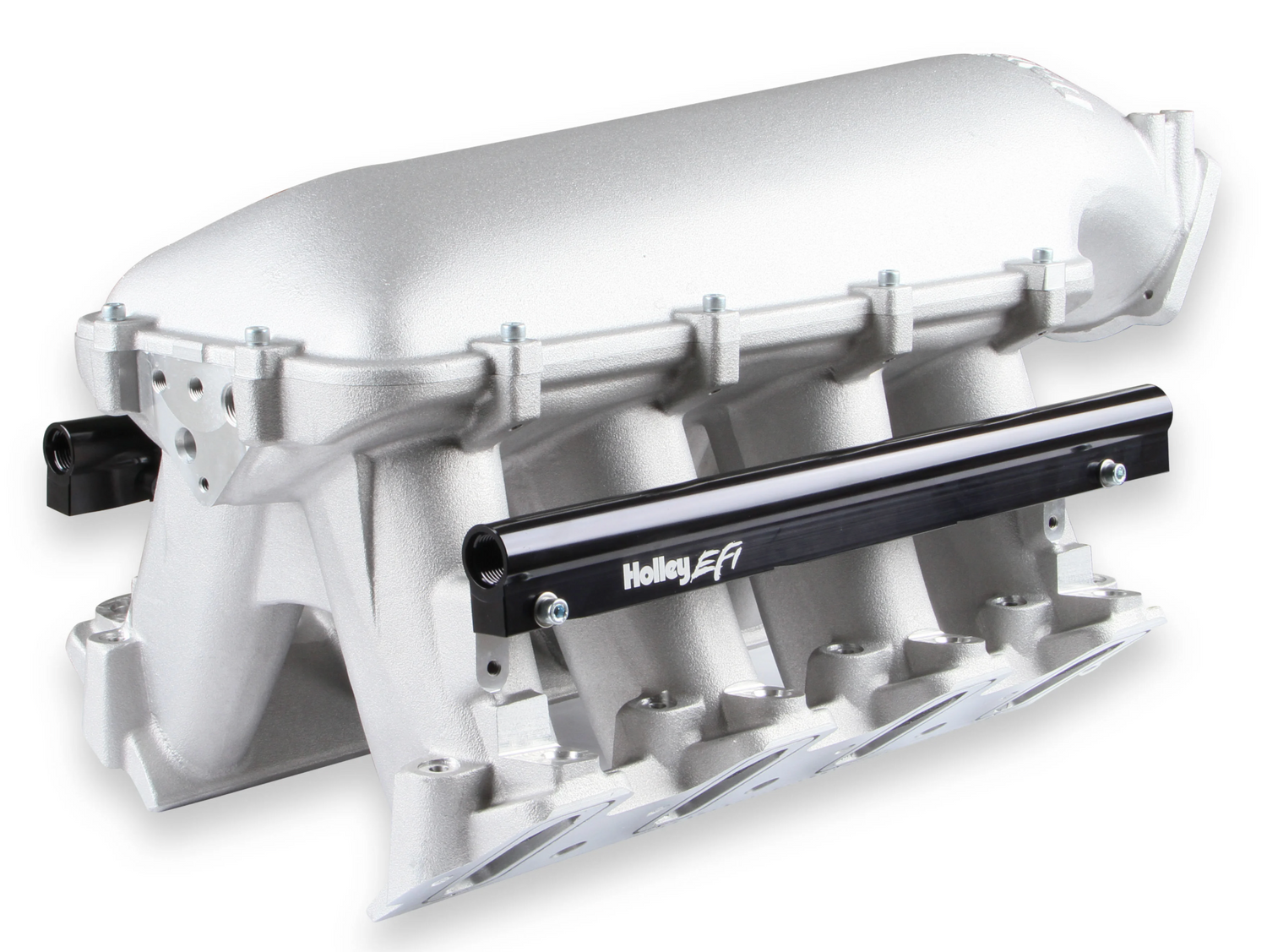

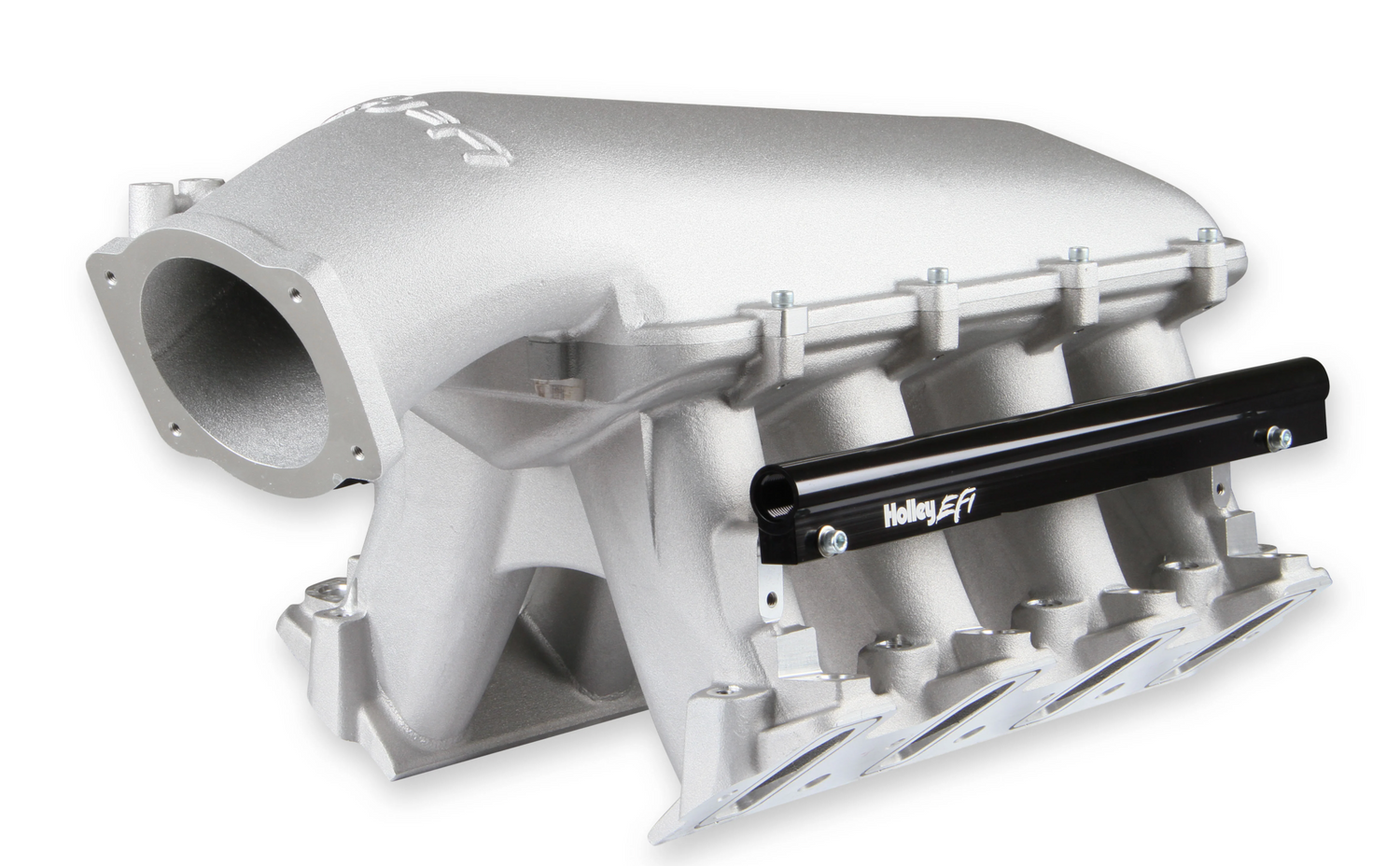

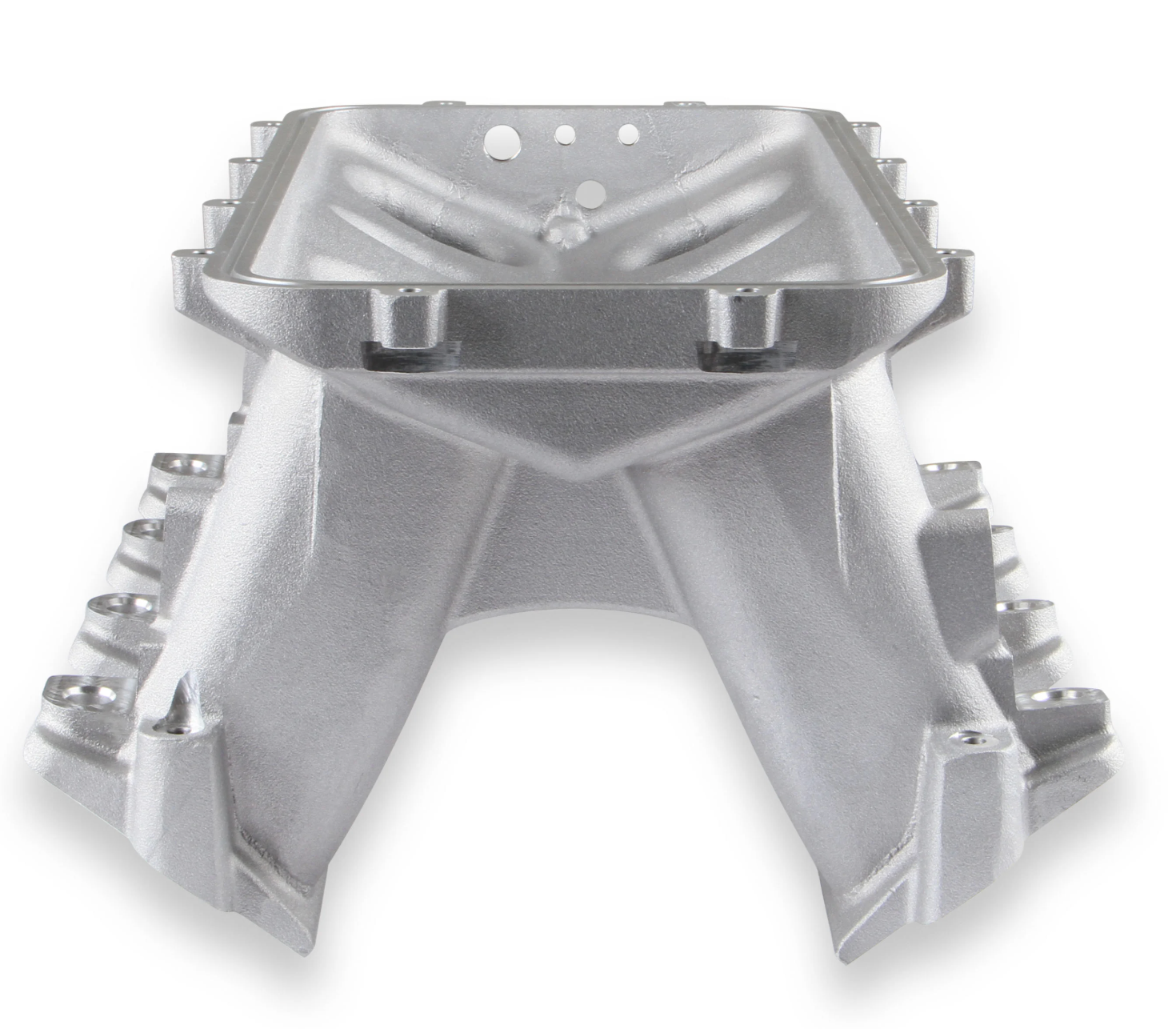

The Holley GM LS1/LS2/LS6 Modular Hi-Ram Intake Manifold is introduced as a cost effective alternative to fabricated sheet-metal for high-performance applications where induction system height is not limited. Coupling this Hi-Ram intake with the high flowing LS1/LS2/LS6 style cylinder heads has outstanding potential for N/A and forced induction applications at a budget-minded cost. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more! • The base is designed to be modular in configuration to accept a wide range of carbureted and EFI tops and to be attractive to builders and fabricators as the foundation for custom induction systems. • Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations • EFI fuel rails are machined for -8AN O-ring Fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits. • Cast aluminum construction. • Intended for use on N/A or forced induction engines in the 6.0 to 7.0+ liter range, max power at 7000-8000+RPM.
-

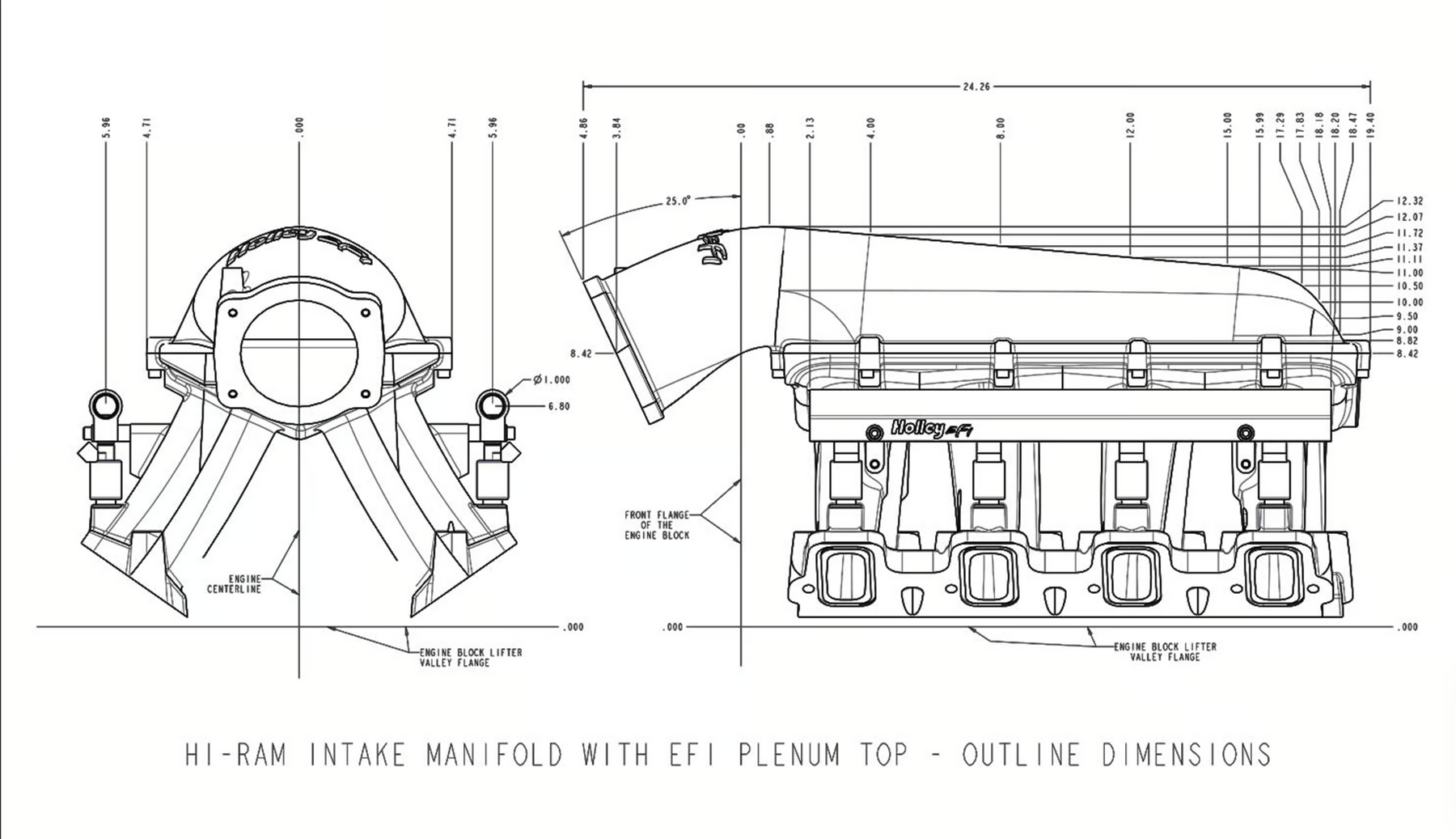

Base Plenum Top Mounting Flange Height – 8.42” to the lifter valley cover flange on engine block.
-

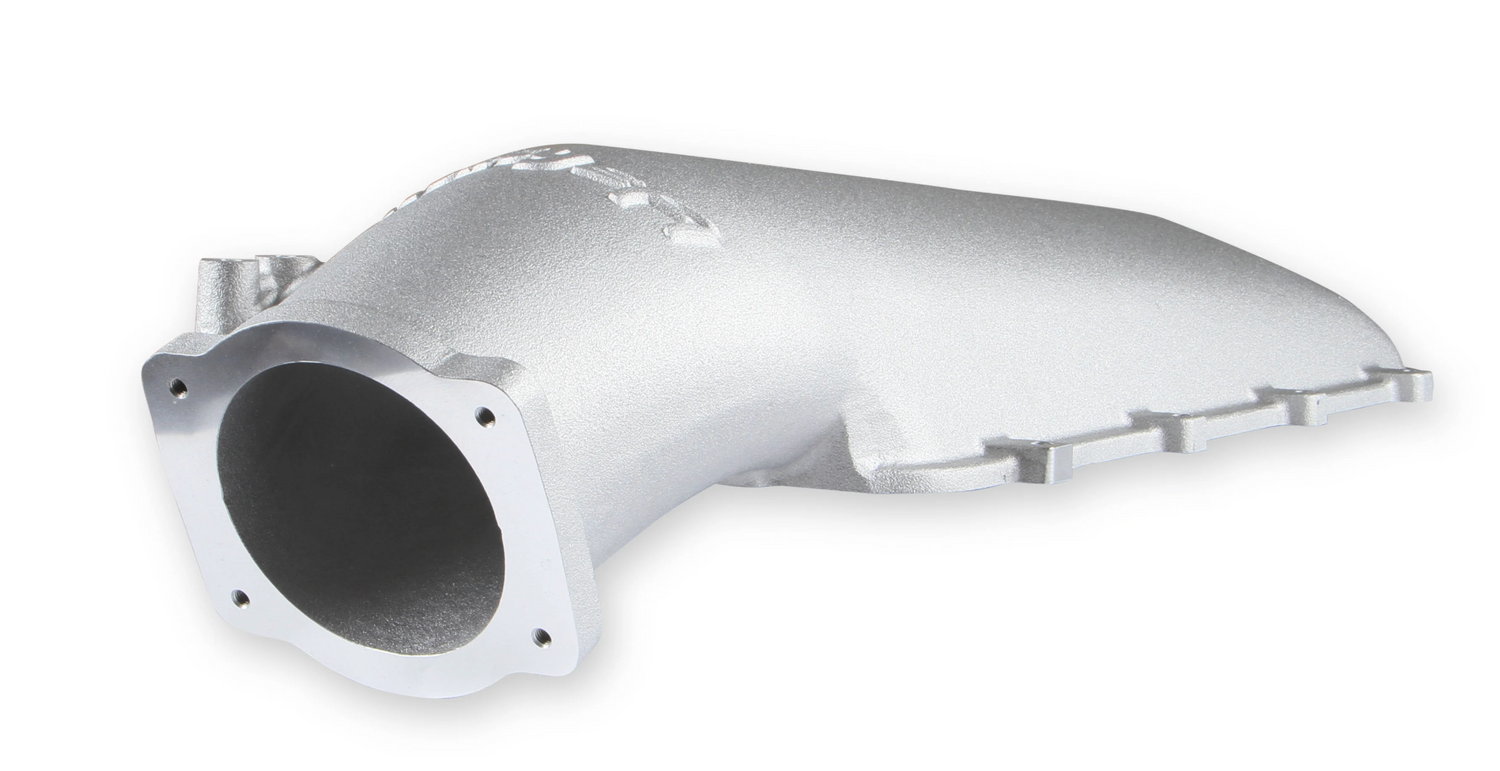

Total Height with 92/105mm EFI Plenum Top – 12.32” to the lifter valley cover flange on engine block.
-
Runner Length – 6.58”, As-Cast Runner Cross-Sectional Area – Tapered 4.25 in² to 2.53 in²
-
Throttle Body Flange Location, with 102mm EFI Plenum Top : Height – 8.42” (from engine block lifter valley cover flange), Longitudinal Location – 3.84” (forward from engine block front flange), Angle – 25 deg. (down from vertical)
-

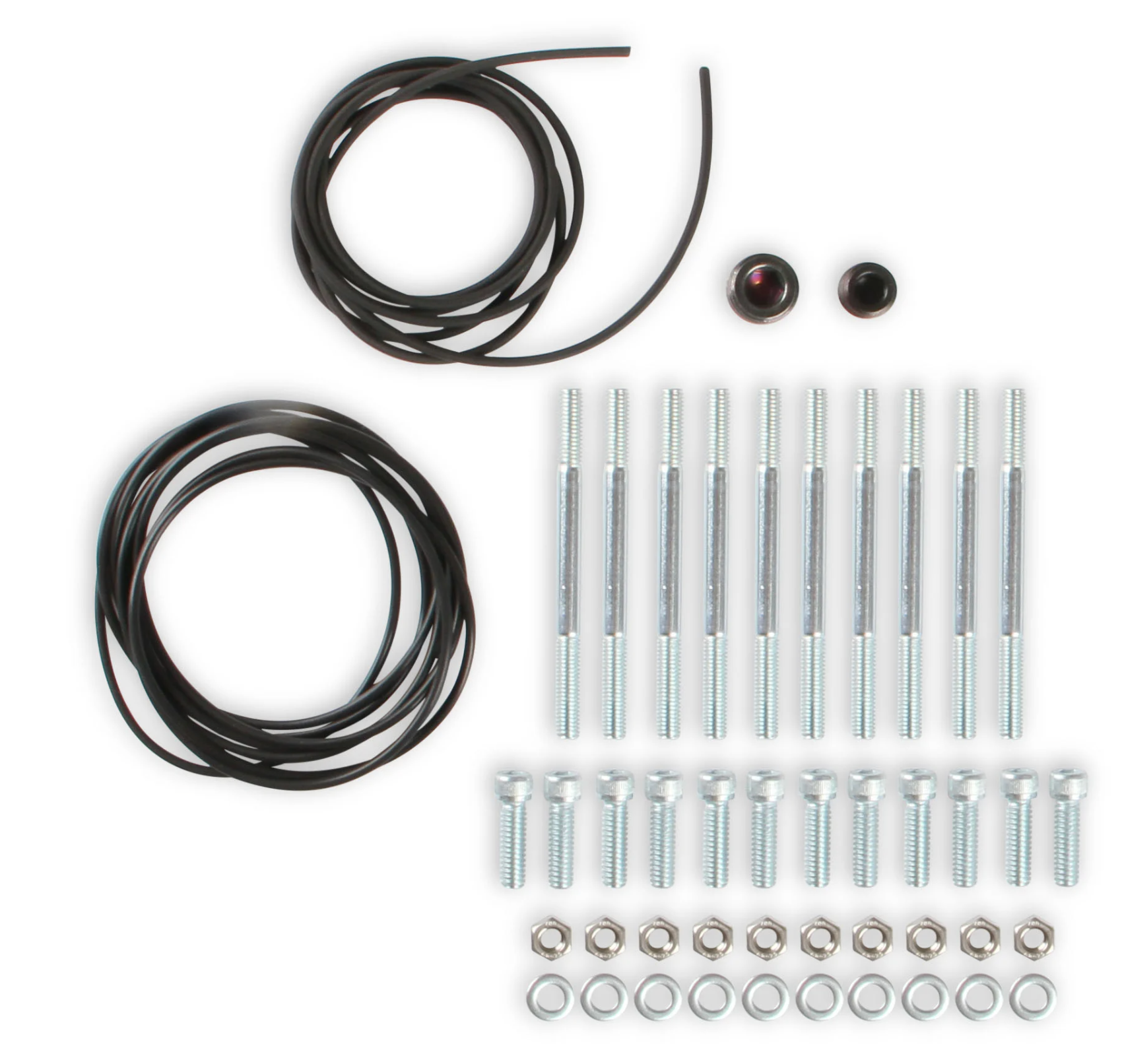

Plenum Top Gasket Type – 3/32” Round O-ring Cord
-
Mounting Flange Gasket Type – Standard LS3 Molded O-Ring
-
Port Size – 2.49” Height x 1.21” Wide
Basic Operating RPM Range |
3500-8000 RPM |
|---|---|
Brand |
Holley EFI |
Category Filter |
Intake Manifolds |
Clearance Category |
Intake Manifolds |
Color |
Natural |
Construction |
Cast |
EGR Port |
No |
Emission Code |
4 |
Engine |
GM LS1/LS2/LS6 |
Finish |
Silver |
Flange Style |
EFI |
Front Height |
12.32 inch |
Front Maximum Height |
12.32 IN |
Fuel System Type |
EFI |
Grade Type |
Performance |
Intake Port Gasket(s) Included |
No |
Manifold Type |
Hi-Ram |
Material |
Aluminum |
Nitrous Bung(s) Included |
No |
Plenum Finish |
Natural |
Product Type |
Intake Manifold |
Rear Height |
11.00 inch |
Rear Maximum Height |
11 IN |
Recommended Use |
Forced Induction |
Removable Runners |
No |
RPM Power Band |
3500-8000 RPM |
Sale Category |
Air and Fuel Delivery |
Single Or Dual Plane Type |
Single Plane |
Throttle Body Bore Diameter |
105 MM |
Throttle Body Included |
No |
Warranty |
Limited 90 Day |
UPC |
090127681688 |
Part Number |
300-123 |
