COMPATIBLE:

2007 - 2009 CADILLAC ESCALADE (6.2L-L92)

2008 - 2009 CHEVROLET TAHOE LTZ (6.2L-L92)

2010 - 2015 CHEVROLET CAMARO SS (6.2L-LS3)

2014 - 2017 CHEVY SS (6.2L-LS3)

2008 - 2013 CHEVROLET CORVETTE (6.2L-LS3)

2009 - 2013 CHEVROLET SILVERADO 1500 (6.2L-L92)

2008 - 2009 HUMMER H2 (6.2L-L92)

2007 - 2013 GMC SIERRA 1500 (6.2L-L92)

2007 - 2013 GMC YUKON DENALI (6.2L-L92)

2007 - 2013 GMC YUKON XL DENALI (6.2L-L92)

2009 - 2010 PONTIAC G8 GXP (6.2L-LS3)

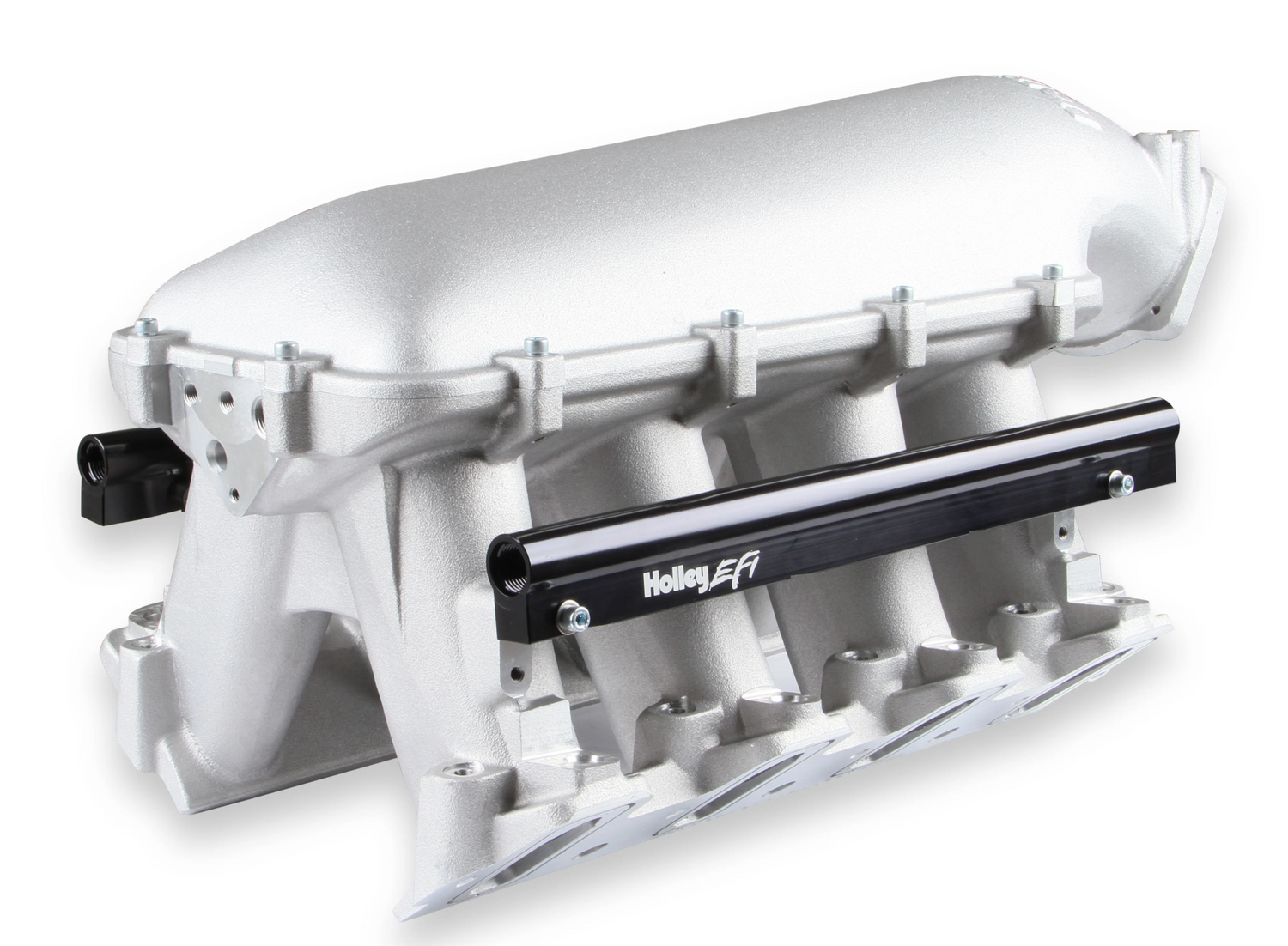

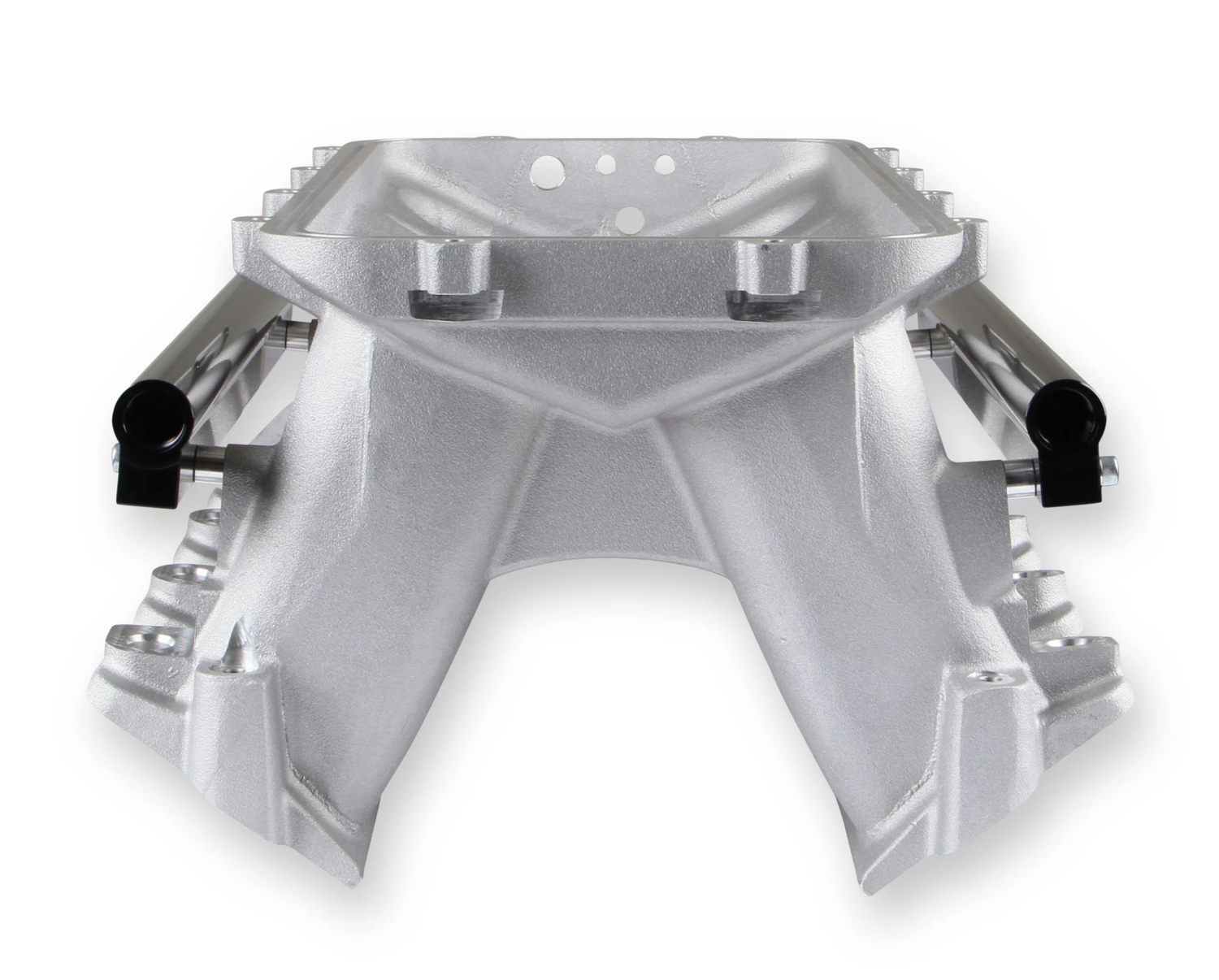

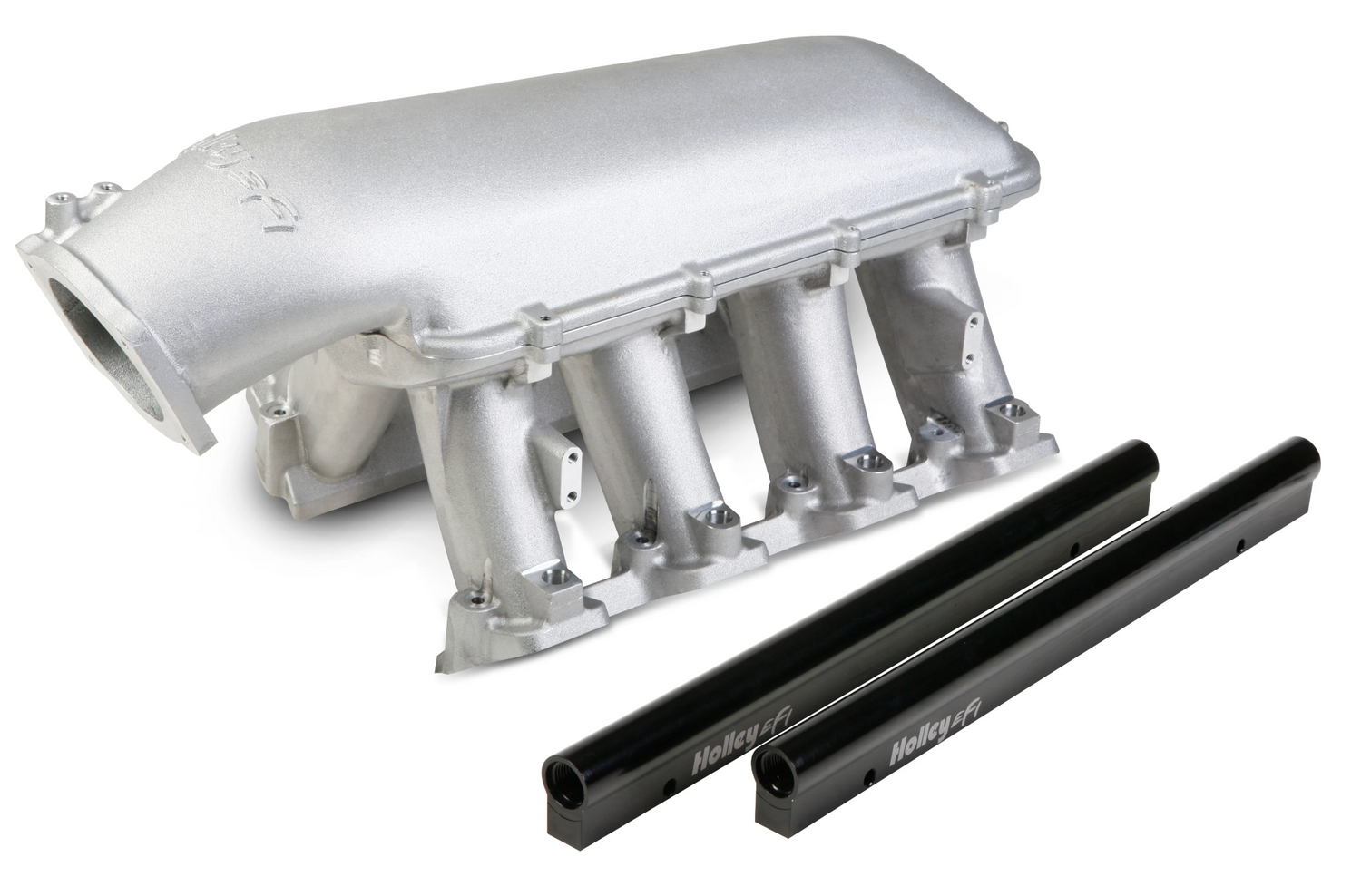

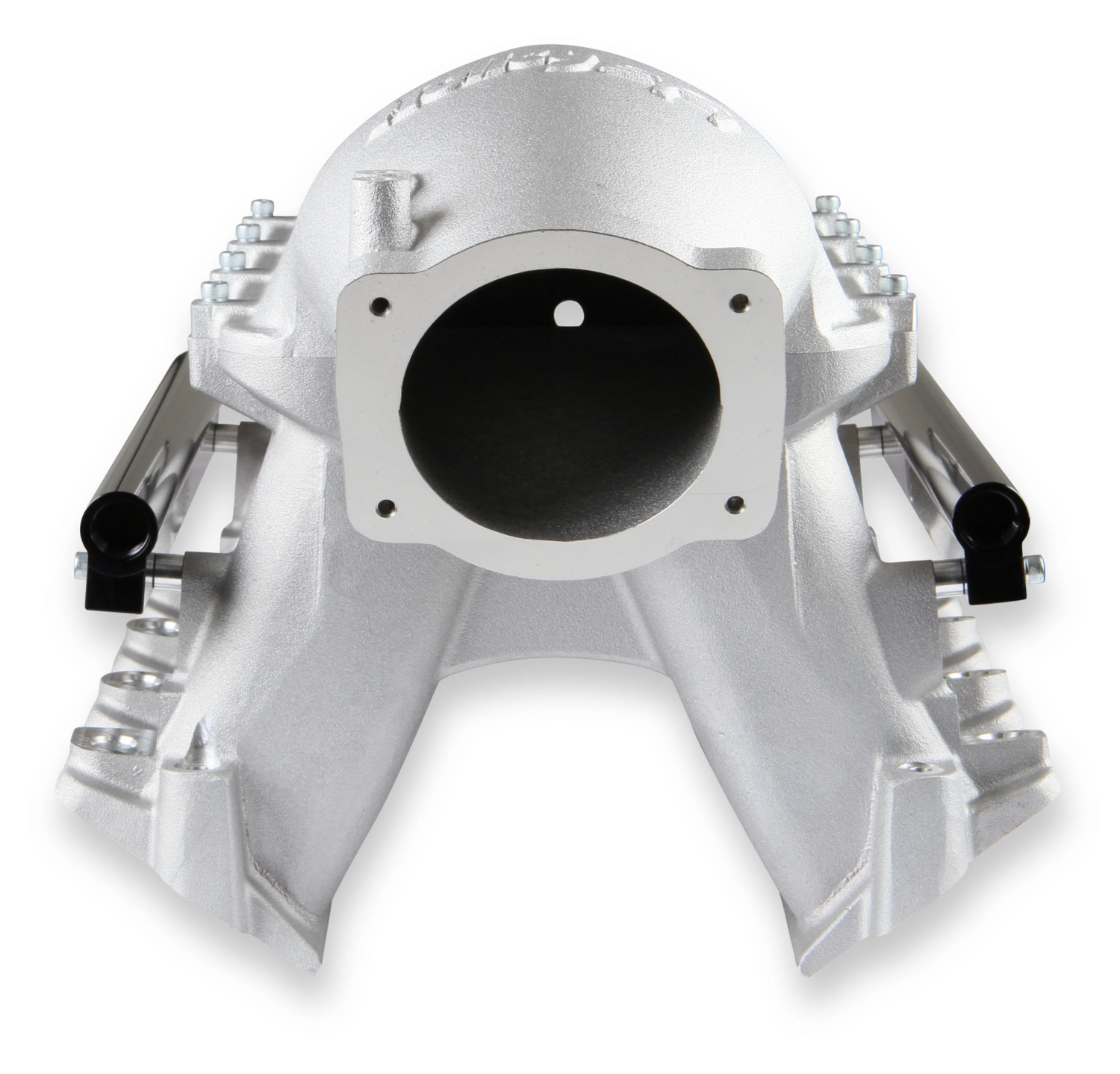

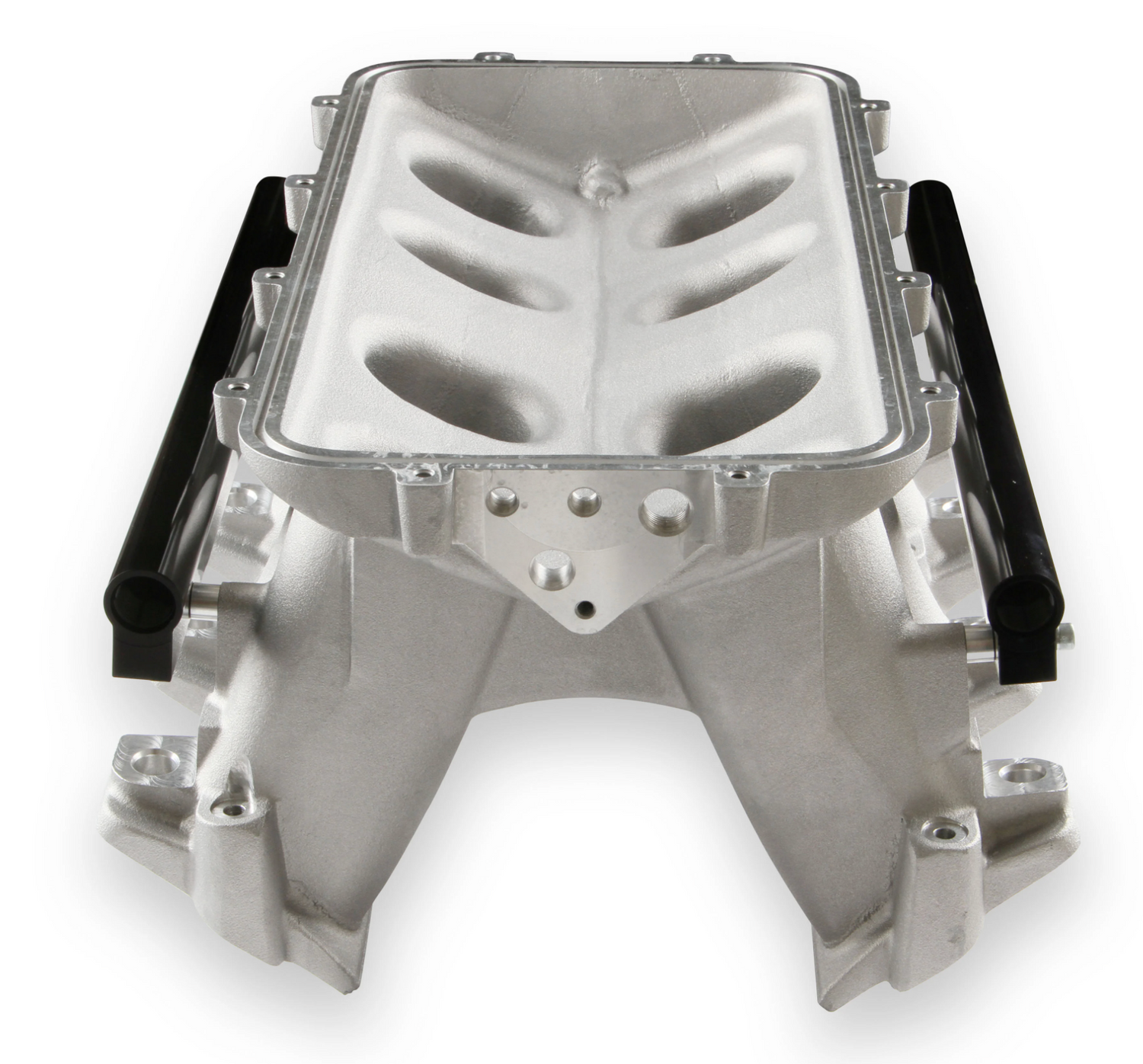

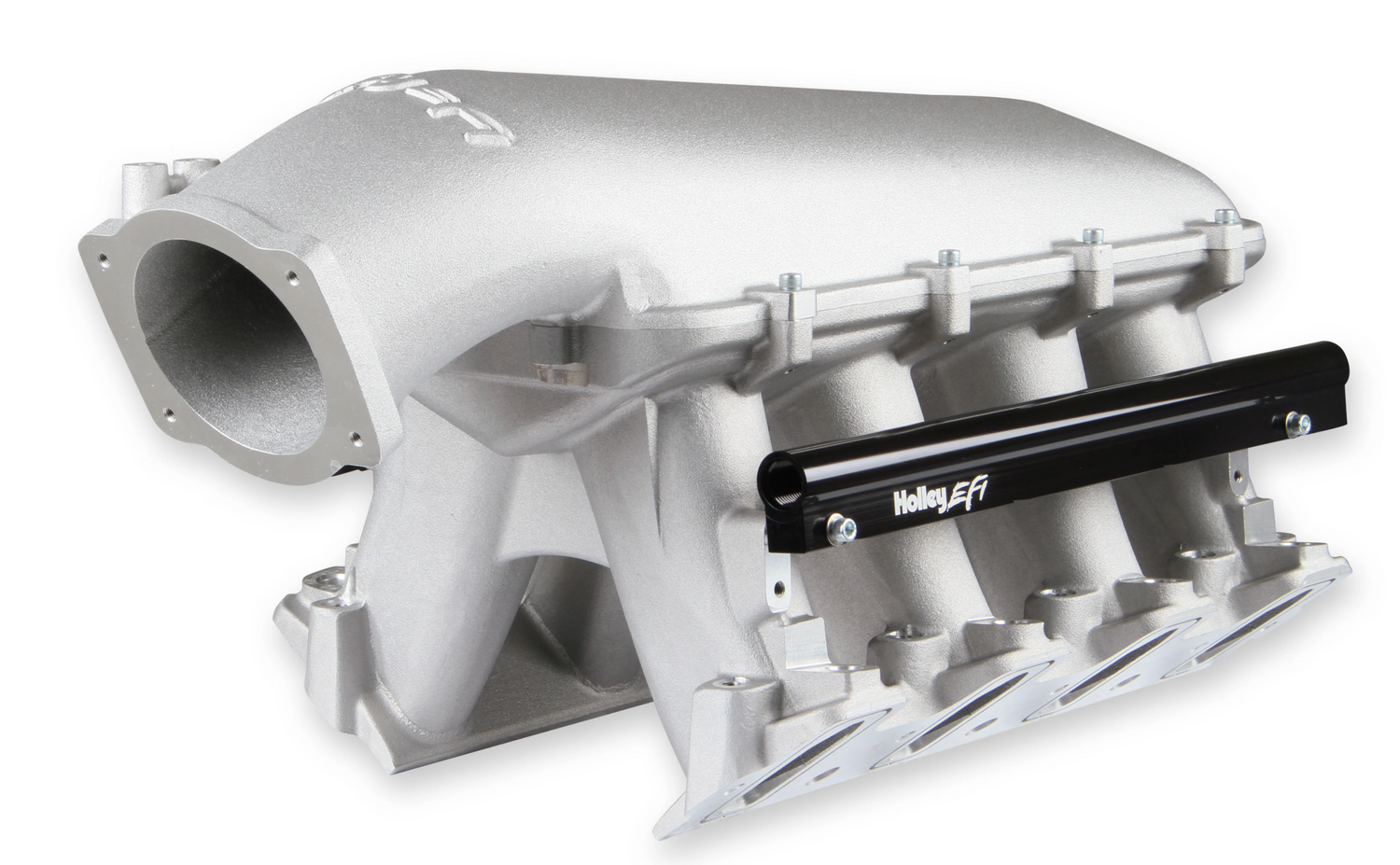

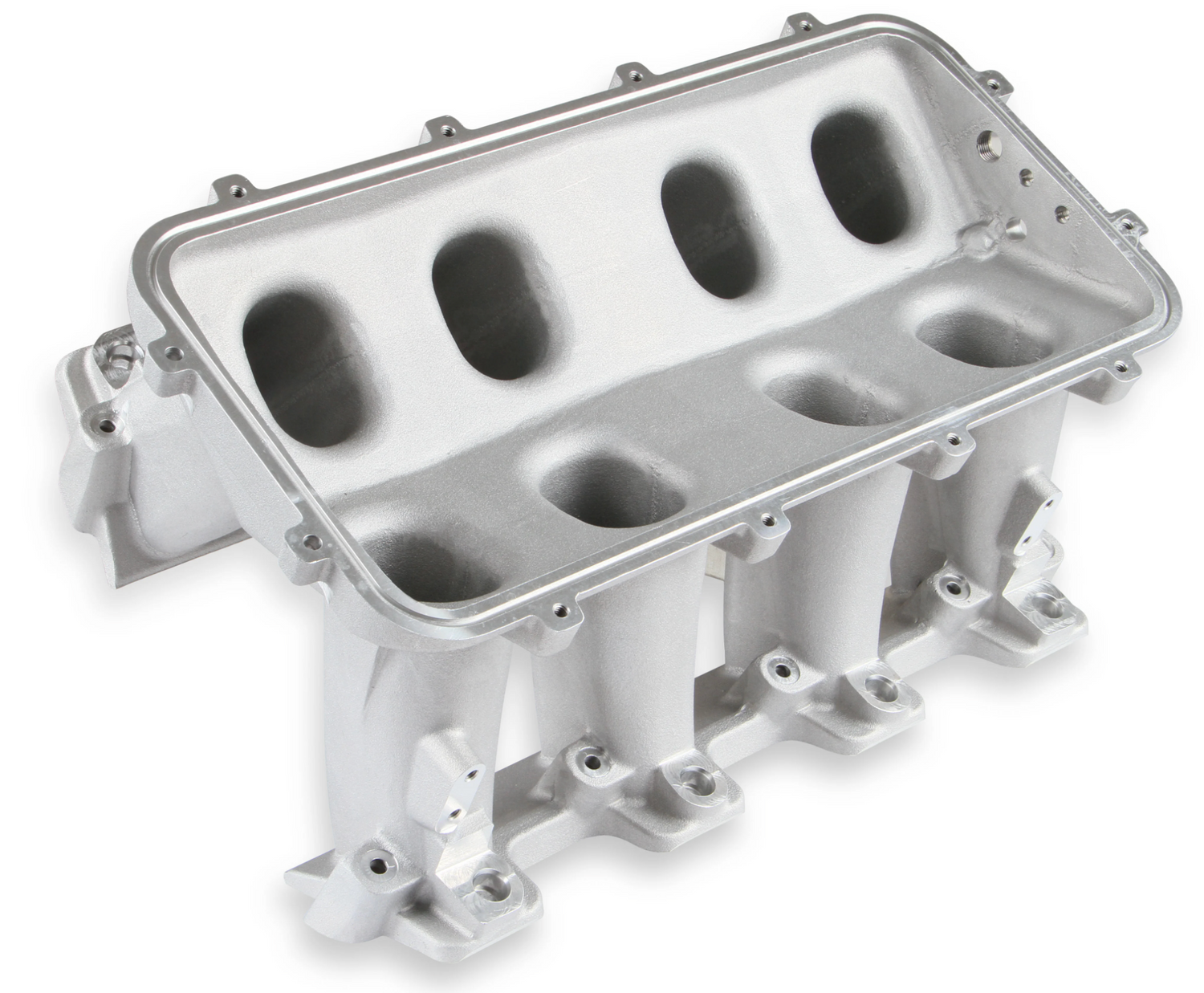

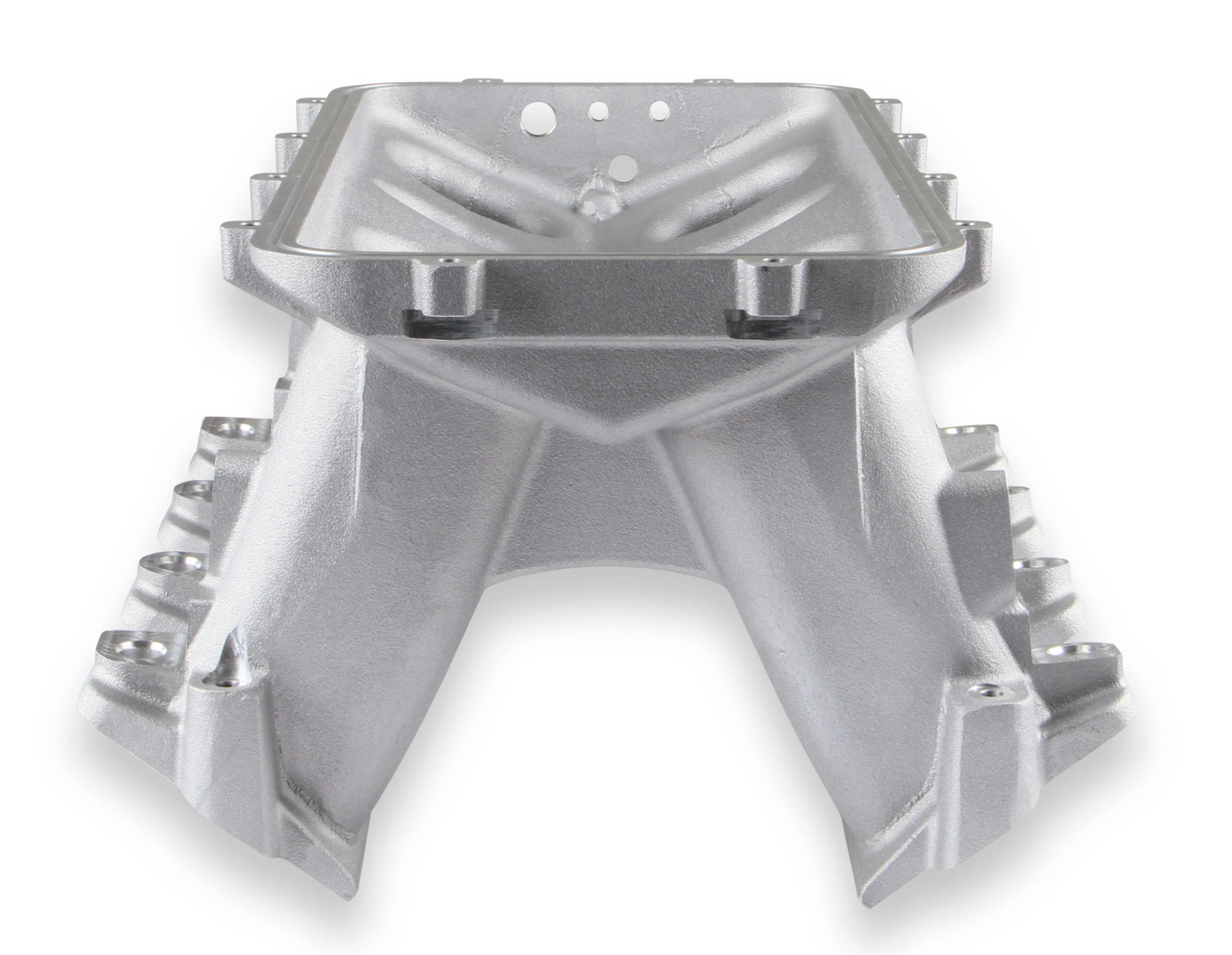

The Holley GM LS3/L92 Modular Hi-Ram Intake Manifold is introduced as a cost effective alternative to fabricated sheet-metal for high-performance applications where induction system height is not limited. Coupling this Hi-Ram intake with the high flowing LS3/L92 style cylinder heads has outstanding potential for N/A and forced induction applications at a budget-minded cost. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more! • The base is designed to be modular in configuration to accept a wide range of carbureted and EFI tops and to be attractive to builders and fabricators as the foundation for custom induction systems. • Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations • EFI fuel rails are machined for -8AN O-ring fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits. • Cast aluminum construction. • Intended for use on N/A or forced induction engines in the 6.0 to 7.0+ liter range, max power at 7000-8000+RPM.

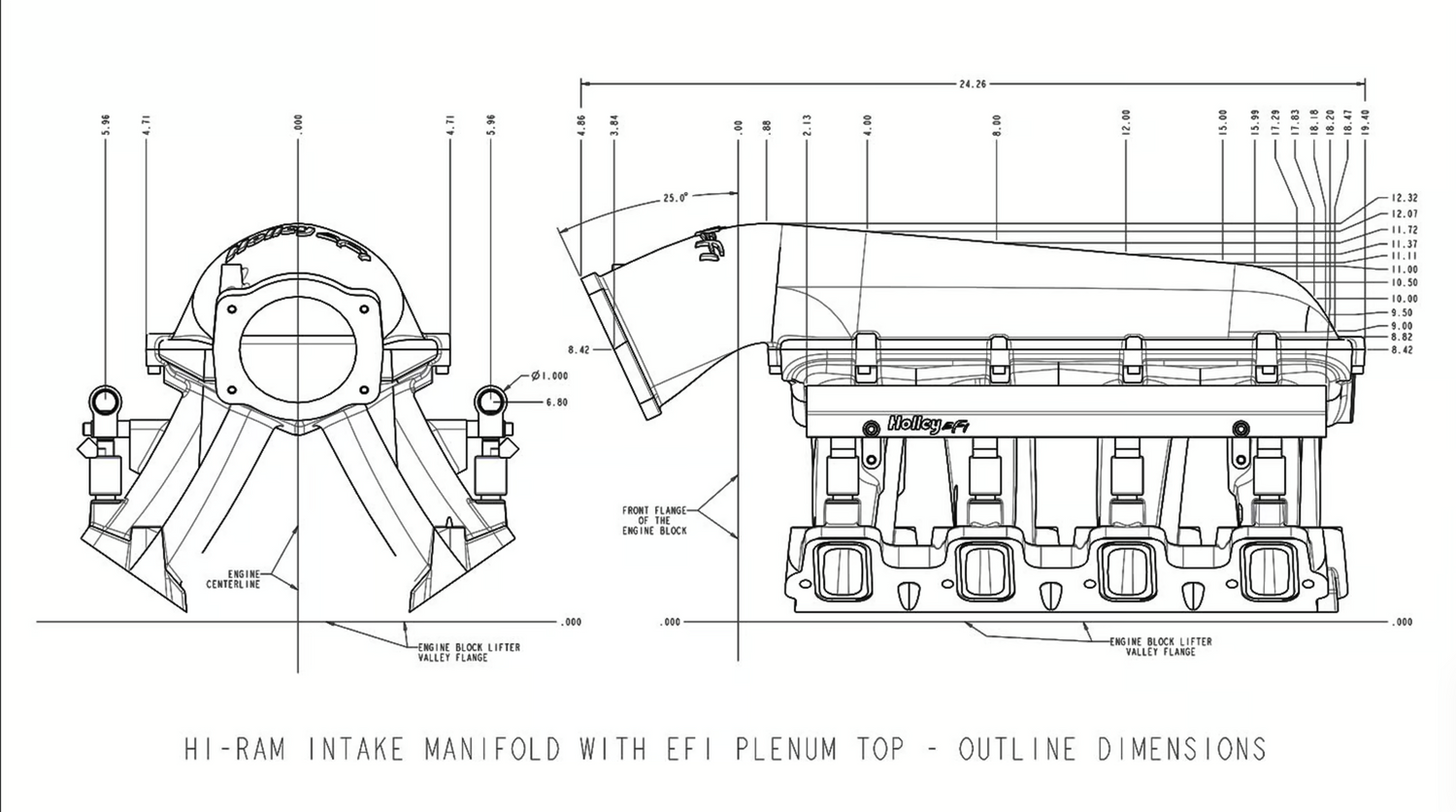

• Base Plenum Top Mounting Flange Height – 8.42” to the lifter valley cover flange on engine block.

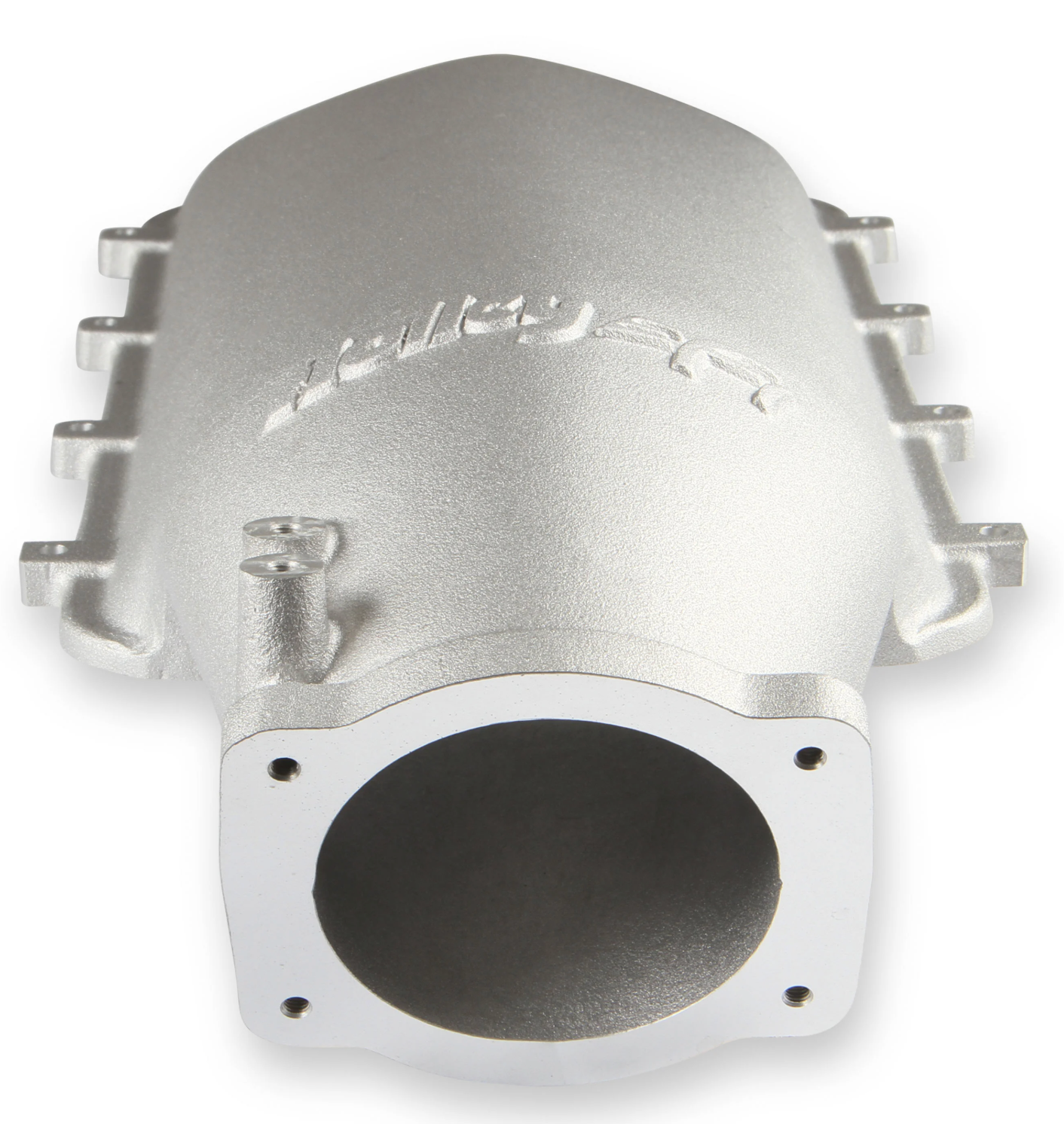

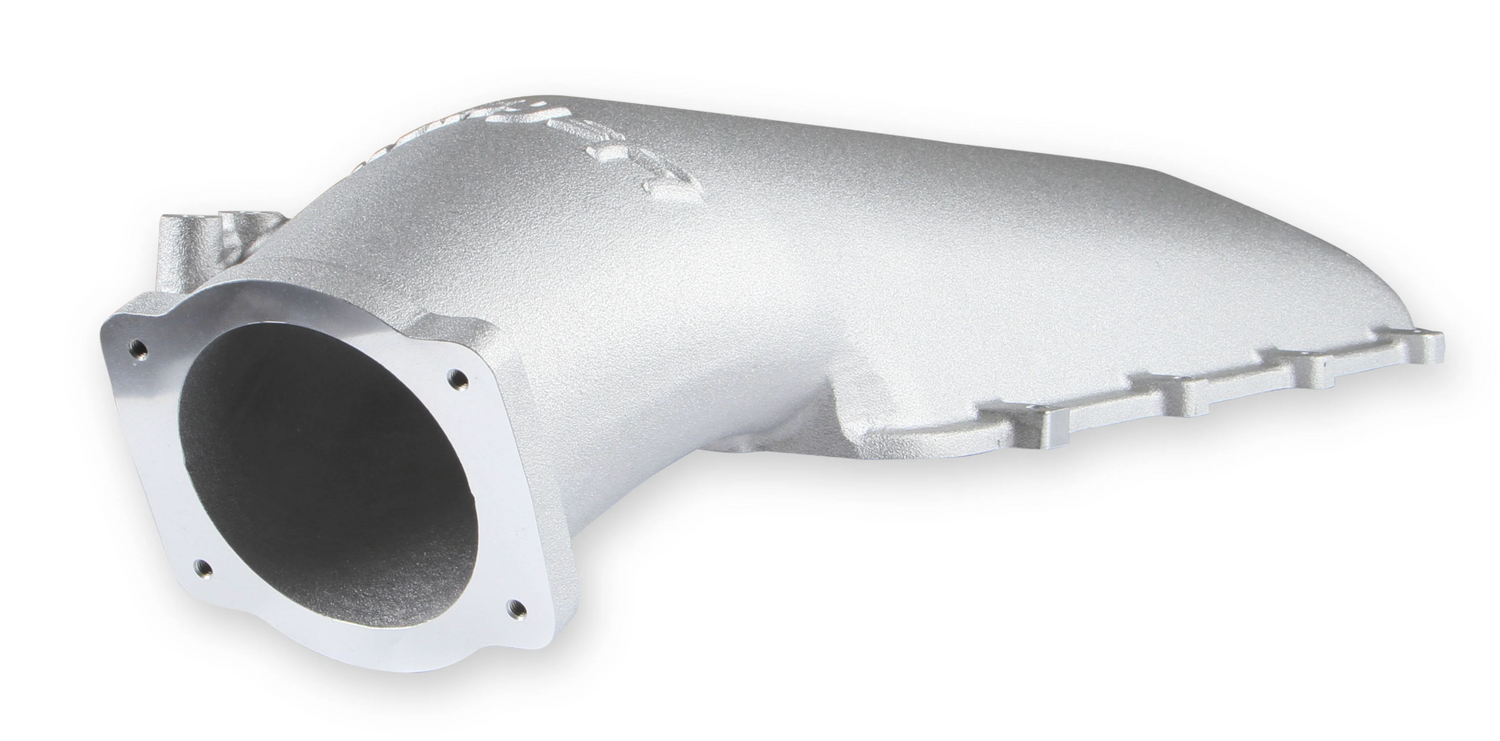

• Total Height with 92/105mm EFI Plenum Top – 12.32” to the lifter valley cover flange on engine block.

• Port Size – 2.49” Height x 1.21” Wide

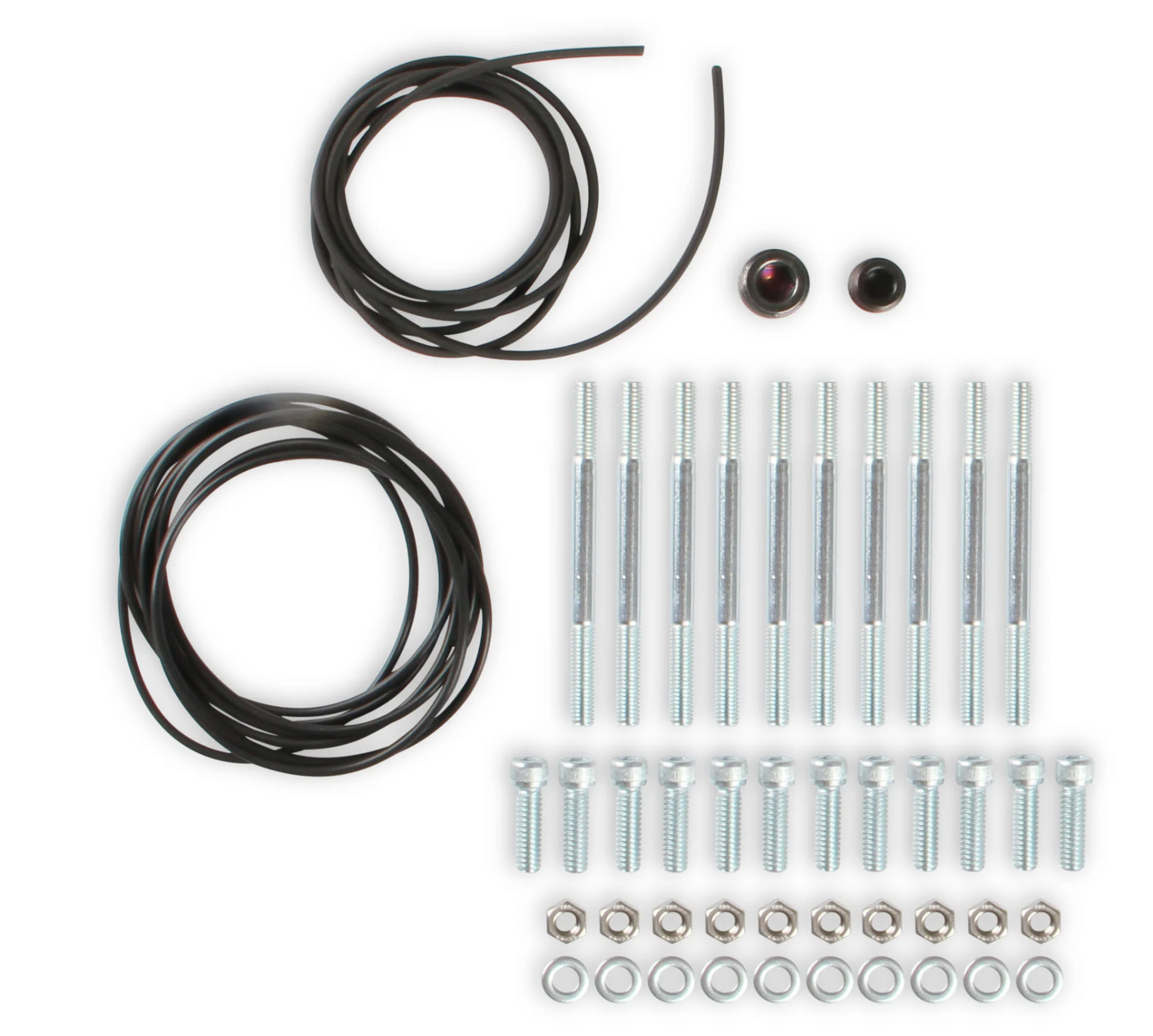

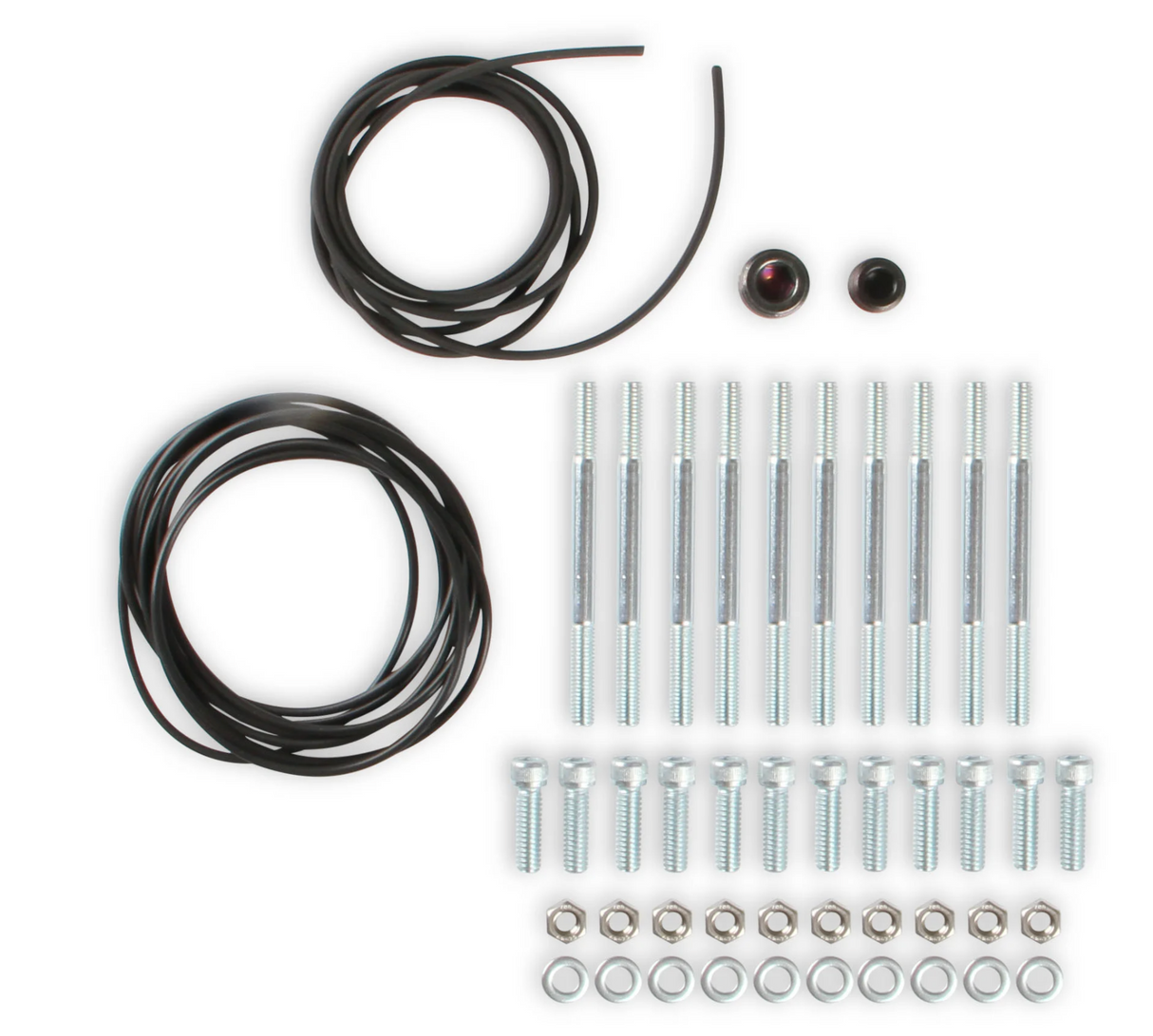

• Mounting Flange Gasket Type – Standard LS3 Molded O-Ring

• Plenum Top Gasket Type – 3/32” Round O-ring Cord

• Throttle Body Flange Location, with 92/102mm EFI Plenum Top : Height – 8.42” (from engine block lifter valley cover flange), Longitudinal Location – 3.84” (forward from engine block front flange), Angle – 25 deg. (down from vertical)

• Runner Length – 6.50”, As-Cast Runner Cross-Sectional Area – Tapered 4.25 in² to 2.77 in²

• Manifold has provisions for (1) 3/8 NPT and (2) 1/8 NPT fittings
