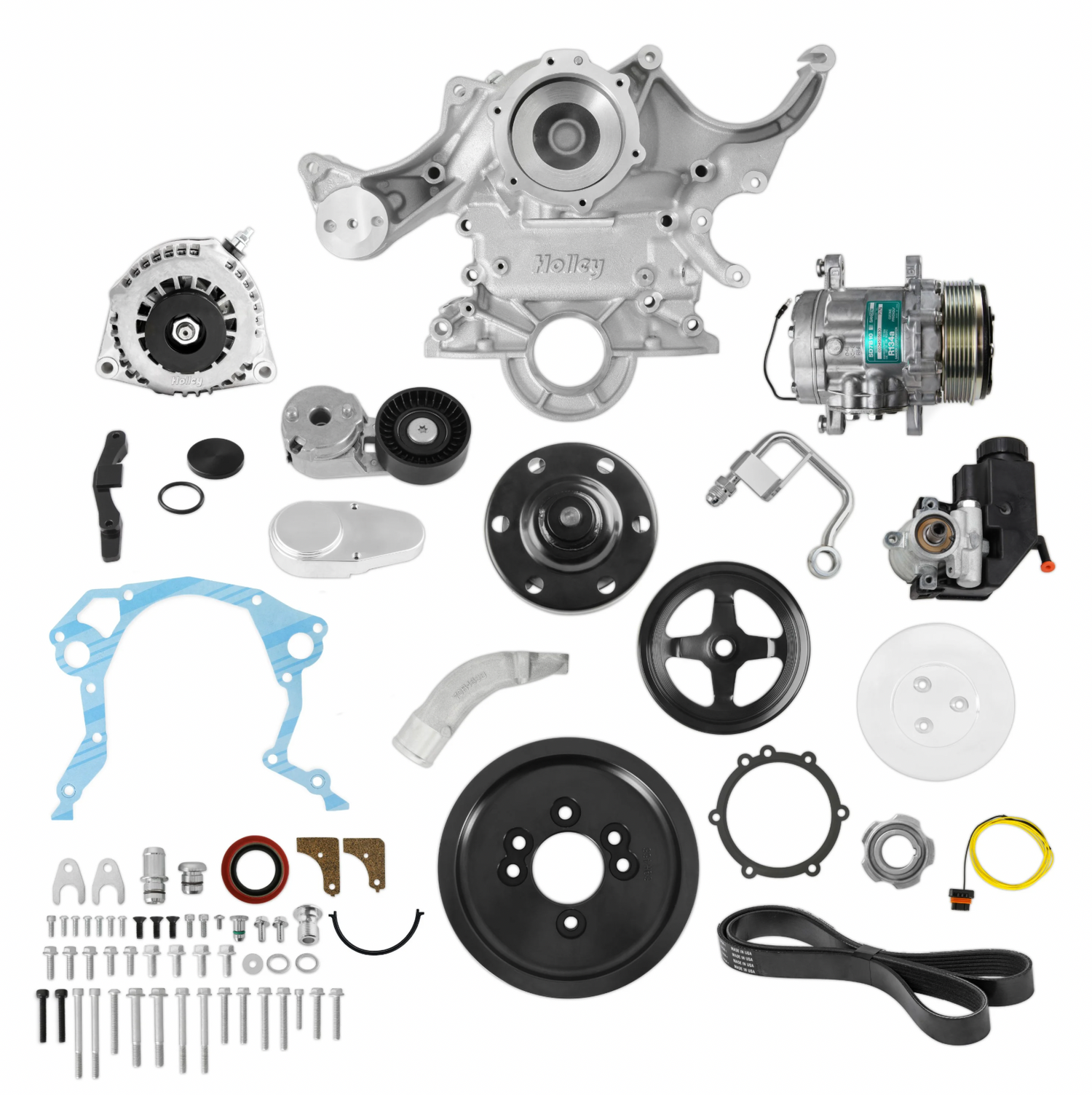

Holley's Mid-Mount accessory drives are available for small block Ford engines! The Mid-Mount complete accessory system has all accessories pulled in tighter than other accessory drives. At the heart of the system is a "bracketless" mounting, the accessories mount directly to a uniquely designed timing cover for a clean, integrated form. This product offers superb engine visibility to show off your engine, not unsightly accessory brackets. The Holley designed alternator is also innovative. This premium alternator utilizes 6-phase technology as found on the C7 Corvette. The water pump cartridge also shares its design efficiencies with that of the C7 Corvette. The compact and reliable SD7 A/C compressor and Type II P/S pump with baffled reservoir are also integrated. The design provides two heater hose return port locations (upper top & passenger-side low). When we say "complete", we mean complete. The Mid-mount system comes with everything you need. All accessories are included; the water pump, A/C compressor, Alternator, and P/S pump with reservoir. All pulleys and the belt are supplied. Heater hose adapters, power steering to -6 AN hardline, and the alternator plug/harness are included. Easy assembly was a priority during the entire development of this accessory solution. Color graphical instructions walk you through every step of the installation.

• The Mid-Mount complete accessory system has all accessories pulled in tighter than other accessory drives.

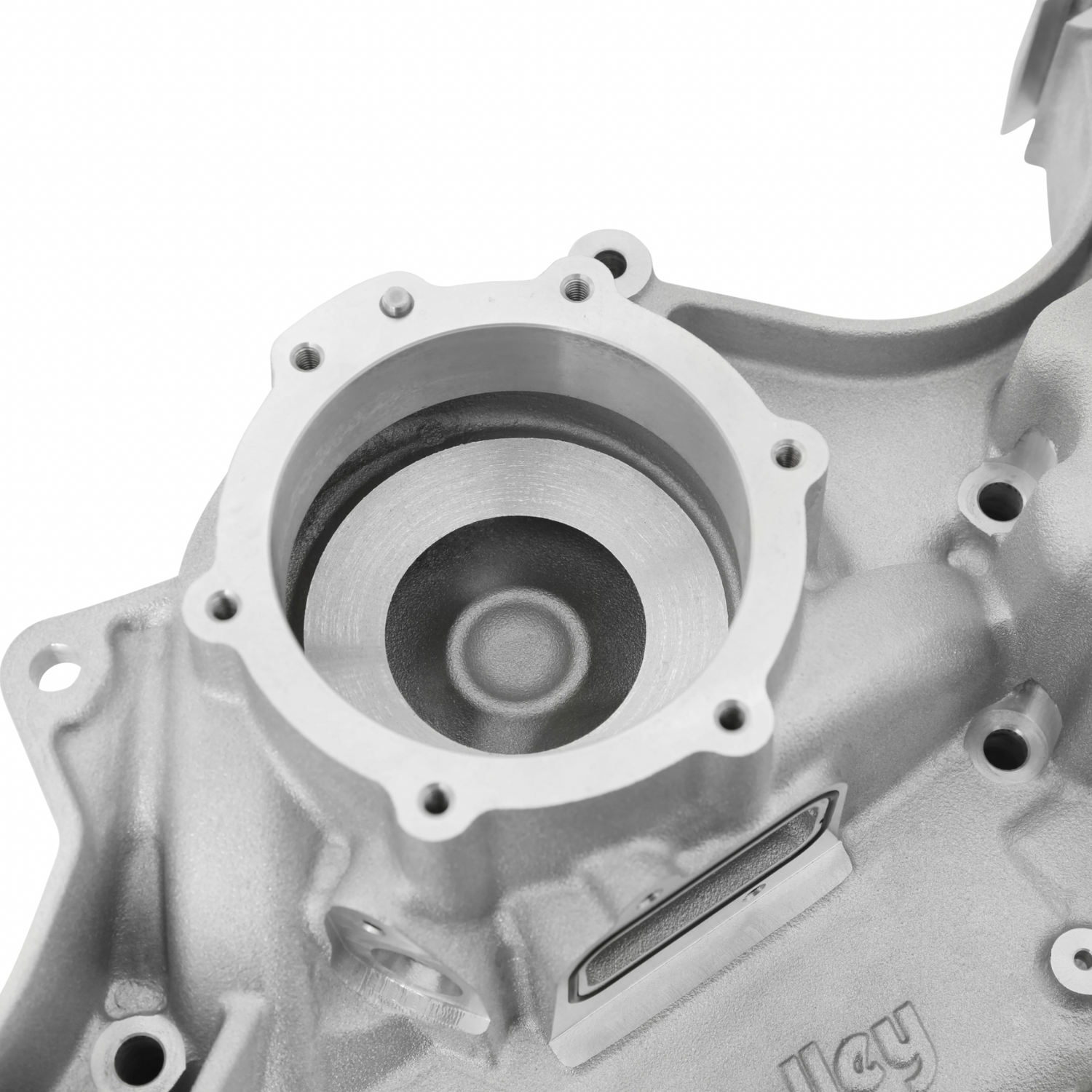

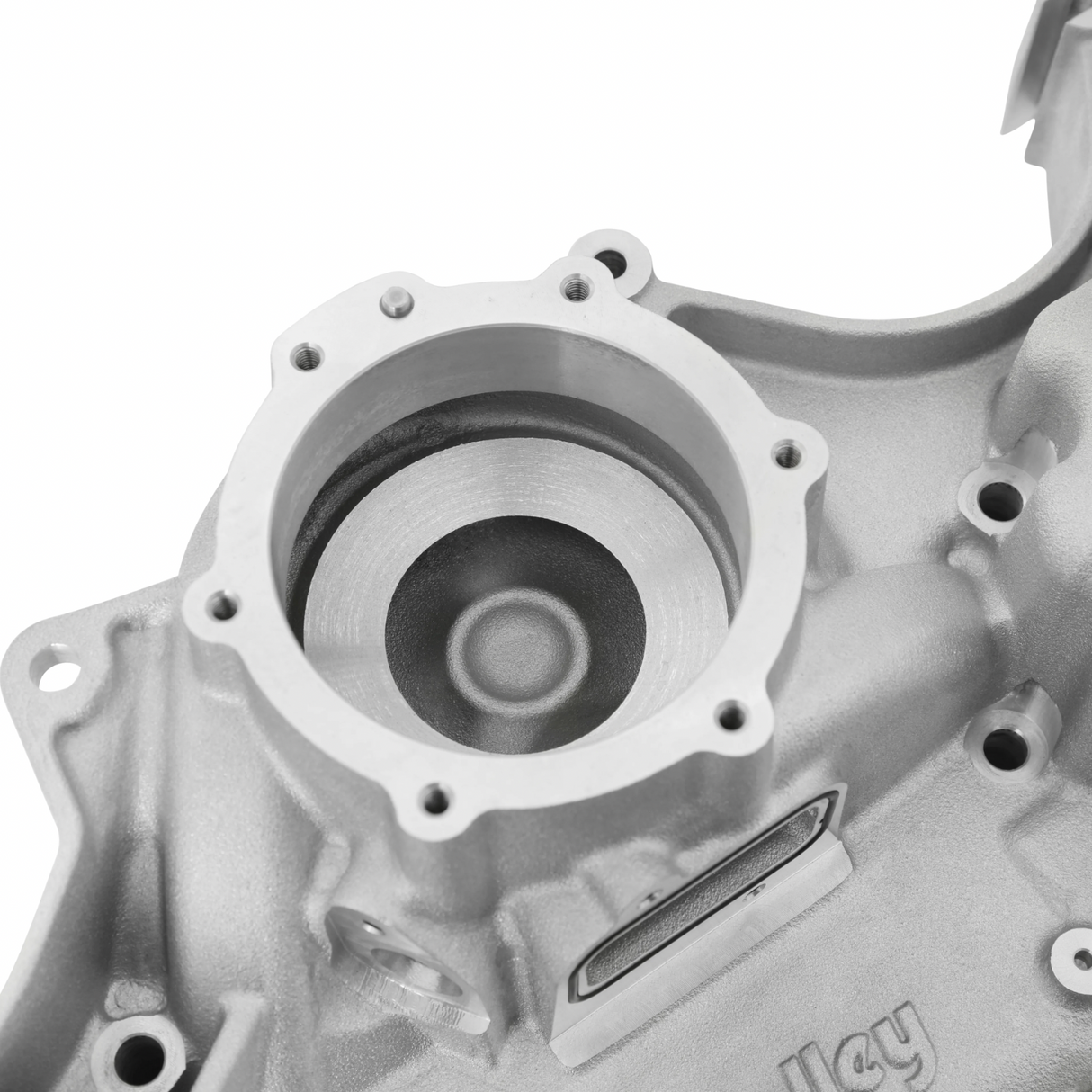

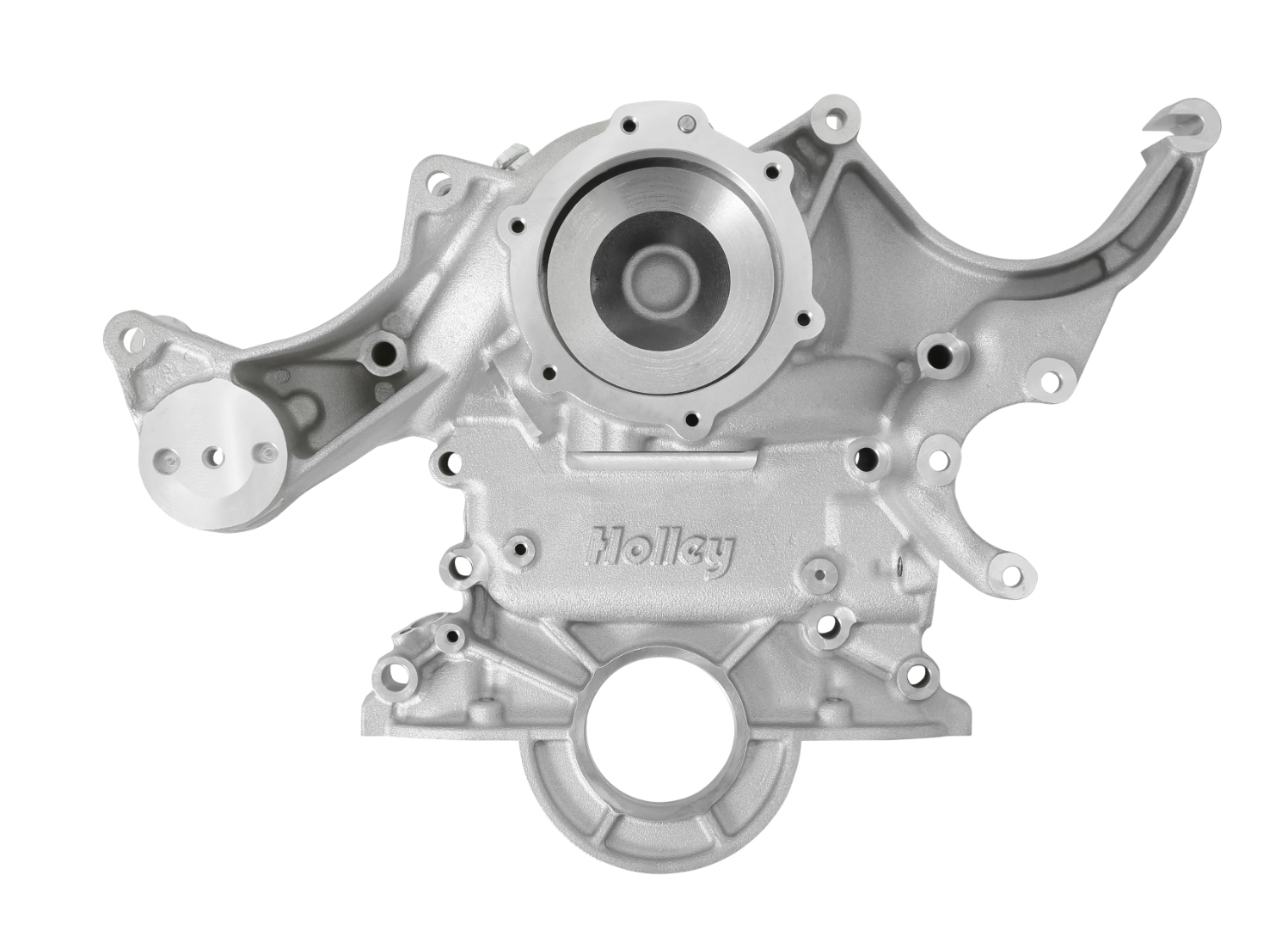

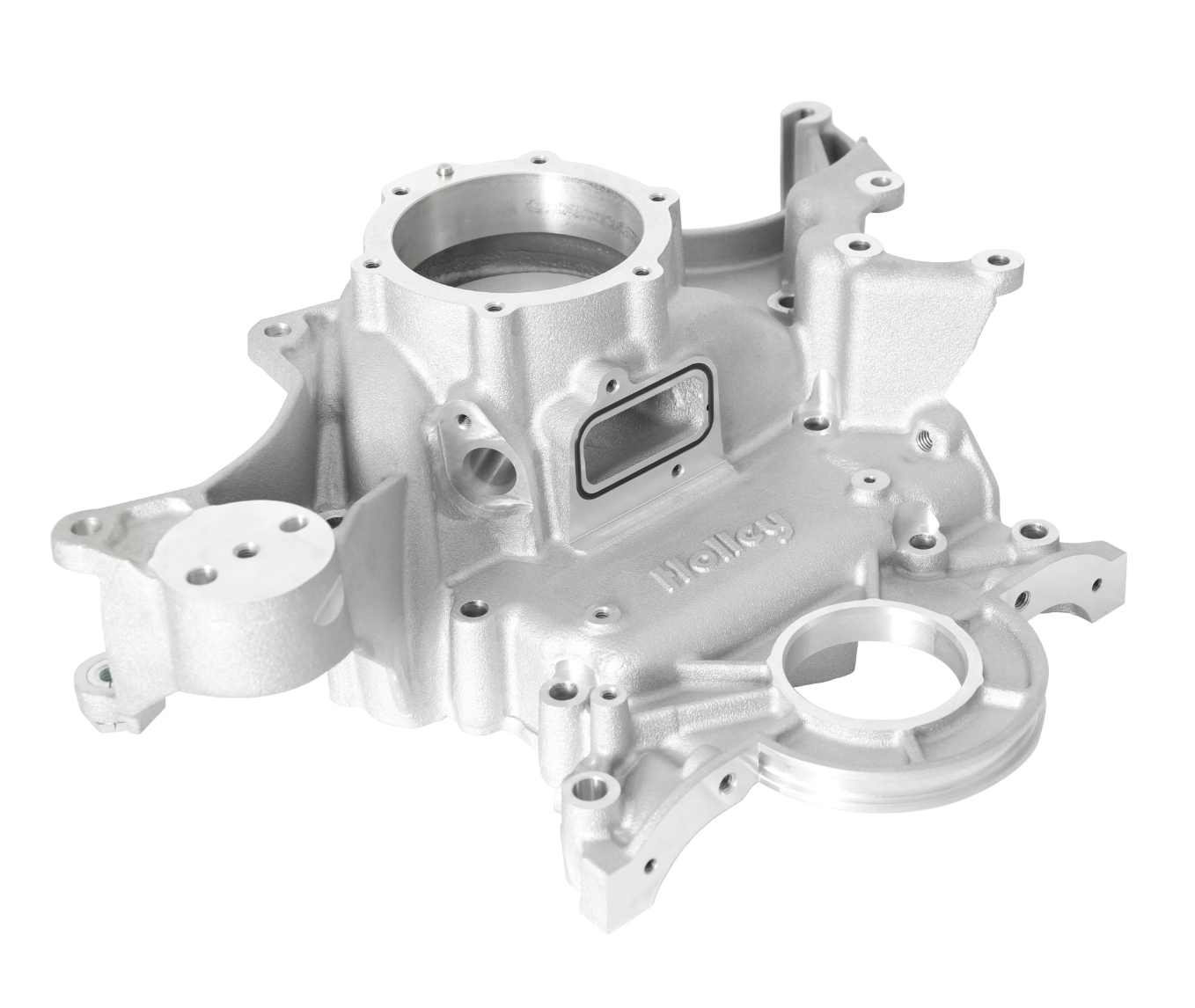

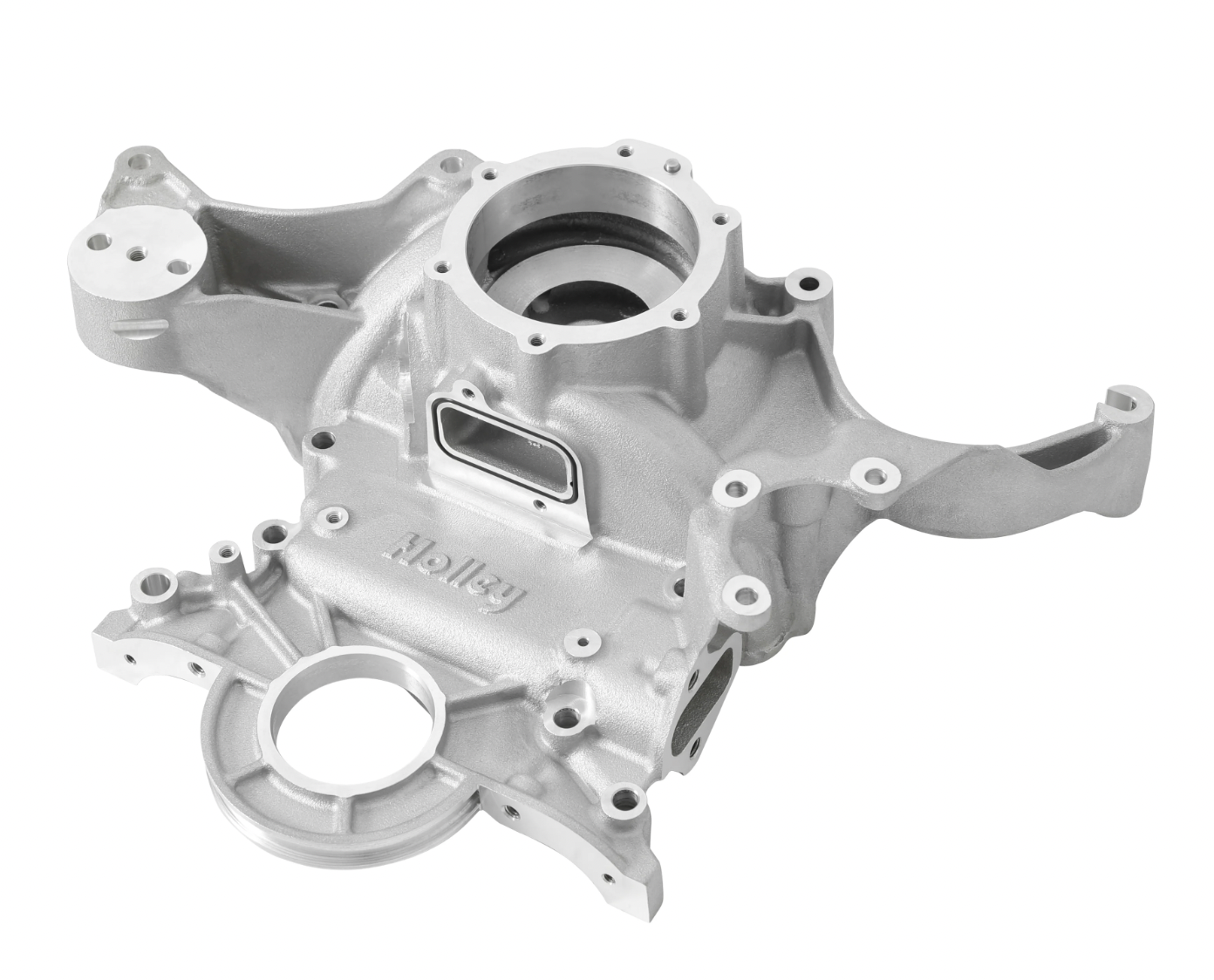

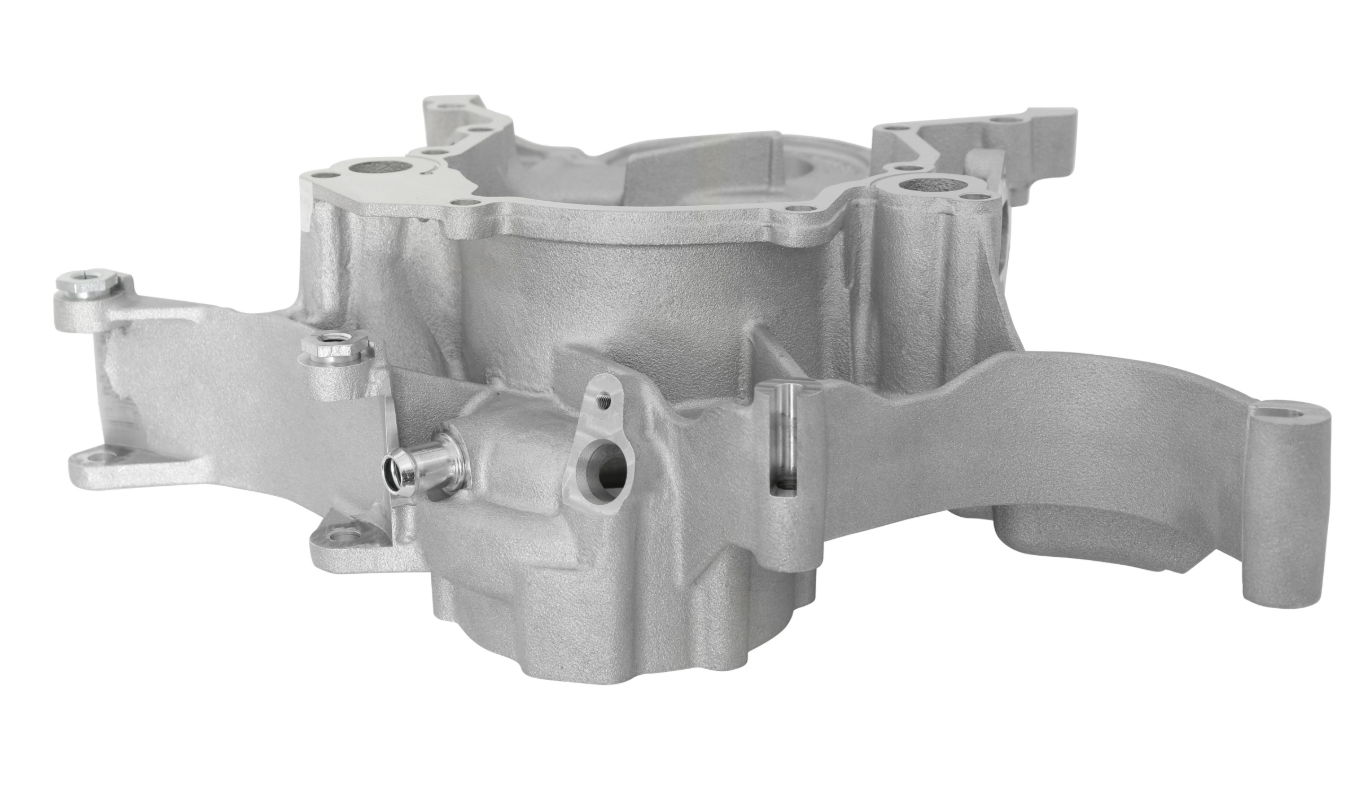

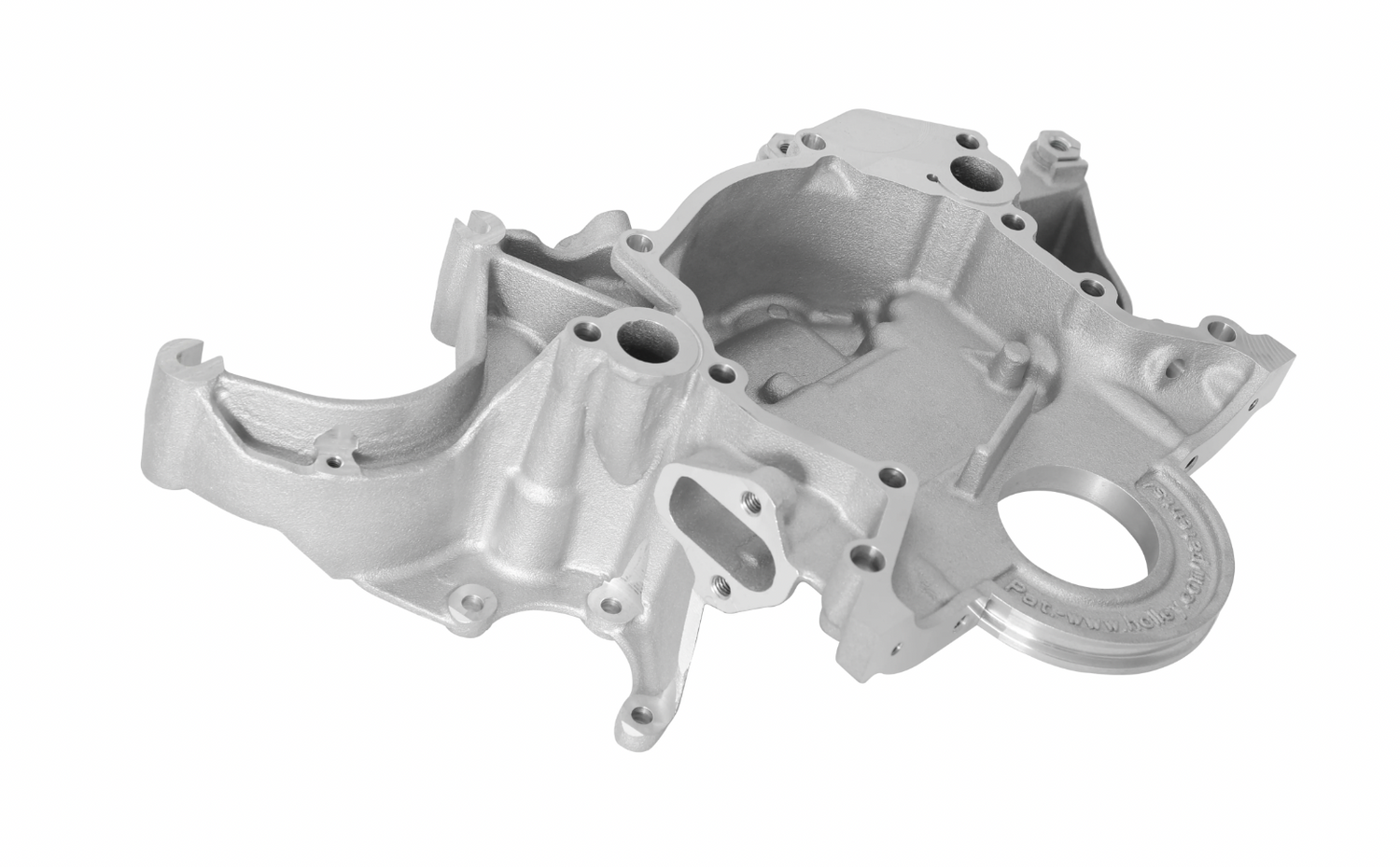

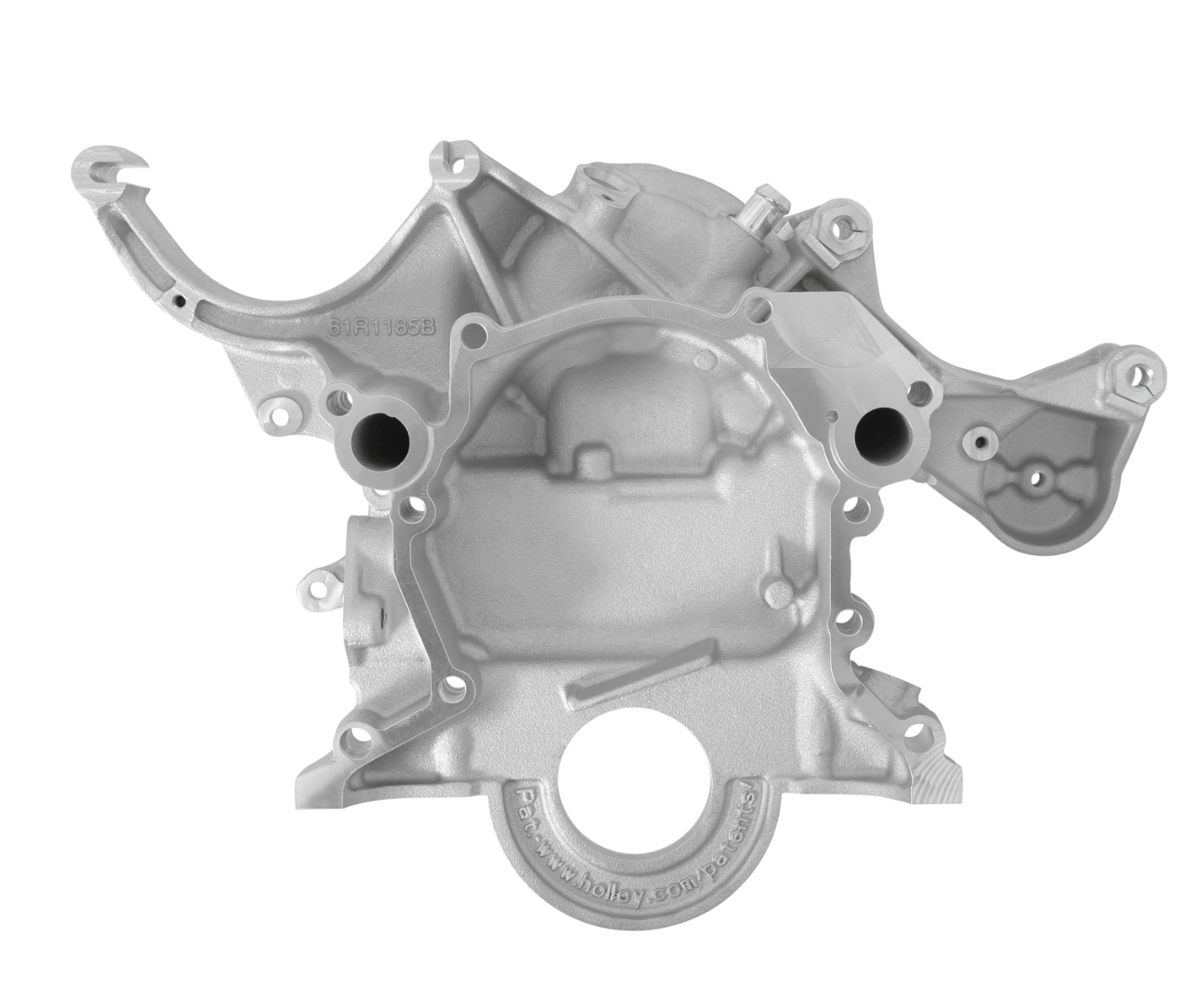

• Bracketless accessory mounting integrated with supplied front timing cover assembly

• Water pump inlet pipe mounts for either drivers-side or passenger-side lower radiator hose routing, timing cover also has mounting for driver or pass-side ignition timing pointers

• Two return heater hose ports (upper center & pass-side low) with hose adapter/port plug included

• Crankshaft belt pulley configured for 3 or 4-bolt crank dampers, spacer p/n’s 97-446, 97-447, or 97-448 are available for purchase to adjust for different OE crank damper pulley flange depths

• Driver & pass-side A/C hose connections are available for purchase to account for A/C routing on different vehicles, p/n’s 97-443 (driver-side) & 97-444 (pass-side)

• Power steering may be deleted with a drive belt change, see installation instructions for the commonly available drive belt required

• A mechanical fuel pump may be used with this kit. See installation instructions for required timing cover mod to be performed and the power steering pump will need relocation, use kit 97-436, a remote mounted P/S reservoir also required

• C7 LT1 style premium alternator, 150 amp

• C7 LT1 style water pump design

• Compact SD7 A/C compressor

• Type II power steering pump with baffled reservoir

• P/S adapter hardline to AN -6 adapter included

• OE pulley ratios for optimal accessory performance

• Available in natural and black finishes

• Billet alternator, tensioner, and compressor pulley covers
