COMPATIBLE: (6.2L - LT1)
2014 - 2017 CHEVY SS
2016 - 2024 CHEVROLET CAMARO SS
2020 - 2024 CHEVROLET CAMARO LT1
2014 - 2019 CHEVROLET CORVETTE STINGRAY
2017 - 2019 CHEVROLET CORVETTE GRAND SPORT

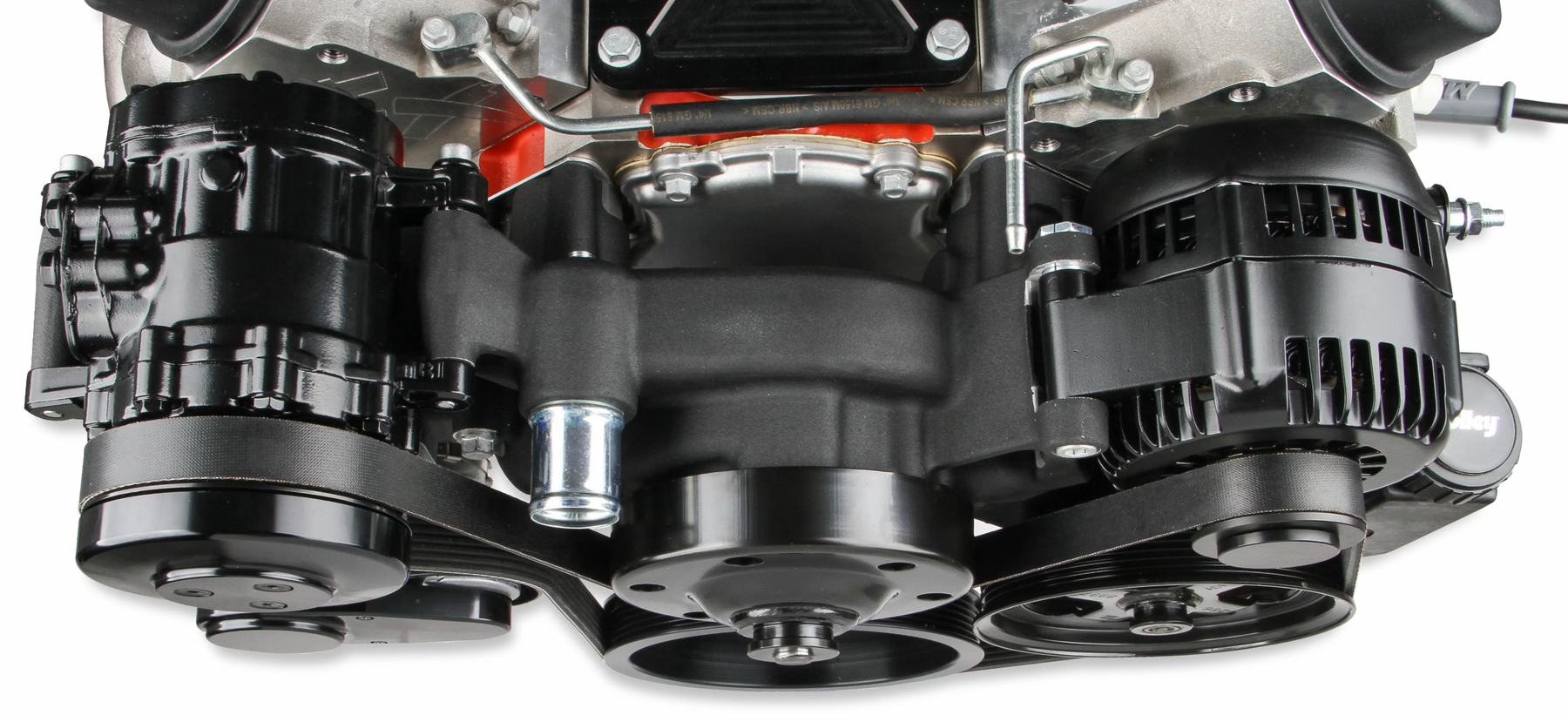

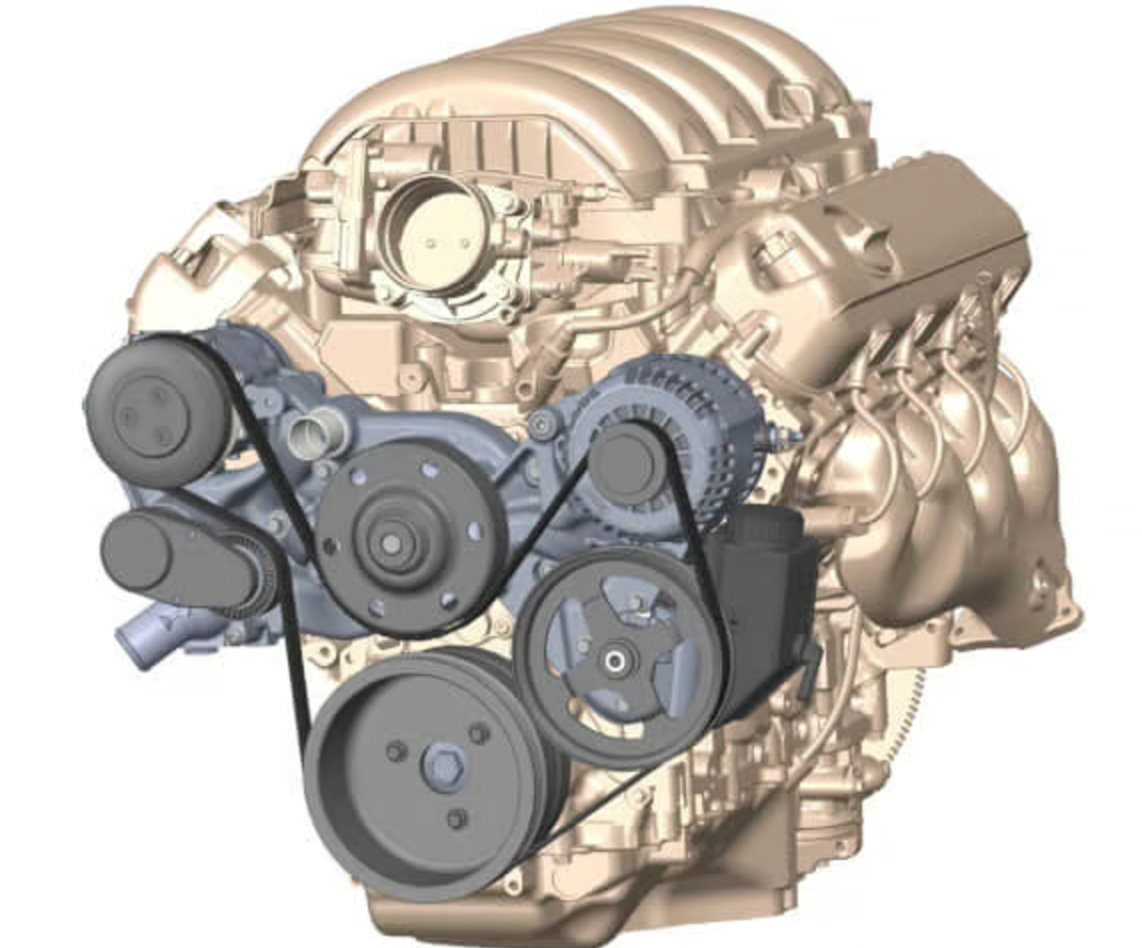

Holley's Mid-Mount complete accessory system has all accessories pulled in tighter than other accessory drives. At the heart of the system is a "bracketless" design, where the accessories bolt directly to the water pump for a clean, integrated form. The design offers superb engine visibility to show off your horsepower, not your accessories. Among the many swap-friendly features are bottom heater outlets for clearance in tight applications. The Holley-designed alternator is just as innovative. This premium alternator utilizes 6-phase technology as found on the C7 Corvette. The water pump also shares its design efficiencies with the C7 Corvette. The compact and reliable SD7 A/C compressor and Type II P/S pump with a baffled reservoir. When we say "complete," we mean complete. The Mid-Mount system comes with everything you need. All accessories are included; the water pump, A/C compressor, Alternator, P/S pump with reservoir, and the crank damper. All pulleys and the belt are supplied along with heater hose adapters, a power steering hardline, and the alternator pigtail harness. Ultra easy assembly with color graphic instructions to walk you through the installation. Patent - www.holley.com/patents/
-
Bracketless accessory mounting with ultra-easy assembly
-
Bottom outlet heater hose options for swap application clearance
-

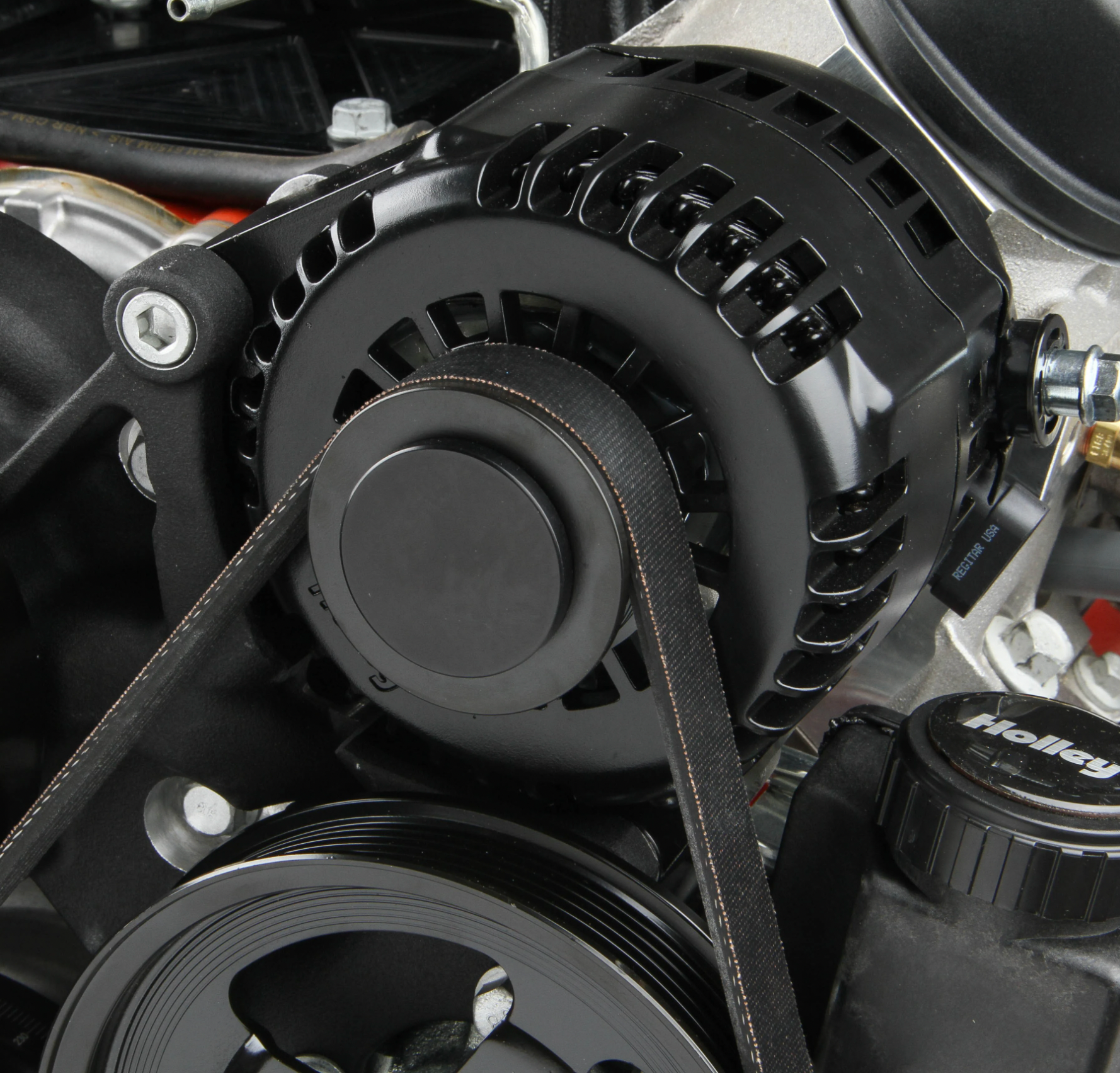

LT1 style premium alternator
-
LT1 style water pump design
-
Compact SD7 A/C compressor
-
Type II power steering pump with baffled reservoir
-
P/S, A/C adapter hardline to AN -6 adapter included
-
Shortened top outlet nipple for more radiator hose turns and routing room
-
OE pulley ratios for optimal accessory performance
-
No adapters/spacers are required
-
Works with all common aftermarket and factory throttle bodies and intakes
-
Works with Hooker turbo manifolds
-

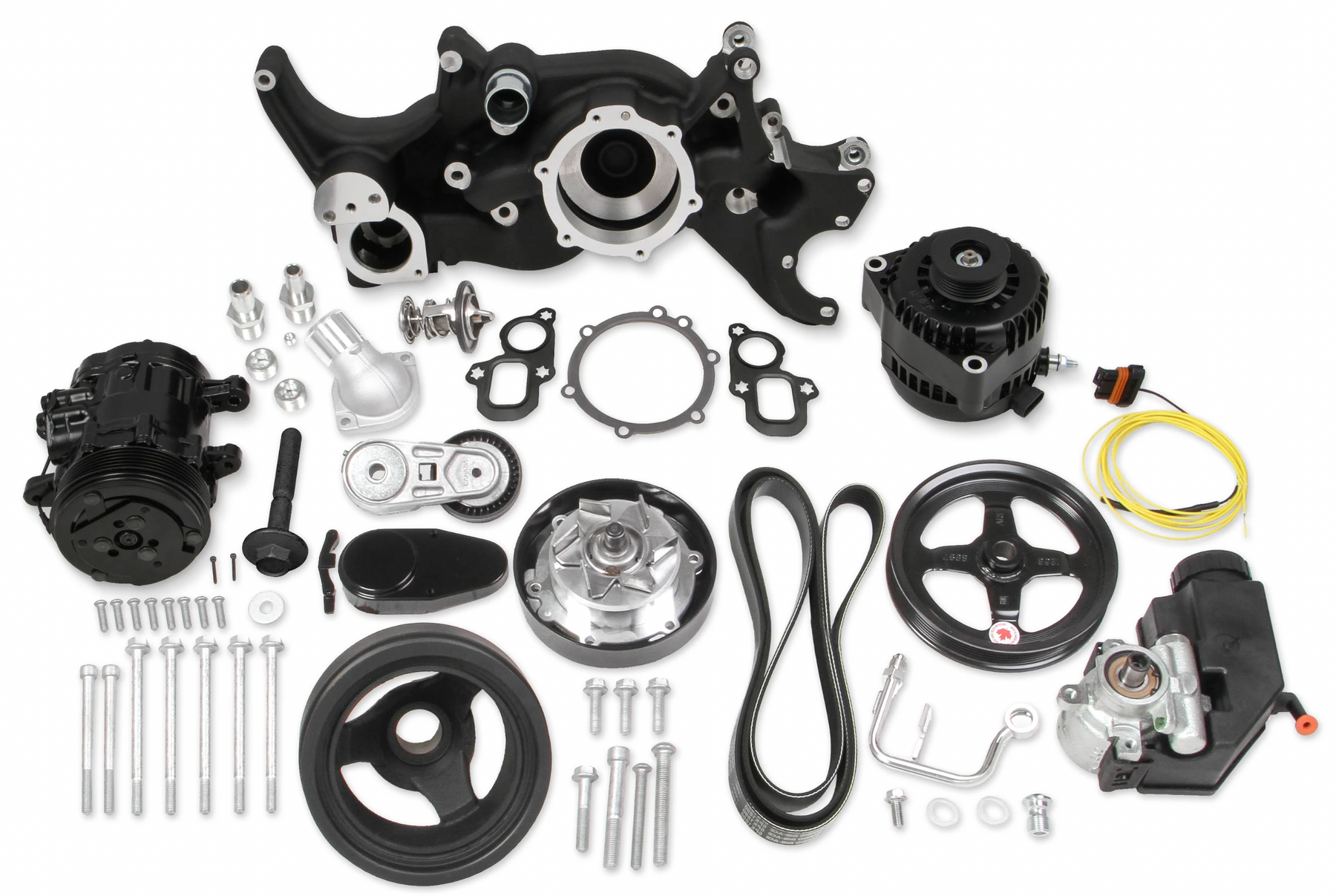

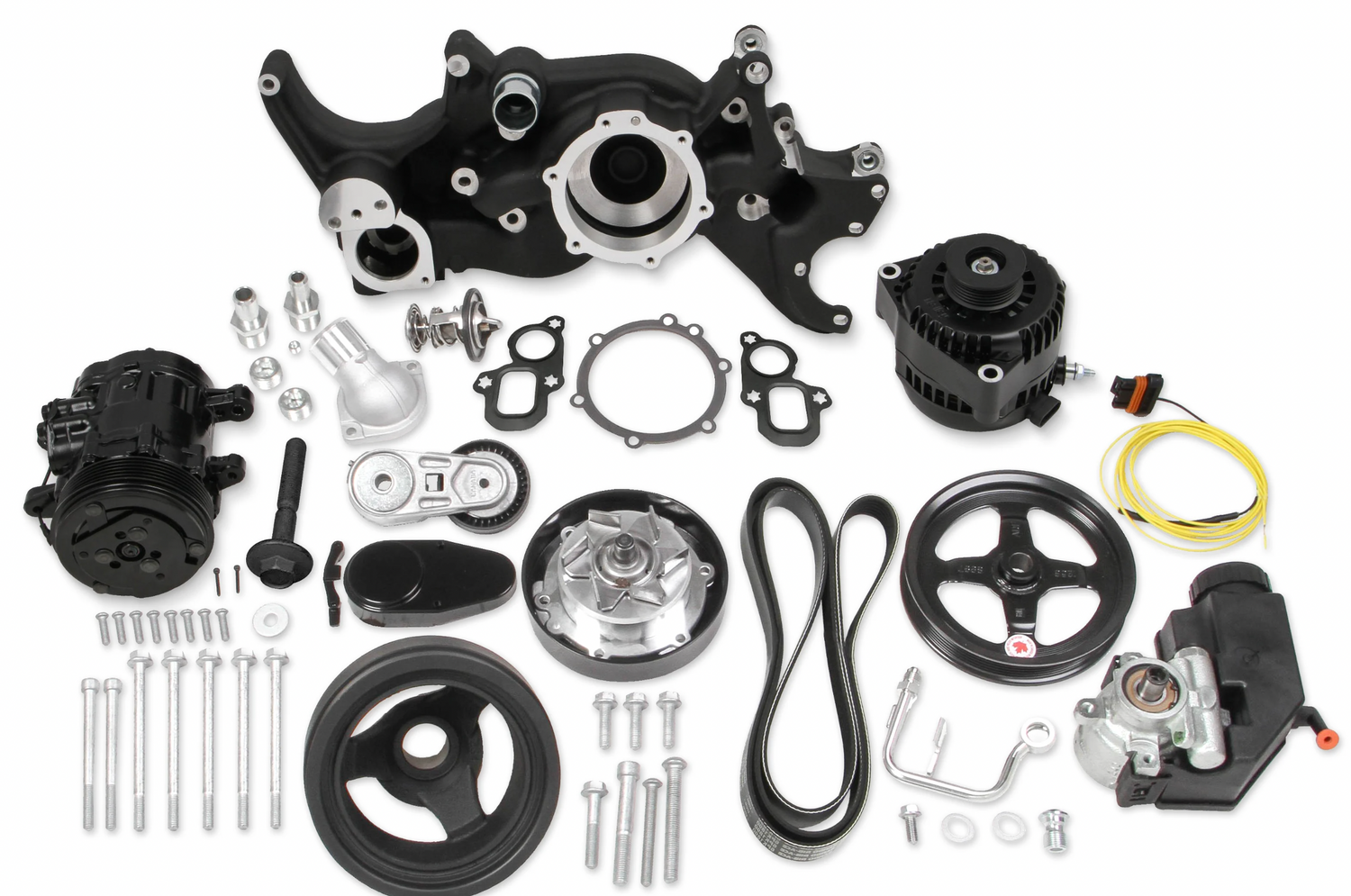

All accessories are included; the water pump, A/C compressor, Alternator, P/S pump with reservoir, and the crank damper
-
LT Mid-Mount drives fit ALL wet-sump LT V6 & V8 engines (except LT2 and any supercharged). Also, will fit dry sump LT engines converted to wet-sump (except LT2 and any supercharged)
A/C Compressor Included |
Yes |
|---|---|
A/C Compressor Type |
SD7 |
Accessory Drive Style |
Mid-Mount |
Alternator Amperage |
150 |
Alternator Included |
Yes |
Application |
GM Gen V LT |
Belt Color |
Black |
Belt Groove Quantity |
8 |
Belt Included |
Yes |
Belt Type |
Serpentine |
Brand |
Holley |
Choose Your Part |
Accessory Drive Kits |
Damper Included |
Yes |
Damper Style |
Cast Damper |
Emission Code |
5 |
Engine |
GM Gen V LT1 |
Finish |
Black |
Grade Type |
Performance |
Housing Material |
Aluminum |
Inlet Size |
35.4mm/1.4" |
Material |
Cast Aluminum |
Oil System Type |
Wet Sump |
Output |
150 Amps |
Power Steering Hardline Included |
Yes |
Power Steering Pulley Included |
Yes |
Power Steering Pump Included |
Yes |
Power Steering Reservoir Included |
Yes |
Product Type |
Accessory Drive Kits |
Pulley Color |
Black |
Pulley Style |
Serpentine |
Sale Category |
Engine |
Tensioner Included |
Yes |
Thermostat Included |
Yes |
Universal Or Specific Fit |
Specific |
Warranty |
Limited 90 Day |
Water Neck Included |
Yes |
Water Pump Included |
Yes |
Water Pump Pulley Included |
Yes |
UPC |
090127139882 |
Part Number |
20-205BK |
