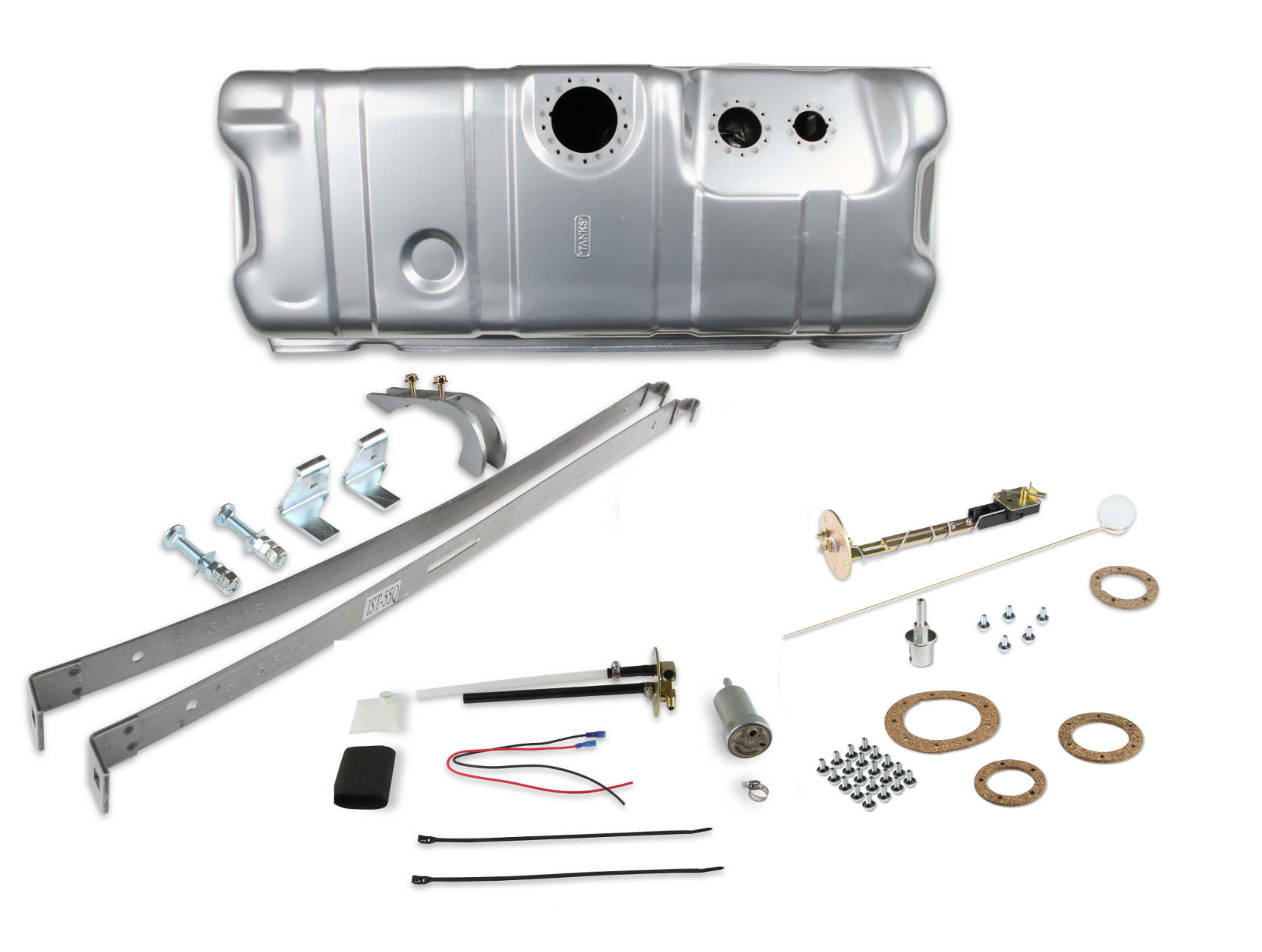

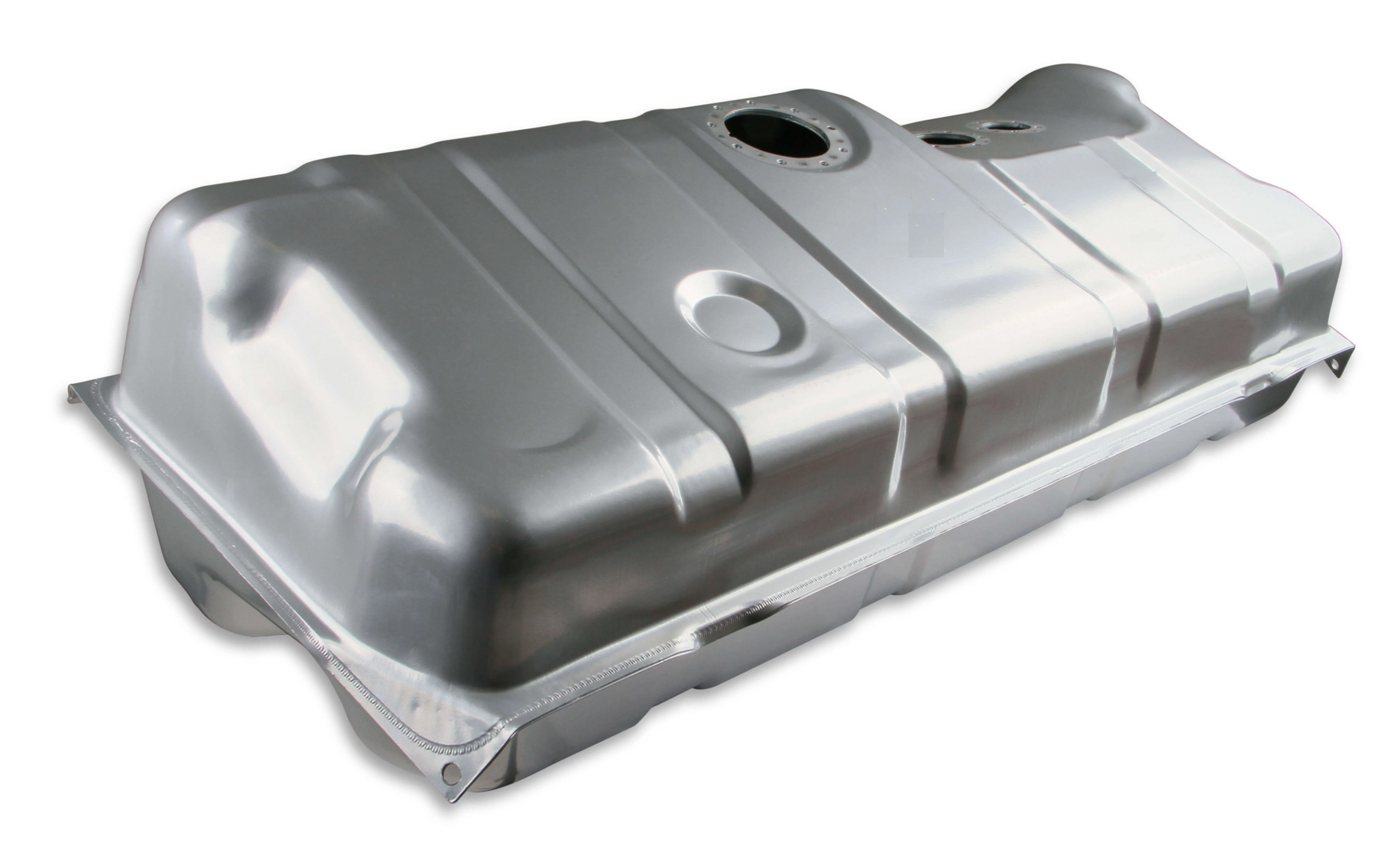

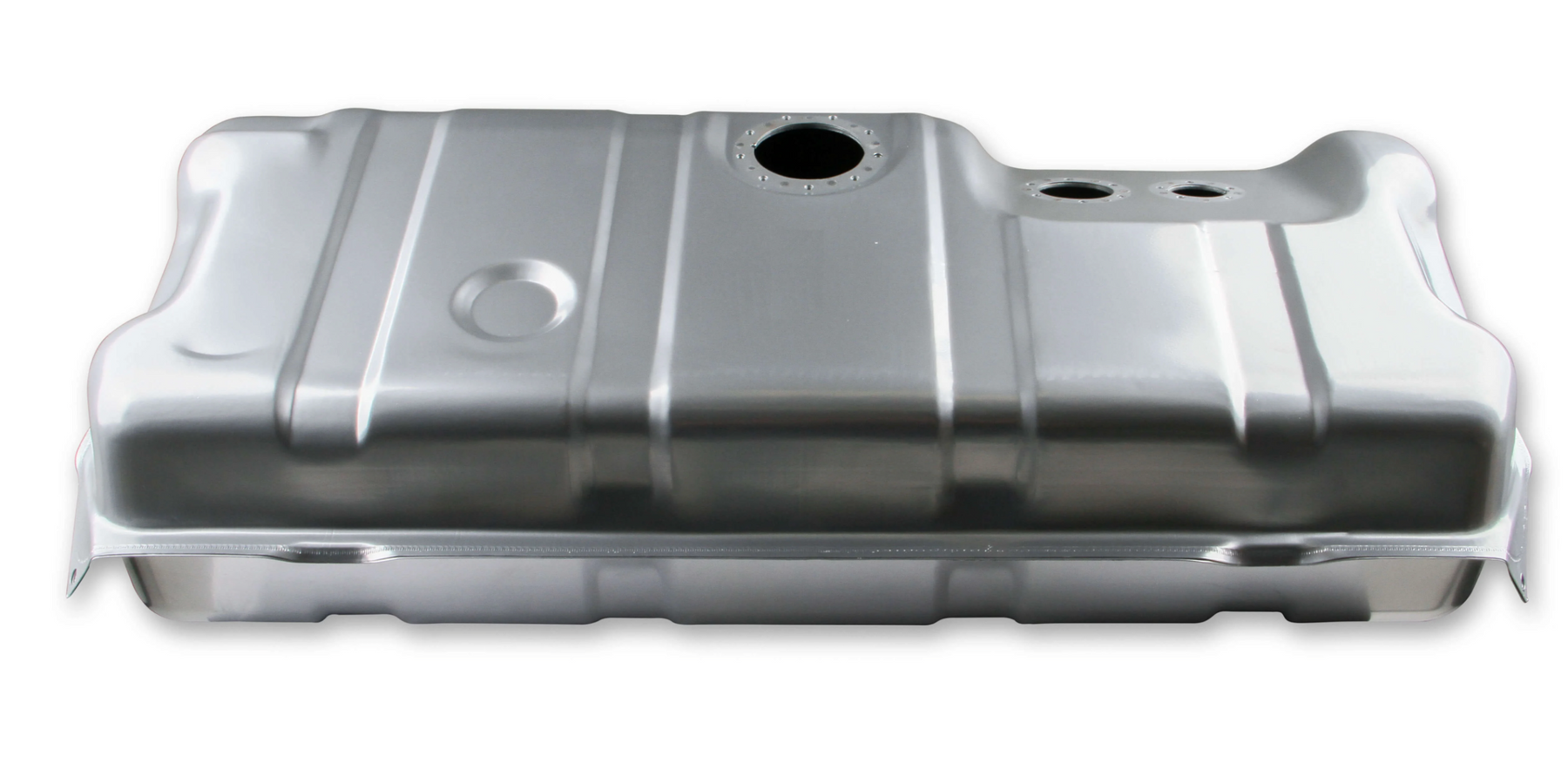

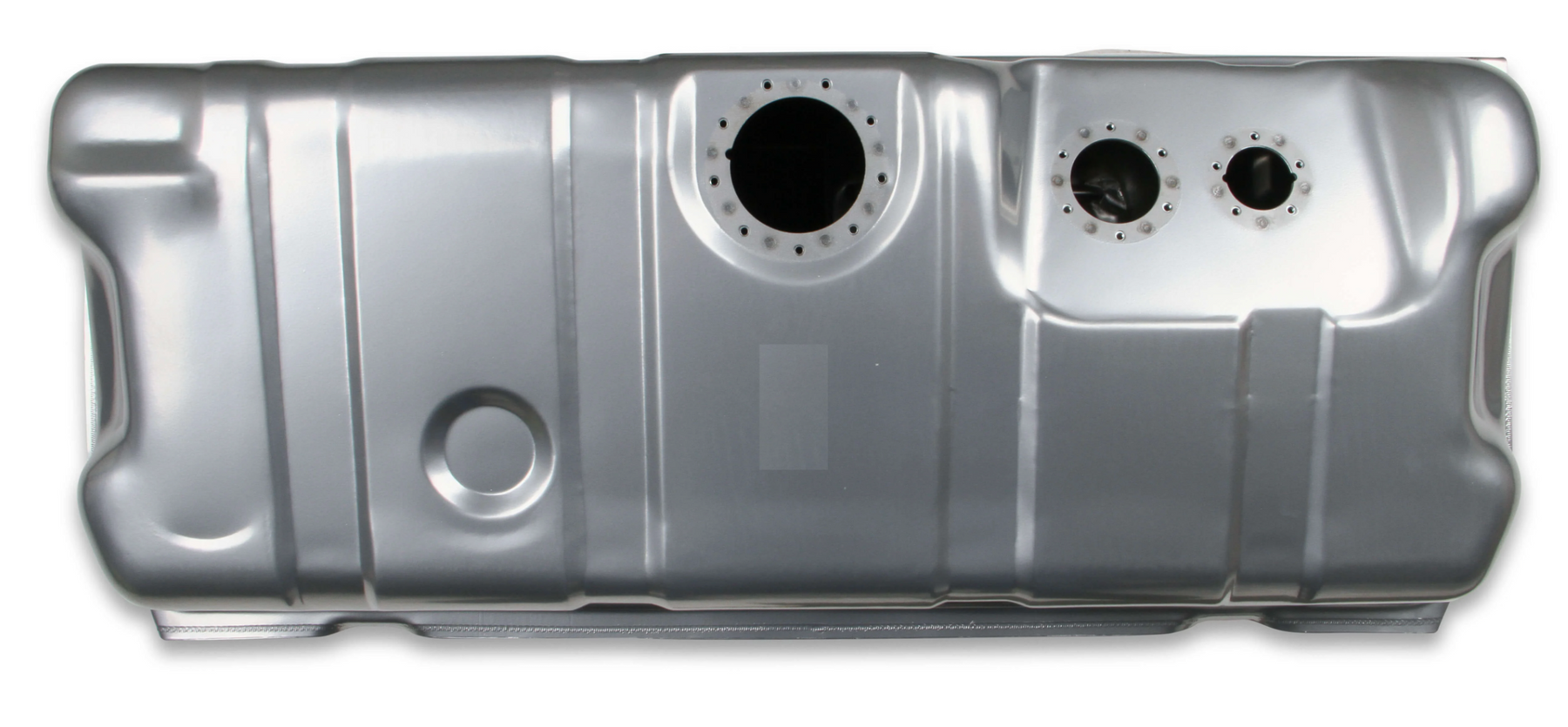

Holley and Sniper will help you to complete your EFI swap with our new EFI Conversion Fuel Tanks. Each tank is a direct fit for your application-no modifications necessary. The kit includes the tank, a 400 lph fuel pump, internal baffling, and fuel level sender. The tank is powder coated for corrosion resistance and great looks. These tank kits are a complete solution for your EFI project! ***Steel filler neck is not included. You must use your existing stock filler neck or purchase one through restoration suppliers. Supports up to 750 EFI (@ 60 PSI at 13.5 Volts / 10.4 AMP Draw) Size is: 38" x 15-3/4" x 11-3/4"
-

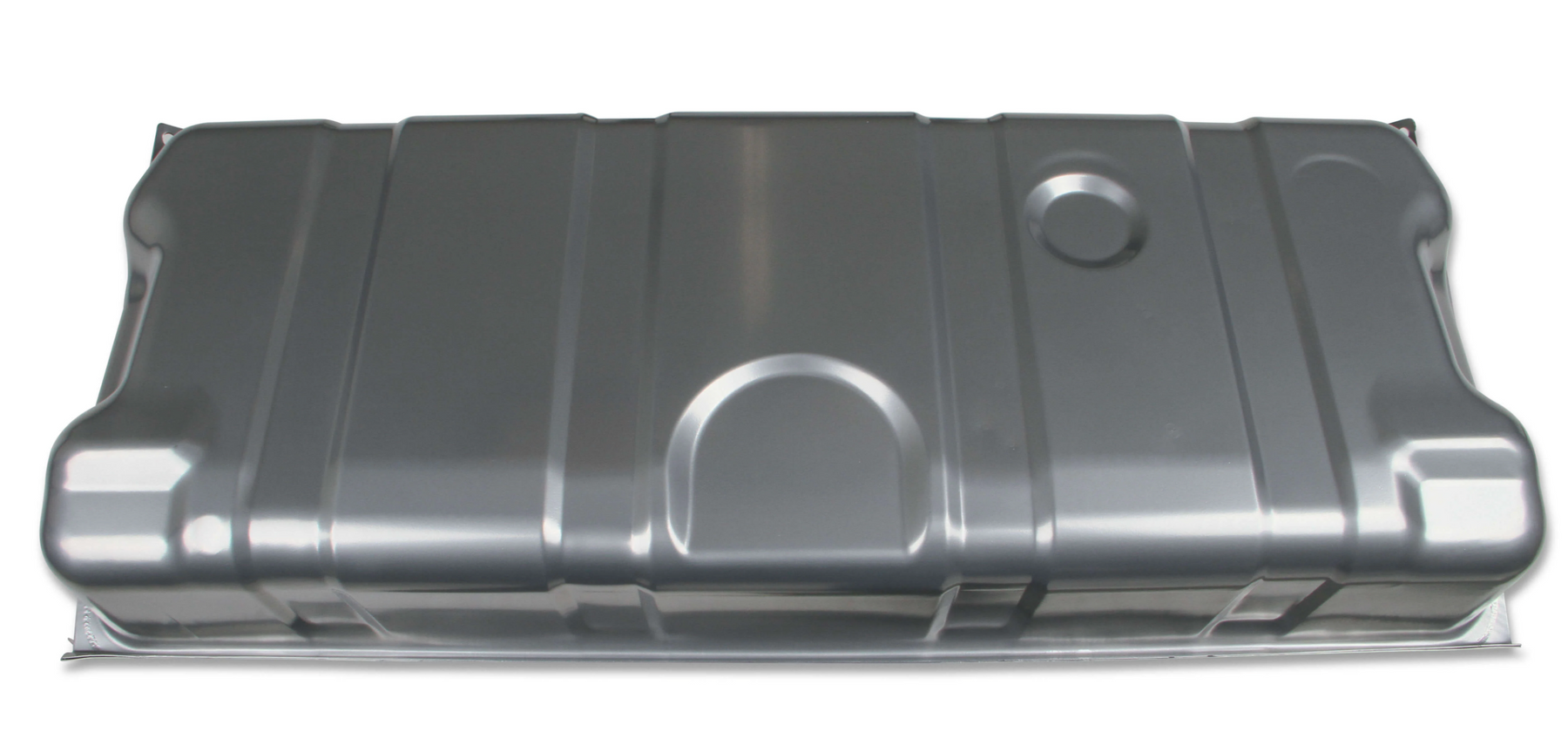

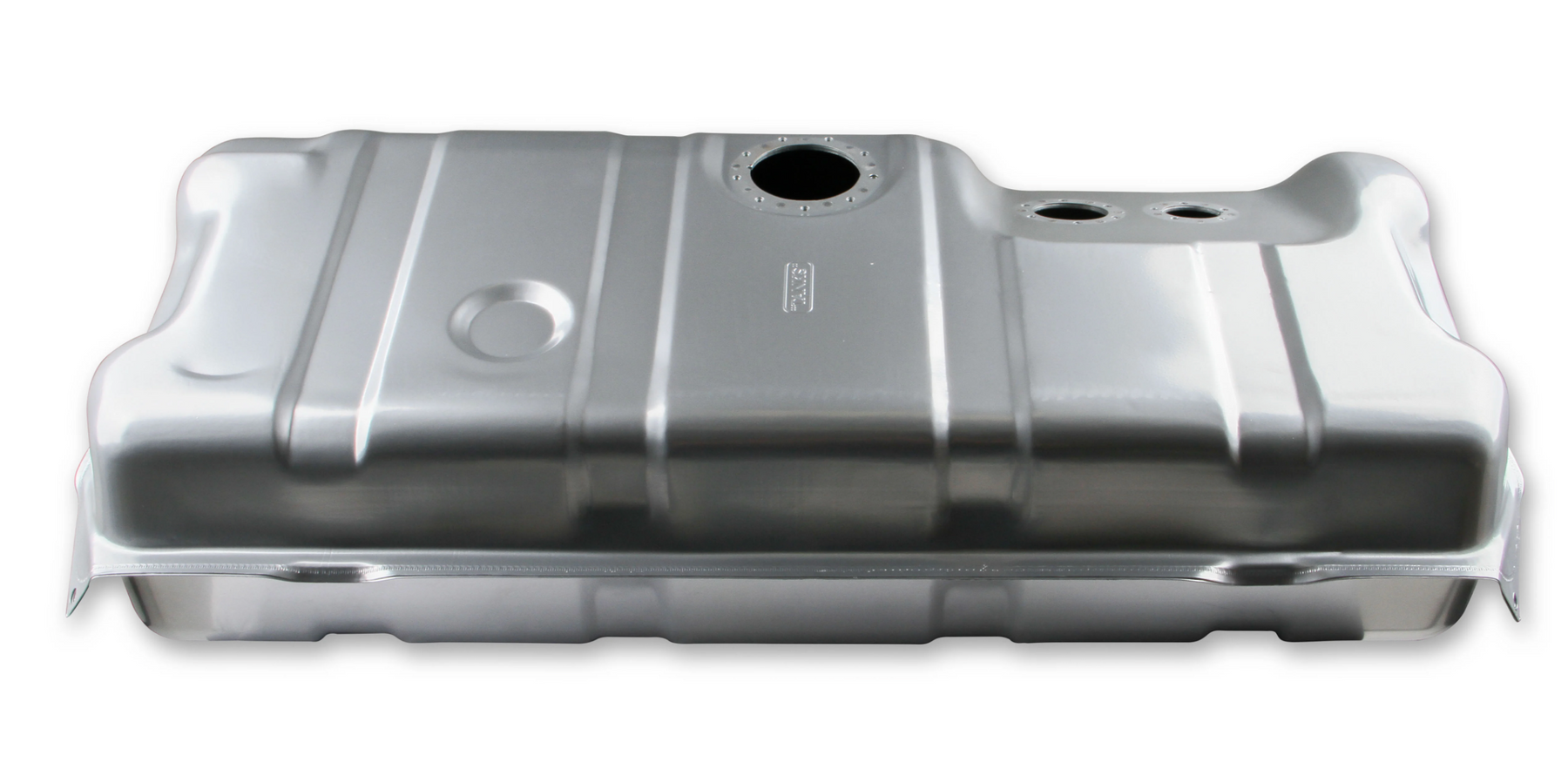

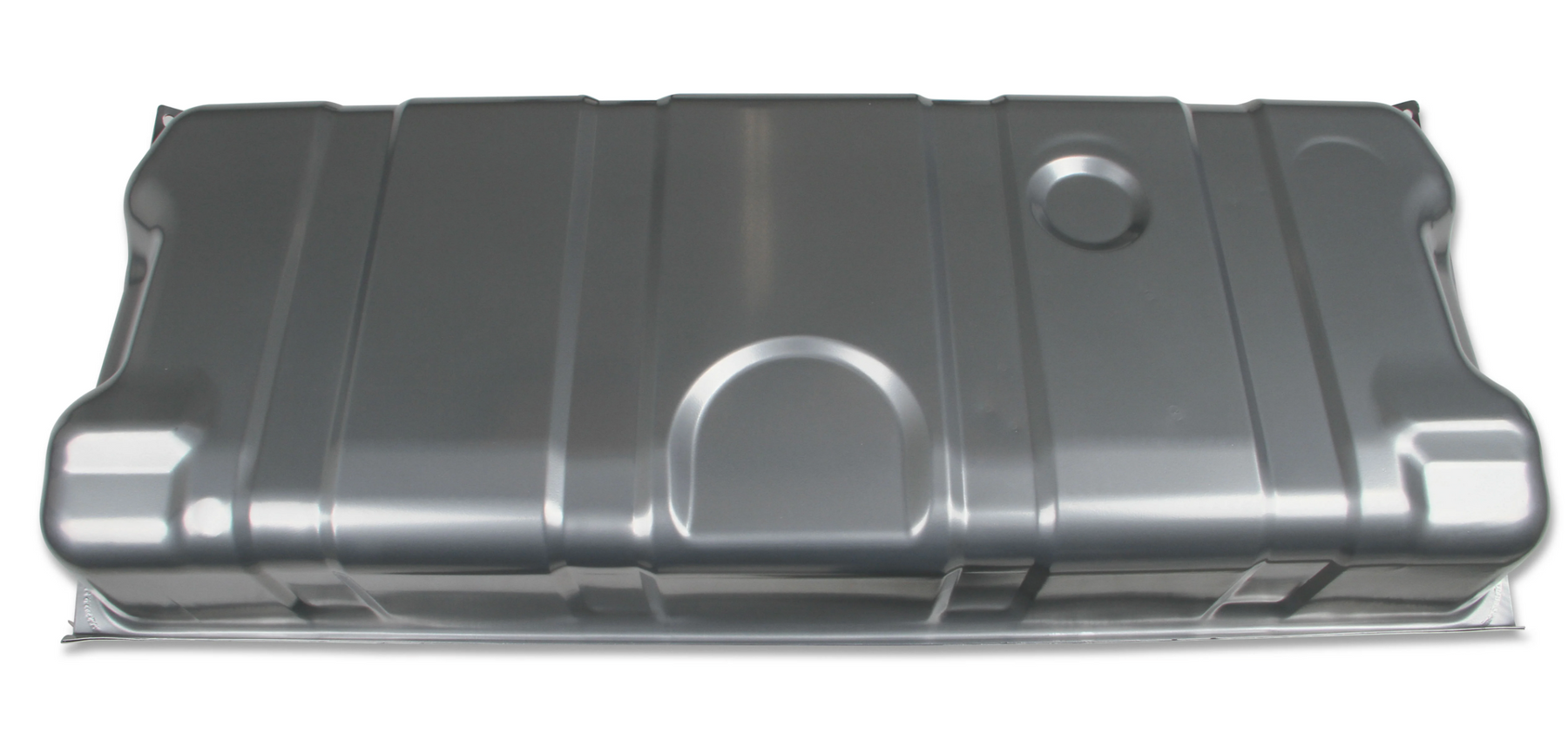

Tanks are coated galvanized steel then powder coated silver for total corrosion protection
-

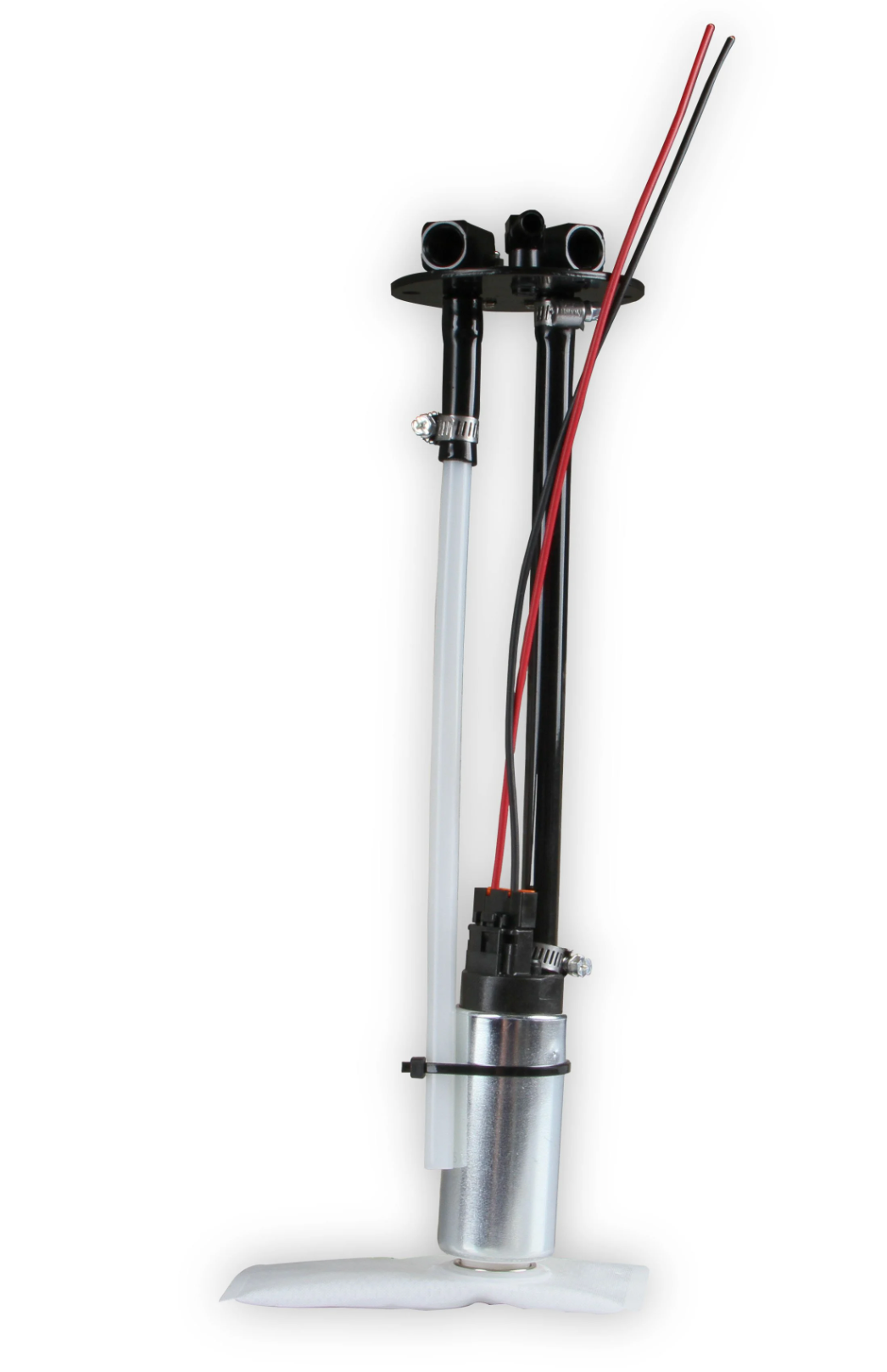

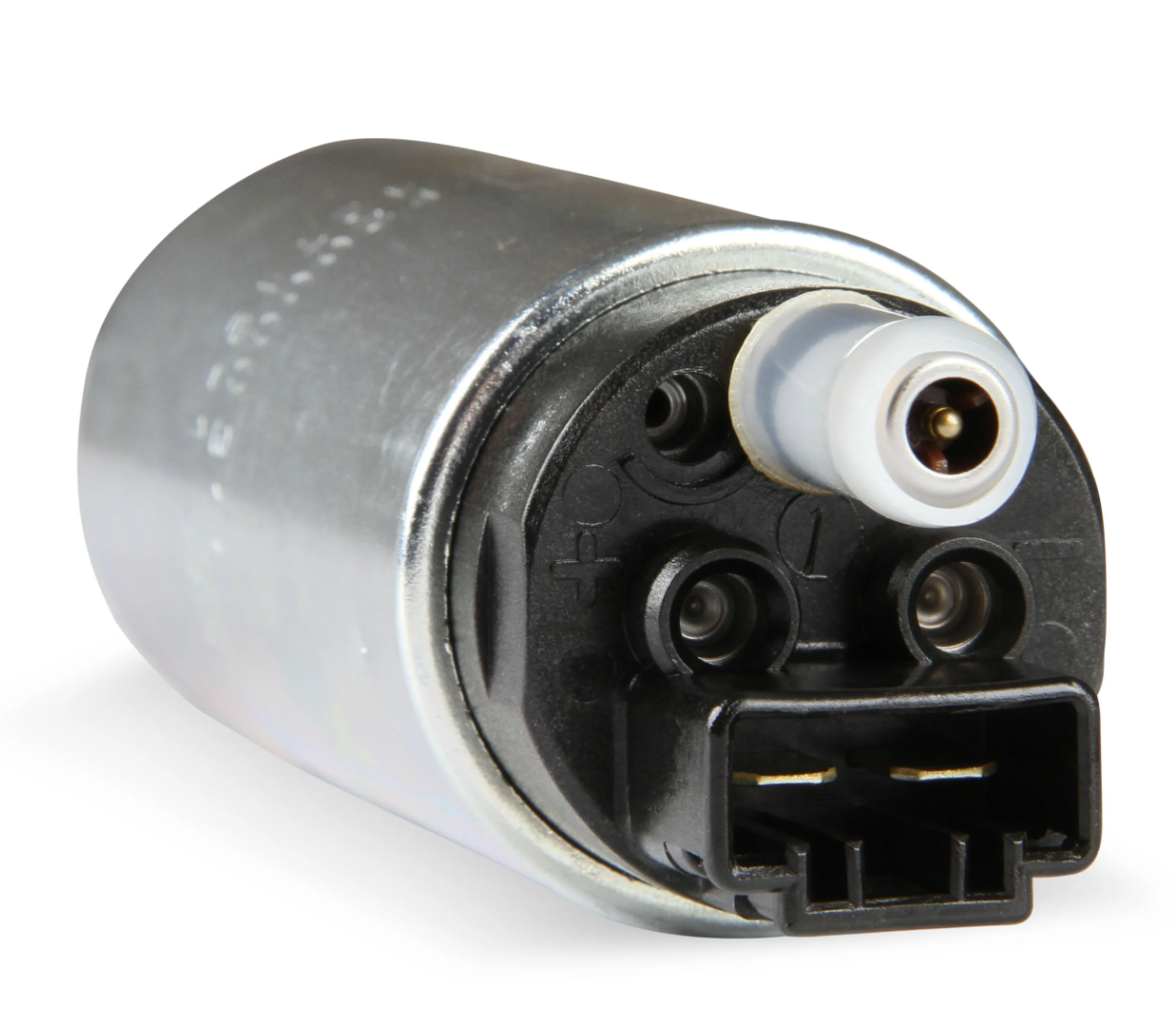

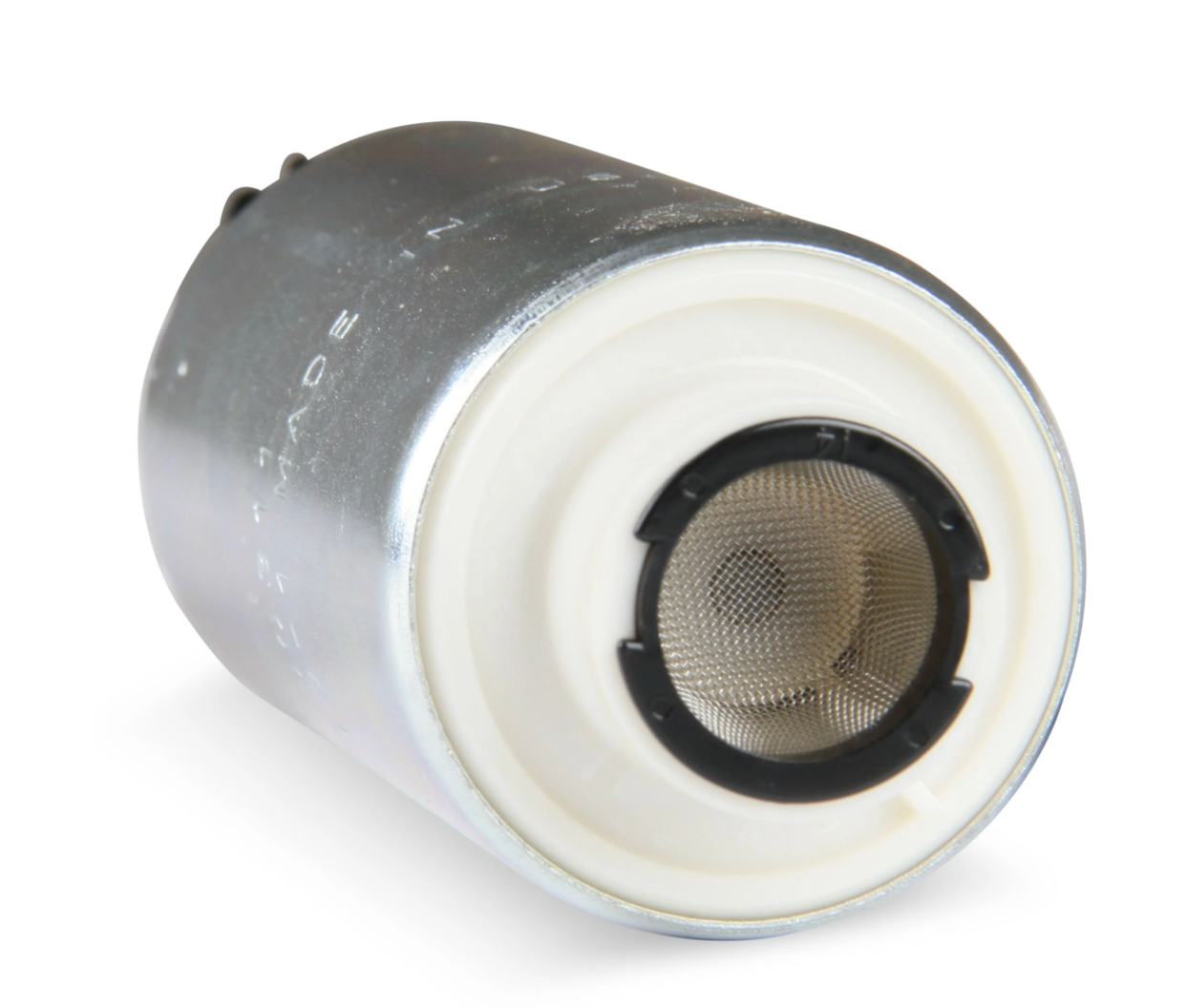

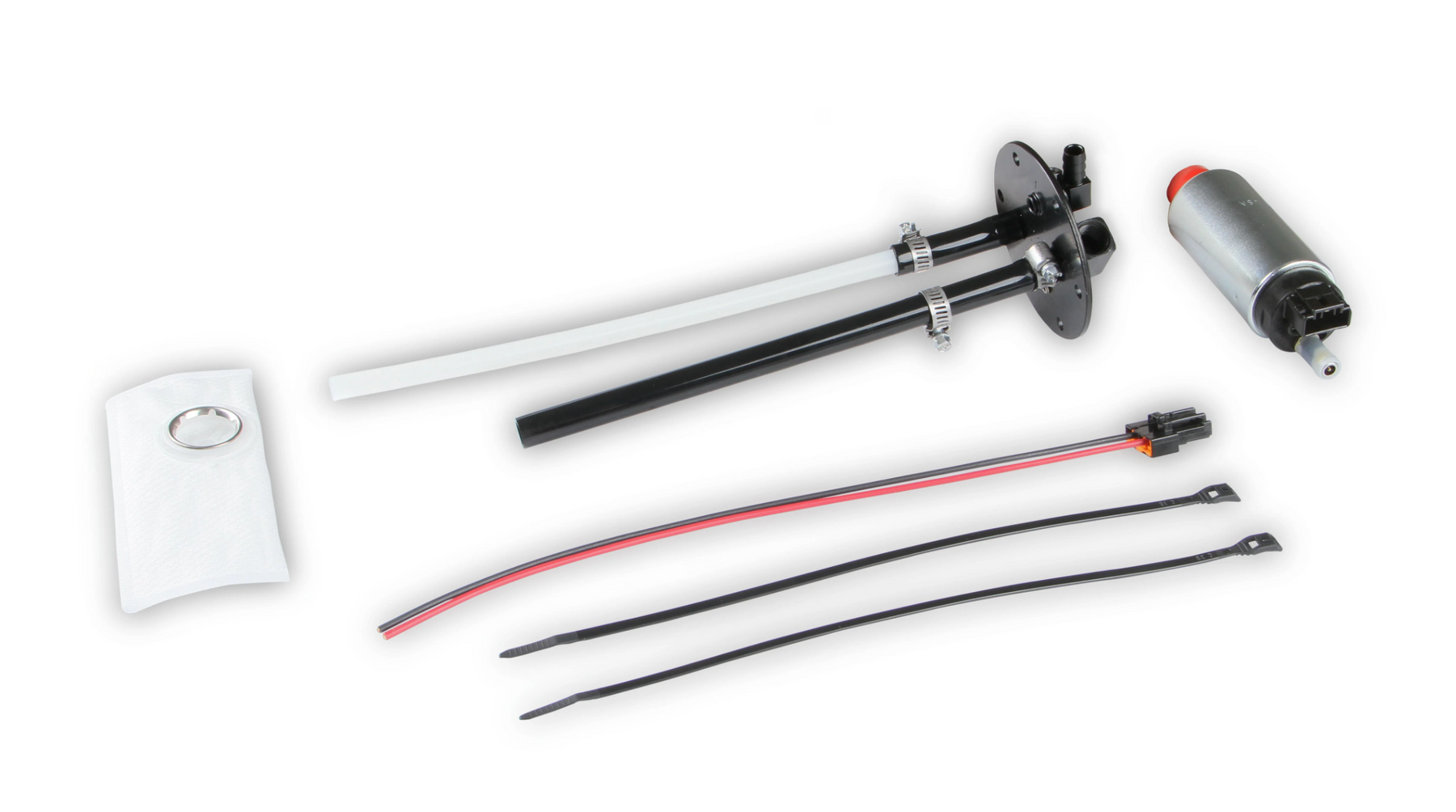

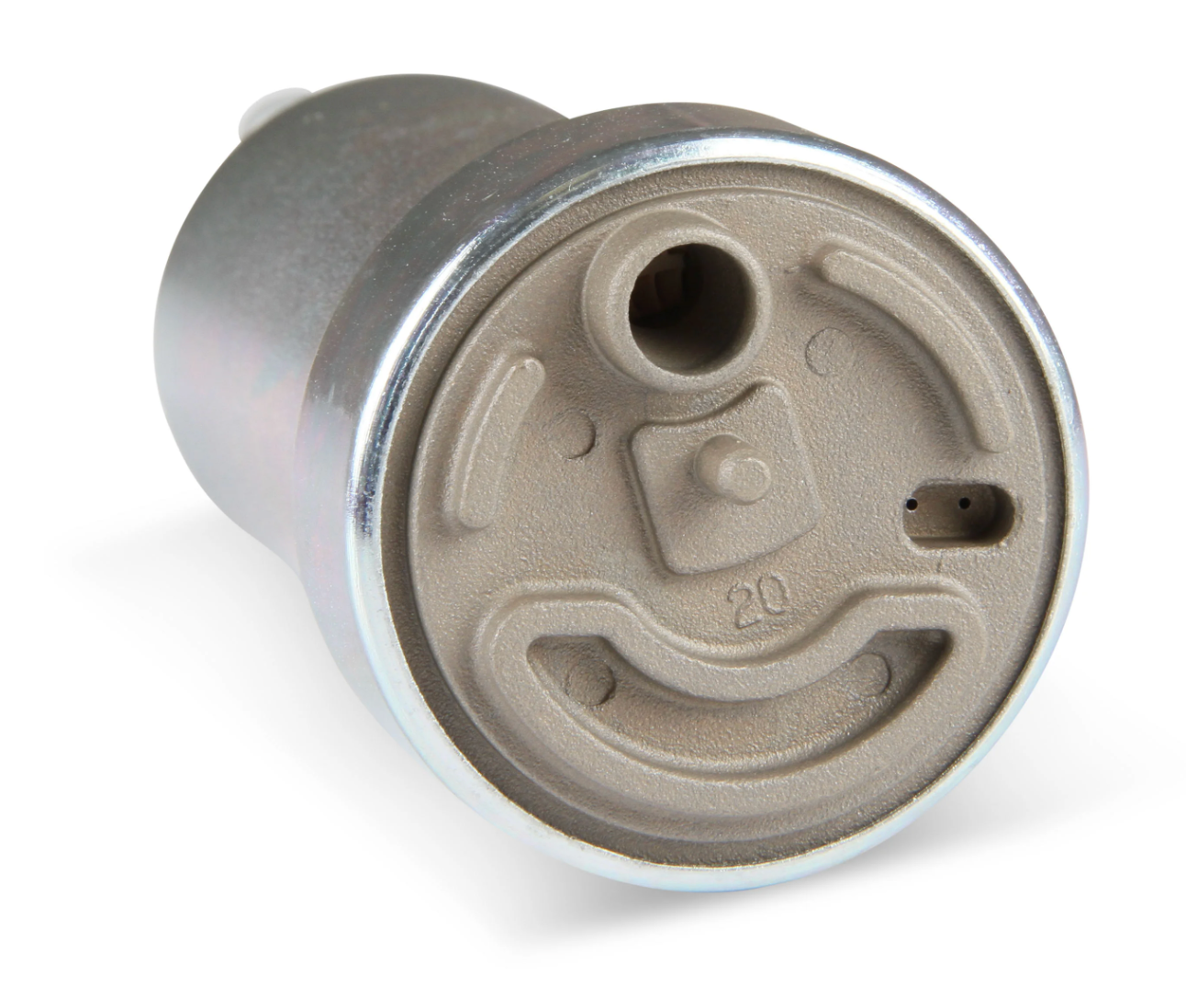

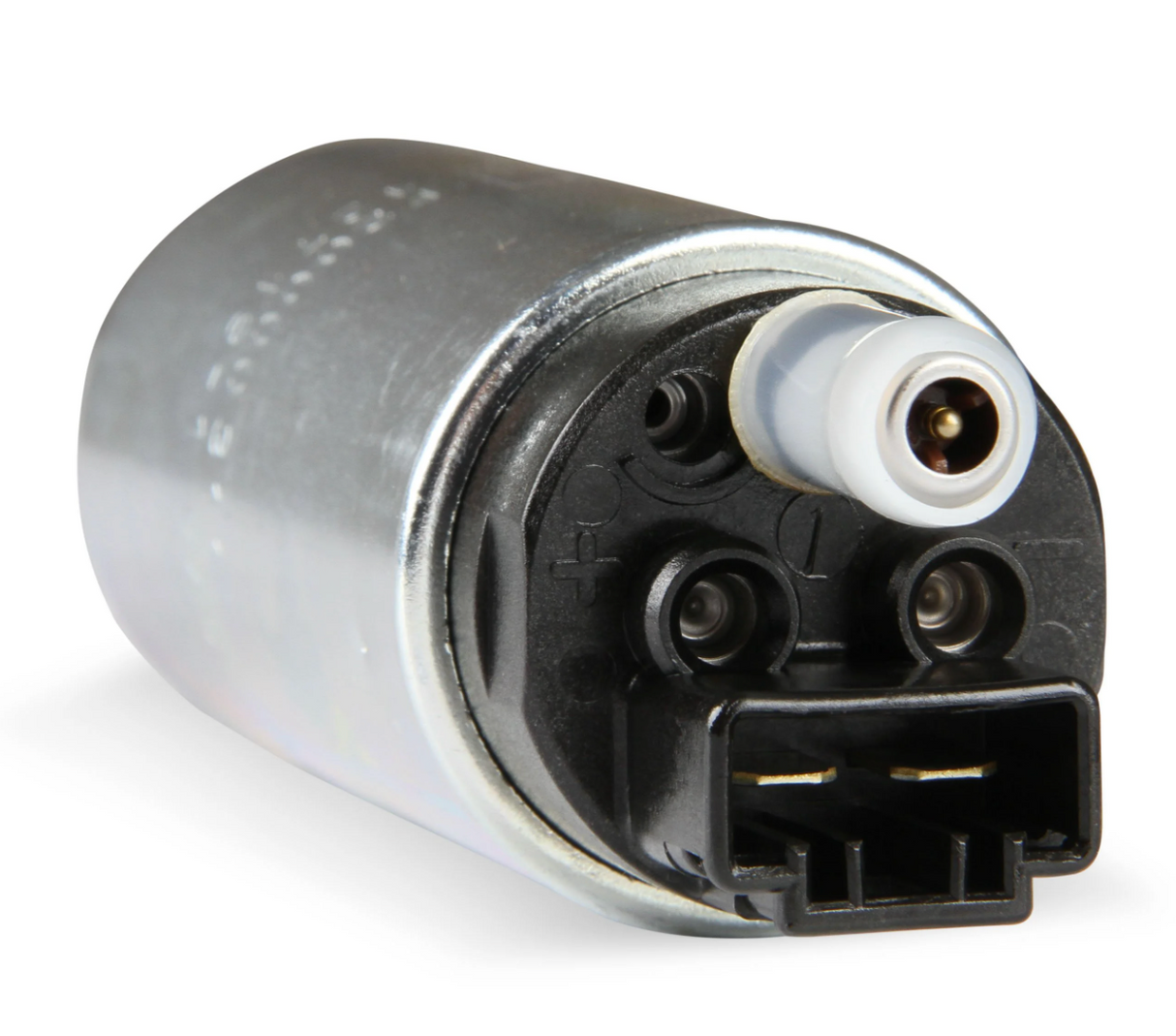

400 lph fuel pump with hanger assembly gives you the fuel you need with in-tank quietness
-

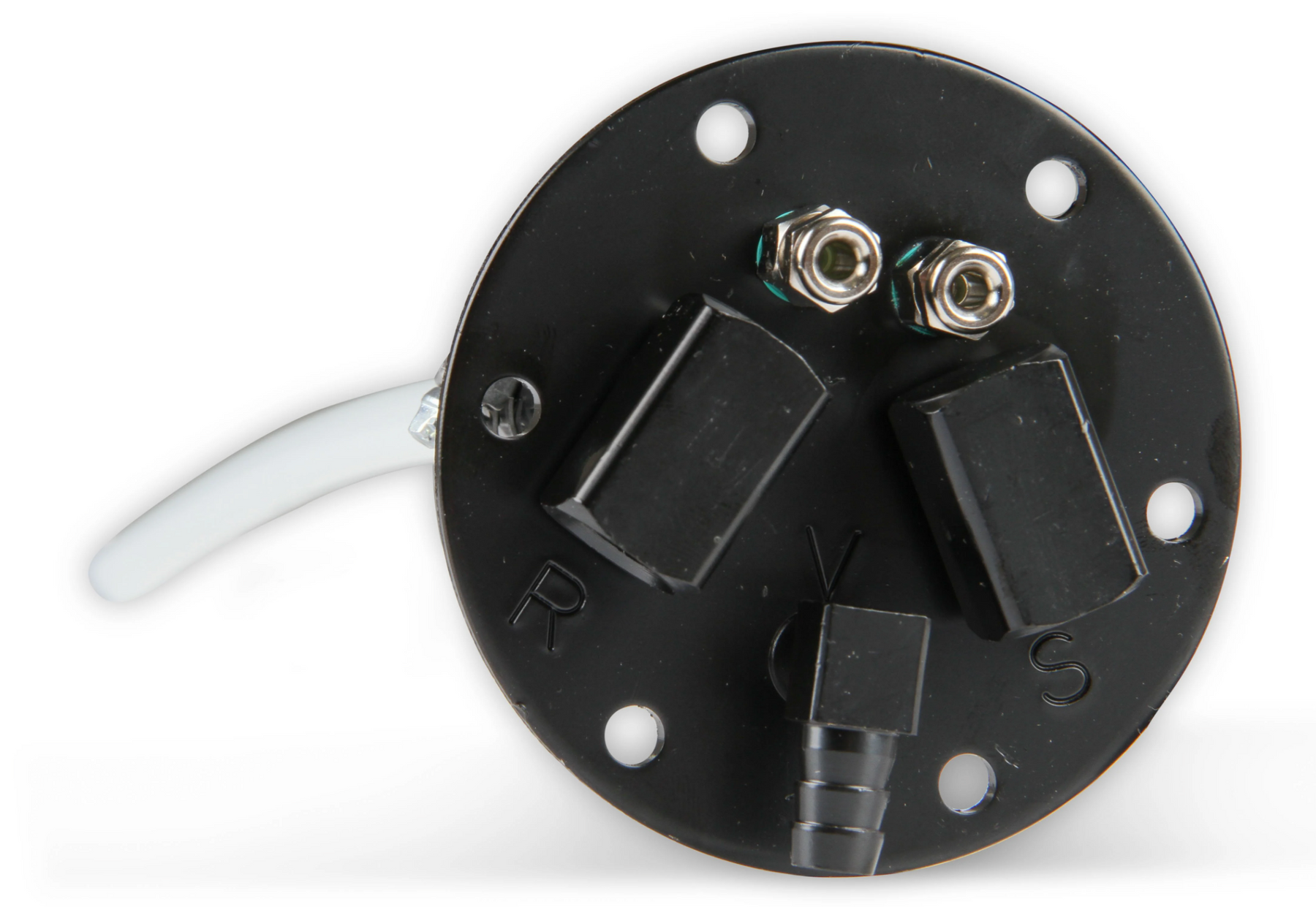

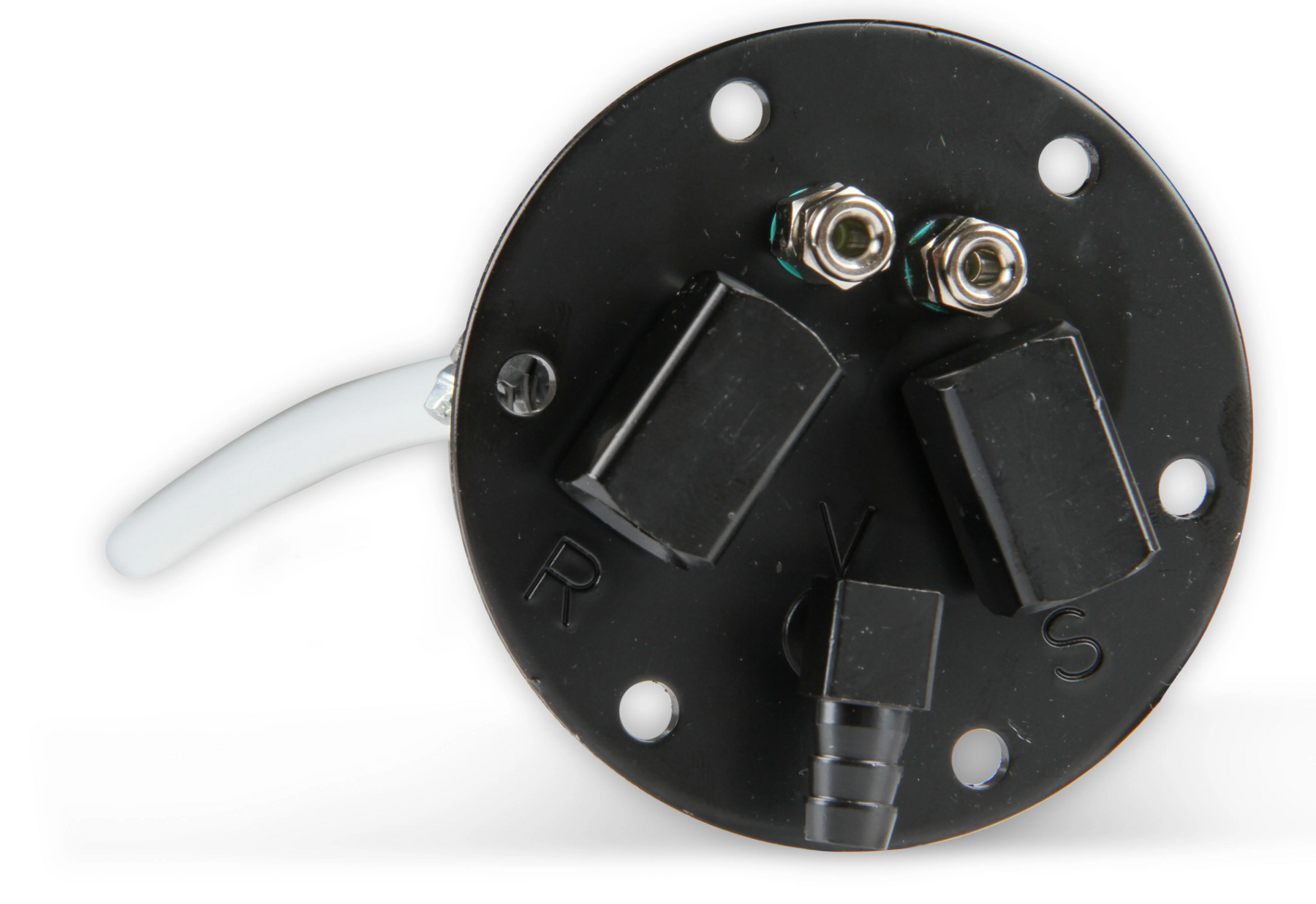

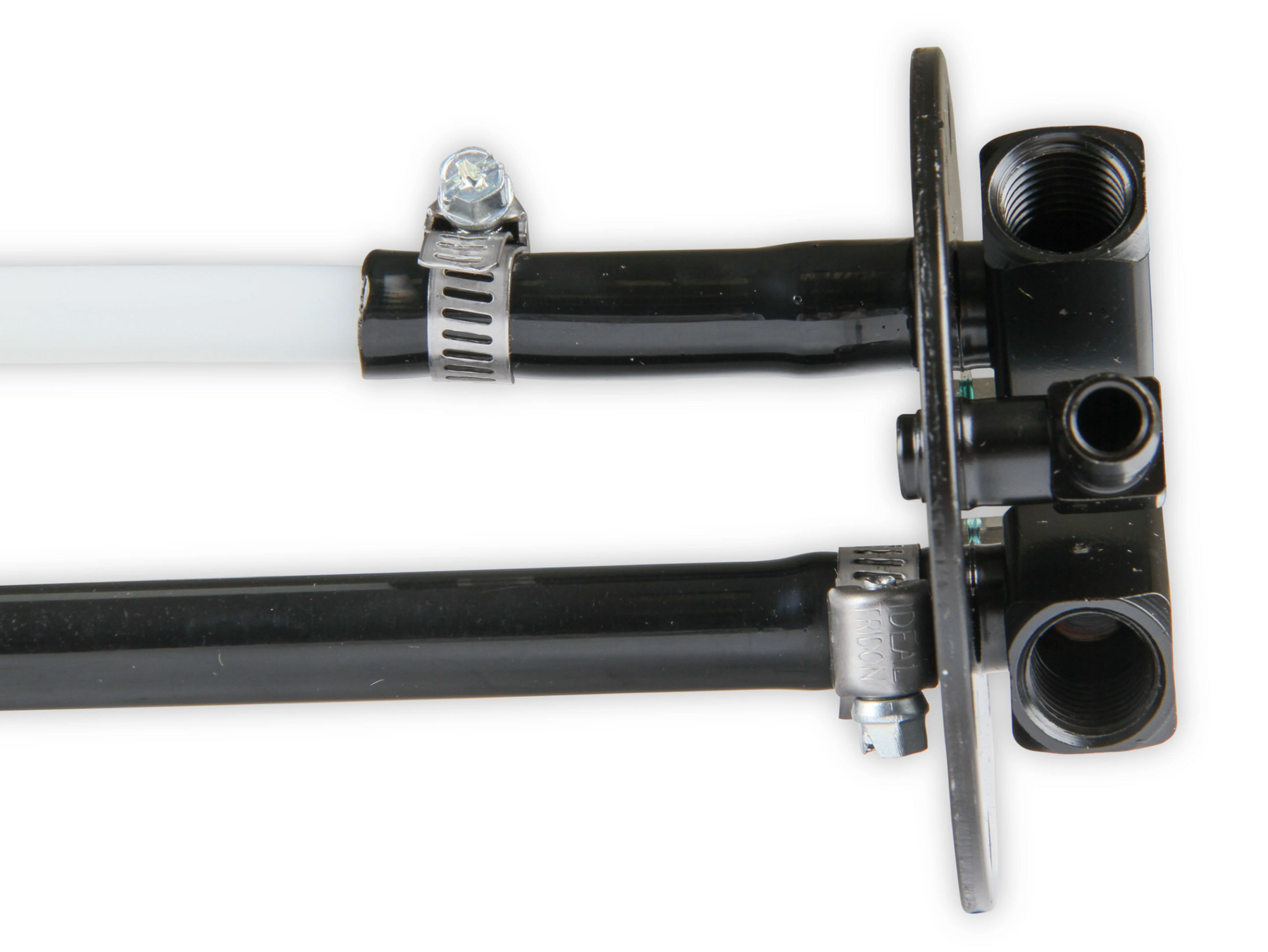

Sender has ¼” NPT Supply and Return line ports for easy fuel line connection and a barbed vent fitting
-

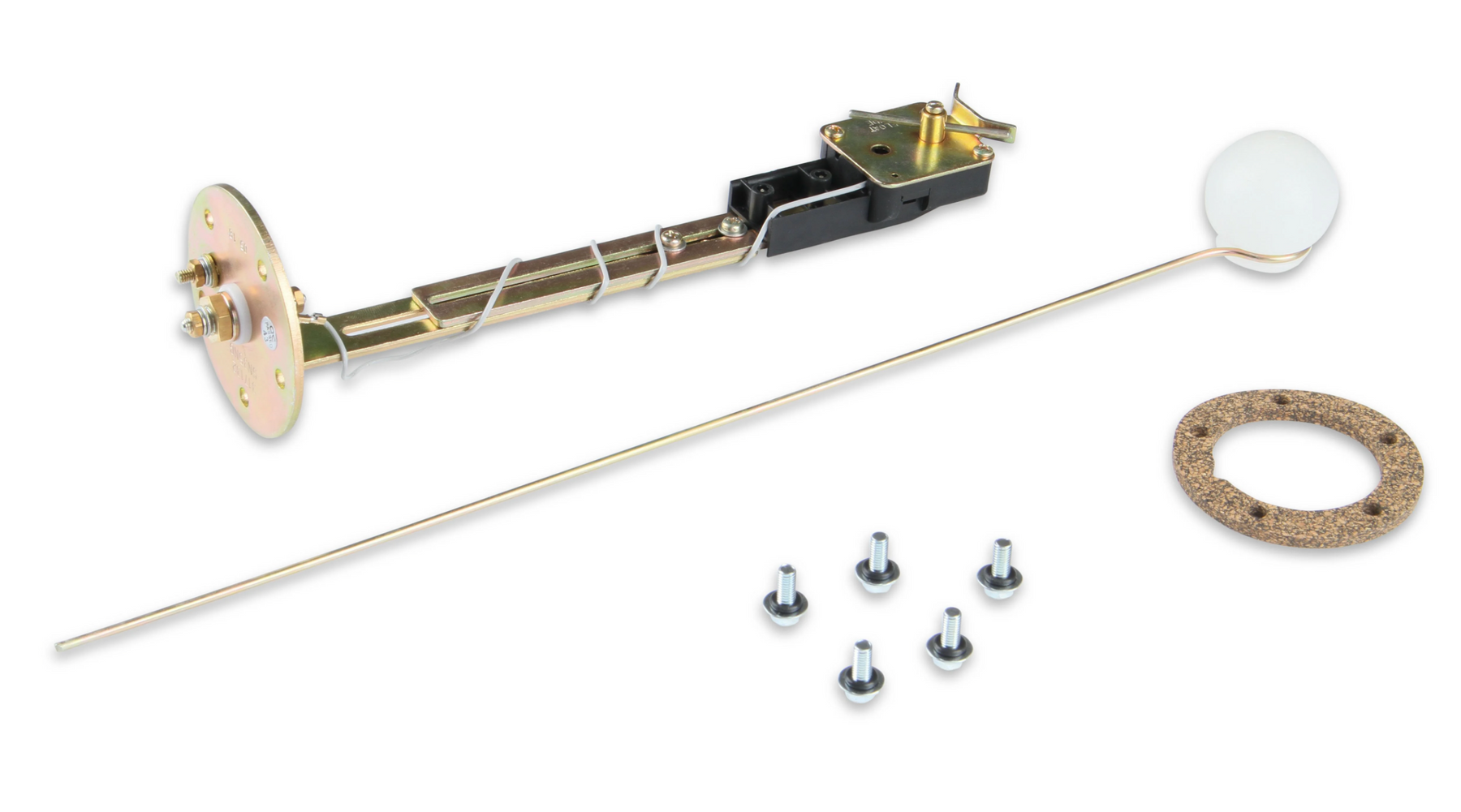

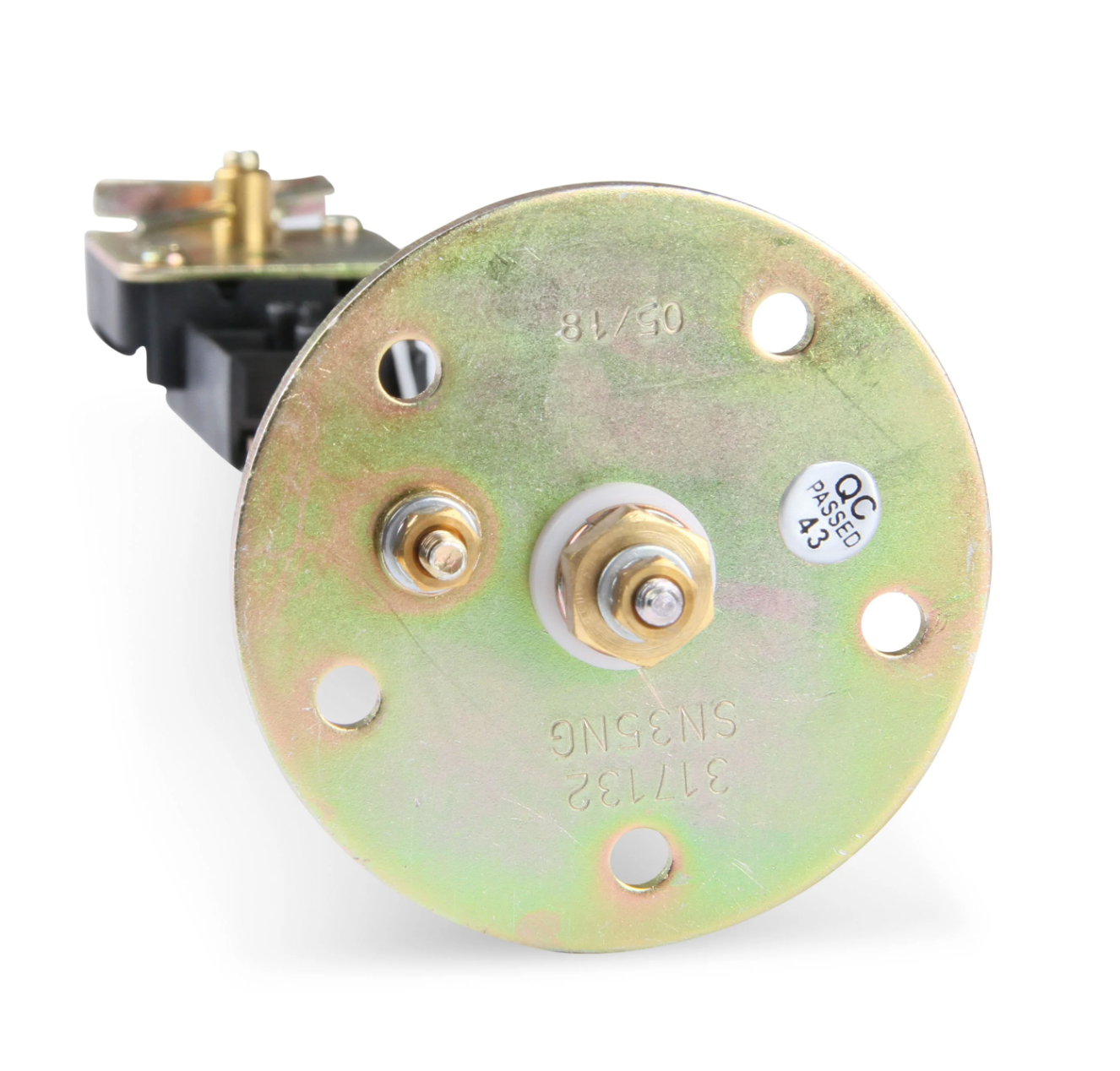

Fuel level sender included with the correct Ohm range for your factory gauges
-
Fuel pump and sender are recessed in the tank to provide an easy installation with no modification to your car
-
EFI style tank baffling includes a large 4.3 liter internal fuel tray to prevent fuel pump starvation
-
Fits and looks like an OE tank when installed
-
Sender has ¼" NPT Supply and Return line ports for easy fuel line connection and a barbed vent fitting
-
Complete bolt in solution for your EFI conversion
-

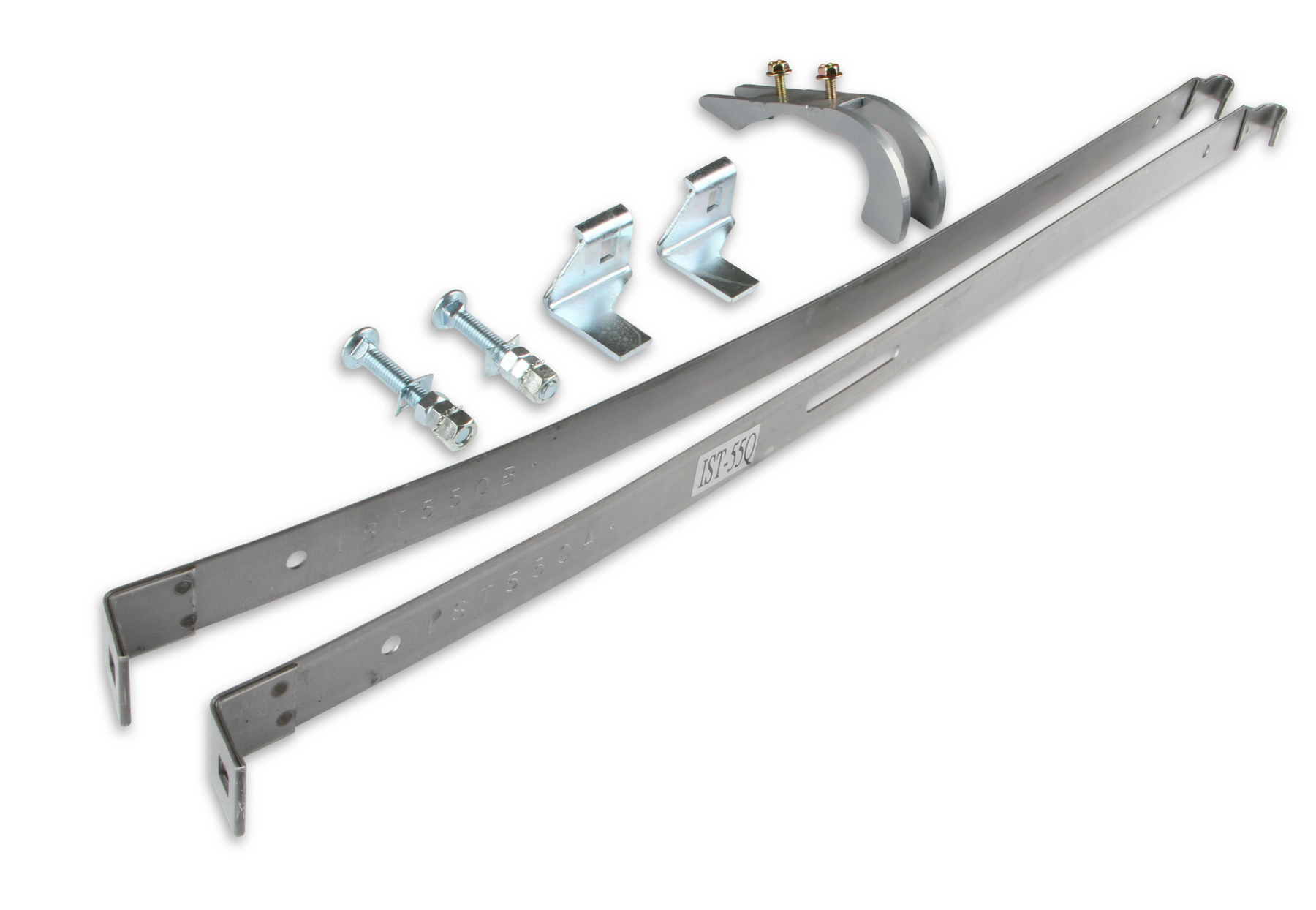

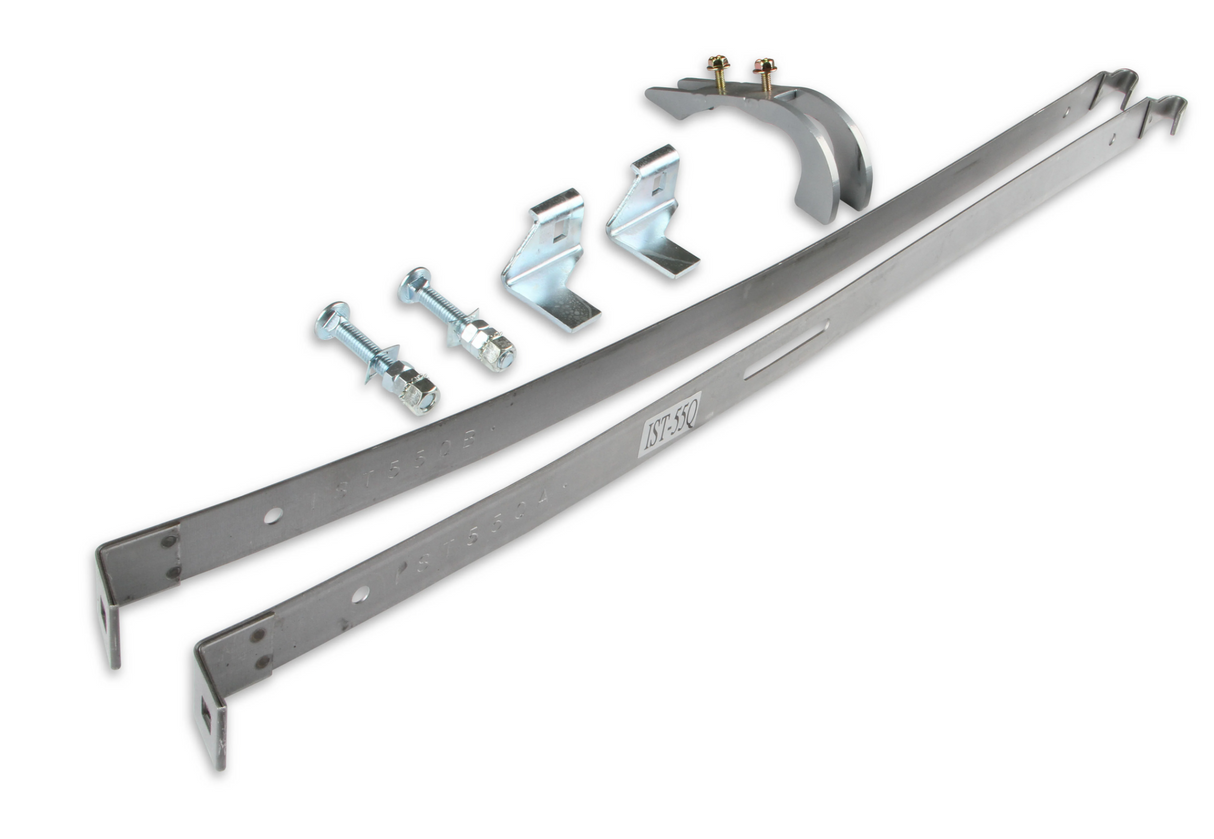

Includes new tank straps
Application |
1970-1974 Chevrolet Corvette |
|---|---|
Attached Sump |
Yes |
Baffled Sump |
Yes |
Brand |
Holley Sniper EFI |
Color |
Silver |
Drain Plug |
No |
Emission Code |
3 |
Finish |
Powdercoated |
Free Flow LPH |
400 |
Fuel Sending Unit Ohms |
0-90 Ohms |
Fuel System Compatibility |
Electronic Fuel Injection |
Fuel System Type |
Gasoline |
Fuel Tank Coating |
Powder Coated |
Gallon Capacity |
18 |
Grade Type |
Performance |
Lock Ring Included |
Yes |
Material |
Steel |
Maximum Flow Rating |
400 LPH |
Mounting Straps Included |
Yes |
New Straps Included |
Yes |

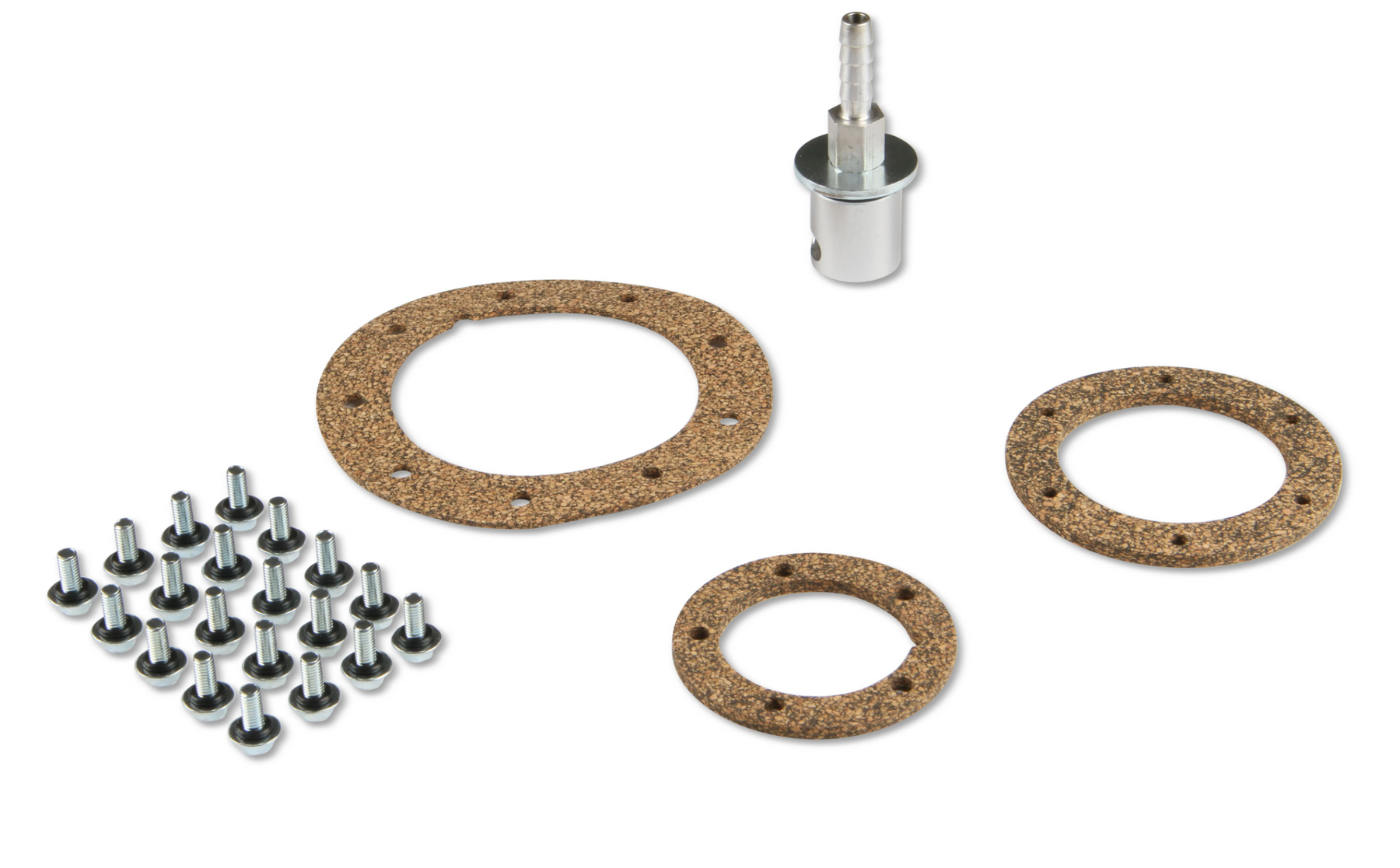

O-Ring Included |
Yes |
Product Type |
Fuel Tank |
Resistance Ohms Empty |
0 82 |
Resistance Ohms Full |
90 82 |
Tank Capacity |
18 GA |
Tank Color |
Gray |
Tank Material |
Steel |
Warranty |
Limited 90 Day |
UPC |
090127051801 |
Part Number |
19-448 |
