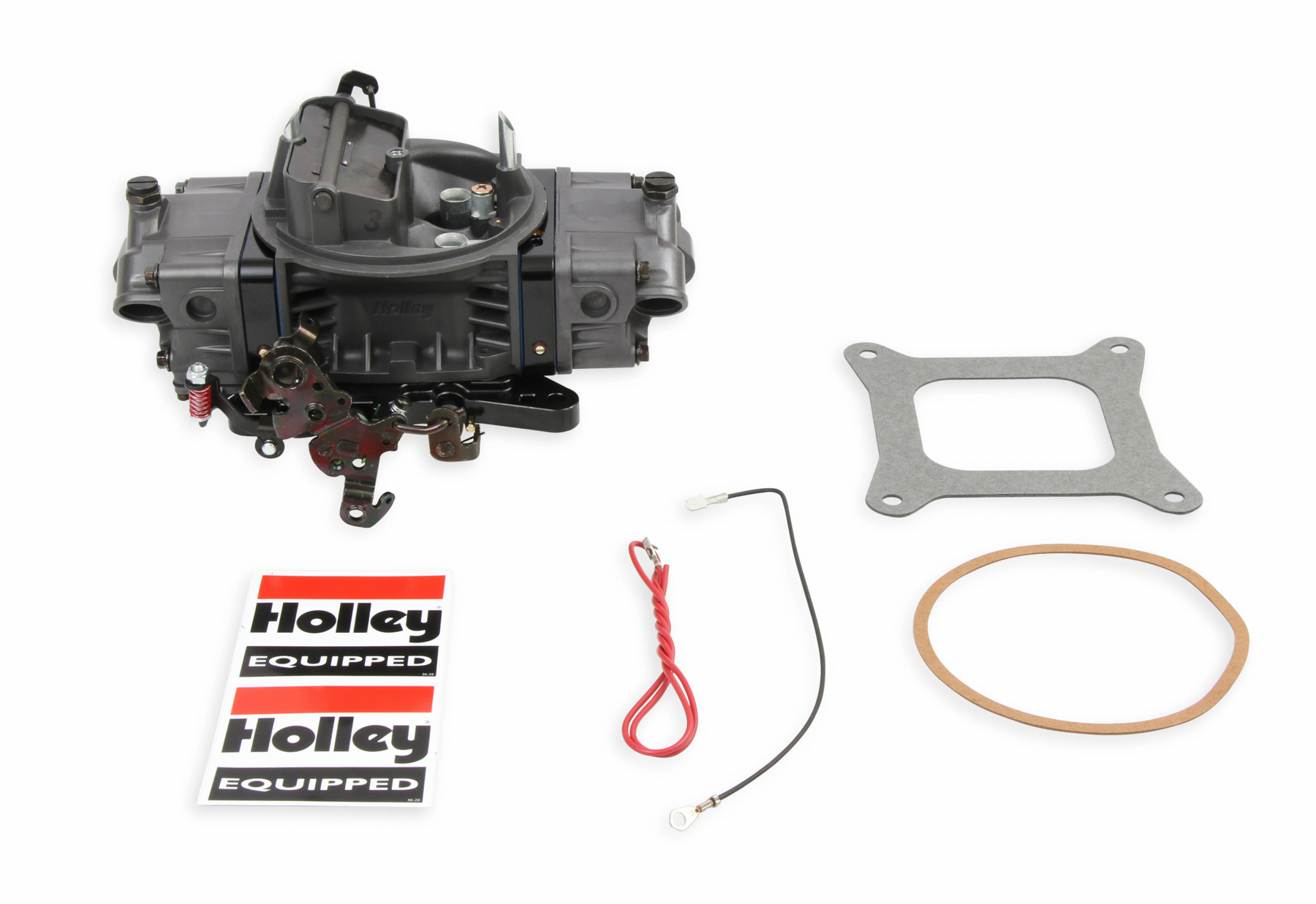

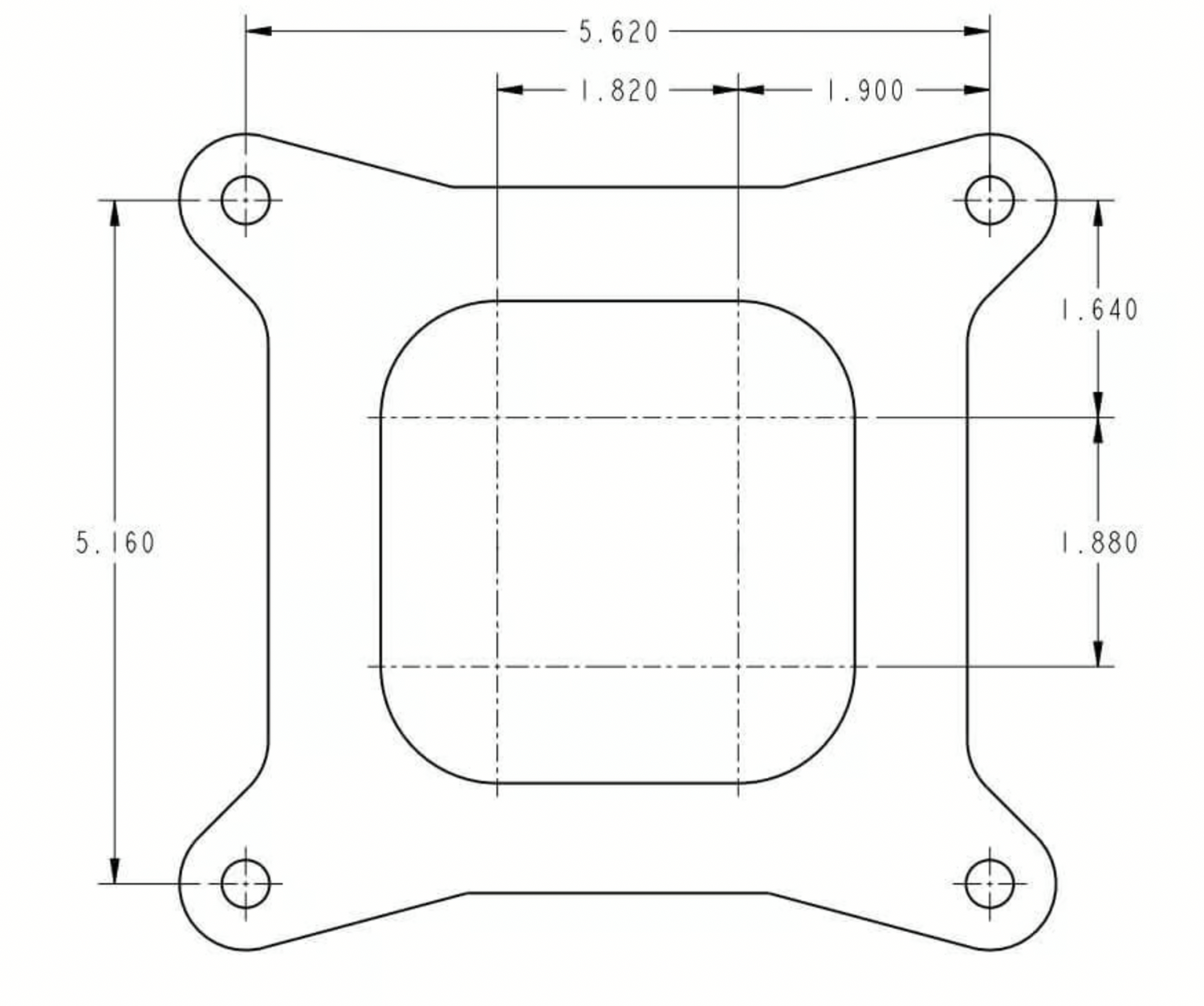

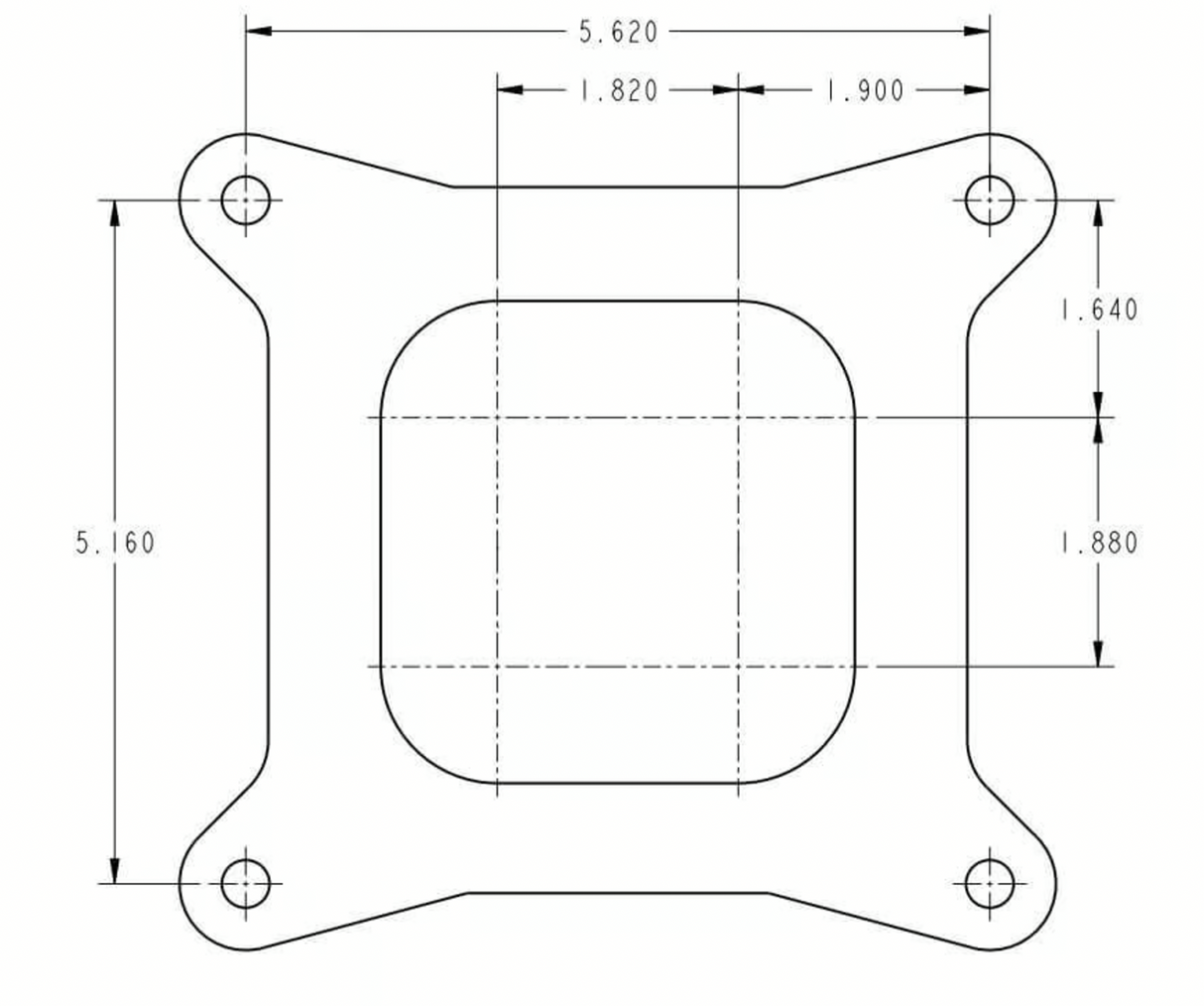

This model of carburetor has the square bore flange bolt pattern. It can replace Holley, Edelbrock, Carter AFB, and Autolite style carburetors with 5 3/16" x 5 5/8" bolt pattern. If you have a spreadbore style intake manifold, you will need an adapter to install this carburetor. Similar to the Mr. Gasket #1932.

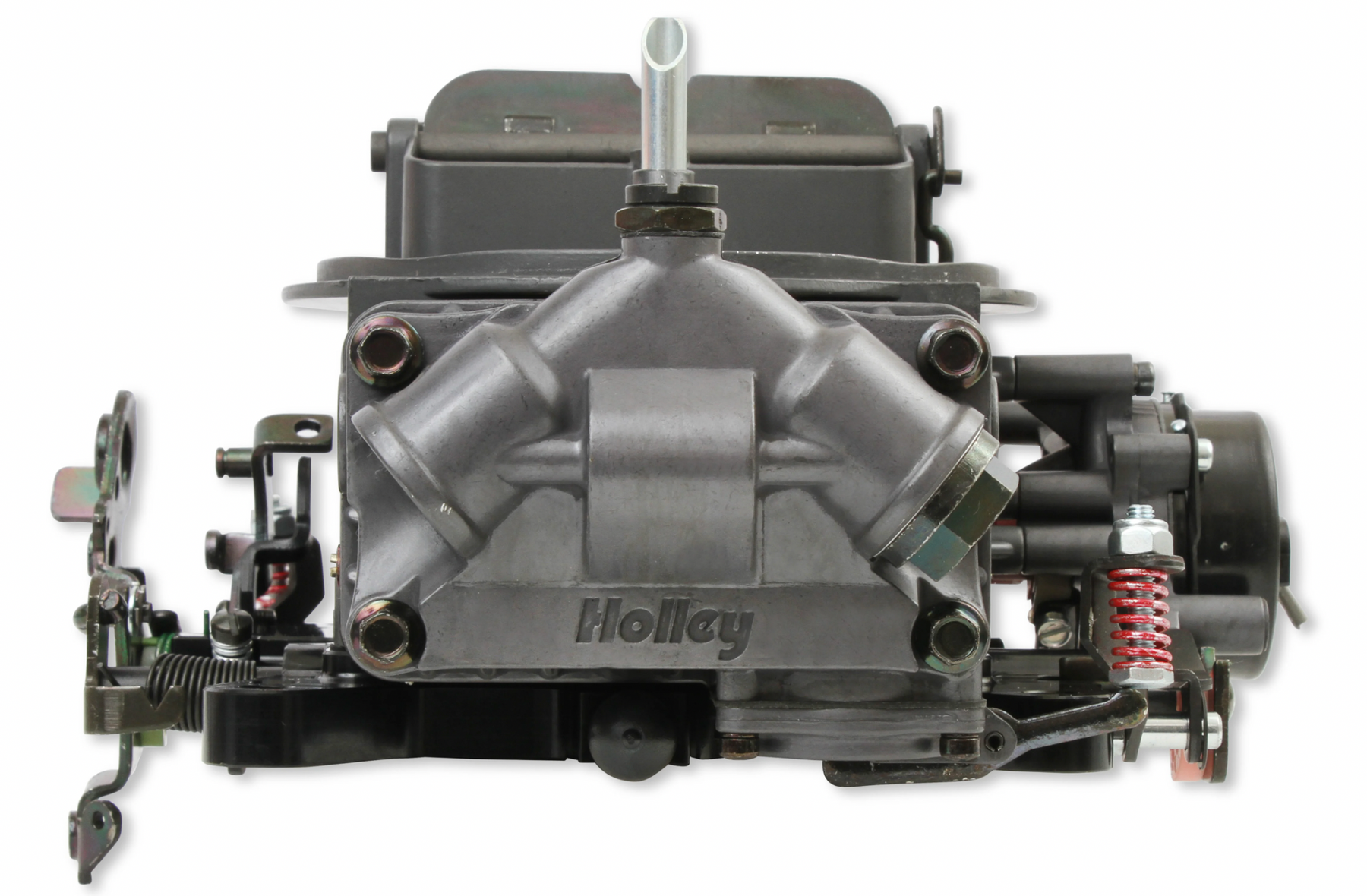

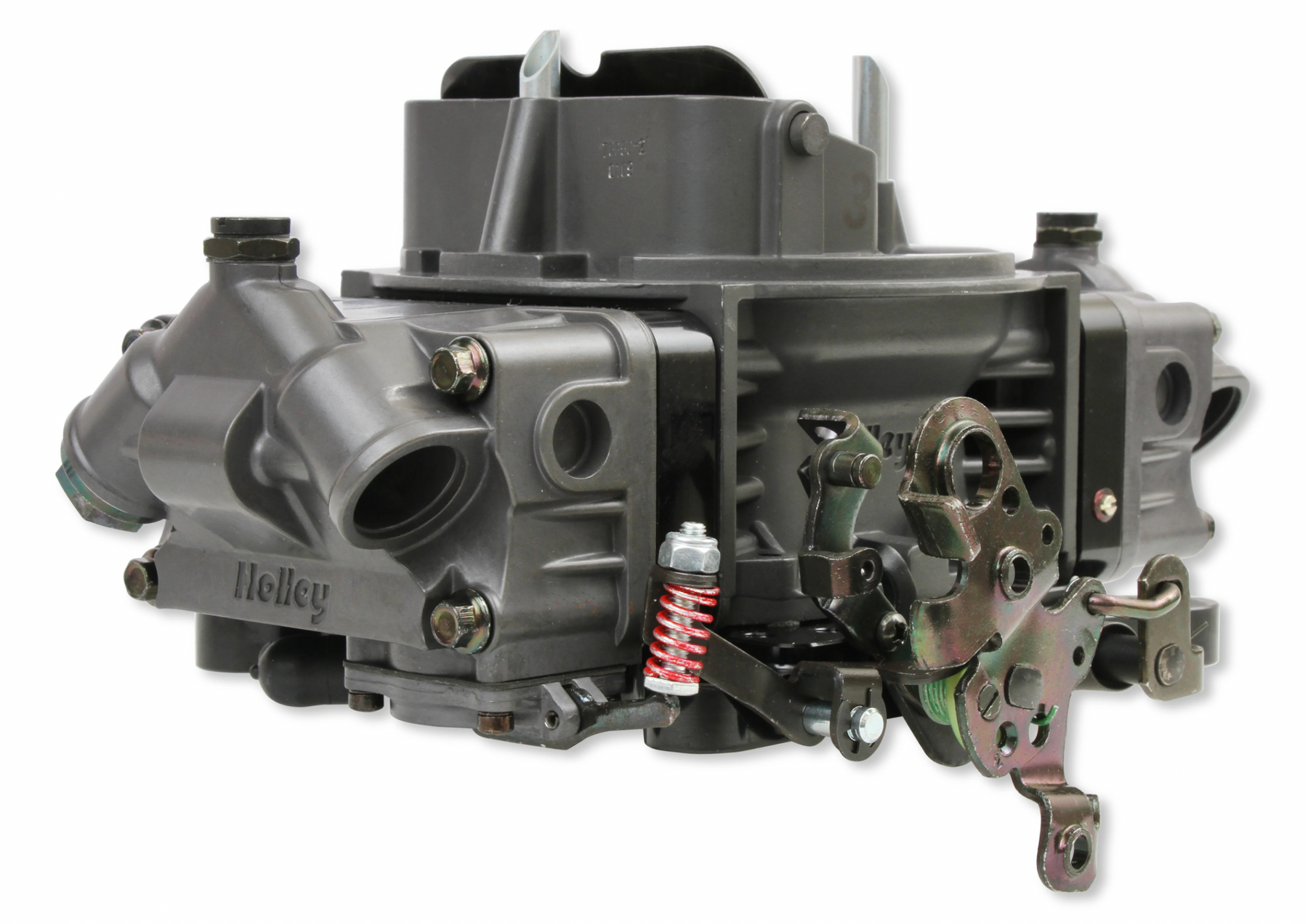

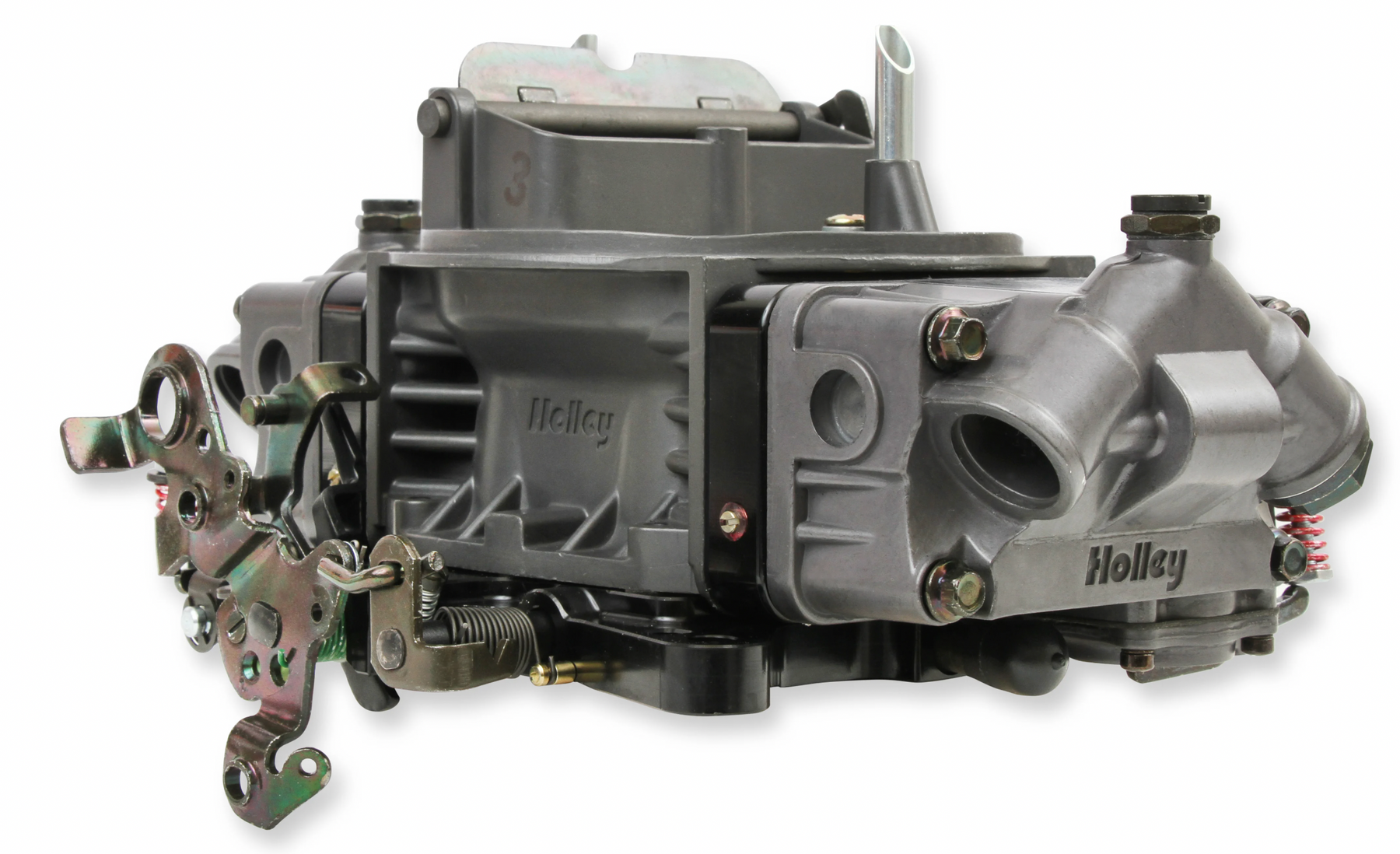

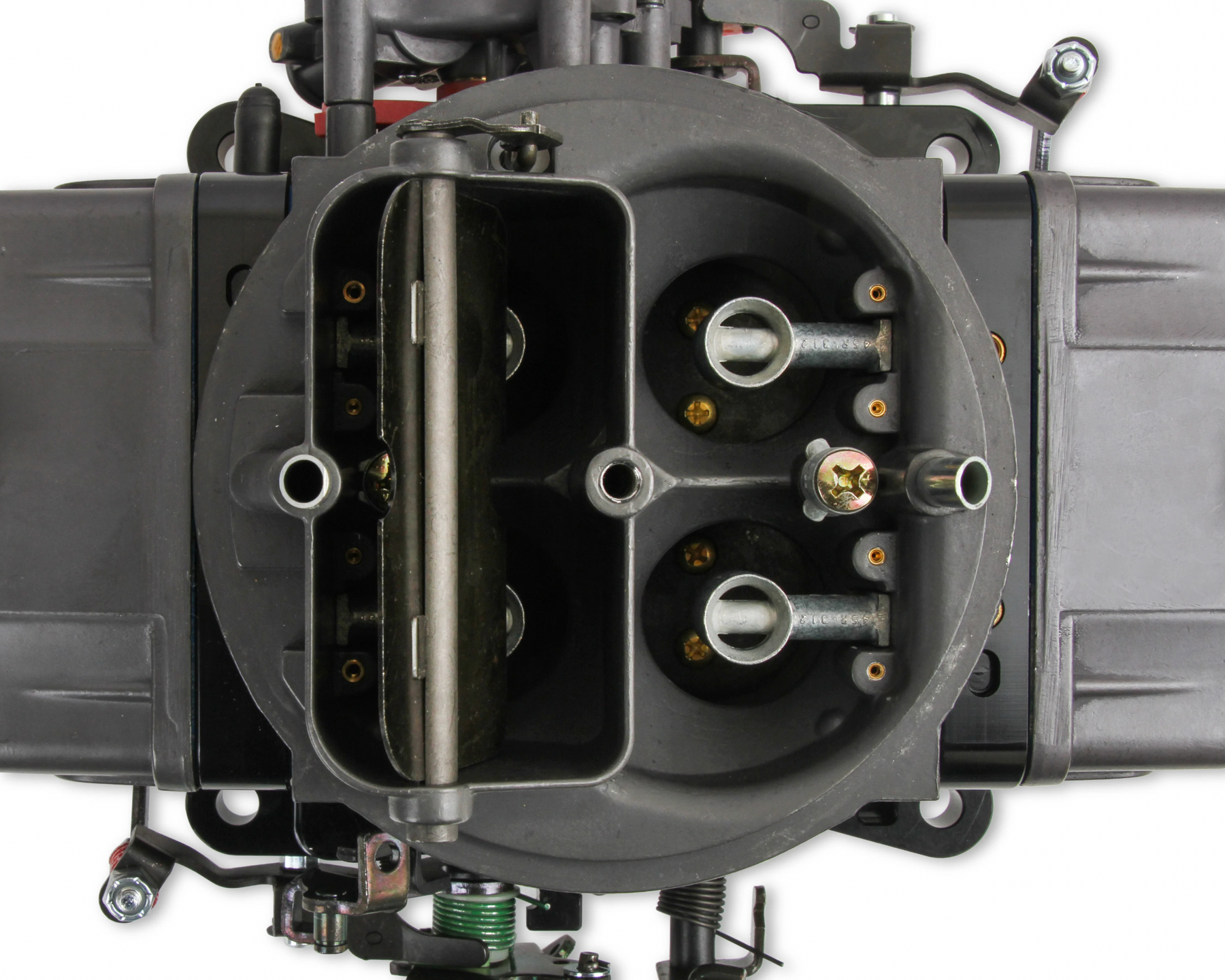

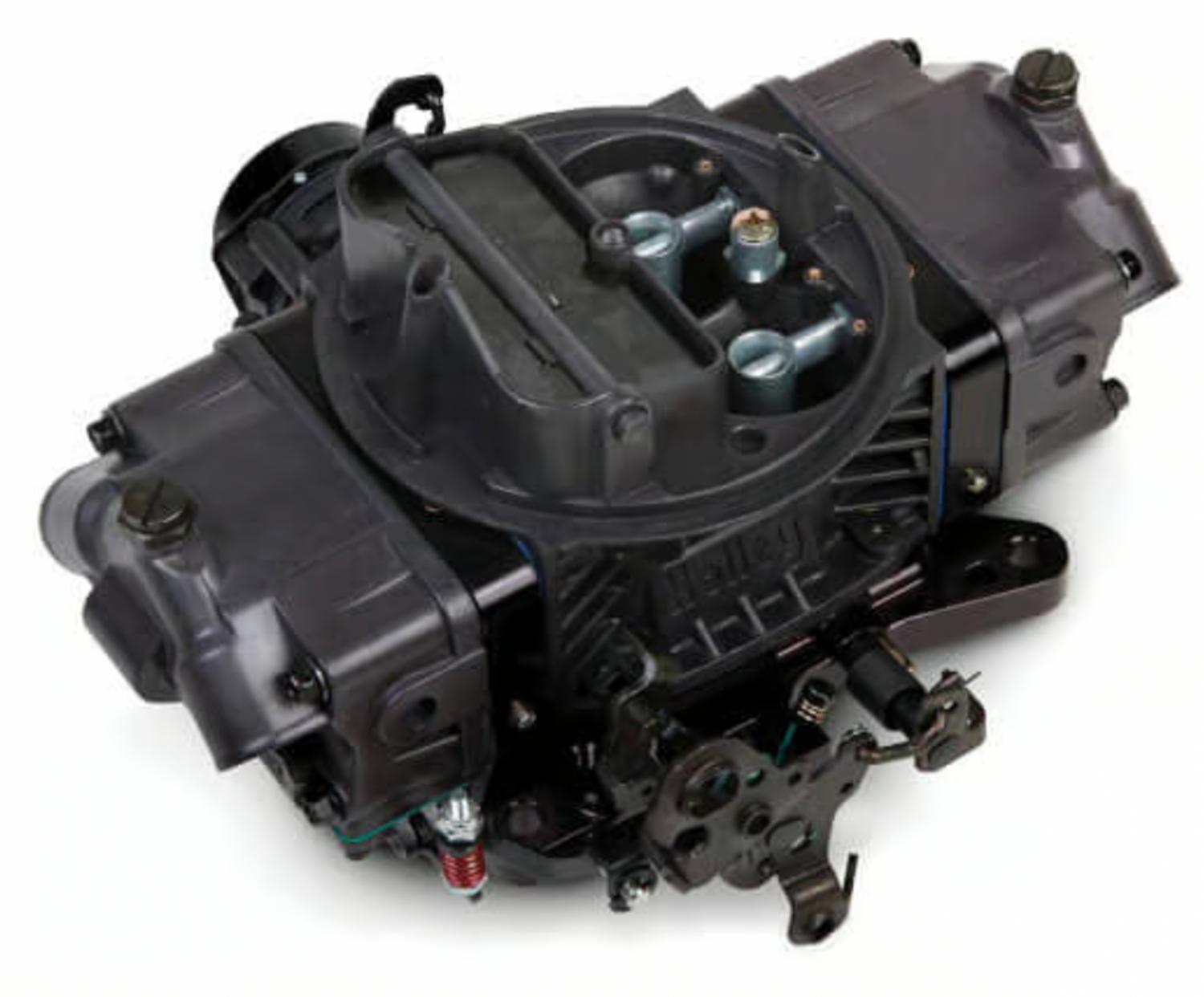

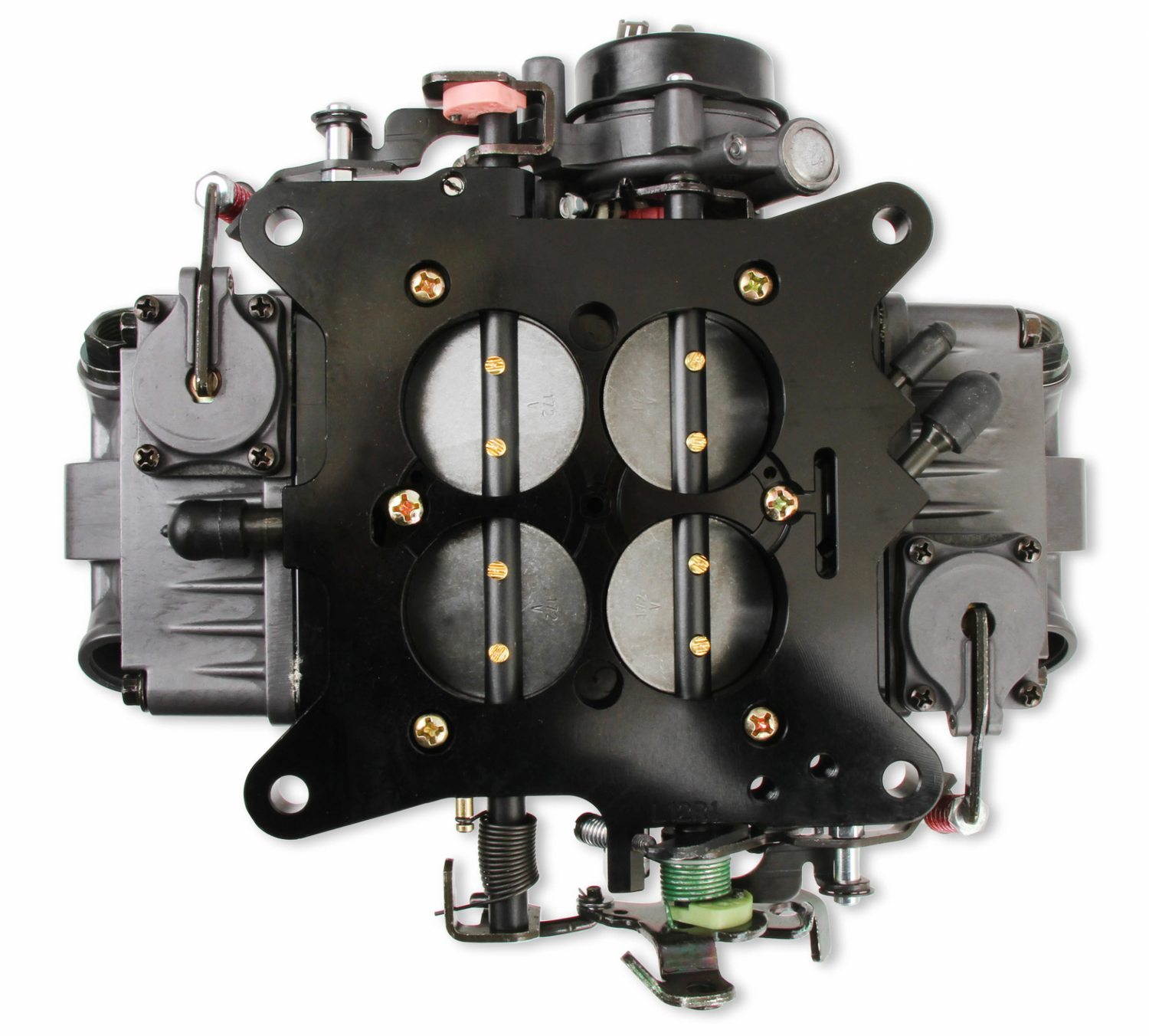

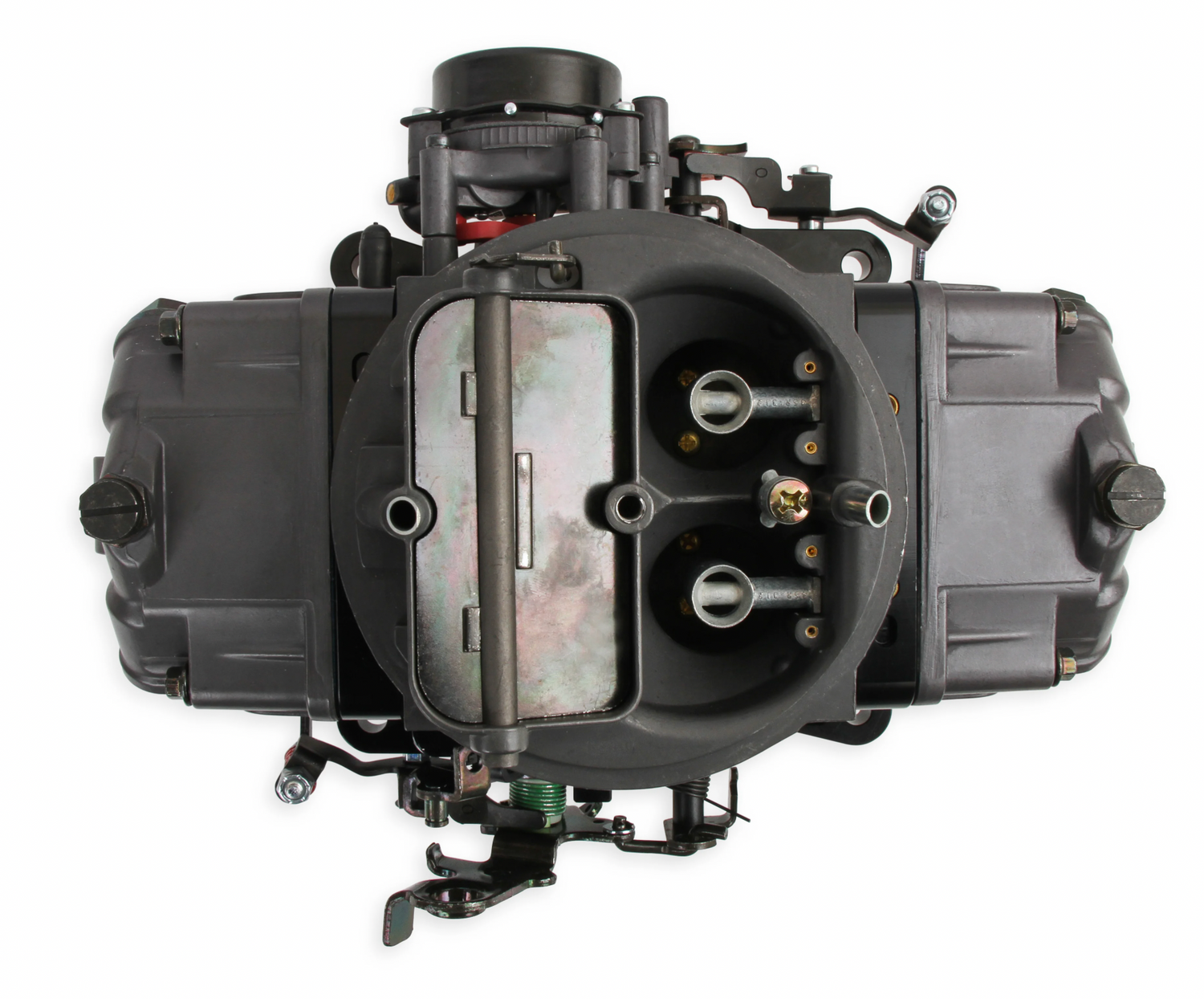

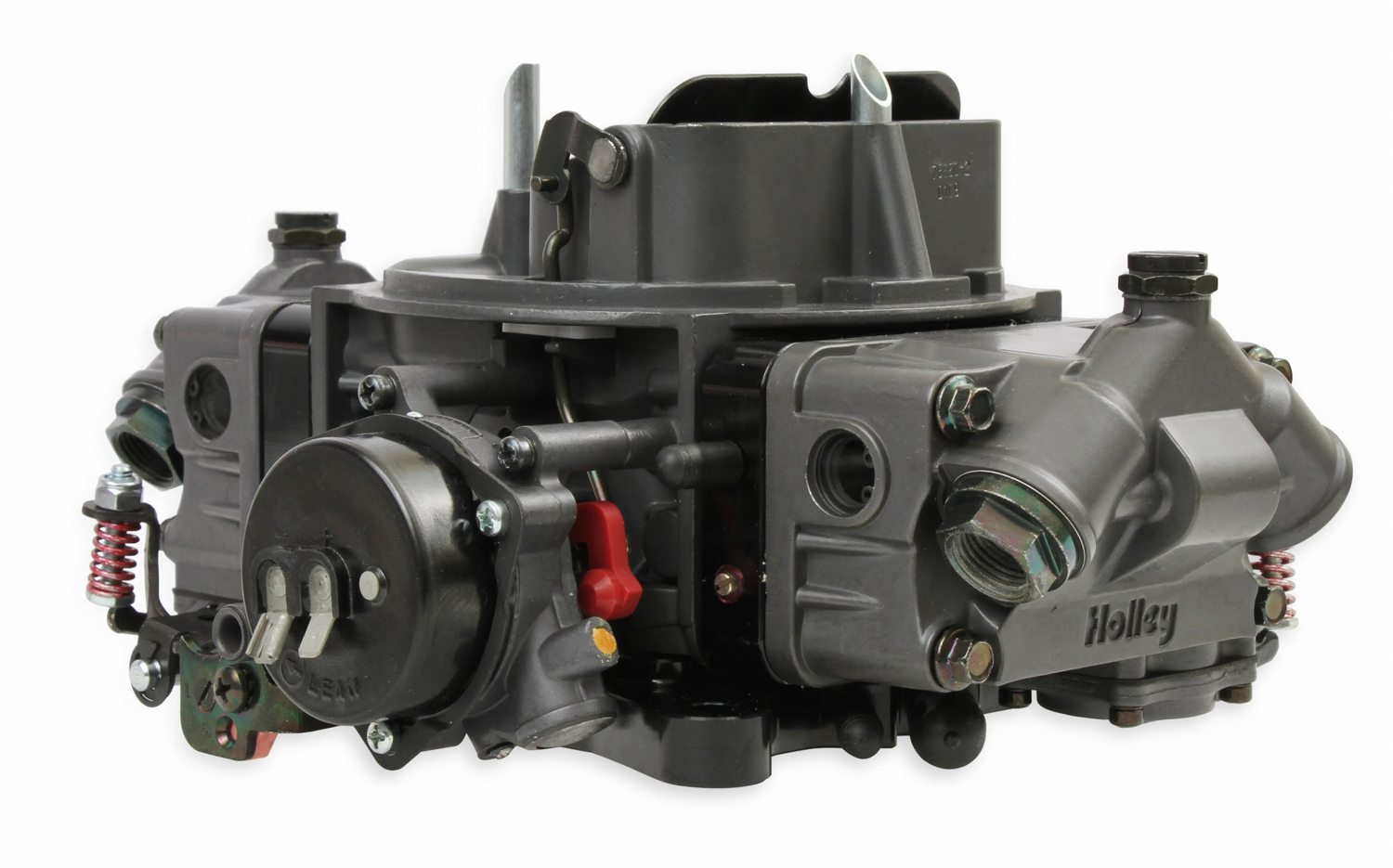

The Ultra Double Pumper™ Carburetors feature all aluminum construction and are equipped with metering blocks and a base plate made from 6061-T6 billet aluminum. They weigh in at approximately 5 lbs. less than a comparable zinc carburetor. The new Ultra Double Pumper Carburetors have an enhanced fuel curve for optimum performance, with many more features such as aluminum construction; anodized billet aluminum metering blocks and base plate; 4 corner idle for precise idle control; mechanical secondaries for great performance; clear fuel level sight plugs for easy, no mess fuel level adjustments; Ford automatic transmission kickdown for use on popular Ford transmissions; four vacuum ports for all necessary vacuum accessories; and for the first time on a Double Pumper, factory pre-set electric choke for easy, fast cold start-ups. The clean, stealthy look coupled with Black metering blocks and throttle body will certainly set your ride apart whether you are at the show or track.
-
Hard Core Gray™ w/ black anodized billet aluminum metering blocks/base plate. Casting is hard coat anodized for ultimate corrosion resistance
-
Ultra Double Pumpers feature an Optimized street/strip calibration that works out-of-the-box
-

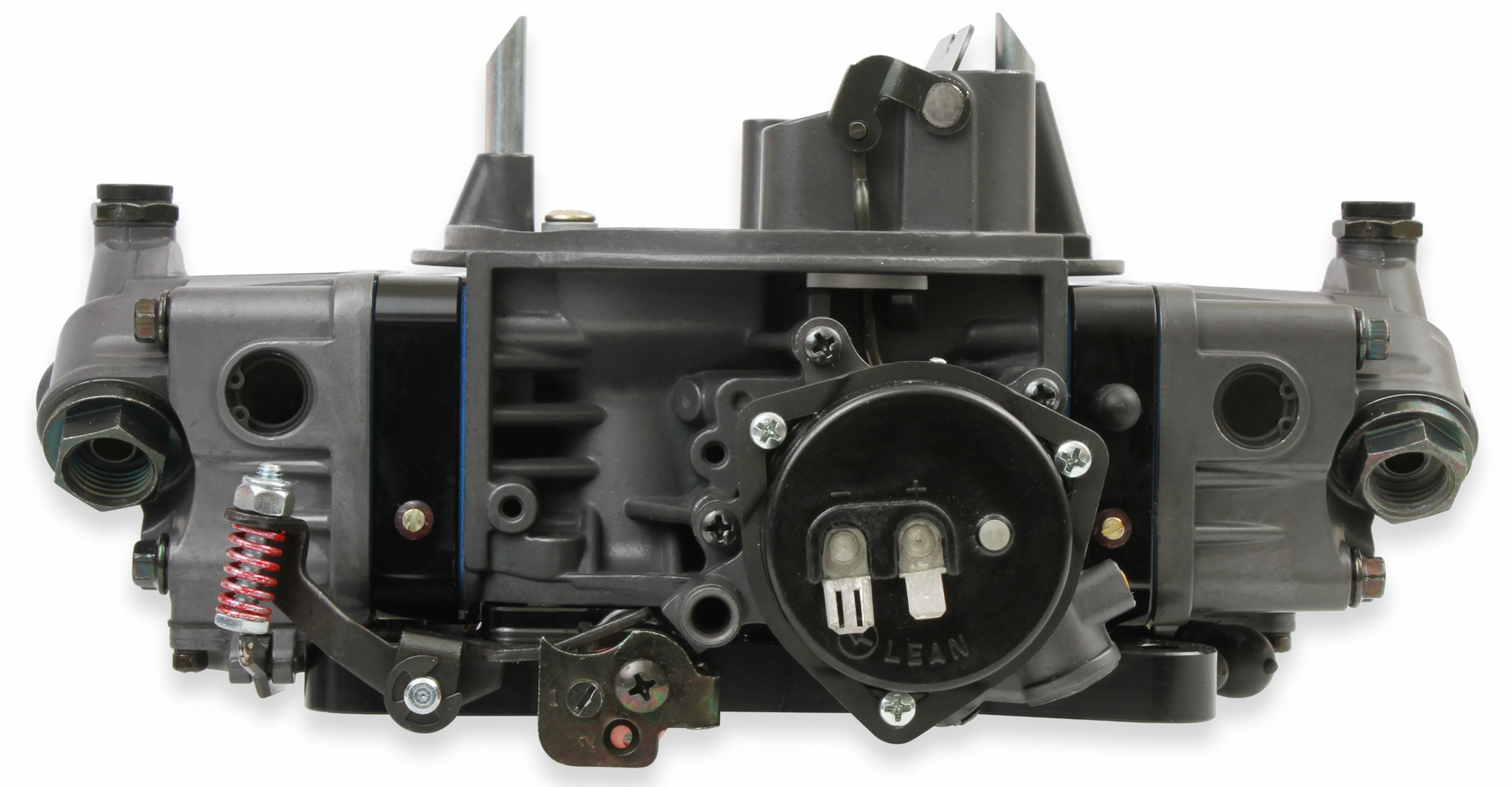

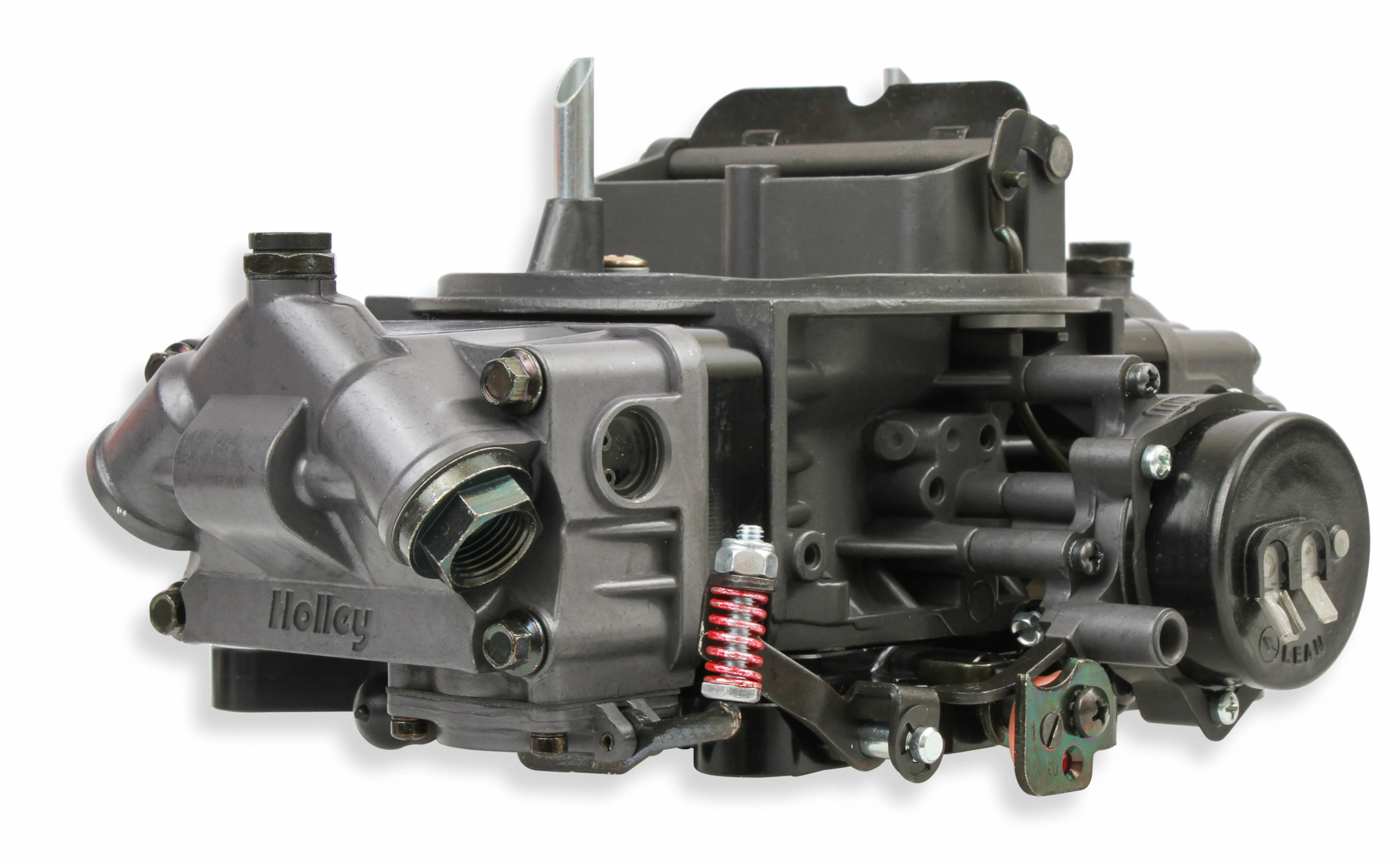

Factory preset electric choke for easy startups
-
Mechanical secondaries for awesome tire turning performance
-
4 corner idle allows you to precisely control your idle system
-
Built in, clear fuel level sight glass for easy, no mess fuel level adjustments
-
Aluminum construction for a 43% weight savings
-

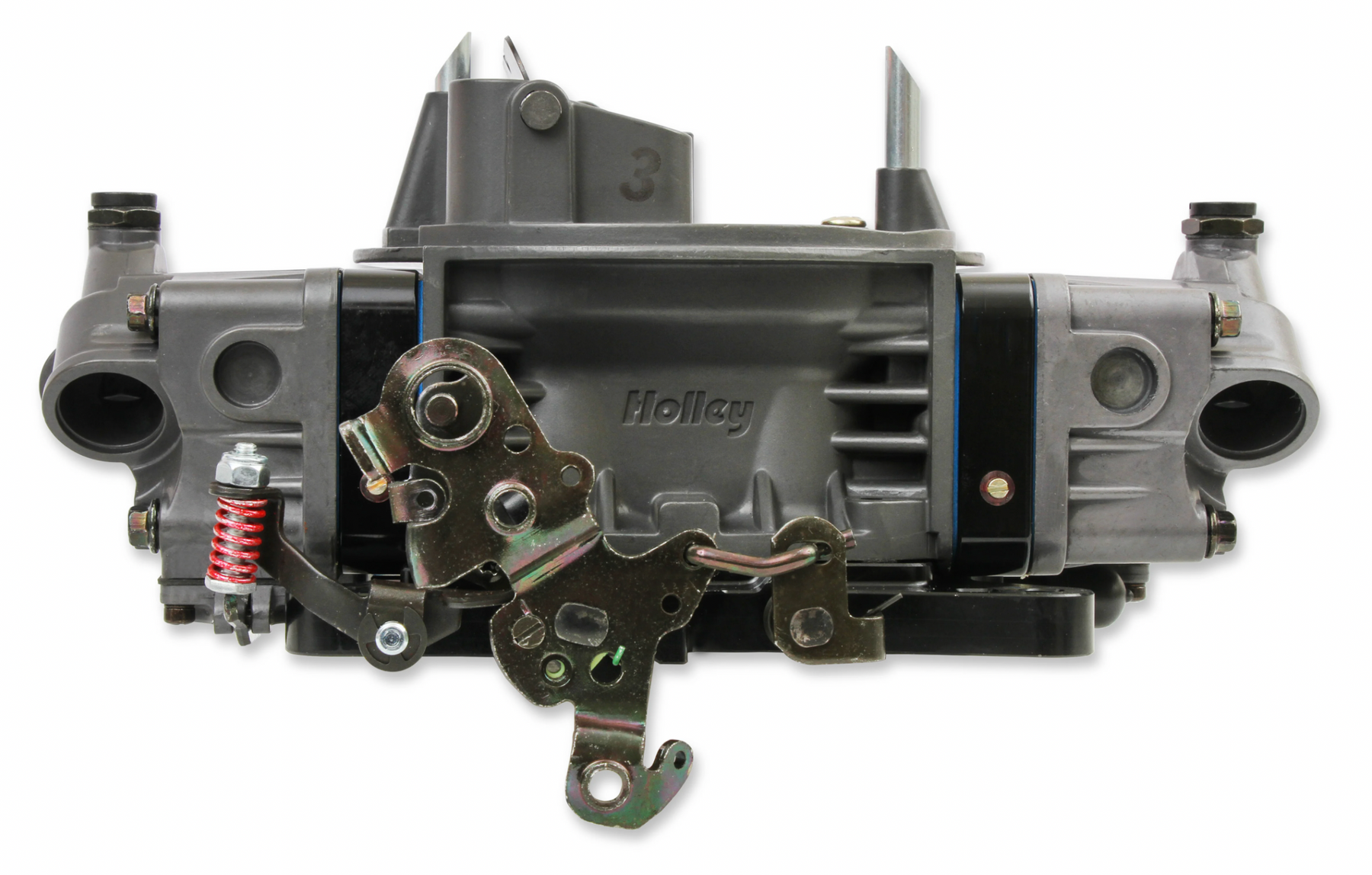

Compatible with GM, Chrysler, and Ford A/T kickdown linkage. Additional parts may be required.
-
Intended for lightweight vehicles w/ manual trans or automatics with high stall & low gearing
-
100% wet-flow tested by Holley technicians to assure it arrives ready to run!
Barrel Quantity |
4 |
|---|---|
Barrels |
4 |
Billet Color |
Black |
Body Color |
Hard Core Gray |
Body Finish |
E-Coated |
Booster |
Downleg |
Booster Design |
Downleg |
Brand |
Holley |
Carburetor Material |
Aluminum |
Carburetor Use |
Performance and Race |
CFM |
850 |
Choke |
Electric |
Choke Type |
Electric |
Condition |
New |
Cubic Feet Per Minute Rating |
850 |
Emission Code |
3 |
Finish |
Hard Core Gray |
Flange Type |
Square/4150 |
Fuel |
Gasoline |
Fuel Inlet |
Dual |
Grade Type |
Performance |
Linkage Attached |
Yes |
Marine Approved |
No |
Marine Use |
No |
Material |
Aluminum |
Model |
4150 |
Mounting Hole Quantity |
4 |
Primary Jet Diameter |
80 |
Primary Main Jet |
80 |
Primary Power Valve |
6.5 |
Primary Pump Nozzle Size |
31 |
Product Type |
Carburetor |
Sale Category |
Carburetors and Components |
Secondaries |
Mechanical |
Secondary Main Jet |
80 |
Secondary Power Valve |
6.5 |
Secondary Pump Nozzle Size |
31 |
Spacer Included |
No |
Supercharged Application |
No |
Throttle Bore |
1.750 inch |
Vacuum Ports |
1 timed (spark) port, 2 full, and 1 PCV port |
Warranty |
Limited 90 Day |
UPC |
090127718452 |
Part Number |
0-76850HB |
