Frostbite® (99-11) GM SUV/Truck 3-Row Performance Radiator

  • Sale
  • Regular price $295.95




Compatible:

2002 - 2011 Cadillac Escalade (5.3L/6.0L)

2002 - 2011 Chevy Avalanche (5.3L/6.0L)

1999 - 2011 Chevy Suburban (5.3L/6.0L)

1999 - 2011 Chevy Tahoe (4.8L/5.3L/6.0L)

2003 - 2007 Hummer H2 (6.0L)

2008 - 2010 Hummer H3 (5.3L)

1999 - 2011 Chevy Silverado (4.3L/4.8L/5.3L/6.0L)

1999 - 2011 GMC Sierra (4.3L/4.8L/5.3L/6.0L)

1999 - 2011 GMC Yukon (4.8L/5.3L/6.0L)




Frostbite 3 and 4 row radiators will be thicker than stock and can extend into engine bay further interfering with some stock fan/clutch applications. Existing cooling fan modifications may be required during installation. Electric fan and shroud options are available to eliminate stock clutch/fan.



This part is legal for sale or use on Emissions Controlled Vehicles, Uncontrolled (Non-Emissions Controlled) Vehicles, and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations.






High-Horsepower street cars and trucks can be a challenge to keep cool. A proper cooling system starts with the right radiator. Aluminum Radiators cool more effectively and weigh less than older OEM style brass units. Choose from a variety of popular application specific fitments. Holley is proud to introduce its latest offering - Frostbite Performance Cooling Products. Our line of Performance Aluminum Radiators will be available in 2, 3, and 4-row sizes as well as an extensive offering of LS-Swap specific platform applications. When it comes to keeping your ride cool, Make it Frostbite!

Features:

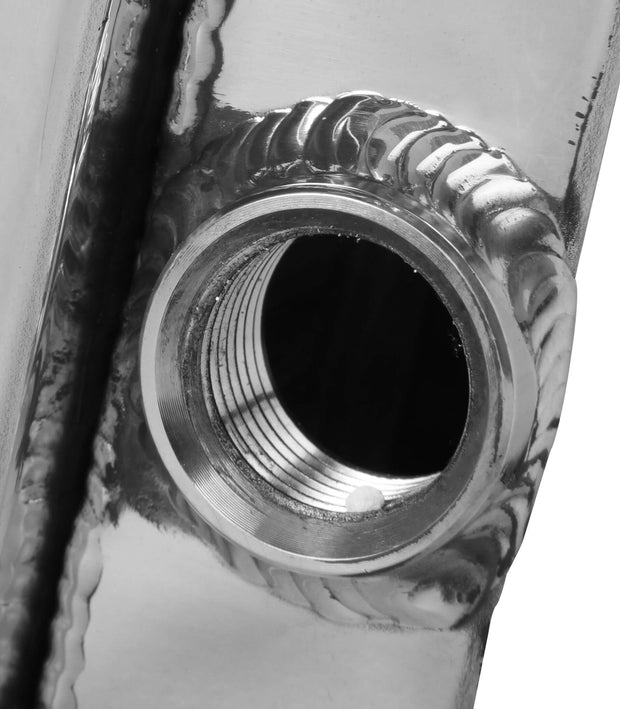

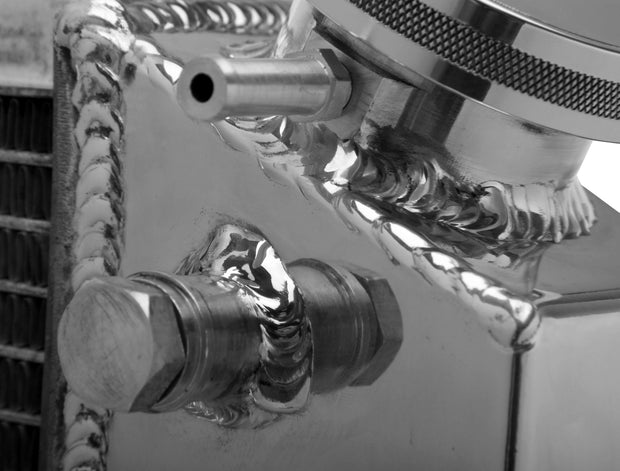

  • 100% TIG welded (brazed) seams
  • Aircraft quality aluminum core, fittings, and tanks (up to 30% weight savings)

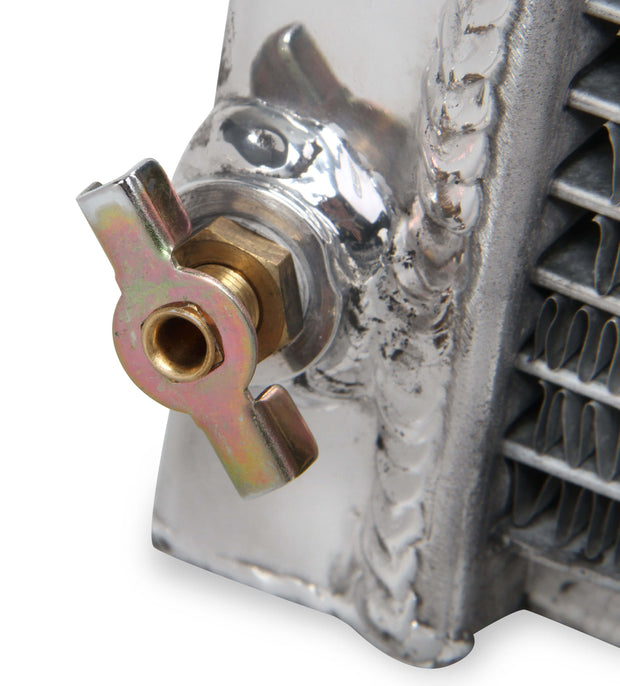

  • Billet Aluminum Filler Neck and OEM style Brass Petcock
  • More cooling fins per inch for more efficient cooling
  • Custom Frostbite High Performance 16lb. radiator cap
  • Polished top and tanks for custom show appearance
  • 3-Row Radiators supporting applications with 450-750 horsepower
  • Applications for GM, Ford, Dodge/Chrysler/Jeep and LS-Swap available
  • Manufacturer’s 1-year Limited Warranty



# of Passes Single
Brand Frostbite
Cooling Row Diameter 11/16"
Core Dimension 17 1/4" x 34"
Core Thickness 2.20"
Emission Code 5
Flow Style Cross Flow
Hose Location Inlet Driver
Hose Location Outlet Passenger
Inlet Size 1 5/16"
Mounting Type Saddle Mount
Oil Adapters Included M20 x 1.5 plus quick connect adapters
Outlet Size 1 9/16"
Overall Dimension 21 3/8" x 40 1/2"
Product Type Radiators
Rows 3
Transcooler Provision 5/8"-18 NPT plus quick connect adapter
Part Number FB288
