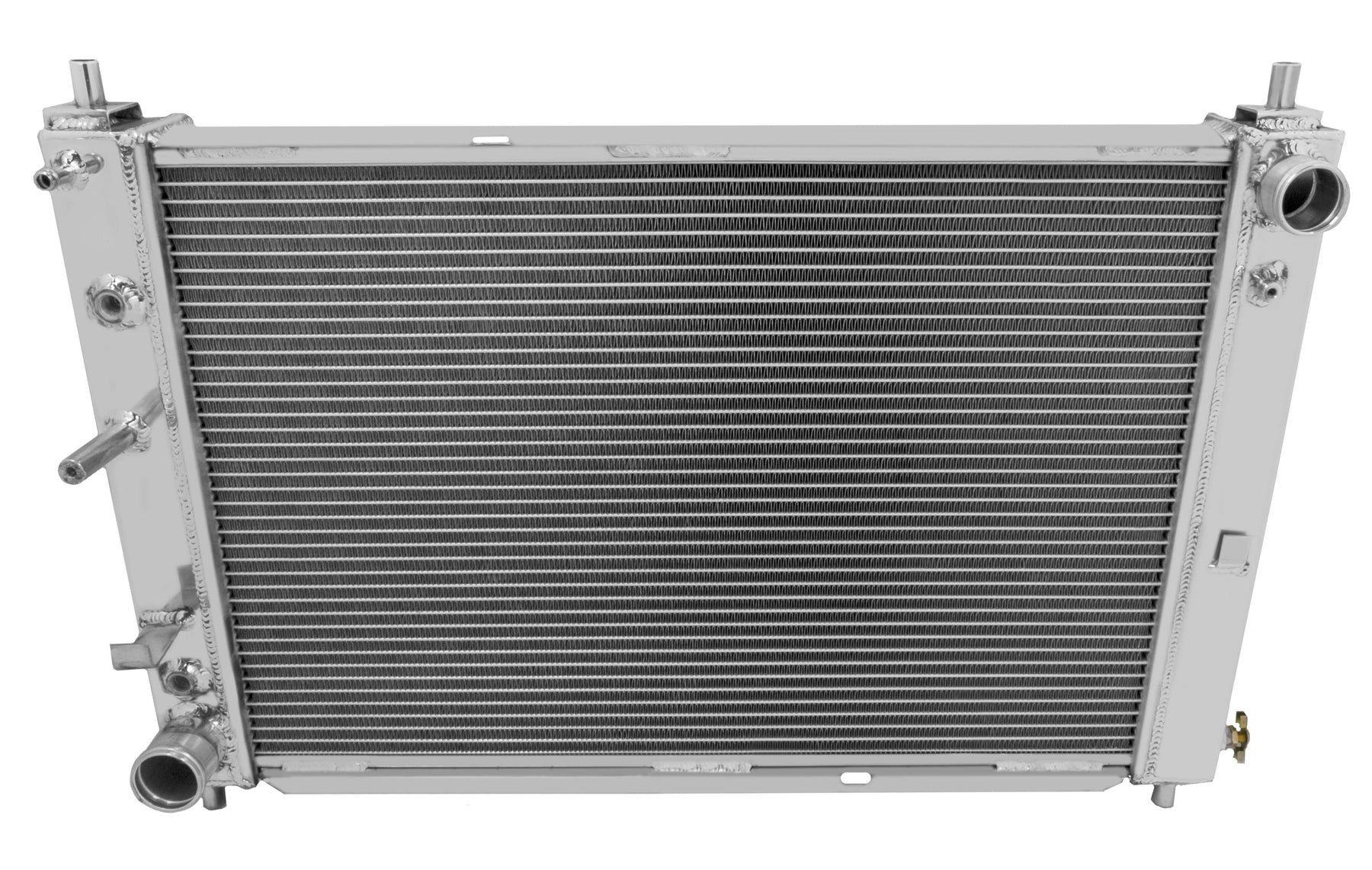

Frostbite® (96-04) Mustang Aluminum 3-Row Radiator

  • Sale
  • Regular price $370.95

Compatible: (4.6L)

1996 - 2004 Ford Mustang - All Models


Note: Frostbite 3 and 4 row radiators will be thicker than stock and can extend into engine bay further interfering with some stock fan/clutch applications. Existing cooling fan modifications may be required during installation. Electric fan and shroud options are available to eliminate stock clutch/fan.


This part is legal for sale or use on Emissions Controlled Vehicles, Uncontrolled (Non-Emissions Controlled) Vehicles, and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations.



High-Horsepower street cars and trucks can be a challenge to keep cool. A proper cooling system starts with the right radiator. Aluminum Radiators cool more effectively and weigh less than older OEM style brass units. Choose from a variety of popular application specific fitments. Holley is proud to introduce its latest offering – Frostbite Performance Cooling Products. Our line of Performance Aluminum Radiators will be available in 2, 3, and 4-row sizes as well as an extensive offering of LS-Swap specific platform applications. When it comes to keeping your ride cool, Make it Frostbite!

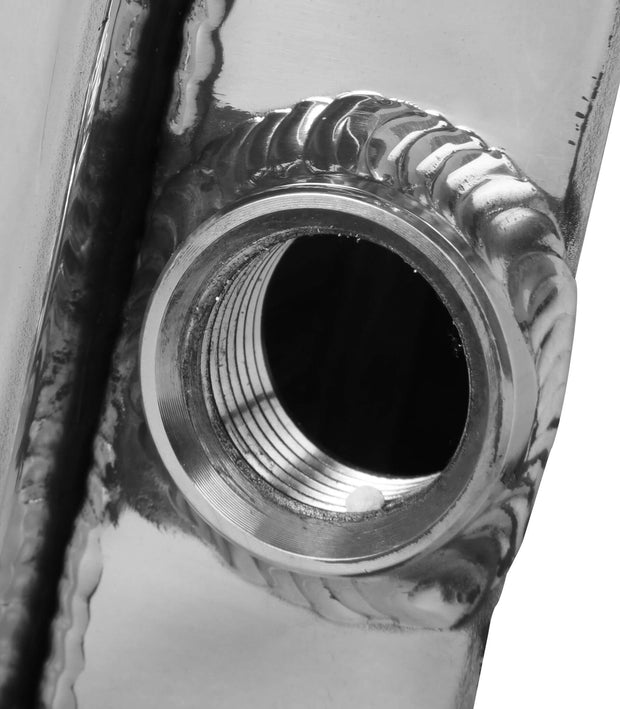

  • 100% TIG welded (brazed) seams
  • Aircraft quality aluminum core, fittings, and tanks (up to 30% weight savings)

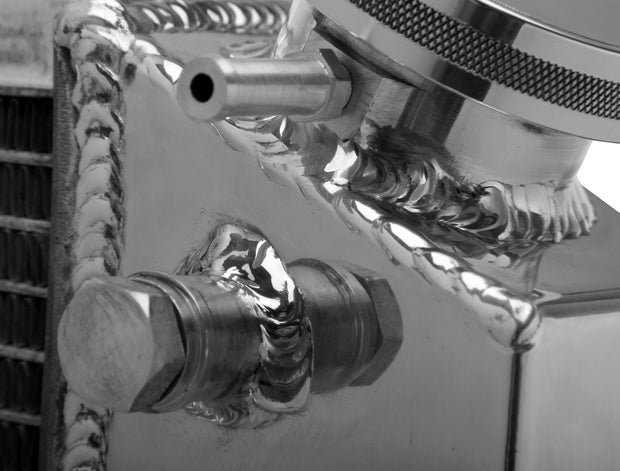

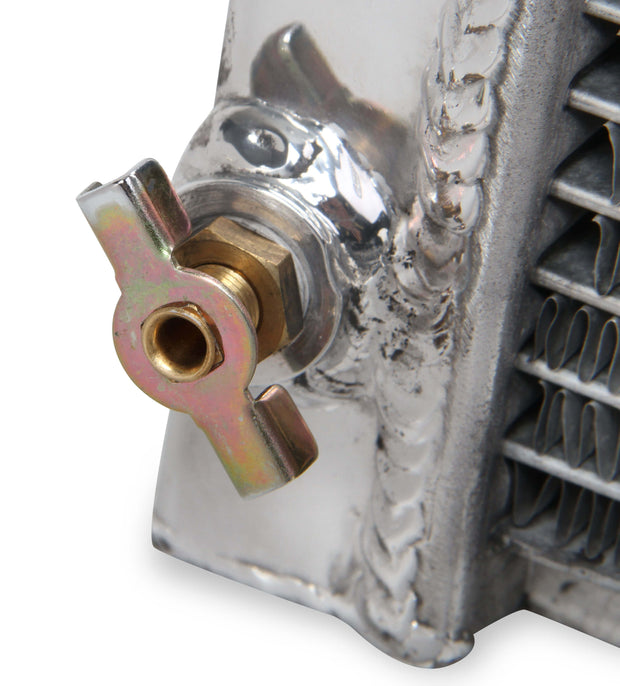

  • Billet Aluminum Filler Neck and OEM style Brass Petcock
  • More cooling fins per inch for more efficient cooling

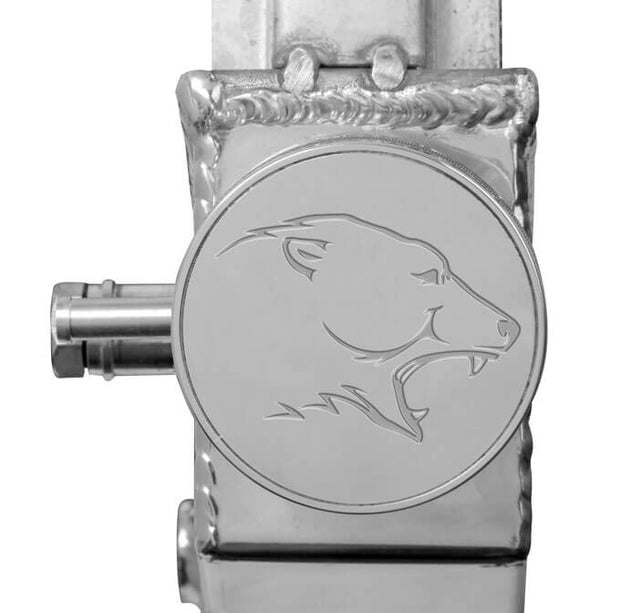

  • Custom Frostbite High Performance 16lb. radiator cap
  • Polished top and tanks for custom show appearance
  • Applications supporting up to 1000+ horsepower

# of Passes Single
Brand Frostbite
Cooling Row Diameter 3/4"
Core Dimension 16-3/4 x 24-7/8
Core Thickness 2.20"
Emission Code 5
Hose Location Inlet Passenger
Hose Location Outlet Driver
Inlet Size 1-1/2"
Mounting Type Saddle Mount
Outlet Size 1-3/4"
Overall Dimension 19-7/8 x 30-3/4
Product Type Radiators
Rows 3
Transcooler Provision 1/4NPT
Part Number FB177
