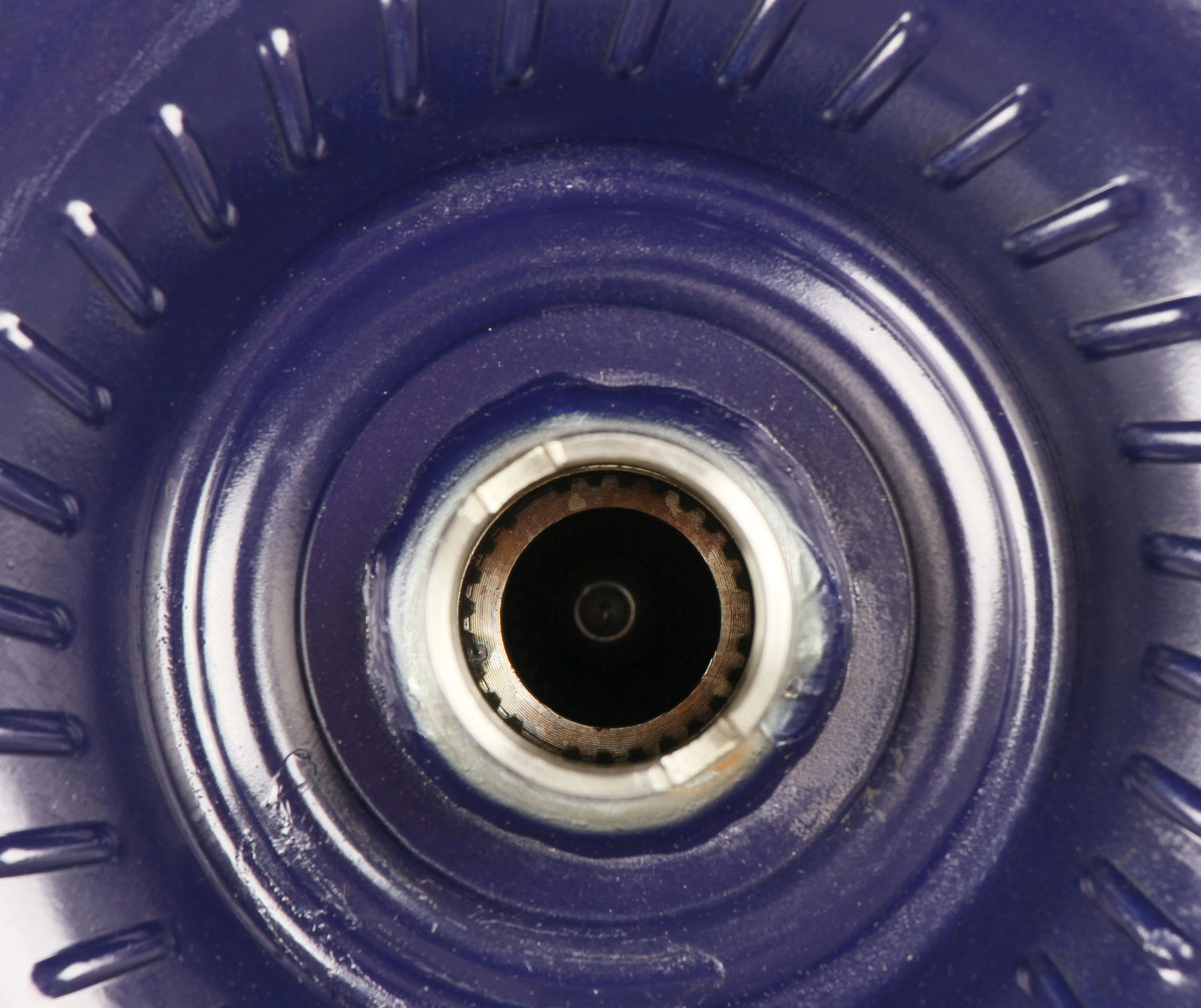

Fits 1984-93 GM 700R4/4L60 w/30 spline input, 1993-97 4L60E w/30 spline input and 1997-04 Corvette 4L60E transmissions. Retains Lock-up

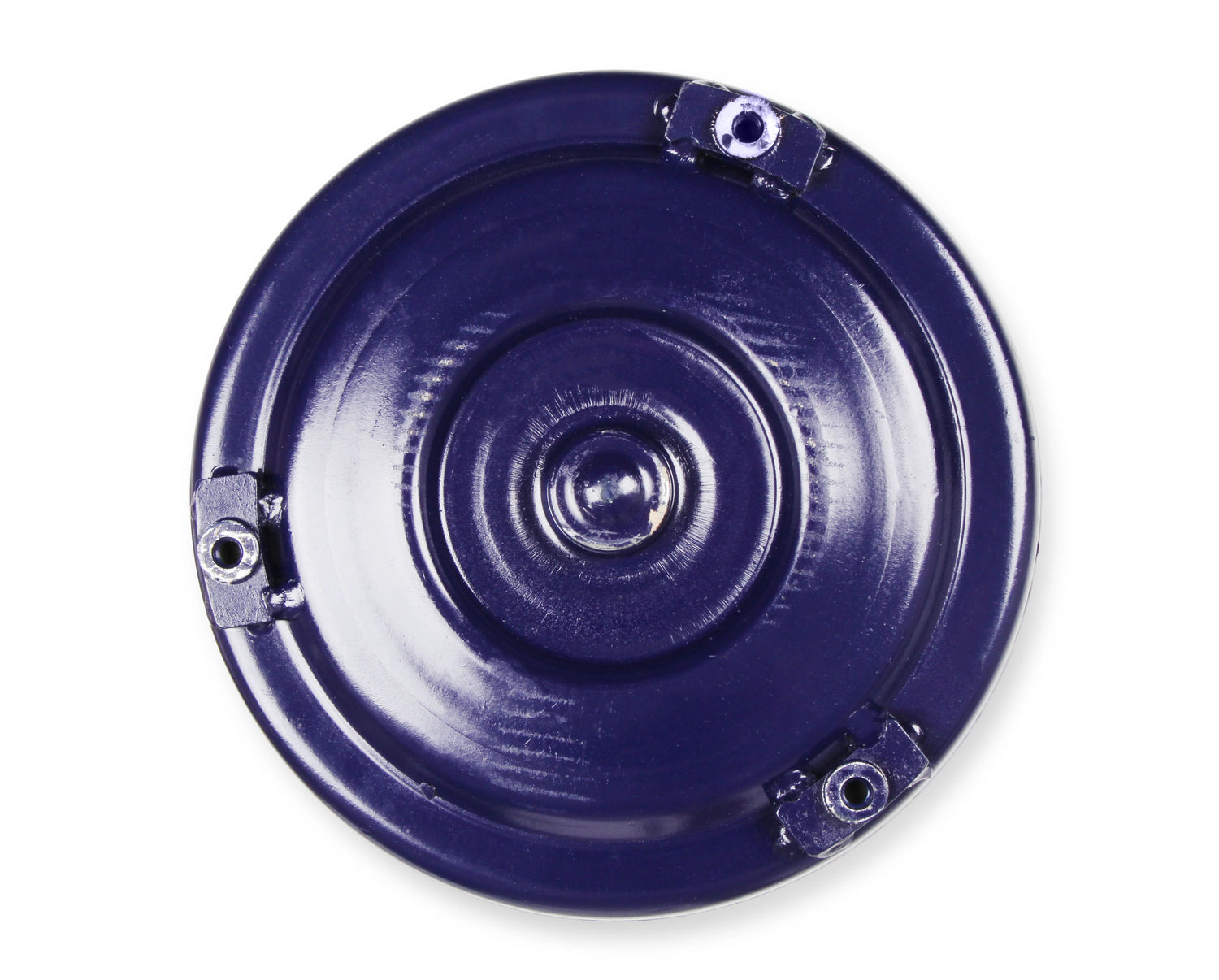

10.75-inch Bolt Circle - 2200-2600 RPM Stall

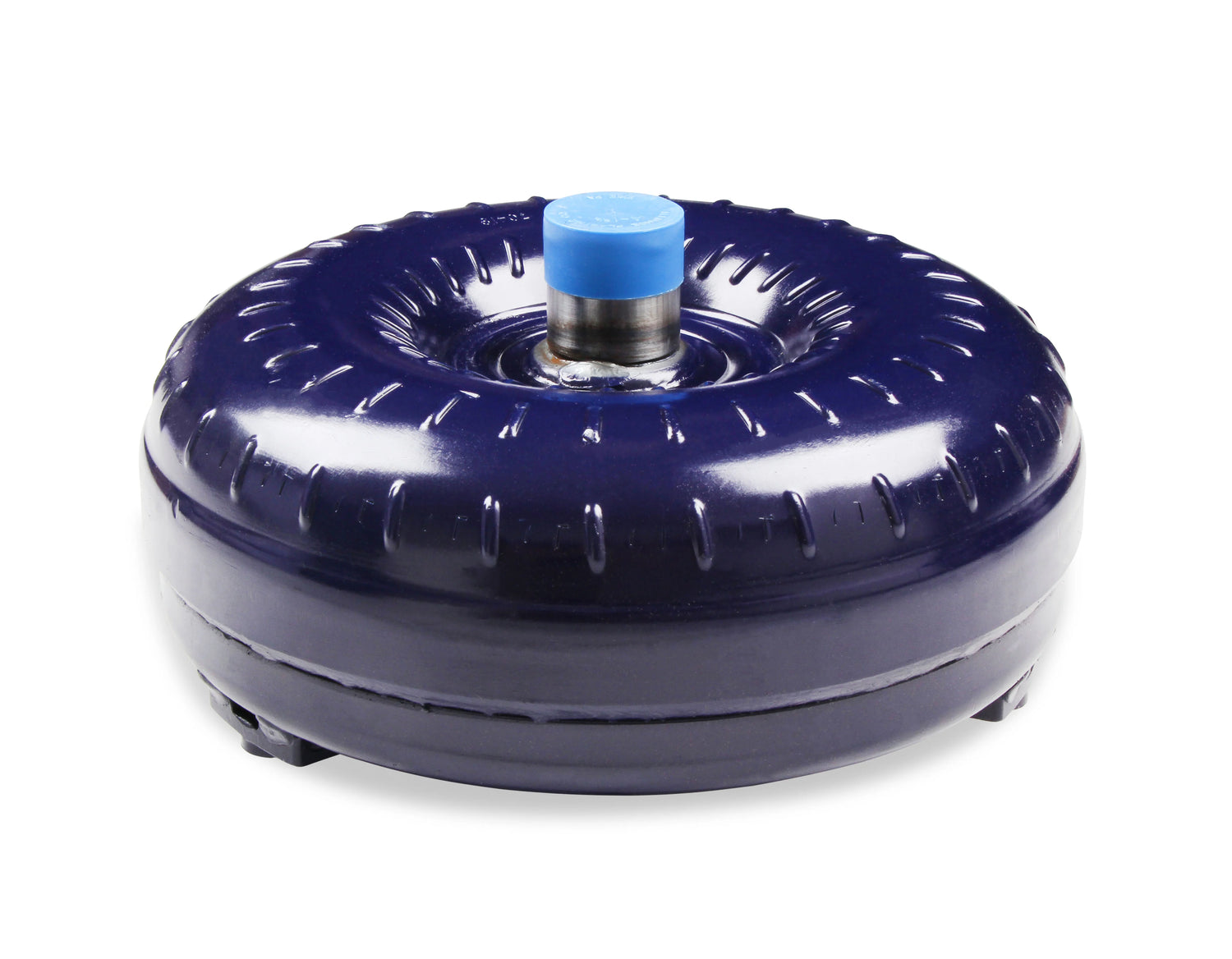

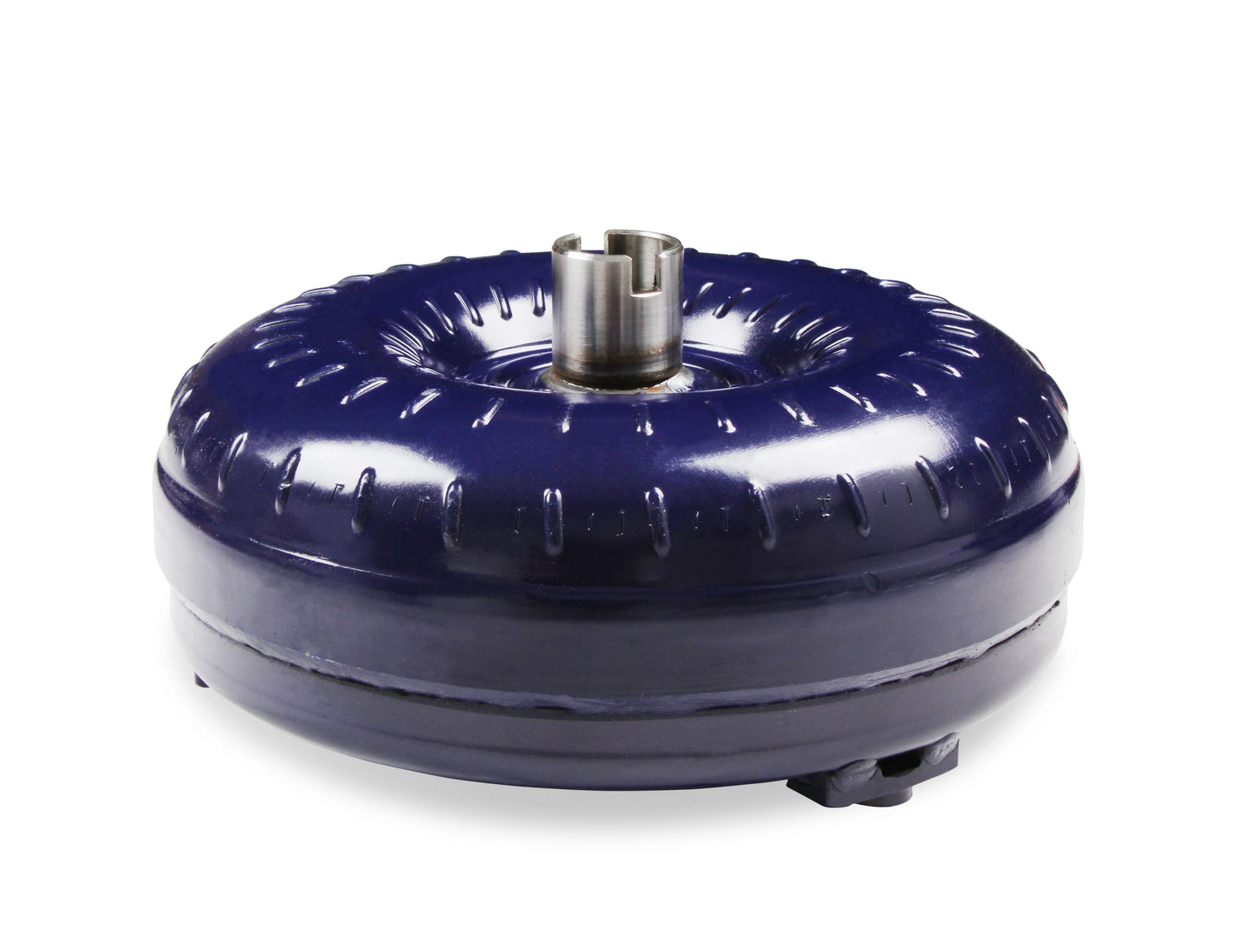

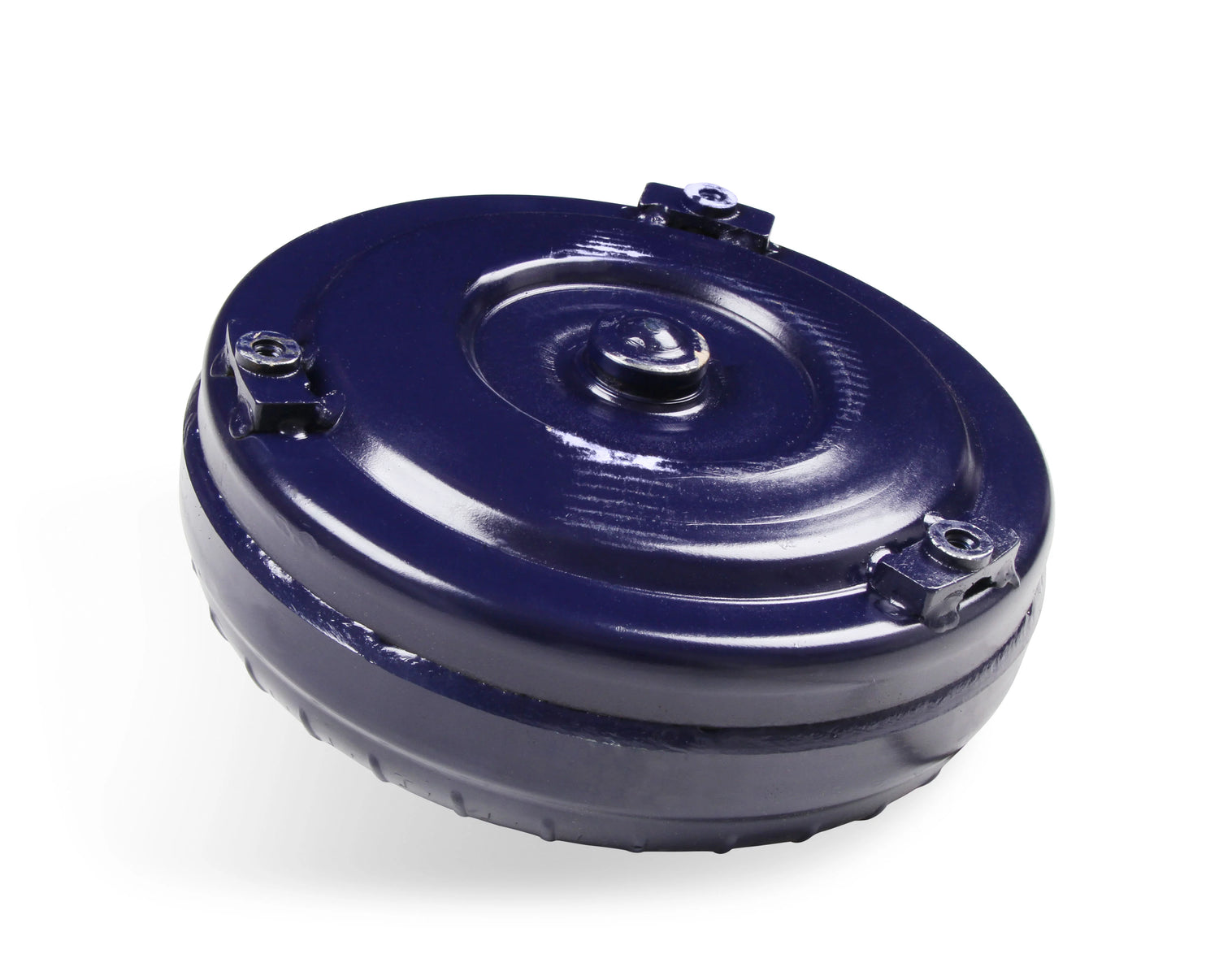

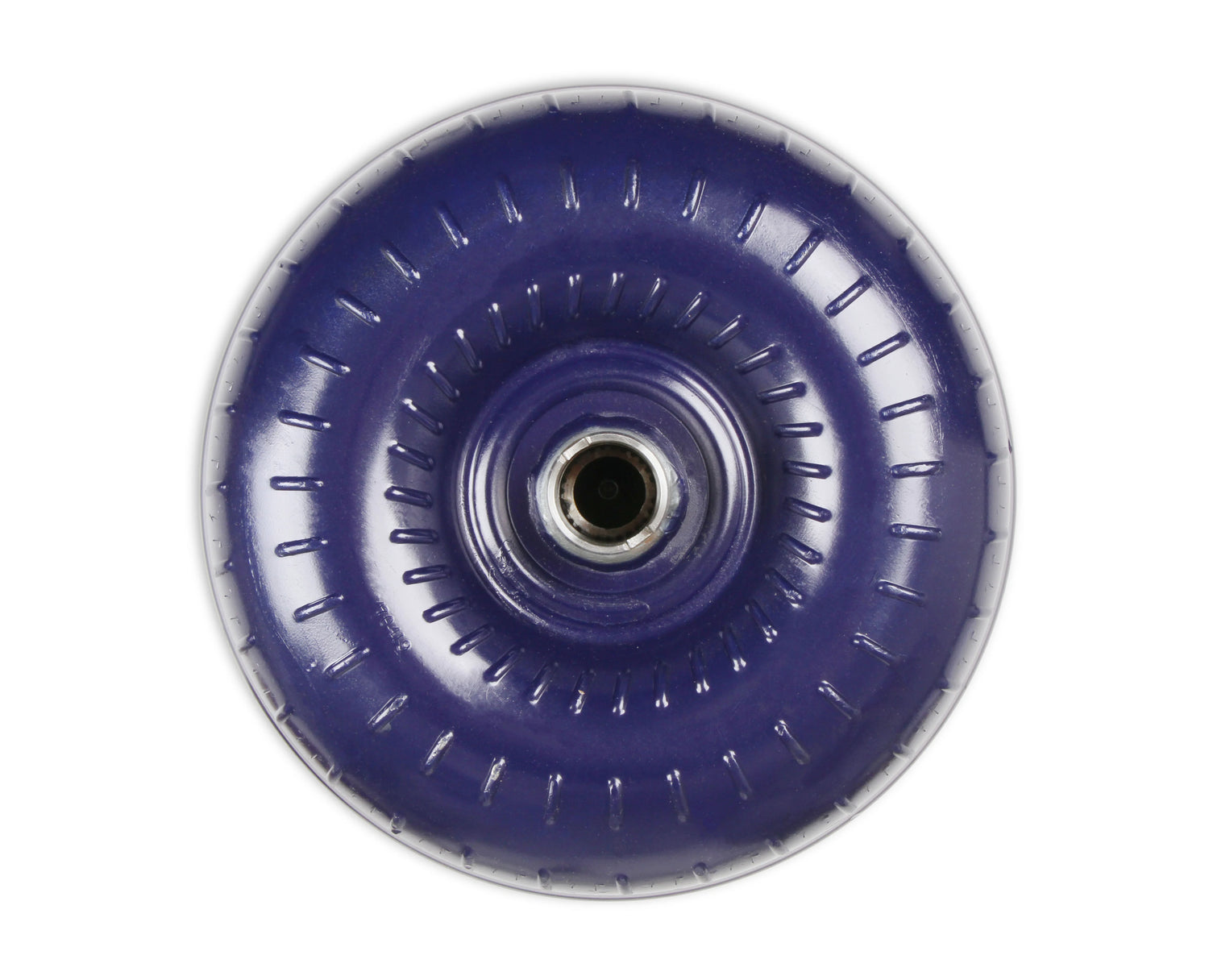

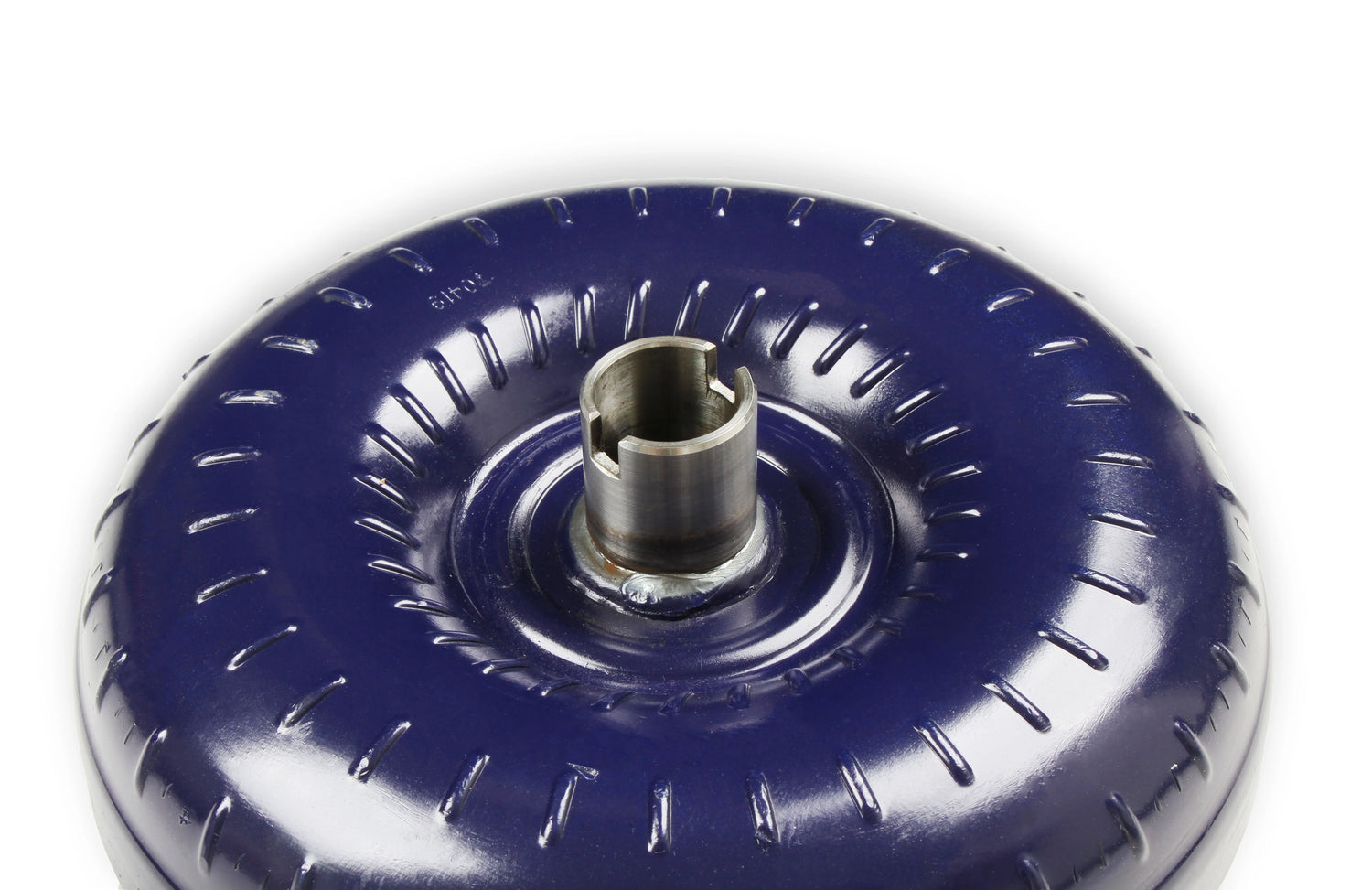

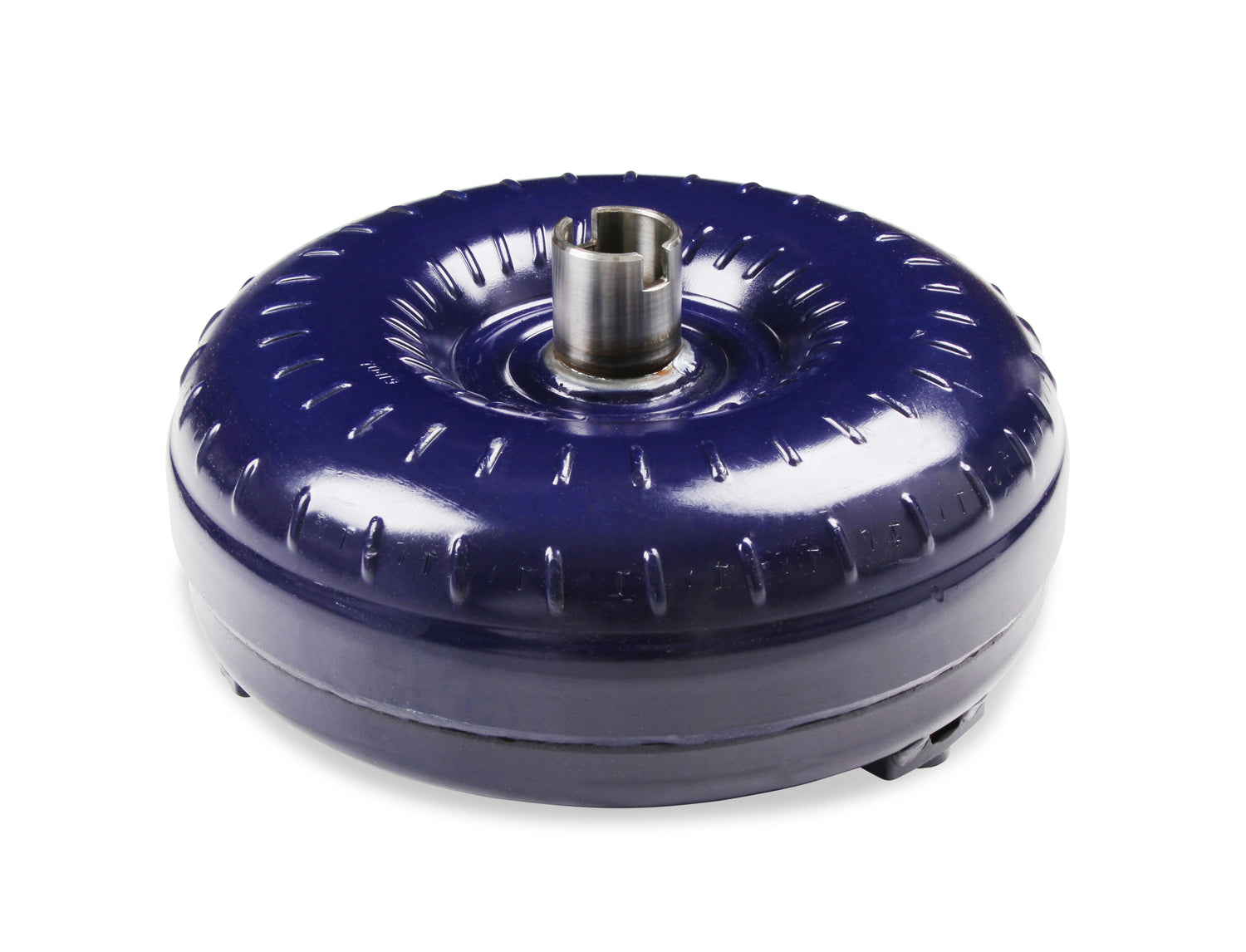

This Holeshot 2400 fits 1984-93 GM 700R4/4L60 w/30 spline input, 1993-97 4L60E w/30 spline input, and 1997-04 Corvette transmissions. This converter retains the lockup feature. Holeshot torque converters are for serious-minded performance enthusiasts and offer additional strength and durability features not found in our Tork Master or Traveler series of converters. The Holeshot 2400 converter is an excellent choice for vehicles with some performance engine modifications, particularly big cams that tend to reduce low-end power and torque. The higher stall speed of this converter will launch the car in a higher rpm range where more torque is readily available, resulting in quicker acceleration. Holeshot converters feature furnace-brazed impeller fins and turbine, a new precision alloy impeller hub, and new heavy-duty needle bearings. Other features include fully balanced and pressure tested by expert technicians. Notes: Stall speed listings are based on engines producing 230lb. ft. of torque at 2,500 rpm. More torque at 2,500 rpm will give you more stall speed, and less torque at 2,500 rpm will give you less stall speed than the stall speed ratings indicated. Higher stall converters can generate more heat, so we highly recommend adding a transmission cooler. This converter is Not recommended for supercharged, plate-type nitrous oxide, or trans-brake applications. The product images shown are for illustration purposes only and may not be an exact representation of the product. 10.75-inch bolt circle.

• Precision Balanced on Certified Balance Equipment

• Copper Furnace Brazed Impeller and Turbine

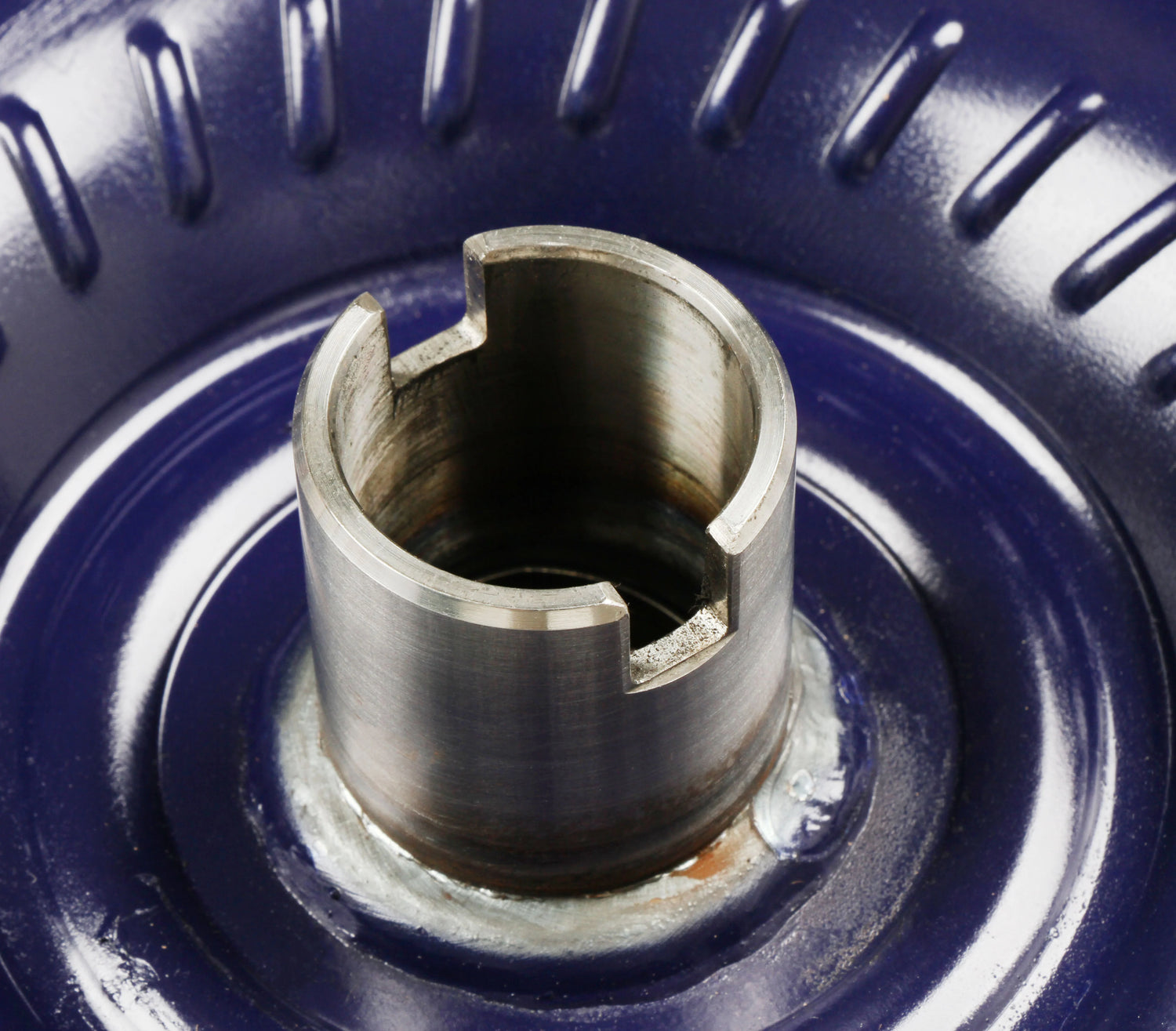

• New Precision Alloy Steel Impeller Hub

• Race Proven Technology & Quality

ABOUT B&M

B&M® specializes in performance automatic transmissions, torque converters, SFI approved flexplates, legendary automatic shifters, precision manual shifters, and many other transmission products including cast deep aluminum transmission pans, transmission coolers, and automatic transmission fluid. B&M Performance & Off-Road has been at the vanguard of the growing automotive aftermarket since the early 1950s. Racers themselves, B&M’s founders identified the needs of local performance enthusiasts and developed products to fill those needs. B&M specializes in performance automatic transmissions, torque converters, SFI approved flexplates, legendary automatic shifters, precision manual shifters, automatic shift handles, extended transfer case handles, cast deep aluminum transmission pans, differential covers, transmission coolers, power steering coolers, automatic transmission fluid, and transmission accessories for performance street, truck, Jeep, and off-road applications.
